Progress on Biomedical Ceramic Coatings Prepared by Thermal Spraying

doi:10.3724/SP.J.1077.2013.12329

Abstract

Abstract:

Biomedical ceramic coatings on metallic substrates deposited via thermal spraying have attracted extensive attentions in the field of orthopedic implants due to their excellent mechanical strengths and biological properties. The studies on biomedical coatings for orthopedic implants are overviewed, and improvements of thermal sprayed hydroxyapatite coatings are summarized. Newly developed bioactive calcium silicate coatings are reviewed as well.

Key words: thermal spray, plasma spray, HA coating, calcium silicate coating, review

CLC Number:

TB43

ZHENG Xue-Bin, XIE You-Tao. Progress on Biomedical Ceramic Coatings Prepared by Thermal Spraying[J]. Journal of Inorganic Materials, 2013, 28(1): 12-20.

Figures/Tables 7

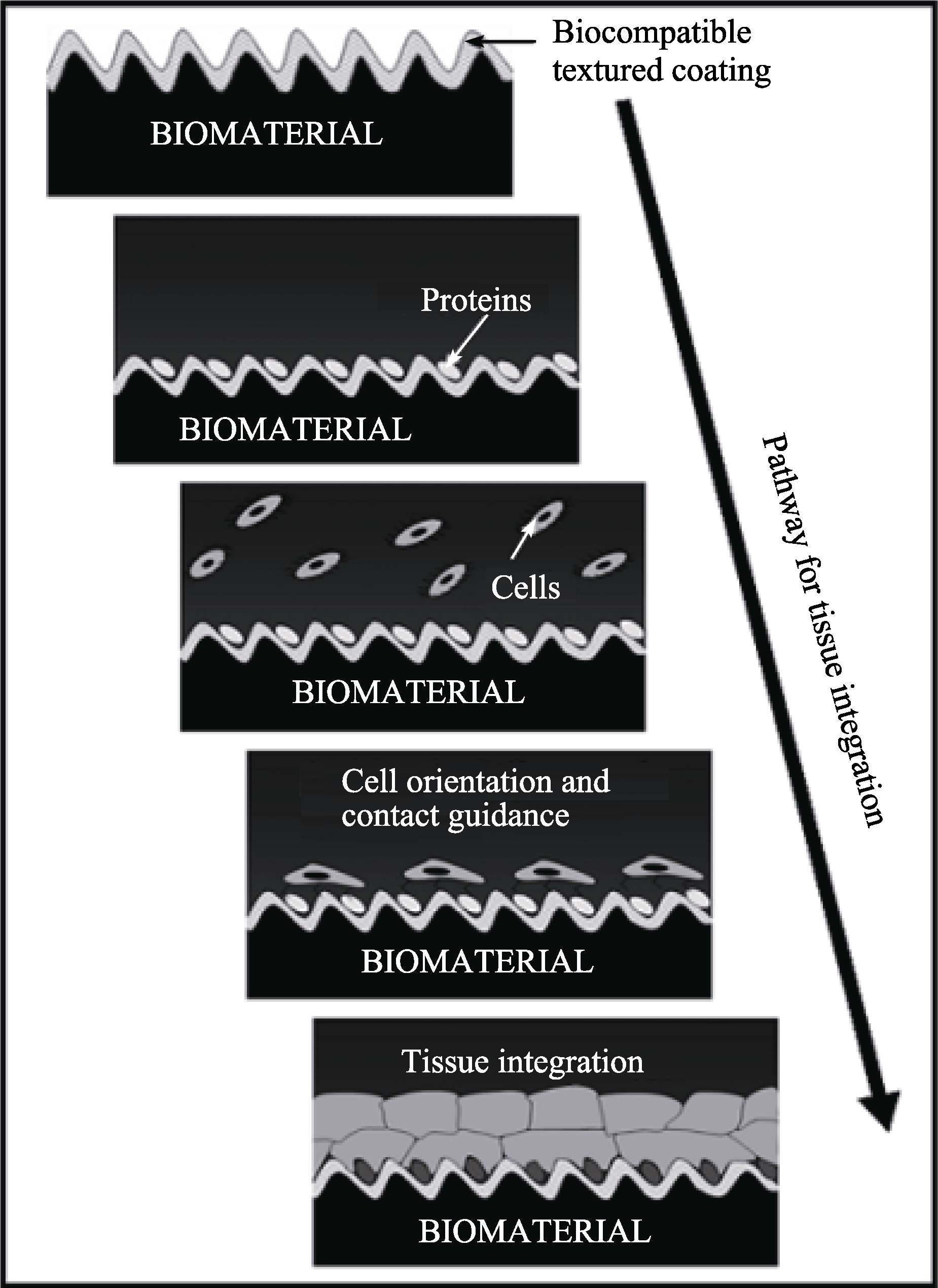

Fig. 1 Schematic illustration of the sequential reactions that taken place after the implantation of a biomaterial into a living system[3]

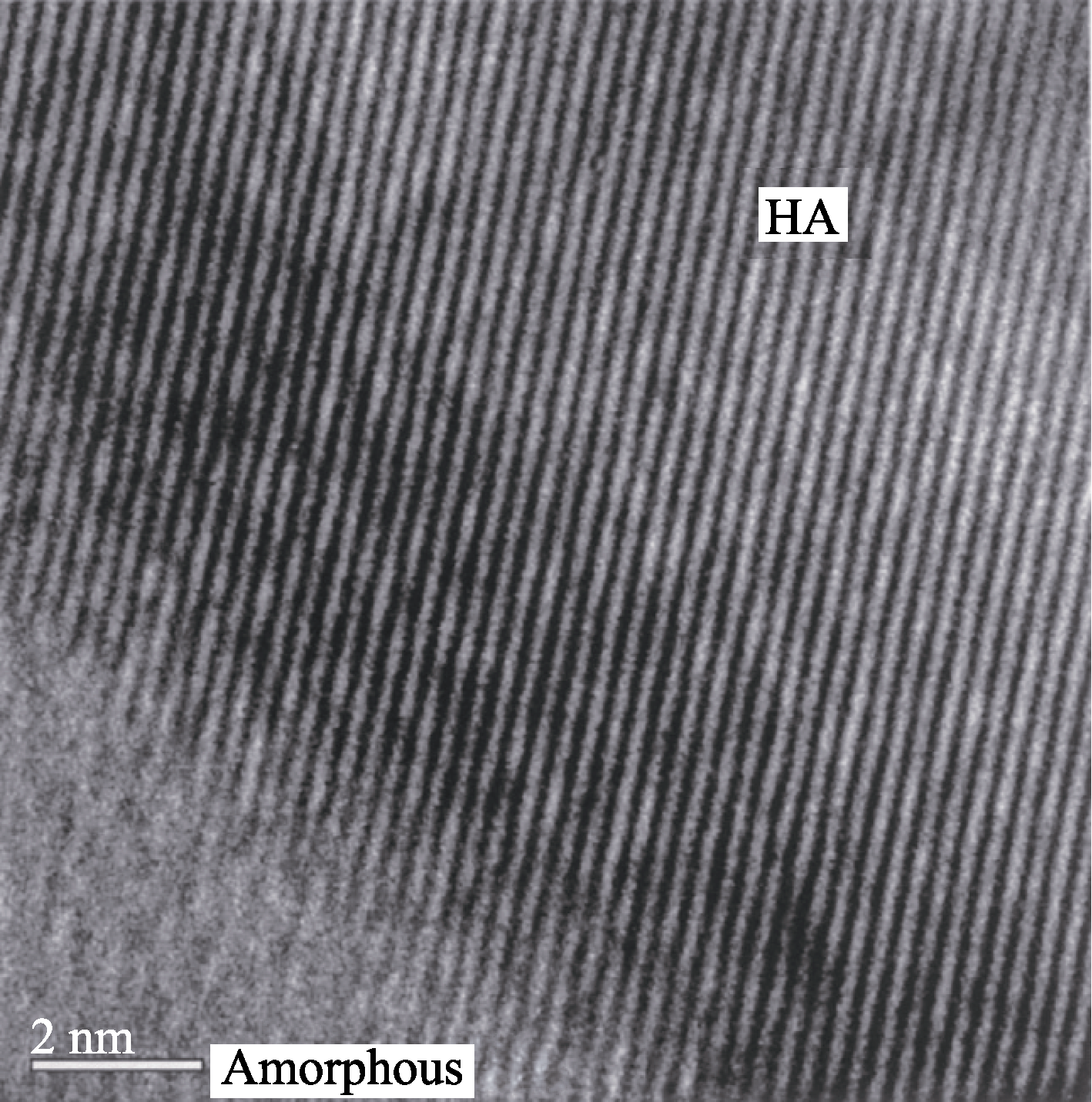

Fig. 2 TEM lattice image showing amorphous/HA phases Lattice spacing is about 0.27 nm[27]

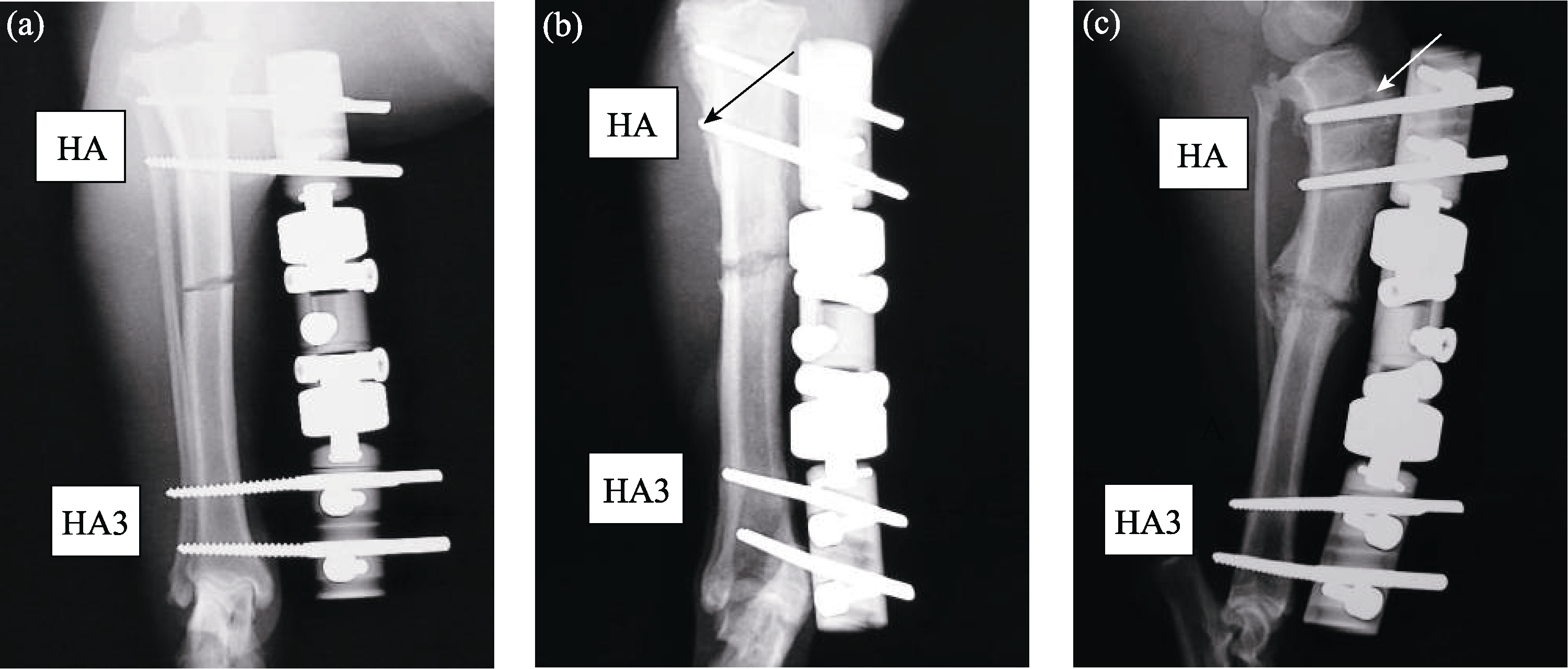

Fig. 3 X-ray views of antibacterial and convenient HA coated screws after implanted in dog’s tibia[68]

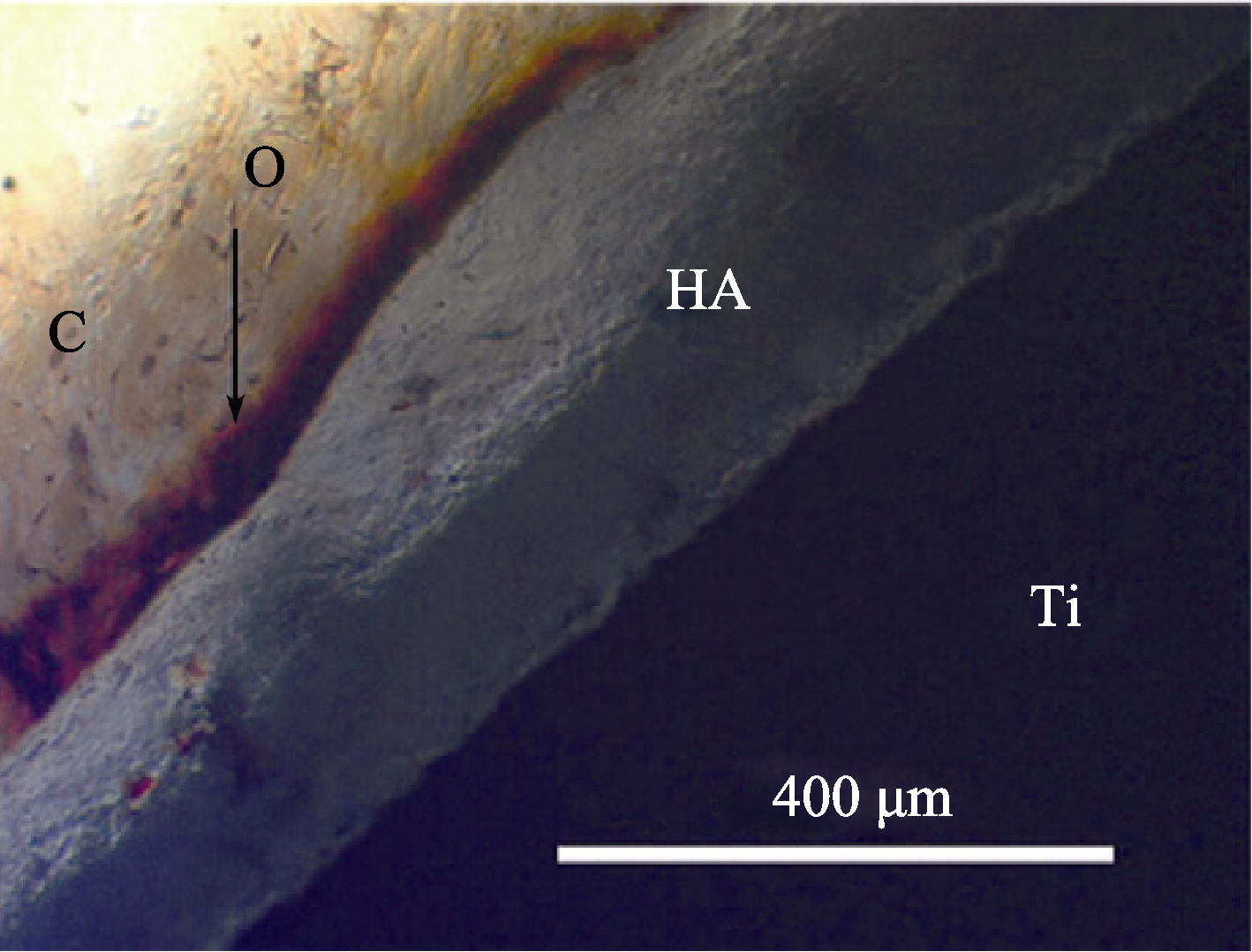

Fig. 4 Optical photomicrograph of a longitudinal section of nano-HA coated Ti implanted in rat femur at 2 w showing nonmineralized osteoid (O), and collagen matrix (C) [30]

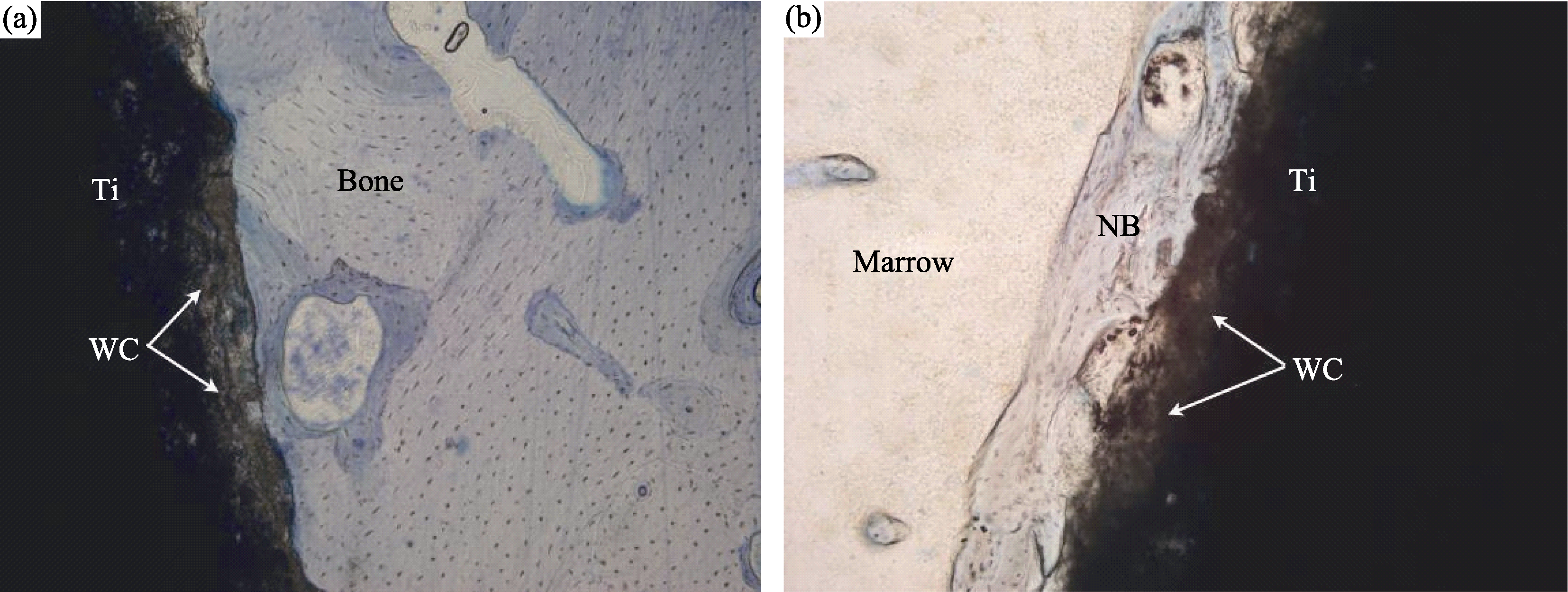

Fig. 5 Histological morphologies of the cross-section of the wollastonite coating after implantation in cortical bone (a) and marrow (b) for 3 months[90]

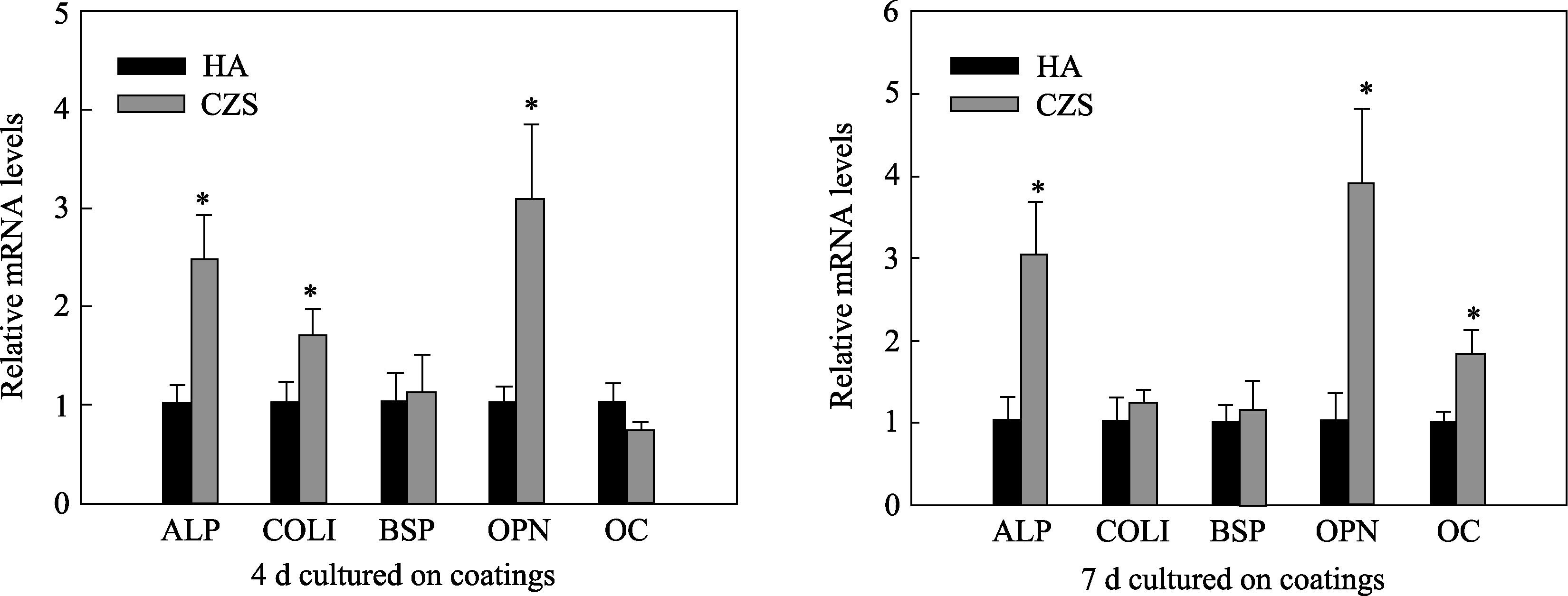

Fig. 6 Expression levels of osteoblastic differentiation related genes of hBMSCs cultured on CaO-ZrO2-SiO2 and HA coatings for (A) 4 d and (B) 7 d [99]

References 101
