Preparation and Properties of High-performance Needled C/C Composites

doi:10.15541/jim20190607

Abstract

Abstract:

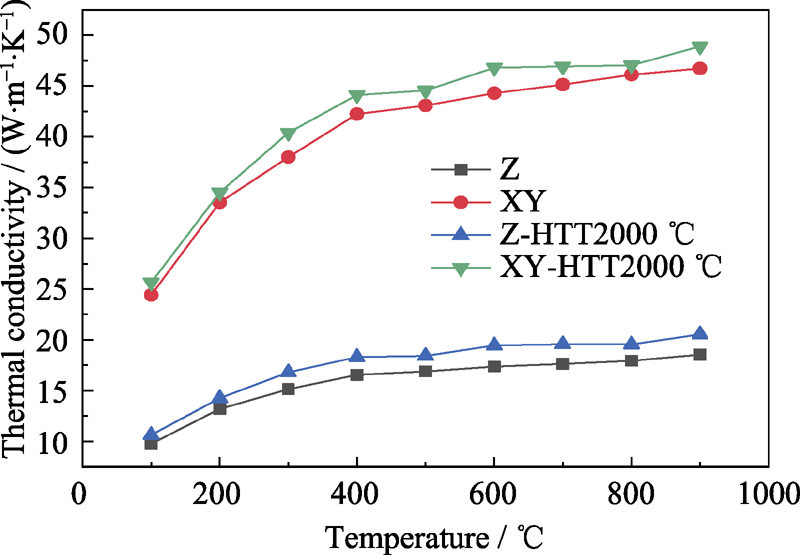

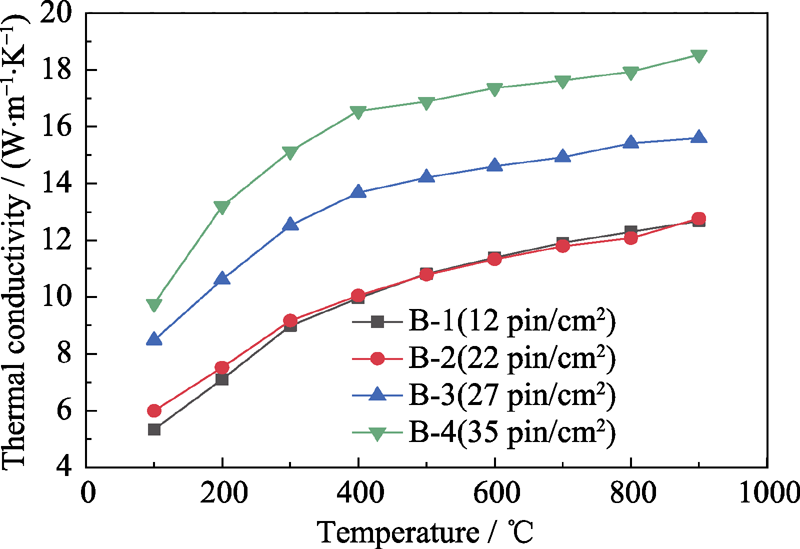

To obtain high performance needled C/C composites, a series of needled non-woven carbon fiber felt with different characteristics was prepared. The needled C/C composites were prepared by means of high-pressure impregnation-carbonization, and their microstructure features, mechanical properties and thermo-physical properties of needled C/C composites were characterized. The investigation results show that the types of preform structure have obvious effects on the mechanical and thermo-physical properties of the C/C composites. When the preform is produced with key characteristics of needling depth at 12 mm, needling density at 22 pin/cm ² and fiber web/weft less ply at 1.0:4.8, the needle C/C composites shows excellent comprehensive performance, with tensile strength, compression strength, flexural strength, in-plane shear strength, and interlaminar shear strength of 207, 228, 285, 54 and 28 MPa, respectively.

Key words: C/C composite, needling characteristic, mechanical property, thermo-physical property

CLC Number:

TB332

LIU Yufeng, FENG Xiang, WANG Jinming, XU Zhenghui, LI Tongqi, JIAO Xingjian, WANG Yalei, XIONG Xiang. Preparation and Properties of High-performance Needled C/C Composites[J]. Journal of Inorganic Materials, 2020, 35(10): 1105-1111.

Figures/Tables 11

References 17

[1]	黄启忠 . 高性能针刺炭/炭复合材料的制备、结构与应用. 长沙: 中南大学出版社. 2010: 5-6.
[2]	FITZER E . The future of carbon-carbon composites. Carbon, 1987,25(2):163-190. DOI URL
[3]	李贺军 . 炭/炭复合材料. 新型炭材料, 2001,16(2):79-80.
[4]	SACAGE G . Carbon-carbon composites. London: Chapman and hall, 1993, 323-359.
[5]	左劲旅, 张红波, 熊翔 , 等. 喉衬用炭/炭复合材料研究进展. 炭素, 2003 ( 2):7-10.
[6]	JI A L, LI H J, CUI H , et al. Axial thermodynamic performance analysis of the different preform C/C composites. Journal of Inorganic Materials , 2010,25(9):994-998. DOI URL
[7]	孙乐, 王成, 李晓飞 , 等. C/C复合材料预制体的研究进展. 航空材料学报, 2018,38(2):86-95.
[8]	CHEN X, CHEN L, ZHANG C , et al. Three-dimensional needled- punching for composites - a review. Composites: Part A: Applied Science and Manufacturing, 2016,85:12-30. DOI URL
[9]	LACOMBE A. HERAKLES Thermal-thermal-structural Composite Materials Boost Rocket Nozzle Performance. AIAA 2013- 3863. 2013.
[10]	LACOMBE A, PICHON T, LACOSTE M . High Temperature Composite Nozzle Extensions, a Mature and Efficient Technology to Improve Upper Stage Liquid Rocket Engine Performance. AIAA 2007-5470, 2007.
[11]	ELLIS R A, LEE J C, PAYNE F M . Carbon/carbon extendible nozzles. Acta Astronautica, 2002,50(6):357-367. DOI URL
[12]	嵇阿琳, 李贺军, 崔红 , 等. 针刺碳纤维预制体的发展与应用. 炭素技术, 2010,29(3):23-27.
[13]	张宏波, 姜召阳, 孙陈成 , 等. 无纬布增强针刺毡C/C复合材料性能的研究. 宇航材料工艺, 2007(1):19-22.
[14]	孙岩, 刘勇琼, 廖英强 , 等. 针刺C/C复合材料剪切性能. 宇航材料工艺, 2012(3):91-95.
[15]	李艳, 崔红, 王斌 , 等. 致密化工艺对厚壁针刺C/C复合材料性能的影响. 复合材料学报, 2017,34(10):2337-2343.
[16]	ZHENG J H, LI H J, CUI H , et al. Relations between needling processing parameters and tensile strength of C/C composites. Journal of Inorganic Materials, 2017,32(11):1147-1153. DOI URL
[17]	熊翔, 黄伯云, 李江鸿 , 等. 准三维C/C复合材料的弯曲性能及其破坏机理. 航空材料学报, 2006,26(4):88-91. DOI URL
	MANOCHA L M . Thermophysical properties of densified pitch based carbon/carbon materials-- II. Bidirectional composites. Carbon, 2006,44(3):480-487. DOI URL

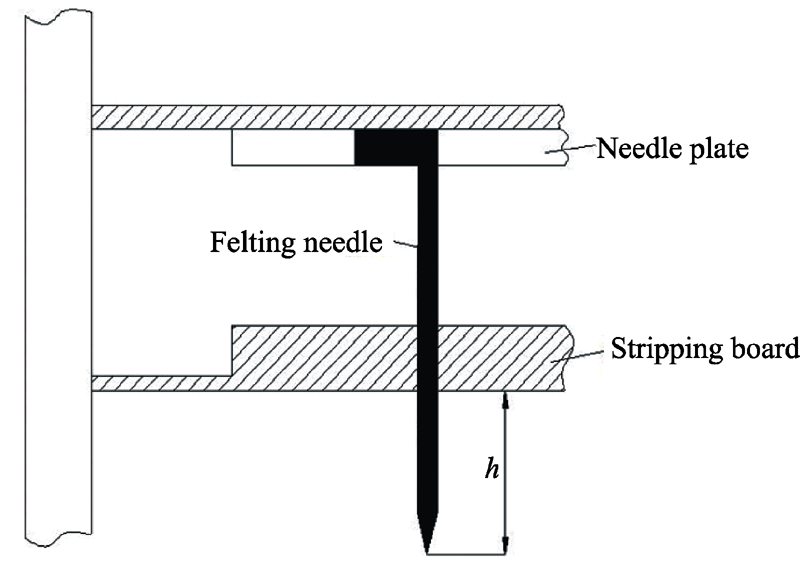

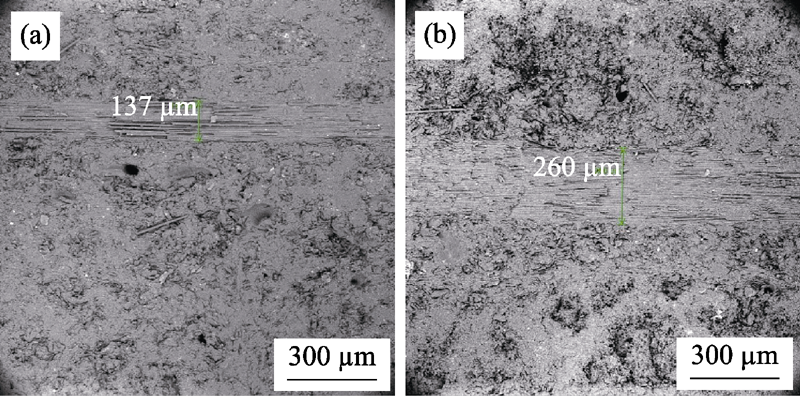

No.	ρ_A-fiber web/ (g·m^-2)	ρ_A-weftless ply/ (g·m^-2)	Needling depth/ mm	Needling density/ (pin·m^-2)	ρ_preform/ (g·cm^-3)	ρ_C/C/ (g·cm^-3)	Porosity/ %
A	200	300	12	22	0.31	2.073	0.677
B-1	140	340	12	12	0.45	2.052	0.528
B-2	140	340	12	22	0.44	2.047	0.680
B-3	140	340	12	27	0.44	2.052	0.681
B-4	140	340	12	35	0.45	2.048	0.570
B-5	140	340	15	12	0.44	2.042	0.622
B-6	140	340	18	12	0.44	2.040	2.361
B-7	120	300	12	22	0.46	2.040	1.643
B-8	140	340	12	22	0.45	2.048	1.416
C	80	380	12	22	0.6	2.016	1.127

No.	ρ_A-fiber web/ (g·m^-2)	ρ_A-weftless ply/ (g·m^-2)	Needling depth/ mm	Needling density/ (pin·m^-2)	ρ_preform/ (g·cm^-3)	ρ_C/C/ (g·cm^-3)	Porosity/ %
A	200	300	12	22	0.31	2.073	0.677
B-1	140	340	12	12	0.45	2.052	0.528
B-2	140	340	12	22	0.44	2.047	0.680
B-3	140	340	12	27	0.44	2.052	0.681
B-4	140	340	12	35	0.45	2.048	0.570
B-5	140	340	15	12	0.44	2.042	0.622
B-6	140	340	18	12	0.44	2.040	2.361
B-7	120	300	12	22	0.46	2.040	1.643
B-8	140	340	12	22	0.45	2.048	1.416
C	80	380	12	22	0.6	2.016	1.127

No.	ρ_{A-fiber web}/ ρ_{A-weftless ply}	ρ_preform/ (g·cm^-3)	XY tensile strength/MPa	Z tensile strength/MPa
A	1.0 : 1.5	0.31	17.5	0.062
B-8	1.0 : 2.4	0.44	22.0	0.060
C	1.0 : 4.8	0.60	32.9	0.055

No.	ρ_{A-fiber web}/ ρ_{A-weftless ply}	ρ_preform/ (g·cm^-3)	XY tensile strength/MPa	Z tensile strength/MPa
A	1.0 : 1.5	0.31	17.5	0.062
B-8	1.0 : 2.4	0.44	22.0	0.060
C	1.0 : 4.8	0.60	32.9	0.055

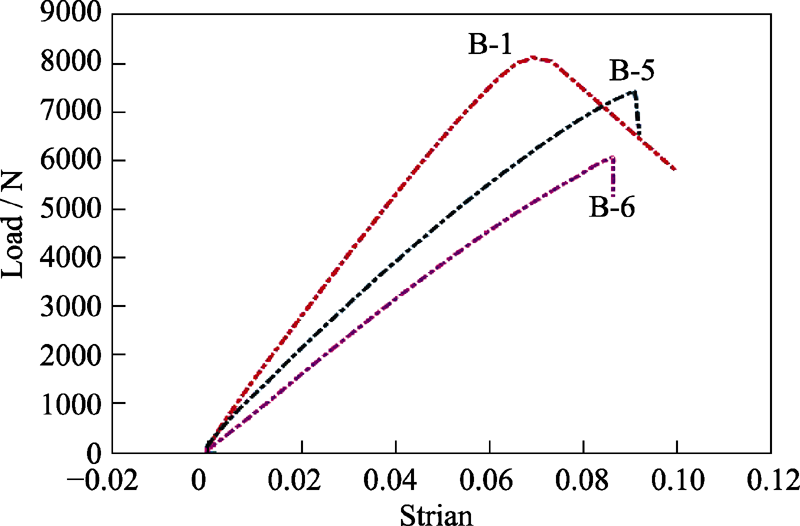

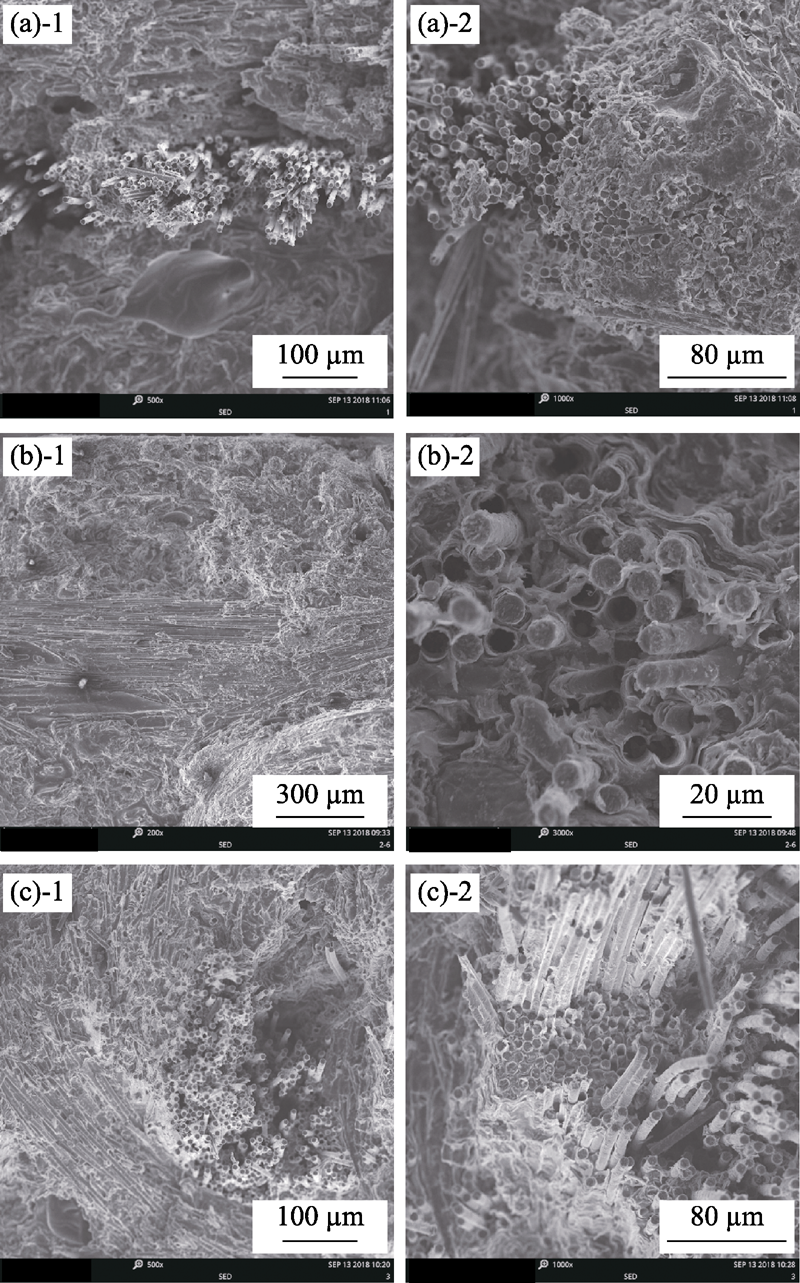

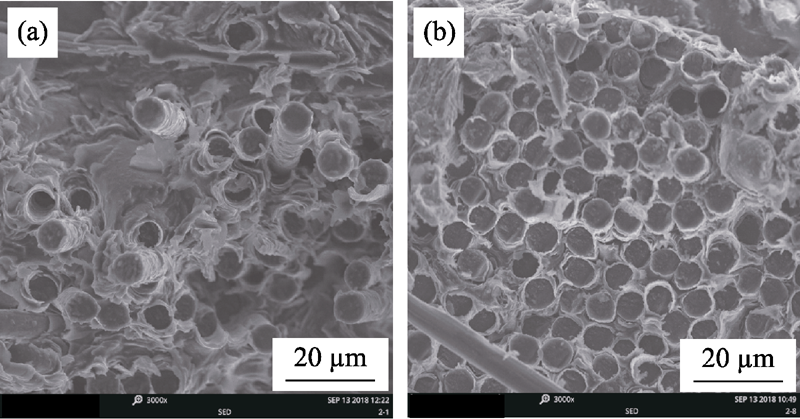

No.	Tensile		In-plane compression		Flexural		In-plane shear		Interlaminar shear strength/ MPa
No.	Strength/ MPa	Modulus/ GPa	Strength/ MPa	Modulus/ GPa	Strength/ MPa	Modulus/ GPa	Strength/ MPa	Modulus/ GPa	Interlaminar shear strength/ MPa
A	116.0	44.85	173.1	37.76	181.5	34.56	67.9	11.08	24.6
B-1	165.5	59.22	221.5	56.14	255.8	43.14	62.7	10.97	23.3
B-2	151.1	57.06	201.8	51.97	249.5	40.21	58.9	10.39	24.0
B-3	165.0	55.34	205.2	53.02	239.1	43.36	58.9	10.68	25.0
B-4	160.9	52.41	198.0	52.18	226.9	42.45	58.2	10.73	25.5
B-5	150.5	56.61	198.9	49.48	211.4	39.49	59.3	10.10	24.0
B-6	120.4	40.99	196.4	44.72	185.1	35.36	54.7	9.93	34.6
B-7	154.0	50.94	219.2	53.41	214.4	39.02	60.6	10.10	29.6
B-8	154.2	51.00	200.2	54.89	221.0	40.72	60.7	10.13	26.0
C	207.4	68.59	228.6	68.97	285.1	52.84	54.1	10.06	28.3
