Preparation and Properties of Carbon Fiber/Si3N4 Composites

doi:10.15541/jim20140165

Abstract

Abstract:

To investigate the effects of carbon fiber (C_f) adding content on the properties of Si₃N₄, C_f/Si₃N₄ composites with 0, 2wt% and 5wt% of short carbon fibers were prepared by hot-press sintering method, using Y₂O₃as sintering additives_. With long-time ball milling process, carbon fibers were well dispersed in mixed powders using ethanol as dispersion medium. Carbon fibers distribute uniformly in the composites and Si₃N₄grains grow to a certain degree in the vertical direction to the pressure of hot-press. The interfacial by-product silicon carbide (SiC) phase forms due to the reaction between added C_f and Si₃N₄ particles or SiO₂ layer on surface of Si₃N₄ particles during high temperature sintering. The sample with 2wt% C_f addition achieves a higher value of thermal conductivity (45.8 W/(m?K)), while the thermal conductivity of Si₃N₄without C_f is only 37.1 W/(m?K). Therefore, the addition of C_f can improve the thermal conductivity of the composites. The fracture toughness of the composites has a slight increase with C_f adding. The measured hardness values for all samples are within a range of 16.6-16.8 GPa.

Key words: Cf/Si3N4 composite, hot-press sintering, interfacial reaction, thermal conductivity, mechanical property

WANG He-Yun, LIU Qian, ZHOU Yao, ZHOU Zhen-Zhen, LIU Guang-Hui. Preparation and Properties of Carbon Fiber/Si₃N₄ Composites[J]. Journal of Inorganic Materials, 2014, 29(9): 1003-1008.

Figures/Tables 8

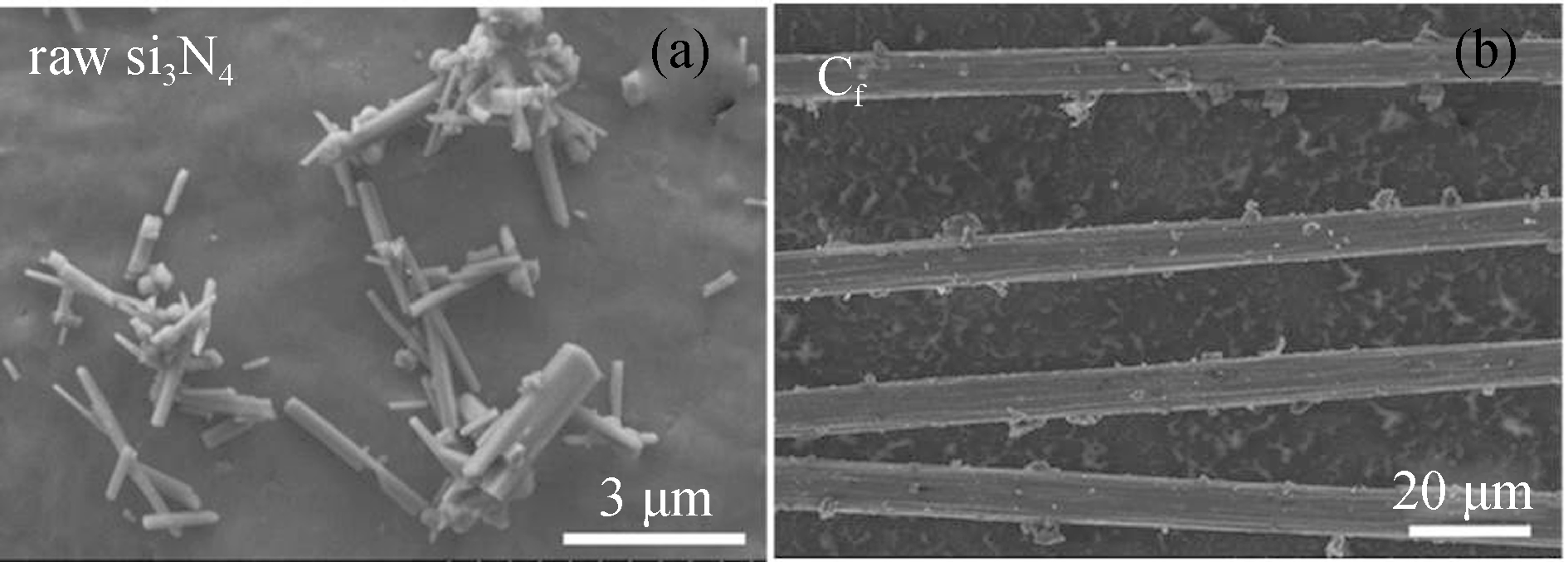

Fig. 1 SEM images of raw Si3N4 particles (a) and raw carbon fibers (b)

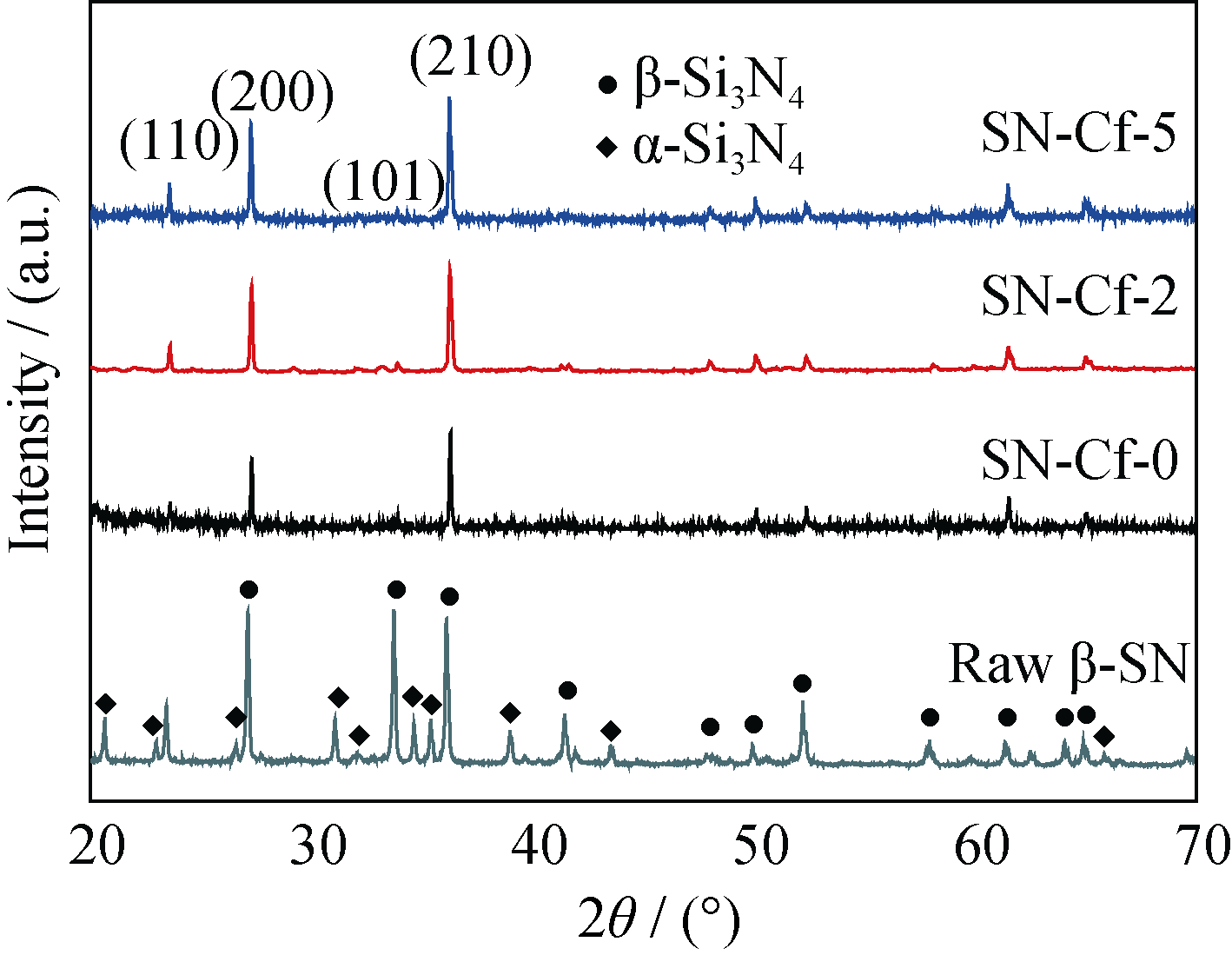

Fig. 2 XRD patterns of raw Si3N4 powders and Cf/Si3N4 composites

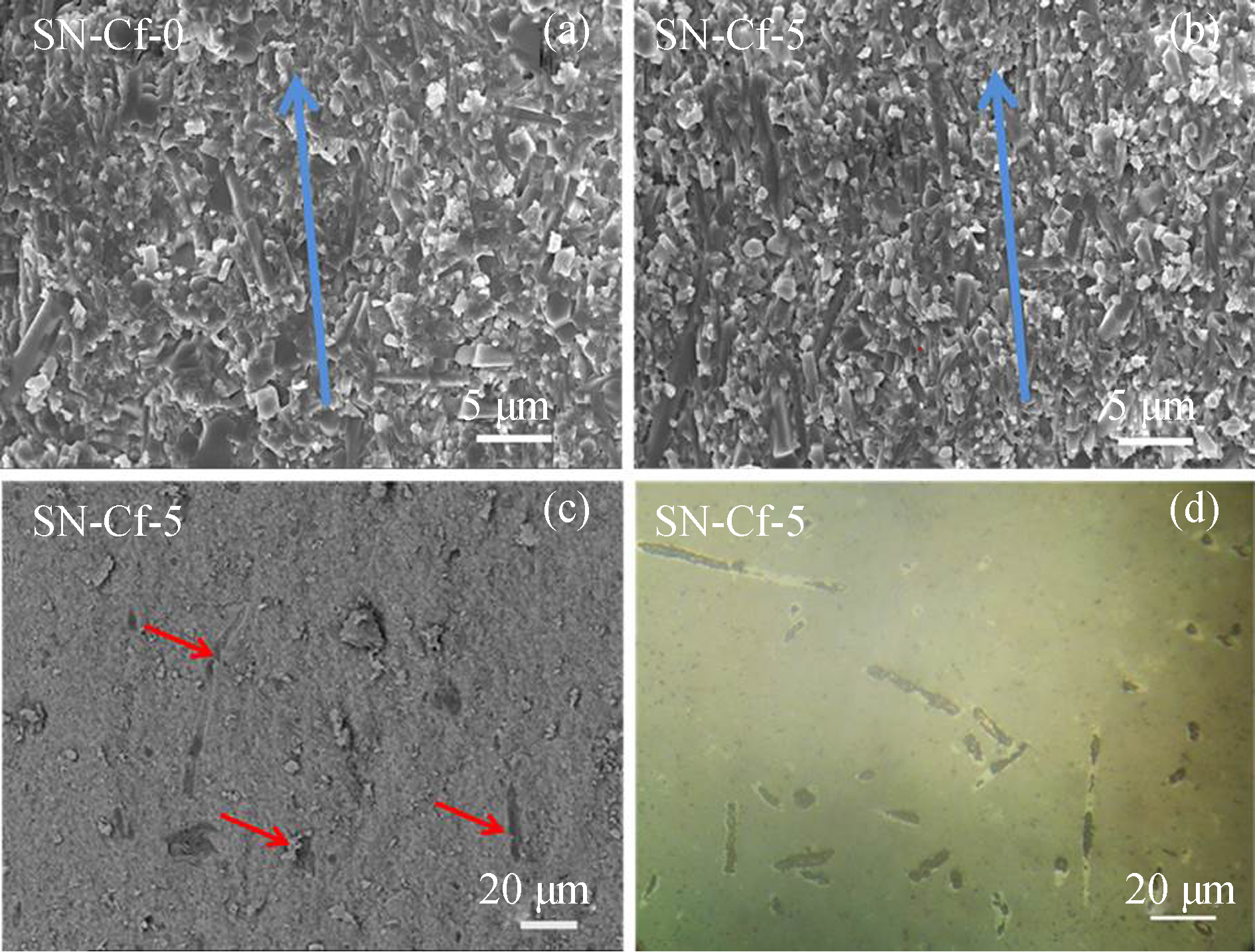

Fig. 3 SEM and optical microscopy images of Cf/Si3N4 Secondary electron image (SEI) of fracture surfaces of SN-Cf-0 (a) and SN-Cf-5 (b), back scattered electron image (BSEI) of fracture surface of SN-Cf-5 (c), and optical microscopy image of SN-Cf-5 surface (d)

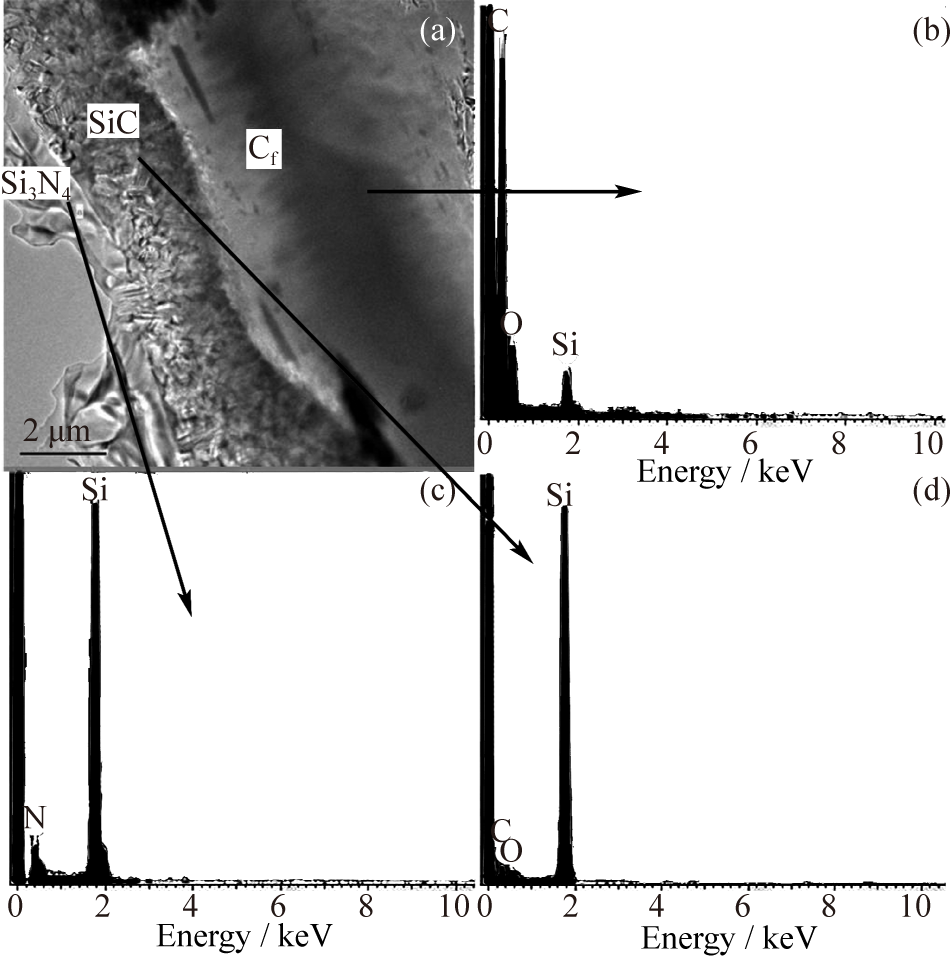

Fig. 4 TEM image of interfacial surface between Cf and Si3N4 in SN-Cf-5 (a) and EDS patterns of different regions (b, c, d) arrowed in (a)

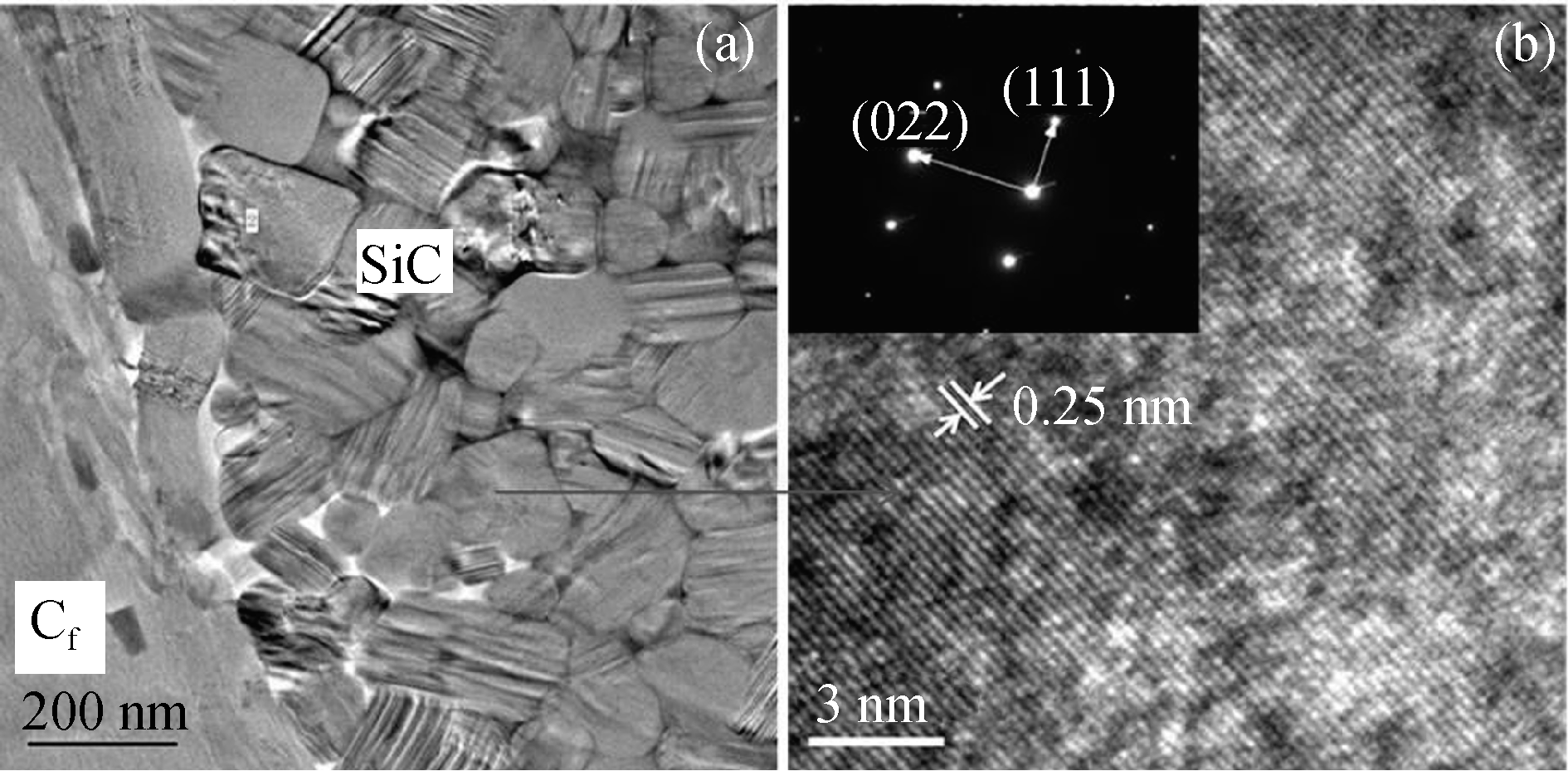

Fig. 5 TEM (a) and HRTEM (b) images of interfacial transition layer of SiC in SN-Cf-5 specimen

Table 1 Thermal properties of Cf/Si3N4 composites measured at room temperature

Composites	C_f/ wt%	ρ/ (g?cm^-3)	C_p/ (mm²?s^-1)	α/ (J?g^-1?K^-1)	k/ (W?m^-1?K^-1）
SN-Cf-0	0	3.27	17.98	0.59	37.12
SN-Cf-2	2	3.31	19.99	0.61	45.84
SN-Cf-5	5	3.28	15.12	0.58	33.43

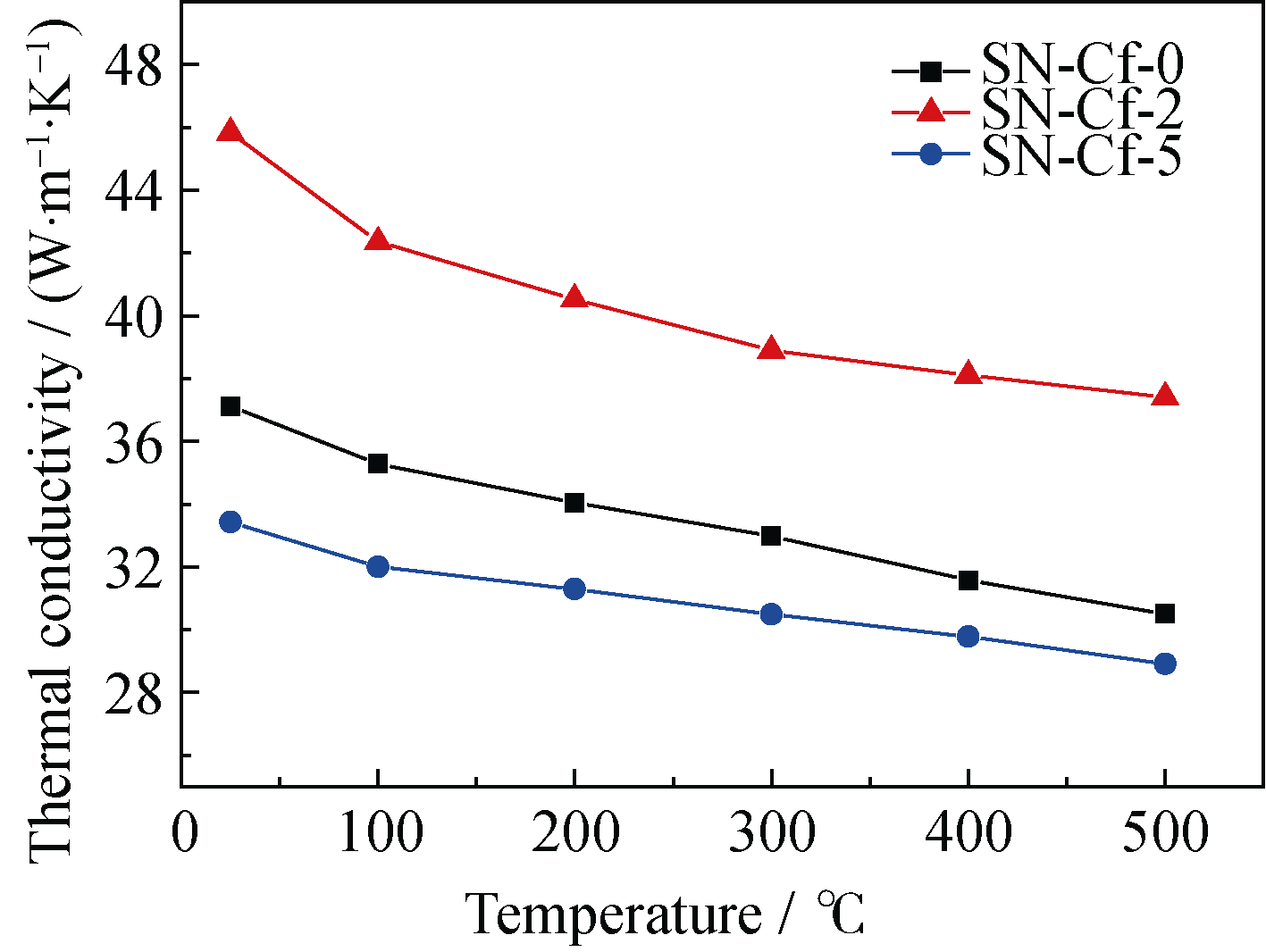

Fig. 6 Variation of thermal conductivity with temperature for Cf/Si3N4 composites

Table 2 Mechanical property of Cf/Si3N4 composites measured at room temperature

Composites	C_f/wt%	H_v/GPa	K_IC/(MPa?m^1/2)
SN-Cf-0	0	16.6	5.0
SN-Cf-2	2	16.8	4.9
SN-Cf-5	5	16.8	5.3

References 21

[1]	KRSTIC ZORAN, KRSTIC D. VLADIMIR. Silicon nitride: the engineering material of the future. Journal of Materials Science, 2011, 47(2): 535-552.
[2]	WATARI KOJI. High thermal conductivity non-oxide ceramics. Journal of the Ceramic Society of Japan, 2001, 109(1): S7-S16.
[3]	PENG MENG-MENG, NING XIAO-SHAN. Sintering of β-Si3N4 powder and thermal conductivity of the ceramic. Rare Metal Materials and Engineering, 2013, 42(1): 405-408.
[4]	ZHANG YING-WEI, YU JIAN-BO, XIA YONG-FENG, et al. Microstructure and mechanical performance of silicon nitride ceramic with seeds addition. Journal of Inorganic Materials, 2012, 27(8): 807-812.
[5]	ZHU XIN-WEN, ZHOU YOU, HIRAO KIYOSHI. Effects of processing method and additive composition on microstructure and thermal conductivity of Si3N4 ceramics. Journal of the European Ceramic Society, 2006, 26: 711-718.
[6]	ZHU XIN-WEN, ZHOU YOU, HIRAO KIYOSHI. Post-densification behavior of reaction-bonded silicon nitride (RBSN): effect of various characteristics of RBSN. Journal of Materials Science, 2004, 39(18): 5785-5797.
[7]	WARARI KOJI, HIRAO KIYOSHI, BRITO E MANUEL, et al. Hot isostatic pressing to increase thermal conductivity of Si3N4 ceramics. Journal of Materials Research, 1998, 14(4): 1538-1551.
[8]	WATARI KOJI, HIRSO KIYOSHI, TORIYAMA MOTOHIRO. Effect of grain size on the thermal conductivity of Si3N4. Journal of the American Ceramic Society, 1999, 82(3): 777-779.
[9]	ZHOU YOU, HYUGA HIDEKI, KUSANO DAI, et al. A tough silicon nitride ceramic with high thermal conductivity. Advanced Materials, 2011, 23(39): 4563-4567.
[10]	CHOI Stephen U S, ZHANG Z G, YU W, et al. Anomalous thermal conductivity enhancement in nanotube suspensions. Applied Physics Letters, 2001, 79(14): 2252-2254.
[11]	HAN SEUNGJIN, CHUNG D D L. Increasing thethrough-thickness thermal conductivity of carbon fiber polymer-matrix composite by curing pressure increase and filler incorporation. Composites Science and Technology, 2011, 71(16): 1944-1952.
[12]	BORRELL B, ROCHA V G, TORRECILLAS R, et al. Effect of carbon nanofibers content on thermal properties of ceramic nanocomposites. Journal of Composite Materials, 2011, 46(10): 1229-1234.
[13]	YAO DONG-XU, XIA YONG-FENG, ZOU KAI-HUI, et al. Porous Si3N4 ceramics prepared via partial nitridation and SHS. Journal of the European Ceramic Society, 2013, 33(2): 371-374.
[14]	YANG JIAN-FENG, ZHANG GUO-JUN, KONDO NAOKI, et al. Synthesis and properties of porous Si3N4/SiC nanocomposites by carbothermal reaction between Si3N4 and carbon. Acta Materialia, 2002, 50(19): 4831-4840.
[15]	WANG XIAO-YAN, ZHU DONG-MEI, LI PENG, et al. Behavior of short carbon fibers in Cfiber/Si3N4 composites by hot pressed sintering. Journal of Reinforced Plastics and Composites, 2009, 28(2): 167-173.
[16]	MAGNANT J, PAILLER R, PETITCORPS Y L, et al. Fiber-reinforced ceramic matrix composites processed by a hybrid technique based on chemical vapor infiltration, slurry impregnation and spark plasma sintering. Journal of the European Ceramic Society, 2013, 33(1): 181-190.
[17]	YANG JIAN-FENG, ZHANG GUO-JUN, KONDO NAOKI, et al. Porous 2H-silicon carbide ceramics fabricated by carbothermal reaction between silicon nitride and carbon. Journal of the American Ceramic Society, 2003, 86(6): 910-914.
[18]	CHOI JAE-YOUNG, KIM CHONG-HEE, KIM DO-KYUNG, et al. Carbothermic synthesis of monodispersed spherical Si3N4/SiC nanocomposite powder. Journal of the American Ceramic Society, 1999, 82(10): 2665-2671.
[19]	ELIMAT Z M, HUSSAIN W T, ZIHLIF A M. PAN-based carbon fibers/PMMA composites: thermal, dielectric, and DC electrical properties. Journal of Materials Science: Materials in Electronics, 2012, 23(12): 2117-2122.
[20]	KUMARI L, ZHANG T, DU G H, et al. Thermal properties of CNT-alumina nanocomposites. Composites Science and Technology, 2008, 68(9): 2178-2183.
[21]	BAKSHI SRINIVAS R, BALANI KANTESH, AGARWAL ARVIND. Thermal conductivity of plasma-sprayed aluminum oxide-multiwalled carbon nanotube composites. Journal of the American Ceramic Society, 2008, 91(3): 942-947.
