LiNi0.8Co0.15Al0.05O2/石墨锂离子电池高荷电存储老化机理研究

doi:10.15541/jim20200012

无机材料学报 ›› 2021, Vol. 36 ›› Issue (2): 175-180.DOI: 10.15541/jim20200012

所属专题：能源材料论文精选(2021)；【虚拟专辑】锂离子电池(2020~2021)

LiNi_0.8Co_0.15Al_0.05O₂/石墨锂离子电池高荷电存储老化机理研究

刘勇¹, 白海军¹, 赵奇志¹, 杨金戈¹, 李宇杰²(), 郑春满²(), 谢凯²

1.中国人民解放军61699部队, 枝江 443200
2.国防科技大学空天科学学院, 长沙 410073

收稿日期:2020-01-08 修回日期:2020-03-27 出版日期:2021-02-20 网络出版日期:2020-04-05
通讯作者: 李宇杰, 副教授. E-mail: powerlyj@hotmail.com;
作者简介:刘勇(1989-), 男, 博士, 工程师. E-mail: liuzi244@sina.com
基金资助:
装备预研领域基金(JZX5Y20190261003101)

Storage Aging Mechanism of LiNi_0.8Co_0.15Al_0.05O₂/Graphite Li-ion Batteries at High State of Charge

LIU Yong¹, BAI Haijun¹, ZHAO Qizhi¹, YANG Jinge¹, LI Yujie²(), ZHENG Chunman²(), XIE Kai²

1. 61699 Unit of People’s Liberation Army of China, Zhijiang 443200, China
2. College of Aerospace Science and Engineering, National University of Defense Technology, Changsha 410073, China

Received:2020-01-08 Revised:2020-03-27 Published:2021-02-20 Online:2020-04-05
About author:LIU Yong(1989-), male, PhD, engineer. E-mail: liuzi244@sina.com
Supported by:
Equipment Pre Research Fund(JZX5Y20190261003101)

摘要/Abstract

摘要：

高荷电存储寿命对锂离子电池的使用性能具有重要影响, 但是相关研究却较为缺乏。本研究通过高温加速实验, 研究了LiNi_0.8Co_0.15Al_0.05O₂(NCA)/石墨锂离子电池在55 ℃下的存储寿命, 分析了正负极材料在电池寿命终点时的电化学性能和界面变化。研究结果表明, 在55 ℃、高荷电状态下NCA/石墨锂离子电池的存储寿命约为90 d。在寿命终点时, 正负极活性材料的容量有一定下降, 但不是电池容量衰减的主要原因。界面分析表明, 存储后负极表面固体电解质界面(SEI)膜增长明显, 而正极表面固体电解质界面(PEI)膜无明显变化。SEI膜的增长主要是由于电解液溶剂和锂反应, 造成石墨内锂损失, 使电池内可循环锂减少, 这是NCA/石墨电池在存储过程中容量损失的主要原因。

关键词: 锂离子电池, NCA/石墨, 存储老化, 容量损失, 固体电解质界面膜

Abstract:

Storage life at high state of charge is a key factor affecting the application of Li ion battery, but the related mechanism research is insufficient. In this study, the storage life of LiNi_0.8Co_0.15Al_0.05O₂ (NCA)/graphite battery was evaluated via accelerating experiment at elevated temperature, and the electrochemistry performances and interface properties of fresh and aged active materials were analyzed. Storage experiment shows that the storage life of NCA/graphite battery at high state of charge under 55 ℃ is about 90 d. Electrochemical test shows that the capacities of NCA and graphite decrease when the batteries reach the end of life, but that is not the main cause inducing capacity degradation. Interface analysis illustrates that the solid electrolyte interface (SEI) film on graphite anode significantly grows when batteries reach the end of life, while the positive solid electrolyte interface (PEI) film on NCA cathode keeps basically unchanged. The growth of SEI film on graphite owing to the decomposition of carbonates in electrolyte results in Li loss in anode, which contributes to the capacity loss of NCA/graphite battery during the storage aging at high state of charge.

Key words: Li ion battery, NCA/graphite, storage aging, capacity fading, solid electrolyte interface (SEI)

中图分类号:

TM911

刘勇, 白海军, 赵奇志, 杨金戈, 李宇杰, 郑春满, 谢凯. LiNi_0.8Co_0.15Al_0.05O₂/石墨锂离子电池高荷电存储老化机理研究[J]. 无机材料学报, 2021, 36(2): 175-180.

LIU Yong, BAI Haijun, ZHAO Qizhi, YANG Jinge, LI Yujie, ZHENG Chunman, XIE Kai. Storage Aging Mechanism of LiNi_0.8Co_0.15Al_0.05O₂/Graphite Li-ion Batteries at High State of Charge[J]. Journal of Inorganic Materials, 2021, 36(2): 175-180.

图/表 7

图1 55 ℃下存储不同时间的电池在循环活化后的放电曲线

Fig. 1 Discharge curves of NCA/C batteries after stored at 55 ℃ for different time

图2 电池存储前后(a, b)正极以及(c, d)负极的(a, c) CV曲线和(b, d)放电曲线

Fig. 2 (a, c) CV and (b, d) discharge curves of (a, b) cathode and (c, d) anode before and after storage aging

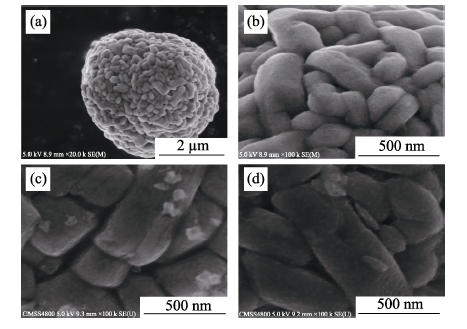

图3 NCA(a, b)原料以及存储(c)前(d)后的SEM照片

Fig. 3 SEM images of NCA (a, b) pristine, (c) before and (d) after storage aging

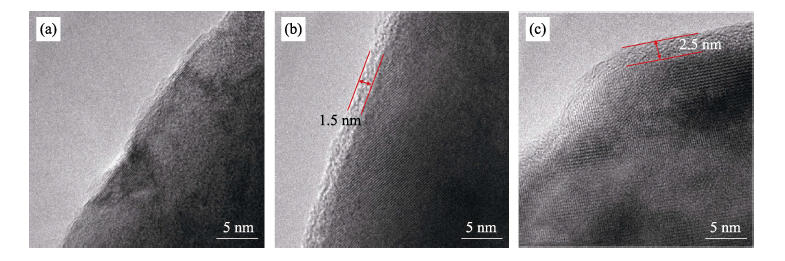

图4 NCA(a)原料以及存储(b)前(c)后的TEM照片

Fig. 4 TEM images of NCA (a) pristine, (b) before and (c) after storage aging

图5 石墨负极(a)原料以及存储(b)前(c)后的SEM照片

Fig. 5 SEM images of graphite anode (a) pristine, (b) before and (c) after storage aging

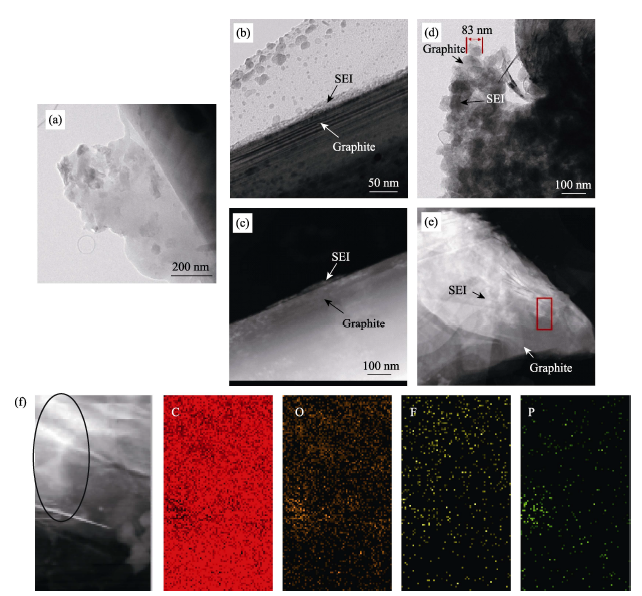

图6 (a)石墨负极原材料TEM照片; 存储前石墨负极的(b)TEM和(c)STEM照片; 存储后石墨负极的(d)TEM和(e) STEM照片及(f)图6(e)方框区域的元素能谱图

Fig. 6 (a) TEM image of pristine graphite anode; (b) TEM and (c) STEM images of graphite anode before storage aging; (d) TEM, (e) STEM images of graphite anode after storage aging and (f) corresponding EDS mappings results in selected square area in Fig. 6(e)

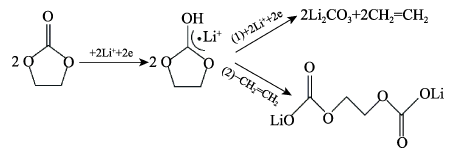

图7 电解液溶剂的典型分解机理(EC为例)[26]

Fig. 7 Typical decomposition mechanism of electrolyte solvent (EC as example)[26]
