无机材料学报 ›› 2023, Vol. 38 ›› Issue (6): 589-605.DOI: 10.15541/jim20220331 CSTR: 32189.14.10.15541/jim20220331
所属专题: 【能源环境】锂离子电池(202409)
• 综述 • 下一篇
收稿日期:
2022-06-14
修回日期:
2022-12-28
出版日期:
2023-01-11
网络出版日期:
2023-01-11
通讯作者:
陈军,教授. E-mail: chenabc@nankai.edu.cn作者简介:
杨卓(1993-), 男, 博士研究生. E-mail: yzhuo94@outlook.com.
基金资助:
YANG Zhuo(), LU Yong, ZHAO Qing, CHEN Jun()
Received:
2022-06-14
Revised:
2022-12-28
Published:
2023-01-11
Online:
2023-01-11
Contact:
CHEN Jun, professor. E-mail: chenabc@nankai.edu.cnAbout author:
YANG Zhuo (1993-), male, PhD candidate. E-mail: yzhuo94@outlook.com.
Supported by:
摘要:

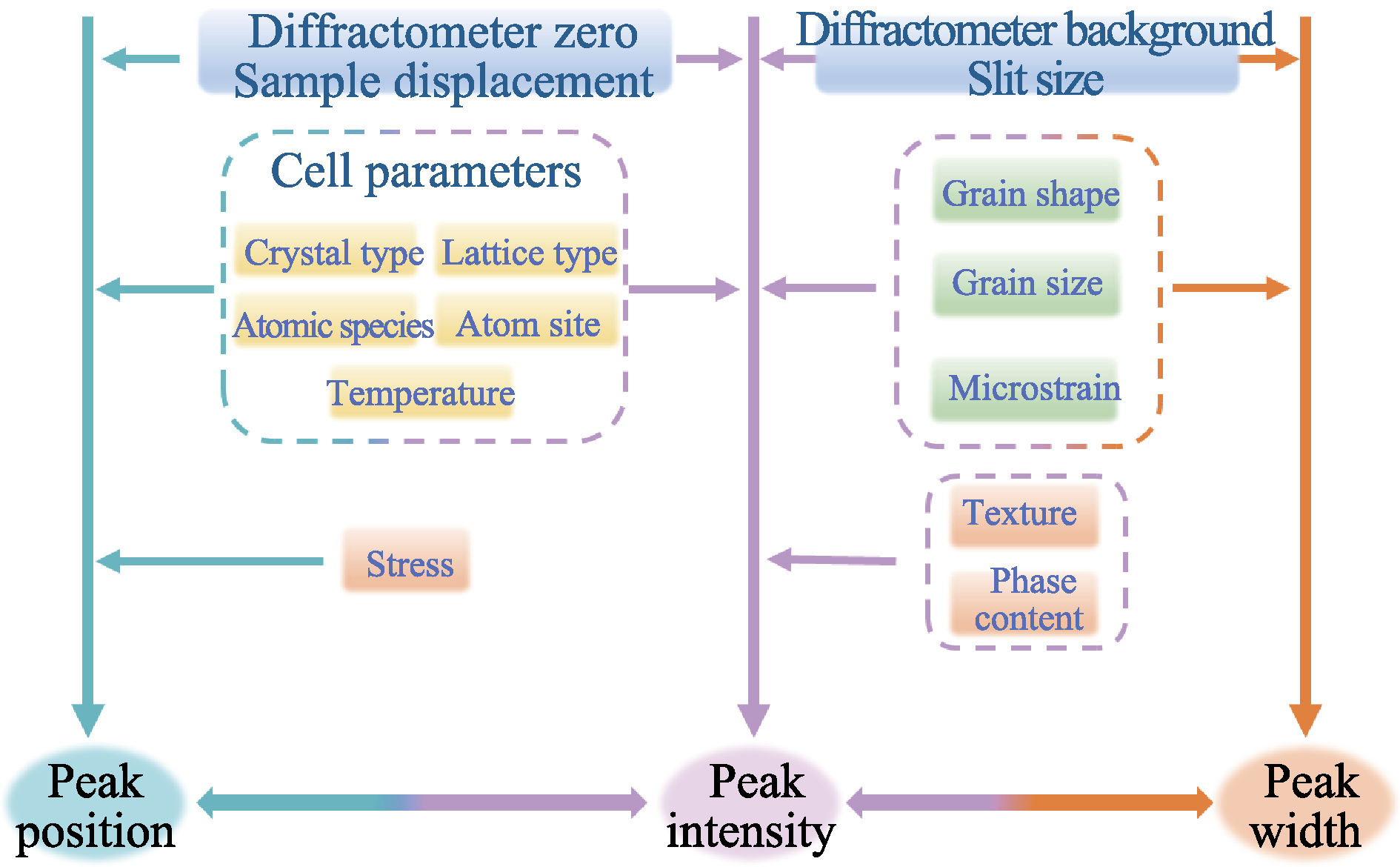

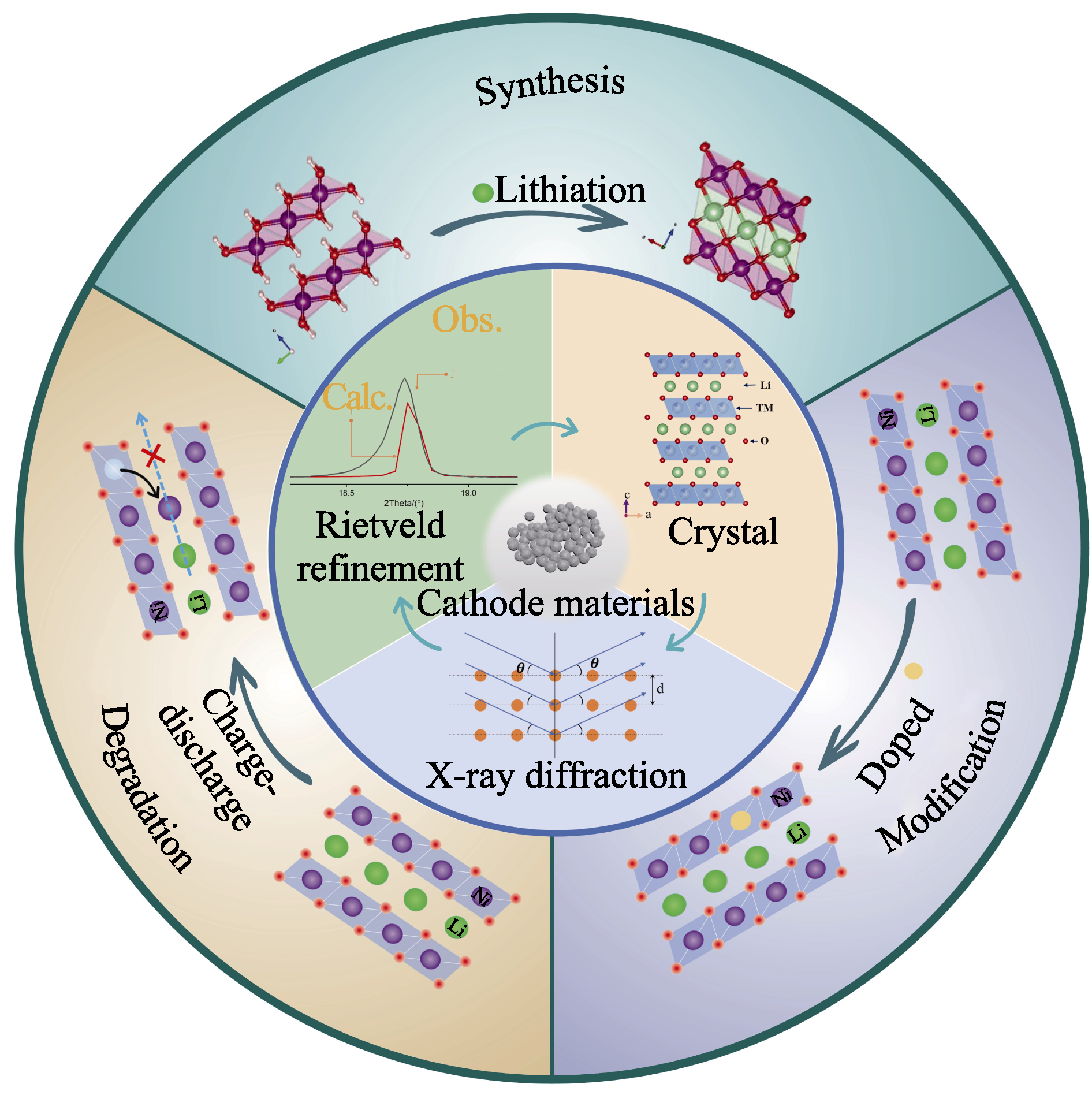

2022年是X射线衍射(XRD)发现的110周年。XRD Rietveld精修作为材料结构分析的重要手段, 在建立材料“构-效”关系方面发挥着重要的作用。正极材料是锂离子电池的重要组成部分, 深入理解其晶体结构及原子分布规律有助于推动锂离子电池正极材料的发展。本文简要介绍了XRD Rietveld结构精修及其在锂离子电池正极材料中的应用, 围绕几类典型正极材料, 重点讨论了Rietveld结构精修在正极材料的合成、退化衰减及结构改性中的应用和研究进展。XRD Rietveld精修可以得到物相比例、晶胞参数、关键原子占比、原子坐标等结构信息, 对开发高性能锂离子电池正极材料具有重要的指导意义。最后, 本文展望了X射线衍射技术在锂电正极材料结构研究中的机遇与挑战。
中图分类号:
杨卓, 卢勇, 赵庆, 陈军. X射线衍射Rietveld精修及其在锂离子电池正极材料中的应用[J]. 无机材料学报, 2023, 38(6): 589-605.
YANG Zhuo, LU Yong, ZHAO Qing, CHEN Jun. X-ray Diffraction Rietveld Refinement and Its Application in Cathode Materials for Lithium-ion Batteries[J]. Journal of Inorganic Materials, 2023, 38(6): 589-605.
图2 原位X射线衍射装置示意图[20-21]
Fig. 2 Schemes of in situ X-ray diffraction[20-21] (a) Charge-discharge process (© 2020, MDPI) [20]; (b) Heating process (© 2015, Elsevier B.V.)[21]
Cathode material | Crystal structure | Space group | Cell parameter | Atom site | Theoretical specific capacity/(mAh·g-1) | Working voltage/ V (vs. Li+/Li) | |
---|---|---|---|---|---|---|---|
LiFePO4 | Olivine | Pnma | a≠b≠c | Li | 4a | 170 | 3.4 |
Fe | 4c | ||||||
O | 4c/8d | ||||||
LiMn2O4 | Spinel | Fd-3m | a=b=c | Li | 8a | 148 | 4 |
Mn | 16d | ||||||
O | 32e | ||||||
LiCoO2 | Layer | R-3m | a=b≠c | Li | 3a | 274 | 3.9 |
Co | 3b | ||||||
O | 6c | ||||||
LiNixCoy(Mn/Al)1-x-yO2 | Layer | R-3m | a=b≠c | Li | 3a | 273-285 | 3.8 |
Ni/Co/Mn/Al | 3b | ||||||
O | 6c | ||||||
xLi2MnO3·(1-x)LiMO2 (0<x<1, M=Ni, Co, Mn) | Layer | R-3m+ C2/m | a=b≠c | Li | 2b/2c/4h | 273-350 | 3.8 |
Mn | 4g | ||||||
O | 4i/4j |
表1 常见的锂离子电池正极材料的结构及性能[24⇓⇓⇓-28]
Table 1 Structures and properties of common cathode materials for lithium-ion batteries[24⇓⇓⇓-28]
Cathode material | Crystal structure | Space group | Cell parameter | Atom site | Theoretical specific capacity/(mAh·g-1) | Working voltage/ V (vs. Li+/Li) | |
---|---|---|---|---|---|---|---|
LiFePO4 | Olivine | Pnma | a≠b≠c | Li | 4a | 170 | 3.4 |
Fe | 4c | ||||||
O | 4c/8d | ||||||
LiMn2O4 | Spinel | Fd-3m | a=b=c | Li | 8a | 148 | 4 |
Mn | 16d | ||||||
O | 32e | ||||||
LiCoO2 | Layer | R-3m | a=b≠c | Li | 3a | 274 | 3.9 |
Co | 3b | ||||||
O | 6c | ||||||
LiNixCoy(Mn/Al)1-x-yO2 | Layer | R-3m | a=b≠c | Li | 3a | 273-285 | 3.8 |
Ni/Co/Mn/Al | 3b | ||||||
O | 6c | ||||||
xLi2MnO3·(1-x)LiMO2 (0<x<1, M=Ni, Co, Mn) | Layer | R-3m+ C2/m | a=b≠c | Li | 2b/2c/4h | 273-350 | 3.8 |
Mn | 4g | ||||||
O | 4i/4j |
图3 正极材料晶体结构示意图[25⇓⇓-28]
Fig. 3 Schematic diagram of the crystal structures of cathode materials[25⇓⇓-28] (a) LiMPO4 (M=Fe, Mn)(© 2021, IOP Publishing)[25]; (b) LiMn2O4 (© 2022, MDPI)[26]; (c) LiMO2 (M=Ni, Co, Mn, Al) (© 2021, Elsevier Ltd.)[27]; (d) xLi2MnO3·(1-x)LiMO2 (M=Ni, Co, Mn) (© 2022, Springer Nature)[28] Colorful figures are available on website
图5 LiNi0.8Co0.2O2合成过程中的结构演化[41]
Fig. 5 Structural evolution during high temperature synthesis of LiNi0.8Co0.2O2 (© 2017, Wiley-VCH)[41] (a) Concentration of the phases Ni(Co)O, Li2CO3, and LiNi0.8Co0.2O2 at different temperatures; (b) Ratio unit cell parameters (c/a), (c) content of Li+ occupying the 3a sites (Li sites), and (d) Ni-O and Li-O bond lengths as a function of temperature; (e) Schematic diagram of the structural evolution and variation of the interlayer distances of the Li and Ni(Co) slabs during the synthesis of LiNi0.8Co0.2O2. 1 Å=0.1 nm. Colorful figures are available on website

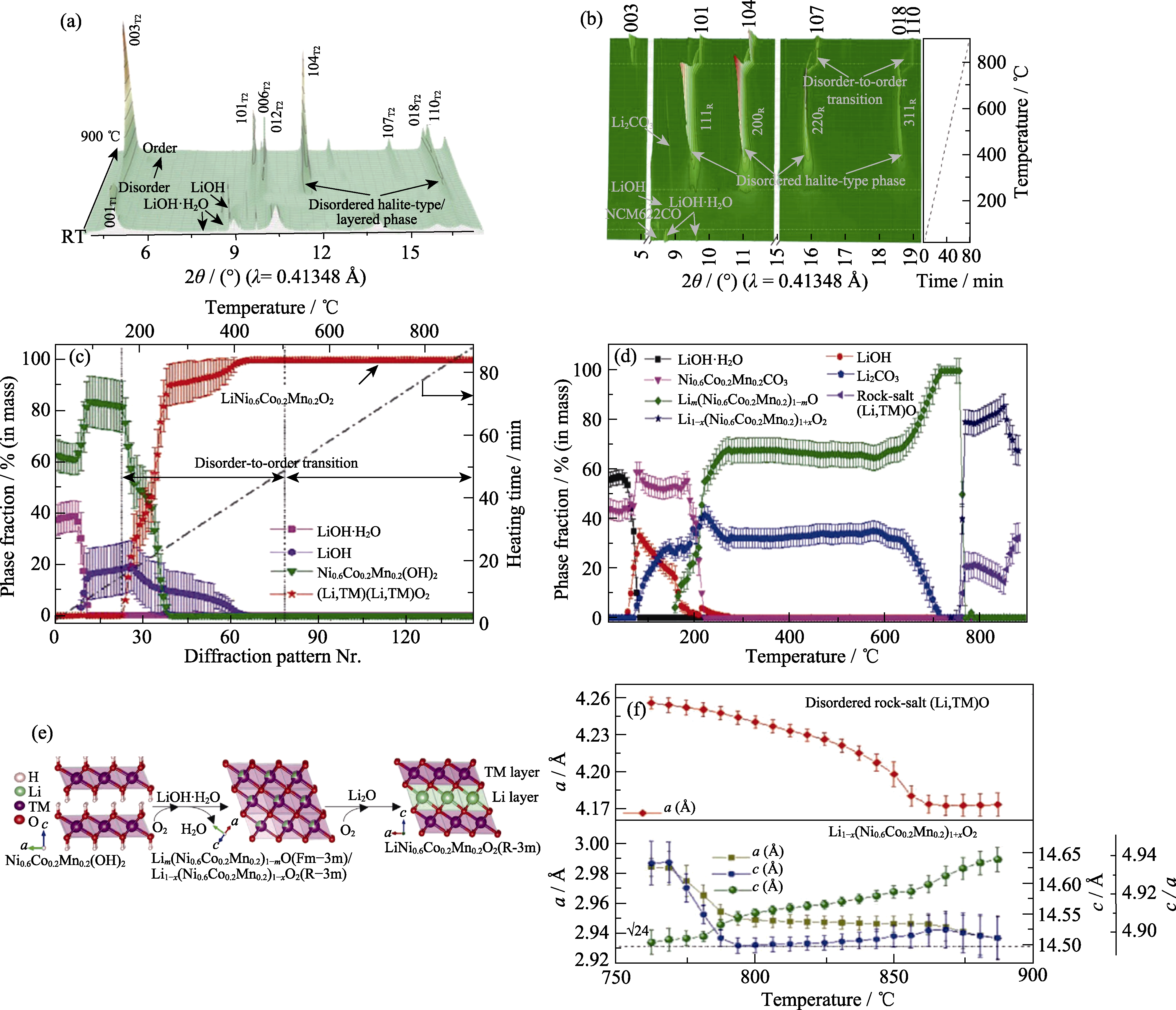

图6 正极材料LiNi0.6Co0.2Mn0.2O2的合成过程温度分辨XRD表征结果[43]
Fig. 6 Temperature-resolved XRD characterization of synthesis process of cathode material LiNi0.6Co0.2Mn0.2O2 (© 2021, Wiley-VCH)[43] (a) In situ XRD patterns of the mixture of Ni0.6Co0.2Mn0.2(OH)2 and LiOH·H2O during heating and (c) corresponding weight fractions of different phases as a function of temperature; (b) 3D profiles of in situ XRD patterns, corresponding (d) evolution of phase fraction and (f) lattice parameters of the samples as a function of heating temperature starting from mixture of the Ni0.6Co0.2Mn0.2CO3 and LiOH·H2O; (e) Schematic illustration of structural evolution during synthesis of LiNi0.6Co0.2Mn0.2O2; In (a, b), the subscripts T1, T2 and R represent Ni0.6Co0.2Mn0.2(OH)2 (P-3m1, T1 phase), LiNi0.6Co0.2Mn0.2O2 (R-3m, T2 phase) and the rock-salt-type, respectively. 1 Å=0.1 nm Colorful figures are available on website
图7 LiNi1/3Mn1/3Co1/3O2(NCM111)的微波水热合成原位XRD表征结果[44]
Fig. 7 In-situ XRD characterization of microwave (MW) hydrothermal synthesis of NCM111(© 2020, AAAS) [44] (a) Schematic illustration of the experimental setup specialized for fast synchrotron X-ray probing of the microwave hydrothermal synthesis; (b) Time resolved synchrotron XRD patterns during MW hydrothermal synthesis of NCM111; (c) Lattice parameter c of the Ni1/3Co1/3Mn1/3(OH)2 precursor (green) as a function of temperature during solid-state synthesis (black), hydrothermal synthesis (blue), and MW hydrothermal synthesis (red). 1 Å=0.1 nm. Colorful figures are available on website

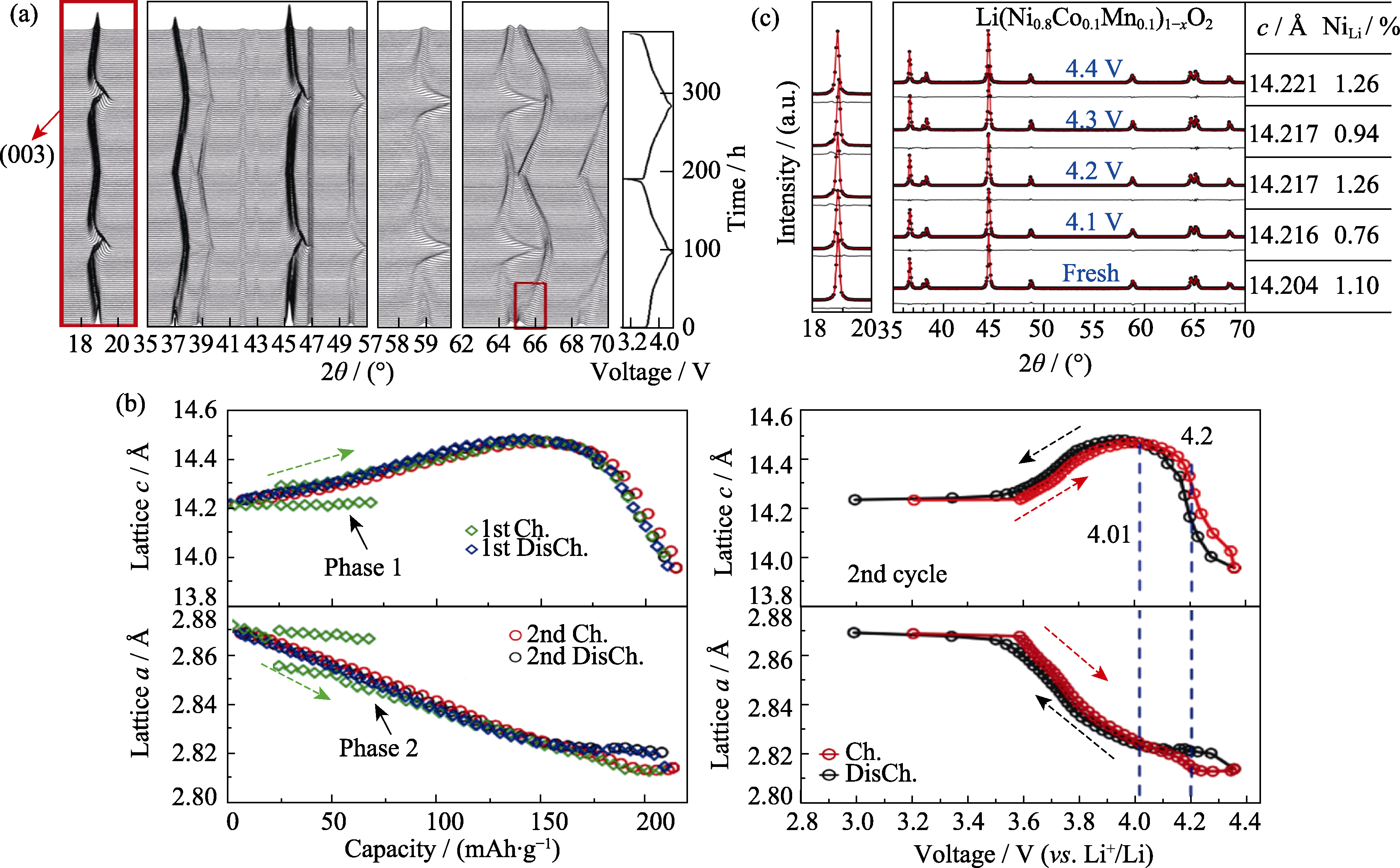

图8 高镍正极LiNi0.8Co0.1Mn0.1O2的充放电原位XRD表征结果[49]
Fig. 8 In situ XRD characterization of Ni-rich cathode LiNi0.8Co0.1Mn0.1O2(NCM811) during charge-discharge (© 2015, ECS)[49] (a) In-situ XRD patterns of NCM811 cycled between 3.0-4.4 V at a rate of C/100 for two cycles; (b) Cell parameters c and a as functions of specific capacity and cell potential; (c) XRD refinement patterns, corresponding cell parameters and Li/Ni occupation information of fresh NCM811 electrode and the recovered electrodes that cycled 200 times to 4.1, 4.2, 4.3 and 4.4 V, respectively. 1 Å=0.1 nm; Ch: Charged; DisCh: Discharged. Colorful figures are available on website
图9 Li1.2Ni0.13Co0.13Mn0.54O2的充放电原位同步辐射XRD表征结果[54]
Fig. 9 In-situ XRD characterization of Li1.2Ni0.13Co0.13Mn0.54O2 during charge-discharge process (© 2021, Springer Nature)[54] (a) Charge-discharge curve and corresponding contour plot of XRD pattern during the 201st cycle with the colour red to blue representing the decreasing peak intensity; (b, c) Lattice parameters (c and V) as functions of potential during the 1st and 201st cycles after the electrode activated at a rate of 0.1C. 1 Å=0.1 nm. Colorful figures are available on website

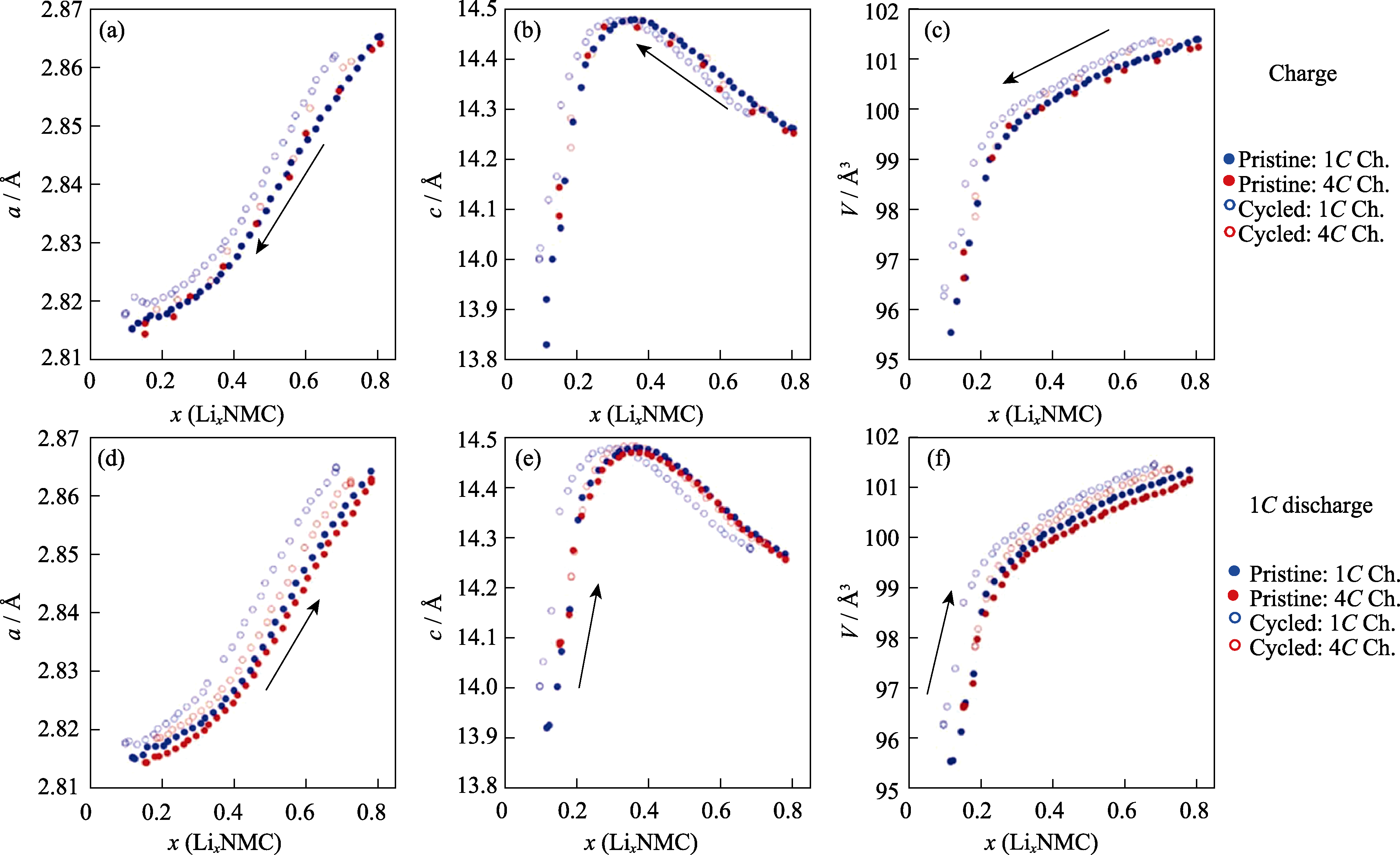

图10 LiNi0.8Co0.1Mn0.1O2正极材料的充放电原位XRD Rietveld精修结果[57]
Fig. 10 In-situ XRD Rietveld refinement results of LiNi0.8Co0.1Mn0.1O2 cathode materials during charge and discharge process (© 2022, ECS)[57] (a, d) Lattice parameters a; (b, e) Lattice parameters c; (c, f) Unit cell volumes. 1 Å=0.1 nm. Colorful figures are available on website
Sample | Doped atomic radius/nm | Displace ion radius/nm | Lattice constant/nm | Lattice volume/nm3 | Interatomic distance/nm | Reliability factor |
---|---|---|---|---|---|---|
LFP | rFe = 0.172 | rFe2+ = 0.074 | a=1.031634 b=0.600129 c=0.469139 | 0.29045 | Li-O1:0.21664 Li-O2:0.20901 Li-O3:0.21651 Li-O:0.214050 | Rwp = 7.72% Rp =5.63% χ2 = 2.794 |
LFMgP | rMg = 0.172 | rMg2+ = 0.065 | a=1.031583 b=0.600035 c=0.469090 | 0.29036 | Li-O1:0.21712 Li-O2:0.21041 Li-O3:0.21665 Li-O:0.214720 | Rwp = 9.32% Rp = 6.79% χ2 = 2.878 |
LFAlP | rAl = 0.182 | rAl3+ = 0.050 | a=1.032204 b=0.600358 c=0.469072 | 0.29068 | Li-O1:0.21670 Li-O2:0.21001 Li-O3:0.21747 Li-O:0.214730 | Rwp = 9.14% Rp = 6.60% χ2 = 2.989 |
LFNiP | rNi = 0.162 | rNi2+ = 0.072 | a=1.031083 b=0.599820 c=0.468923 | 0.29001 | Li-O1:0.21734 Li-O2:0.20863 Li-O3:0.21586 Li-O:0.213950 | Rwp = 8.26% Rp = 6.12% χ2= 2.929 |
LFVP | rV = 0.192 | rV3+ = 0.074 | a=1.032223 b=0.600494 c=0.469485 | 0.291 | Li-O1:0.21864 Li-O2:0.21074 Li-O3:0.21794 Li-O:0.215770 | Rwp = 9.86% Rp = 7.15% χ2= 2.426 |
表2 LiFePO4和LiFe0.95M0.05PO4的结构精修结果[62]
Table 2 Structure refinement result of LiFePO4 and LiFe0.95M0.05PO4 (M=Mg2+, Ni2+, Al3+, V3+) (© 2010, EC)[62]
Sample | Doped atomic radius/nm | Displace ion radius/nm | Lattice constant/nm | Lattice volume/nm3 | Interatomic distance/nm | Reliability factor |
---|---|---|---|---|---|---|
LFP | rFe = 0.172 | rFe2+ = 0.074 | a=1.031634 b=0.600129 c=0.469139 | 0.29045 | Li-O1:0.21664 Li-O2:0.20901 Li-O3:0.21651 Li-O:0.214050 | Rwp = 7.72% Rp =5.63% χ2 = 2.794 |
LFMgP | rMg = 0.172 | rMg2+ = 0.065 | a=1.031583 b=0.600035 c=0.469090 | 0.29036 | Li-O1:0.21712 Li-O2:0.21041 Li-O3:0.21665 Li-O:0.214720 | Rwp = 9.32% Rp = 6.79% χ2 = 2.878 |
LFAlP | rAl = 0.182 | rAl3+ = 0.050 | a=1.032204 b=0.600358 c=0.469072 | 0.29068 | Li-O1:0.21670 Li-O2:0.21001 Li-O3:0.21747 Li-O:0.214730 | Rwp = 9.14% Rp = 6.60% χ2 = 2.989 |
LFNiP | rNi = 0.162 | rNi2+ = 0.072 | a=1.031083 b=0.599820 c=0.468923 | 0.29001 | Li-O1:0.21734 Li-O2:0.20863 Li-O3:0.21586 Li-O:0.213950 | Rwp = 8.26% Rp = 6.12% χ2= 2.929 |
LFVP | rV = 0.192 | rV3+ = 0.074 | a=1.032223 b=0.600494 c=0.469485 | 0.291 | Li-O1:0.21864 Li-O2:0.21074 Li-O3:0.21794 Li-O:0.215770 | Rwp = 9.86% Rp = 7.15% χ2= 2.426 |
图11 LiFePO4改性前后XRD精修结果[63]
Fig. 11 XRD Rietveld refinement results of LiFePO4 before and after modification (© 2021, RSC)[63] (a, b) XRD Rietveld refinement patterns of (a) LFP/C and (b) LFP/C-YF-2; (c, d) Schematic diagrams of change in Li-O bond length of (c) LFP/C and (d) LFP/C-YF-2. 1 Å=0.1 nm. Colorful figures are available on website
Sample | a/nm | b/nm | c/nm | V/nm3 |
---|---|---|---|---|
LFP/C | 1.03229 | 0.60061 | 0.46941 | 0.29104 |
LFP/C-YF-1 | 1.03054 | 0.59985 | 0.46903 | 0.28994 |
LFP/C-YF-2 | 1.03082 | 0.59977 | 0.46874 | 0.28980 |
LFP/C-YF-3 | 1.03069 | 0.59989 | 0.46892 | 0.28994 |
表3 XRD精修得到LiFePO4改性前后的晶胞参数[63]
Table 3 Cell parameters of LiFePO4 before and after modification by XRD refinement (© 2021, RSC)[63]
Sample | a/nm | b/nm | c/nm | V/nm3 |
---|---|---|---|---|
LFP/C | 1.03229 | 0.60061 | 0.46941 | 0.29104 |
LFP/C-YF-1 | 1.03054 | 0.59985 | 0.46903 | 0.28994 |
LFP/C-YF-2 | 1.03082 | 0.59977 | 0.46874 | 0.28980 |
LFP/C-YF-3 | 1.03069 | 0.59989 | 0.46892 | 0.28994 |
Atom | Site | x | y | z | Occupancy | Uiso |
---|---|---|---|---|---|---|
Lia | 3a | 0 | 0 | 0 | 1.000 | 0.014(6) |
Coa | 3b | 0 | 0 | 0.50000 | 1.000 | 0.023(8) |
Oa | 6c | 0 | 0 | 0.2300(6) | 1.000 | 0.049(1) |
Lib | 3a | 0 | 0 | 0 | 0.98(1) | 0.020(1) |
Mgb | 3a | 0 | 0 | 0 | 0.01(9) | 0.020(1) |
Cob | 3b | 0 | 0 | 0.50000 | 0.99(7) | 0.001(2) |
Alb | 3b | 0 | 0 | 0.50000 | 0.002(0) | 0.001(2) |
Tib | 3b | 0 | 0 | 0.50000 | 0.001(0) | 0.001(2) |
Ob | 6c | 0 | 0 | 0.2476(3) | 1.000 | 0.068(5) |
表4 Al、Ti、Mg共掺杂LiCoO2及纯LiCoO2的XRD结构精修结果[64]
Table 4 XRD refinement result of Al, Ti, Mg co-doped LiCoO2 and bare LiCoO2 (© 2019, Wiley-VCH)[64]
Atom | Site | x | y | z | Occupancy | Uiso |
---|---|---|---|---|---|---|
Lia | 3a | 0 | 0 | 0 | 1.000 | 0.014(6) |
Coa | 3b | 0 | 0 | 0.50000 | 1.000 | 0.023(8) |
Oa | 6c | 0 | 0 | 0.2300(6) | 1.000 | 0.049(1) |
Lib | 3a | 0 | 0 | 0 | 0.98(1) | 0.020(1) |
Mgb | 3a | 0 | 0 | 0 | 0.01(9) | 0.020(1) |
Cob | 3b | 0 | 0 | 0.50000 | 0.99(7) | 0.001(2) |
Alb | 3b | 0 | 0 | 0.50000 | 0.002(0) | 0.001(2) |
Tib | 3b | 0 | 0 | 0.50000 | 0.001(0) | 0.001(2) |
Ob | 6c | 0 | 0 | 0.2476(3) | 1.000 | 0.068(5) |

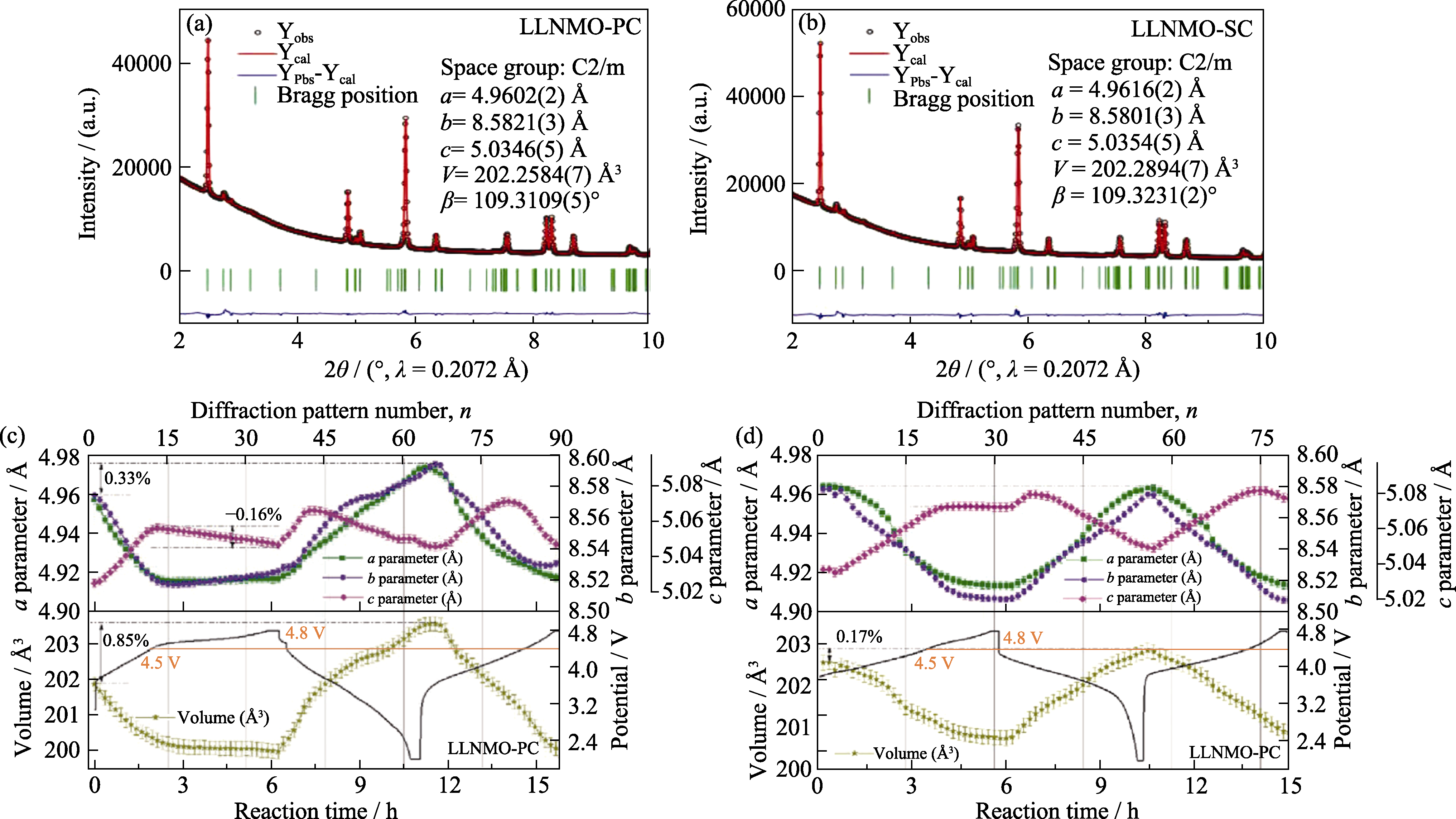

图12 Li(Li0.2Ni0.2Mn0.6)O2正极材料的XRD结构精修结果[66]
Fig. 12 XRD Rietveld refinement results of Li(Li0.2Ni0.2Mn0.6)O2 cathode materials (© 2022, Wiley-VCH)[66] (a, b) Experimental XRD patterns and Rietveld refinement results of (a) LLNMO-PC and (b) LLNMO-SC; (c, d) Changes of lattice parameters (a, b, c, and V) for (c) LLNMO-PC and (d) LLNMO-SC electrodes during charge and discharge 1 Å=0.1 nm. Colorful figures are available on website
Formula | Calculated | Experimental | ||||
---|---|---|---|---|---|---|
a/nm | b/nm | c/nm | V/nm3 | a/nm | V/nm3 | |
Li8Mn16O32 | 0.886205 | 0.886205 | 0.886205 | 0.695990 | - | - |
Li8Mn15AlO32 | 0.826725 | 0.826725 | 0.826725 | 0.567617 | 0.82507 | 0.561658 |
Li8Mn14Al2O32 | 0.831493 | 0.831493 | 0.799071 | 0.552416 | 0.82466 | 0.560821 |
Li8Mn13Al3O32 | 0.814375 | 0.826337 | 0.820583 | 0.551780 | 0.82110 | 0.553590 |
表5 Al掺杂LiMn2O4的XRD结构精修结果[69]
Table 5 XRD structure refinement result of Al doped LiMn2O4 (© 2019, Elsevier Ltd.)[69]
Formula | Calculated | Experimental | ||||
---|---|---|---|---|---|---|
a/nm | b/nm | c/nm | V/nm3 | a/nm | V/nm3 | |
Li8Mn16O32 | 0.886205 | 0.886205 | 0.886205 | 0.695990 | - | - |
Li8Mn15AlO32 | 0.826725 | 0.826725 | 0.826725 | 0.567617 | 0.82507 | 0.561658 |
Li8Mn14Al2O32 | 0.831493 | 0.831493 | 0.799071 | 0.552416 | 0.82466 | 0.560821 |
Li8Mn13Al3O32 | 0.814375 | 0.826337 | 0.820583 | 0.551780 | 0.82110 | 0.553590 |
图13 复相正极材料的XRD精修图谱
Fig. 13 Refined XRD patterns of multiphase materials (a) Li1.25Co0.25Mn0.50O2 (© 2018, Wiley-VCH)[70]; (b) LiMnPO4·Li3V2(PO4)3/C (© 2016, American Chemical Society)[71]
