水系锂离子电池负极材料LiTi2(PO4)3的研究进展

doi:10.15541/jim20210502

无机材料学报 ›› 2022, Vol. 37 ›› Issue (5): 481-492.DOI: 10.15541/jim20210502 CSTR: 32189.14.10.15541/jim20210502

所属专题：【能源环境】锂离子电池(202409)

水系锂离子电池负极材料LiTi₂(PO₄)₃的研究进展

王禹桐¹(), 张非凡¹, 许乃才², 王春霞¹, 崔立山¹, 黄国勇¹()

1. 中国石油大学(北京) 新能源与材料学院, 重质油国家重点实验室, 北京 102249
2. 青海师范大学化学化工学院, 西宁 810008

收稿日期:2021-08-13 修回日期:2021-10-22 出版日期:2022-05-20 网络出版日期:2021-11-01
通讯作者: 黄国勇, 教授. E-mail: huanggy@cup.edu.cn
作者简介:王禹桐(1992-), 男, 博士研究生. E-mail: 1248736790@qq.com;
基金资助:
国家自然科学基金(52022109);国家自然科学基金(51834008);北京市自然科学基金(2202047);中国石油大学(北京)科研基金(2462018YJRC041);中国石油大学(北京)科研基金(2462020YXZZ016)

Research Progress of LiTi₂(PO₄)₃ Anode for Aqueous Lithium-ion Batteries

WANG Yutong¹(), ZHANG Feifan¹, XU Naicai², WANG Chunxia¹, CUI Lishan¹, HUANG Guoyong¹()

1. State Key Laboratory of Heavy Oil, College of New Energy and Materials, China University of Petroleum-Beijing, Beijing 102249, China
2. School of Chemistry and Chemical Engineering, Qinghai Normal University, Xining 810008, China

Received:2021-08-13 Revised:2021-10-22 Published:2022-05-20 Online:2021-11-01
Contact: HUANG Guoyong, professor. E-mail:huanggy@cup.edu.cn
About author:WANG Yutong (1992-), male, PhD candidate. E-mail: 1248736790@qq.com
Supported by:
National Natural Science Foundation of China(52022109);National Natural Science Foundation of China(51834008);Beijing Municipal Natural Science Foundation(2202047);Science Foundation of China University of Petroleum, Beijing(2462018YJRC041);Science Foundation of China University of Petroleum, Beijing(2462020YXZZ016)

摘要/Abstract

摘要：

锂离子电池作为一种绿色可充电电池, 具有较高的能量密度及功率密度, 但市售锂离子电池主要以有机物为电解液, 当电池过充或短路时存在一定的燃烧及爆炸风险。为应对此问题, 水系锂离子电池逐渐走进人们的视野, 它具有清洁环保、安全性能高等优点, 其工作电压为1.5~2.0 V, 主要应用于储能领域。考虑到水系电池的析氢析氧反应, 常规负极材料无法应用于水系锂离子电池, 因此水系锂离子电池的研发关键在于负极材料的选取。LiTi₂(PO₄)₃具有开放的三维通道以及合适的嵌锂电位, 可以作为水系锂离子电池的负极材料。LiTi₂(PO₄)₃的合成方法主要有高温固相法、溶胶-凝胶法和水热法等。为进一步提高LiTi₂(PO₄)₃的电化学性能, 可以采用颗粒纳米化、形貌控制、元素掺杂及碳包覆等方式进行改性。本文从合成方法及改性手段的角度, 对近年来国内外水系锂离子电池负极材料LiTi₂(PO₄)₃的研究进行综述, 并对LiTi₂(PO₄)₃负极材料的发展前景做出展望。

关键词: 水系锂离子电池, 负极材料, LiTi₂(PO₄)₃, 综述

Abstract:

As green rechargeable batteries, lithium-ion batteries feature high energy and power density. However, commonly-used electrolytes, organic compounds, in commercially available lithium-ion batteries are flammable and toxic, which leaves them at the risk of combustion and explosion when being overcharged or short-circuited. In order to solve this problem, much attention has been paid to lithium-ion batteries with aqueous electrolytes, which take low-toxicity and high safety as the prominent advantages. The working voltage, 1.5-2.0 V, indicates their usage mainly in the field of energy storage. Considering the hydrogen and oxygen evolution, conventional anode materials used in commercially available lithium-ion batteries are inconformity for water-based lithium-ion batteries. Therefore, the key to the development of aqueous lithium-ion batteries lies in the selection of anodes. The anode material, LiTi₂(PO₄)₃, has drawn the attention of researchers due to its advantages such as three-dimensional channel, and appropriate lithium-ion intercalation potential. The synthesis methods of LiTi₂(PO₄)₃ mainly include high temperature solid-phase calcination, Sol-Gel methods and hydrothermal reaction, etc. To further improve the electrochemical performance of LiTi₂(PO₄)₃, strategies can be used such as particle nanocrystallization, morphology control, element doping, and carbon-coating, etc. This review focuses on the synthesis and modification of LiTi₂(PO₄)₃, as well as related research progress. At last, the future development of LiTi₂(PO₄)₃ as anode material for lithium-ion battery is properly prospected.

Key words: aqueous lithium-ion battery, anode material, LiTi₂(PO₄)₃, review

中图分类号:

TM912

王禹桐, 张非凡, 许乃才, 王春霞, 崔立山, 黄国勇. 水系锂离子电池负极材料LiTi₂(PO₄)₃的研究进展[J]. 无机材料学报, 2022, 37(5): 481-492.

WANG Yutong, ZHANG Feifan, XU Naicai, WANG Chunxia, CUI Lishan, HUANG Guoyong. Research Progress of LiTi₂(PO₄)₃ Anode for Aqueous Lithium-ion Batteries[J]. Journal of Inorganic Materials, 2022, 37(5): 481-492.

图/表 10

表1 水系锂离子电池和有机系锂离子电池的特征比较[8]

Table 1 Comparison of the characteristics of aqeuous and organic lithium-ion batteries[8]

Type	Operating voltage/V	Safety	Electrolyte	Solvent	Cost
Organic Li-ion battery	3.6-4.2	Low	LiPF₆, LiAsF₆, etc	EC, DMC, DEC, etc	High
Aqeuous Li-ion battery	1.5-2.0	High	Li₂SO₄, LiNO₃, etc	H₂O	Moderate

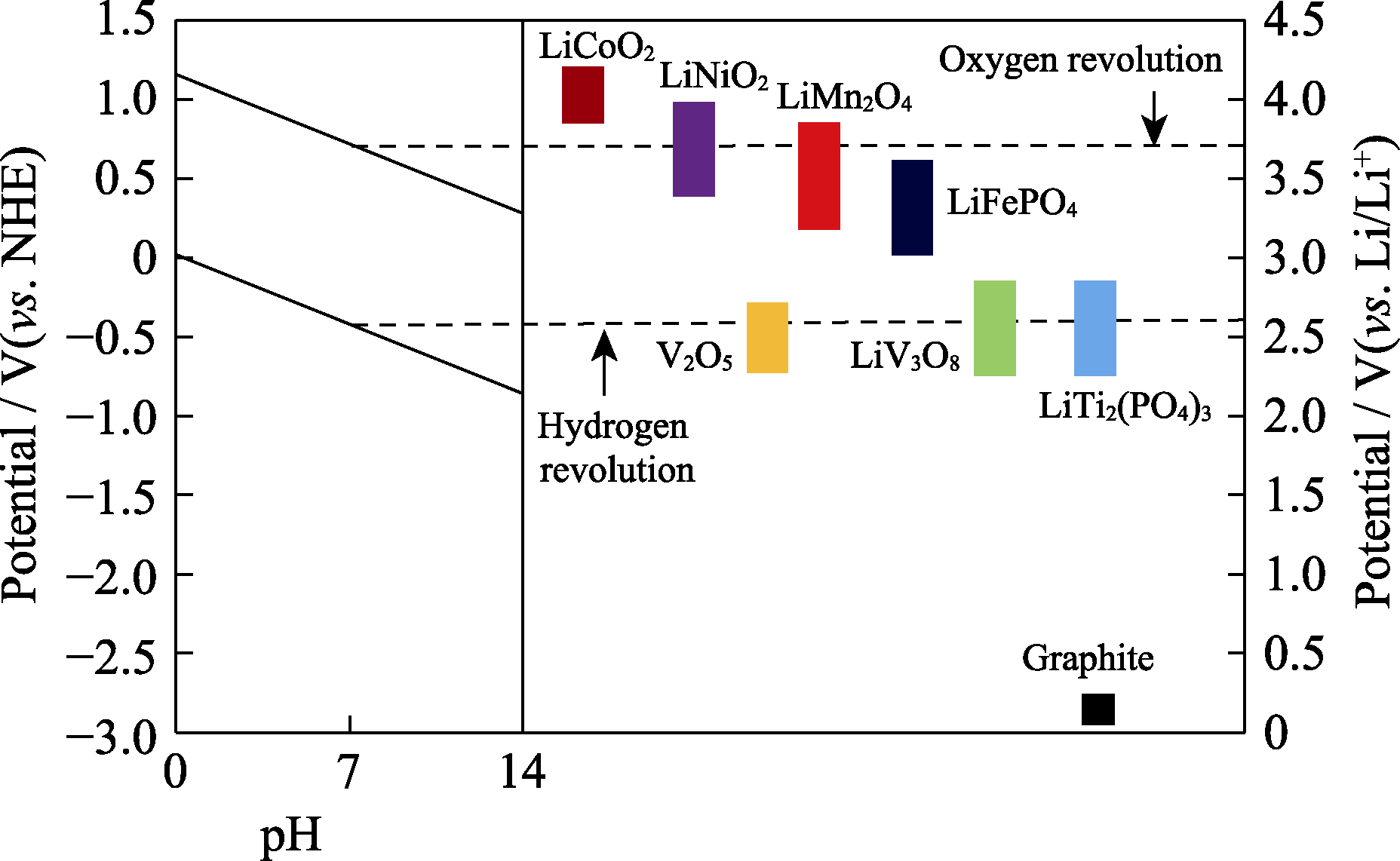

图1 电极材料的嵌锂电位-pH的关系图

Fig. 1 Potential-pH diagram of typical electrode materials

表2 部分水系锂离子电池的负极材料的参数[14]

Table 2 Parameters of some anode materials for aqeuous lithium-ion battery[14]

Anode material	Specific capacity/ (mAh·g^-1)	Potential/ V(vs. Li⁺/Li)	Potential/ V(vs. NHE)	Features
LiTi₂(PO₄)₃	138	2.5	-0.5	Moderate specific capacity, stable framework
TiP₂O₇	121	2.6	-0.4	Low specific capacity, high Li-intercalation potential
VO₂	250	2.6	-0.4	High specific capacity, poor cycling performance
LiV₃O₈	250	2.6	-0.4	Fragile during cycling

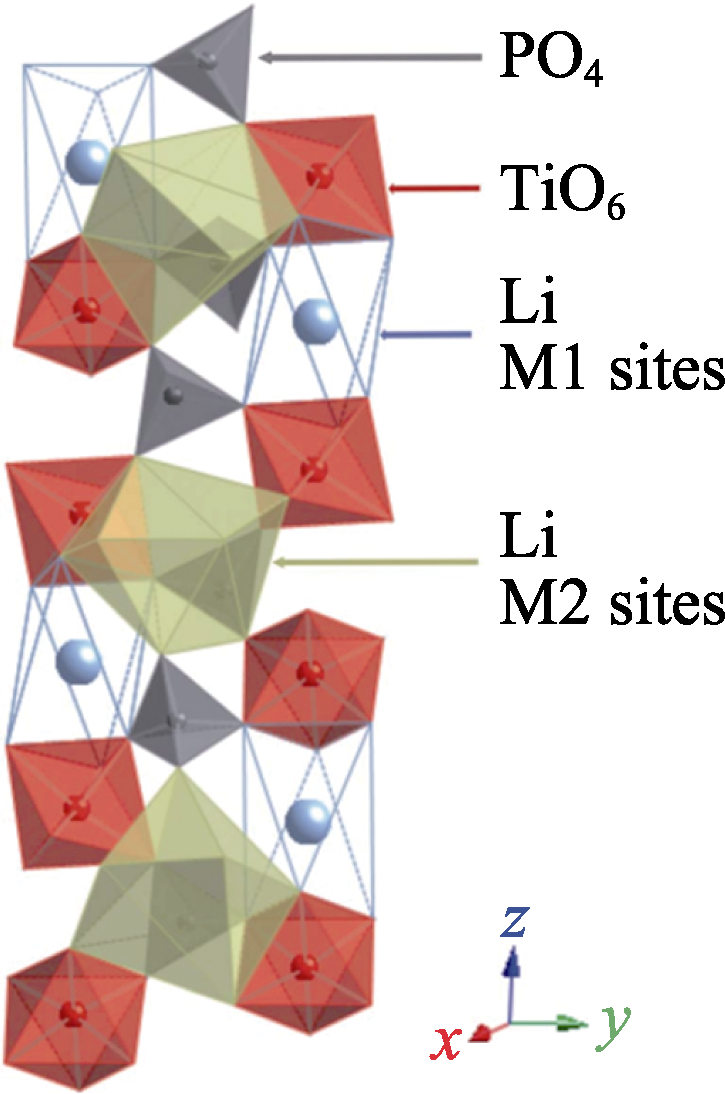

图2 LiTi2(PO4)3的晶体结构图[17]

Fig. 2 Crystal structure of LiTi2(PO4)3[17]

表3 常见LiTi2(PO4)3合成方法比较

Table 3 Comparison of common synthetic methods of LiTi2(PO4)3

Method	Starting materials			Product characteristic	Features	Ref.
	Li source	Ti source	P source	Morphology	Features	Ref.
Solid state	LiH₂PO₄	TiO₂	NH₄H₂PO₄	Irregular particles	Long calcination time, high temperature	[20]
Sol-Gel	CH₃COOLi	Ti(C₄H₉O)₄	H₃PO₄	Particles	Short calcination time, low temperature	[21]
Hydrothermal synthesis	CH₃COOLi	Ti(C₄H₉O)₄	NH₄H₂PO₄	Regular particles	Regular particle morphology, great crystallinity	[22]
Co-precipitation method	LiOH	Ti(C₄H₉O)₄	H₃PO₄	Particles	Requiring precise control	[23]
Electrospinning	CH₃COOLi	Ti(C₄H₉O)₄	NH₄H₂PO₄	Fiber	Ideal electrochemical performance, difficult industrialization	[24]

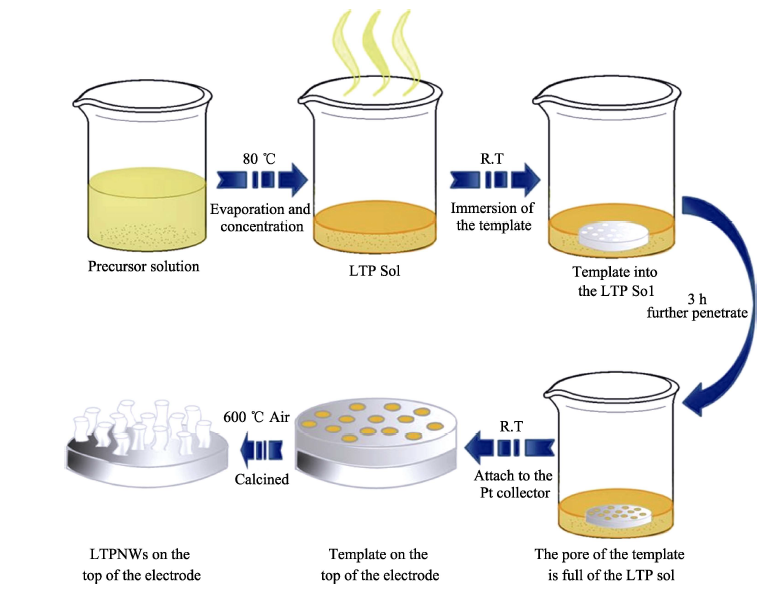

图3 LiTi2(PO4)3 纳米线(LTPNMs)的制备过程示意图[38]

Fig. 3 Schematical illustration of the fabrication process of lithium titranium phosphate nanowires (LTPNMs)[38]

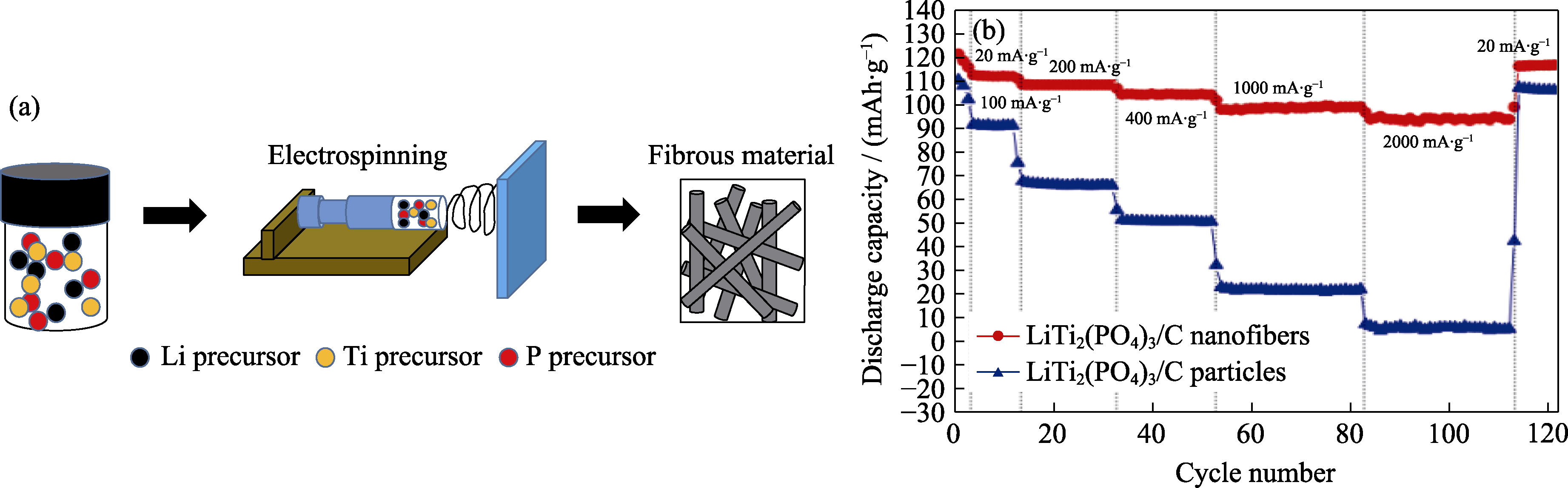

图4 静电纺丝法示意图(a), LiTi2(PO4)3纤维与颗粒的倍率性能曲线(b)[24]

Fig. 4 Schematic diagram of electrospinning (a), comparison of rate performance between LiTi2(PO4)3 fibers and particles (b)[24]

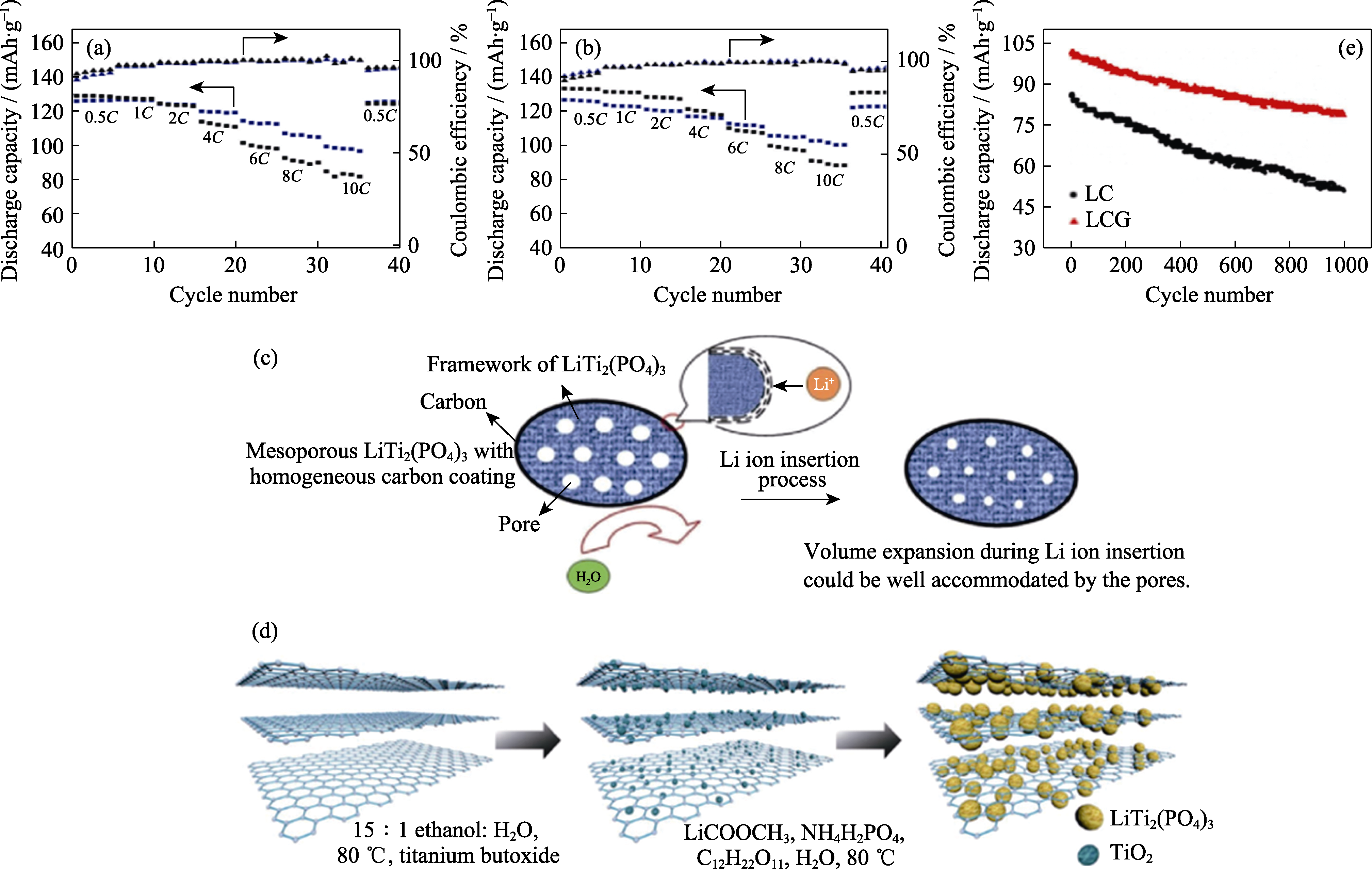

图5 四种包覆碳源的倍率性能图 (a, b)[72]((a)蓝、黑分别为聚多巴胺和酚醛树脂; (b)蓝、黑分别为聚丙烯腈和葡萄糖), 具有均质碳层的介孔LiTi2(PO4)3中Li+插入的机制示意图(c)[75], rGO-LTP的合成步骤示意图(d)[78], LC和LCG在5C下循环1000次的循环性能曲线(e)[80]

Fig. 5 Comparison chart of rate performance of four coated carbon sources (a, b)[72](Blue and black in (a) indicating polydopamine and phenolic resin; blue and black in (b) indicating polyacrylonitrile and glucose), schematic illustration of the tentative Li+ insertion mechanism in mesoporous LiTi2(PO4)3 with carbon coating layer (c)[75], schematic diagram of the synthesis steps of rGO-LTP (d)[78], and cyclic performance of LC and LCG anodes at 5C for 1000 cycles (e)[80] Colorful figures are available on website

表4 溶胶-凝胶法不同碳源和包覆方式的电性能比较

Table 4 Comparison of electrochemical performance of different carbon sources and coating methods by Sol-Gel

Calcination parameter	Coating method	Carbon source	Weight percentage of carbon/%	Current density/(mA·g^-1)	Specific capacity (cycles)/(mAh·g^-1)	Capacity retention/%	Ref.
800 ℃-12 h	In-situ	Citric acid	6.2	138	106.1(1)-89(1300)	84	[36]
900 ℃-12 h	Ex-situ	Toluene	12	700	100(1)-83(200)	83	[31]
800 ℃-12 h	Ex-situ	Acetylene Black	18	140	106.3(1)-86.5(100)	81	[81]
850 ℃-12 h	Ex-situ	Acetylene Black	-	1400	91.3(1)-74.4(100)	81	[82]
700 ℃-12 h	In-situ	Pitch	17.5	1380	107(1)-75.5(1000)	70	[83]
550 ℃-24 h	In-situ	Sucrose	3.5	1400	110(1)-104(800)	94	[17]
750 ℃-5 h	In-situ	Polyaniline	5.9	276	115.2(1)-94.6(1000)	82	[84]
750 ℃-5 h	In-situ	Polyacrylonitrile	5.9	690	95(1)-82.1(1000)	86	[85]
900 ℃-12 h	In-situ	Graphene oxide	1.79	~1380	110(1)-100(100)	91	[78]
800 ℃-10 h	In-situ	Graphene oxide	-	~276	105(1)-97.86(100)	93.2	[77]
700 ℃-5 h	In-situ	Graphene oxide, phenolic resin	16.2	~690	101.1(1)-78(1000)	77.2	[80]
800 ℃-8 h	Ex-situ	β-Cyclodextrin	3.13	~690	120(1)-(200)111.3	88.7	[86]

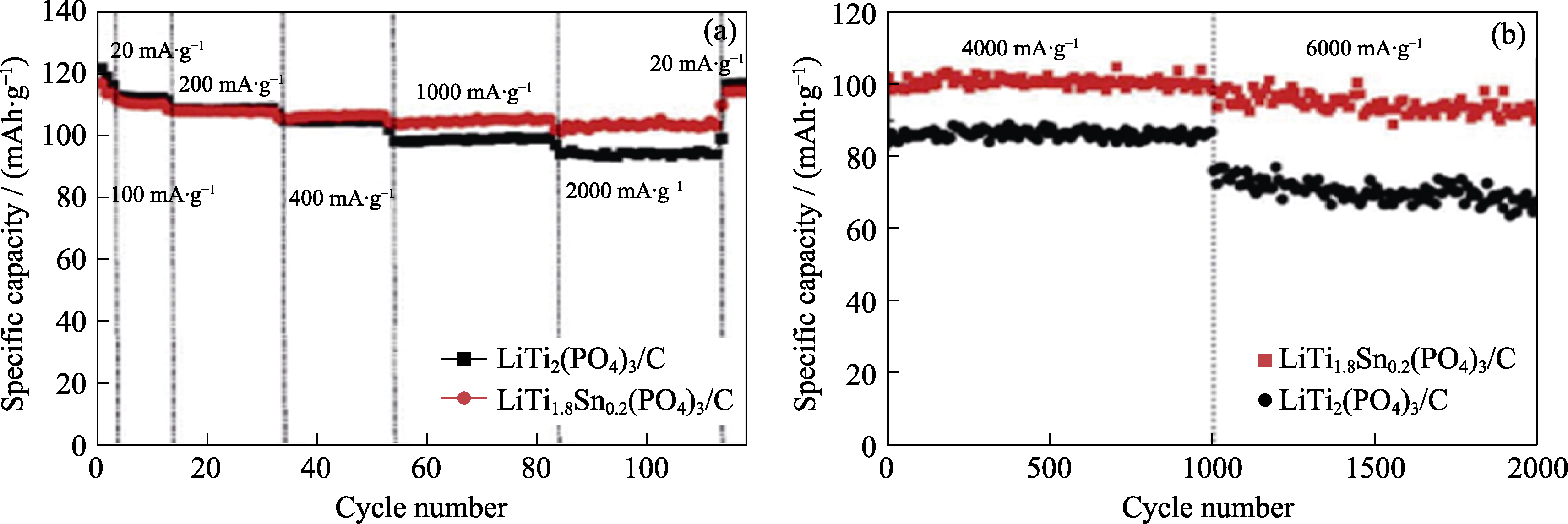

图6 LiTi2(PO4)3/C和LiTi1.8Sn0.2(PO4)3/C在不同电流密度下连续循环的放电容量(a), 电流密度为4和6 A·g-1时的长期循环性能(b)[24]

Fig. 6 Discharge capacity for successive cycling at different current densities (a), long-term cycling behavior at current densities of 4 and 6 A·g-1 (b) of LiTi2(PO4)3/C and LiTi1.8Sn0.2(PO4)3/C[24]

参考文献 93

[1]	WENG Y, XU S, HUANG G, et al. Synthesis. Synthesis and performance of Li[(Ni_1/3Co_1/3Mn_1/3)_(1-x)Mg_x]O₂ prepared from spent lithium ion batteries. Jounral of Hazard Materials, 2013, 246- 247:163-172.
[2]	KIM T, SONG W, SON D Y,et al. Lithium-ion batteries: outlook on present, future, and hybridized technologies. Journal of Materials Chemistry A, 2019,7(7):2942-2964.
[3]	ARMAND M, TARASCON J M. Building better batteries. Nature, 2008,451:652-657.
[4]	ZHANG H, ZHAO H, KHAN M A,et al. Recent progress in advanced electrode materials, separators and electrolytes for lithium batteries. Journal of Materials Chemistry A, 2018,6(42):20564-20620.
[5]	GOODENOUGH J B, PARK K S. The Li-ion rechargeable battery: a perspective. Journal of the American Chemical Society, 2013,135(4):1167-1176.
[6]	SUO L, L H. The past, present and future of lithium ion batteries. Physics, 2020,49(1):17-23.
[7]	LI W, DAHN J R, WAINWRIGHT D S. Rechargeable lithium batteries with aqueous electrolytes. Science, 1994,264(5162):1115-1118.
[8]	ZHOU D. A New Anode Material of Na₂V₆O₁₆ Nanowires for Aqueous Rechargeable Lithium Battery. Changsha: Central South University, Master Dissertation, 2013.
[9]	LI W, MCKINNON W R, R D J. Lithium intercalation from aqueous solutions. Journal of Electrochemical Society, 1994,141:2310-2316.
[10]	TANG W, ZHU Y, HOU Y,et al. Aqueous rechargeable lithium batteries as an energy storage system of superfast charging. Energy & Environmental Science, 2013,6(7):2093-2104.
[11]	DEMIR-CAKAN R, PALACIN M R, CROGUENNEC L. Rechargeable aqueous electrolyte batteries: from univalent to multivalent cation chemistry. Journal of Materials Chemistry A, 2019,7(36):20519-20539.
[12]	LUO J Y, CUI W J, HE P,et al. Raising the cycling stability of aqueous lithium-ion batteries by eliminating oxygen in the electrolyte. Nature Chemistry, 2010,2(9):760-765.
[13]	LIU Z, HUANG Y, HUANG Y,et al. Voltage issue of aqueous rechargeable metal-ion batteries. Chemical Society Review, 2020,49(1):180-232.
[14]	LIU W, WANG B, LI L. Recent progress in electrode materials for aqueous lithium-ion batteries. Energy Storage Science and Technology, 2014,3(1):9-20.
[15]	AATIQ A, MENETRIER M, CROGUENNEC L,et al. On the structure of Li₃Ti₂(PO₄)₃. Journal of Materials Chemistry, 2002,12(10):2971-2978.
[16]	GIAROLA M, SANSON A, TIETZ F,et al. Structure and vibrational dynamics of nasicon-type LiTi₂(PO₄)₃. Journal of Physical Chemistry C, 2017,121(7):3697-3706.
[17]	EL-SHINAWI H, JANEK J. Low-temperature synthesis of macroporous LiTi₂(PO₄)₃/C with superior lithium storage properties. RSC Advances, 2015,5(19):14887-14891.
[18]	GUTIERREZ A, BENEDEK N A, MANTHIRAM A. Crystal- chemical guide for understanding redox energy variations of M ²+/ ³+ couples in polyanion cathodes for lithium-ion batteries . Chemistry of Materials, 2013,25(20):4010-4016.
[19]	DELMAS C, NADIRI A, SOUBEYROUX L J. The nasicon-type titatium phosphates ATi₂(PO₄)₃(A=Li, Na) as electrode materials. Solid State Ionics, 1988, 28-30:419-423.
[20]	WANG H, HUANG K, ZENG Y,et al. Electrochemical properties of TiP₂O₇ and LiTi₂(PO₄)₃ as anode material for lithium ion battery with aqueous solution electrolyte. Electrochimica Acta, 2007,52(9):3280-3285.
[21]	JIANG Z, LI Y, HAN C,et al. K doping on Li site enables LiTi₂(PO₄)₃/C excellent lithium storage performance. Solid State Ionics, 2019,341:115036.
[22]	YU S, TEMPEL H, SCHIERHOLZ R,et al. LiTi₂(PO₄)₃/C anode material with a spindle-like morphology for batteries with high rate capability and improved cycle life. ChemElectroChem, 2016,3(7):1157-1169.
[23]	SUN J, SUN Y, GAI L,et al. Carbon-coated mesoporous LiTi₂(PO₄)₃ nanocrystals with superior performance for lithium-ion batteries. Electrochimica Acta, 2016,200:66-74.
[24]	LIU L, SONG T, HAN H,et al. Electrospun Sn-doped LiTi₂(PO₄)₃/C nanofibers for ultra-fast charging and discharging. Journal of Materials Chemistry A, 2015,3(19):10395-10402.
[25]	WANG G X, BRADHURST D H, DOU S X,et al. LiTi₂(PO₄)₃ with NASICON-type structure as lithium-storage materials. Journal of Power Sources, 2003,124(1):231-236.
[26]	LI W,R. D J. Lithium-ion cells with aqueous electrolytes. Journal of Electrochemical Society, 1995,142:1742-1746.
[27]	KOHLER J, MAKIHARA H, UEGAITO H,et al. LiV₃O₈: characterization as anode material for an aqueous rechargeable Li-ion battery system. Electrochim. Acta, 2000,46:59-65.
[28]	ZHENG W. Solid-state Synthesis and Surface Modification of LiFePO₄ and LiTi₂(PO₄)₃ for Lithium Ion Electrode Materials. Zhengjiang: Zhengjiang University,Doctoral Dissertation, 2010.
[29]	FENG C, LI L, TANG J,et al. Synthesis and electrochemical performance of a new type of anode material LiTi₂(PO₄)₃. Power Technology, 2015,39(2):242-244.
[30]	LI W, LI Y, CAO M,et al. Synthesis and electrochemical performance of alginic acid-based carbon-coated Li₃V₂(PO₄)₃ composite by rheological phase method. Acta Phys-ChimSin, 2017,33(11):2261-2267.
[31]	LUO J Y, XIA Y Y. Aqueous lithium-ion battery LiTi₂(PO₄)₃/LiMn₂O₄ with high power and energy densities as well as superior cycling stability. Advanced Functional Materials, 2007,17(18):3877-3884.
[32]	TANG Z K, XUE Y F, TEOBALDI G,et al. The oxygen vacancy in Li-ion battery cathode materials. Nanoscale Horizons, 2020,5(11):1453-1466.
[33]	LUO J Y, CHEN L J, ZHAO Y J,et al. The effect of oxygen vacancies on the structure and electrochemistry of LiTi₂(PO₄)₃ for lithium-ion batteries: a combined experimental and theoretical study. Journal of Power Sources, 2009,194(2):1075-1080.
[34]	CHENG C. Study of Anode Materials for Aqueous Rechargeable Lithium-ion Batteries. Changsha: Xiangtan University, Master Dissertation, 2010.
[35]	MARIAPPAN C R, GALVEN C, CROSNIER-LOPEZ M P,et al. Synthesis of nanostructured LiTi₂(PO₄)₃ powder by a Pechini-type polymerizable complex method. Journal of Solid State Chemistry, 2006,179(2):450-456.
[36]	WESSELLS C, HUGGINS R A, CUI Y. Recent results on aqueous electrolyte cells. Journal of Power Sources, 2011,196(5):2884-2888.
[37]	ZHOU X L, YAN Z G, LI S Y,et al. Single crystalline LiTi₂(PO₄)₃ nanowires by porous template with improved electrochemical performance. Materials Today Energy, 2018,7:113-121.
[38]	ZHOU X. Lithium Titanium Phosphate and Carbon/copper Composite Electrode Materials: Controlled Preparation, Structural Study and Electrochemical Performance. Beijing: Beijing University of Technology, Doctoral Dissertation, 2014.
[39]	ZHOU D, LI J, CHEN C,et al. A hydrothermal synthesis of Ru-doped LiMn_1.5Ni_0.5O₄ cathode materials for enhanced electrochemical performance. RSC Advances, 2021,11(21):12549-12558.
[40]	SONG Y, XIE B, SONG S,et al. Regeneration of LiFePO₄ from spent lithium-ion batteries via a facile process featuring acid leaching and hydrothermal synthesis. Green Chemistry, 2021,23(11):3963-3971.
[41]	WANG J, QIN X, GUO J,et al. A porous hierarchical micro/nano LiNi_0.5Mn_1.5O₄ cathode material for Li-ion batteries synthesized by a urea-assisted hydrothermal method. Dalton Transactions, 2018,47(21):7333-7343.
[42]	QIN X, ZHOU M, ZONG B,et al. Urea-assisted hydrothermal synthesis of a hollow hierarchical LiNi_0.5Mn_1.5O₄ cathode material with tunable morphology characteristics. RSC Advances, 2018,8(53):30087-30097.
[43]	YUE Y, PANG W. Hydrothermal synthesis and characterization of LiTi₂(PO₄)₃. Journal of Materials Science Letters, 1990,9:1392.
[44]	LIANG Y, HISAMO T, SUMI S,et al. Direct fabrication of thin-film LiTi₂(PO₄)₃ electrodes using the hydrothermal method. Solid State Ionics, 2016,296:7-12.
[45]	LI M, LIU L, ZHANG N,et al. Mesoporous LiTi₂(PO₄)₃/C composite with trace amount of carbon as high-performance electrode materials for lithium ion batteries. Journal of Alloys and Compounds, 2018,749:1019-1027.
[46]	HOU P, ZHANG H, ZI Z,et al. Core-shell and concentration- gradient cathodes prepared via co-precipitation reaction for advanced lithium-ion batteries. Journal of Materials Chemistry A, 2017,5(9):4254-4279.
[47]	LI H, LI Z, CUI Y,et al. Long-cycled Li₂ZnTi₃O₈/TiO₂ composite anode material synthesized via a one-pot co-precipitation method for lithium ion batteries. New Journal of Chemistry, 2017,41(3):975-981.
[48]	杨勇. 固态电化学. 北京: 化学工业出版社, 2017.
[49]	盖利刚, 孙家香, 姜海辉. 一种碳包覆介孔磷酸钛锂的制备方法: 中国. ZL201510957301.8. 2015. 12. 18.
[50]	OGHBAEI M, MIRZAEE O. Microwave versus conventional sintering: a review of fundamentals, advantages and applications. Journal of Alloys and Compounds, 2010,494(1/2):175-189.
[51]	RIQUET G, MARINEL S, BREARD Y,et al. Direct and hybrid microwave solid state synthesis of CaCu₃Ti₄O₁₂ ceramic: microstructures and dielectric properties. Ceramics International, 2018,44(13):15228-15235.
[52]	ZHANG M, GARCIA-ARAEZ N, HECTOR A L. Understanding and development of olivine LiCoPO₄ cathode materials for lithium- ion batteries. Journal of Materials Chemistry A, 2018,6(30):14483-14517.
[53]	LUDWIG J, NORDLUND D, DOEFF M M,et al. Synthesis and characterization of metastable, 20 nm-sized Pna2₁-LiCoPO₄ nanospheres. Journal of Solid State Chemistry, 2017,248:9-17.
[54]	GUO X, JIA X, HU H,et al. Synthesis of LiTi₂(PO₄)₃ ultrafine powder by Sol-Gel and microwave heating method. Materials Reports, 2007,21(11A):68-71.
[55]	HU J, HUANG W, YANG L,et al. Structure and performance of the LiFePO₄ cathode material: from the bulk to the surface. Nanoscale, 2020,12(28):15036-15044.
[56]	YANG C, LEE D J, KIM H,et al. Synthesis of nano-sized urchin-shaped LiFePO₄ for lithium ion batteries. RSC Advances, 2019,9(24):13714-13721.
[57]	XIANG J, ZHANG P, LV S,et al. Spinel LiMn₂O₄ nanoparticles fabricated by the flexible soft template/Pichini method as cathode materials for aqueous lithium-ion capacitors with high energy and power density. RSC Advances, 2021,11(25):14891-14898.
[58]	JO J, NAM S, HAN S,et al. One-pot pyro synthesis of a nanosized-LiMn₂O₄/C cathode with enhanced lithium storage properties. RSC Advances, 2019,9(42):24030-24038.
[59]	QI W, SHAPTER J G, WU Q,et al. Nanostructured anode materials for lithium-ion batteries: principle, recent progress and future perspectives. Journal of Materials Chemistry A, 2017,5(37):19521-19540.
[60]	TIAN L, YU H, ZHANG W,et al. The star material of lithium ion batteries, LiFePO₄: basic properties, optimize moderation and future prospects. Materials Reports, 2019,33(11):3561-3579.
[61]	DENG W, WANG X, LIU C,et al. Touching the theoretical capacity: synthesizing cubic LiTi₂(PO₄)₃/C nanocomposites for high-performance lithium-ion battery. Nanoscale, 2018,10(14):6282-6287.
[62]	WU Y, CHONG S, LIU Y,et al. High electrochemical performance of nanocrystallized carbon-coated LiFePO₄ modified by tris (pentafluorophenyl) borane as a cathode material for lithium-ion batteries. RSC Advances, 2018,8(51):28978-28986.
[63]	WANG Y, WANG X, JIANG A,et al. A versatile nitrogen-doped carbon coating strategy to improve the electrochemical performance of LiFePO₄ cathodes for lithium-ion batteries. Journal of Alloys and Compounds, 2019,810:151889.
[64]	PARK G D, HONG J H, JUNG D S,et al. Unique structured microspheres with multishells comprising graphitic carbon-coated Fe₃O₄ hollow nanopowders as anode materials for high-performance Li-ion batteries. Journal of Materials Chemistry A, 2019,7(26):15766-15773.
[65]	KU D J, LEE J H, LEE S J,et al. Effects of carbon coating on LiNi_0.5Mn_1.5O₄ cathode material for lithium ion batteries using an atmospheric microwave plasma torch. Surface and Coatings Technology, 2019,376:25-30.
[66]	SUN W, LIU J, LIU X,et al. Bimolecular-induced hierarchical nanoporous LiTi₂(PO₄)₃/C with superior high-rate and cycling performance. Chemical Communications, 2017,53(62):8703-8706.
[67]	TAN Y, XUE B. Research progress on lithium titanate as anode material in lithium-ion battery. Journal of Inorganic Materials, 2018,33(5):475-482.
[68]	LI H, ZHOU H. Enhancing the performances of Li-ion batteries by carbon-coating: present and future. Chemical Communications, 2012,48(9):1201-1217.
[69]	YE J, LI C, RAO M,et al. Effects of different carbon solutions on electrochemical performance of LiTi₂(PO₄)₃/C composite anode material. Power Technology, 2020,44(3):322-325.
[70]	LUO S, TIAN Y, TANG Z,et al. Effect of the structure of pyrolytic carbon on the performance of LiFePO₄/C composite cathode material. Rare Metal Materials and Engineering, 2009,38:13-15.
[71]	CHEN Y, HE H, LIU L,et al. Thermal decomposition of glucose and sucrose by kinetics analysis. The Chinese Joumal of Process Engineering, 2010,10(4):720-725.
[72]	ZHANG C, WEN Y, ZHANG P,et al. Effect of organic carbon source on performance of LiTi₂(PO₄)₃/C composite electrodes in aqueous solutions. Chemical Journal of Chinese Universities, 2020,41(6):1352-1361.
[73]	LIN L, CONG Z, CAO J,et al. Multifunctional Fe₃O₄@Polydopamine core-shell nanocomposites for intracellular mRNA detection and imaging-guided photothermal therapy. ACS Nano, 2014,8(4):3876-3883.
[74]	HE Z, JIANG Y, MENG W,et al. Advanced LiTi₂(PO₄)₃@N-doped carbon anode for aqueous lithium ion batteries. Electrochimica Acta, 2016,222:1491-1500.
[75]	SUN D, TANG Y, HE K,et al. Long-lived aqueous rechargeable lithium batteries using mesoporous LiTi₂( PO₄)₃@Canode. Scientific Reports, 2015,5:17452.
[76]	XU T, ZHAO M, SU Z,et al. Nanostructured LiTi₂(PO₄)₃ anode with superior lithium and sodium storage capability aqueous electrolytes. Journal of Power Sources, 2021,481:229110.
[77]	ROH H K, KIM H K, ROH K C,et al. LiTi₂(PO₄)₃/reduced graphene oxide nanocomposite with enhanced electrochemical performance for lithium-ion batteries. RSC Advances, 2014,4(60):31672-31677.
[78]	LIM C H, KANNAN A G, LEE H W,et al. A high power density electrode with ultralow carbon via direct growth of particles on graphene sheets. Journal of Materials Chemistry A, 2013,1(20):6183-6190.
[79]	WANG H, YANG Y, LIANG Y,et al. LiMn₁-_xFe_xPO₄ nanorods grown on graphene sheets for ultrahigh-rate-performance lithium ion batteries. Angewandte Chemie International Edition, 2011,50(32):7364-7368.
[80]	ZHOU Z, LUO W, HUANG H,et al. LiTi₂(PO₄)₃@carbon/ graphene hybrid as superior anode materials for aqueous lithium ion batteries. Ceramics International, 2017,43(1):99-105.
[81]	ZHOU M, LIU L, YI L,et al. Synthesis of LiTi₂(PO₄)₃-acetylene black nanocomposites for lithium ion batteries by the polyvinyl alcohol assisted Sol-Gel method and ball-milling. Journal of Power Sources, 2013,234:292-301.
[82]	LIU L, ZHOU M, WANG G,et al. Synthesis and characterization of LiTi₂(PO₄)₃/C nanocomposite as lithium intercalation electrode materials. Electrochimica Acta, 2012,70:136-141.
[83]	WENG G M, SIMON TAM L Y, LU Y C. High-performance LiTi₂(PO₄)₃ anodes for high-areal-capacity flexible aqueous lithium-ion batteries. Journal of Materials Chemistry A, 2017,5(23):11764-11771.
[84]	HE Z, JIANG Y, ZHU J,et al. N-doped carbon coated LiTi₂(PO₄)₃ as superior anode using PANi as carbon and nitrogen bi-sources for aqueous lithium ion battery. Electrochimica Acta, 2018,279:279-288.
[85]	ZHOU Z, XIANG A, XIA M,et al. Advanced LiTi₂(PO₄)₃ anode with high performance for aqueous rechargeable lithium battery. Ceramics International, 2018,44(17):21599-21606.
[86]	YE J M, LI C M. Synthesis of LiTi₂(PO₄)₃@carbon anode material with superior performance using beta-cyclodextrin as carbon sources. Ionics, 2020,26(6):2845-2853.
[87]	BOUNAR N, BENABBAS A, ROPA P,et al. Synthesis and ionic conductivity of nasicon-structured LiTi₂_xSn_x(PO₄)₃ anode material for lithium-ion batteries. Advances in Materials and Processing Technologies, 2017,3(3):241-249.
[88]	HE Z, JIANG Y, ZHU J,et al. Boosting the performance of LiTi₂(PO₄)₃/C anode for aqueous lithium ion battery by Sn doping on Ti sites. Journal of Alloys and Compounds, 2018,731:32-38.
[89]	LIU N, HE Z, ZHANG X,et al. Synthesis and electrochemical properties of Na-doped LiTi₂(PO₄)₃@carbon composite as anode for aqueous lithium ion batteries. Ceramics International, 2017,43(14):11481-11487.
[90]	WANG H, ZHANG H, CHENG Y,et al. Rational design and synthesis of LiTi₂(PO₄)₃-_xF_x anode materials for high-performance aqueous lithium ion batteries. Journal of Materials Chemistry A, 2017,5(2):593-599.
[91]	张华民, 王怀清, 冯凯, 等. 一种阴离子掺杂的磷酸钛锂负极材料及其制备和应用. ZL201610490240.3. 2016. 6. 29.
[92]	LUO H, TANG Y, XIANG Z,et al. Cl-doping strategy to boost the lithium storage performance of lithium titanium phosphate. Frontiers in Chemistry, 2020,8:349.
[93]	JIANG Z, LI Y H, HAN C,et al. Endowing LiTi₂(PO₄)₃/C with excellent electrochemical performances through rational crystal doping. Ceramics International, 2019,45(17):23406-23410.

水系锂离子电池负极材料LiTi₂(PO₄)₃的研究进展

Research Progress of LiTi₂(PO₄)₃ Anode for Aqueous Lithium-ion Batteries

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 10

参考文献 93

相关文章 15

编辑推荐

Metrics

本文评价

[1]	魏相霞, 张晓飞, 徐凯龙, 陈张伟. 增材制造柔性压电材料的现状与展望[J]. 无机材料学报, 2024, 39(9): 965-978.
[2]	杨鑫, 韩春秋, 曹玥晗, 贺桢, 周莹. 金属氧化物电催化硝酸盐还原合成氨研究进展[J]. 无机材料学报, 2024, 39(9): 979-991.
[3]	刘鹏东, 王桢, 刘永锋, 温广武. 硅泥在锂离子电池中的应用研究进展[J]. 无机材料学报, 2024, 39(9): 992-1004.
[4]	黄洁, 汪刘应, 王滨, 刘顾, 王伟超, 葛超群. 基于微纳结构设计的电磁性能调控研究进展[J]. 无机材料学报, 2024, 39(8): 853-870.
[5]	陈乾, 苏海军, 姜浩, 申仲琳, 余明辉, 张卓. 超高温氧化物陶瓷激光增材制造及组织性能调控研究进展[J]. 无机材料学报, 2024, 39(7): 741-753.
[6]	王伟明, 王为得, 粟毅, 马青松, 姚冬旭, 曾宇平. 以非氧化物为烧结助剂制备高导热氮化硅陶瓷的研究进展[J]. 无机材料学报, 2024, 39(6): 634-646.
[7]	蔡飞燕, 倪德伟, 董绍明. 高熵碳化物超高温陶瓷的研究进展[J]. 无机材料学报, 2024, 39(6): 591-608.
[8]	吴晓晨, 郑瑞晓, 李露, 马浩林, 赵培航, 马朝利. SiC_f/SiC陶瓷基复合材料高温环境损伤原位监测研究进展[J]. 无机材料学报, 2024, 39(6): 609-622.
[9]	赵日达, 汤素芳. 多孔碳陶瓷化改进反应熔渗法制备陶瓷基复合材料研究进展[J]. 无机材料学报, 2024, 39(6): 623-633.
[10]	方光武, 谢浩元, 张华军, 高希光, 宋迎东. CMC-EBC损伤耦合机理及一体化设计研究进展[J]. 无机材料学报, 2024, 39(6): 647-661.
[11]	张幸红, 王义铭, 程源, 董顺, 胡平. 超高温陶瓷复合材料研究进展[J]. 无机材料学报, 2024, 39(6): 571-590.
[12]	张慧, 许志鹏, 朱从潭, 郭学益, 杨英. 大面积有机-无机杂化钙钛矿薄膜及其光伏应用研究进展[J]. 无机材料学报, 2024, 39(5): 457-466.
[13]	李宗晓, 胡令祥, 王敬蕊, 诸葛飞. 氧化物神经元器件及其神经网络应用[J]. 无机材料学报, 2024, 39(4): 345-358.
[14]	鲍可, 李西军. 化学气相沉积法制备智能窗用热致变色VO₂薄膜的研究进展[J]. 无机材料学报, 2024, 39(3): 233-258.
[15]	胡梦菲, 黄丽萍, 李贺, 张国军, 吴厚政. 锂/钠离子电池硬碳负极材料的研究进展[J]. 无机材料学报, 2024, 39(1): 32-44.
