Ag Doping Modulating Cathode Acidic Sites to Enhance Chromium Resistance for Intermediate Temperature Solid Oxide Fuel Cells

doi:10.15541/jim20250105

Abstract

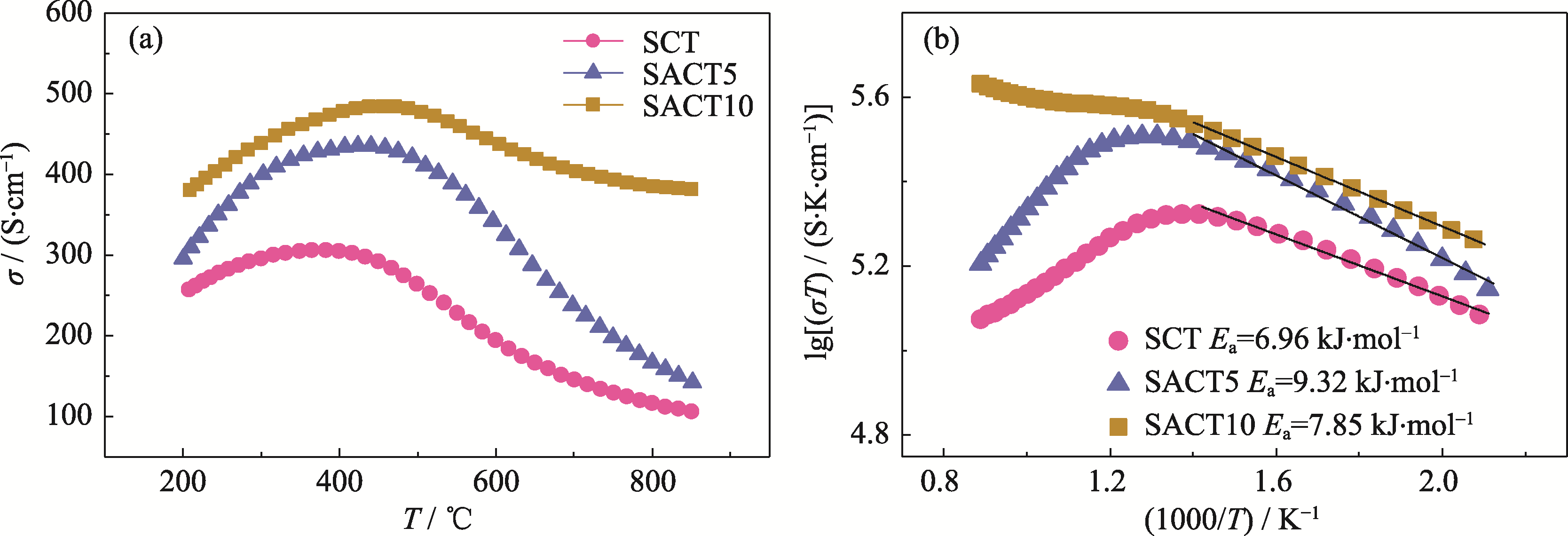

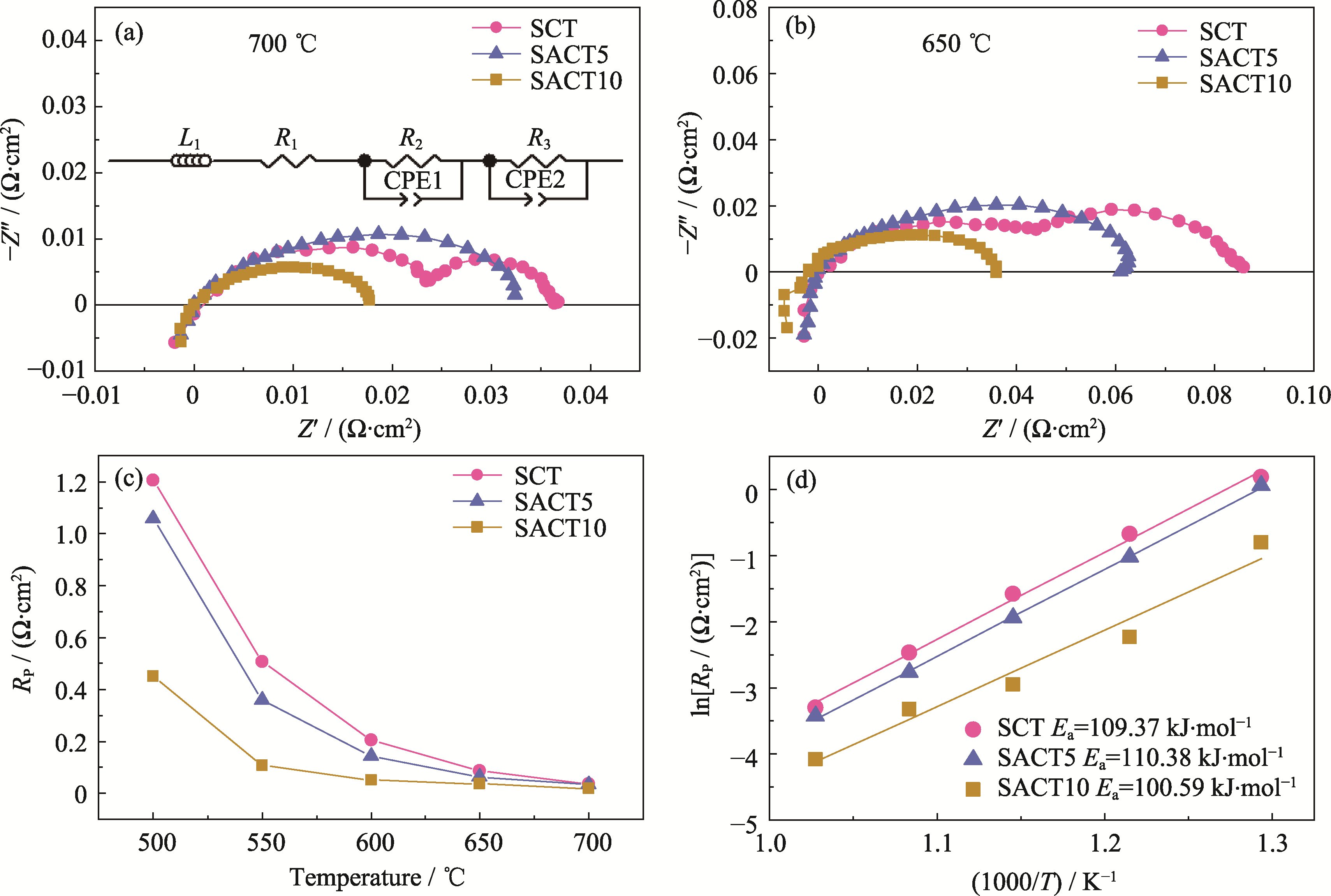

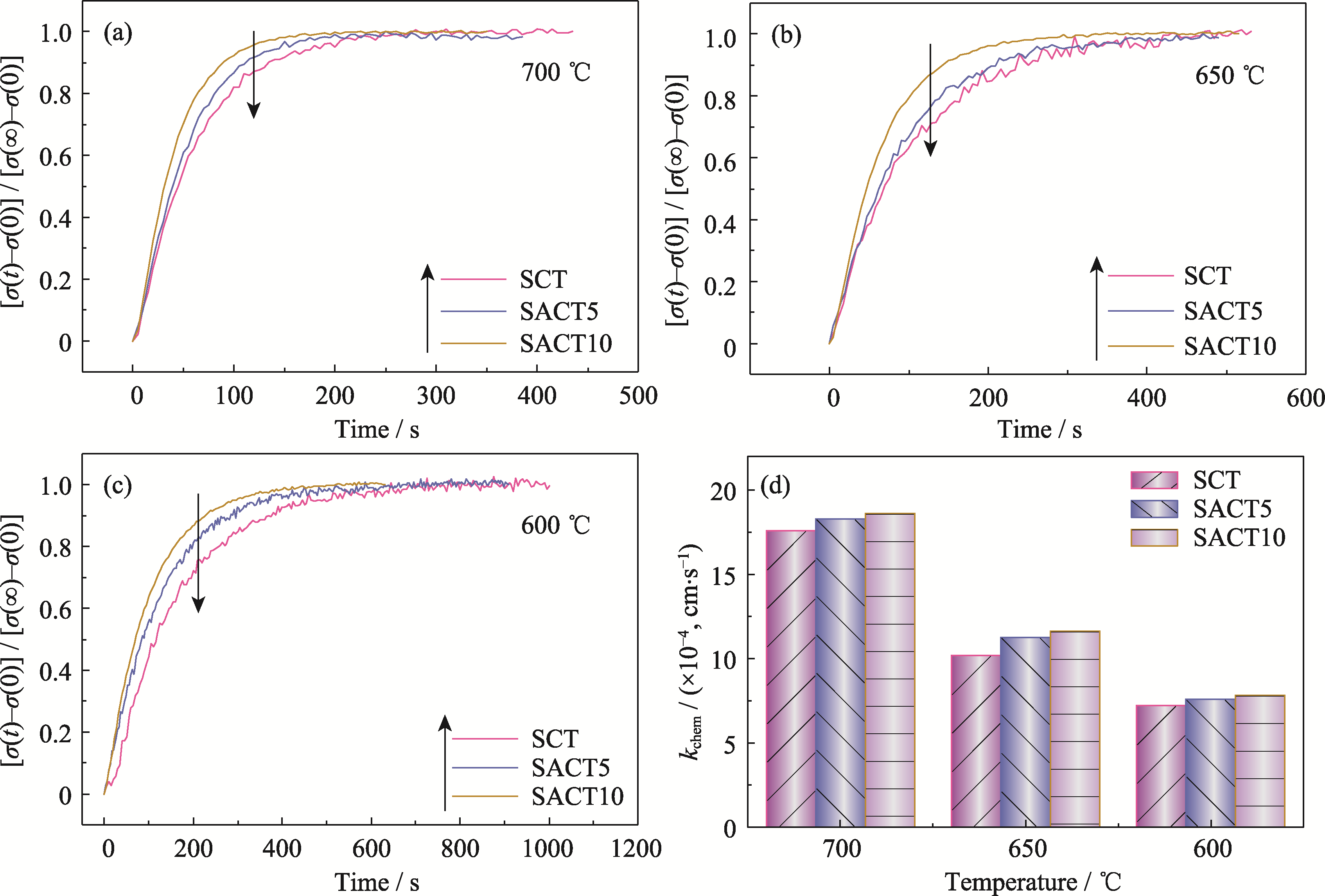

Abstract: Cr poisoning is an important factor restricting the practical application of solid oxide fuel cells (SOFCs) cathodes. In particular, the alkaline earth rich perovskite oxide cathodes are prone to cation segregation and impurity poisoning at high temperatures, which can significantly reduce the cathode performance. To improve the Cr resistance of the cathode, the acid site of SrCo_0.9Ta_0.1O_3-_δ (SCT) was regulated by Ag doping, and the conductivity, catalytic activity, surface morphology and composition of materials were systematically investigated. The results show that Ag doping enhances the conductivity of the material, and the doped material exhibits higher oxygen surface exchange coefficient, which is conducive to improving its cathodic catalytic activity. At 700 ℃, the polarization resistance (R_p) of Sr_0.9Ag_0.1Co_0.9Ta_0.1O_3-_δ (SACT10) cathode is 0.0176 Ω·cm², which is significantly lower than that of SCT cathode (0.0366 Ω·cm²). In addition, due to the Ag doping strategy, the average valence state of Co in SACT10 material increases, which increases the relative acidity and improves the Cr resistance. After operating in Cr-containing atmosphere for 22 h, R_p of SACT10 cathode is 0.205 Ω·cm², significantly lower than that of SCT cathode (0.964 Ω·cm²), and less inert secondary phases are observed on the surface of SACT10 cathode after testing. The above results confirm that Ag doping can effectively increase acid sites, improve activity and enhance Cr resistance. SACT10 obtained in this work is expected to be a promising medium temperature SOFCs cathode material.

Key words: solid oxide fuel cell, chromium resistance, acidic site, alkaline earth cation, surface segregation

CLC Number:

TQ174

GAO Yuan, WEI Bo, JIN Fanjun, LÜ Zhe, LING Yihan. Ag Doping Modulating Cathode Acidic Sites to Enhance Chromium Resistance for Intermediate Temperature Solid Oxide Fuel Cells[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250105.
