Fluorination of BaZr0.1Ce0.7Y0.1Yb0.1O3 as Electrolyte Material for Proton-conducting Solid Oxide Fuel Cell

doi:10.15541/jim20240535

Abstract

Abstract:

Proton-conducting solid oxide fuel cells (H⁺-SOFC) have gained great attention due to weak temperature dependence and high energy conversion efficiency. However, how to improve their proton conductivity still remains an open problem. In this work, a fluorination strategy based on the BaZr_0.1Ce_0.7Y_0.1Yb_0.1O₃ (BZCYYb) electrolyte was proposed to improve the proton conductivity. It is found that the conductivity (σ) of the fluorinated BaZr_0.1Ce_0.7Y_0.1Yb_0.1O_2.9F_0.1 (BZCYYbF) is 4.59×10^-3-2.14×10^-2 S/cm at 450-800 ℃ in dry H₂, higher than that of the primitive BZCYYb electrolyte (σ=3.99×10^-3-1.86×10^-2 S/cm). The electrolyte fluorination significantly reduces anode polarization resistance for hydrogen oxidation reaction from 2.50 Ω·cm² to 1.94 Ω·cm², and total resistance of the single cell with 300-μm-thick electrolyte supporting from 1.54 Ω·cm² to 1.47 Ω·cm². Therefore, the BZCYYbF single cell shows much higher maximum power density (172 mW·cm^-2) than the BZCYYb single cell (144 mW·cm^-2) at 700 ℃. This result is attributed to the fact that the electrolyte fluorination not only improves the proton conduction capacity but also enhances the rates of H₂ diffusion and adsorption/dissociation on the anode sides. In conclusion, the fluorination of BZCYYb electrolyte can significantly improve its proton conductivity and thereby contribute to superior electrochemical performance of H⁺-SOFC.

Key words: proton-conducting solid oxide fuel cell, proton conducting electrolyte, fluorination, conductivity, electrochemical performance

CLC Number:

TQ15

JIANG Yuehong, SONG Yunfeng, ZHANG Leilei, MA Ji, SONG Zhaoyuan, LONG Wen. Fluorination of BaZr_0.1Ce_0.7Y_0.1Yb_0.1O₃ as Electrolyte Material for Proton-conducting Solid Oxide Fuel Cell[J]. Journal of Inorganic Materials, 2025, 40(12): 1356-1364.

Figures/Tables 12

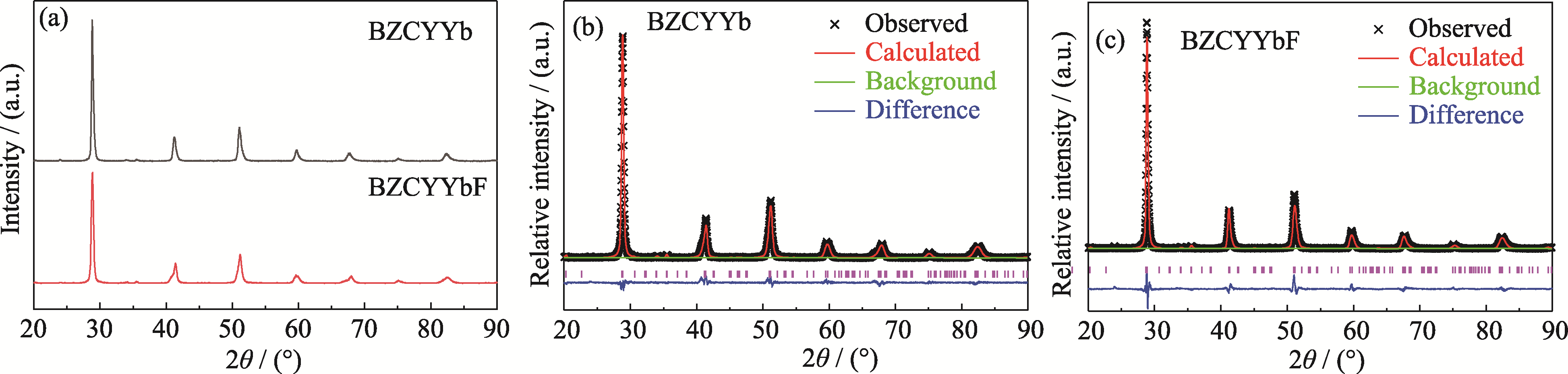

Fig. 1 XRD patterns and Rietveld refinements for BZCYYb and BZCYYbF samples (a) XRD patterns; Rietveld refinements for (b) BZCYYb and (c) BZCYYbF. Colorful figures are available on website

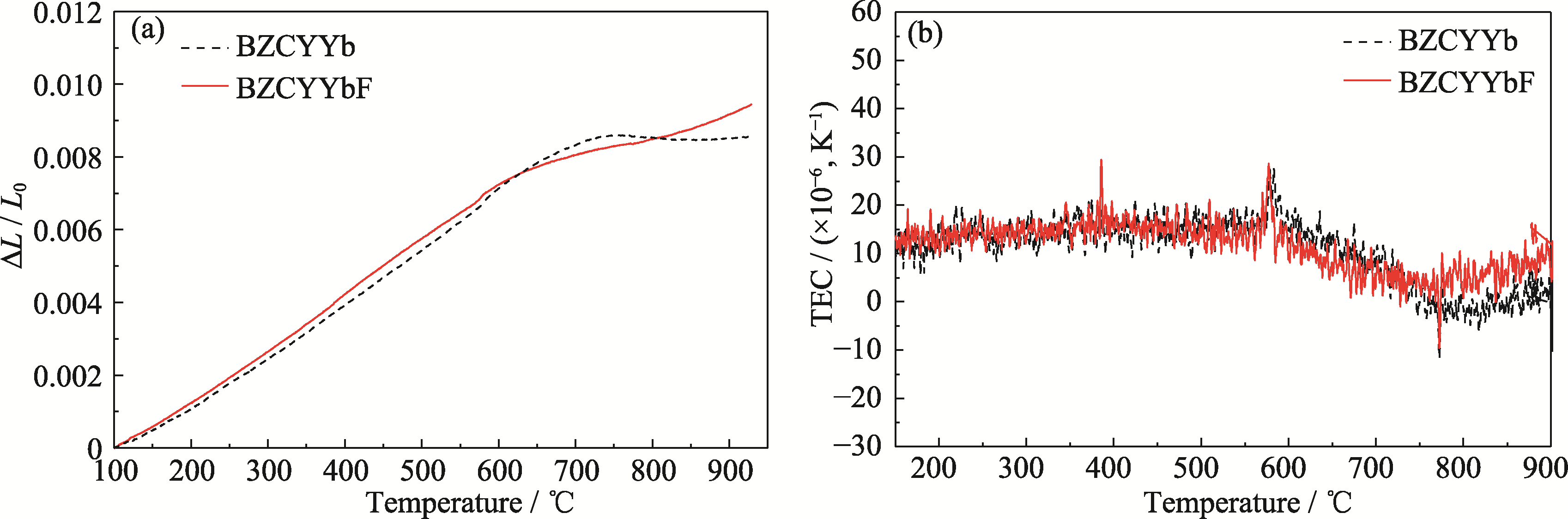

Fig. 2 (a) Thermal expansion and (b) first order differential curves of BZCYYb and BZCYYbF in air

Fig. 3 Ce3d XPS spectra for (a) BZCYYb and (b) BZCYYbF electrolytes

Fig. 4 (a) Electrical conductivities of BZCYYb and BZCYYbF in air; (b, c) Surface SEM images of (b) BZCYYb and (c) BZCYYbF; (d) Electrical conductivities of BZCYYb and BZCYYbF in dry H2

Fig. 5 (a, c, e, g) EIS spectra and (b, d, f, h) DRT curves for BZCYYb and BZCYYbF symmetric cells in (a-d) air and (e-h) wet H2 at (a, b, e, f) 600 and (c, d, g, h) 700 ℃

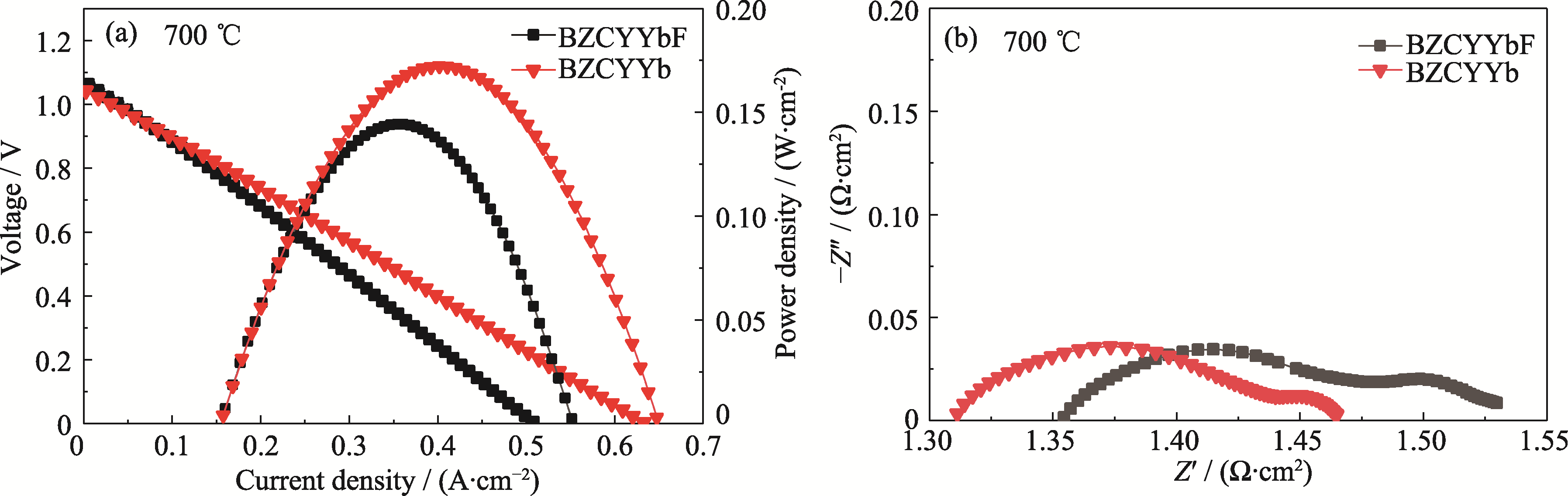

Fig. 6 (a) I-V/I-P curves and (b) EIS spectra for electrolyte-supported single cells at 700 ℃

Fig. 7 Time dependent current densities for single cells under a constant potential of 0.55 V

Fig. 8 (a) I-V/I-P curves for anode-supported single cell at 600 ℃ and (b) cross-sectional SEM image for anode-supported single cell with BZCYYbF electrolyte after cell stability test

Table S1 Rietveld refinement results for BZCYYb and BZCYYbF samples based on space group Pbnm

Sample	BZCYYb		BZCYYbF
Sample	Refined	Sigmas	Refined	Sigmas
a/Å	6.2146	0.000851	6.210605	0.000363
b/Å	6.2443	0.000511	6.197102	0.000486
c/Å	8.7578	0.00058	8.701261	0.00077
α/(°)	90	-	90	-
β/(°)	90	-	90	-
γ/(°)	90	-	90	-
V/Å³	339.858	0.054	334.892	0.04
χ²	1.711	-	2.346	-
R_wp/%	14.83	-	14.07	-
R_p/%	9.99	-	11.54	-

Fig. S1 F1s XPS spectra for BZCYYbF electrolyte

Fig. S2 (a, b) Electrical conductivity curves for (a) BZCYYb and (b) BZCYYbF in air measured by different models; (c) Schematic diagram for three different conductivity testing models; (d, e) Histograms of conductivities for (d) BZCYYb and (e) BZCYYbF measured by different models; (f) Comparison of conductivities for BZCYYb and BZCYYbF

Fig. S3 (a, b) Electrical conductivity curves for (a) BZCYYb and (b) BZCYYbF in H2 measured by different models; (c) Schematic diagram for two different conductivity testing models; (d) Histogram for BZCYYbF measured by different models; (e) Comparison of conductivities of BZCYYb and BZCYYbF

References 26

[1]	TSVETKOV N, KIM D, JEONG I, et al. Advances in materials and interface understanding in protonic ceramic fuel cells. Advanced Materials Technologies, 2023, 8(20): 2201075. DOI URL
[2]	GAO Y, LIU K C, LI Q, et al. The approaches to conducting in-situ heterostructure electrodes for SOCs: a mini review. Sustainable Materials and Technologies, 2024, 41: e01107.
[3]	LUO Y, ZHANG D, LIU T, et al. In situ exsolution of quaternary alloy nanoparticles for CO₂-CO mutual conversion using reversible solid oxide cells. Advanced Functional Materials, 2024, 34(40): 2403922. DOI URL
[4]	ZHOU M Y, LIU Z J, CHEN M L, et al. Electrochemical performance and chemical stability of proton-conducting BaZr_0.8-_xCe_xY_0.2O_3-_δ electrolytes. Journal of the American Ceramic Society, 2022, 105(9): 5711. DOI URL
[5]	YANG L, WANG S, BLINN K, et al. Enhanced sulfur and coking tolerance of a mixed ion conductor for SOFCs: BaZr_0.1Ce_0.7Y_0.2-_xYb_xO_3-_δ. Science, 2009, 326(5949): 126. DOI URL
[6]	GUO Y, LIN Y, RAN R, et al. Zirconium doping effect on the performance of proton-conducting BaZr_yCe_0.8-_yY_0.2O_3-_δ (0.0≤y≤0.8) for fuel cell applications. Journal of Power Sources, 2009, 193(2): 400. DOI URL
[7]	ZHONG Z. Stability and conductivity study of the BaCe_0.9-_xZr_xY_0.1O_2.95 systems. Solid State Ionics, 2007, 178(3/4): 213. DOI URL
[8]	CHOI S, KUCHARCZYK C J, LIANG Y, et al. Exceptional power density and stability at intermediate temperatures in protonic ceramic fuel cells. Nature Energy, 2018, 3(3): 202. DOI
[9]	CHOI S Y, TIMOTH C, SOSSINA M H. Protonic ceramic electrochemical cells for hydrogen production and electricity generation: exceptional reversibility, stability, and demonstrated Faradaic efficiency. Energy and Environmental Science, 2019, 12(1): 206. DOI URL
[10]	REN R, YU X, WANG Z, et al. Fluorination inductive effect enables rapid bulk proton diffusion in BaCo_0.4Fe_0.4Zr_0.1Y_0.1O_3-_δ perovskite oxide for high-activity protonic ceramic fuel cell cathode. Applied Catalysis B: Environmental, 2022, 317(1): 121759. DOI URL
[11]	LI W, LI Y, F L, et al. Enhancing performance of proton ceramic fuel cells through fluorine-doped perovskite oxides. Rare Metals, 2025, 44: 2405. DOI URL
[12]	JIANG T, LIU Y, WANG Z, et al. An improved direct current sintering technique for proton conductor - BaZr_0.1Ce_0.7Y_0.1Yb_0.1O_3-_δ: the effect of direct current on sintering process. Journal of Power Sources, 2014, 248(8): 70. DOI URL
[13]	ZHANG Y, XIE D, CHI B, et al. Basic properties of proton conductor BaZr_0.1Ce_0.7Y_0.1Yb_0.1O_3-_δ (BZCYYb) material. Asia-Pacific Journal of Chemical Engineering, 2019, 14(4): 58.
[14]	CHEN T, JING Y H, ANDERSON L O, et al. Toward durable protonic ceramic cells: hydration-induced chemical expansion correlates with symmetry in the Y-doped BaZrO₃-BaCeO₃ solid solution. The Journal of Physical Chemistry, 2021, 125(47): 26216.
[15]	LOKEN A, RICOTE S, WACHOWSKI S, et al. Thermal and chemical expansion in proton ceramic electrolytes and compatible electrodes. Crystals, 2018, 8(9): 365. DOI URL
[16]	STOKES S J, SAIFUL I. Defect chemistry and proton-dopant association in BaZrO₃ and BaPrO₃. Journal of Materials Chemistry, 2010, 20(6): 6258. DOI URL
[17]	ZHONG Z Y, SONG T, ZHAO S K, et al. High-performance BaZr_0.1Ce_0.7Y_0.1Yb_0.1O_3-_δ (BZCYYb) protonic ceramic fuel cell electrolytes by the Ba evaporation inhibition strategy. Ceramics International, 2024, 50(2): 3633. DOI URL
[18]	ZHU H, RICOTE S, COORS W G, et al. Interpreting equilibrium- conductivity and conductivity-relaxation measurements to establish thermodynamic and transport properties for multiple charged defeat conducting ceramics. Faraday Discussions, 2015, 182(3): 49. DOI URL
[19]	ZHU H Y, SANDRINE R, DUAN C C, et al. Defect chemistry and transport within dense BaZr_0.1Ce_0.7Y_0.1Yb_0.1O_3-_δ (BZCYYb) proton- conducting membranes. Journal of the Electrochemical Society, 2018, 10(2): 3633.
[20]	SOMEKAWA T, TACHIKAWA Y, TACHIKAWA Y, et al. Physicochemical properties of proton conductive Ba(Zr_0.1Ce_0.7Y_0.1Yb_0.1)O_3-_δ solid electrolyte in terms of electrochemical performance of solid oxide fuel cells. International Journal of Hydrogen Energy, 2016, 41(39): 17539. DOI URL
[21]	WANG J, ZHANG D, LIU T, et al. Self-assembled FeRu bimetallic nano catalysts for efficient and durable mutual CO-CO₂ conversion in a reversible solid oxide electrochemical cell. Science China Materials, 2024, 67(5): 1471. DOI
[22]	CHEN H N, ZHANF H C, ZHOU Y J, et al. Structure-conduction correlations in a chlorine-rich superionic lithium-argyrodite solid electrolyte: a DRT analysis. Journal of Power Sources, 2023, 583(1): 233579. DOI URL
[23]	YANG Q, TIAN D, LIU R, et al. Exploiting rare-earth-abundant layered perovskite cathodes of LnBa_0.5Sr_0.5Co_1.5Fe_0.5O₅₊_δ (Ln=La and Nd) for SOFCs. International Journal of Hydrogen Energy, 2021, 46(7): 5630. DOI URL
[24]	XIE D, LING A, YAN D, et al. A comparative study on the composite cathodes with proton conductor and oxygen ion conductor for proton-conducting solid oxide fuel cell. Electrchimica Acta, 2020, 344: 136143.
[25]	SUMI H, SHIMADA H, WAANABE K, et al. External current dependence of polarization resistances for reversible solid oxide and protonic ceramic cells with current leakage. ACS Applied Energy Materials, 2023, 6(3): 1853. DOI URL
[26]	SHI H G, HU Y, FENG Z X, et al. Solid-state synthesis of BaCe_0.16Y_0.04Fe_0.8O_3-_δ cathode for protonic ceramic fuel cells. Asia-Pacific Journal of Chemical Engineering, 2022, 17(4): e2789. DOI URL
