Analysis on Phase Stability and Mechanical Property of Newly-discovered Ternary Layered Boride Cr4AlB4

doi:10.15541/jim20190160

Abstract

Abstract:

As newly-discovered member of the MAB phases, Cr₄AlB₄ has much potential for high-temperature structural applications due to possible formation of a protective oxide scale. By use of “linear optimization procedure” and theoretical model of “bond stiffness” based on first-principle calculations, the phase stability and mechanical behavior of Cr₄AlB₄ were investigated. No imaginary frequencies in phonon dispersion indicate the intrinsic stability. The lower energy as compared with the set of other competing phases also shows the thermodynamic stability. Based on the quantificationally calculated bond stiffness by use of the model of “bond stiffness”, strong covalent bonding is present between Cr and B atoms as well as B and B atoms, while the Cr-Al (625 GPa) and B-Al (574 GPa) bond is relatively weak. It follows that Cr₄AlB₄ can be described as layered structure of strong covalently bonded Cr-B blocks interleaved by Al atomic planes where the bonding is relatively weak, similar to the well-known MAX phases, which demonstrates the similar damage tolerance and fracture toughness of Cr₄AlB₄ with the MAX phases.

Key words: MAB phases, density functional theory, phase stability, mechanical property

CLC Number:

TQ134

QI Xin-Xin, SONG Guang-Ping, YIN Wei-Long, WANG Ming-Fu, HE Xiao-Dong, ZHENG Yong-Ting, WANG Rong-Guo, BAI Yue-Lei. Analysis on Phase Stability and Mechanical Property of Newly-discovered Ternary Layered Boride Cr₄AlB₄[J]. Journal of Inorganic Materials, 2020, 35(1): 53-60.

Figures/Tables 10

References 35

[1]	FAHRENHOLTZ W G, HILMAS G E, TALMY I G , et al. Refractory diborides of zirconium and hafnium. J. Am. Ceram. Soc., 2007,90(5):1347-1364. DOI URL
[2]	BARSOUM M W . The M_N₊₁AX_N phases: a new class of solids; thermodynamically stable nanolaminates. Prog. Solid State Chem., 2000,28(1):201-281. DOI URL
[3]	ADE M, HILLEBRECHT H . Ternary borides Cr₂AlB₂, Cr₃AlB₄, and Cr₄AlB₆: the first members of the series (CrB₂)_nCrAl with n = 1, 2, 3 and a unifying concept for ternary borides as MAB-phases. Inorganic Chemistry, 2015,54(13):6122-6135. DOI URL PMID
[4]	JEITSCHKO W . The crystal structure of Fe₂AlB₂. Acta Crystallographica, 1969,25(1):163-165. DOI URL PMID
[5]	NOWOTNY H, ROGL P . Ternary Metal Borides. Berlin Heidelberg:Springer. 1977: 413-438. DOI URL PMID
[6]	TAN XIAOYAN, CHAI PING, THOMPSON COREY M , et al. Magnetocaloric effect in AlFe₂B₂: toward magnetic refrigerants from earth-abundant elements. Journal of the American Chemical Society, 2013,135(25):9553-9557. DOI URL PMID
[7]	KOTA S, ZAPATA-SOLVAS E, LY A , et al. Synthesis and characterization of an alumina forming nanolaminated boride: MoAlB. Sci. Rep., 2016,6:26475. DOI URL PMID
[8]	LI NING, BAI YUELEI, WANG SHUAI , et al. Rapid synthesis, electrical, and mechanical properties of polycrystalline Fe₂AlB₂ bulk from elemental powders. Journal of the American Ceramic Society, 2017,100(10):4407-4411. DOI URL
[9]	KADAS K, IUSAN D, HELLSVIK J , et al. AlM₂B₂(M=Cr, Mn, Fe, Co, Ni): a group of nanolaminated materials. Journal of Physics-Condensed Matter, 2017,29(15):155402. DOI URL PMID
[10]	ZHOU YANCHUN, XIANG HUIMIN, DAI FUZHI , et al. Electrical conductive and damage-tolerant nanolaminated MAB phases Cr₂AlB₂, Cr₃AlB₄ and Cr₄AlB₆. Materials Research Letters, 2017,5(6):1-9. DOI URL
[11]	DAI FUZHI, FENG ZHIHAI, ZHOU YANCHUN . Easily tiltable B Al B linear chain: the origin of unusual mechanical properties of nanolaminated MAB phases (CrB₂)_nCrAl. Journal of Alloys and Compounds, 2017,723:462-466. DOI URL
[12]	CHABAN N F, KUZ'MA YU B . Cheminform abstract: Ternaere systeme Cr-Al-B und Mn-Al-B. Chemischer Informationsdienst, 1974, DOI: 10.1002/chin.197404029.
[13]	ZHANG HAIMING, DAI FU-ZHI, XIANG HUIMIN , et al.Crystal structure of Cr₄AlB₄: a new MAB phase compound discovered in Cr-Al-B system. Journal of Materials Science & Technology, 2019,35(4):530-534. DOI URL PMID
[14]	DAI FUZHI, ZHANG HAIMING, XIANG HUIMIN , et al. Theoretical investigation on the stability, mechanical and thermal properties of the newly discovered MAB phase Cr₄AlB₄. Journal of Materials Science & Technology, 2019, DOI: 10.1016/j.jmst.2019.01.017. DOI URL PMID
[15]	LIU BIN, LIU YUCHEN, ZHU CHANGHUA , et al.Advances on strategies for searching for next generation thermal barrier coating materials. Journal of Materials Science & Technology, 2019,35(5):833-851. DOI URL PMID
[16]	LIU YUCHEN, COOPER VALENTINO R, WANG BANGHUI , et al. Discovery of ABO₃ perovskites as thermal barrier coatings through high-throughput first principles calculations. Materials Research Letters, 2019,7(4):145-151. DOI URL
[17]	KRESSE G FURTHMÜLLER J . Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B: Condens. Matter, 1996,54(16):11169-11186. DOI URL PMID
[18]	PERDEW J P, BURKE K, ERNZERHOF M . Generalized gradient approximation made simple. Physical Review Letters, 1996,77(18):3865-3868. DOI URL PMID
[19]	HAMMER B, HANSEN L B, NORSKOV J K . Improved adsorption energetics within density-functional theory using revised Perdew- Burke-Ernzerhof functionals. Phys. Rev. B, 1999,59(11):7413-7421. DOI URL
[20]	PERDEW JOHN P, CHEVARY J A, VOSKO S H , et al. Atoms, molecules, solids, and surfaces: applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B: Condens. Matter, 1992,46(11):6671-6687. DOI URL PMID
[21]	DAHLQVIST M, ALLING B, ROSÉN J . Stability trends of MAX phases from first principles. Physical Review B, 2010,81(22):220102. DOI URL PMID
[22]	BAI YUELEI, HE XIAODONG, SUN YUE , et al. Chemical bonding and elastic properties of Ti₃AC₂ phases (A=Si, Ge, and Sn): a first-principle study. Solid State Sciences, 2010,12(7):1220-1225. DOI URL
[23]	SUN ZHIMEI, LI SA, AHUJA RAJEEV , et al. Calculated elastic properties of M₂AlC (M=Ti, V, Cr, Nb and Ta). Solid State Communications, 2004,129(9):589-592. DOI URL
[24]	ANDERSON ORSON L . A simplified method for calculating the debye temperature from elastic constants. J. Phys. Chem. Solids, 1963,24(7):909-917. DOI URL
[25]	BAI YUELEI, QI XINXIN, DUFF ANDREW , et al. Density functional theory insights into ternary layered boride MoAlB. Acta Materialia, 2017,132:69-81. DOI URL
[26]	BAI YUELEI, QI XINXIN, HE XIAODONG , et al. Phase stability and weak metallic bonding within ternary-layered borides CrAlB, Cr₂AlB₂, Cr₃AlB₄, and Cr₄AlB₆. Journal of the American Ceramic Society, 2019,102(6):3715-3727. DOI URL
[27]	CHONG XIAOYU, JIANG YEHUA, ZHOU RONG , et al. Elastic properties and electronic structures of Cr_xB_y as superhard compounds. Journal of Alloys and Compounds, 2014,610:684-694. DOI URL
[28]	ONODERA A, HIRANO H, YUASA T , et al. Static compression of Ti₃SiC₂ to 61 GPa. Appl. Phys. Lett., 1999,74(25):3782-3784. DOI URL
[29]	WANG JIEMIN, ZHOU YANCHUN . Ab initio investigation of the electronic structure and bonding properties of the layered ternary compound Ti₃SiC₂ at high pressure. Journal of Physics-Condensed Matter, 2003,15(12):1983-1991. DOI URL
[30]	FRANCIS BIRCH . Finite elastic strain of cubic crystals. Physical Review, 1947,71(11):809-824. URL PMID
[31]	BARSOUM W MICHEL . Mechanical Properties: Ambient Temperature. MAX Phases: Properties of Machinable Ternary Carbides and Nitrides. Weinheim: Wiley, 2013.
[32]	BAI YUELEI, DUFF ANDREW, JAYASEELAN DANIEL DONI , et al. DFT predictions of crystal structure, electronic structure, compressibility, and elastic properties of Hf-Al-C carbides. Journal of the American Ceramic Society, 2016,99(10):3449-3457. DOI URL
[33]	BAI YUELEI, HE XIAODONG, WANG RONGGUO , et al. An ab initio study on compressibility of Al-containing MAX-phase carbides. Journal of Applied Physics, 2013,114(17):173709. DOI URL
[34]	WANG CHANGYING, HAN HAN, ZHAO YUANYUAN , et al. Elastic, mechanical, electronic, and defective properties of Zr-Al-C nanolaminates from first principles. Journal of the American Ceramic Society, 2018,101(2):756-772. DOI URL
[35]	PUGH S F . Relations between the elastic moduli and the plastic properties of polycrystalline pure metals. Philosophical Magazine, 2009,45(367):823-843.

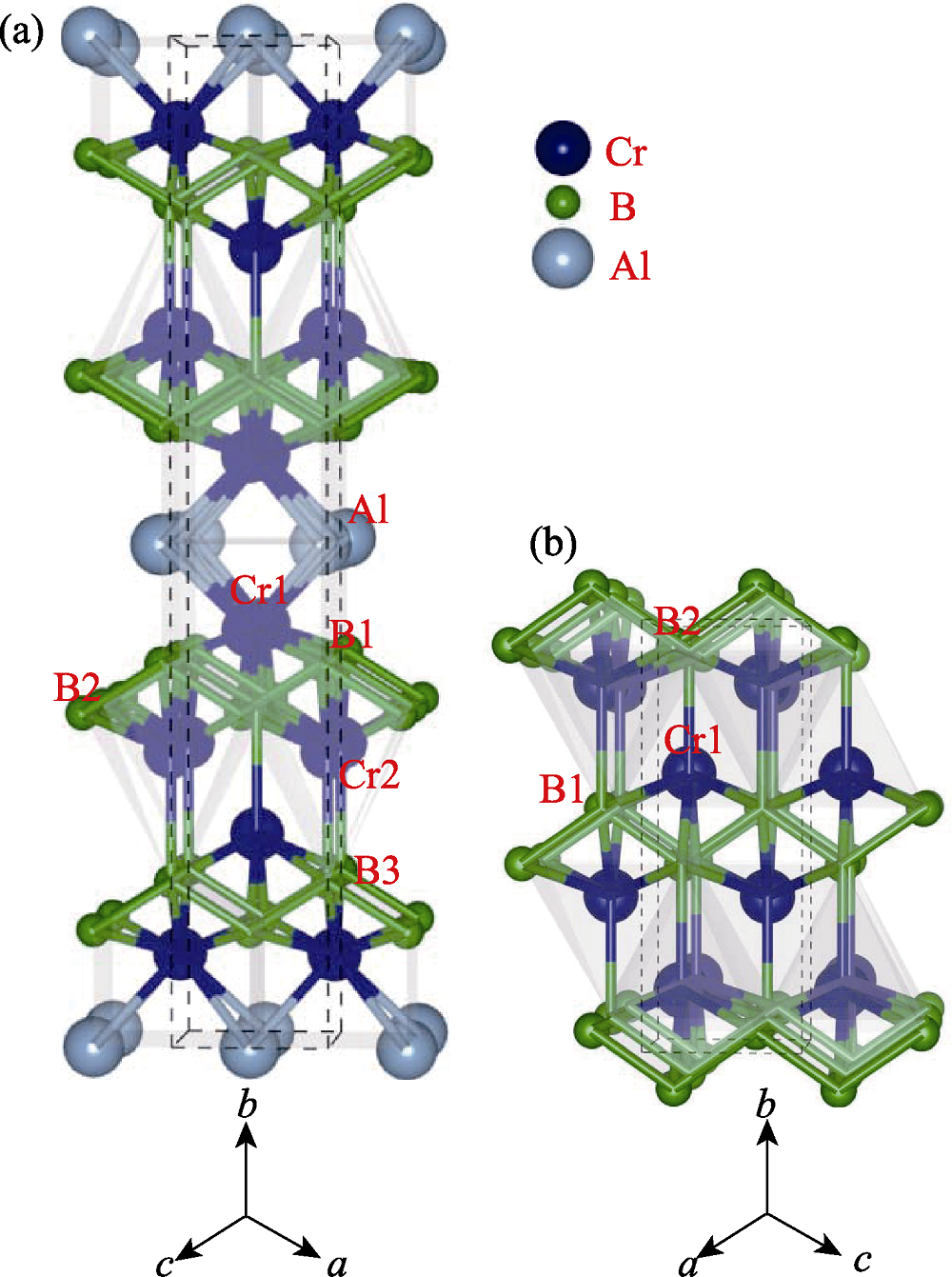

			Lattice parameters				Internal coordinates					Density /(g·cm^-3)	DOS at E_f/(States·eV^-1· Unit cell^-1)	Bulk modulus /GPa	Pressure derivative
			a/nm	b/nm	c/nm	V/nm³	y_Cr1	y_Cr2	y_Al	y_B1	y_B2	Density /(g·cm^-3)	DOS at E_f/(States·eV^-1· Unit cell^-1)	Bulk modulus /GPa	Pressure derivative
Cr₄AlB₄	LDA		0.28766	1.8578	0.28867	0.15427	-	-	-	-	-	-	-	-	-
	GGA	PBE	0.29312	1.8923	0.29512	0.16370	-	-	-	-	-	-		-	-
		RPBE	0.29334	1.8963	0.29551	0.16439	0.2926	0.5875	0.5	0.3803	0.6720	5.64	7.031	234.16	4.55
		PW91	0.29197	1.8863	0.29435	0.16212	-	-	-	-	-	-	-	-	-
	Exp^[13]		0.29343	1.8891	0.29733	0.16481	0.2936	0.5859	0.5	0.3839	0.6646	-	-	-	-
CrB	Cal^[27]		0.2924	0.7836	0.2911	0.06670	-	-	-	-	-	6.25	-	-	-

			Lattice parameters				Internal coordinates					Density /(g·cm^-3)	DOS at E_f/(States·eV^-1· Unit cell^-1)	Bulk modulus /GPa	Pressure derivative
			a/nm	b/nm	c/nm	V/nm³	y_Cr1	y_Cr2	y_Al	y_B1	y_B2	Density /(g·cm^-3)	DOS at E_f/(States·eV^-1· Unit cell^-1)	Bulk modulus /GPa	Pressure derivative
Cr₄AlB₄	LDA		0.28766	1.8578	0.28867	0.15427	-	-	-	-	-	-	-	-	-
	GGA	PBE	0.29312	1.8923	0.29512	0.16370	-	-	-	-	-	-		-	-
		RPBE	0.29334	1.8963	0.29551	0.16439	0.2926	0.5875	0.5	0.3803	0.6720	5.64	7.031	234.16	4.55
		PW91	0.29197	1.8863	0.29435	0.16212	-	-	-	-	-	-	-	-	-
	Exp^[13]		0.29343	1.8891	0.29733	0.16481	0.2936	0.5859	0.5	0.3839	0.6646	-	-	-	-
CrB	Cal^[27]		0.2924	0.7836	0.2911	0.06670	-	-	-	-	-	6.25	-	-	-

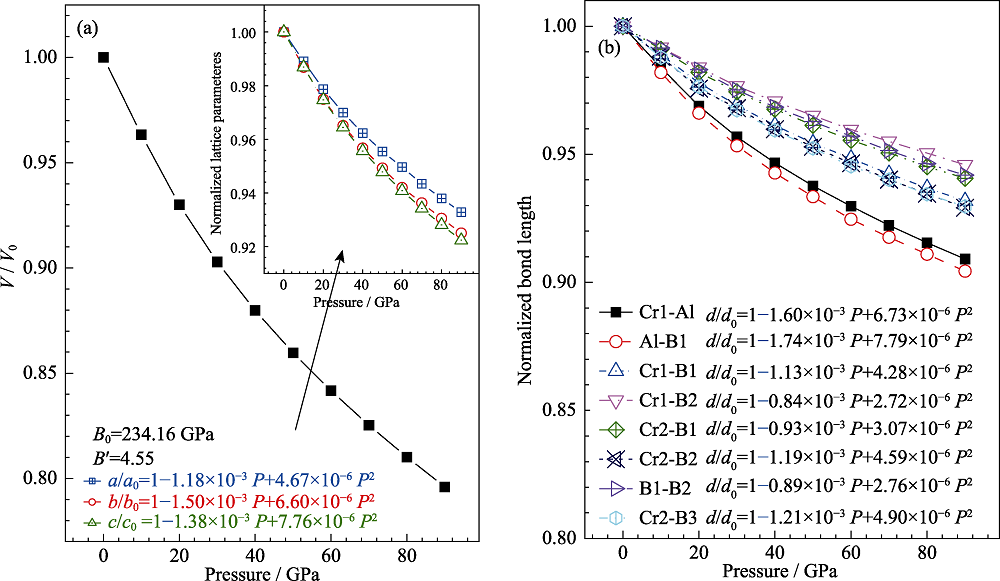

	Cr₄AlB₄		Cr₂AlB₂		CrB
	d/nm	k/GPa	d/nm^[3]	k/GPa^[26]	d/nm	d/nm^[27]	k/GPa
Cr1-Al	0.2662	625	0.26443	617	-	-	-
Cr1-B1	0.2169	885	0.22014	813	0.21712	0.2158	917
Cr1-B2	0.2180	1190	0.21876	1149	0.2212	0.2200	1123
Cr2-B1	0.2224	1074	-	-	-	-	-
Cr2-B2	0.2187	840	-	-	-	-	-
Cr2-B3	0.2288	826	-	-	-	-	-
B1-B2	0.1771	1123	0.17616	1099	0.17841	0.1722	1149
Al-B1	0.2269	574	0.22765	571	-	-	-

	Cr₄AlB₄		Cr₂AlB₂		CrB
	d/nm	k/GPa	d/nm^[3]	k/GPa^[26]	d/nm	d/nm^[27]	k/GPa
Cr1-Al	0.2662	625	0.26443	617	-	-	-
Cr1-B1	0.2169	885	0.22014	813	0.21712	0.2158	917
Cr1-B2	0.2180	1190	0.21876	1149	0.2212	0.2200	1123
Cr2-B1	0.2224	1074	-	-	-	-	-
Cr2-B2	0.2187	840	-	-	-	-	-
Cr2-B3	0.2288	826	-	-	-	-	-
B1-B2	0.1771	1123	0.17616	1099	0.17841	0.1722	1149
Al-B1	0.2269	574	0.22765	571	-	-	-

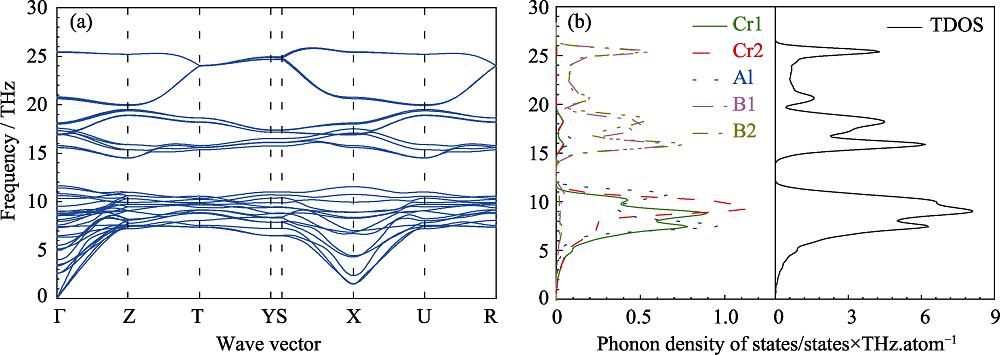

Included phases	Compound	Most competing phases	ΔH_comp/(eV·atom^-1)
CrB, CrB₂, CrB₄, Cr₂B, Cr₅B₃, Cr₃B₄, Cr₂B₃, Cr₂Al, Cr₅Al₈, Cr₇Al₄₅, AlB₂, AlB₁₂, Cr₂AlB₂, Cr₃AlB₄, Cr₄AlB₆	Cr₄AlB₄	2CrB+Cr₂AlB₂	-0.2207
	Cr₂AlB₂^[26]	2CrB+Al	-0.0461

Analysis on Phase Stability and Mechanical Property of Newly-discovered Ternary Layered Boride Cr₄AlB₄

RichHTML

PDF (PC)

Knowledge

Cited

Abstract

Cite this article

share this article

Figures/Tables 10

References 35

Related Articles 15

Recommended Articles

Metrics

Comments

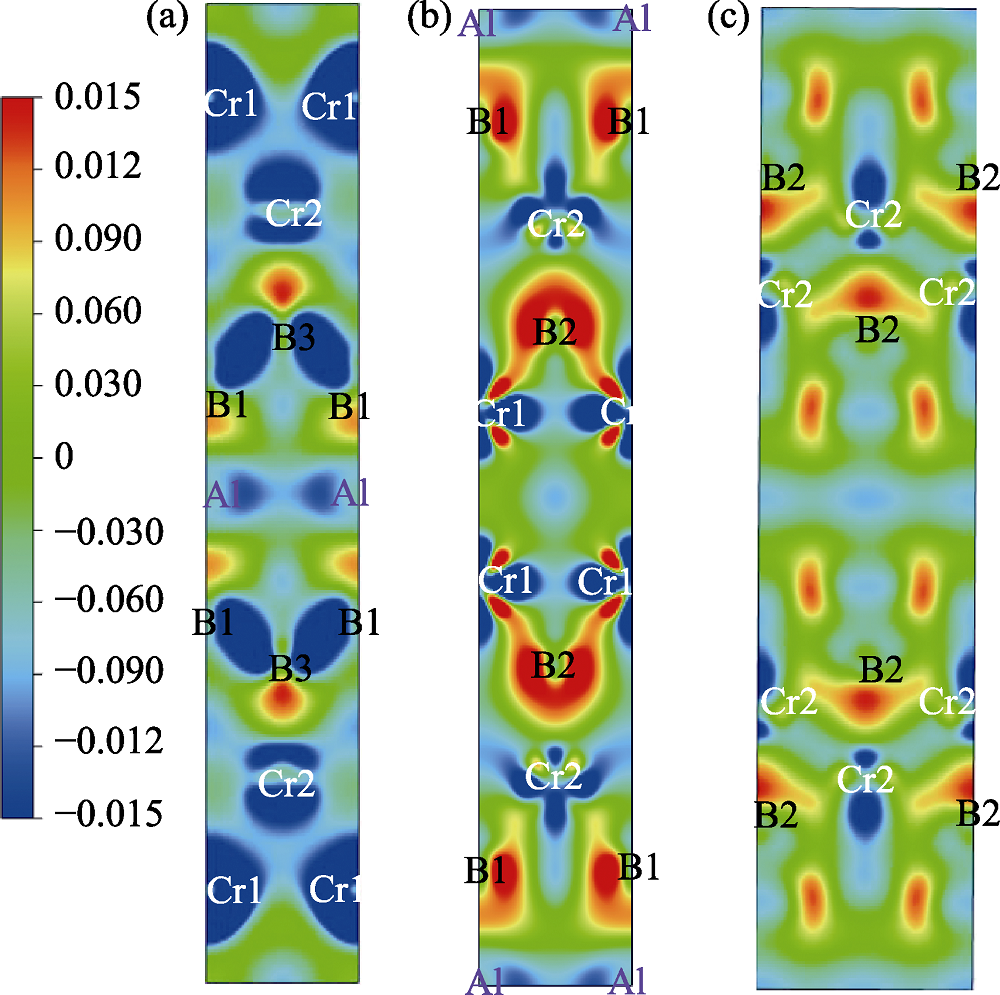

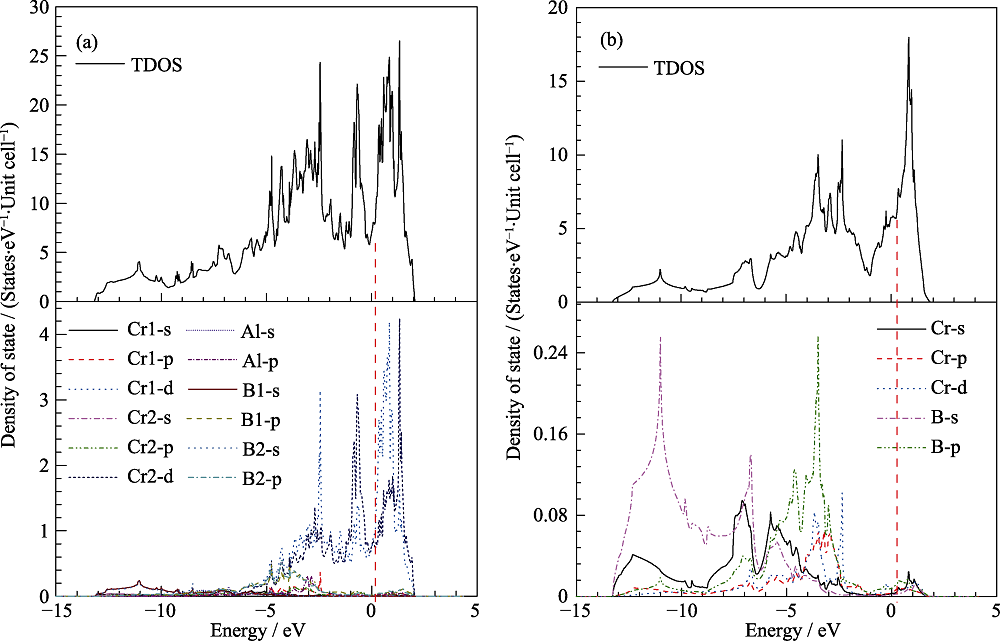

Boder charge/e	Cr1	Cr2	Al	B1	B2
CrB	-0.79	-	-	0.78	-
Cr₂AlB₂^[26]	-0.37	-	-1.50	1.12	-
Cr₄AlB₄	-0.39	-0.76	-1.48	1.15	0.74

Compound	c₁₁	c₁₂	c₁₃	c₂₂	c₂₃	c₃₃	c₄₄	c₅₅	c₆₆	G	B	G/B	E	μ	θ_D/K
Cr₄AlB₄	594	112	126	472	120	467	185	176	231	194	245	0.79	460	0.19	923
Cr₂AlB₂^[26]	505	101	111	410	109	437	158	162	209	174	221	0.79	414	0.19	892
MoAlB^[25]	327	143	150	313	128	384	187	156	166	142	207	0.66	347	0.22	675
CrB	495	165	165	581	147	579	220	220	265	219	289	0.78	525	0.2	963
Cr₂AlC^[23]	396	117	156	-	-	382	173	-	-	146.9	225.8	-	357.7	0.236	774
