摘要/Abstract

摘要：

压电材料是一种重要的信息功能材料, 能够实现机械能与电能之间的相互转化。近年来, 织构压电陶瓷技术已经成为研发新一代高性能压电材料的重要途径。通过调控晶粒的取向排布, 织构压电陶瓷表现出类似压电单晶的优异压电性能和机电性能, 并具有良好的温度稳定性。同时, 作为多晶陶瓷, 织构陶瓷保留了传统陶瓷材料的制备加工简单、机械性能良好及适用共型异形等优点。本文围绕钛酸铅(PbTiO₃, PT)基压电材料体系, 从织构压电陶瓷制备技术、织构用籽晶模板以及织构压电陶瓷技术的发展历程和研究现状等方面, 对相关研究结果进行系统梳理, 总结织构压电陶瓷技术优势。在此基础上, 分析了铅基织构压电陶瓷的模板筛选理论、织构陶瓷微观结构和宏观性能之间的构效关系, 以及基于织构压电陶瓷的压电器件开发等方面存在的科学难题和未来挑战。本文旨在全面介绍织构压电陶瓷技术和理论, 帮助研究者深入认识织构压电陶瓷技术, 推动高性能压电陶瓷研发和制备技术发展, 进而助力我国高端压电器件的创新和跨越发展。

关键词: 织构陶瓷, 铅基压电材料, 模板籽晶生长法, 片状微晶模板, 综述

Abstract:

Piezoelectric materials, which serve as converters between mechanical energy and electric energy, are important functional materials. Recently, the technology for textured piezoelectric ceramics has become an important technical approach for developing the next generation of high-performance piezoelectric materials. By tailoring grain orientation, textured piezoelectric ceramics exhibit properties akin to single crystals, exhibiting enhanced piezoelectric and electromechanical properties, as well as improved thermal stability. Furthermore, as polycrystalline ceramics, textured ceramics inherit the advantages of traditional ceramic materials, including ease of fabrication, favorable mechanical properties, and suitability of special-shape and syntype. This paper provides a brief introduction to texturing technique, development of perovskite templates for textured ceramics, and research results related to lead titanate (PbTiO₃, PT) based textured piezoelectric ceramics. It systemizes the development and status of the piezoelectric textured ceramics while summarizing their technical advantages. Additionally, the existing scientific problems and future challenges of PT-based textured piezoelectric ceramics are analyzed, focusing on the suitability of templates and matrix via theoretical prediction, the relationship between microstructure and macroscopic properties of textured ceramics, and piezoelectric devices based on textured piezoelectric ceramics. By reviewing the PT-based textured piezoelectric ceramics, this paper aims to provide an in-depth introduction to texturing techniques and theories, seeks to enhance understanding of textured piezoelectric ceramics, and promotes the development of high- performance piezoelectric materials. This work is expected to benefit the breakthrough innovation and leap forward development of next generation high-end piezoelectric devices.

Key words: textured ceramic, lead-based piezoelectric material, templated grain growth method, micro-platelet template, review

中图分类号:

O482

吴杰, 杨帅, 王明文, 李景雷, 李纯纯, 李飞. 铅基织构压电陶瓷的发展历程、现状与挑战[J]. 无机材料学报, 2025, 40(6): 575-586.

WU Jie, YANG Shuai, WANG Mingwen, LI Jinglei, LI Chunchun, LI Fei. Textured PT-based Piezoelectric Ceramics: Development, Status and Challenge[J]. Journal of Inorganic Materials, 2025, 40(6): 575-586.

图/表 16

图1 单晶、传统多晶陶瓷和织构陶瓷的结构示意图

Fig. 1 Schematic micro-morphology of single crystal, random ceramic and textured ceramic

图2 TGG法示意图[31]

Fig. 2 Schematic of the TGG process[31]

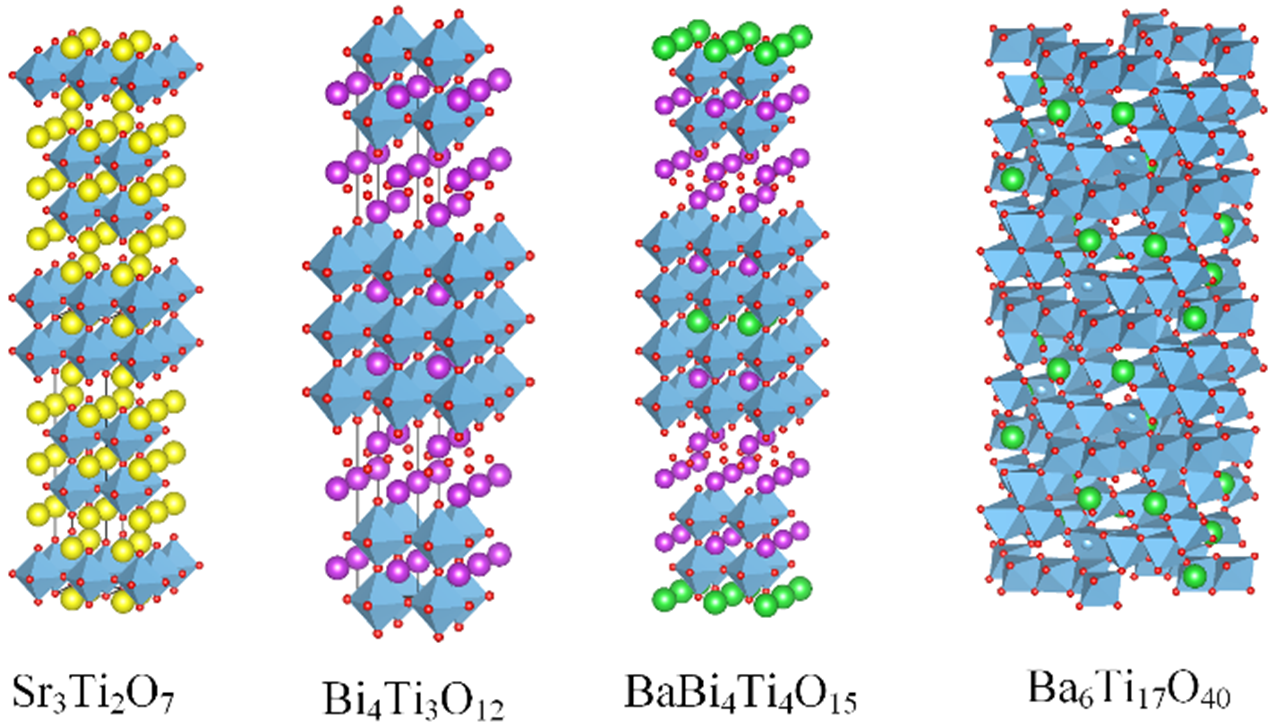

图3 几种典型的层状类钙钛矿材料的晶体结构

Fig. 3 Crystal structures of some typical layer-perovskite materials

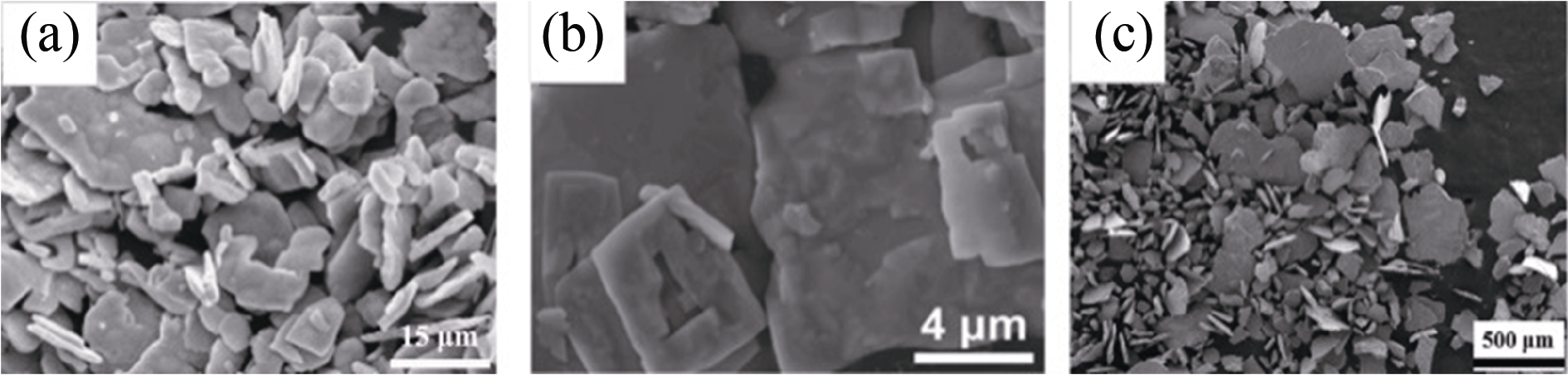

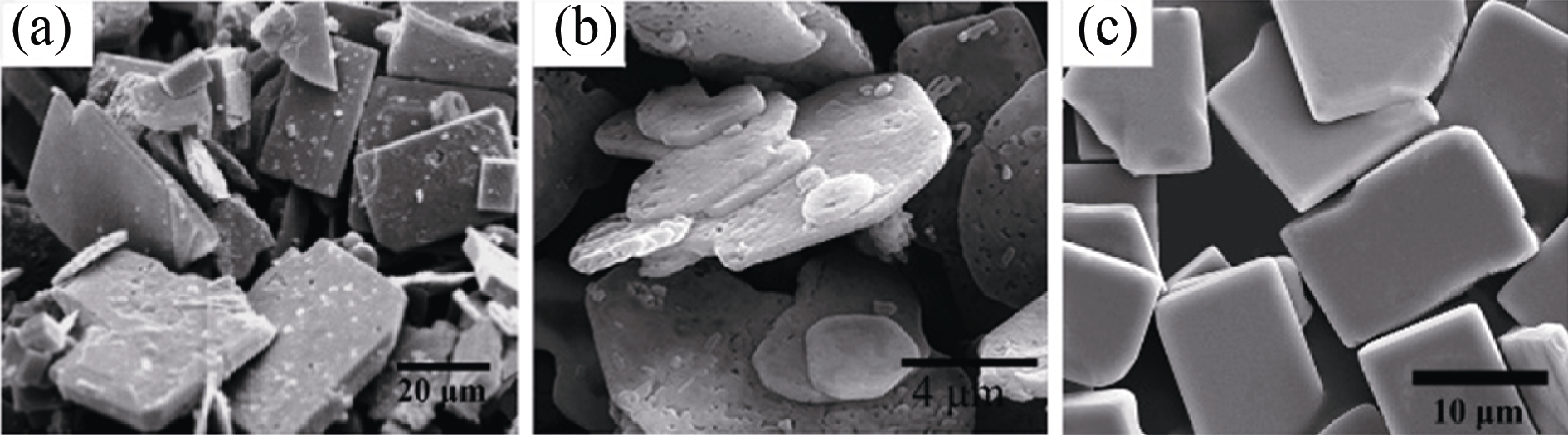

图4 采用(a) Sr3Ti2O7[40]、(b) SrBi4Ti4O15[42]和(c) Bi4Ti3O12[43]前驱微晶合成的片状SrTiO3微晶的微观形貌

Fig. 4 Micro-morphologies of SrTiO3 platelets synthesized using (a) Sr3Ti2O7[40], (b) SrBi4Ti4O15[42] and (c) Bi4Ti3O12[43] precursors

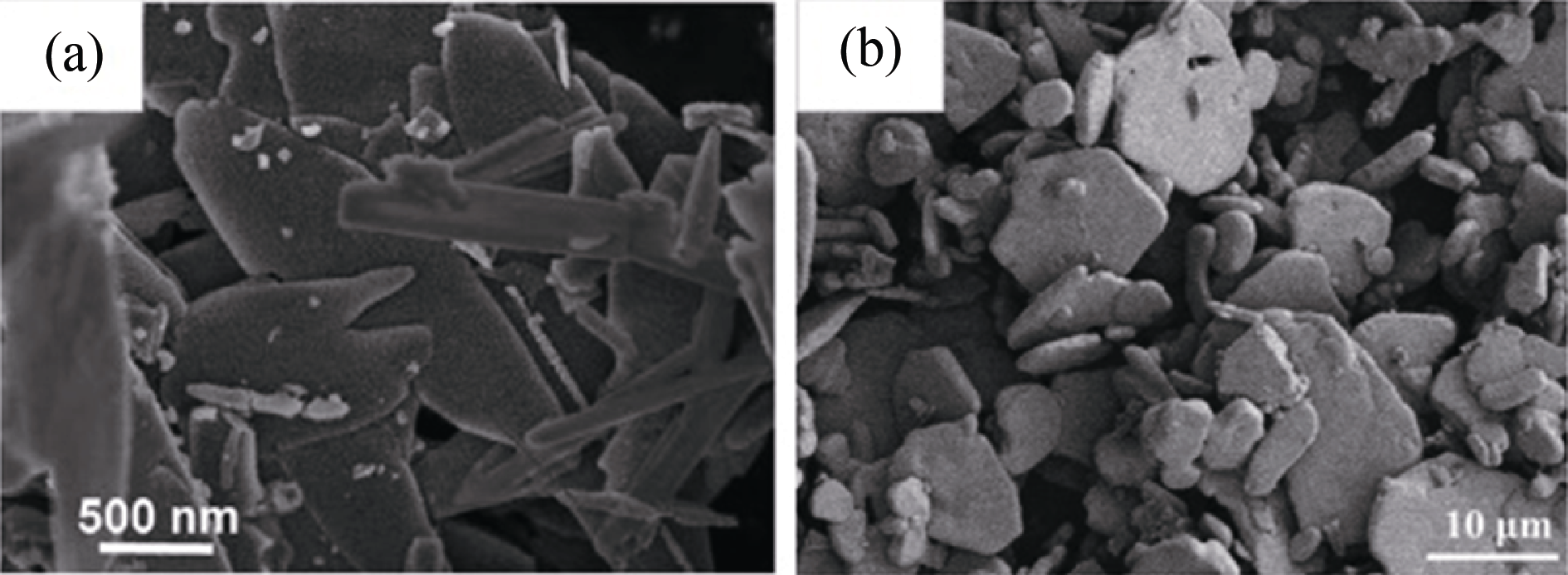

图5 (a) (011)-BT[47]和(b) (111)-BT[49]片状微晶的SEM照片

Fig. 5 SEM images of (a) (011)-BT[47] and (b) (111)-BT[49] platelets

图6 以(a) PbO[50]、(b) Pb(CH3COO)2·3H2O[51]、(c) (PbCO3)2·Pb(OH)2[52]为原料通过TMC法合成的PT片状微晶的微观形貌

Fig. 6 Micro-morphologies of PT platelets synthesized via TMC using (a) PbO[50], (b) Pb(CH3COO)2·3H2O[51] and (c) (PbCO3)2·Pb(OH)2[52] as Pb sources

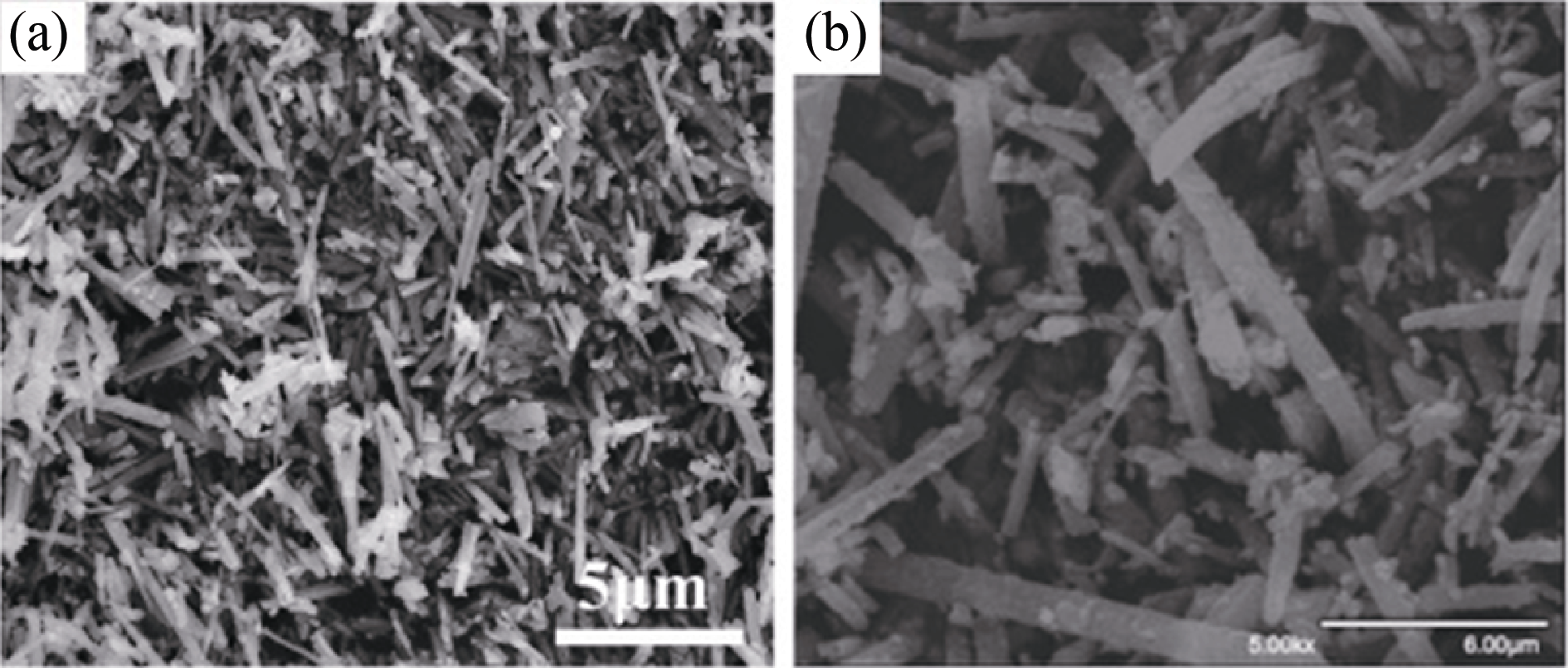

图7 以(a)棒状BaTi2O5[53]和(b)棒状TiO2[54]前驱物合成的棒状BaTiO3微晶的SEM照片

Fig. 7 SEM images of rod-shape BaTiO3 microcrystal converted from (a) BaTi2O5[53] and (b) TiO2[54]

图8 PMN-PT织构陶瓷的(a)断面SEM照片[60]和(b) XRD图谱[33]

Fig. 8 (a) Cross-sectional SEM image[60] and (b) XRD patterns[33] of PMN-PT textured ceramic

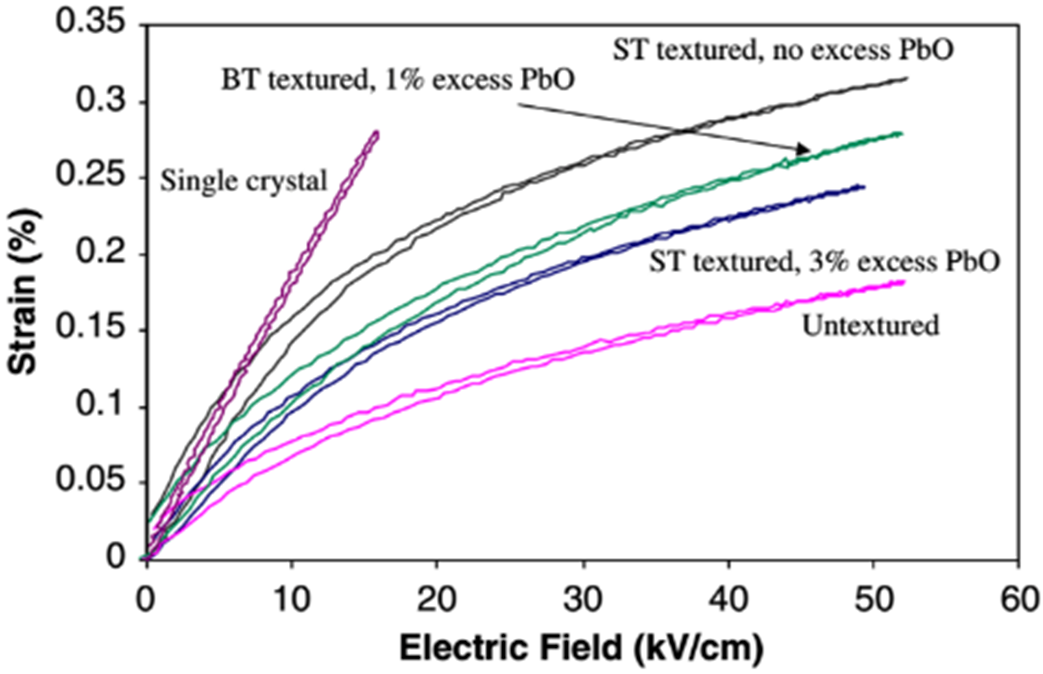

图9 PMN-PT单晶、无取向陶瓷以及不同模板织构陶瓷的应变曲线[62]

Fig. 9 Strain curves of single-crystal, untextured, and textured PMN-PT ceramics with different templates[62]

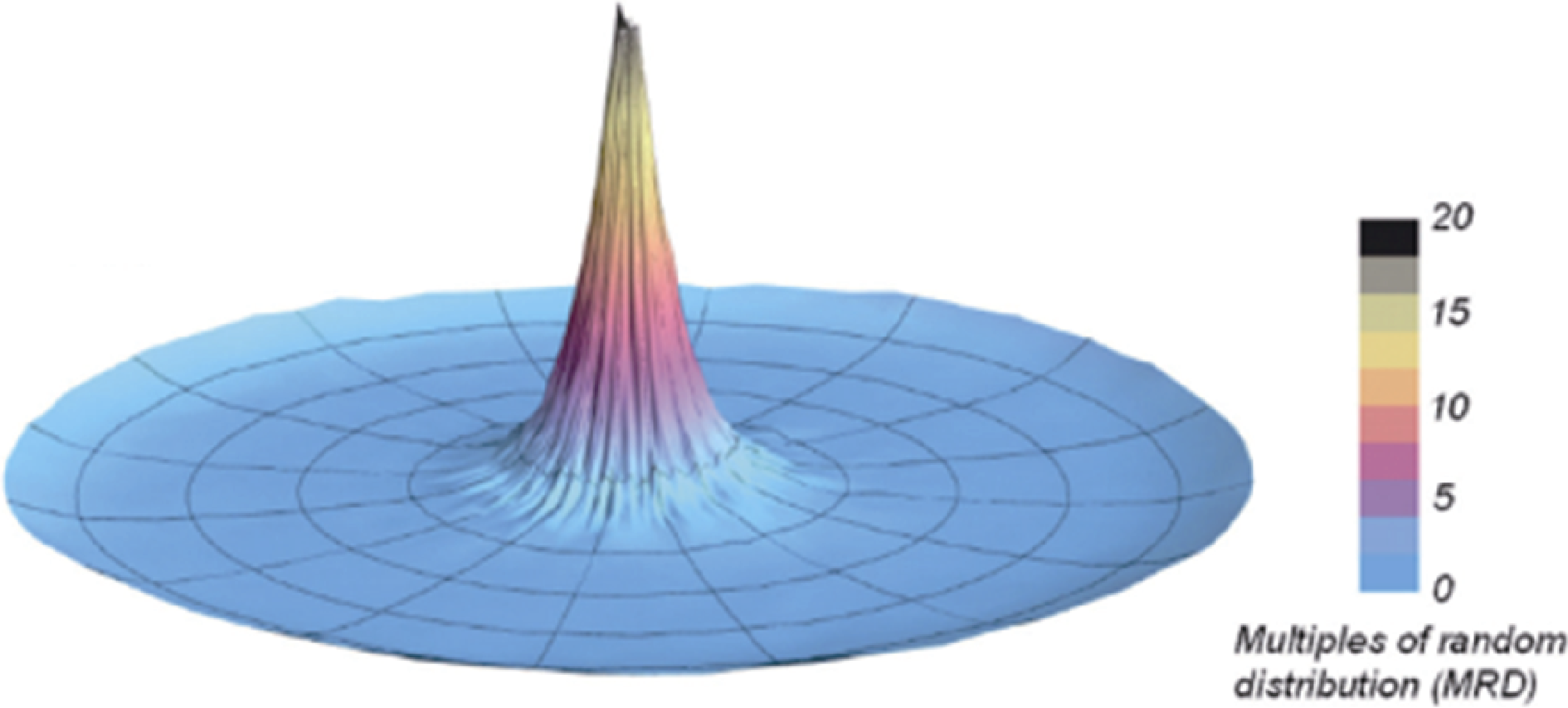

图10 PMN-PT织构陶瓷[002]C衍射峰对应极图[63]

Fig. 10 Corrected [002]C pole figure measured from PMN-PT textured ceramic[63]

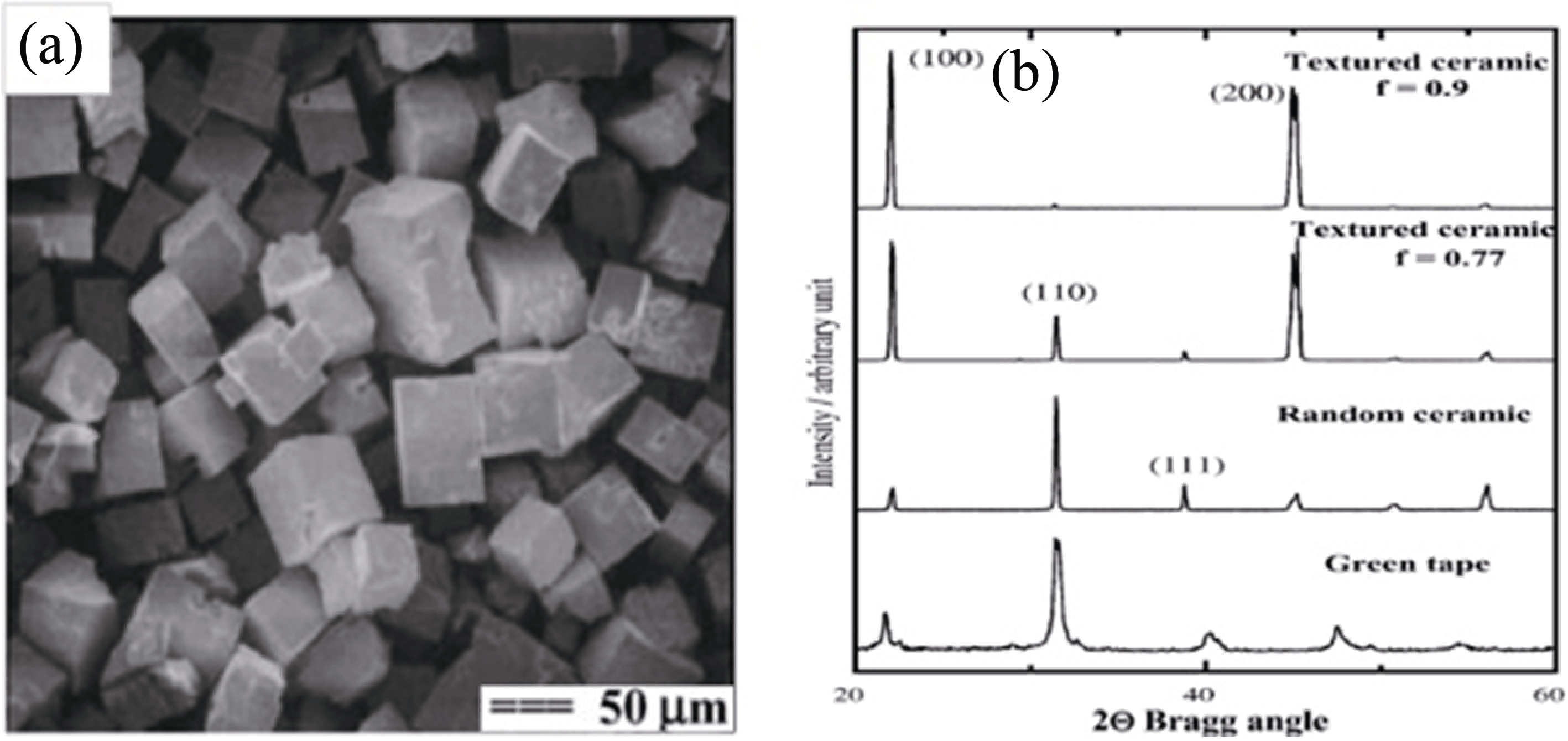

图11 (a) PMN-PT微晶模板的SEM照片及(b)采用PMN-PT模板制备的织构压电陶瓷的XRD图谱[67]

Fig. 11 (a) SEM image of PMN-PT templates and (b) XRD patterns of PMN-PT textured ceramics using PMN-PT templates[67]

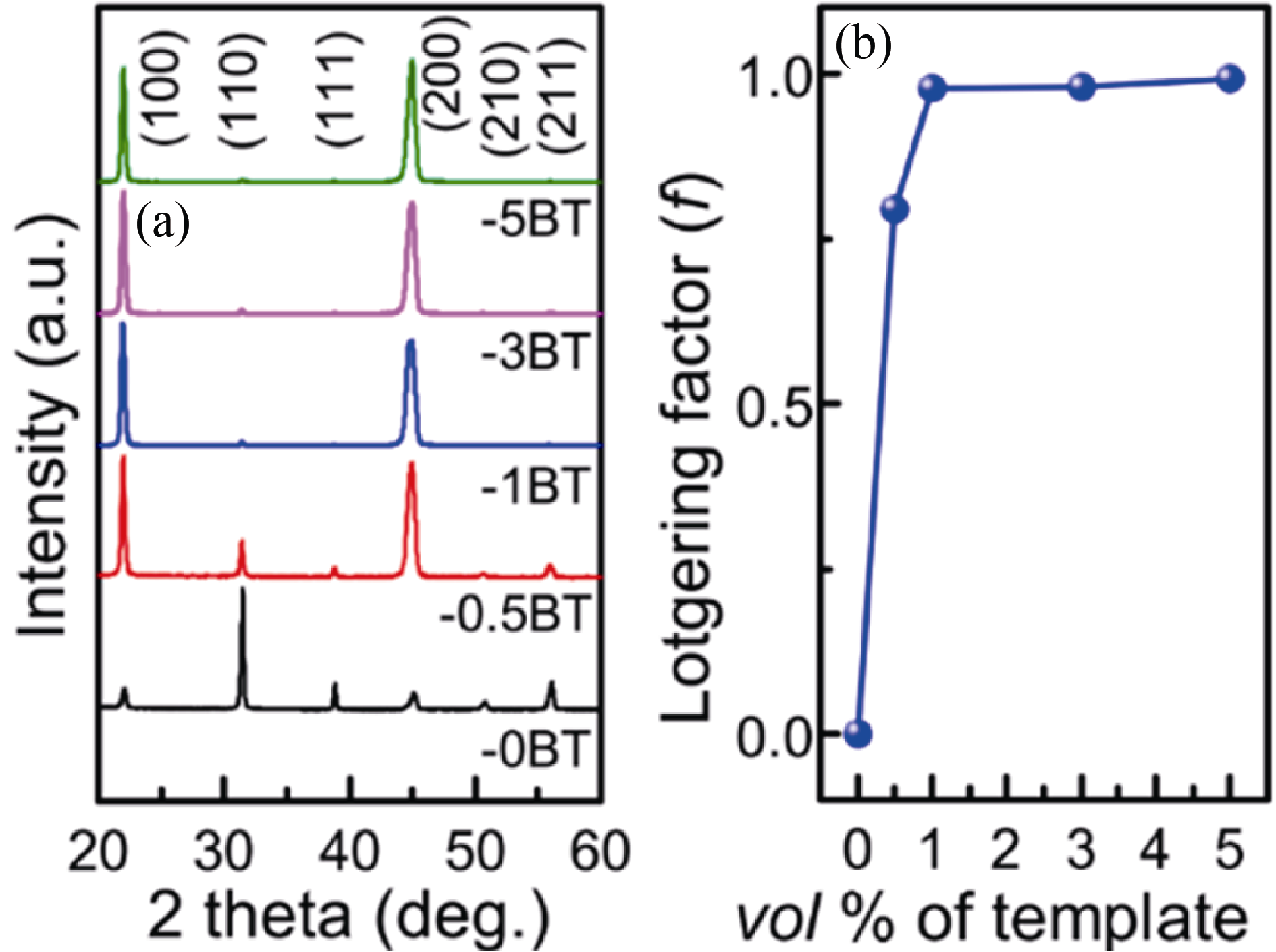

图12 不同BT模板含量PMN-PT织构陶瓷的(a)XRD图谱和(b)织构度[69]

Fig. 12 (a) XRD patterns and (b) texture degrees of PMN-PT textured ceramics as a function of BT concentration[69]

表1 三元铅基织构压电陶瓷的性能参数[60,70 -71,73 -74,76]

Table 1 Performance parameters of textured ternary PT-based ceramics[60,70 -71,73 -74,76]

Composition	Relative permittivity, ε_r	d₃₃/(pC·N^-1)	Curie temperature, T_C/℃	Ref.
PMN-PZT	/	878 (d₃₃^*)	220	[60]
PMN-PZT	2310	1100	204	[70]
PIN-PMN-PT	/	780	225	[73]
PIN-PMN-PT	2415	841	210	[71]
PYN-PMN-PT	2110	1340 (d₃₃^*)	214	[74]
PZT-PZNN	2300	920 (d₃₃^*)	256	[76]

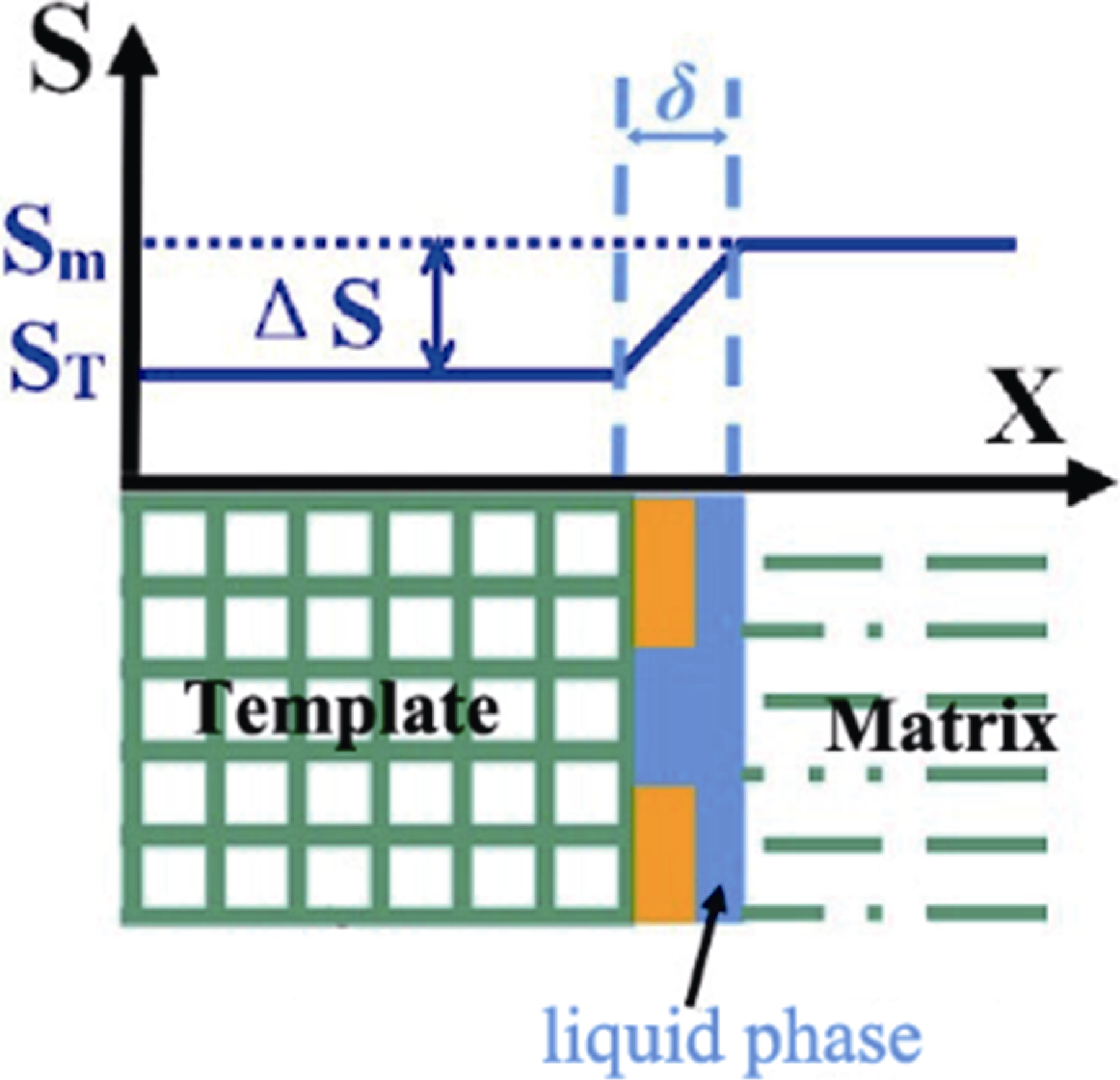

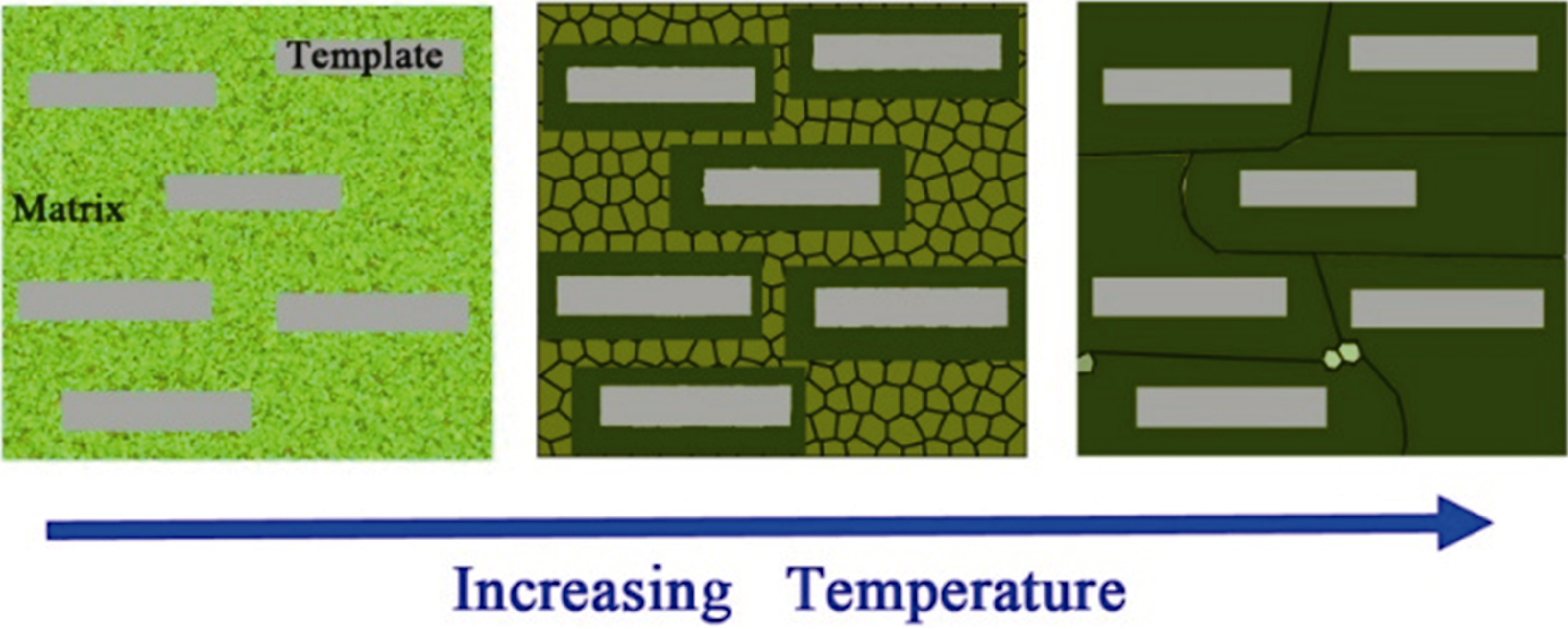

图13 液相烧结单晶模板引导晶粒生长示意图[31]

Fig. 13 Schematic of grain growth along single crystal template by liquid phase assistance[31]

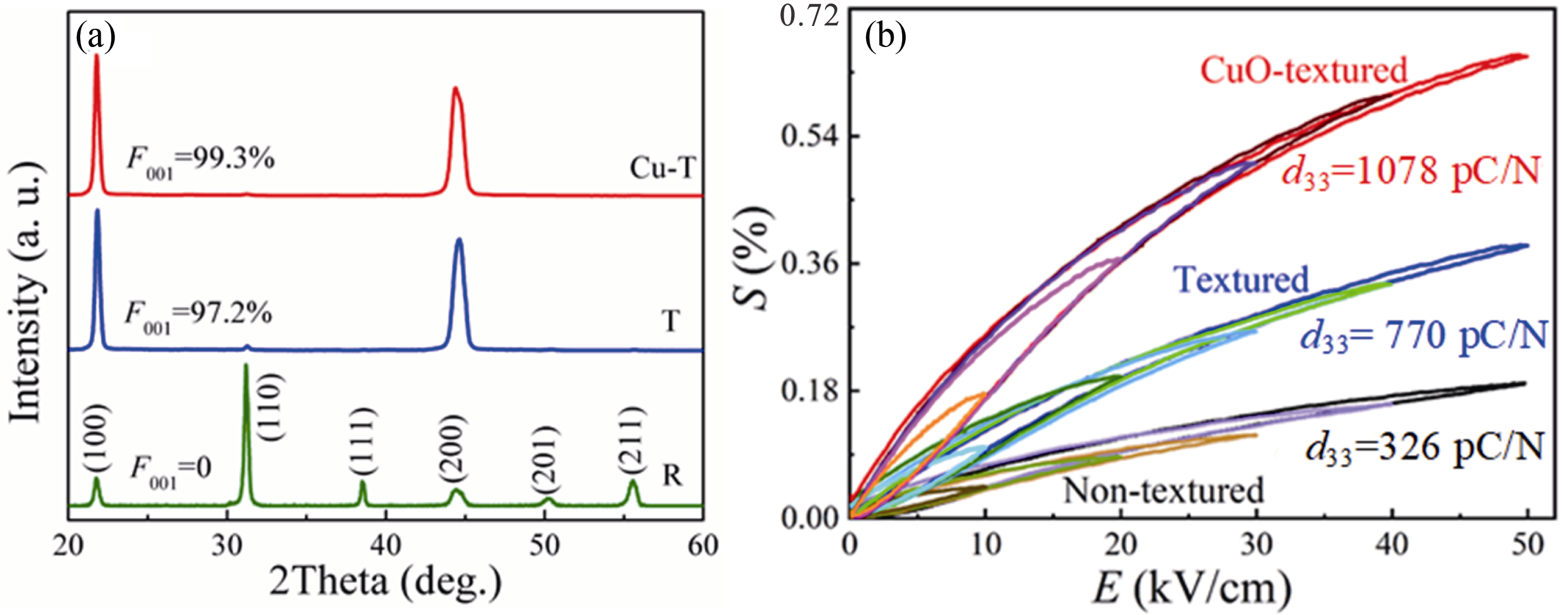

图14 PYN-PMN-PT织构陶瓷的(a) XRD图谱和(b)单极应变曲线[31]

Fig. 14 (a) XRD patterns and (b) unipolar strain curves of PYN-PMN-PT textured ceramics[31]

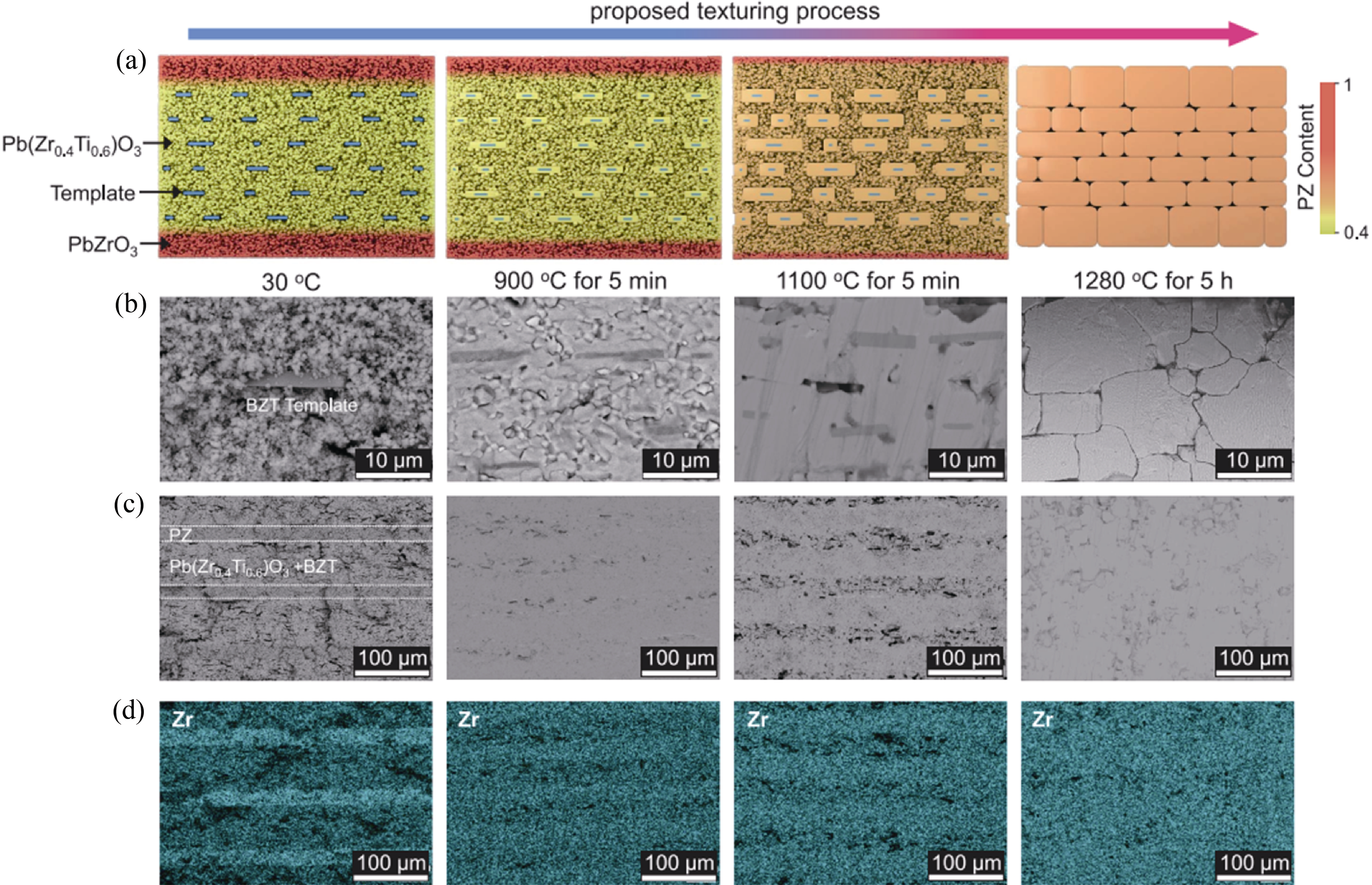

图15 PZT织构演化的原理图和实验观测结果[91]

Fig. 15 Schematic illustration and experimental realization of PZT texturing process[91] (a) Schematic illustration of the proposed texturing process with the color of PZT matrix indicating composition; (b, c) Cross-sectional SEM images for samples with average Zr : Ti ratio of 55 : 45 sintered at different temperatures, where (b) is an enlarged image of the layer with 3% (in volume) BZT templates in (c); (d) SEM-EDS images of Zr element, where the sample is the same as that in (c)

参考文献 91
