钙钛矿太阳能电池的研究进展

doi:10.15541/jim20150214

摘要/Abstract

摘要：

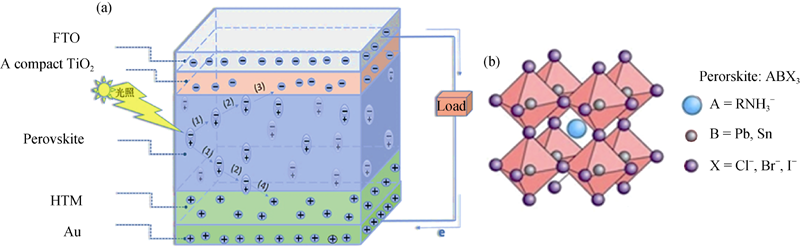

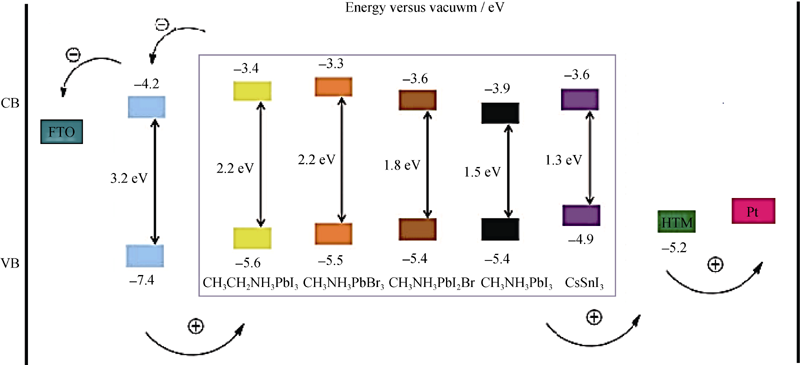

钙钛矿太阳能电池由纳米晶致密层、钙钛矿型光活性层CH₃NH₃PbX₃ (X= Cl、Br、I)、空穴传输层及对电极组成。其中光活性层吸光材料的种类及其成膜技术、空穴传输层材料类型及结构设计是影响钙钛矿太阳能电池光电性能的重要因素。本文结合钙钛矿太阳能电池近年来的最新研究进展, 对影响器件光电性能的关键因素: 光吸收层、空穴传输层、工艺参数以及结构设计等进行综述, 同时展望了钙钛矿太阳能电池未来的发展趋势。

关键词: 有机/无机杂化钙钛矿吸光材料, 空穴传输层, 工艺参数, 结构设计, 综述

Abstract:

Development of perovskite solar cell is very fast in recent years due to its low cost and high photoelectric conversion efficiency. The perovskite solar cell is generally composed by the compact nanocrystalline layer, light absorber CH₃NH₃PbX₃ (X= Cl, Br, I), hole transporting layer, and counter electrode. Among these components, the light absorber species and its preparation techniques, hole transporting material species and the structure design of the device are the most important factors, which directly affect the photovoltaic performances of perovskite solar cells. This paper summarizes the effect of the light-absorbers, hole transport materials, processing parameters, and device structural design on the photovoltaic properties of perovskite solar cells according to recent research progresses in this field. And the development trends of the perovskite solar cells are proposed.

Key words: organic/inorganic hybrid perovskite light-absorber, hole transporting materials, processing parameters, structure design, review

中图分类号:

TM914

杨英, 高菁, 崔嘉瑞, 郭学益. 钙钛矿太阳能电池的研究进展[J]. 无机材料学报, 2015, 30(11): 1131-1138.

YANG Ying, GAO Jing, CUI Jia-Rui, GUO Xue-Yi. Research Progress of Perovskite Solar Cells[J]. Journal of Inorganic Materials, 2015, 30(11): 1131-1138.

图/表 5

参考文献 57

[1]	KOJIMA A, TESHIMA K, SHIRAI Y, et al.Organometal halide perovskites as visible-light sensitizers for photovoltaic cells.Journal of the American Chemical Society., 2009, 131(17): 6050-6051.
[2]	LEE M M, TEUSCHER J, MIYASAKA T, et al.Efficient hybrid solar cells based on meso-superstructured organometal halide perovskites.Science., 2012, 338(6107): 643-647.
[3]	BURSCHKA J, PELLET N, MOON S, et al.Sequential deposition as a route to high-performance perovskite-sensitized solar cells.Nature., 2013, 499(7458): 316-319.
[4]	COUZIN-FRANKEL J.Breakthrough of the year 2013. cancer immunotherapy.Science, 2013, 342(6165): 1432-1433.
[5]	ZHOU H, CHEN Q, LI G, et al.Interface engineering of highly efficient perovskite solar cells.Science, 2014, 345(6196): 542-546.
[6]	YANG W S, NOH J H, JEON N J, et al.High-performance photovoltaic perovskite layers fabricated through intramolecular exchange.Science, 2015, 348(6240): 1234-1237.
[7]	GREEN M A, HO-BAILLIE A, SNAITH H J.The emergence of perovskite solar cells.Nature Photonics, 2014, 8(7): 506-514.
[8]	郑莹莹. 有机/无机杂化钙钛矿结构光电功能材料的研究. 浙江大学博士学位论文, 2007.
[9]	OUYANG M, BAI R, CHEN L, et al.Highly photoconductive copper phthalocyanine-coated titania nanoarrays via secondary deposition.The Journal of Physical Chemistry C, 2008, 112(30): 11250-11256.
[10]	STRANKS S D, EPERON G E, GRANCINI G, et al.Electron-hole diffusion lengths exceeding 1 micrometer in an organometal trihalide perovskite absorber.Science, 2013, 342(6156): 341-344.
[11]	YANG Y, WANG W.Effects of incorporating PbS quantum dots in perovskite solar cells based on CH3NH3PbI3.Journal of Power Sources, 2015, 293: 577-584.
[12]	ETGAR L, GAO P, QIN P, et al.A hybrid lead iodide perovskite and lead sulfide QD heterojunction solar cell to obtain a panchromatic response.Journal of Materials Chemistry A, 2014, 2(30): 11586-11590.
[13]	HU L, WANG W, LIU H, et al.PbS colloidal quantum dots as an effective hole transporter for planar heterojunction perovskite solar cells.Journal of Materials Chemistry A, 2015, 3(2): 515-518.
[14]	CONINGS B, BAETEN L, DE DOBBELAERE C, et al.Perovskite‐based hybrid solar cells exceeding 10% efficiency with high reproducibility using a thin film sandwich approach.Advanced Materials, 2014, 26(13): 2041-2046.
[15]	ABRUSCI A, STRANKS S D, DOCAMPO P, et al.High-performance perovskite-polymer hybrid solar cells via electronic coupling with fullerene monolayers.Nano Letters, 2013, 13(7): 3124-3128.
[16]	WANG J T, BALL J M, BAREA E M, et al.Low-temperature processed electron collection layers of graphene/TiO2 nanocomposites in thin film perovskite solar cells.Nano Letters, 2013, 14(2): 724-730.
[17]	CHEN Q, ZHOU H, HONG Z, et al.Planar heterojunction perovskite solar cells via vapor-assisted solution process.Journal of the American Chemical Society, 2013, 136(2): 622-625.
[18]	HEO J H, IM S H, NOH J H, et al.Efficient inorganic-organic hybrid heterojunction solar cells containing perovskite compound and polymeric hole conductors.Nature Photonics, 2013, 7(6): 486-491.
[19]	DOCAMPO P, BALL J M, DARWICH M, et al.Efficient organometal trihalide perovskite planar-heterojunction solar cells on flexible polymer substrates.Nature Communications, 2013, 4: 1-6.
[20]	NAGARJUNA P, NARAYANASWAMY K, SWETHA T, et al.CH3NH3PbI3 perovskite sensitized solar cells using a D-A copolymer as hole transport material.Electrochimica Acta, 2015, 151: 21-26.
[21]	IM J, LEE C, LEE J, et al.6.5% efficient perovskite quantum-dot-sensitized solar cell.Nanoscale, 2011, 3(10): 4088-4093.
[22]	KIM H, MORA-SERO I, GONZALEZ-PEDRO V, et al.Mechanism of carrier accumulation in perovskite thin-absorber solar cells.Nature Communications, 2013, 4: 2242-2248.
[23]	KIM H, LEE J, YANTARA N, et al.High efficiency solid-state sensitized solar cell-based on submicrometer rutile TiO2 nanorod and CH3NH3PbI3 perovskite sensitizer.Nano Letters, 2013, 13(6): 2412-2417.
[24]	DI GIACOMO F, RAZZA S, MATTEOCCI F, et al.High efficiency CH3NH3PbI(3-x)Clx perovskite solar cells with poly(3- hexylthiophene) hole transport layer.Journal of Power Sources, 2014, 251: 152-156.
[25]	SANCHEZ R S, GONZALEZ-PEDRO V, LEE J, et al.Slow dynamic processes in lead halide perovskite solar cells. characteristic times and hysteresis.The Journal of Physical Chemistry Letters, 2014, 5(13): 2357-2363.
[26]	BALL J M, LEE M M, HEY A, et al.Low-temperature processed meso-superstructured to thin-film perovskite solar cells.Energy & Environmental Science, 2013, 6(6): 1739-1743.
[27]	XING G, MATHEWS N, SUN S, et al.Long-range balanced electron-and hole-transport lengths in organic-inorganic CH3NH3PbI3.Science, 2013, 342(6156): 344-347.
[28]	STRANKS S D, EPERON G E, GRANCINI G, et al.Electron-hole diffusion lengths exceeding 1 micrometer in an organometal trihalide perovskite absorber.Science, 2013, 342(6156): 341-344.
[29]	JEON N J, NOH J H, KIM Y C, et al.Solvent engineering for high-performance inorganic-organic hybrid perovskite solar cells. Nature Materials, 2014, 13(9): 897-903.
[30]	NOH J H, IM S H, HEO J H, et al.Chemical management for colorful, efficient, and stable inorganic-organic hybrid nanostructured solar cells.Nano Letters, 2013, 13(4): 1764-1769.
[31]	PELLET N, GAO P, GREGORI G, et al.mixed‐organic‐cation perovskite photovoltaics for enhanced solar light harvesting.Angewandte Chemie International Edition, 2014, 53(12): 3151-3157.
[32]	RHEE J H, CHUNG C, DIAU E W.A perspective of mesoscopic solar cells based on metal chalcogenide quantum dots and organometal-halide perovskites.NPG Asia Materials, 2013, 5(10): e61-e68.
[33]	IM J, KIM H, PARK N.Morphology-photovoltaic property correlation in perovskite solar cells: one-step versus two-step deposition of CH3NH3PbI3.APL Materials, 2014, 2(8): 815101-815108.
[34]	CHEN Q, ZHOU H, HONG Z, et al.Planar heterojunction perovskite solar cells via vapor-assisted solution process.Journal of the American Chemical Society, 2014, 136(2): 622-625.
[35]	LIU M, JOHNSTON M B, SNAITH H J.Efficient planar heterojunction perovskite solar cells by vapour deposition.Nature, 2013, 501(7467): 395-398.
[36]	ERA M, HATTORI T, TAIRA T, et al.Self-organized growth of PbI-based layered perovskite quantum well by dual-source vapor deposition.Chemistry of Materials, 1997, 9(1): 8-10.
[37]	RAMOS F J, LÓPEZ SANTOS M C, GUILLÉN E, et al. Perovskite solar cells based on nanocolumnar plasma-deposited znO thin films.Chem. Phys. Chem., 2014, 15(6): 1148-1153.
[38]	CARNIE M J, CHARBONNEAU C, DAVIES M L, et al.A one-step low temperature processing route for organolead halide perovskite solar cells.Chemical Communications, 2013, 49(72): 7893-7895.
[39]	ETGAR L, GAO P, XUE Z, et al.Mesoscopic CH3NH3PbI3/TiO2 heterojunction solar cells.Journal of the American Chemical Society, 2012, 134(42): 17396-17399.
[40]	XIAO M, HUANG F, HUANG W, et al.A fast deposition-crystallization procedure for highly efficient lead iodide perovskite thin-film solar cells.Angewandte Chemie, 2014, 126(37): 10056-10061.
[41]	LIANG P W, LIAO C Y, CHUEH C C, et al.Additive enhanced crystallization of solution- processed perovskite for highly efficient planar-heterojunction solar cells.Advanced Materials, 2014, 26(22): 3748-3754.
[42]	LIANG K, MITZI D B, PRIKAS M T.Synthesis and characterization of organic-inorganic perovskite thin films prepared using a versatile two-step dipping technique.Chemistry of Materials, 1998, 10(1): 403-411.
[43]	TAKEOKA Y, FUKASAWA M, MATSUI T, et al. Intercalated formation of two-dimensional and multi-layered perovskites in organic thin films. Chemical Communications, 2005(3): 378-380.
[44]	HEO J H, IM S H, NOH J H, et al.Efficient inorganic-organic hybrid heterojunction solar cells containing perovskite compound and polymeric hole conductors.Nature Photonics, 2013, 7(6): 486-491.
[45]	CHRISTIANS J A, FUNG R C, KAMAT P V.An inorganic hole conductor for organo-lead halide perovskite solar cells. Improved hole conductivity with copper iodide.Journal of the American Chemical Society, 2013, 136(2): 758-764.
[46]	QIN P, TANAKA S, ITO S, et al.Inorganic hole conductor-based lead halide perovskite solar cells with 12.4% conversion efficiency.Nature Communications, 2014, 5: 3834-3839.
[47]	KE W J, FANG G J, WAN J W, et al.Efficient hole-blocking layer-free planar halide perovskite thin-film solar cells.Nature Communications, 2015, doi: 10.1038/ncomms7700.
[48]	MEI A, LI X, LIU L, et al.A hole-conductor-free, fully printable mesoscopic perovskite solar cell with high stability.Science, 2014, 345(6194): 295-298.
[49]	MINEMOTO T, MURATA M.Impact of work function of back contact of perovskite solar cells without hole transport material analyzed by device simulation.Current Applied Physics, 2014, 14(11): 1428-1433.
[50]	DULLWEBER T, LUNDBERG O, MALMSTRÖM J, et al. Back surface band gap gradings in Cu(In,Ga)Se2 solar cells.Thin Solid Films, 2001, 387(1/2): 11-13.
[51]	BURGELMAN M, NOLLET P, DEGRAVE S. Modelling polycrystalline semiconductor solar cells. Thin Solid Films, 2000, 361-362: 527-532.
[52]	SHI JIANG-JIAN, DONG WAN, XU YU-ZHUAN, et al. Enhanced Performance in perovskite organic lead iodide heterojunction solar cells with metal-insulator-semiconductor back contact. Chinese Physics Letters, 2013, 30(12): 1284021-1-5.
[53]	SHI J, DONG J, LV S, et al. Hole-conductor-free perovskite organic lead iodide heterojunction thin-film solar cells: high efficiency and junction property. Applied Physics Letters, 2014, 104(6): 639011-1-4.
[54]	NOH J H, IM S H, HEO J H, et al.Chemical management for colorful, efficient, and stable inorganic-organic hybrid nanostructured solar cells.Nano Letters, 2013, 13(4): 1764-1769.
[55]	LEIJTENS T, EPERON G E, PATHAK S, et al.Overcoming ultraviolet light instability of sensitized TiO2 with meso- superstructured organometal tri-halide perovskite solar cells.Nature Communications, 2013, 4: 2885-2891.
[56]	SMITH I C, HOKE E T, SOLIS IBARRA D, et al.A layered hybrid perovskite solar‐cell absorber with enhanced moisture stability.Angewandte Chemie, 2014, 126(42): 11414-11417.
[57]	LI W, DONG H, WANG L, et al.Montmorillonite as bifunctional buffer layer material for hybrid perovskite solar cells with protection from corrosion and retarding recombination.Journal of Materials Chemistry A, 2014, 2(33): 13587-13592.

Perovskite light absorber	Compact nanocrystalline layer	Hole transport layer	Counter electrode	η/%	Reference
CH₃NH₃PbI₃	TiO₂	P3HT	Au	4.24	[20]
CH₃NH₃PbI₃	TiO₂	D-π-A conjugated copolymer P	Au	6.64	[20]
CH₃NH₃PbI₃	TiO₂	-	Pt	6.54	[21]
CH₃NH₃PbI₃	TiO₂	PFF	Au	9.40	[23]
CH₃NH₃PbI₃	TiO₂	spiro-OMeTAD	Au	15.0	[3]
CH₃NH₃PbI₂Cl	TiO₂+Al₂O₃	spiro-OMeTAD	Ag	12.3	[26]
CH₃NH₃PbI_3-_xCl_x	TiO₂	P3HT	Au	9.2	[25]
CH₃NH₃PbI_3-_xCl_x	TiO₂	spiro-OMeTAD	Au	19.3	[5]
CH₃NH₃Pb(I_1-_xBr_x)₃	TiO₂	PTAA	Au	12.3	[30]
(CH₃NH₃)_0.6(HC(NH₂)₂)_0.4Pb₃	TiO₂	spiro-OMeTAD	Au	14.9	[21]

Perovskite light absorber	Compact nanocrystalline layer	Hole transport layer	Counter electrode	η/%	Reference
CH₃NH₃PbI₃	TiO₂	P3HT	Au	4.24	[20]
CH₃NH₃PbI₃	TiO₂	D-π-A conjugated copolymer P	Au	6.64	[20]
CH₃NH₃PbI₃	TiO₂	-	Pt	6.54	[21]
CH₃NH₃PbI₃	TiO₂	PFF	Au	9.40	[23]
CH₃NH₃PbI₃	TiO₂	spiro-OMeTAD	Au	15.0	[3]
CH₃NH₃PbI₂Cl	TiO₂+Al₂O₃	spiro-OMeTAD	Ag	12.3	[26]
CH₃NH₃PbI_3-_xCl_x	TiO₂	P3HT	Au	9.2	[25]
CH₃NH₃PbI_3-_xCl_x	TiO₂	spiro-OMeTAD	Au	19.3	[5]
CH₃NH₃Pb(I_1-_xBr_x)₃	TiO₂	PTAA	Au	12.3	[30]
(CH₃NH₃)_0.6(HC(NH₂)₂)_0.4Pb₃	TiO₂	spiro-OMeTAD	Au	14.9	[21]

Deposition methods	Perovskite photoactive absorber	Processing parameters	η/%	Reference
One-step	CH₃NH₃PbI₃	CH₃NH₃PbI₃film: spin at 3000 r/min for 20 s, dried at 40℃ for 3 min and 100℃ for 5 min	7.5	[33]
One-step	CH₃NH₃PbI₂	CH₃NH₃PbI₃ film: spin at 2000 r/min for 60 s dried at 105℃ for 45 min	7.2	[38]
One-step	CH₃NH₃PbI_3-_xCl_x	CH₃NH₃I:PbCl₂ = 3:1, spin at 2000 r/min for 30 s dried at 90℃ for 60 min and 100℃ for 25 min	19.3	[5]
Two-step	CH₃NH₃PbI₃	PbI₂ film: spin at 2000 r/min for 30 s dried at 110℃ for 15 min CH₃NH₃I powder is spread on PbI₂ film, dried at 150℃	12.1	[34]
Two-step	CH₃NH₃PbI₃	PbI₂ film: spin at 3000 r/min for 20 s dried at 40℃ for 3 min and 100℃ for 5 min CH₃NH₃I film: spin at 4000 r/min for 20 s dried at 105℃ for 5 min	13.9	[33]
Dual-source vapor deposition	CH₃NH₃PbI_3-_xCl_x	CH₃NH₃I:PbCl₂ = 3.5:1 CH₃NH₃I film : dried at 120℃ for 5 min PbCl₂ film : dried at 325℃ for 5 min	15	[35]

Deposition methods	Perovskite photoactive absorber	Processing parameters	η/%	Reference
One-step	CH₃NH₃PbI₃	CH₃NH₃PbI₃film: spin at 3000 r/min for 20 s, dried at 40℃ for 3 min and 100℃ for 5 min	7.5	[33]
One-step	CH₃NH₃PbI₂	CH₃NH₃PbI₃ film: spin at 2000 r/min for 60 s dried at 105℃ for 45 min	7.2	[38]
One-step	CH₃NH₃PbI_3-_xCl_x	CH₃NH₃I:PbCl₂ = 3:1, spin at 2000 r/min for 30 s dried at 90℃ for 60 min and 100℃ for 25 min	19.3	[5]
Two-step	CH₃NH₃PbI₃	PbI₂ film: spin at 2000 r/min for 30 s dried at 110℃ for 15 min CH₃NH₃I powder is spread on PbI₂ film, dried at 150℃	12.1	[34]
Two-step	CH₃NH₃PbI₃	PbI₂ film: spin at 3000 r/min for 20 s dried at 40℃ for 3 min and 100℃ for 5 min CH₃NH₃I film: spin at 4000 r/min for 20 s dried at 105℃ for 5 min	13.9	[33]
Dual-source vapor deposition	CH₃NH₃PbI_3-_xCl_x	CH₃NH₃I:PbCl₂ = 3.5:1 CH₃NH₃I film : dried at 120℃ for 5 min PbCl₂ film : dried at 325℃ for 5 min	15	[35]

Structure of the perovskite solar cell	Hole transport layer	J/(mA·cm^-2)	V_oc/V	η/%	Reference
TCO/TiO₂/CH₃NH₃PbI_3-_xCl_x/metal	none	22.20	1.030	17.90	[48]
FTO/TiO₂/CH₃NH₃PbI₃/Au	none	7.38	0.699	3.30	[27]
FTO/TiO₂/CH₃NH₃PbI₃/Al₂O₃/Au	none	10.67	0.789	5.07	[27]
FTO/TiO₂/ CH₃NH₃PbI₃/Au	none	17.80	0.905	10.49	[53]
ITO/TiO₂/ CH₃NH₃PbI₂Cl/Au	P3HT	21.30	0.900	10.80	[14]
FTO/TiO₂/ CH₃NH₃PbI₃/Au	Spiro-OMeTAD	16.70	0.855	8.40	[44]
FTO/TiO₂/ CH₃NH₃PbI₃/Au	PTAA	16.50	0.997	12.00	[44]
FTO/TiO₂/CH₃NH₃PbI_3-_xCl_x/Au	Spiro-OMeTAD	12±3	0.84±0.03	8.60	[24]
FTO/TiO₂/CH₃NH₃PbI_3-_xCl_x/Au	P3HT	12±2	0.93±0.06	9.30	[32]
FTO/TiO₂/CH₃NH₃PbI₃/Au	CuI	17.80	0.550	6.00	[45]
FTO/TiO₂/CH₃NH₃PbI₃/Au	CuSCN	19.70	1.016	12.40	[46]
FTO/ CH₃NH₃PbI_3-_xCl_x/Au	Spiro-OMeTAD	21.97	1.060	14.14	[47]
