Journal of Inorganic Materials ›› 2024, Vol. 39 ›› Issue (10): 1151-1158.DOI: 10.15541/jim20240143
Special Issue: 【信息功能】MAX层状材料、MXene及其他二维材料(202409)
• RESEARCH ARTICLE • Previous Articles Next Articles
ZHOU Yunkai1,2(), DIAO Yaqi1,3, WANG Minglei1,3, ZHANG Yanhui1,3(
), WANG Limin1,3
Received:
2024-03-25
Revised:
2024-05-29
Published:
2024-10-20
Online:
2024-10-09
Contact:
ZHANG Yanhui, lecturer. E-mail: yhzhang@ysu.edu.cnAbout author:
ZHOU Yunkai (1986-), male, lecturer. E-mail: zhouyunkai1986@hotmail.com
Supported by:
CLC Number:
ZHOU Yunkai, DIAO Yaqi, WANG Minglei, ZHANG Yanhui, WANG Limin. First-principles Calculation Study of the Oxidation Resistance of PANI Modified Ti3C2(OH)2[J]. Journal of Inorganic Materials, 2024, 39(10): 1151-1158.
System | a/Å | dTi1-C/Å | dTi2-C/Å |
---|---|---|---|
Ti3C2 | 3.10[TW], 3.06[ | 2.14[TW], 2.22[ | 2.09[TW], 2.05[ |
Ti3C2(OH)2 | 3.08[TW], 3.09[ | 2.18[TW], 2.21[ | 2.08[TW], 2.08[ |
Ti3C2O2 | 3.04[TW], 3.09[ | 2.23[TW], 2.20[ | 2.16[TW], 2.14[ |

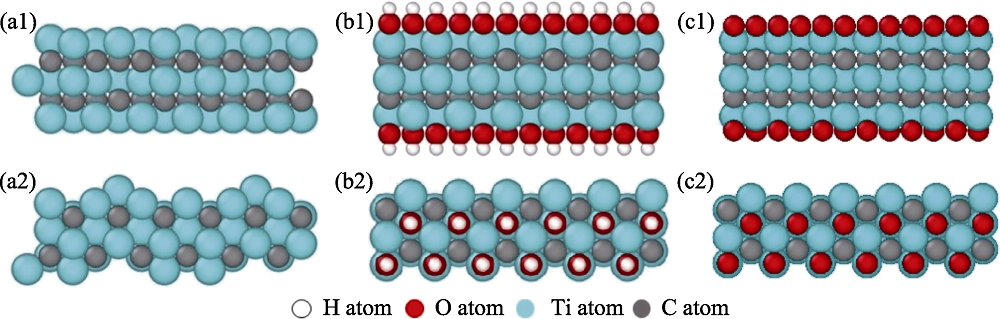

Table 1 Lattice parameters and Ti-C bond lengths in Ti3C2, Ti3C2(OH)2 and Ti3C2O2
System | a/Å | dTi1-C/Å | dTi2-C/Å |
---|---|---|---|
Ti3C2 | 3.10[TW], 3.06[ | 2.14[TW], 2.22[ | 2.09[TW], 2.05[ |
Ti3C2(OH)2 | 3.08[TW], 3.09[ | 2.18[TW], 2.21[ | 2.08[TW], 2.08[ |
Ti3C2O2 | 3.04[TW], 3.09[ | 2.23[TW], 2.20[ | 2.16[TW], 2.14[ |
Fig. 4 Front and top views of the oxygen adsorption sites on Ti3C2 surface and their adsorption energies (a1, a2) TiA, the atop site, (b1, b2) TiB, the bridge site and (c1, c2) TiC, the hollow site of Ti atoms located on the Ti3C2 surface

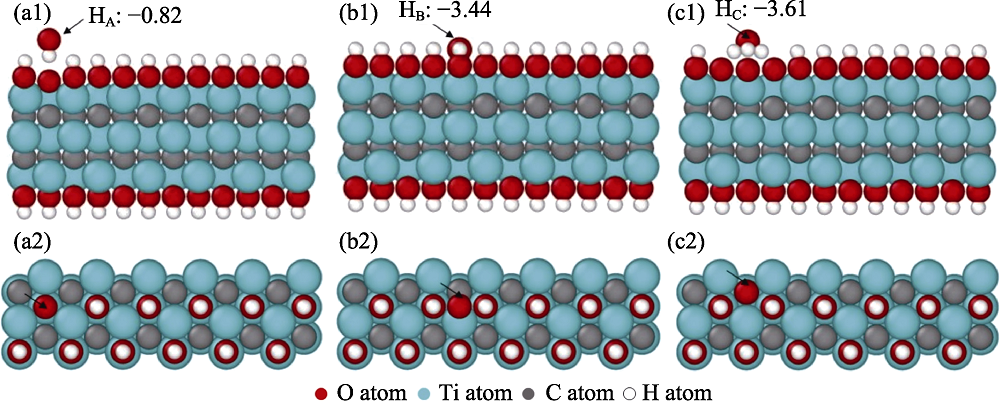

Fig. 5 Front and top views of the oxygen adsorption sites on Ti3C2(OH)2 surface and their adsorption energies (a1, a2) HA, the atop site, (b1, b2) HB, the bridge site and (c1, c2) HC, the hollow site of H atoms located on the Ti3C2(OH)2 surface

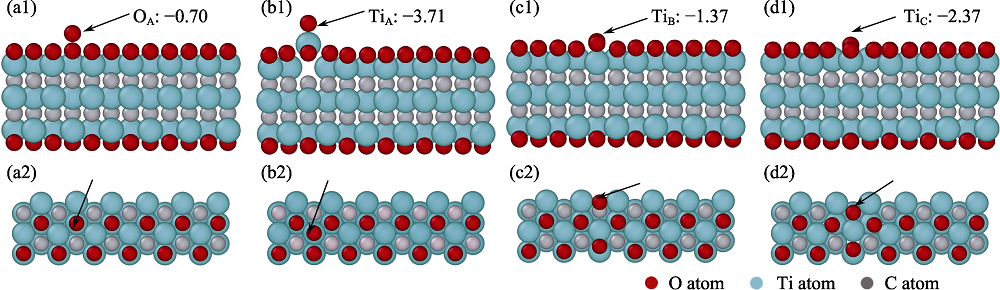

Fig. 6 Front and top views of the oxygen adsorption sites on Ti3C2O2 surface and their adsorption energies (a1, a2) OA, the atop of -O functional group, (b1, b2) TiA, (c1, c2) TiB, and (d1, d2) TiC, are respectively the atop, the bridge and the hollow of Ti atoms located on the Ti3C2O2 surface

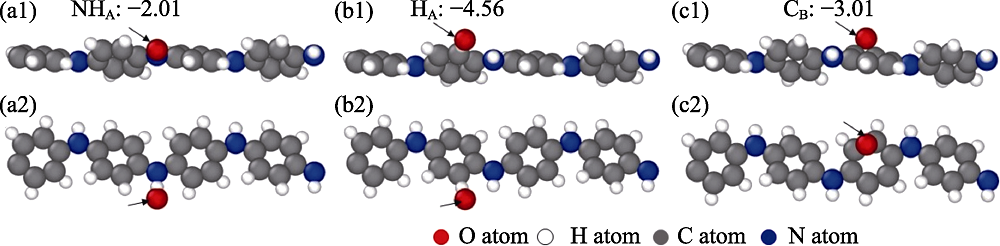

Fig. 7 Front and top views of the oxygen adsorption sites on red-PANI surface and their adsorption energies (a1, a2) NHA, the atop site of -NH, (b1, b2) HA, the atop site of -CH, and (c1, c2) CB, the bridge site of C atoms located on the red-PANI surface

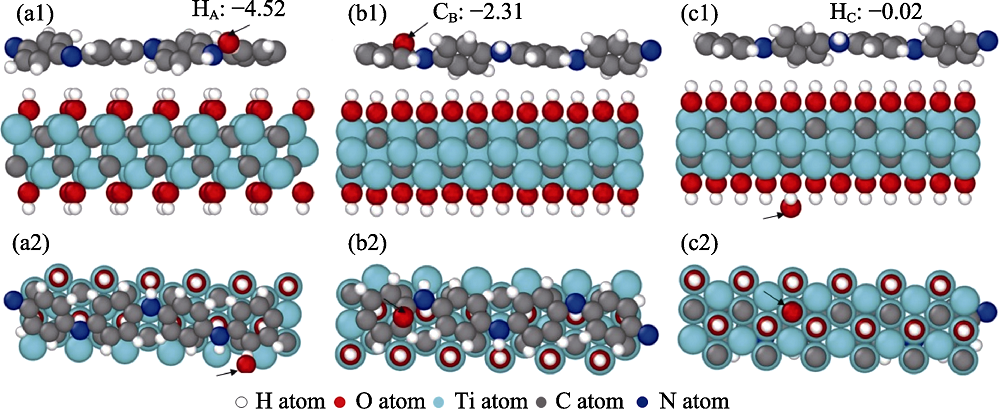

Fig. 8 Front and top views of the oxygen adsorption sites on red-PANI/Ti3C2(OH)2 surface and their adsorption energies (a1, a2) HA, the atop site of H atoms, (b1, b2) CB, the bridge site of C atoms located on the red-PANI end surface, and (c1, c2) HC, the hollow site of H atoms located on the Ti3C2(OH)2 end
Position | TiA/HA/OA | TiB/HB/OB | TiC/HC/OC |
---|---|---|---|
@Ti3C2 | 3.10 | 3.08 | 3.09 |
@Ti3C2(OH)2 | 3.10 | 3.07 | 3.11 |
@Ti3C2O2 | 3.04 | 3.04 | 3.04 |
Table 2 Lattice parameters a (Å) for three kinds of adsorption sites on surfaces of Ti3C2, Ti3C2(OH)2 and Ti3C2O2
Position | TiA/HA/OA | TiB/HB/OB | TiC/HC/OC |
---|---|---|---|
@Ti3C2 | 3.10 | 3.08 | 3.09 |
@Ti3C2(OH)2 | 3.10 | 3.07 | 3.11 |
@Ti3C2O2 | 3.04 | 3.04 | 3.04 |
System | Atom label | Before | After | Transfer |
---|---|---|---|---|
PANI | C1 | -0.01 | -0.02 | -0.01 |
C2-N | +0.45 | +0.44 | -0.01 | |
N | -1.22 | -1.23 | -0.01 | |
H1-N | +0.42 | +0.42 | 0 | |
H2 | +0.04 | +0.04 | 0 | |
Ti3C2(OH)2 | Ti1(End) | +1.57 | +1.50 | -0.07 |
Ti2(Middle) | +1.44 | +1.19 | -0.25 | |
H | +0.55 | +0.48 | -0.07 | |
O | -1.23 | -1.15 | +0.08 | |
C | -1.62 | -1.42 | +0.20 |
Table 3 Bader charge of Ti3C2(OH)2 and PANI before and after their combination, together with the electron transfer information
System | Atom label | Before | After | Transfer |
---|---|---|---|---|
PANI | C1 | -0.01 | -0.02 | -0.01 |
C2-N | +0.45 | +0.44 | -0.01 | |
N | -1.22 | -1.23 | -0.01 | |
H1-N | +0.42 | +0.42 | 0 | |
H2 | +0.04 | +0.04 | 0 | |
Ti3C2(OH)2 | Ti1(End) | +1.57 | +1.50 | -0.07 |
Ti2(Middle) | +1.44 | +1.19 | -0.25 | |
H | +0.55 | +0.48 | -0.07 | |
O | -1.23 | -1.15 | +0.08 | |
C | -1.62 | -1.42 | +0.20 |
