多尺度晶体材料的原位表征技术与计算模拟研究进展

doi:10.15541/jim20220647

无机材料学报 ›› 2023, Vol. 38 ›› Issue (3): 256-269.DOI: 10.15541/jim20220647

多尺度晶体材料的原位表征技术与计算模拟研究进展

陈昆峰¹(), 胡乾宇¹, 刘锋², 薛冬峰²()

1.山东大学新一代半导体材料研究院晶体材料国家重点实验室, 济南 250100
2.中国科学院深圳先进技术研究院, 多尺度晶体材料研究中心, 深圳 518055

收稿日期:2022-11-01 修回日期:2022-12-20 出版日期:2023-01-19 网络出版日期:2023-01-19
通讯作者: 薛冬峰, 研究员. E-mail: df.xue@siat.ac.cn
作者简介:陈昆峰(1987-), 教授. E-mail: kunfeng.chen@sdu.edu.cn
基金资助:
国家自然科学基金(51832007);国家自然科学基金(52220105010);国家自然科学基金(52202012);山东省自然科学基金重大基础研究项目(ZR2020ZD35);山东大学齐鲁青年学者项目

Multi-scale Crystallization Materials: Advances in in-situ Characterization Techniques and Computational Simulations

CHEN Kunfeng¹(), HU Qianyu¹, LIU Feng², XUE Dongfeng²()

1. State Key Laboratory of Crystal Materials, Institute of Novel Semiconductors, Shandong University, Jinan 250100, China
2. Multiscale Crystal Materials Research Center, Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China

Received:2022-11-01 Revised:2022-12-20 Published:2023-01-19 Online:2023-01-19
Contact: XUE Dongfeng, professor. E-mail: df.xue@siat.ac.cn
About author:CHEN Kunfeng(1987-), professor. E-mail: kunfeng.chen@sdu.edu.cn
Supported by:
National Natural Science Foundation of China(51832007);National Natural Science Foundation of China(52220105010);National Natural Science Foundation of China(52202012);Natural Science Foundation of Shandong Province(ZR2020ZD35);Qilu Young Scholars Program of Shandong University

摘要/Abstract

摘要：

大尺寸晶体材料是半导体、激光、通讯等领域的基础原料, 大尺寸、高品质晶体材料的制备已成为制约相关行业发展的瓶颈。我国面临的“卡脖子”技术中大多与关键基础材料相关。大尺寸晶体材料制备理论与技术是我国新材料产业高质量发展的一个重要方面, 也是提升相应高技术产业的基础, 突破大尺寸晶体材料的制备理论和技术是获得高品质大尺寸晶体材料的关键。探究并准确理解大尺寸晶体生长机理需要借助原位表征技术和多尺度计算模拟方法。单一的原位表征和模拟技术只能探究特定时间和空间范围内的结晶信息, 为了准确反映结晶过程需要综合应用多种方法。本文综述了最新的多尺度晶体生长研究的原位表征方法、多尺度计算模拟技术以及机器学习方法, 为发展结晶理论和控制晶体品质提供重要的实验和理论依据, 并将为提升大尺寸晶体生长工艺的开发而服务。

关键词: 晶体生长, 多尺度结晶, 振动光谱, 原位观测, 多尺度模拟计算, 综述

Abstract:

Large-sized crystalline materials are the basic raw materials in semiconductors, lasers, and communications. Preparation of large-scale, high-quality crystalline materials has become a bottleneck restricting the development of related industries. Breaking through the preparation theory and technology of large-sized crystal materials is the key to obtaining high-quality large-sized crystals. Preparation process of crystal materials often undergoes nucleation and growth stages, including multiple processes at spatiotemporal scale: from atom/molecules, through clusters and nuclei, to bulk crystals. To further explore and accurately understand the crystal growth mechanism, we need intensively study the multiscale process,multi-scale in situ characterization techniques, and computational simulation methods. Among them, the latest in situ characterization methods for crystal growth includes optical microscopy, electron microscopy, vibration spectra, synchrotron radiation, neutron technology, and especially, machine learning method. Thus, the multi-scale computational simulation techniques for crystallization is introduced, for example, first principles calculation at atom/molecular scale, molecular dynamics simulation, Monte Carlo simulation, phase field simulation at mesoscopic scale, and finite element simulation at macroscopic scale. A single in situ characterization or simulation technique can only explore crystallization information over a specific time and space scale. To accurately and fully reflect the crystallization process, a combination of multi-scale methods is introduced. It can be speculated that the establishment of in situ characterization technology and computational simulation methods for the actual large-sized crystal growth environment will be the future development trend, which provides an important experimental and theoretical basis for developing crystallization theory and controlling crystal quality. Furthermore, it can be deduced that the combination of in situ characterization technology with machine learning and big data technology will be the trend for large-sized crystal growth.

Key words: crystal growth, multi-scale crystallization, vibration spectra, in situ characterization, multi-scale simulations, review

中图分类号:

TQ115

陈昆峰, 胡乾宇, 刘锋, 薛冬峰. 多尺度晶体材料的原位表征技术与计算模拟研究进展[J]. 无机材料学报, 2023, 38(3): 256-269.

CHEN Kunfeng, HU Qianyu, LIU Feng, XUE Dongfeng. Multi-scale Crystallization Materials: Advances in in-situ Characterization Techniques and Computational Simulations[J]. Journal of Inorganic Materials, 2023, 38(3): 256-269.

图/表 14

图1 基于结晶生长的化学键合理论的快速晶体提拉生长技术制备的Ce: LYSO闪烁晶体的照片[9]

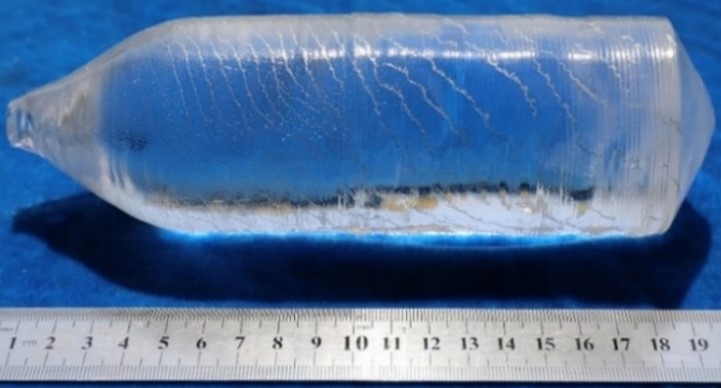

Fig. 1 Picture of Ce: LYSO scintillation crystals prepared by innovative fast crystal lifting growth technique based on the chemical bonding theory of crystalline growth[9]

图2 KDP生长结晶的原位光学显微镜照片

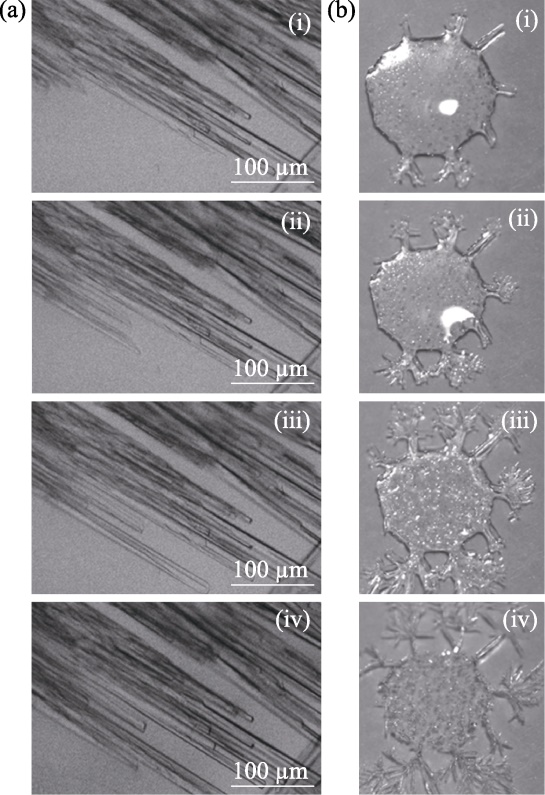

Fig. 2 In-situ optical microscope crystallization images of KDP growth (a) By optical microscope; (b) By camera

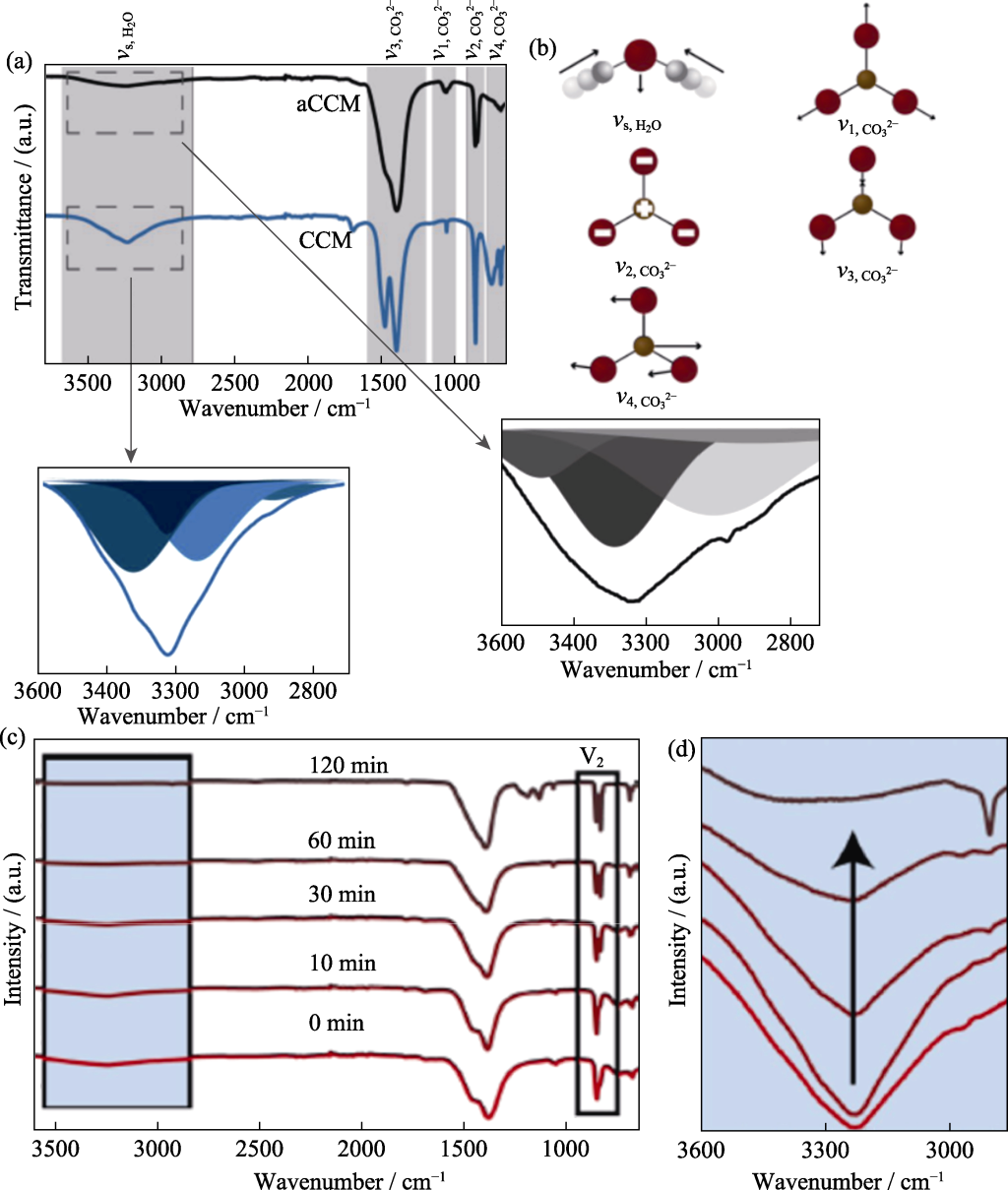

图3 水合碳酸钙结晶的红外光谱[31]

Fig. 3 Crystallization spectrum of hydrated calcium carbonate[31] (a) FTIR spectra of calcium carbonate monohydrate (blue spectrum) and aCCM (black spectrum); (b) Schematic representation of different vibrational modes; (c) FTIR spectra of aCCM recrystallized in acetonitrile mixture after different intervals; (d) Rectangle area in (c) showing hydroxyl stretching band region during recrystallization of aCCM after different intervals

图4 LCB晶体生长拉曼光谱及微观结构演变

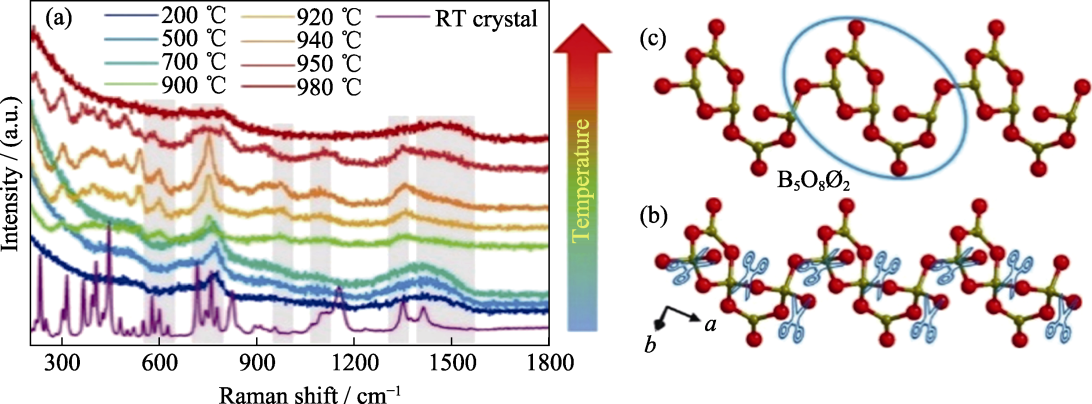

Fig. 4 Raman spectra and microstructure evolution of LCB crystal growth (a) Raman spectra of LCB crystals at room temperature and LCB-grown raw material powders at different temperatures; (b, c) Molecular structural evolution in LCB-grown melts[38]

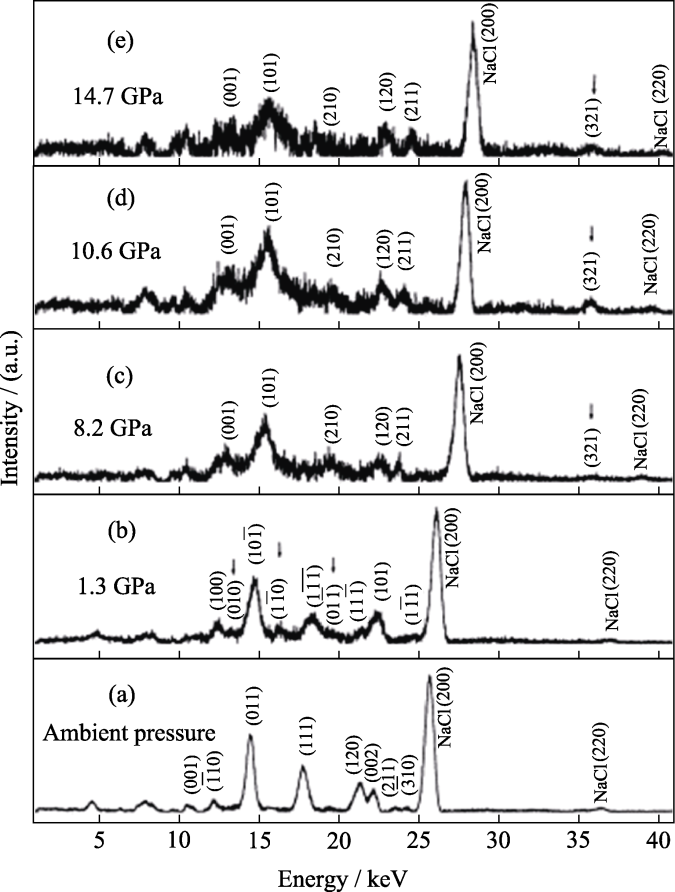

图5 三聚氰胺在不同压力下的能量色散X射线衍射图[55]

Fig. 5 Energy dispersive X-ray diffraction patterns of melamine at different pressures[55]

图6 ACC结晶时间分辨的WAXS及SAXS数据图[65]

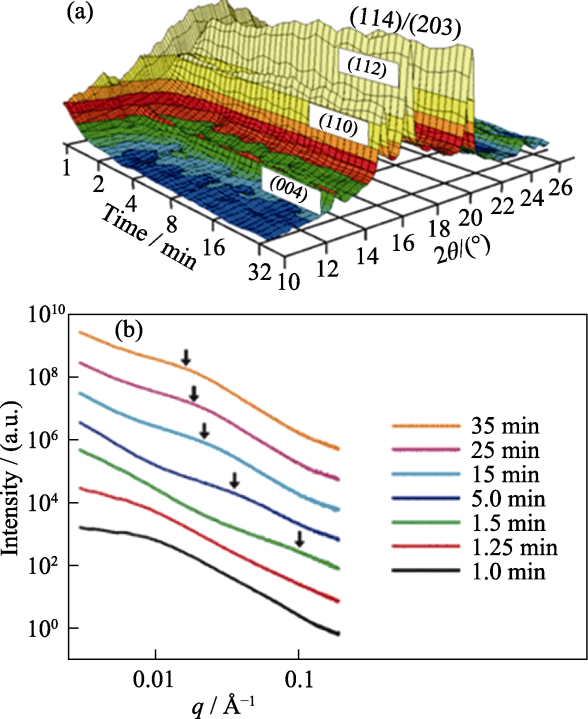

Fig. 6 Time-resolved WAXS and SAXS data of ACC crystallization[65] (a) 3D representation of the time resolved WAXS modes in the experiment; (b) Stacked time series of the SAXS modes with time in minutes, and the arrows indicating positions of peaks caused by scattering from the growing vaterite crystallites, 1 Å =0.1 nm

图7 基于人工智能预测生长炉内状态, 平均预测时间可达到0.0003 s[78]

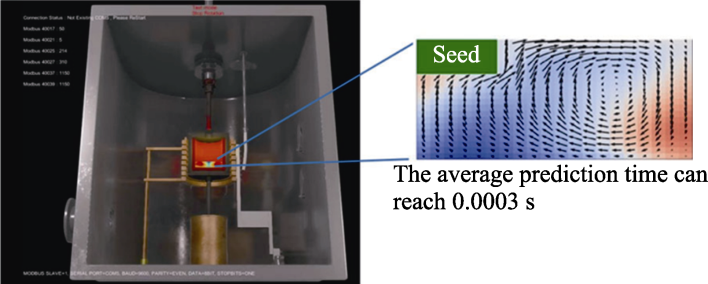

Fig. 7 Based on artificial intelligence, the average prediction time of the growth furnace state reaching 0.0003 s[78]

图8 材料在时间和空间两个维度上的多尺度计算方法[79]

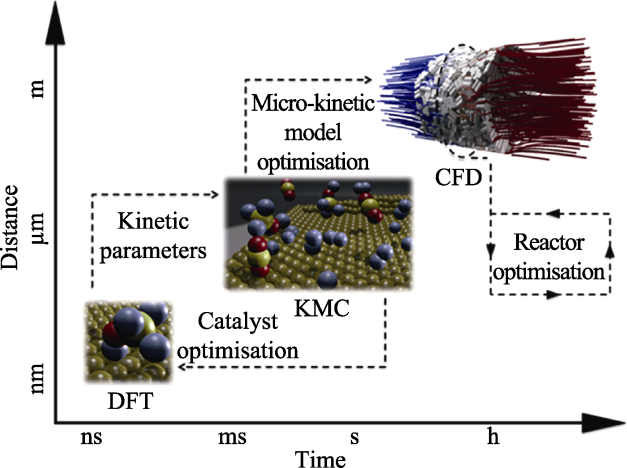

Fig. 8 Time and space dimensions of multi-scale calculation method for materials[79]

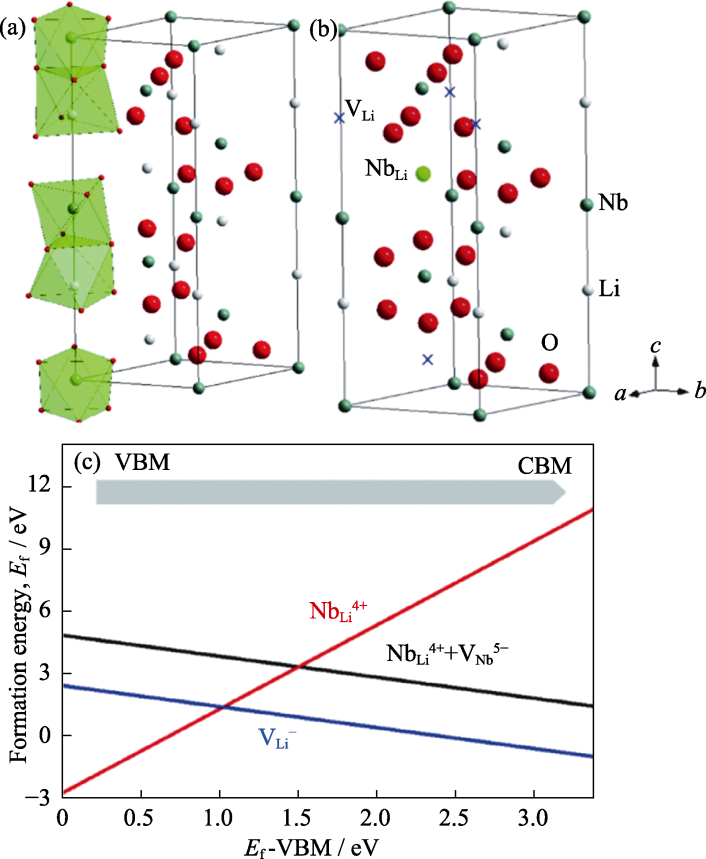

图9 铌酸锂结构、缺陷、不同点缺陷的形成能与费米能的函数关系[82]

Fig. 9 Lithium niobate structure, defects and formation energy of different point defects as a function of Fermi energy[82] (a, b) Crystallographic structures of stoichiometric LN and congruent LN with anti-site NbLi4+ and VLi− defects. Green octahedra indicate NbO6 and LiO6; (c) Formation energies of different point defects (NbLi4+, VLi−, and NbLi4+ + VNb5−) in LN as a function of Fermi energy

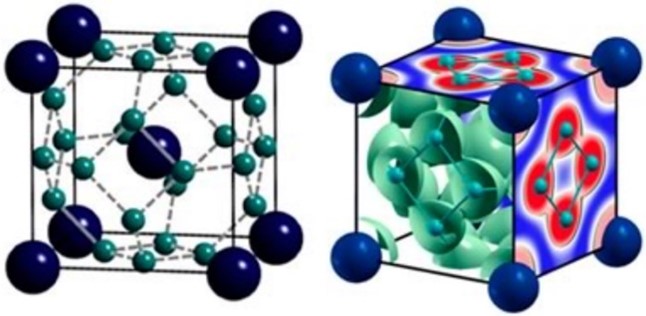

图10 CaH6的原子结构(左)和电子局域函数(右)[83]

Fig. 10 Atomic structure (left) and electron localization functions (right) of CaH6[83]

图11 在能量最小化过程中, 界面层中原子的位移[92]

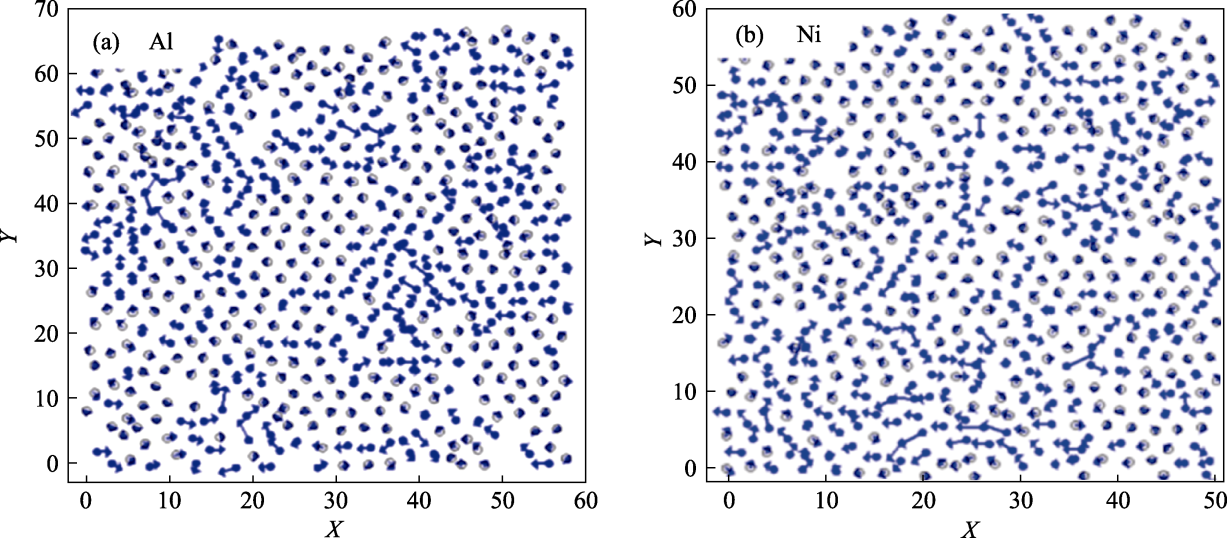

Fig. 11 Displacement of atoms in the interface layer during energy minimization[92] (a) Al atoms; (b) Ni atoms

图12 晶体生长速度V⊥随温度的变化[93]

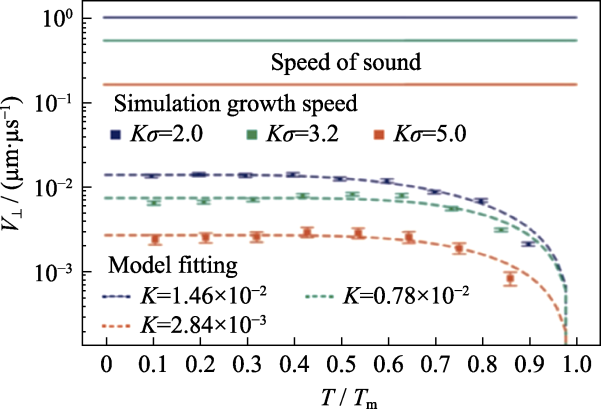

Fig. 12 Variation of crystal growth rate V⊥with temperature[93] Error bars represent the standard deviation of growth velocity measurements. The system can still maintain the maximum growth rate in deep and supercooled region without temperature change

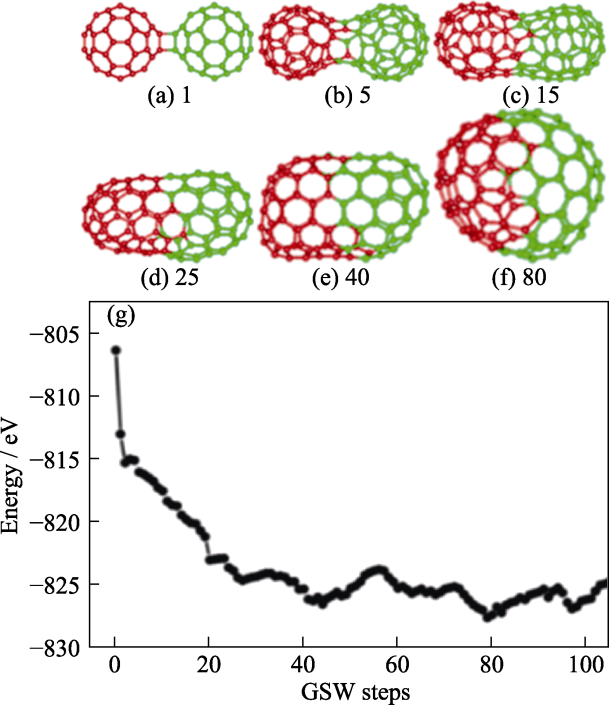

图13 通过路径搜索方法研究C60二聚体结合的最佳路线[94]

Fig. 13 Structural snapshots and relationship between energy and GSW of the optimal route for C60 dimer binding by the path search method[94] (a-f) Structural snapshots and relationship between energy and GSW steps; (g) GSW in the 0, 5, 15, 25, 40, and 80 GSW steps. Red and green represent two carbon atoms in C60, respectively

图14 在0.1 K/s的冷却速度下, Al-1% Cu合金凝固的相场模拟[97]

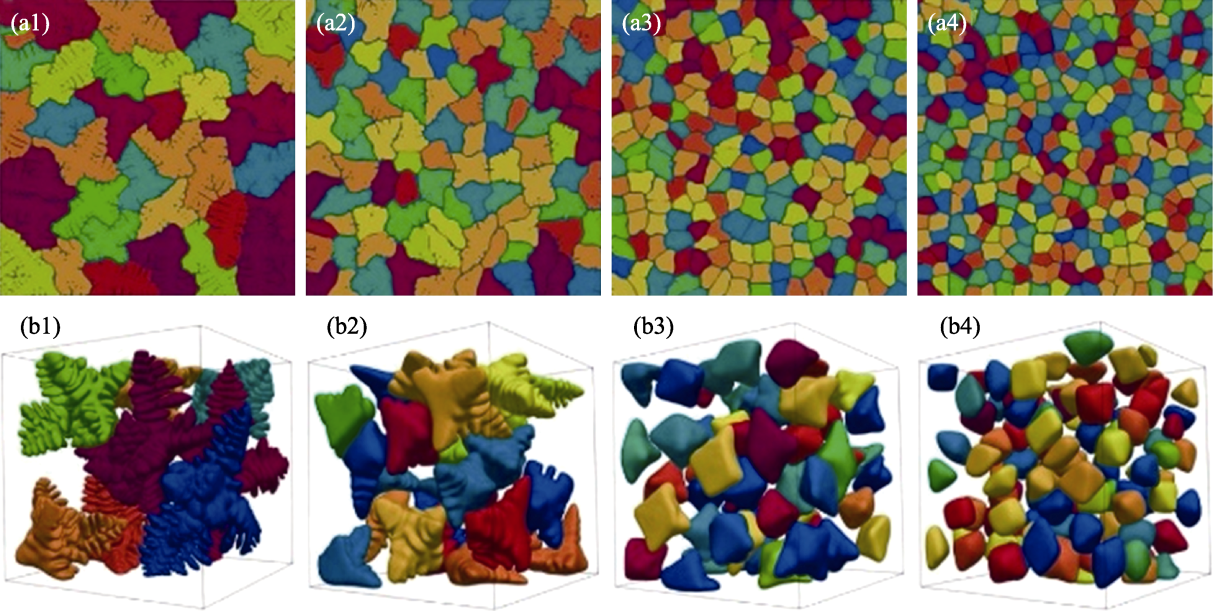

Fig. 14 Phase-field simulation of the solidification of Al-1% Cu alloy at a cooling rate of 0.1 K/s[97] (a1-a4) Solid fraction of the 2D system at 0.9; (b1-b4) Substantial fraction of the 3D system at 0.2; (b1-b4)3D systems corresponding to (a1-a4), respectively, containing different numbers of grains

参考文献 99

[1]	LIU F, CHEN K F, PENG C, et al. Advance in theory and technology of rapid growth of large-size crystals. Journal of Synthetic Crystals, 2022, 51: 1732.
[2]	殷绍唐. 晶体生长微观机理及晶体生长边界层模型. 北京: 科学出版社, 2020:
[3]	中国科学技术协会. 面向未来的科技 2021 重大科学问题、工程技术难题及产业技术问题解读. 北京: 中国科学技术出版社, 2021: 2-9.
[4]	KUNFENG CHEN, JI’AN WU, QIAN’YU HU, et al. Omni-functional crystal: advanced methods to characterize the composition and homogeneity of lithium niobate melts and crystals. Exploration, 2022, doi:10.1002/EXP.20220059. DOI
[5]	CHEN K F, XUE D F. Fast growth of cerium-doped lutetium yttrium orthosilicate single crystals and their scintillation properties. Journal of Rare Earths, 2021, 39(12): 1527. DOI URL
[6]	ZHAO J, MEI DJ, XUE DF, et al. Recent advances in nonlinear optical rare earth structures. Journal of Rare Earths, 2021, 39(12): 1455. DOI URL
[7]	王海丽, 杭寅, 潘世烈, 等. 人工晶体材料术语, 国家标准GB/T39131-2020, 2020-10-11.
[8]	LIU F, CHEN KF, PENG C, et al. Recent advances and perspectives on melt structures of large-size functional oxcide crystals. Journal of the Chinese Ceramic Society, 2023, DOI: 10.14062/j.issn.0454-5648.20220301. DOI
[9]	SUN C, XUE D. Chemical bonding theory of single crystal growth and its application to fast single crystal growth of rare earth inorganic materials. Science China Chemistry, 2018, 48(8): 804.
[10]	ASWAL D K, SHINMURA M, HAYAKAWA Y, et al. In situ observation of melting/dissolution, nucleation and growth of NdBa₂Cu₃O_x by high temperature optical microscopy. Journal of Crystal Growth, 1998, 193(1/2): 61. DOI URL
[11]	ASWAL D K, SHINMURA M, HAYAKAWA Y, et al. In situ measurement of the growth rate of YBa₂Cu₃O_x single crystals. Journal of Crystal Growth, 1999, 197(1/2): 379. DOI URL
[12]	SOHN I, DIPPENAAR R. In-situ observation of crystallization and growth in high-temperature melts using the confocal laser microscope. Metallurgical and Materials Transactions B, 2016, 47B: 2083.
[13]	HOMMA Y. 23-In Situ Observation of Crystal Growth by Scanning Electron Microscopy. Handbook of Crystal Growth (2nd Edition) Fundamentals, 2015: 1003-1030.
[14]	ZHANG Z, FEI L, RAO Z, et al. In situ observation of ice formation from water vapor by environmental SEM. Crystal Growth Design, 2018, 18: 6602. DOI URL
[15]	ZHANG Z, LIU N S, LI L Y, et al. In situ TEM observation of crystal structure transformation in InAs nanowires on atomic scale. Nano Letters, 2018, 18(10): 6597. DOI PMID
[16]	LI J, DEEPAK F L. In situ kinetic observations on crystal nucleation and growth. Chemical Review, 2022, 122: 16911. DOI URL
[17]	NISHIZAWA H, HORI F, OSHIMA R. In-situ HRTEM observation of the melting-crystallization process of silicon. Journal of Crystal Growth, 2002, 236: 51. DOI URL
[18]	MCPHERSON A, MALKIN A J, KUZNETSOV Y G. Atomic force microscopy in the study of macromolecular crystal growth. Annual Review of Biophysics and Biomolecular Structure, 2000, 29: 361. DOI URL
[19]	KRASINSKI M J, ROLANDI R. Ex situ investigation of surface topography of as-grown potassium dihydrogen phosphate crystals by atomic force microscopy. Journal of Crystal Growth, 1996, 169(3): 548. DOI URL
[20]	YANG S F, SU G B, TANG J, et al. Surface topography of rapidly grown KH₂PO₄ crystals with additives: ex situ investigation by atomic force microscopy. Journal of Crystal Growth, 1999, 203(3): 425. DOI URL
[21]	LIU L, ZHANG S, BOWDEN M E, et al. In situ TEM and AFM investigation of morphological controls during the growth of single crystal BaWO₄. Crystal Growth & Design, 2018, 18: 1367. DOI URL
[22]	PETIT T, PUSKAR L. FTIR spectroscopy of nanodiamonds: methods and interpretation. Diamond and Related Materials, 2018, 89: 52. DOI URL
[23]	ALCOTT G R, VAN MOL T, SPEE K. Evaluation of chemometric models in an FTIR study of the gas phase during atmospheric- pressure CVD of tin oxide thin films. Chemical Vapor Deposition, 2000, 6(5): 261. DOI URL
[24]	DUNUWILA D D, BERGLUND K A. ATR FTIR spectroscopy for in situ measurement of supersaturation. Journal of Crystal Growth, 1997, 179(1/2): 185. DOI URL
[25]	SUN C T, XUE D F. In situ IR spectral identification of NH₄H₂PO₄ structural evolution during crystallization in water-ethanol mixed solvent. CrystEngComm, 2015, 17(13): 2728. DOI URL
[26]	SUN C T, XUE D F. In situ IR spectral observation of NH₄H₂PO₄ crystallization: structural identification of nucleation and crystal growth. Journal of Physical Chemistry C, 2013, 117(37): 19146. DOI URL
[27]	SUN C T, XUE D F. Hydrogen bonding nature during ADP crystallization. Journal of Molecular Structure, 2014, 1059: 338. DOI URL
[28]	SUN C T, XUE D F. Crystallization behaviors of KDP and ADP. Optical Materials, 2014, 36(12): 1966. DOI URL
[29]	SUN C T, XUE D F. In situ ATR-IR observation of nucleation and crystal growth of KH₂PO₄ in aqueous solution. CrystEngComm, 2013, 15(48): 10445. DOI URL
[30]	CHENG M, SUN S T, WU P Y. Microdynamic changes of moisture- induced crystallization of amorphous calcium carbonate revealed via in situ FTIR spectroscopy. Physical Chemistry Chemical Physics, 2019, 21(39): 21882. DOI URL
[31]	MASLYK M, MONDESHKI M, TREMEL W. Amorphous calcium carbonate monohydrate containing a defect hydrate network by mechanochemical processing of mono-hydrocalcite using ethanol as auxiliary solvent. CrystEngComm, 2022, 24(26): 4687. DOI URL
[32]	MORRISON P W, HAIGIS J R. In situ infrared measurements of film and gas properties during the plasma deposition of amorphous hydrogenated silicon. Journal of Vacuum Science & Technology A, 1993, 11(3): 490. DOI URL
[33]	JONAS S, PTAK W S, SADOWSKI W, et al. FTIR in-situ studies of the gas-phase reactions in chemical-vapor-deposition of SiC. Journal of the Electrochemical Society, 1995, 142(7): 2357. DOI
[34]	WANG D, WAN S M, YIN S T, et al. High temperature Raman spectroscopy study on the microstructure of the boundary layer around a growing LiB₃O₅ crystal. Crystengcomm, 2011, 13(16): 5239. DOI URL
[35]	YANG H O, KIM J H, KIM K J. Study on the crystallization rates of beta- and epsilon-form HNIW in in-situ Raman spectroscopy and FBRM. Propellants Explosives Pyrotechnics, 2020, 45(3): 422. DOI URL
[36]	ZHANG J, WANG D, ZHANG D M, et al. In situ investigation of BaBPO₅ crystal growth mechanism by high-temperature Raman spectroscopy. Journal of Molecular Structure, 2017, 1138: 50. DOI URL
[37]	ZHANG X H, LUO H S, ZHONG W Z. The analysis of morphology evolution in KABO crystal growth. Journal of Crystal Growth, 2006, 292(1): 104. DOI URL
[38]	LIU S S, ZHANG G C, FENG K, et al. In situ Raman spectroscopy studies on La₂CaB₁₀O₁₉ crystal growth. Crystal Growth & Design, 2020, 20(10): 6604. DOI URL
[39]	SUM C T, CHEN X Y, XUE D F. Hydrogen bonding dependent mesoscale framework in crystalline Ln(H₂O)₉(CF₃SO₃)₃. Crystal Growth & Design, 2017, 17(5): 2631. DOI URL
[40]	ZHANG N, LIN Z, MAN S. Fabrication and spectral properties of Tm³⁺-doped novel bismuthate glasses. Journal of the Chinese Society of Rare Earths, 2022, 40(1): 54.
[41]	CORNEL J, MAZZOTTI M. Estimating crystal growth rates using in situ ATR-FTIR and Raman spectroscopy in a calibration-free manner. Industrial & Engineering Chemistry Research, 2009, 48(23): 10740. DOI URL
[42]	CHEN X Y, SUN C T, WU S X, et al. Molecular paradigm dependent nucleation in urea aqueous solution. Crystal Growth & Design, 2017, 17(5): 2594. DOI URL
[43]	CHEN X Y, SUN C T, WU S X, et al. Nucleation-dependant chemical bonding paradigm: the effect of rare earth ions on the nucleation of urea in aqueous solution. Physical Chemistry Chemical Physics, 2017, 19(13): 8835. DOI PMID
[44]	SUN C T, XUE D F. Physical chemistry of crystalline (K,NH₄)H₂PO₄ in aqueous solution: an in situ molecule vibration spectral observation of the early formation stage. Journal of Physical Chemistry C, 2014, 118(29): 16043. DOI URL
[45]	ZHANG Y P, XUE D F. In-situ micro-Raman spectroscopy study of gypsum crystallization driven by chemical reaction. Journal of Molecular Structure, 2020, 1210: 128043. DOI URL
[46]	PIENACK N, BENSCH W. In-situ monitoring of the formation of crystalline solids. Angewandte Chemie International Edition, 2011, 50(9): 2014. DOI URL
[47]	FORKER R, FRITZ T. Optical differential reflectance spectroscopy of ultrathin epitaxial organic films. Physical Chemistry Chemical Physics, 2009, 11(13): 2142. DOI PMID
[48]	PROEHL H, NITSCHE R, DIENEL T, et al. In situ differential reflectance spectroscopy of thin crystalline films of PTCDA on different substrates. Physical Review B, 2005, 71(16): 165207. DOI URL
[49]	ZHANG L, HU C G, FU X, et al. Pentacene crystal transition during the growth on SiO₂ studied by in situ optical spectroscopy. Synthetic Metals, 2017, 231: 65. DOI URL
[50]	ZHANG L, FU X, HOHAGE M, et al. Growth of pentacene on alpha-Al₂O₃(0001) studied by in situ optical spectroscopy. Physical Review Materials, 2017, 1(4): 043401. DOI URL
[51]	WANG Y N, ZHANG L, SU C H, et al. Direct observation of monolayer MoS₂ prepared by CVD using in-situ differential reflectance spectroscopy. Nanomaterials, 2019, 9(11): 1640. DOI URL
[52]	EVANS J S O, PRICE S J, WONG H V, et al. Kinetic study of the intercalation of cobaltocene by layered metal dichalcogenides with time-resolved in situ X-ray powder diffraction. Journal of the American Chemical Society, 1998, 120(42): 10837. DOI URL
[53]	BEALE A M, SANKAR G. In situ study of the formation of crystalline bismuth molybdate materials under hydrothermal conditions. Chemistry of Materials, 2003, 15(1): 146. DOI URL
[54]	ZHOU Y, ANTONOVA E, BENSCH W, et al. In situ X-ray diffraction study of the hydrothermal crystallization of hierarchical Bi₂WO₆ nanostructures. Nanoscale, 2010, 2(11): 2412. DOI URL
[55]	MA H A, JIA X, CUI Q L, et al. Crystal structures of C₃N₆H₆ under high pressure. Chemical Physics Letters, 2003, 368(5/6): 668. DOI URL
[56]	KIEBACH R, PIENACK N, ORDOLFF M E, et al. Combined in situ EDXRD/EXAFS investigation of the crystal growth of [Co(C₆H₁₈N₄)][Sb₂S₄] under solvothermal conditions: two different reaction pathways leading to the same product. Chemistry of Materials, 2006, 18(5): 1196. DOI URL
[57]	SAYERS D E, STERN E A, LYTLE F W. New technique for investigating noncrystalline structures-Fourier analysis of extended X-ray-absorption fine structure. Physical Review Letters, 1971, 27(18): 1204. DOI URL
[58]	TAMURA K, OYANAGI H, KONDO T, et al. Structural study of electrochemically deposited Cu on p-GaAs(100) in H₂SO₄ solution by in situ surface-sensitive X-ray absorption fine structure measurements. Journal of Physical Chemistry B, 2000, 104(38): 9017. DOI URL
[59]	MUNOZ F F, ACUNA L M, ALBORNOZ C A, et al. Redox properties of nanostructured lanthanide-doped ceria spheres prepared by microwave assisted hydrothermal homogeneous co-precipitation. Nanoscale, 2015, 7(1): 271. DOI PMID
[60]	TANG Y Z, ELZINGA E J, LEE Y J, et al. Coprecipitation of chromate with calcite: batch experiments and X-ray absorption spectroscopy. Geochimica et Cosmochimica Acta, 2007, 71(6): 1480. DOI URL
[61]	ZHANG Y, WANG H Y, MA C Q, et al. Growth and optical properties of gray-track-resistant KTiOPO₄ single crystals. Journal of Crystal Growth, 2015, 412: 67. DOI URL
[62]	YAO T, SUN Z H, LI Y Y, et al. Insights into initial kinetic nucleation of gold nanocrystals. Journal of the American Chemical Society, 2010, 132(22): 7696. DOI PMID
[63]	MORELL J, TEIXEIRA C V, CORNELIUS M, et al. In situ synchrotron SAXS/XRD study on the formation of ordered mesoscopic hybrid materials with crystal-like walls. Chemistry of Materials, 2004, 16(26): 5564. DOI URL
[64]	DU Y, OK K M, O'HARE D. A kinetic study of the phase conversion of layered cobalt hydroxides. Journal of Materials Chemistry, 2008, 18(37): 4450. DOI URL
[65]	BOTS P, BENNING L G, RODRIGUEZ-BLANCO J D, et al. Mechanistic insights into the crystallization of amorphous calcium carbonate (ACC). Crystal Growth & Design, 2012, 12(7): 3806. DOI URL
[66]	ZHOU C B, LI H F, ZHANG W Y, et al. Direct investigations on strain-induced cold crystallization behavior and structure evolutions in amorphous poly(lactic acid) with SAXS and WAXS measurements. Polymer, 2016, 90: 111. DOI URL
[67]	CRAVILLON J, SCHRODER C A, NAYUK R, et al. Fast nucleation and growth of ZIF-8 nanocrystals monitored by time-resolved in situ small-angle and wide-angle X-ray scattering. Angewandte Chemie International Edition, 2011, 50(35): 8067. DOI URL
[68]	FAN W, OGURA M, SANKAR G, et al. In situ small-angle and wide-angle X-ray scattering investigation on nucleation and crystal growth of nanosized zeolite A. Chemistry of Materials, 2007, 19(8): 1906. DOI URL
[69]	BREMHOLM M, FELICISSIMO M, IVERSEN B B. Time-resolved in situ synchrotron X-ray study and large-scale production of magnetite nanoparticles in supercritical water. Angewandte Chemie International Edition, 2009, 48(26): 4788. DOI URL
[70]	CHEETHAM A K, MELLOT C F. In situ studies of the Sol-Gel synthesis of materials. Chemistry of Materials, 1997, 9(11): 2269. DOI URL
[71]	WANG H W, WESOLOWSKI D J, PROFFEN T E, et al. Structure and stability of SnO₂ nanocrystals and surface-bound water species. Journal of the American Chemical Society, 2013, 135(18): 6885. DOI URL
[72]	FERNANDEZ-MARTIN C, BRUNO G, CROCHET A, et al. Nucleation and growth of nanocrystals in glass-ceramics: an in situ SANS perspective. Journal of the American Ceramic Society, 2012, 95(4): 1304. DOI URL
[73]	WALTON R I, MILLANGE F, SMITH R I, et al. Real time observation of the hydrothermal crystallization of barium titanate using in situ neutron powder diffraction. Journal of the American Chemical Society, 2001, 123(50): 12547. PMID
[74]	GAINES J M, PONZONI C. An in-situ characterization of II-VI molecular-beam epitaxy. Physica Status Solidi B-Basic Research, 1995, 187(2): 309. DOI URL
[75]	SENKER J, SEHNERT J, CORRELL S. Microscopic description of the polyamorphic phases of triphenyl phosphite by means of multidimensional solid-state NMR Spectroscopy. Journal of the American Chemical Society, 2005, 127(1): 337. PMID
[76]	ZHU Y Z, DING J L, WANG W J, et al. Interface diagnostics: in-situ determination of crystal-melt interface shape evolutions via probing growth interface electromotive force. Acta Materialia, 2022, 238: 118242. DOI URL
[77]	GRANDJEAN D, BEALE A M, PETUKHOV A V, et al. Unraveling the crystallization mechanism of CoAPO-5 molecular sieves under hydrothermal conditions. Journal of the American Chemical Society, 2005, 127(41): 14454. PMID
[78]	脱炭素社会に向けて新技術！ -AI利用で高品質な6インチのSiC結晶成長の開発を圧倒的な開発スピードで実現. [2021-10-25]. https://www.imass.nagoya-u.ac.jp/en/research/20211025_ujihara.html.
[79]	SKUBIC L, SOVDAT J, TERAN N, et al. Ab initio multiscale process modeling of ethane, propane and butane dehydrogenation reactions: a review. Catalysts, 2020, 10(12): 1405. DOI URL
[80]	MARTIN R M. Electronic Structure:Basic Theory and Practical Methods. Cambridge University Press, 2020.
[81]	FREYSOLDT C, GRABOWSKI B, HICKEL T, et al. First-principles calculations for point defects in solids. Reviews of Modern Physics, 2014, 86(1): 253. DOI URL
[82]	CHEN K, LI Y, PENG C, et al. Microstructure and defect characteristics of lithium niobate with different Li concentrations. Inorganic Chemistry Frontiers, 2021, 8(17): 4006. DOI URL
[83]	WANG H, TSE J S, TANAKA K, et al. Superconductive sodalite- like clathrate calcium hydride at high pressures. Proceedings of the National Academy of Sciences, 2012, 109(17): 6463. DOI URL
[84]	ZHANG S B, WEI S H, ZUNGER. A intrinsic n-type versus p-type doping asymmetry and the defect physics of ZnO. Physical Review B, 2001, 63(7): 075205. DOI URL
[85]	JANOTTI A, VAN DE WALLE C G. Oxygen vacancies in ZnO. Applied Physics Letters, 2005, 87(12): 122102. DOI URL
[86]	JANOTTI A, VAN DE WALLE C G. Native point defects in ZnO. Physical Review B, 2007, 76(16): 165202. DOI URL
[87]	FRENKEL D, SMIT B, RATNER M A. Understanding Molecular Simulation:from Algorithms to Applications. Academic Press San Diego, 1996.
[88]	ALLEN M P, TILDESLEY D J. Computer Simulation of Liquids. Oxford University Press, 2017.
[89]	BAUMGÄRTNER A, BINDER K, HANSEN J P, et al. Applications of the Monte Carlo method in statistical physics. Springer Science & Business Media: 2013.
[90]	BORN M, GREEN H S. A General Kinetic Theory of Liquids. CUP Archive: 1949.
[91]	BROUGHTON J Q, GILMER G H, JACKSON K A. Crystallization rates of a Lennard-Jones liquid. Physical Review Letters, 1982, 49(20): 1496. DOI URL
[92]	SUN G, XU J, HARROWELL P. The mechanism of the ultrafast crystal growth of pure metals from their melts. Nature Materials, 2018, 17(10): 881. DOI PMID
[93]	GAO Q, AI J D, TANG S X, et al. Fast crystal growth at ultra-low temperatures. Nature Materials, 2021, 20(10): 1431. DOI PMID
[94]	DING F, YAKOBSON B I. Energy-driven kinetic Monte Carlo method and its application in fullerene coalescence. The Journal of Physical Chemistry Letters, 2014, 5(17): 2922. DOI URL
[95]	LANDAU L D, LIFSHITZ E M. Course of Theoretical Physics. Elsevier: 2013.
[96]	HONG Z, VISWANATHAN V. Phase-field simulations of lithium dendrite growth with open-source software. ACS Energy Letters, 2018, 3(7): 1737. DOI URL
[97]	GONG T, CHEN Y, LI S, et al. Revisiting dynamics and models of microsegregation during polycrystalline solidification of binary alloy. Journal of Materials Science & Technology, 2021, 74: 155.
[98]	LEE H H. Finite Element Simulations with ANSYS Workbench 2022: Theory, Applications, Case Studies. SDC Publications, 2022.
[99]	LIPCHIN A, BROWN R A. Hybrid finite-volume/finite-element simulation of heat transfer and melt turbulence in Czochralski crystal growth of silicon. Journal of Crystal Growth, 2000, 216(1): 192. DOI URL

多尺度晶体材料的原位表征技术与计算模拟研究进展

Multi-scale Crystallization Materials: Advances in in-situ Characterization Techniques and Computational Simulations

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 14

参考文献 99

相关文章 15

编辑推荐

Metrics

本文评价

[1]	丁玲, 蒋瑞, 唐子龙, 杨运琼. MXene材料的纳米工程及其作为超级电容器电极材料的研究进展[J]. 无机材料学报, 2023, 38(6): 619-633.
[2]	杨卓, 卢勇, 赵庆, 陈军. X射线衍射Rietveld精修及其在锂离子电池正极材料中的应用[J]. 无机材料学报, 2023, 38(6): 589-605.
[3]	陈强, 白书欣, 叶益聪. 热管理用高导热碳化硅陶瓷基复合材料研究进展[J]. 无机材料学报, 2023, 38(6): 634-646.
[4]	林俊良, 王占杰. 铁电超晶格的研究进展[J]. 无机材料学报, 2023, 38(6): 606-618.
[5]	牛嘉雪, 孙思, 柳鹏飞, 张晓东, 穆晓宇. 铜基纳米酶的特性及其生物医学应用[J]. 无机材料学报, 2023, 38(5): 489-502.
[6]	苑景坤, 熊书锋, 陈张伟. 聚合物前驱体转化陶瓷增材制造技术研究趋势与挑战[J]. 无机材料学报, 2023, 38(5): 477-488.
[7]	游钧淇, 李策, 杨栋梁, 孙林锋. 氧化物双介质层忆阻器的设计及应用[J]. 无机材料学报, 2023, 38(4): 387-398.
[8]	杜剑宇, 葛琛. 光电人工突触研究进展[J]. 无机材料学报, 2023, 38(4): 378-386.
[9]	杨洋, 崔航源, 祝影, 万昌锦, 万青. 柔性神经形态晶体管研究进展[J]. 无机材料学报, 2023, 38(4): 367-377.
[10]	吴振, 李慧芳, 张中晗, 张振, 李阳, 蓝江河, 苏良碧, 武安华. 面向磁光应用的CeF₃晶体生长与性能表征[J]. 无机材料学报, 2023, 38(3): 296-302.
[11]	齐雪君, 张健, 陈雷, 王绍涵, 李翔, 杜勇, 陈俊锋. 坩埚下降法生长大尺寸Bi₁₂GeO₂₀晶体的宏观缺陷[J]. 无机材料学报, 2023, 38(3): 280-287.
[12]	齐占国, 刘磊, 王守志, 王国栋, 俞娇仙, 王忠新, 段秀兰, 徐现刚, 张雷. GaN单晶的HVPE生长与掺杂进展[J]. 无机材料学报, 2023, 38(3): 243-255.
[13]	张超逸, 唐慧丽, 李宪珂, 王庆国, 罗平, 吴锋, 张晨波, 薛艳艳, 徐军, 韩建峰, 逯占文. 新型GaN与ZnO衬底ScAlMgO₄晶体的研究进展[J]. 无机材料学报, 2023, 38(3): 228-242.
[14]	林思琪, 李艾燃, 付晨光, 李荣斌, 金敏. Zintl相Mg₃X₂(X=Sb, Bi)基晶体生长及热电性能研究进展[J]. 无机材料学报, 2023, 38(3): 270-279.
[15]	杨佳雪, 李雯, 王燕, 朱昭捷, 游振宇, 李坚富, 涂朝阳. Dy³⁺: Y₃Al₅O₁₂晶体的光谱与黄色激光性能[J]. 无机材料学报, 2023, 38(3): 350-356.
