镁离子调控无定形碳酸钙制备一水碳酸钙结晶过程

doi:10.15541/jim20240075

无机材料学报 ›› 2024, Vol. 39 ›› Issue (11): 1275-1282.DOI: 10.15541/jim20240075 CSTR: 32189.14.10.15541/jim20240075

镁离子调控无定形碳酸钙制备一水碳酸钙结晶过程

蔡豪(), 汪琦航(), 邹朝勇()

武汉理工大学材料复合新技术国家重点实验室，武汉 430070

收稿日期:2024-02-20 修回日期:2024-03-30 出版日期:2024-11-20 网络出版日期:2024-05-31
通讯作者: 汪琦航, 助理研究员. E-mail: qhwang@whut.edu.cn;
邹朝勇, 研究员. E-mail: zzou@whut.edu.cn
作者简介:蔡豪(1999-), 男, 硕士研究生. E-mail: c17596125882@163.com
基金资助:
国家重点研发计划(2021YFA0715700);国家自然科学基金(21905217);中国博士后科学基金资助项目(2023TQ0254);中央高校基本科研业务费专项资金资助(2023IVA097)

Crystallization Pathway of Monohydrocalcite via Amorphous Calcium Carbonate Regulated by Magnesium Ion

CAI Hao(), WANG Qihang(), ZOU Zhaoyong()

State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan 430070, China

Received:2024-02-20 Revised:2024-03-30 Published:2024-11-20 Online:2024-05-31
Contact: WANG Qihang, lecturer. E-mail: qhwang@whut.edu.cn;
ZOU Zhaoyong, professor. E-mail: zzou@whut.edu.cn
About author:CAI Hao (1999-), male, Master candidate. E-mail: c17596125882@163.com
Supported by:
National Key R&D Program of China(2021YFA0715700);National Natural Science Foundation of China(21905217);China Postdoctoral Science Foundation(2023TQ0254);Fundamental Research Funds for the Central Universities(2023IVA097)

摘要/Abstract

摘要：

无定形碳酸钙(Amorphous Calcium Carbonate，ACC)在生物矿化中具有重要作用, 其结晶过程受到了人们广泛的关注。镁离子(Mg²⁺)能够有效调控ACC的结晶转变过程, 但其调控ACC转变为一水碳酸钙(Monohydrocalcite, MHC, CaCO₃·H₂O)晶体的作用机制并不清楚。本研究使用Mg²⁺作为添加剂, 采用自动电位滴定系统, 原位研究了ACC到MHC的转变过程, 发现Mg²⁺能够提升ACC的稳定性, 抑制方解石和球霰石的形成。ACC向MHC转变的过程中, 首先发生部分溶解, 随着Ca²⁺被消耗, 溶液中Mg/Ca摩尔比提高。Mg²⁺进一步吸附在ACC颗粒表面, 抑制ACC表面溶解, 促使其从内部溶解, 形成富含Mg²⁺的中空结构以及尺寸更小的纳米颗粒。随后, MHC通过颗粒聚集的方式结晶生长。这些结果解释了Mg²⁺调控ACC通过非经典结晶方式转变为MHC的机理, 加深了对以ACC为前驱体的生物矿化机制的理解。

关键词: 生物矿化, 无定形碳酸钙, 镁离子, 一水碳酸钙, 晶体生长

Abstract:

Amorphous calcium carbonate (ACC) plays a crucial role in biomineralization which crystallization process has attracted significant attention. Magnesium ions (Mg²⁺) can effectively regulate the crystallization of ACC, but the mechanism by which it controls the transformation of ACC into monohydrocalcite (MHC, CaCO₃·H₂O) is not well understood. In this study, Mg²⁺ was used as an additive, and the transformation process from ACC to MHC was investigated in situ using an automatic potentiometric titration system. It was found that Mg²⁺ can enhance the stability of ACC and inhibit the formation of calcite and vaterite. During the transformation of ACC to MHC, partial dissolution firstly occurred, and the molar ratio of Mg/Ca in the solution increased with the consumption of Ca²⁺. Mg²⁺further adsorbed onto the surface of ACC particles, inhibiting surface dissolution of ACC and promoting internal dissolution of ACC, resulting in the formation of hollow structures rich in Mg²⁺ and smaller-sized nanoparticles. Subsequently, MHC crystallized and grew through particle aggregation. These results elucidate the mechanism by which Mg²⁺ regulates the transformation of ACC into MHC through a non-classical crystallization pathway, enhancing an understanding of the biomineralization mechanism from ACC precursor.

Key words: biomineralization, amorphous calcium carbonate, magnesium ion, monohydrocalcite, crystal growth

中图分类号:

TB321

蔡豪, 汪琦航, 邹朝勇. 镁离子调控无定形碳酸钙制备一水碳酸钙结晶过程[J]. 无机材料学报, 2024, 39(11): 1275-1282.

CAI Hao, WANG Qihang, ZOU Zhaoyong. Crystallization Pathway of Monohydrocalcite via Amorphous Calcium Carbonate Regulated by Magnesium Ion[J]. Journal of Inorganic Materials, 2024, 39(11): 1275-1282.

图/表 6

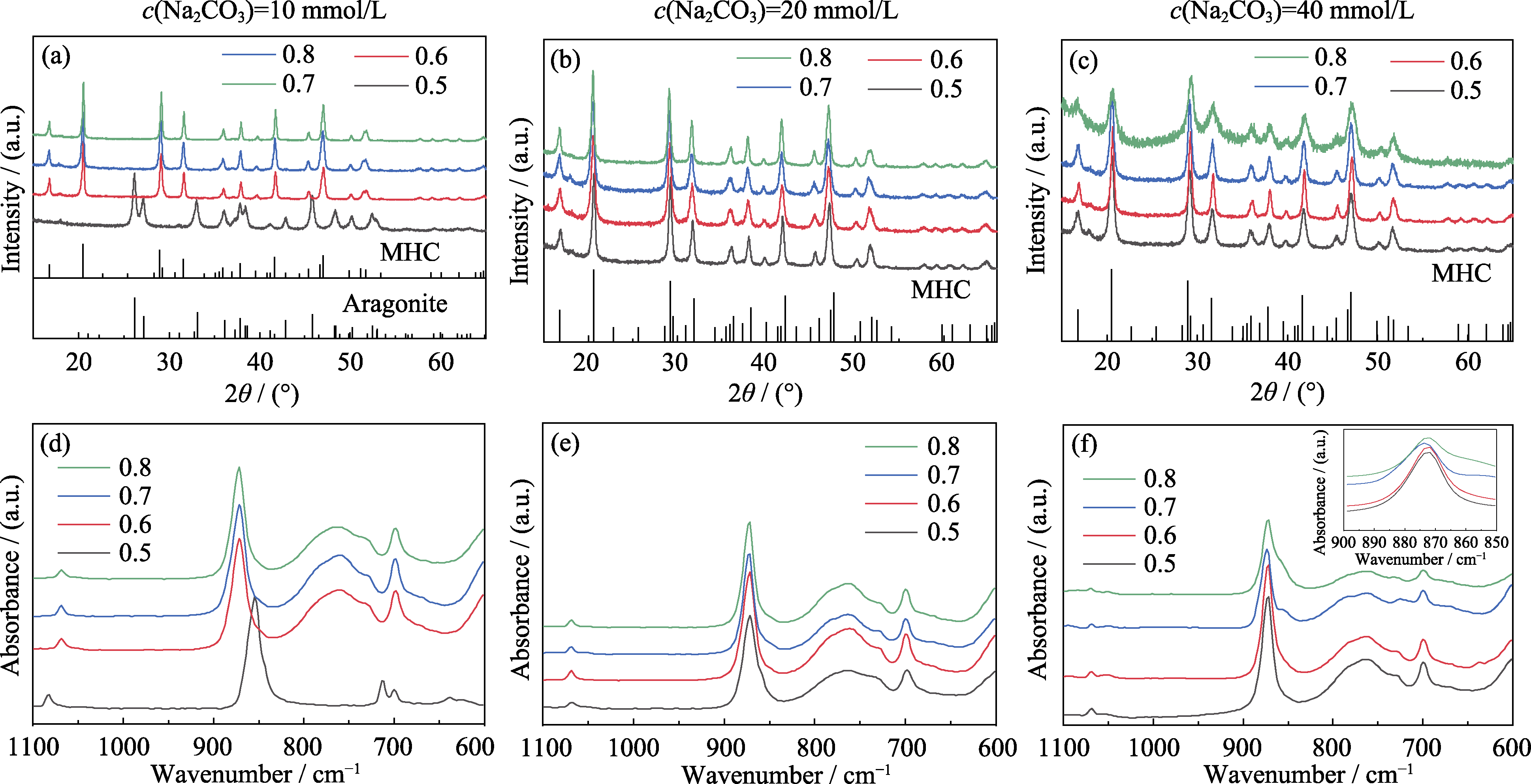

图1 (a, d) 10, (b, e) 20, (c, f) 40 mmol/L碳酸根和不同Mg/(Mg+Ca)比例下结晶产物的(a~c)XRD和(d~f)FT-IR图谱

Fig. 1 (a-c) XRD patterns and (d-f) FT-IR spectra of crystallized products prepared at different carbonate concentrations of (a, d) 10, (b, e) 20, (c, f) 40 mmol/L and different ratios of Mg/(Mg+Ca) Colorful figures are available on website

图2 碳酸根浓度为10 mmol/L, 不同Mg/(Mg+Ca)比例下结晶产物的SEM照片

Fig. 2 SEM images of crystallized products at carbonate concentration of 10 mmol/L and different ratios of Mg/(Mg+Ca) (a, b) 0.5; (c, d) 0.6; (e, f) 0.7; (g, h) 0.8

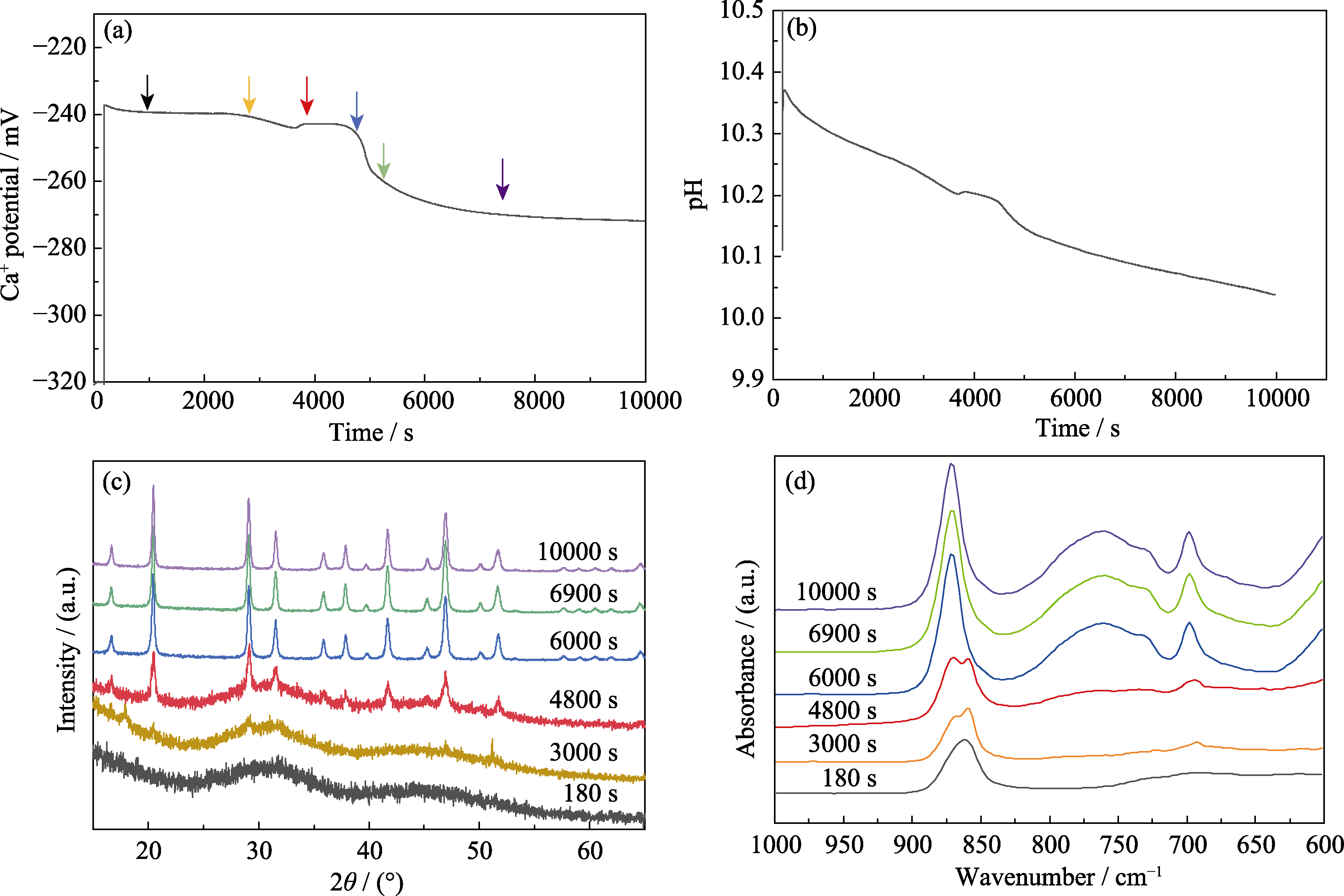

图3 含镁ACC结晶过程中溶液变化的原位监测以及不同时间点产物的结构表征

Fig. 3 In-situ monitoring of solution changes during crystallization of Mg-ACC and structural characterization of products at different time points (a) Ca2+ activity; (b) pH evolution; (c) XRD patterns and (d) FT-IR spectra of the crystallized products at different crystallization stages. Concentration of carbonate: 10 mmol/L; Mg/(Mg+Ca) ratio: 0.6

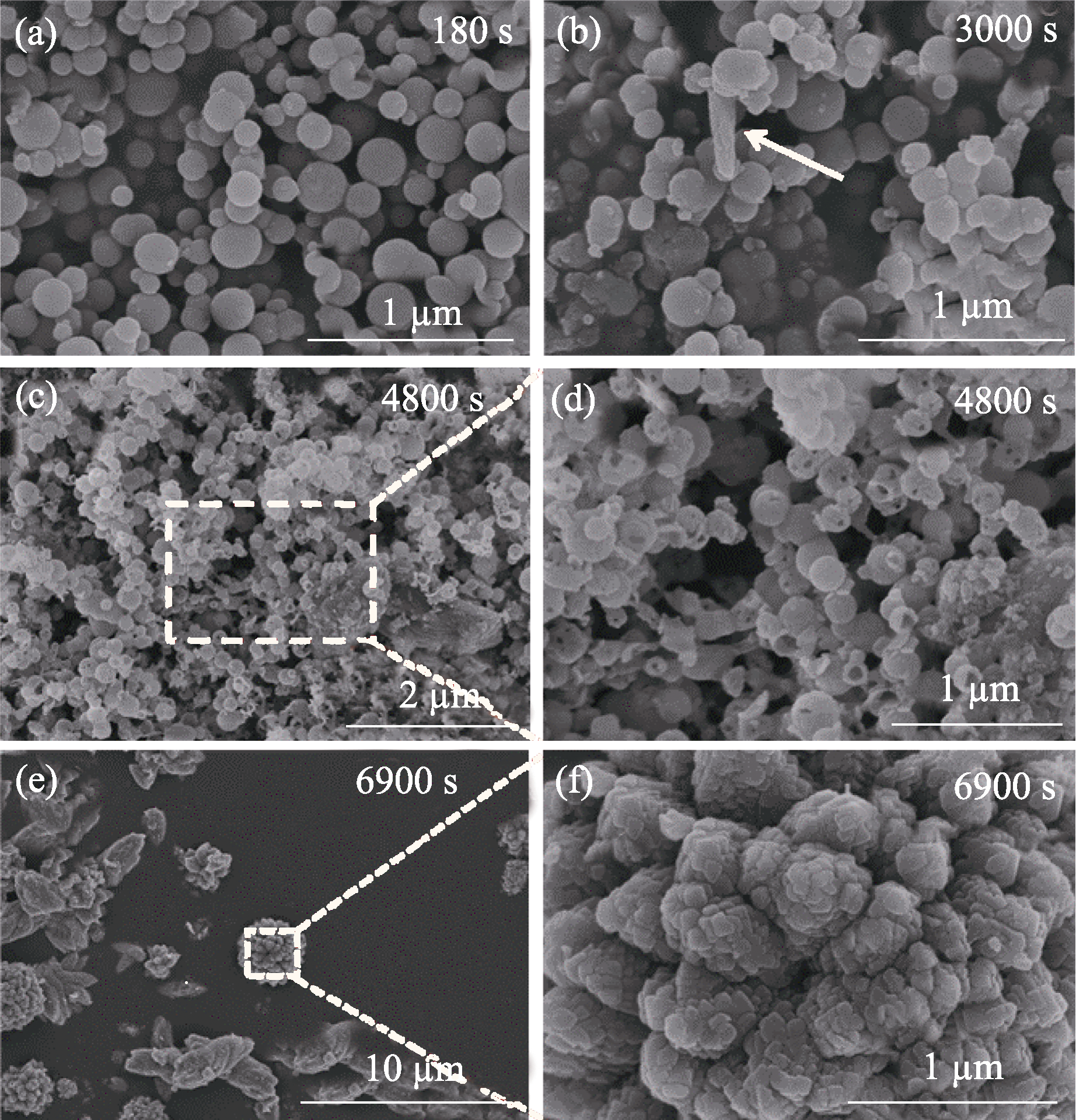

图4 ACC结晶转化过程中不同阶段产物的SEM照片

Fig. 4 SEM images of the products at different stages during ACC crystallization (a) 180 s; (b) 3000 s; (c, d) 4800 s; (e, f) 6900 s. Concentration of carbonate: 10 mmol/L; Mg/(Mg+Ca) ratio: 0.6

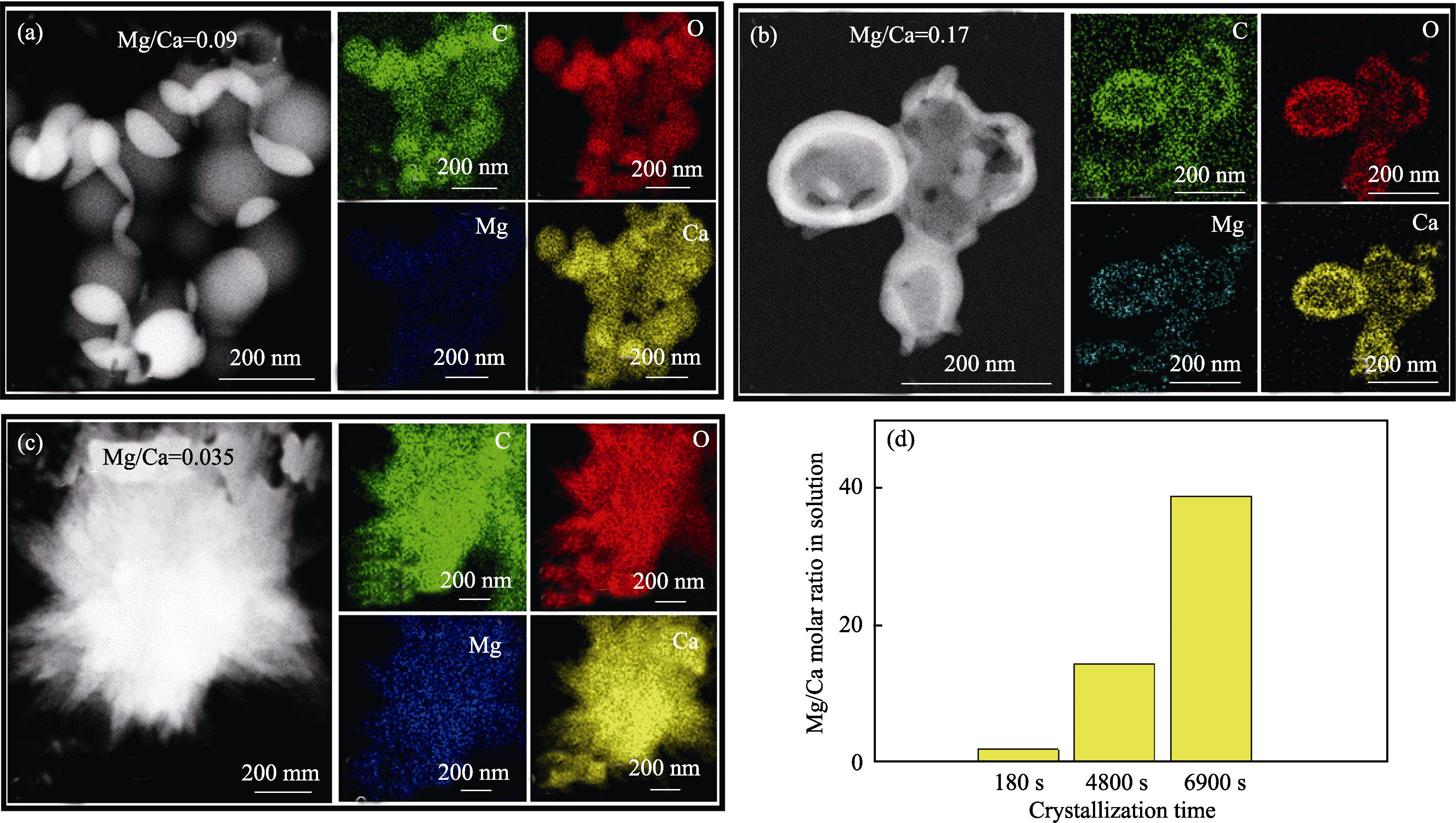

图5 ACC结晶转化过程中不同阶段产物的TEM照片

Fig. 5 TEM images of the products at different stages during ACC crystallization (a) 180 s; (b) 3000 s; (c, d) 4800 s; (e, f) 6900 s. Concentration of carbonate: 10 mmol/L; Mg/(Mg+Ca) ratio: 0.6

图6 ACC结晶转化过程中不同阶段产物和溶液中的Mg/Ca摩尔比

Fig. 6 Mg/Ca molar ratios of the products and solutions at different stages during ACC crystallization (a-c) HAADF images and their corresponding EDS mappings of products during crystallization for |(a) 180, (b) 4800 and (c) 6900 s; (d) Mg/Ca molar ratio in solution after different crystallization time. Concentration of carbonate: 10 mmol/L; Mg/(Mg+Ca) ratio: 0.6

参考文献 49

[1]	FERMANI S, DŽAKULA B N, REGGI M, et al. Effects of magnesium and temperature control on aragonite crystal aggregation and morphology. CrystEngComm, 2017, 19(18): 2451.
[2]	RODRIGUEZ-BLANCO J D, SHAW S, BOTS P, et al. The role of Mg in the crystallization of monohydrocalcite. Geochimica et Cosmochimica Acta, 2014, 127: 204.
[3]	WANG C Y, XU Y, LIU Y L, et al. Synthesis and characterization of lamellar aragonite with hydrophobic property. Materials Science & Engineering: C, 2009, 29(3): 843.
[4]	GOWER L B. Biomimetic model systems for investigating the amorphous precursor pathway and its role in biomineralization. Chemical Reviews, 2008, 108(11): 4551. DOI PMID
[5]	WANG Q, YUAN B, HUANG W, et al. Bioprocess inspired formation of calcite mesocrystals by cation-mediated particle attachment mechanism. National Science Review, 2023, 10(4): nwad014.
[6]	SU J T, ZHU F J, ZHANG G Y, et al. Transformation of amorphous calcium carbonate nanoparticles into aragonite controlled by ACCBP. CrystEngComm, 2016, 18(12): 2125.
[7]	KARTHIKA S, RADHAKRISHNAN T K, KALAICHELVI P. A review of classical and nonclassical nucleation theories. Crystal Growth & Design, 2016, 16(11): 6663.
[8]	WANG Q, HU L, WANG X, et al. Expanding from materials to biology inspired by biomineralization. Interdisciplinary Materials, 2024, 3(2): 165.
[9]	ZOU Z, HABRAKEN W J E M, MATVEEVA G, et al. A hydrated crystalline calcium carbonate phase: calcium carbonate hemihydrate. Science, 2019, 363(6425): 396. DOI PMID
[10]	解晶晶, 邹朝勇, 傅正义. 无定形碳酸钙的稳定性和结晶转化过程研究进展. 中国材料进展, 2020(4): 261.
[11]	LU Z, RICKABY R E M, KENNEDY H, et al. An ikaite record of late holocene climate at the antarctic peninsula. Earth and Planetary Science Letters, 2012, 325: 108.
[12]	POLITI Y, ARAD T, KLEIN E, et al. Sea urchin spine calcite forms via a transient amorphous calcium carbonate phase. Science, 2004, 306(5699): 1161.
[13]	POLITI Y, METZLER R A, ABRECHT M, et al. Transformation mechanism of amorphous calcium carbonate into calcite in the sea urchin larval spicule. Proceedings of the National Academy of Sciences of the United States of America, 2008, 105(45): 17362. DOI PMID
[14]	AIZENBERG J, LAMBERT G, WEINER S, et al. Factors involved in the formation of amorphous and crystalline calcium carbonate: a study of an ascidian skeleton. Journal of the American Chemical Society, 2002, 124(1): 32. PMID
[15]	KHAIROUN I, MAGNE D, GAUTHIER O, et al. In vitro characterization and in vivo properties of a carbonated apatite bone cement. Journal of Biomedical Materials Research, 2002, 60(4): 633.
[16]	HABRAKEN W J E M, MASIC A, BERTINETTI L, et al. Layered growth of crayfish gastrolith: about the stability of amorphous calcium carbonate and role of additives. Journal of Structural Biology, 2014, 189(1): 28.
[17]	KRAUSS F, SCHRIEVER W. Die hydrate des calcium carbonats. Zeitschrift Für Anorganische Und Allgemeine Chemie, 2004, 188(1): 259.
[18]	DAHL K, BUCHARDT B. Monohydrocalcite in the arctic Ikka Fjord, SW Greenland: first reported marine occurrence. Journal of Sedimentary Research, 2006, 76(3): 460.
[19]	SWAINSON I P. The structure of monohydrocalcite and the phase composition of the beachrock deposits of Lake Butler and Lake Fellmongery, South Australia. American Mineralogist, 2008, 93(7): 1014.
[20]	YAMAMOTO G, ATSUSHI K, SATORU O. Structural variations of amorphous magnesium carbonate during nucleation, crystallization, and decomposition of nesquehonite MgCO₃·3H₂O. Physics and Chemistry of Minerals, 2022, 50(5): 305.
[21]	SON S, LI W Q, LEE J Y, et al. On the coordination of Mg²⁺ in aragonite: ab-initio absorption spectroscopy and isotope fractionation study. Geochimica et Cosmochimica Acta, 2020, 286: 324.
[22]	PURGSTALLER B, KONRAD F, DIETZEL M, et al. Control of Mg²⁺/Ca²⁺ activity ratio on the formation of crystalline carbonate minerals via an amorphous precursor. Crystal Growth & Design, 2017, 17(3): 1069.
[23]	MATSUMOTO M, FUKUNAGA T, ONOE K. Polymorph control of calcium carbonate by reactive crystallization using microbubble technique. Chemical Engineering Research and Design, 2010, 88(12): 1624.
[24]	TADIER S, ROKIDI S, REY C, et al. Crystal growth of aragonite in the presence of phosphate. Journal of Crystal Growth, 2017, 458: 44.
[25]	WILLINGER M G, POLLEUX J, ANTONIETTI M, et al. Structural evolution of aragonite superstructures obtained in the presence of the siderophore deferoxamine. CrystEngComm, 2015, 17(21): 3927.
[26]	ZHU F J, NISHIMURA T, SAKAMOTO T, et al. Tuning the stability of CaCO₃ crystals with magnesium ions for the formation of aragonite thin films on organic polymer templates. Chemistry-An Asian Journal, 2013, 8(12): 3002.
[27]	SUZUKI M, KOGURE T, WEINER S, et al. Formation of aragonite crystals in the crossed lamellar microstructure of limpet shells. Crystal Growth & Design, 2011, 11(11): 4850.
[28]	PARK W K, KO S J, LEE S W, et al. Effects of magnesium chloride and organic additives on the synthesis of aragonite precipitated calcium carbonate. Journal of Crystal Growth, 2008, 310(10): 2593.
[29]	HEYWOOD B R, MANN S. Molecular construction of oriented inorganic materials: controlled nucleation of calcite and aragonite under compressed langmuir monolayers. Chemistry of Materials, 1994, 6(3): 311.
[30]	LEVI-KALISMAN Y, RAZ S, WEINER S, et al. X-ray absorption spectroscopy studies on the structure of a biogenic “amorphous” calcium carbonate phase. Journal of the Chemical Society, Dalton Transactions, 2000(21): 3977.
[31]	LAM R S K, CHARNOCK J M, LENNIE A, et al. Synthesis-dependant structural variations in amorphous calcium carbonate. CrystEngComm, 2007, 9(12): 1226.
[32]	SUN W, JAYARAMAN S, CHEN W, et al. Nucleation of metastable aragonite CaCO₃ in seawater. Proceedings of the National Academy of Sciences of the United States of America, 2015, 112(11): 3199.
[33]	HUANG Z, ZHANG G. Biomimetic synthesis of aragonite nanorod aggregates with unusual morphologies using a novel template of natural fibrous proteins at ambient condition. Crystal Growth & Design, 2012, 12(4): 1816.
[34]	MUNEMOTO T, FUKUSHI K. Transformation kinetics of monohydrocalcite to aragonite in aqueous solutions. Journal of Mineralogical and Petrological Sciences, 2008, 103(5): 345.
[35]	NEUMANN M, EPPLE M. Monohydrocalcite and its relationship to hydrated amorphous calcium carbonate in biominerals. European Journal of Inorganic Chemistry, 2007, 2007(14): 1953.
[36]	CHEN T, NEVILLE A, YUAN M. Assessing the effect of Mg²⁺ on CaCO₃ scale formation-bulk precipitation and surface deposition. Journal of Crystal Growth, 2005, 275(1): e1341.
[37]	BOTS P, BENNING L G, RODRIGUEZ-BLANCO J D, et al. Mechanistic insights into the crystallization of amorphous calcium carbonate (ACC). Crystal Growth & Design, 2012, 12(7): 3806.
[38]	ANDERSEN F A, BREČEVIĆ L J C. Infrared spectra of amorphous and crystalline calcium carbonate. Acta Chemica Scandinavica, 1991, 45: 1018.
[39]	COLEYSHAW E E, CRUMP G, GRIFFITH W P. Vibrational spectra of the hydrated carbonate minerals ikaite, monohydrocalcite, lansfordite and nesquehonite. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2003, 59(10): 2231.
[40]	LOSTE E, WILSON R M, SESHADRI R, et al. The role of magnesium in stabilising amorphous calcium carbonate and controlling calcite morphologies. Journal of Crystal Growth, 2003, 254(1): 206.
[41]	JU Y M, HUANG F, DING X, et al. Phase transformation-induced Mg isotope fractionation in Mg-mediated CaCO₃ mineralization. Nano Research, 2023, 16(2): 3597.
[42]	POLITI Y, BATCHELOR D R, ZASLANSKY P, et al. Role of magnesium ion in the stabilization of biogenic amorphous calcium carbonate: a structure-function investigation. Chemistry of Materials, 2010, 22(1): 161.
[43]	RODRIGUEZ-BLANCO J D, SHAW S, BOTS P, et al. The role of pH and Mg on the stability and crystallization of amorphous calcium carbonate. Journal of Alloys and Compounds, 2012, 536: S477.
[44]	YAGI S, FUKUSHI K. Phosphate sorption on monohydrocalcite. Journal of Mineralogical and Petrological Sciences, 2011, 106(2): 109.
[45]	DI TOMMASO D, DE LEEUW N H. Structure and dynamics of the hydrated magnesium ion and of the solvated magnesium carbonates: insights from first principles simulations. Physical Chemistry Chemical Physics, 2010, 12(4): 894. DOI PMID
[46]	MOOMAW A S, MAGUIRE M E. The unique nature of Mg²⁺channels. Physiology, 2008, 23: 275.
[47]	ZOU Z, XIE J, MACÍAS-SÁNCHEZ E, et al. Nonclassical crystallization of amorphous calcium carbonate in the presence of phosphate ions. Crystal Growth Design, 2021, 21(1): 414.
[48]	ZOU Z, BERTINETTI L, POLITI Y, et al. Control of polymorph selection in amorphous calcium carbonate crystallization by poly (aspartic acid): two different mechanisms. Small, 2017, 13(21): 1603100.
[49]	HUANG W, WANG Q, CHI W, et al. Multiple crystallization pathways of amorphous calcium carbonate in the presence of poly (aspartic acid) with a chain length of 30. CrystEngComm, 2022, 24(26): 4809.
