半空心/实心ZnMn2O4微球: 合成及锂离子电池性能

doi:10.15541/jim20170169

摘要/Abstract

摘要：

采用模板、溶剂热法分别制备出半空心及实心ZnMn₂O₄微球。采用XRD、SEM、TEM等对制备的纳米材料的晶体结构和形貌等进行了表征。结果表明, 不同的溶剂配比对产物的形貌和结构有一定的影响。当乙二醇和水的体积比为3∶1时, 可以得到ZnMn₂O₄多孔实心微球。采用模板-溶剂热法及后续焙烧可得到ZnMn₂O₄半空心微球, 这种半空心结构包含双层的ZnMn₂O₄壳及一个小的碳核。比较研究了ZnMn₂O₄空心微球与多孔实心微球的电化学性能, 结果显示, 半空心结构的ZnMn₂O₄材料比实心的ZnMn₂O₄微球具有更高的初始放电容量、更好的倍率性能及循环性能。

关键词: ZnMn₂O₄, 空心微球, 多孔材料, 锂离子电池

Abstract:

Porous semi-hollow/solid ZnMn₂O₄ microspheres were controllably synthesized via template and solvothermal methods respectively. The as-synthesized samples were characterized by X-ray diffraction (XRD), scanning electron microscope (SEM) and transmission electron microscope (TEM). It is found that the solvent ratio exerts a crucial effect on the morphology and microstructure of solid ZnMn₂O₄ microspheres. The porous solid ZnMn₂O₄microspheres could be obtained when the volume ratio of ethylene glycol to deionized water was 3 : 1. The semi-hollow ZnMn₂O₄microspheres with a double-layer ZnMn₂O₄ shell and a small C core could be synthesized via a template-solvothermal method and post-calcination process. The electrochemical properties of as-prepared semi-hollow/solid ZnMn₂O₄microspheres as anode materials of lithium-ion batteries were investigated. Semi-hollow ZnMn₂O₄ microspheres exhibit higher initial discharge capacity, better rate capacity and cycling performance than solid ZnMn₂O₄ microspheres.

Key words: ZnMn₂O₄, hollow microsphere, porous materials, lithium-ion battery

中图分类号:

TQ174

李波, 郝文, 文晓刚. 半空心/实心ZnMn₂O₄微球: 合成及锂离子电池性能[J]. 无机材料学报, 2018, 33(3): 307-312.

LI Bo, HAO Wen, WEN Xiao-Gang. Semi-hollow/Solid ZnMn₂O₄ Microspheres: Synthesis and Performance in Li Ion Battery[J]. Journal of Inorganic Materials, 2018, 33(3): 307-312.

图/表 8

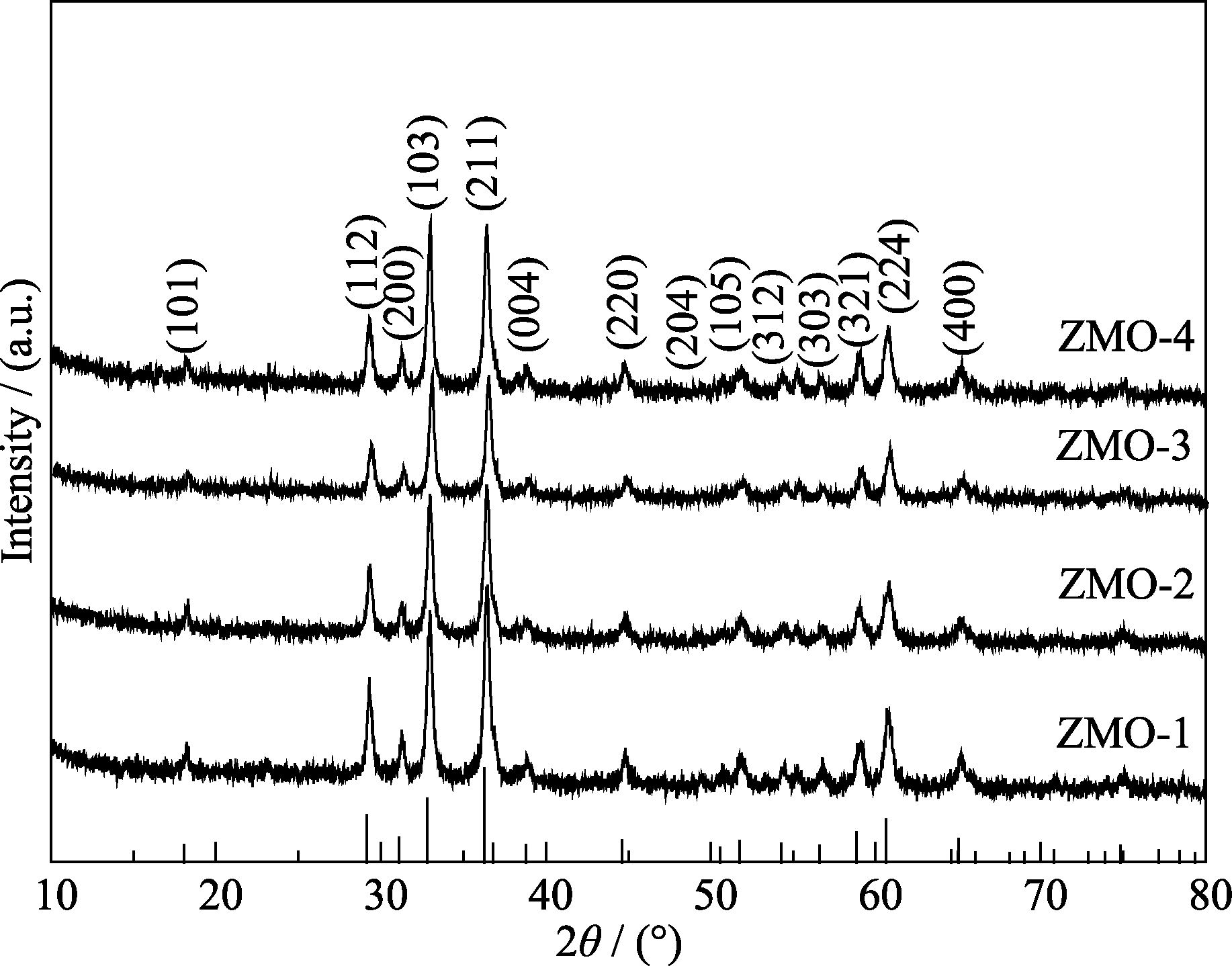

图1 不同样品的XRD图谱

Fig. 1 XRD patterns of different samples

图2 ZMO-1焙烧前(a)和焙烧后(b), ZMO-2焙烧前(c)和焙烧后(d)的SEM照片

Fig. 2 SEM images of uncalcined ZMO-1 (a), calcined ZMO-1 (b), uncalcined ZMO-2 (c), and calcined ZMO-2 (d)

图3 C微球(a)、未焙烧C/ZnMn2O4微球(b)、500℃焙烧C/ZnMn2O4微球(c)和600℃焙烧 C/ZnMn2O4微球(d)的SEM图片

Fig. 3 SEM images of carbon microspheres (a), uncalcined C/ZnMn2O4 core/shell microspheres (b), hollow ZnMn2O4 calcined at 500℃ (c) and 600℃ (d)

图4 600℃焙烧产物(ZMO-4)的TEM照片及元素分布图

Fig. 4 TEM images and element mappings of the samples calcined at 600℃(a) Bright-field TEM image of ZnMn2O4 hollow microsheres, (b) Dark-field TEM image of a single ZnMn2O4 hollow microshere, (c-f) elements mapping of (c) Mn, (d) Zn, (e) O and (f) C in a single ZnMn2O4 microsphere

图5 半空心结构ZnMn2O4微球的生长机理示意图

Fig. 5 Schematic diagram showing the growth process of semi-hollow ZnMn2O4 microspheres

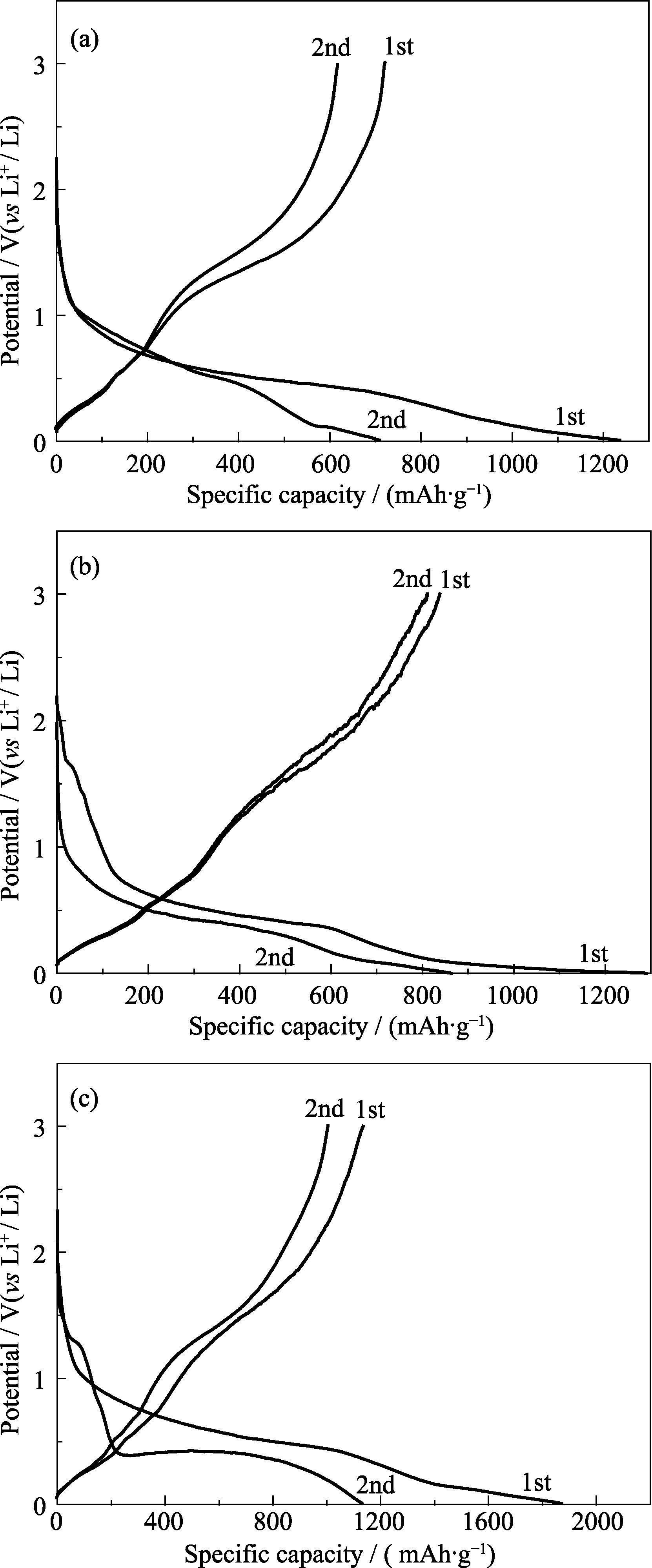

图6 ZMO-1(a)、ZMO-2(b)和 ZMO-4(c)的充放电曲线

Fig. 6 Discharge-charge curves of ZMO-1 (a), ZMO-2 (b) and ZMO-4 (c)

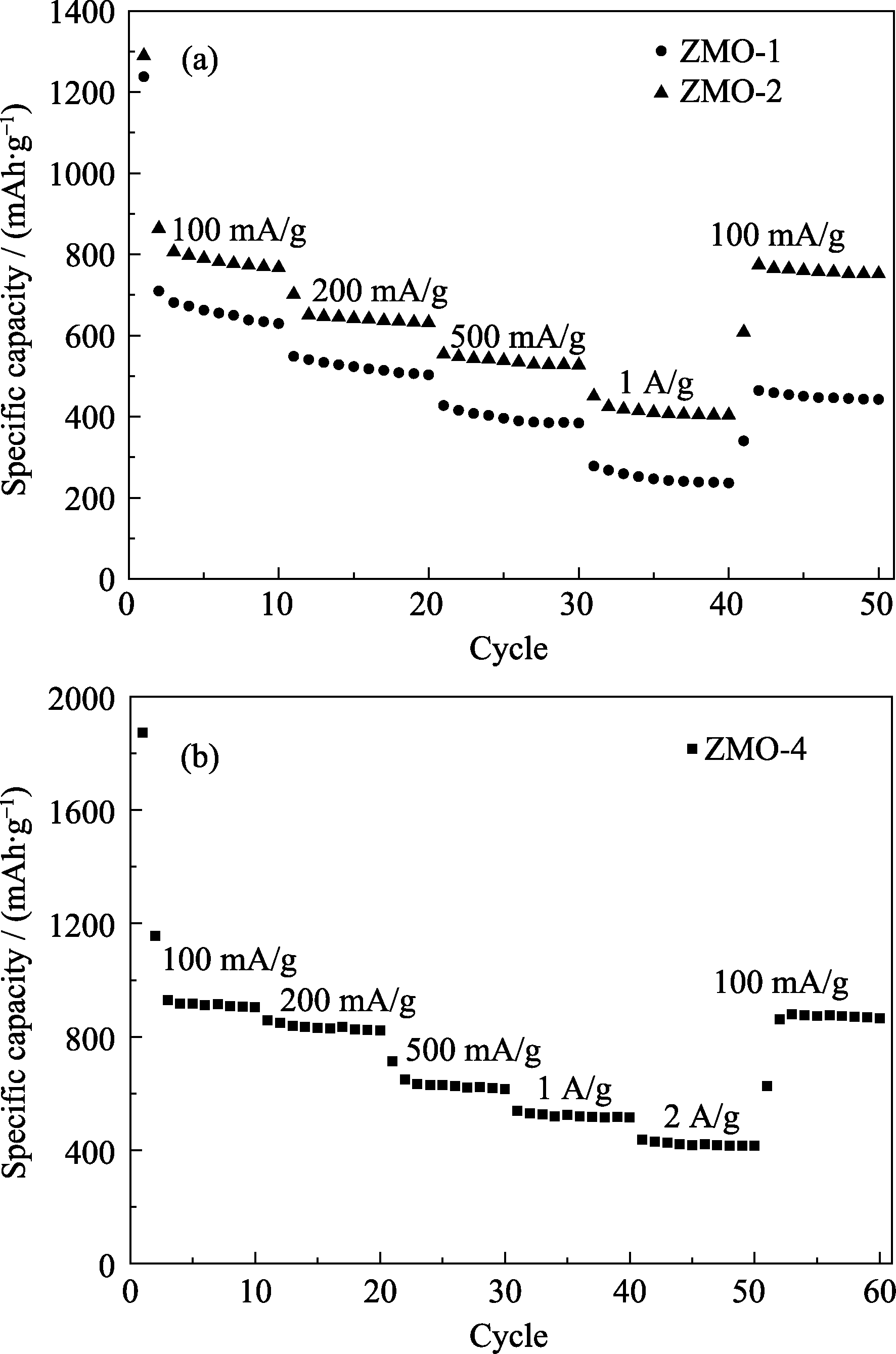

图7 ZMO-1、ZMO-2(a)和ZMO-4(b)的倍率性能

Fig. 7 Rate performance of ZMO-1, ZMO-2 (a) and ZMO-4 (b)

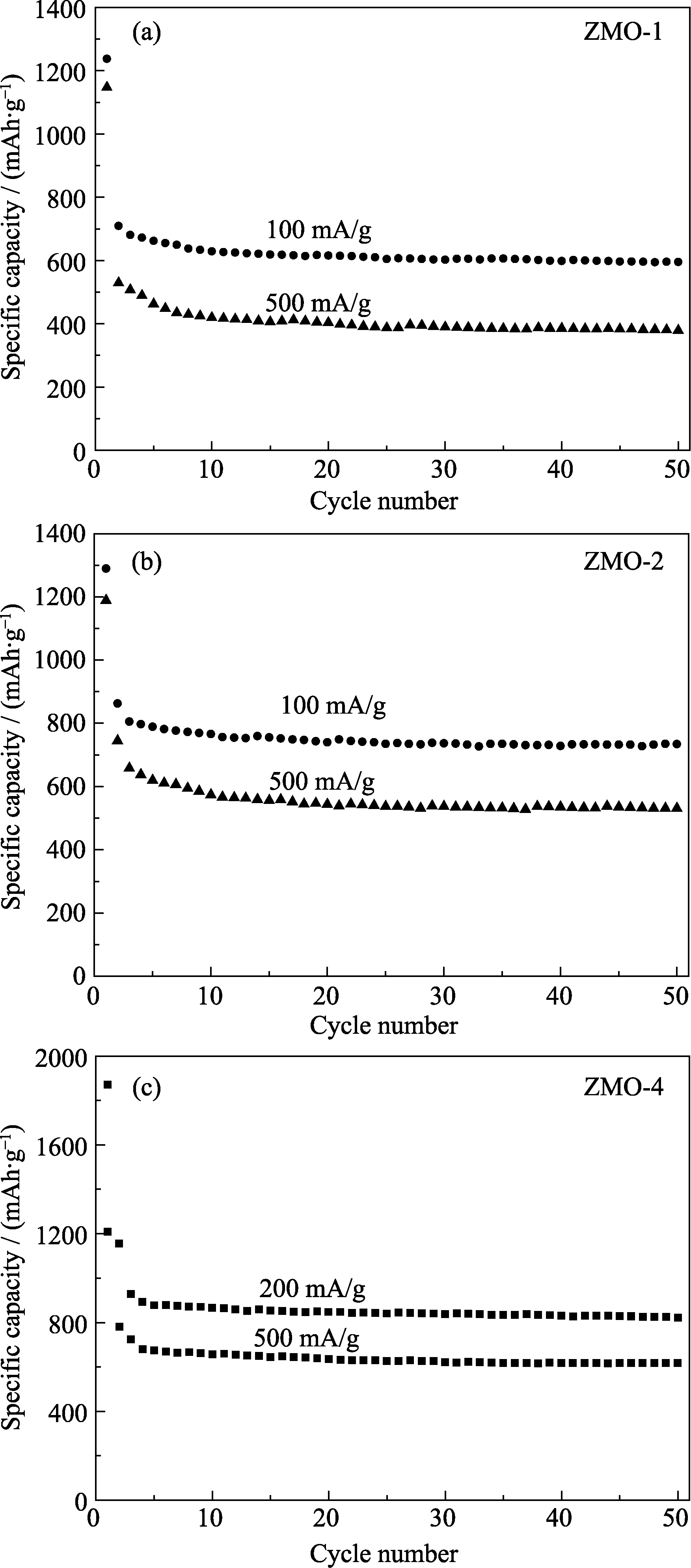

图8 ZMO-1(a)、ZMO-2(b)及ZMO-4(c)的循环性能

Fig. 8 Cycling performances of ZMO-1 (a), ZMO-2 (b) and ZMO-4 (c)

参考文献 20

[1]	BRUCE P G, SCROSATI B, TARASCON J M.Nanomaterials for rechargeable lithium batteries. Angewandte Chemie International Edition, 2008, 47(16): 2930-2946.
[2]	YUVARAJ S, SELVAN R K, LEE Y S.An overview of AB2O4-and A2BO4-structured negative electrodes for advanced Li-ion batteries. RSC Advances, 2016, 6(26): 21448-21474.
[3]	TARASCON J M, ARMAND M.Issues and challenges facing rechargeable lithium batteries. Nature, 2001, 414(6861): 359-367.
[4]	GUO B K, WANG X Q, FULVIO P F, et al.Soft-templated mesoporous carbon-carbon nanotube composites for high performance lithium-ion batteries. Advanced Materials, 2011, 23(40): 4661-4666.
[5]	LAI J, GUO H J, WANG Z X, et al.Preparation and characterization of flake graphite/silicon/carbon spherical composite as anode materials for lithium-ion batteries. Journal of Alloys and Compounds, 2012, 530: 30-35.
[6]	LI H, WANG Z X, CHEN L Q, et al.Research on advanced materials for Li-ion batteries. Advanced Materials, 2009, 21(45): 4593-4607.
[7]	WANG L, LIU B, RAN S H, et al.Facile synthesis and electrochemical properties of CoMn2O4 anodes for high capacity lithium- ion batteries. Journal of Materials Chemistry A, 2013, 1(6): 2139-2143.
[8]	HU L F, WU L M, LIAO M Y, et al.Electrical transport properties of large, individual NiCo2O4 nanoplates. Advanced Functional Materials, 2012, 22(5): 998-1004.
[9]	ZHANG G Q, YU L, WU H B, et al.Formation of ZnMn2O4 ball-in-ball hollow microspheres as a high-performance anode for lithium-ion batteries. Advanced Materials, 2012, 24(34): 4609-4613.
[10]	BAI Z C, FAN N, CHANG C H, et al.Facile synthesis of loaf-like ZnMn2O4 nanorods and their excellent performance in Li-ion batteries. Nanoscale, 2013, 5(6): 2442-2447.
[11]	DENG Y F, TANG S D, ZHANG Q M, et al.Controllable synthesis of spinel nano-ZnMn2O4 via a single source precursor route and its high capacity retention as anode material for lithium ion batteries. Journal of Materials Chemistry, 2011, 21(32): 11987-11995.
[12]	ZHENG Z M, CHENG Y L, YAN X B, et al.Enhanced electrochemical properties of graphene-wrapped ZnMn2O4 nanorods for lithium-ion batteries. Journal of Materials Chemistry A, 2014, 2(1): 149-154.
[13]	ZHANG L H, ZHU S Q, CAO H, et al.Ultrafast spray pyrolysis fabrication of a nanophase ZnMn2O4 anode towards high- performance Li-ion batteries. RSC Advances, 2015, 5(18): 13667-13673.
[14]	ZHANG L H, ZHU S Q, CAO H, et al.Hierarchical porous ZnMn2O4 hollow nanotubes with enhanced lithium storage toward lithium-ion batteries. Chemistry-A European Journal, 2015, 21(30): 10771-10777.
[15]	ZHANG Y H, ZHANG Y W, GUO C L, et al.Porous ZnMn2O4 nanowires as an advanced anode material for lithium ion battery. Electrochimica Acta, 2015, 182: 1140-1144.
[16]	LOBO L S, KUMAR A R.Investigation of structural and electrical properties of ZnMn2O4 synthesized by Sol-Gel method. Journal of Materials Science: Materials in Electronics, 2016, 27(7): 7398-7406.
[17]	ZENG X Y, SHI L X, LI L J, et al.The preparation of flowerlike ZnMn2O4 microspheres assembled with porous nanosheets and their lithium battery performance as anode materials. RSC Advances, 2015, 5(86): 70379-70386.
[18]	ZHU S Q, SHI Y Y, CHEN Q L, et al.Self-sacrificial template formation of ultrathin single-crystalline ZnMn2O4 nanoplates with enhanced Li-storage behaviors for Li-ion batteries. RSC Advances, 2016, 6(3): 2024-2027.
[19]	GUO N, WEI X Q, DENG X L, et al.Synthesis and property of spinel porous ZnMn2O4 microspheres. Applied Surface Science, 2015, 356: 1127-1134.
[20]	LUO L, QIAO H, CHEN K, et al.Fabrication of electrospun ZnMn2O4 nanofibers as anode material for lithium-ion batteries. Electrochimica Acta, 2015, 177: 283-289.
