无机材料学报 ›› 2019, Vol. 34 ›› Issue (6): 573-589.DOI: 10.15541/jim20180403

• 综述 •    下一篇

可见光波段稀土激光晶体的研究进展

李纳1,刘斌1,施佼佼1,薛艳艳1,赵衡煜1,施张丽1,侯文涛1,徐晓东2(),徐军1()

  1. 1. 同济大学 先进微结构材料教育部重点实验室, 上海 200092
    2. 江苏师范大学 物理与电子工程学院, 徐州 221116
  • 收稿日期:2018-09-03 修回日期:2018-10-10 出版日期:2019-06-20 发布日期:2019-05-23
  • 作者简介:李 纳(1992-), 女, 博士. E-mail: 1710069@tongji.edu.cn
  • 基金资助:
    国家自然科学基金(61621001);国家自然科学基金(51672190);国家重点研发计划项目(2016YFB0701002);国家重点研发计划项目(2016YFB0402101)

Research Progress of Rare-earth Doped Laser Crystals in Visible Region

Na LI1,Bin LIU1,Jiao-Jiao SHI1,Yan-Yan XUE1,Heng-Yu ZHAO1,Zhang-Li SHI1,Wen-Tao HOU1,Xiao-Dong XU2(),Jun Xu1()

  1. 1. Key Laboratory of Advanced Microstructure Materials Ministry of Education, Tongji University, Shanghai 200092, China
    2. School of Physics and Electronic Engineering, Jiangsu Normal University, Xuzhou 221116, China
  • Received:2018-09-03 Revised:2018-10-10 Online:2019-06-20 Published:2019-05-23
  • Supported by:
    National Natural Science Foundation of China(61621001);National Natural Science Foundation of China(51672190);National Key Research and Development Program of China(2016YFB0701002);National Key Research and Development Program of China(2016YFB0402101)

摘要:

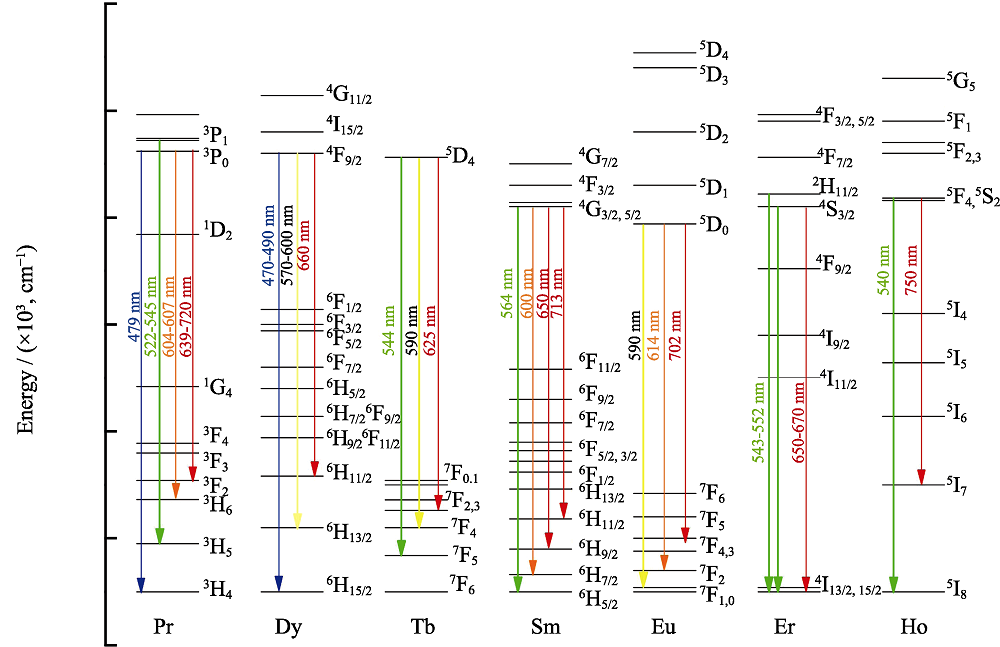

可见光激光在数据存储、光通讯、激光显示、激光医疗、激光打印以及科学研究等领域具有非常重要的应用价值。随着蓝光LD泵浦源的商用化, 直接泵浦稀土离子掺杂激光晶体实现可见光激光输出吸引了人们极大的研究兴趣。目前, 可见光稀土离子主要集中在Pr 3+、Dy 3+、Tb 3+和Sm 3+等。其中, Pr 3+的研究较多, 发光波长涵盖面较广, 发射波段覆盖蓝光、绿光、红光、橙光; Dy 3+和Tb 3+因为能够发射黄光以填补Pr 3+的不足也吸引了广泛的研究; 此外, Sm 3+和Eu 3+也是典型的可见波段稀土发光离子。本文综述了近几年可见波段稀土离子掺杂激光晶体的研究现状, 主要以Pr 3+、Dy 3+、Tb 3+和Sm 3+掺杂YAlO3 (YAP)、Mg : SrAl12O19 (SRA)等晶体为研究对象, 总结了一套适合Pr 3+掺杂材料的判据, 对晶体生长、结构、热学性能、偏振光谱性能和激光性能进行了系统的研究。

关键词: 激光晶体, 可见光, 铝酸钇, 铝酸锶, 综述

Abstract:

Visible laser has been widely used in data storage, optical communication, laser display, laser medical treatment, laser printing, and scientific research. With the development of commercial blue light LD, the direct pumping of rare-earth ions doped laser crystals have attracted a lot of interests. Currently, visible ions mainly concentrat on Pr 3+, Dy 3+, Tb 3+, and Sm 3+. Trivalent praseodymium (Pr 3+) is a famous rare-earth ion with extensive laser transitions in visible region such as blue, green, red and orange light. However, there is still a region in yellow emission which is not covered by Pr 3+. Dy 3+ and Tb 3+ have attracted much attention because of their yellow laser transitions. In addition, Sm 3+ and Eu 3+ are also typical visible rare-earth ions. In this paper, we mainly reviewed properties of rare-earth ions doped laser crystals for visible lasers, especially Pr 3+, Dy 3+, Tb 3+ and Sm 3+-doped YAlO3 (YAP), SrAl12O19 (SRA) crystals. A design criterion for Pr 3+ doped oxide materials was summarized. The crystal growth, structure, thermal properties, polarization spectroscopic and laser characteristics were analyzed in detail.

Key words: laser crystal, visible laser, YAlO3 (YAP), SrAl12O19 (SRA), review
