Additively Manufactured Ceramic Lattice-based Interpenetrating Phase Composites: Progress and Challenges

doi:10.15541/jim20250436

Abstract

Abstract:

Interpenetrating phase composites (IPCs), which achieve a continuous interpenetration of porous ceramic skeletons and polymer or metal phases in 3D space, have opened up a new way to overcome the brittleness of ceramics and given new possibilities for the development of next-generation impact-resistant and damage-tolerant advanced ceramics. Additive manufacturing (AM) provides support for the controllable preparation of IPCs. Hence, this paper systematically reviews the progress of additively manufactured ceramic lattice-based IPCs. Firstly, AM processes such as vat photopolymerization, powder bed fusion, material extrusion, and binder jetting are introduced, with their respective technical characteristics and scope of application. Next, ceramic lattice structures, such as honeycomb, truss, plate lattice, and shell structures, are discussed as well as their unique advantages in mechanical properties. Then, core composite processes including infiltration and electrodeposition of two key IPC systems, polymer/ceramic and metal/ceramic IPCs, are provided, and the effects of key parameters such as structural configuration, volume fraction, and gradient design on their mechanical properties are summarized. Finally, based on the current research status, the challenges and opportunities in terms of composite processes, multi-scale structural design, and multifunctional integration are further analyzed and forecasted.

Key words: ceramic lattice structure, interpenetrating phase composite, additive manufacturing, mechanical property, review

CLC Number:

TQ174

YU Feiyu, WANG Wenqing, ZHANG Xueqin, HE Rujie. Additively Manufactured Ceramic Lattice-based Interpenetrating Phase Composites: Progress and Challenges[J]. Journal of Inorganic Materials, 2026, 41(7): 849-866.

Figures/Tables 21

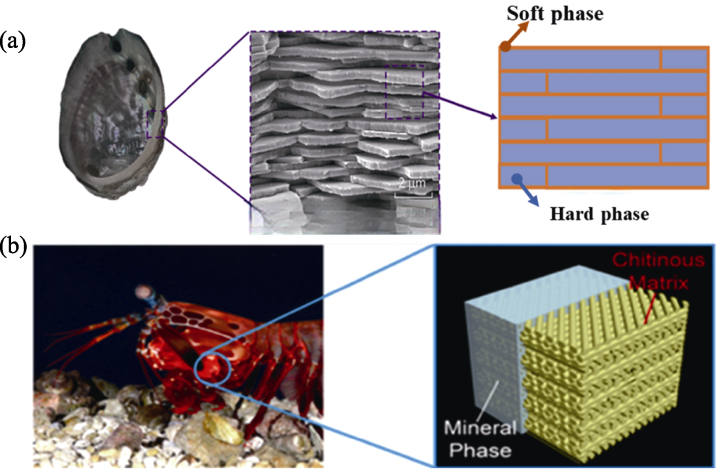

Fig. 1 Interpenetrating phase structures in biomaterials[1-2] (a) Brick and mortar in shell[1]; (b) Bouligand structure in mantis shrimp’s dactyl club[2]

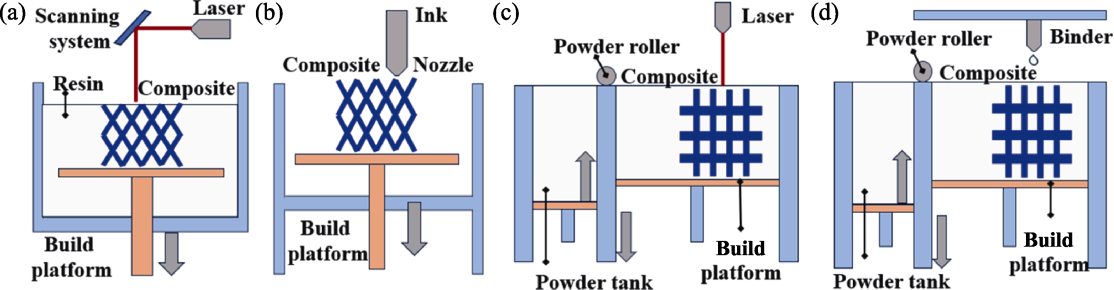

Fig. 2 Commonly used AM technologies for ceramics (a) VPP; (b) PBF; (c) ME; (d) BJ

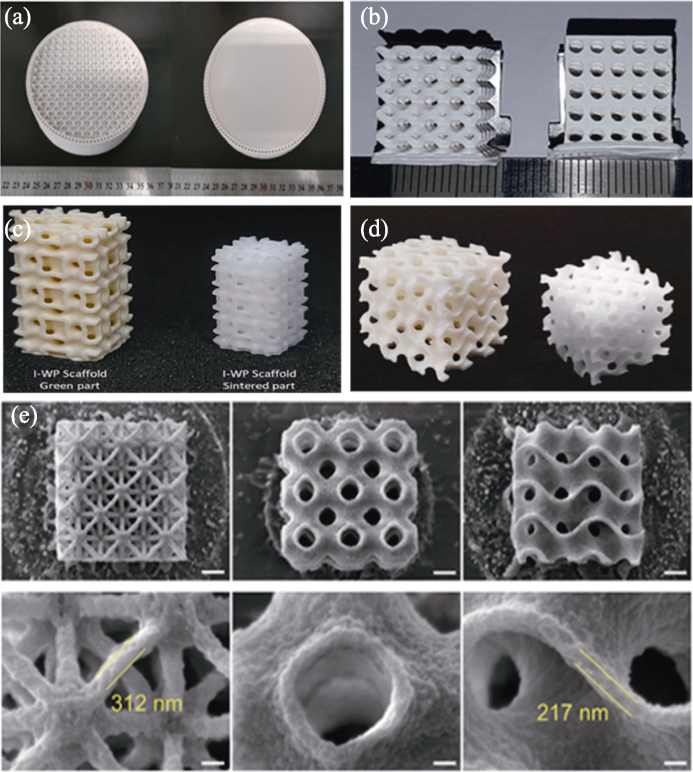

Fig. 3 Ceramics printed by VPP[7-11] (a) Al2O3 by SLA[7]; (b) Hydroxyapatite (HA) by SLA[8]; (c) Calcium phosphate (CP) by DLP[9]; (d) Tricalcium phosphate (TCP) by DLP[10]; (e) SiOC by TPP[11]

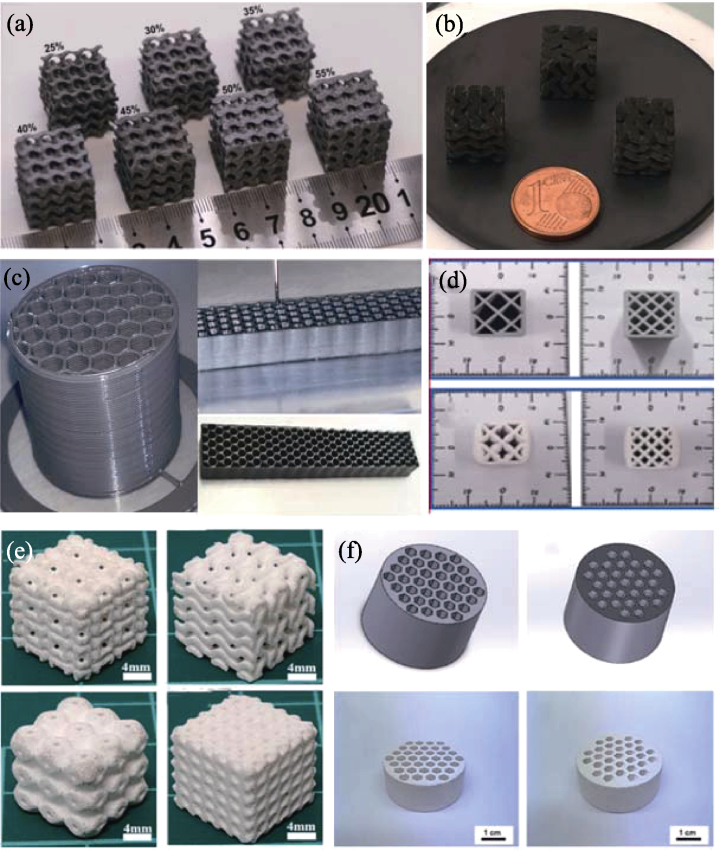

Fig. 4 Ceramics printed by PBF, SLS, ME and BJ[12-17] (a) Si/SiC by PBF[12]; (b) SiC by SLS[13]; (c) ZrB2 by ME[14]; (d) Al2O3 by ME[15]; (e) Al2O3 by BJ[16]; (f) Al2O3 by BJ[17]

Table 1 Summary of AM techniques

AM technique	Layer thickness/μm	Advantage	Disadvantage	Application
VPP	10-25	Extremely high sample quality	Low efficiency	Complex precision parts
PBF	20-60	High sample quality	Prone to defects	High-density parts
ME	100-200	High efficient and low cost	Prone to porosity	Lightweight structural ceramics
BJ	50-100	High efficiency and wide applicability	Poor sample quality	Large size parts

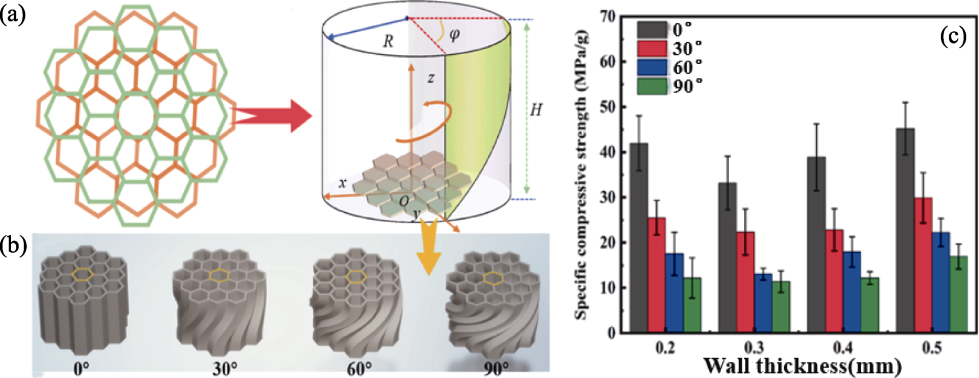

Fig. 5 Mechanical properties of Al2O3 honeycombs[20] (a) Section of the honeycomb; (b) Schematic illustration of the twist angle; (c) Effect of torsion angle on specific compressive strength of honeycomb structures with different wall thicknesses

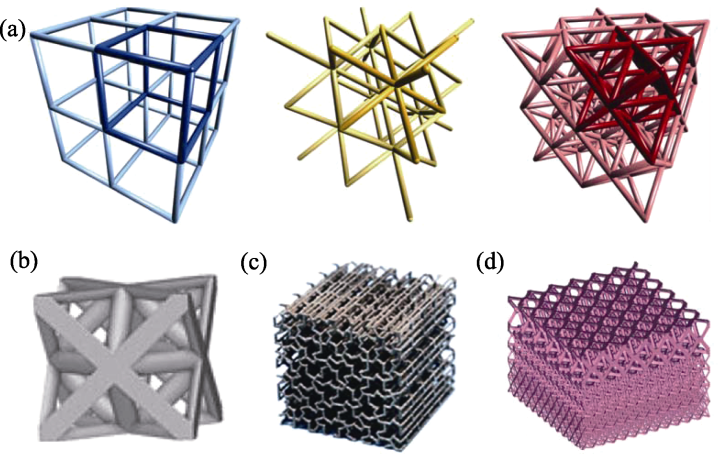

Fig. 6 Common truss structures[7,21 -23] (a) SC, BCC and FCC[21]; (b) OCT[22]; (c) Porous irregular truss[23]; (d) Graded truss[7]

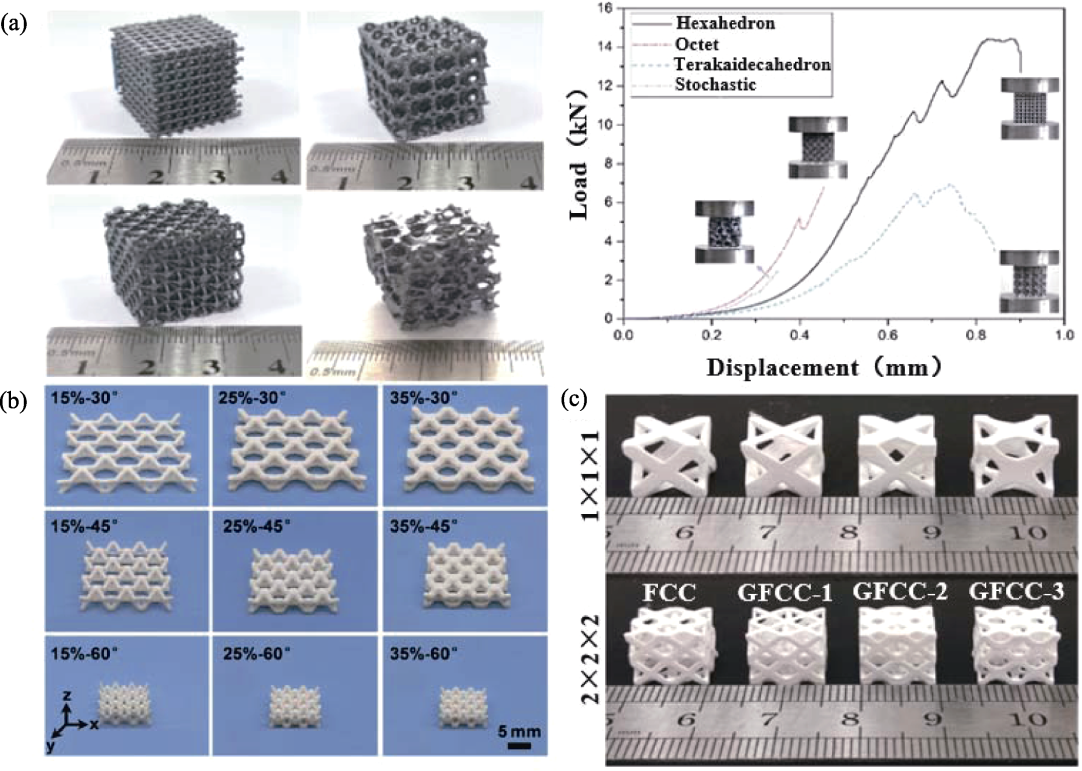

Fig. 7 Structure parameters of truss[24-26] (a) Lattices with different structural configurations (left) and their load-displacement curves (right)[24]; (b) Lattices with different volume fractions and tilt angles[25]; (c) Gradient lattices with different numbers of cells[26]

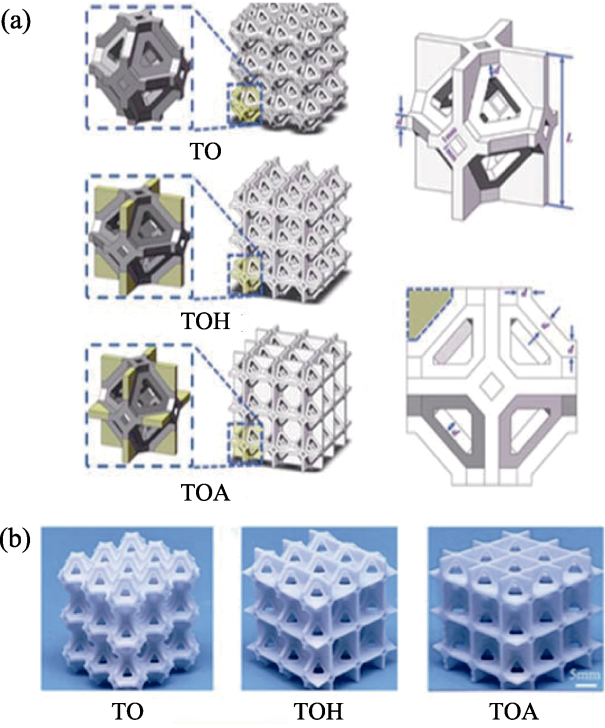

Fig. 8 Truncated octahedral plate lattice[28] (a) Schematic diagrams of plate lattice design and unit cell size; (b) Ceramic samples

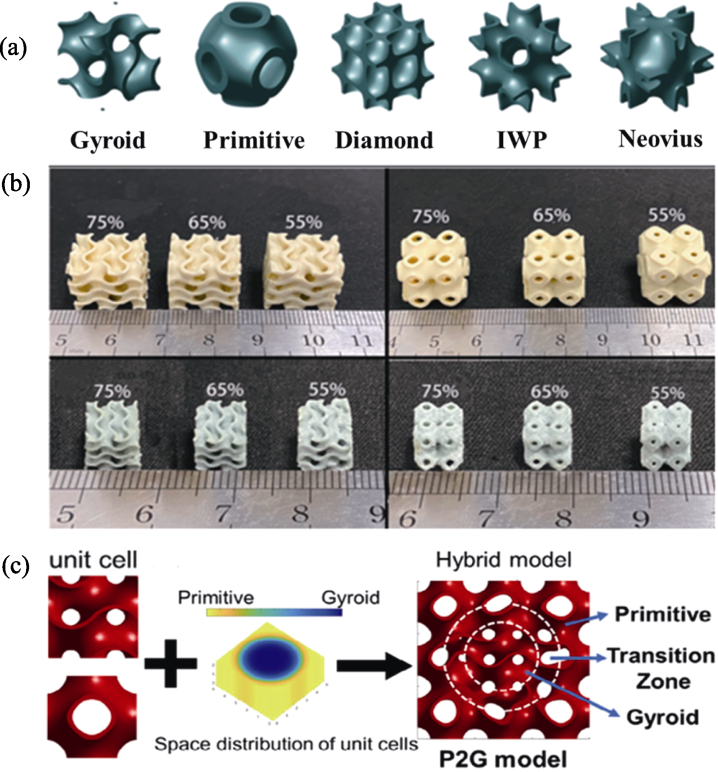

Fig. 9 Structural parameters and design strategies of TPMS[29-30,32] (a) Common configurations of TPMS[29]; (b) TPMS with different structural configurations and volume fractions[30]; (c) Design strategies for hybrid TPMS[32]

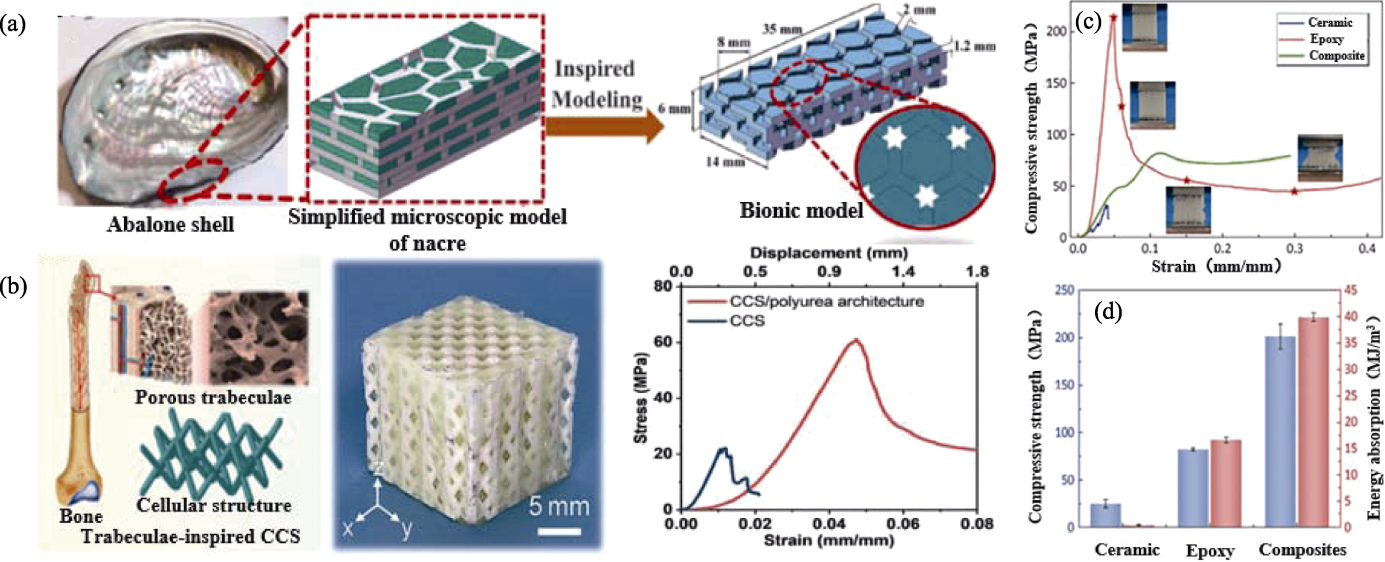

Fig. 10 Mechanical properties of polymer/ceramic IPCs[44-46] (a) Nacre-inspired ceramic scaffold[44]; (b) IPC inspired by trabecular bone and its mechanical properties[45]; (c) Stress-strain curves of single-phase components and IPC[46]; (d) Comparison of compressive strength and energy absorption of single-phase compositions and IPC[46]

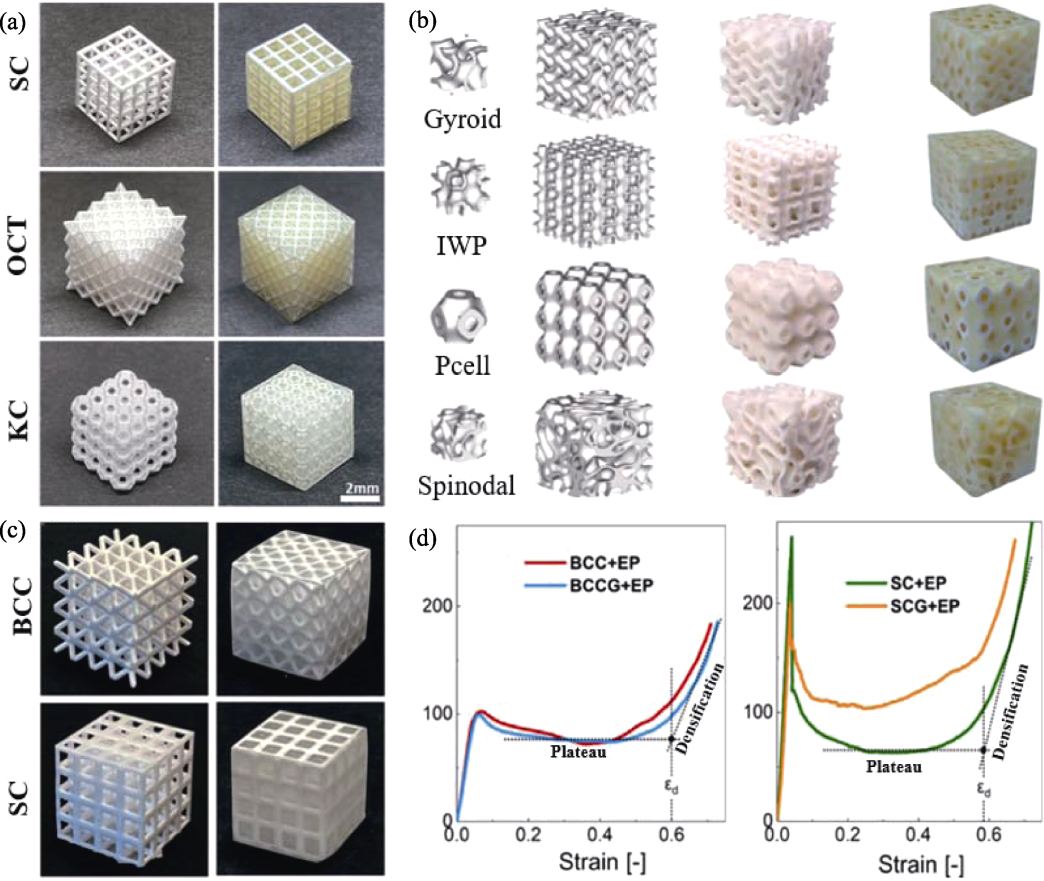

Fig. 11 Structural configuration and mechanical properties of polymer/ceramic IPCs[43,47 -48] (a) Trusses and IPCs with different spatial configurations[47]; (b) IPCs of periodic/random shell structures[43]; (c) IPCs of the same truss type[48]; (d) Stress-strain curves of IPCs of the same truss type[48]

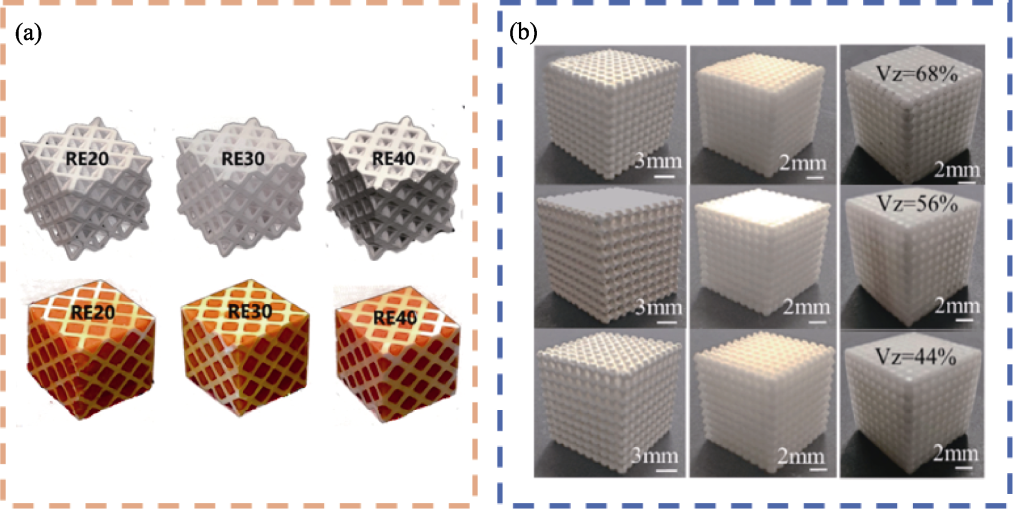

Fig. 12 Polymer/ceramic IPCs with different volume fractions[49-50] (a) 20%-40% (in volume) phenol-formaldehyde (PF)/Al2O3 IPCs[49]; (b) 44%-68% (in volume) epoxy resin/ZrO2 IPCs[50]

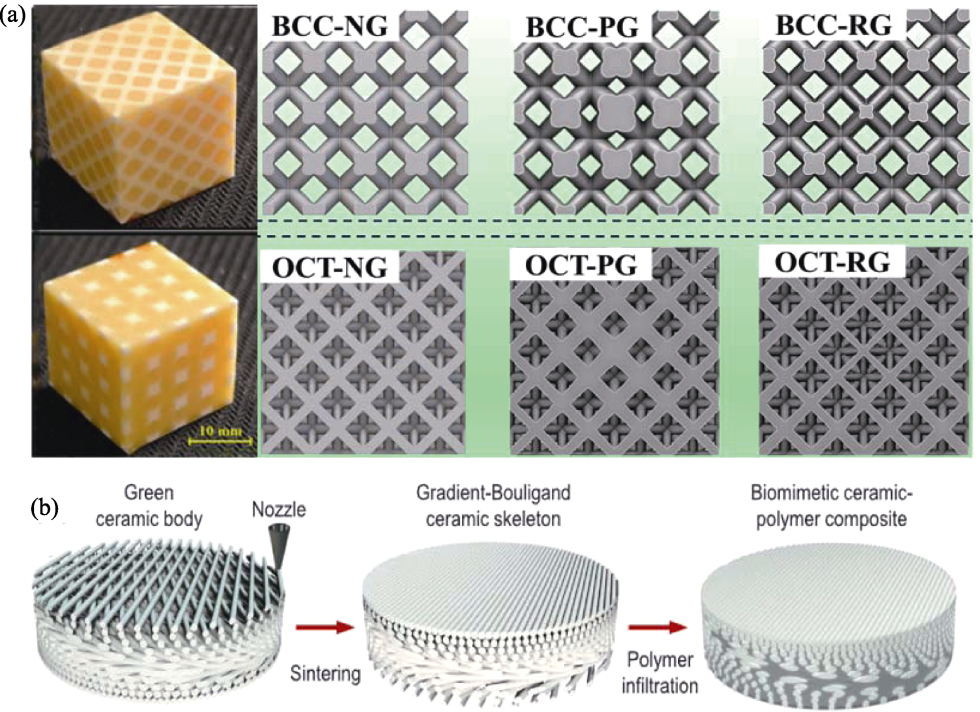

Fig. 13 Gradient designed polymer/ceramic IPCs[54-55] (a) Macro-morphologies of IPCs and cross section of gradient structure[54]; (b) IPCs of biomimetic gradient Bouligand structures[55]

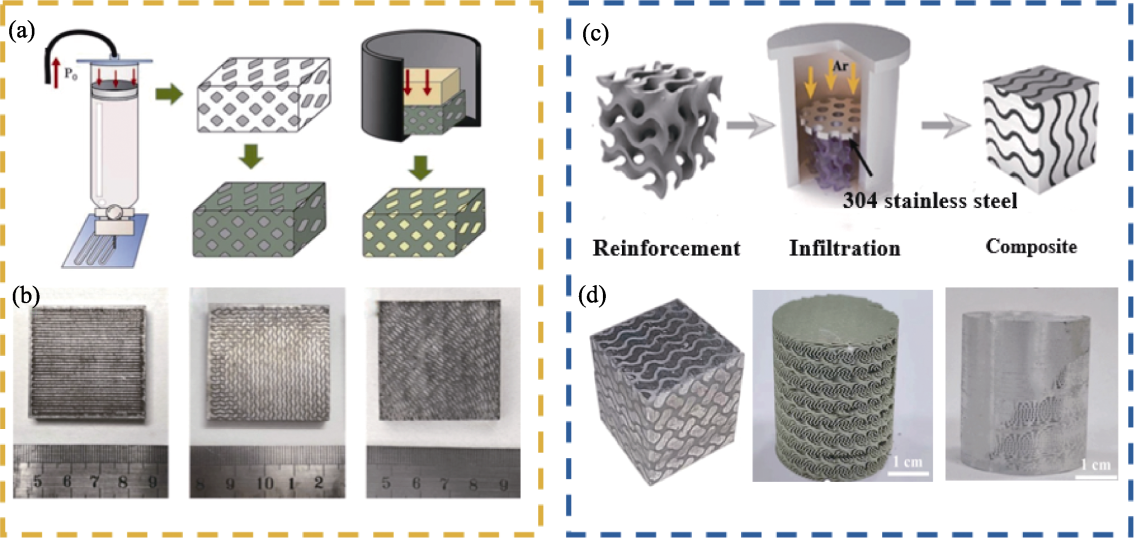

Fig. 14 Pressureless/pressure assisted infiltration[56,58 -60] (a) Pressureless infiltration[56]; (b) Metal/ceramic IPCs by pressureless infiltration[56]; (c) Pressure assisted infiltration[58]; (d) Metal/ceramic IPCs by pressure assisted infiltration[59-60]

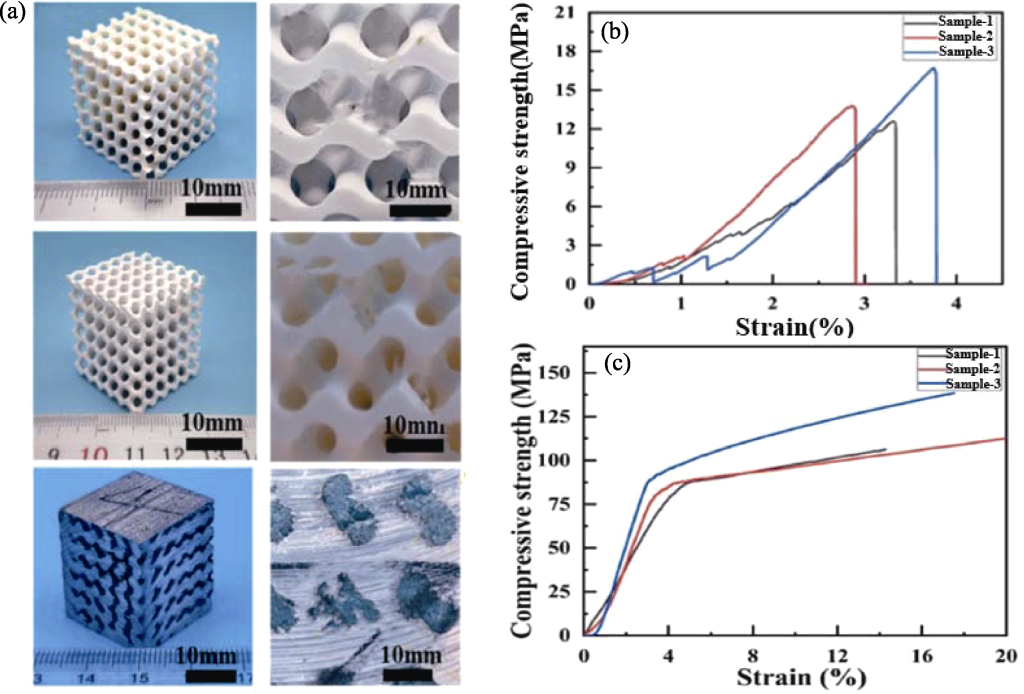

Fig. 15 Mechanical properties of metal/ceramic IPCs[64] (a) Macroscopic morphologies of ceramic lattices and metal/ceramic IPCs; (b) Stress-strain curves of ceramic lattices; (c) Stress-strain curves of metal/ceramic IPCs

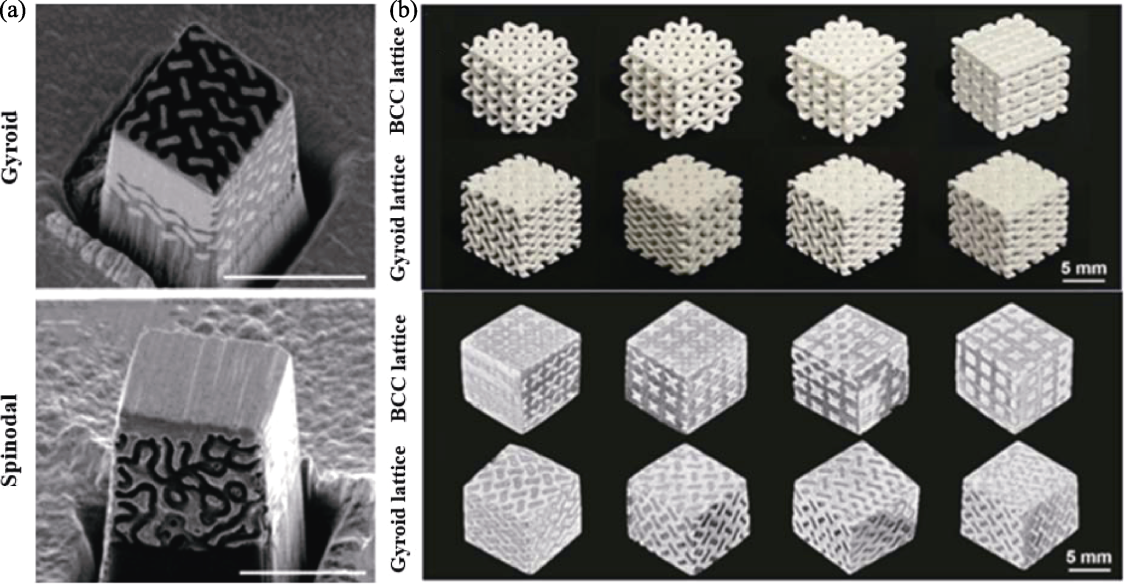

Fig. 16 Metal/ceramic IPCs with different structural configurations[66-67] (a) Metal/ceramic IPCs with gyroid and spinodal structures[66]; (b) Metal/ceramic IPCs with BCC and gyroid structures[67]

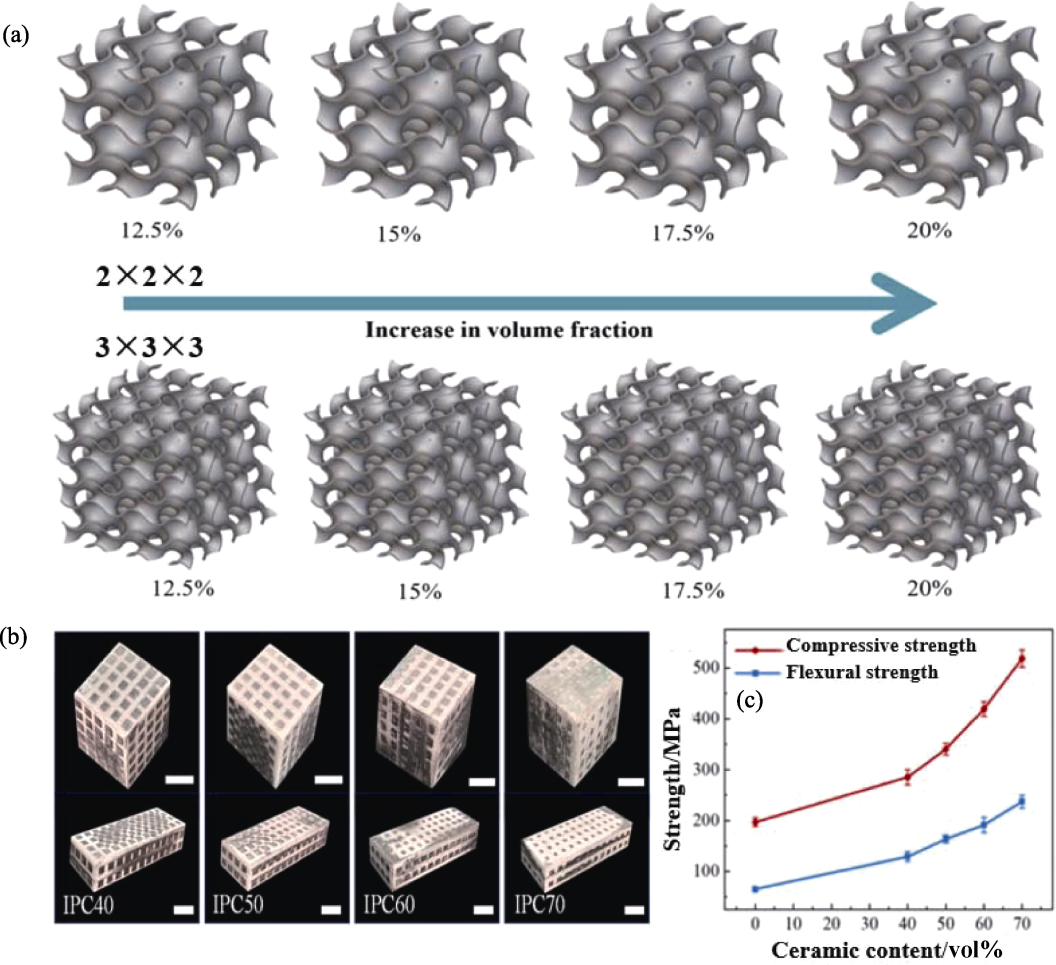

Fig. 17 Metal/ceramic IPCs with different volume fractions[68,70] (a) Design of gyroid scaffold with different volume fractions[68]; (b) Macroscopic morphologies of Al/Al2O3 IPCs[70]; (c) Compressive strength and flexural strength of Al/Al2O3 IPCs under different volume fractions[70]

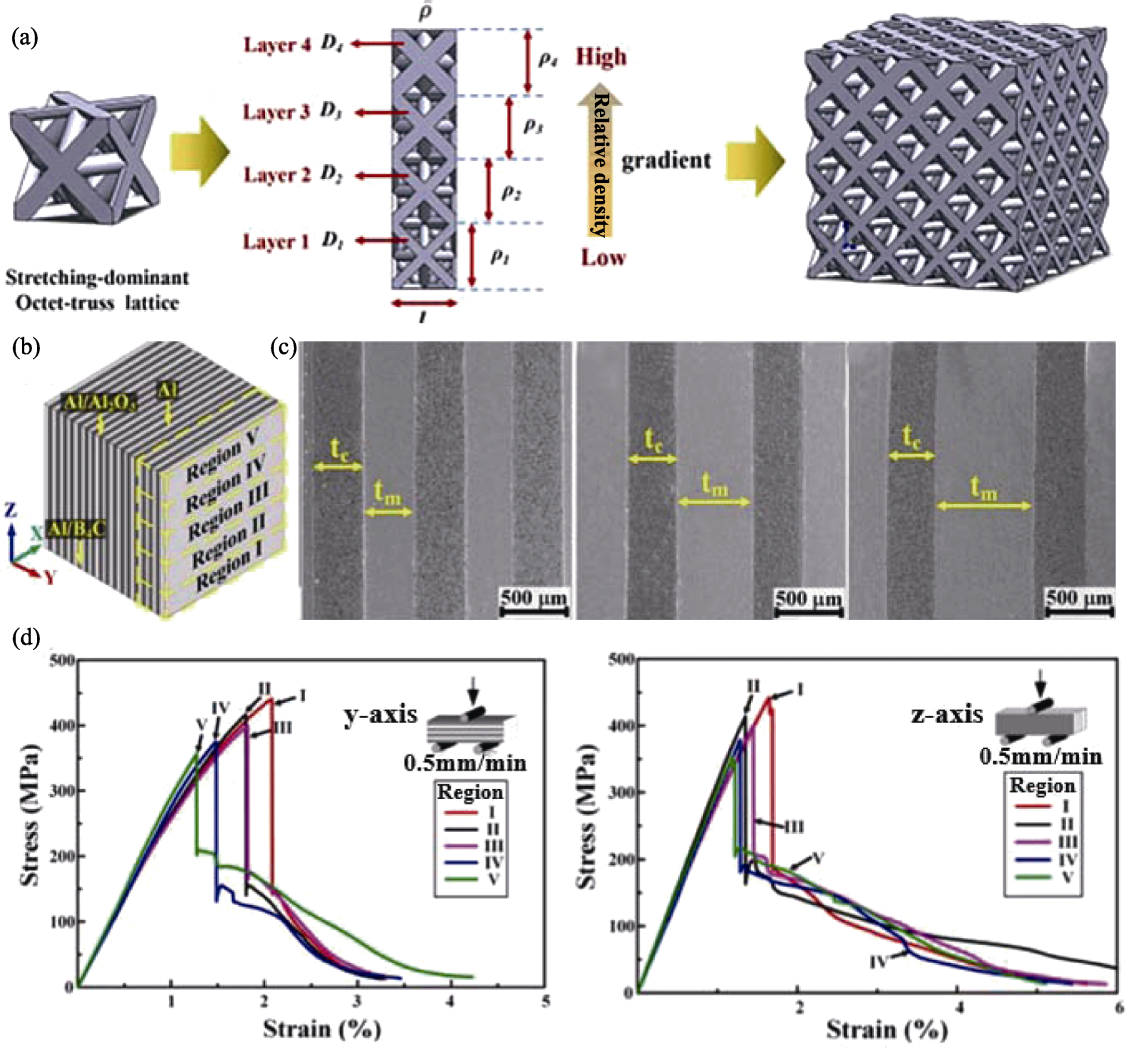

Fig. 18 Gradient designed metal/ceramic IPCs[71-72] (a) Gradient volume fraction[71]; (b) Schematic image of Al/Al2O3-B4C green bodies with compositional gradients[72]; (c) Gradient pitch ceramic scaffold[72]; (d) Three-point bending stress-strain curves along the y and z axis directions respectively[72]

Table 2 Comparison of mechanical properties of polymer/ceramic and metal/ceramic IPCs

Type	Composition	Compressive strength/ MPa	Specific energy absorption/ (J·g^-1)	Ref.
Polymer/ ceramic IPCs	Polyurea/Al₂O₃	14.79	2.97	[39]
	Epoxy resin/Al₂O₃	135.00	18.00	[43]
	Polyurea/Al₂O₃	61.03	6.85	[45]
	Resin/Al₂O₃	40.01	17.30	[46]
	Epoxy resin/Al₂O₃	453.30	12.00	[47]
	Phenolic/Al₂O₃	101.09	2.70	[49]
	Phenolic/Al₂O₃	114.86	2.73	[54]
Metal/ ceramic IPCs	Al/ZTA	517.40	13.00	[56]
	Al-Si/ZrO₂	343.00	1.66	[59]
	Al/Al₂O₃	89.01	0.96	[64]
	Al/Al₂O₃	240.00	0.71	[67]
	Al/Al₂O₃	176.10	1.61	[71]

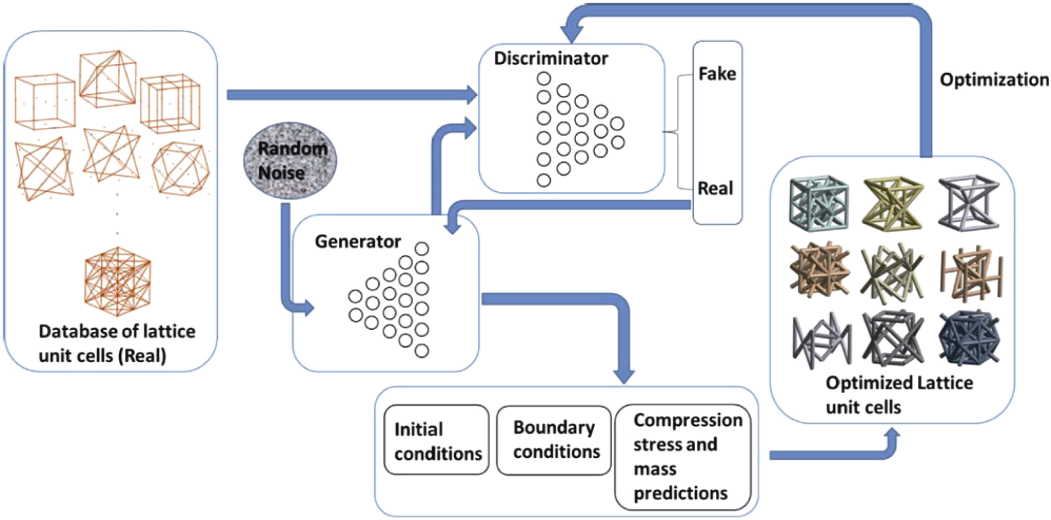

Fig. 19 Algorithm-assisted lattice optimization design process[77]

References 78

[1]	LIU Z Q, JIAO D, MEYERS M A, et al. Structure and mechanical properties of naturally occurring lightweight foam-filled cylinder-the peacock’s tail coverts shaft and its components. Acta Biomaterialia, 2015, 17: 137. DOI URL
[2]	LIU X, ZHANG F, ZOU J, et al. Biomimetic multi-layered protective materials with prestress and a periodic laminated structure. Journal of Materiomics, 2026, 12(1): 101095. DOI URL
[3]	YANG T, CHEN H S, JIA Z A, et al. A damage-tolerant, dual-scale, single-crystalline microlattice in the knobby starfish, Protoreaster nodosus. Science, 2022, 375(6581): 647.
[4]	YANG T, JIA Z A, WU Z L, et al. High strength and damage- tolerance in echinoderm stereom as a natural bicontinuous ceramic cellular solid. Nature Communications, 2022, 13: 6083. DOI
[5]	GAO Y C, QIN B, WEN S M, et al. Ambient pressure drying of freeze-cast ceramics from aqueous suspension. Nano Letters, 2023, 23(19): 9011. DOI URL
[6]	ZHAI X F, CHEN J Y, WANG Y R, et al. Fabrication of Al₂O₃ ceramic cores with high porosity and high strength by vat photopolymerization 3D printing and sacrificial templating. Ceramics International, 2023, 49(19): 32096. DOI URL
[7]	ZHANG G X, ZOU B, WANG X F, et al. The 3D-printed building and performance of Al₂O₃ ceramic filters with gradient hole density structures. Ceramics International, 2023, 49(19): 31496. DOI URL
[8]	KANG J H, SAKTHIABIRAMI K, JANG K J, et al. Mechanical and biological evaluation of lattice structured hydroxyapatite scaffolds produced via stereolithography additive manufacturing. Materials & Design, 2022, 214: 110372.
[9]	BUTLER N, ZHAO Y, LU S, et al. Effects of light exposure intensity and time on printing quality and compressive strength of β-TCP scaffolds fabricated with digital light processing. Journal of the European Ceramic Society, 2024, 44(4): 2581. DOI URL
[10]	WANG Y, CHEN S S, LIANG H W, et al. Digital light processing (DLP) of nano biphasic calcium phosphate bioceramic for making bone tissue engineering scaffolds. Ceramics International, 2022, 48(19): 27681. DOI URL
[11]	BAUER J, CROOK C, IZARD A G, et al. Additive manufacturing of ductile, ultrastrong polymer-derived nanoceramics. Matter, 2019, 1(6): 1547. DOI URL
[12]	WU S Q, YANG L, WANG C S, et al. Si/SiC ceramic lattices with a triply periodic minimal surface structure prepared by laser powder bed fusion. Additive Manufacturing, 2022, 56: 102910. DOI URL
[13]	ABDELMOULA M, KÜÇÜKTÜRK G, GROSSIN D, et al. Direct selective laser sintering of silicon carbide: realizing the full potential through process parameter optimization. Ceramics International, 2023, 49(20): 32426. DOI URL
[14]	KIM S Y, SESSO M L, FRANKS G V. Effect of internal lattice structure on the flexural strength of 3D printed hierarchical porous ultra-high temperature ceramic (ZrB₂). Journal of the European Ceramic Society, 2023, 43(5): 1762. DOI URL
[15]	ZHAO Q X, CHEN R, WANG S S, et al. Utilization of fused deposition modeling in the fabrication of lattice structural Al₂O₃ ceramics. Ceramics International, 2024, 50(19): 35193. DOI URL
[16]	WU H D, JIANG C, TANG C, et al. Binder jetting printed in situ mullite strengthened alumina ceramics with excellent mechanical and thermal properties through multi-phase infiltration. Virtual and Physical Prototyping, 2024, 19(1): e2427240.
[17]	CHOI J H, KWON M, HWANG K T, et al. Mechanical reinforcement of complex shaped ceramic filter fabricated using binder jetting process with photocurable composite ink. Journal of Materials Research and Technology, 2025, 35: 5514. DOI URL
[18]	YILDIZ B K, YILDIZ A S, KUL M, et al. Mechanical properties of 3D-printed Al₂O₃ honeycomb sandwich structures prepared using the SLA method with different core geometries. Ceramics International, 2024, 50(2): 2901. DOI URL
[19]	HUANG Z Y, LIU L Y, YUAN J M, et al. Stereolithography 3D printing of Si₃N₄ cellular ceramics with ultrahigh strength by using highly viscous paste. Ceramics International, 2023, 49(4): 6984. DOI URL
[20]	SHEN M H, FU R L, LIU Y N, et al. Mechanical characterization of Al₂O₃ twisted honeycomb structures fabricated by digital light processing 3D printing. Ceramics International, 2023, 49(17): 29348. DOI URL
[21]	ZOK F W, LATTURE R M, BEGLEY M R. Periodic truss structures. Journal of the Mechanics and Physics of Solids, 2016, 96: 184. DOI URL
[22]	KARRI C P, KAMBAGOWNI V. Finite element analysis approach for optimal design and mechanical performance prediction of additive manufactured sandwich lattice structures. Journal of the Institution of Engineers: India: Series D, 2025, 106(1): 353.
[23]	WANG X X, LI Z D, DENG J J, et al. Unprecedented strength enhancement observed in interpenetrating phase composites of aperiodic lattice metamaterials. Advanced Functional Materials, 2025, 35(1): 2406890. DOI URL
[24]	XU Y C, GAO Y, YANG X D, et al. Relationship between topological structures and mechanical properties of artificially architected SiC cellular ceramics: experimental and numerical study. Journal of the European Ceramic Society, 2023, 43(10): 4263. DOI URL
[25]	ZHANG X Q, ZHANG K Q, ZHANG B, et al. Additive manufacturing, quasi-static and dynamic compressive behaviours of ceramic lattice structures. Journal of the European Ceramic Society, 2022, 42(15): 7102. DOI URL
[26]	ZENG Y, SUN L J, YAO H H, et al. Fabrication of alumina ceramics with functional gradient structures by digital light processing 3D printing technology. Ceramics International, 2022, 48(8): 10613. DOI URL
[27]	CROOK C, BAUER J, GUELL IZARD A, et al. Plate-nanolattices at the theoretical limit of stiffness and strength. Nature Communications, 2020, 11: 1579. DOI PMID
[28]	ZHANG B, ZHANG X Q, WANG W Q, et al. Mechanical properties of additively manufactured Al₂O₃ ceramic plate-lattice structures: experiments & simulations. Composite Structures, 2023, 311: 116792. DOI URL
[29]	AL-KETAN O, AL-RUB R K A. MSLattice: a free software for generating uniform and graded lattices based on triply periodic minimal surfaces. Material Design & Processing Communications, 2021, 3(6): e205.
[30]	LU J X, DONG P, ZHAO Y T, et al. 3D printing of TPMS structural ZnO ceramics with good mechanical properties. Ceramics International, 2021, 47(9): 12897. DOI URL
[31]	VIJAYAVENKATARAMAN S, KUAN L Y, LU W F. 3D-printed ceramic triply periodic minimal surface structures for design of functionally graded bone implants. Materials & Design, 2020, 191: 108602.
[32]	LU C X, DING J, JIANG X, et al. Enhancing mechanical properties and damage tolerance of additive manufactured ceramic TPMS lattices by hybrid design. Journal of the American Ceramic Society, 2024, 107(10): 6524. DOI URL
[33]	IZARD A G, BAUER J, CROOK C, et al. Ultrahigh energy absorption multifunctional spinodal nanoarchitectures. Small, 2019, 15(45): 1903834. DOI URL
[34]	ANANDAN N, WILSON C G, MEZA L R. Functionally graded spinodal nanoarchitected ceramics with unprecedented recoverability. International Journal of Mechanical Sciences, 2025, 301: 110453. DOI URL
[35]	BRODNIK N R, SCHMIDT J, COLOMBO P, et al. Analysis of multi-scale mechanical properties of ceramic trusses prepared from preceramic polymers. Additive Manufacturing, 2020, 31: 100957. DOI URL
[36]	LEE E, JIA Z A, YANG T, et al. Multiscale mechanical design of the lightweight, stiff, and damage-tolerant cuttlebone: a computational study. Acta Biomaterialia, 2022, 154: 312. DOI URL
[37]	MAO A R, ZHOU S T, HONG Y L, et al. Three-dimensional printing of cuttlebone-inspired porous ceramic materials. ACS Applied Materials & Interfaces, 2024, 16(31): 41202.
[38]	THAKUR M S H, NATH M D, AJAYAN P M, et al. Macroscale ceramic origami structures with hyper-elastic coating. Advanced Composites and Hybrid Materials, 2025, 8(2): 226. DOI
[39]	ZHANG X Q, SU R Y, GAO X, et al. Circumventing brittleness of 3D-printed Al₂O₃ cellular ceramic structures via compositing with polyurea. Rare Metals, 2024, 43(11): 5994. DOI URL
[40]	SAJADI S M, VÁSÁRHELYI L, MOUSAVI R, et al. Damage- tolerant 3D-printed ceramics via conformal coating. Science Advances, 2021, 7(28): eabc5028.
[41]	WANG G S. Influence of polydopamine/polylactic acid coating on mechanical properties and cell behavior of 3D-printed calcium silicate scaffolds. Materials Letters, 2020, 275: 128131. DOI URL
[42]	SUN J X, YU S X, WADE-ZHU J, et al. 3D printing of ceramic composite with biomimetic toughening design. Additive Manufacturing, 2022, 58: 103027. DOI URL
[43]	SINGH A, KARATHANASOPOULOS N. Mechanics of ceramic- epoxy interpenetrating phase composites engineered with TPMS and spinodal topologies. Composites Science and Technology, 2024, 253: 110632. DOI URL
[44]	WU H L, GUO A F, KONG D K, et al. Nacre-like carbon fiber- reinforced biomimetic ceramic composites: fabrication, microstructure, and mechanical performance. Ceramics International, 2024, 50(14): 25388. DOI URL
[45]	ZHANG X Q, MENG Q Y, ZHANG K Q, et al. 3D-printed bioinspired Al₂O₃/polyurea dual-phase architecture with high robustness, energy absorption, and cyclic life. Chemical Engineering Journal, 2023, 463: 142378. DOI URL
[46]	LI W Y, ZHANG K Q, ZHANG Z J, et al. Damage tolerance and cyclic stability of 3D-architected Al₂O₃/polymer composites. Journal of Materiomics, 2026, 12(1): 101112. DOI URL
[47]	ZHAO Y D, YAP X Y, YE P C, et al. Enhanced mechanical and thermal properties in 3D printed Al₂O₃ lattice/epoxy interpenetrating phase composites. Mechanics of Materials, 2024, 190: 104930. DOI URL
[48]	LI X W, KIM M, ZHAI W. Ceramic microlattice and epoxy interpenetrating phase composites with simultaneous high specific strength and specific energy absorption. Materials & Design, 2022, 223: 111206.
[49]	ZHONG K, WANG Z G, CUI J, et al. Mechanical behavior of reinforced Al₂O₃ lattice structures: effects of structural parameters from experiments and simulations. Thin-Walled Structures, 2025, 207: 112753. DOI URL
[50]	DONG X S, WANG G Q, WANG S R, et al. Designing and additive manufacturing of biomimetic interpenetrating phase zirconia-resin composite dental restorations with TPMS structure. Journal of the Mechanical Behavior of Biomedical Materials, 2024, 160: 106718. DOI URL
[51]	EDER M, JUNGNIKL K, BURGERT I. A close-up view of wood structure and properties across a growth ring of Norway spruce (Picea abies [L] Karst.). Trees, 2009, 23: 79. DOI URL
[52]	HABIBI M K, SAMAEI A T, GHESHLAGHI B, et al. Asymmetric flexural behavior from bamboo’s functionally graded hierarchical structure: underlying mechanisms. Acta Biomaterialia, 2015, 16: 178. DOI URL
[53]	SU J M, GUO L, ZHU H J, et al. High toughness of 3D printed ceramic/polymer interpenetrating phase composite with gradient structures under multi-directional stresses. Journal of Materials Science, 2025, 60(9): 4197. DOI
[54]	ZHONG K, CUI J, WANG Z G, et al. Synergistic gradient- composite effects on mechanical reinforcement of ceramic lattice structures. Thin-Walled Structures, 2025, 216: 113729. DOI URL
[55]	WEN S M, CHEN S M, GAO W T, et al. Biomimetic gradient bouligand structure enhances impact resistance of ceramic-polymer composites. Advanced Materials, 2023, 35(21): e2211175.
[56]	CHENG D X, XIA Y F, YAO D X, et al. Quasi-static and dynamic mechanical properties of interpenetrating zirconia-toughened alumina-aluminum alloy composite material. Materials Today Communications, 2024, 41: 110929. DOI URL
[57]	LI S, LI Y F, WANG Q W, et al. Fabrication of 3D-SiC/aluminum alloy interpenetrating composites by DIW and pressureless infiltration. Ceramics International, 2021, 47(17): 24340. DOI URL
[58]	ZHANG Z J, LI W Y, FENG Y J, et al. Strongly improved mechanical properties of aluminum composites by designed ceramic lattice. Journal of Materials Research and Technology, 2025, 35: 2637. DOI URL
[59]	ZHANG Z, FENG Y, LI W, et al. Stiff and ductile 3D-architectured metal/ceramic composites. Composites Part A: Applied Science and Manufacturing, 2025, 194: 108904. DOI URL
[60]	LI Y, ZHONG S J, QIAN M F, et al. Design and fabrication of bionic Bouligand-structured SiC/2024Al composites via binder jetting additive manufacturing and pressure infiltration. Composites Part B: Engineering, 2025, 301: 112526. DOI URL
[61]	CASAS-LUNA M, MONTUFAR E B, HORT N, et al. Degradable magnesium-hydroxyapatite interpenetrating phase composites processed by current assisted metal infiltration in additive- manufactured porous preforms. Journal of Magnesium and Alloys, 2022, 10(12): 3641. DOI URL
[62]	HUANG J C, DARYADEL S, MINARY-JOLANDAN M. Low-cost manufacturing of metal-ceramic composites through electrodeposition of metal into ceramic scaffold. ACS Applied Materials & Interfaces, 2019, 11(4): 4364.
[63]	KHAKZAD M, KHADEMI M, PERRUCI G F, et al. Hybrid manufacturing of ceramic-metal composites by vat polymerization 3D printing and pulse electroplating. Journal of Manufacturing Processes, 2025, 144: 157. DOI URL
[64]	LU J J, WANG D, ZHANG K Q, et al. Mechanical properties of Al₂O₃ and Al₂O₃/Al with Gyroid structure obtained by stereolithographic additive manufacturing and melt infiltration. Ceramics International, 2022, 48(16): 23051. DOI URL
[65]	ZHU M M, DENG C Z, ZHANG Z F, et al. Stereolithography 3D printing ceramics for ultrahigh strength aluminum matrix composites. Journal of Manufacturing Processes, 2025, 139: 126. DOI URL
[66]	BAUER J, SALA-CASANOVAS M, AMIRI M, et al. Nanoarchitected metal/ceramic interpenetrating phase composites. Science Advances, 2022, 8(33): eabo3080.
[67]	CHEN F, DING J, JIA M Y, et al. 3D bi-continuous interpenetrating networks enables Al-matrix composites with enhanced mechanical energy absorption capacity. Composite Structures, 2025, 368: 119293. DOI URL
[68]	SANTOS S, MATOS C, DUARTE I, et al. Effect of TPMS reinforcement on the mechanical properties of aluminium-alumina interpenetrating phase composites. Progress in Additive Manufacturing, 2025, 10(2): 1187. DOI
[69]	CHENG D, XIA Y, YAO D, et al. The dynamic protective performance of interpenetrating zirconia toughened alumina- aluminum alloy composite material prepared by 3D printing and metal infiltration. Journal of Alloys and Compounds, 2025, 1022: 179953. DOI URL
[70]	SUN J X, WANG Y D, ZOU J, et al. Ceramic/metal composites fabricated via 3D printing and ultrasonic-assisted infiltration for high specific strength and energy absorption. Journal of Alloys and Compounds, 2024, 1006: 176216. DOI URL
[71]	LI S W, WANG G, ZHANG K Q, et al. Mechanical properties of Al₂O₃ and Al₂O₃/Al interpenetrated functional gradient structures by 3D printing and melt infiltration. Journal of Alloys and Compounds, 2023, 950: 169948. DOI URL
[72]	HU Y B, JIANG M Y, SHEN P. Compositionally gradient Al₂O₃-B₄C/Al composites with interpenetrating structure and tailored properties via material extrusion-based additive manufacturing and pressure infiltration. Virtual and Physical Prototyping, 2025, 20(1): e2450101.
[73]	WU Y, ZHAO R D, LIANG B, et al. Construction of C/SiC- Cu₃Si-Cu interpenetrating composites for long-duration thermal protection at 2500 ℃ by cooperative active-passive cooling. Composites Part B: Engineering, 2023, 266: 111015. DOI URL
[74]	JIN Y, DU J K, HE Y. Optimization of process planning for reducing material consumption in additive manufacturing. Journal of Manufacturing Systems, 2017, 44: 65. DOI URL
[75]	SRIDHAR S, VENKATESH K, REVATHY G, et al. Adaptive fabrication of material extrusion-AM process using machine learning algorithms for print process optimization. Journal of Intelligent Manufacturing, 2025, 36(7): 5087. DOI
[76]	LI S Y, WEI H K, YUAN S Q, et al. Collaborative optimization design of process parameter and structural topology for laser additive manufacturing. Chinese Journal of Aeronautics, 2023, 36(1): 456. DOI URL
[77]	CHALLAPALLI A, PATEL D, LI G Q. Inverse machine learning framework for optimizing lightweight metamaterials. Materials & Design, 2021, 208: 109937.
[78]	WU C, LUO J J, ZHONG J X, et al. Topology optimisation for design and additive manufacturing of functionally graded lattice structures using derivative-aware machine learning algorithms. Additive Manufacturing, 2023, 78: 103833. DOI URL
