Effect of Target Composition and Sputtering Parameters on Microstructure and Mechanical Properties of Vanadium Carbide Films

doi:10.3724/SP.J.1077.2012.00536

Abstract

Abstract:

To improve the crystalinity and mechanical properties of the films sputtering with carbide target, a series of vanadium carbide films were prepared by magnetron sputtering in an argon atmosphere using the stoichiometric VC target (n(C):n(V)=1:1) and substoichiometric VC target (n(C):n(V)=0.75:1). Energy-dispersive X-ray spectroscopy, X-ray diffraction, scanning electron microscopy and nanoindentation were employed to characterize their composition, microstructure and mechanical properties. The results show that for the VC target (n(C):n(V)=1:1), only when the Ar pressure is between 2.4 Pa and 3.2 Pa, the films can obtain fine crystallized structure and attain high hardness, of which the highest hardness is 28 GPa. For the V-rich VC target, fine crystallized films and high hardness (31.4 GPa) could be gained in lower Ar pressure (0.6-1.8 Pa). Compared with argon pressure and substrate temperature, target composition is the main factor of the film composition, microstructure and mechanical properties, thus proper increasing the content of metal component of the target is a more effective way to get VC films with good crystalinity and high hardness.

Key words: vanadium carbide, film, microstructure, mechanical properties, magnetron sputtering

CLC Number:

O484

SHEN Jie, LI Guan-Qun, LI Yu-Ge, LI Ge-Yang. Effect of Target Composition and Sputtering Parameters on Microstructure and Mechanical Properties of Vanadium Carbide Films[J]. Journal of Inorganic Materials, 2012, 27(5): 536-540.

Figures/Tables 7

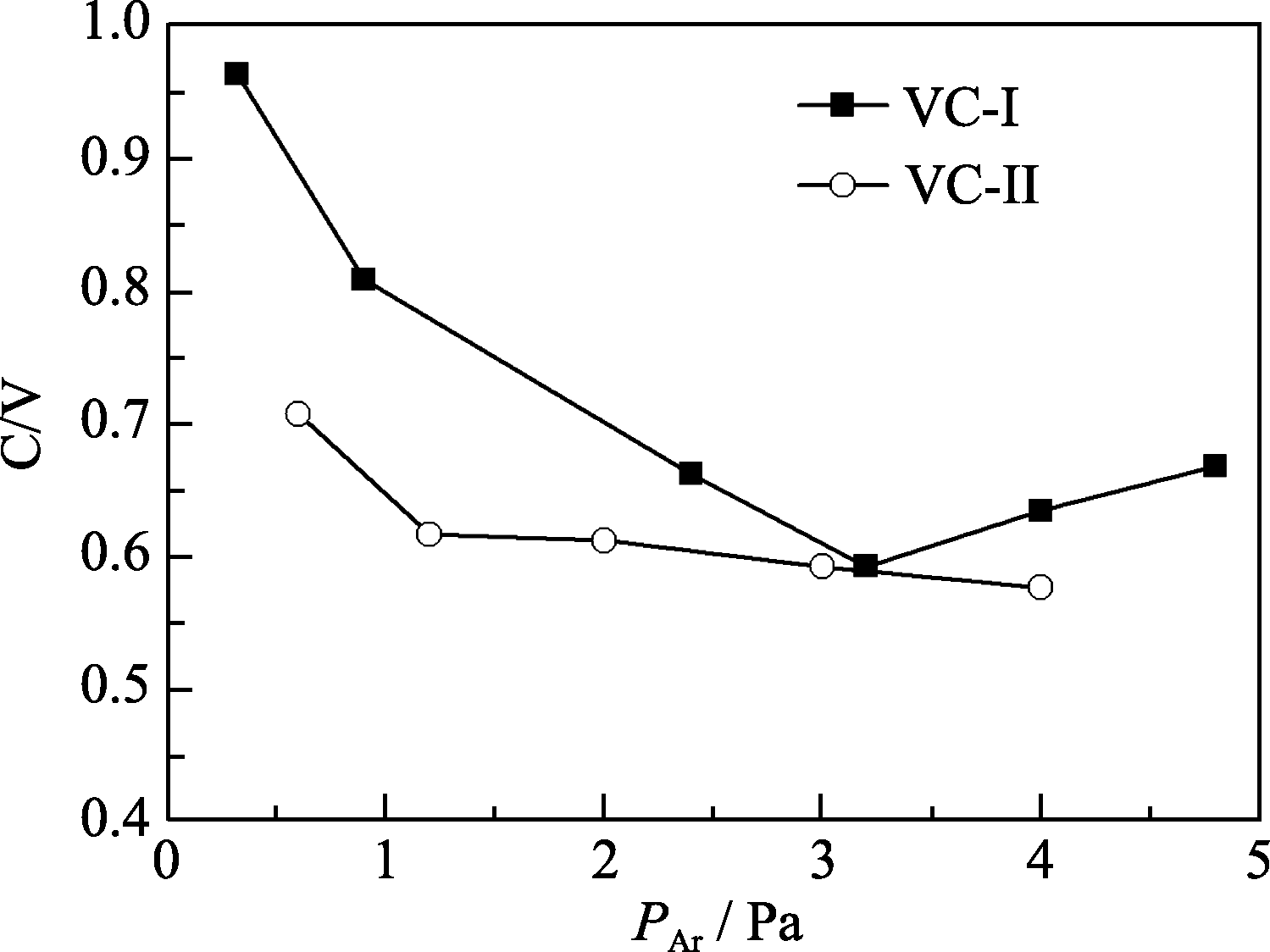

Fig. 1 Composition of VC films sputtering at different pressures

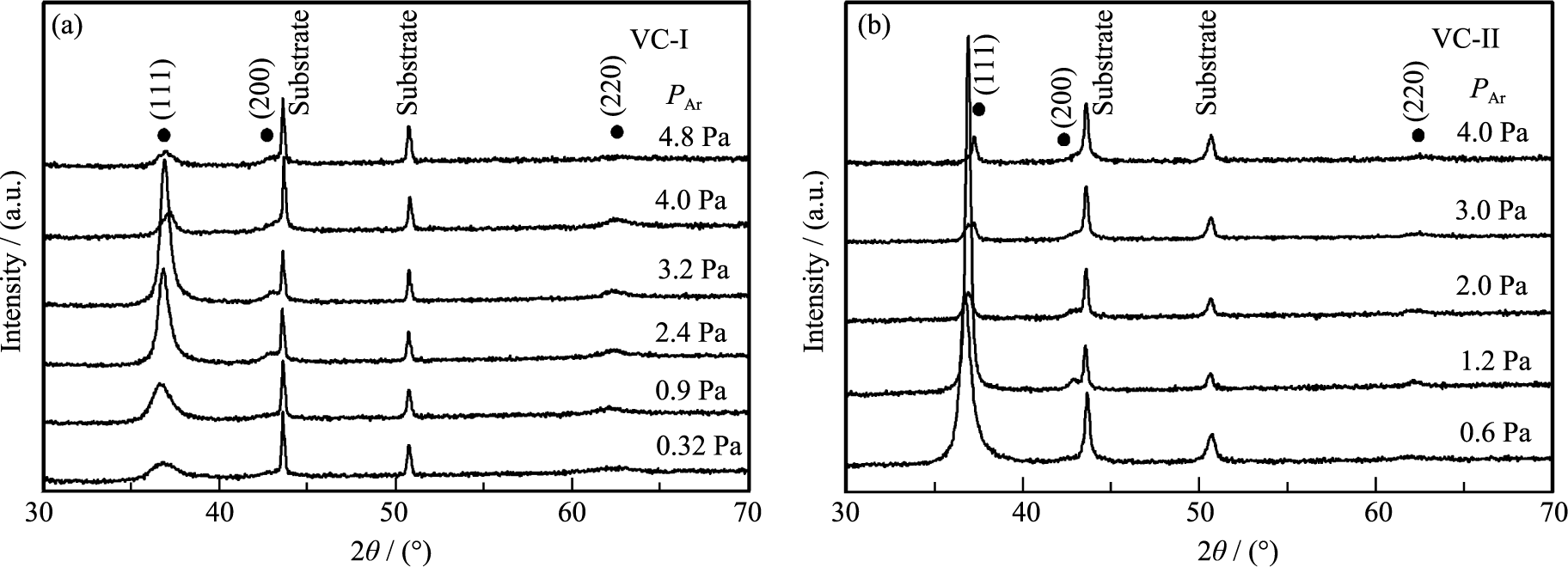

Fig. 2 XRD patterns of VC-Ⅰ (a) and VC-Ⅱ(b) films sputtering at different Ar pressures

Fig. 3 Cross-sectional SEM images of VC-Ⅰ films sputtering at different Ar pressures

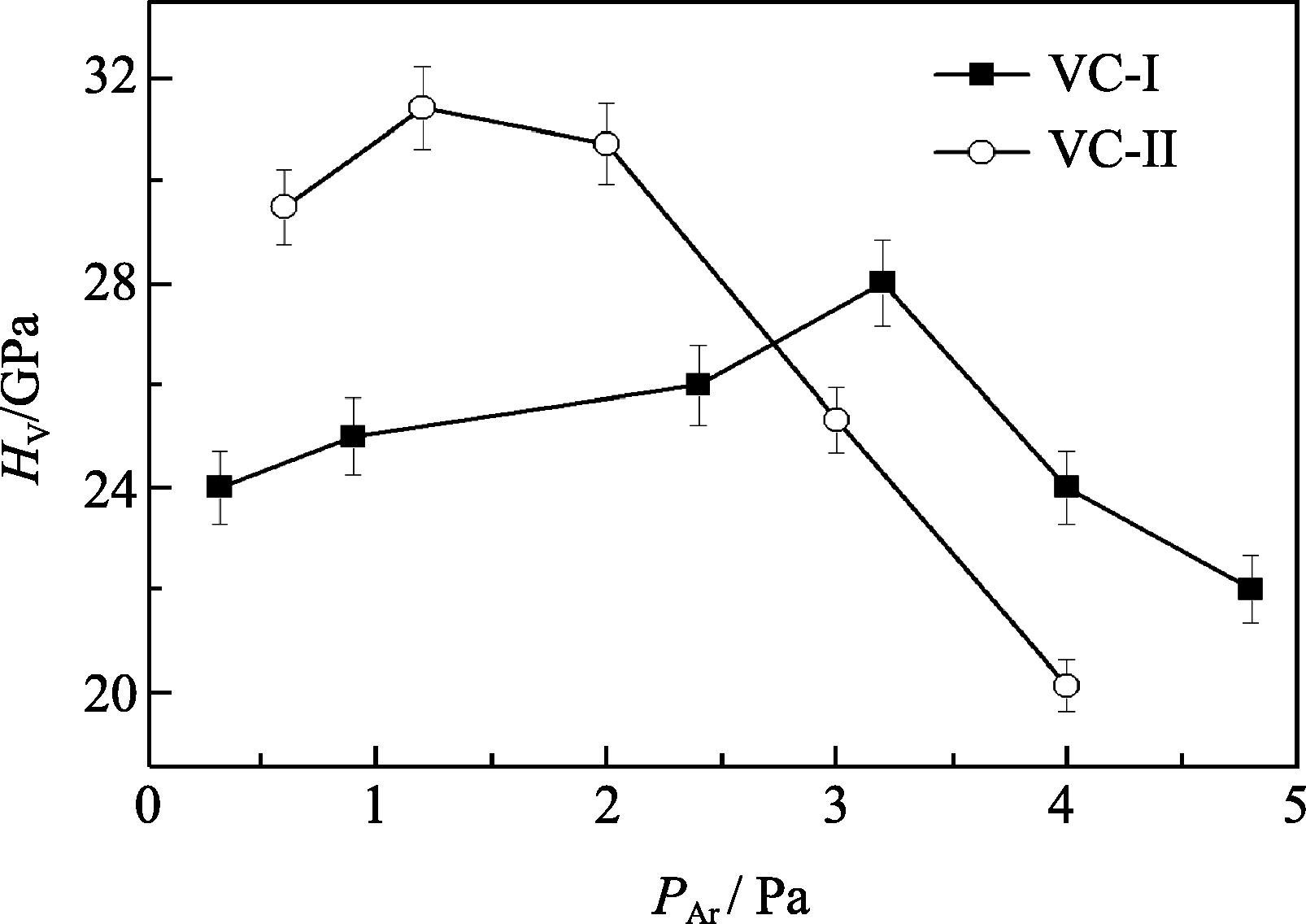

Fig. 4 Hardness of VC films as a function of sputtering pressure

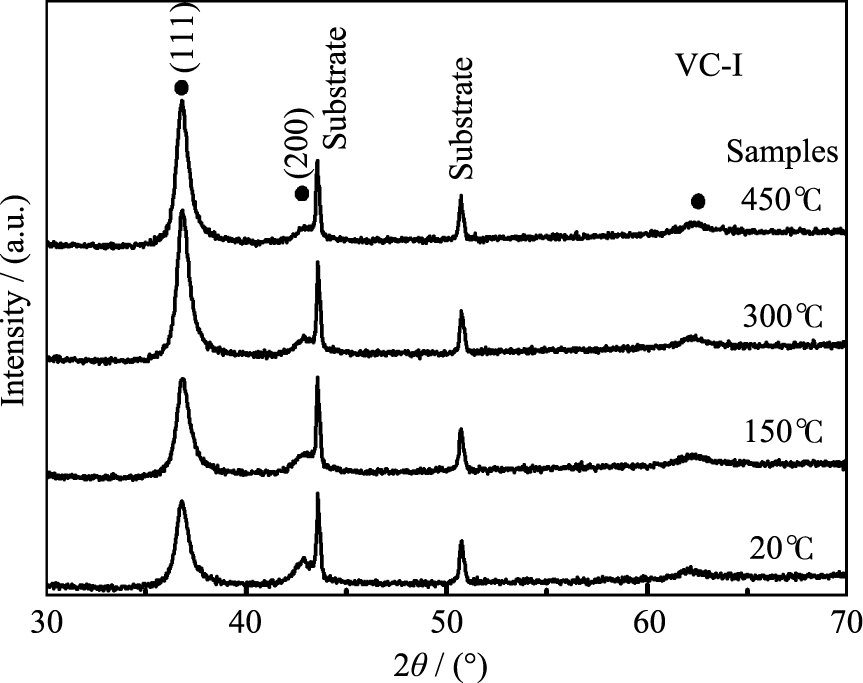

Fig. 5 XRD patterns of VC-Ⅰfilms (PAr =2.4 Pa) sputtering at different substrate temperatures

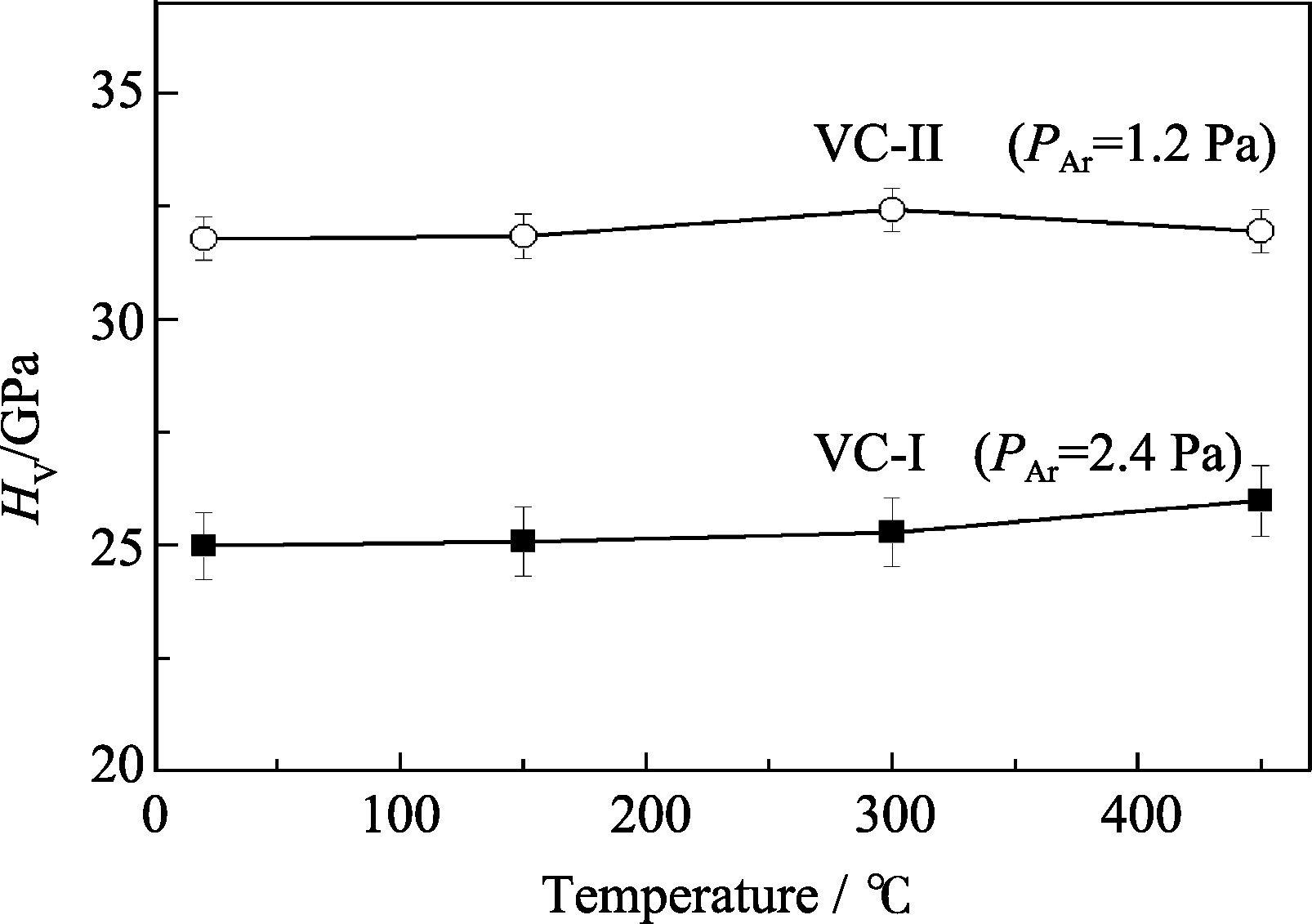

Fig. 6 Hardness of VC-Ⅰfilms (PAr =2.4 Pa) and VC-Ⅱfilms (PAr =1.2 Pa) sputtering at different substrate temperatures

References 12

[1]	Sundgren J E, Hentzell T G. A review of the present state of art in hard films grown from the vapor phase. Journal of Vacuum Science and Technology A, 1986, 4(5): 2259-2279.
[2]	Robinson G M, Jackson M J. A review of micro and nanomachining from a materials perspective. Journal of Materials Processing Technology, 2005, 167(2/3): 316-337.
[3]	Aouni A, Weisbecker P, Loi Tran Huu, et al. Search for new materials in sputtered V1-xCx films. Thin Solid Films, 2004, 469-470: 315-321.
[4]	Guang-Ze, WU Xiao-Yan, CHEN Yang-Hui, et al. Microstructures and mechanical properties of vanadium carbide films grown by reactive magnetron sputtering. Chinese Journal of Vacuum Science and Technology, 2009, 29(2): 168-172.
[5]	Meng W J, Meletis E I, Rehn L E, et al. Inductively coupled plasma assisted deposition and mechanical properties of metal-free and Ti-containing hydrocarbon coatings. Journal of Applied Physics, 2000, 87(6): 2840-2848.
[6]	Woydt M, Skopp A, Dorfel I, et al. Wear engineering oxides/ anti-wear oxides. Wear, 1998, 218(1): 84-95.
[7]	Chen J G, Kirn C M, Fruhberger B, et al. A NEXAFS Determination of the oxidation state of vanadium carbide on V(110): observation of charge transfer from vanadium to carbon. Surface Science, 1994, 321(1/2): 145-155.
[8]	Balden M, Adelhelm C, kock T. Thermal nanostructuring of metal-containing carbon films and their nanoindentation testing. Reviews on Advanced Materials Science, 2007, 15: 95-104.
[9]	Liao M Y, Gotoh Y, Tsuji H, et al. Deposition of vanadium carbide thin films using compound target sputtering and their field emission. Journal of Vacuum Science and TechnologyA, 23(5): 1379-1383.
[10]	SHEN Jie, LI Guan-Qun, LI Yu-Ge, et al. Influence of Ar pressure on microstructures and properties of vanadium carbide coating. Chinese Journal of Vacuum Science and Technology, 2011, 31(2): 216-220.
[11]	Okamoto H. C-V(carbon-vanadium). Journal of Phase Equilibria, 1991, 12(6): 699.
[12]	Abderahim Mania, Pascal Auberta, Florence Mercierb, et al. Effects of residual stress on the mechanical and structural properties of TiC thin films grown by RF sputtering. Surface & Coatings Technology, 2005, 194(2/3): 190-195.
