Recent Progress on Preparation of 3C-SiC Single Crystal

doi:10.15541/jim20250081

Abstract

Abstract:

Silicon carbide (SiC), as a representative wide bandgap semiconductor material, has increasingly demonstrated its significance in high-power, high-frequency and high-temperature electronic device applications. In recent years, SiC semiconductors have become primary material for power devices in electric drive modules and charging modules of new energy vehicles. Compared to Si-based insulated gate bipolar transistors (IGBTs), a kind of minority carrier device, SiC materials enable high-voltage resistance through majority carrier devices (such as Schottky barrier diodes and metal-oxide-semiconductor field-effect transistors (MOSFETs)) with high-frequency device structures, which conversely allows SiC to simultaneously achieve key characteristics of low on-resistance and high frequency. It is easy to deduce that, SiC will also play an indispensable role in emerging fields such as electric aircrafts, electric vertical take-off and landing (eVTOL) vehicles for low-altitude transportation, augmented reality (AR), photovoltaic inverters, and rail transportation. Among various SiC polytypes, 3C-SiC stands out due to its unique cubic crystal structure, higher thermal conductivity (500 W/(m·K)) and channel mobility (approximately 300 cm²/(V·s)), showcasing significant application potential and research value. This paper provides an overview of the crystal structure, fundamental physical properties, application advantages, and major growth methods of 3C-SiC, including chemical vapor deposition (CVD), continuous-feed physical vapor transport (CF-PVT), sublimation epitaxy (SE), and top-seeded solution growth (TSSG). Research progress and the latest achievements in 3C-SiC crystal growth using above techniques are reviewed, focusing on the thermodynamic characteristics and growth mechanisms of vapor-phase and liquid-phase methods. The microscopic processes of crystal growth are analyzed and summarized, and the future development directions and application prospects for 3C-SiC crystals are discussed.

Key words: wide bandgap semiconductor, 3C-SiC single crystal, crystal growth, micro-mechanism, review

CLC Number:

TQ174

XU Jintao, GAO Pan, HE Weiyi, JIANG Shengnan, PAN Xiuhong, TANG Meibo, CHEN Kun, LIU Xuechao. Recent Progress on Preparation of 3C-SiC Single Crystal[J]. Journal of Inorganic Materials, 2026, 41(1): 1-11.

Figures/Tables 13

References 87

[1]	KIMOTO T. Material science and device physics in SiC technology for high-voltage power devices. Japanese Journal of Applied Physics, 2015, 54(4): 040103. DOI URL
[2]	MATSUNAMI H. Fundamental research on semiconductor SiC and its applications to power electronics. Proceedings of the Japan Academy,Series B, 2020, 96(7): 235.
[3]	HAMADA K, NAGAO M, AJIOKA M, et al. SiC-emerging power device technology for next-generation electrically powered environmentally friendly vehicles. IEEE Transactions on Electron Devices, 2015, 62(2): 278. DOI URL
[4]	CHIU P, DOGMUS E. Power SiC 2022 market and technology report product brochure. Yole Développement,2022, 1: 1.
[5]	LIMPIJUMNONG S, LAMBRECHT W. Total energy differences between SiC polytypes revisited. Physical Review B, 1998, 57: 12017. DOI URL
[6]	WELLMANN P J. Review of SiC crystal growth technology. Semiconductor Science and Technology, 2018, 33(10): 103001. DOI URL
[7]	SCHUH P. Sublimation epitaxy of bulk-like cubic silicon carbide. Erlangen: Friedrich-Alexander-Universität Erlangen-Nürnberg PhD Thesis, 2019.
[8]	施尔畏. 碳化硅晶体生长与缺陷. 北京: 科学出版社, 2012: 79-84.
[9]	Ltd. Product Center. (2025-02-01) [2025-03-07]. https://www.tankeblue.com/product12/info.html?id=18.
[10]	Ltd. Product Center. (2025-02-01)[2025-03-07]. https://www.jinggelingyu.com/product/61.html.
[11]	CHENG Z, LIANG J, KAWAMURA K, et al. High thermal conductivity in wafer-scale cubic silicon carbide crystals. Nature Communications, 2022, 13: 7201. DOI PMID
[12]	SYVÄJÄRVI M, MA Q B, JOKUBAVICIUS V, et al. Cubic silicon carbide as a potential photovoltaic material. Solar Energy Materials and Solar Cells, 2016, 145: 104.
[13]	SCHÖNER A, KRIEGER M, PENSL G, et al. Fabrication and characterization of 3C-SiC-based MOSFETs. Chemical Vapor Deposition, 2006, 12: 523. DOI URL
[14]	UCHIDA H, MINAMI A, SAKATA T, et al. High temperature performance of 3C-SiC MOSFETs with high channel mobility. Materials Science Forum, 2012, 717-720: 1109.
[15]	VIA F L, ZIMBONE M, BONGIORNO C, et al. New approaches and understandings in the growth of cubic silicon carbide. Materials, 2021, 14(18): 5348. DOI URL

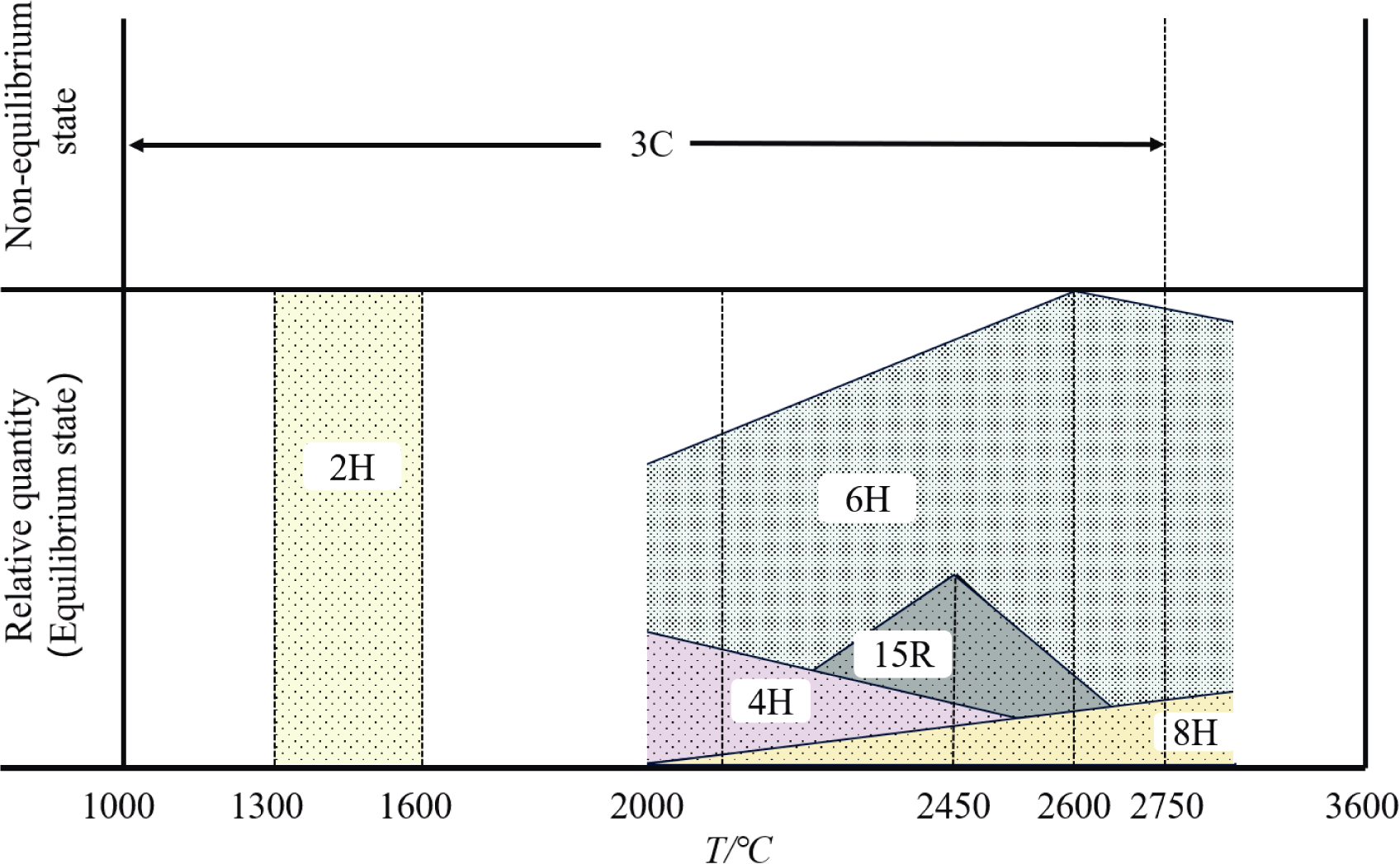

[16]	PÜSCHE R, HUNDHAUSEN M, LEY L, et al. Temperature induced polytype conversion in cubic silicon carbide studied by Raman spectroscopy. Journal of Applied Physics, 2004, 96(10): 5569. DOI URL
[17]	SCHÖLER M, VIA F L, MAUCERI M, et al. Overgrowth of protrusion defects during sublimation growth of cubic silicon carbide using free-standing cubic silicon carbide substrates. Crystal Growth & Design, 2021, 21(7): 4046. DOI URL
[18]	KOLLMUSS M, VIA F L, WELLMANN P J. Effect of growth conditions on the surface morphology and defect density of CS-PVT-grown 3C-SiC. Crystal Research and Technology, 2023, 58(7): 2300034. DOI URL
[19]	SCHUH P, STEINER J, VIA F L, et al. Limitations during vapor phase growth of bulk (100) 3C-SiC using 3C-SiC-on-SiC seeding stacks. Materials, 2019, 12(15): 2353. DOI URL
[20]	LEE K K, PENSL G, SOUEIDAN M, et al. Very low interface state density from thermally oxidized single-domain 3C-SiC/6H- SiC grown by vapour-liquid-solid mechanism. Japanese Journal of Applied Physics, 2006, 45(9R): 6823.
[21]	CAETANO E W S, BEZERRA E F, FREIRE V N, et al. Ultrafast electron drift velocity overshoot in 3C-SiC. Solid State Communications, 2000, 113(9): 539. DOI URL
[22]	ANZALONE R, PRIVITERA S, CAMARDA M, et al. Interface state density evaluation of high quality hetero-epitaxial 3C-SiC (001) for high-power MOSFET applications. Materials Science and Engineering: B, 2015, 198: 14. DOI URL
[23]	BEAUCARNE G, BROWN A S, KEEVERS M J, et al. The impurity photovoltaic (IPV) effect in wide-bandgap semiconductors: an opportunity for very-high-efficiency solar cells. Progress in Photovoltaics: Research and Applications, 2002, 10(5): 345. DOI URL
[24]	ROCCAFORTE F, GRECO G, FIORENZA P, et al. Towards vertical Schottky diodes on bulk cubic silicon carbide (3C-SiC). Applied Surface Science, 2022, 606:154896. DOI URL
[25]	ICHIKAWA N, KATO M, ICHIMURA M. Photocathode for hydrogen generation using 3C-SiC epilayer grown on vicinal off- angle 4H-SiC substrate. Applied Physics Express, 2015, 8(9): 091301. DOI URL
[26]	SUN J, JOKUBAVICIUS V, GAO L, et al. Solar driven energy conversion applications based on 3C-SiC. Materials Science Forum, 2016, 858: 1028. DOI URL
[27]	CHRISTLE D J, KLIMOV P V, CASAS C F D L, et al. Isolated spin qubits in SiC with a high-fidelity infrared spin-to-photon interface. Physical Review X, 2017, 7(2): 021046. DOI URL
[28]	SCHÖLER M, LEDERER M W, SCHUH P, et al. Intentional incorporation and tailoring of point defects during sublimation growth of cubic silicon carbide by variation of process parameters. Physica Status Solidi B, 2020, 257(1): 1900286. DOI URL
[29]	SCHÖLER M, BRECHT C, WELLMANN P J. Annealing-induced changes in the nature of point defects in sublimation-grown cubic silicon carbide. Materials, 2019, 12(15): 2487. DOI URL
[30]	SAMEERA J N, ISLAM M A, ISLAM S, et al. Cubic silicon carbide (3C-SiC) as a buffer layer for high efficiency and highly stable CdTe solar cell. Optical Materials, 2022, 123: 111911. DOI URL
[31]	HEIDARZADEH H. Performance analysis of cubic silicon carbide solar cell as an appropriate candidate for high temperature application. Optical and Quantum Electronics, 2020, 52(4): 192. DOI
[32]	XING Y M, HU E Y, WANG F Z, et al. Cubic silicon carbide/zinc oxide heterostructure fuel cells. Applied Physics Letters, 2020, 117(16): 162105. DOI URL
[33]	LI H J, ZHOU Z D, CAO X H, et al. Fabrication and performance of 3C-SiC photocathode materials for water splitting. Progress in Natural Science: Materials International, 2024, 34(1): 12. DOI URL
[34]	BASAK N. Fabrication and characterization of 3C-silicon carbide micro sensor for wireless blood pressure measurements. Washington: Howard University PhD Thesis, 2008.
[35]	LEBEDEV A A, PETROV V N, TITKOV A N, et al. Heteropolytype structures with SiC quantum dots. Technical Physics Letters, 2005, 31: 997. DOI URL
[36]	NAGASAWA H, YAGI K. 3C-SiC single-crystal films grown on 6 inch Si substrates. Physica Status Solidi B, 1997, 202(1): 335. DOI URL
[37]	孙清云. 激光CVD法制备3C-SiC薄膜的结构调控及性能研究. 武汉: 武汉理工大学博士学位论文, 2023.
[38]	NAGASAWA H, YAGI K, KAWAHARA T. 3C-SiC hetero- epitaxial growth on undulant Si (001) substrate. Journal of Crystal Growth, 2002, 237: 1244.
[39]	梁涛. CVD法制备3C-SiC/Si薄膜研究. 成都: 电子科技大学硕士学位论文, 2006.
[40]	石彪, 朱明星, 陈义, 等. 单晶硅衬底异质外延3C-SiC薄膜研究进展. 硅酸盐通报, 2011, 30(5): 1083.
[41]	NISHINO S, POWELL J A, WILL H A. Production of large area single crystal wafers of cubic SiC for semiconductor devices. Applied Physics Letters, 1983, 42(5): 460. DOI URL
[42]	FLEISCHMAN A J, ZORMAN C A, MEHREGANY M, et al. Epitaxial growth of 3C-SiC films on 4-inch diameter (100) silicon wafers by APCVD. Institute of Physics Conference Series, 1996, 142: 197.
[43]	NAGASAWA H, YAGI K, KAWAHARA T, et al. Low-defect 3C-SiC grown on undulant-Si (001) substrates//CHOYKE W J. Silicon carbide:recent major advances. New York: Springer, 2004: 207-228.
[44]	NAGASAWA H, YAGI K, KAWAHARA T, et al. 3C-SiC monocrystals grown on undulant Si(001) substrates. MRS Online Proceedings Library, 2002, 742: 16.
[45]	NAGASAWA H, KAWAHARA T, YAGI K. Heteroepitaxial growth and characteristics of 3C-SiC on large-diameter Si (001) substrates. Materials Science Forum, 2002, 389-393: 319.
[46]	NISHIGUCHI T, NAKAMURA M, NISHIO K, et al. Heteroepitaxial growth of (111) 3C-SiC on well-lattice-matched (110) Si substrates by chemical vapor deposition. Applied Physics Letters, 2004, 84(16): 3082. DOI URL
[47]	SEVERINO A, BONGIORNO C, PILUSO N, et al. High-quality 6 inch (111) 3C-SiC films grown on off-axis (111) Si substrates. Thin Solid Films, 2010, 518(6): 165.
[48]	SEVERINO A, CAMARDA M, SCALESE S, et al. Preferential oxidation of stacking faults in epitaxial off-axis (111) 3C-SiC films. Applied Physics Letters, 2009, 95(11): 111905. DOI URL
[49]	ZHU P, XU Q, CHEN R, et al. Structural study of β-SiC (001) films on Si (001) by laser chemical vapor deposition. Journal of the American Ceramic Society, 2017, 100(4): 1634. DOI URL
[50]	SUN Q, ZHU P, XU Q, et al. High-speed heteroepitaxial growth of 3C-SiC (111) thick films on Si (110) by laser chemical vapor deposition. Journal of the American Ceramic Society, 2018, 101(3): 1048. DOI URL
[51]	SUN Q, YANG M, LI J, et al. Heteroepitaxial growth of thick 3C-SiC (110) films by laser CVD. Journal of the American Ceramic Society, 2019, 102(8): 4480. DOI

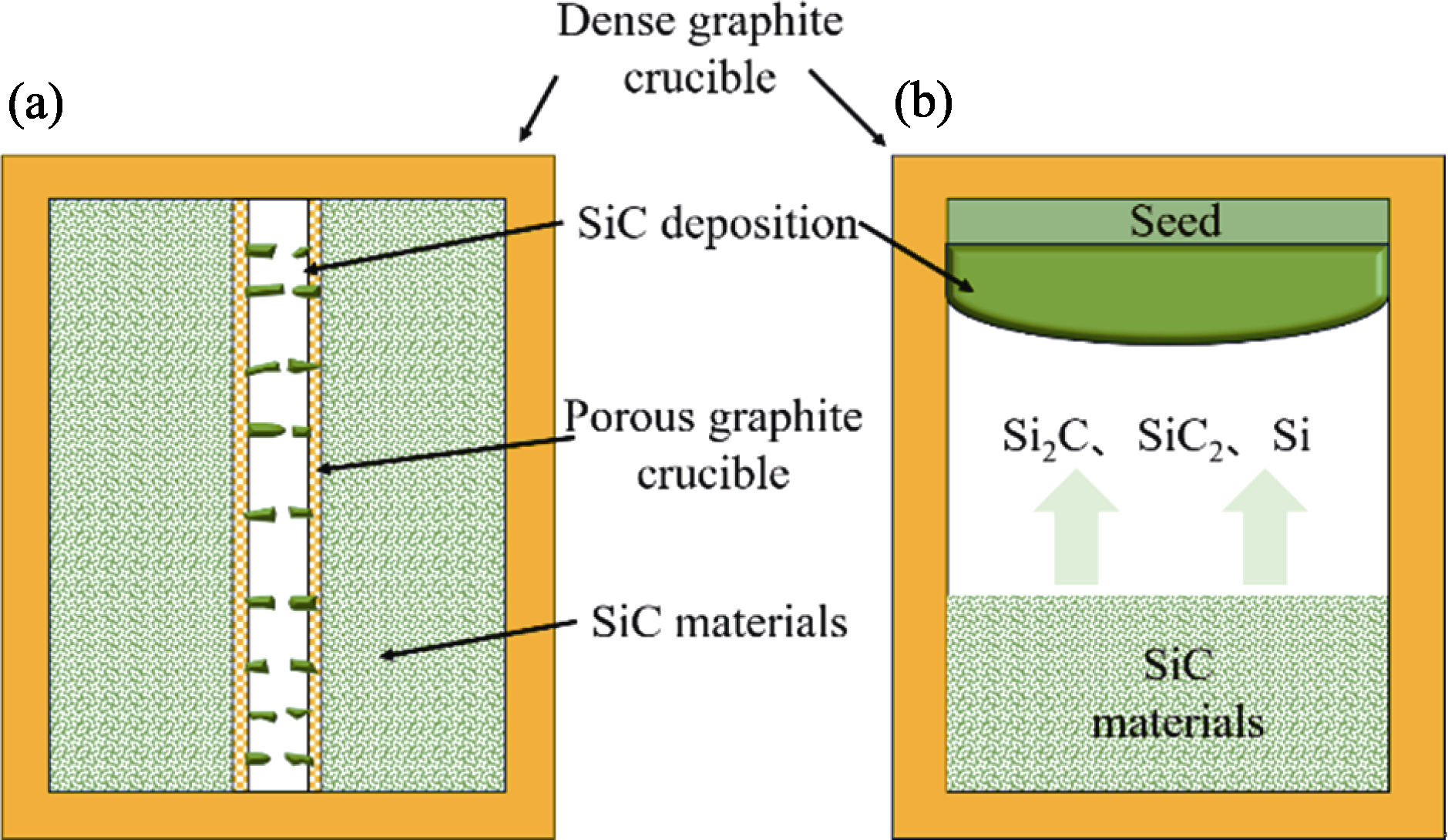

[52]	LELY J A. The preparation of silicon carbide single crystal and the control of the type and amount of internal impurities. Berichte der Deutschen Keramischen Gesellschaft, 1969, 32: 229.
[53]	HAMILTON D R. The growth of silicon carbide by sublimation. High Temperature Semiconductor, 1960: 45.
[54]	TAIROV Y M, TSVETKOV V F. Investigation of growth processes of ingots of silicon carbide single crystals. Journal of Crystal Growth, 1978, 43(2): 209. DOI URL

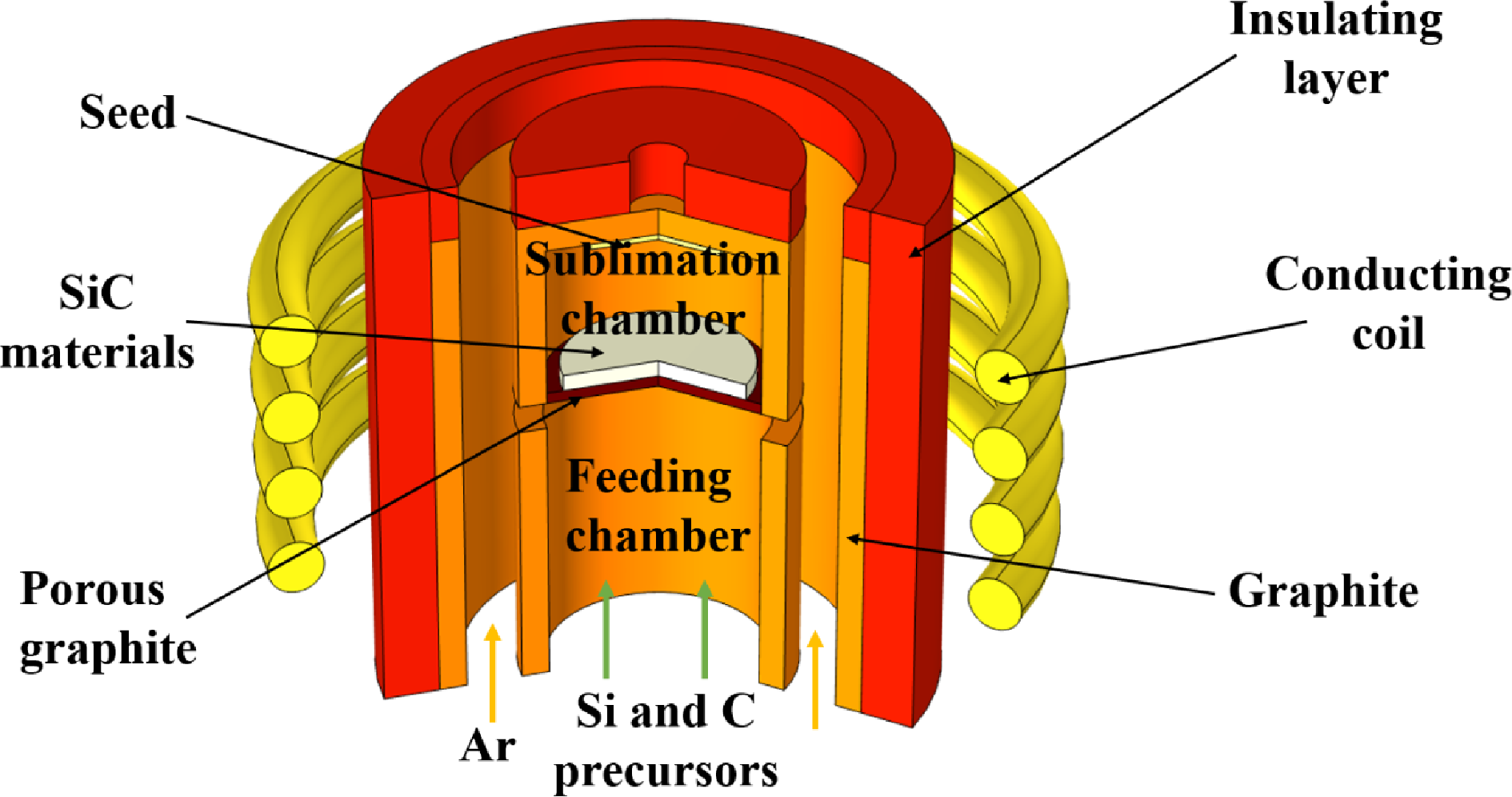

[55]	CHAUSSENDE D, BAILLET F, CHARPENTIER L, et al. Continuous feed physical vapor transport: toward high purity and long boule growth of SiC. Journal of the Electrochemical Society, 2003, 150(10): 653.
[56]	MANTZARI A, MERCIER F, SOUEIDAN M, et al. Structural characterization of CF-PVT grown bulk 3C-SiC. Materials Science Forum, 2009, 600: 67.
[57]	SUN G L, GALBEN-SANDULACHE I G, OUISSE T, et al. Improvements of the continuous feed-physical vapor transport technique (CF-PVT) for the seeded growth of 3C-SiC crystals. Silicon Carbide and Related Materials, 2010, 645: 63.
[58]	SEMMELROTH K, SCHULZE N, PENSL G. Growth of SiC polytypes by the physical vapour transport technique. Journal of Physics: Condensed Matter, 2004, 16(17): 1597.
[59]	SEMMELROTH K, KRIEGER M, PENSL G, et al. Growth of cubic SiC single crystals by the physical vapor transport technique. Journal of Crystal Growth, 2007, 308(2): 241. DOI URL
[60]	LATU-ROMAIN L, CHAUSSENDE D, BALLOUD C, et al. Characterization of bulk <111> 3C-SiC single crystals grown on 4H-SiC by the CF-PVT method. Materials Science Forum, 2006, 527/528/529: 99.
[61]	LATU-ROMAIN L, CHAUSSENDE D, CHAUDOUËT P, et al. Study of 3C-SiC nucleation on (0001) 6H-SiC nominal surfaces by the CF-PVT method. Journal of Crystal Growth, 2005, 275(1/2): e609. DOI URL
[62]	TAIROV Y M, TSVETKOV V F, LILOV S K, et al. Studies of growth kinetics and polytypism of silicon carbide epitaxial layers grown from the vapour phase. Journal of Crystal Growth, 1976, 36(1): 147. DOI URL
[63]	VODAKOV Y A, ROENKOV A D, RAMM M G, et al. Use of Ta-container for sublimation growth and doping of SiC bulk crystals and epitaxial layers. Physica Status Solidi B, 1997, 202(1): 177. DOI URL

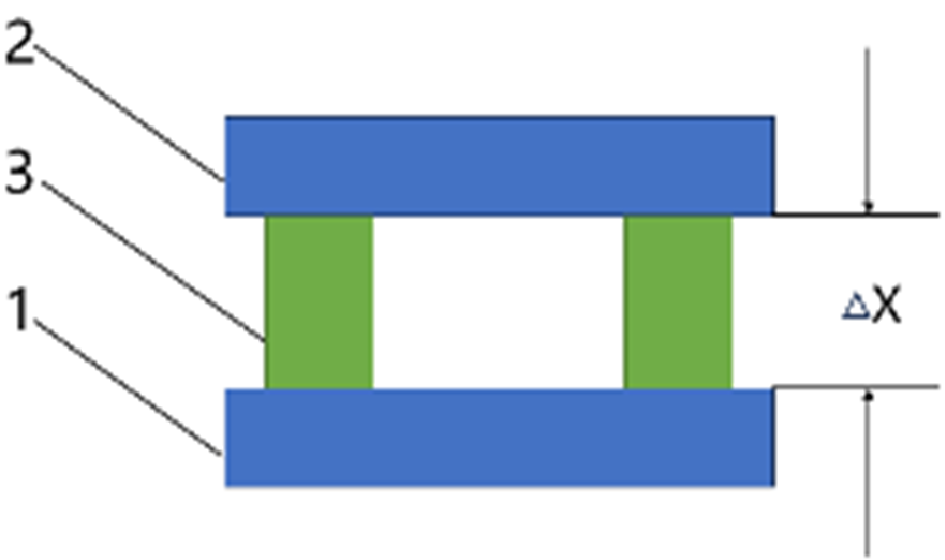

[64]	MOKHOV E N, RAMM M G, ROENKOV A D, et al. Growth of silicon carbide bulk crystals by the sublimation sandwich method. Materials Science and Engineering: B, 1997, 46(1/2/3): 317. DOI URL

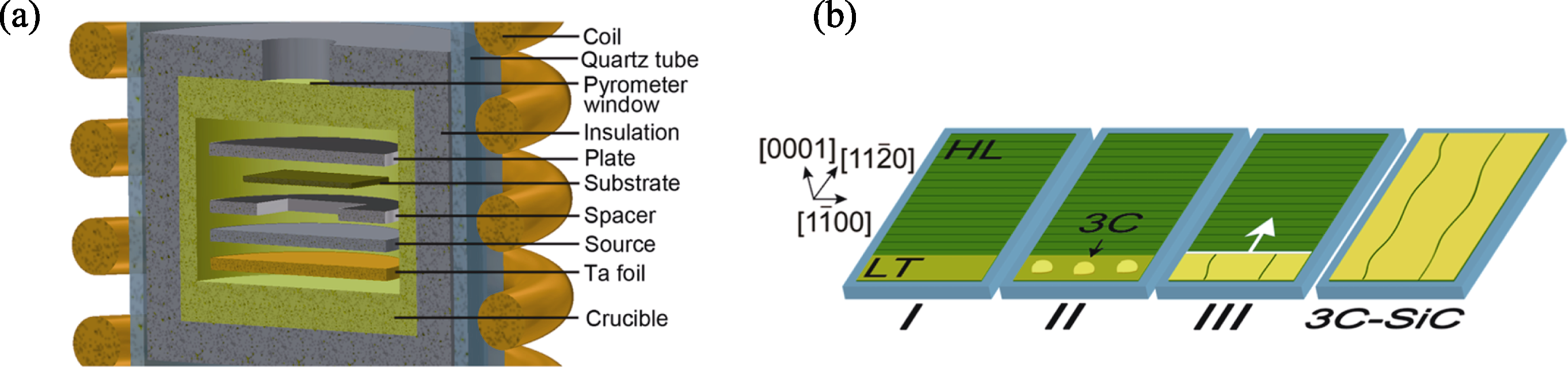

[65]	JOKUBAVICIUS V, HUANG H H, SCHIMMEL S, et al. Towards bulk-like 3C-SiC growth using low off-axis substrates. Materials Science Forum, 2013, 740/741/742: 275.

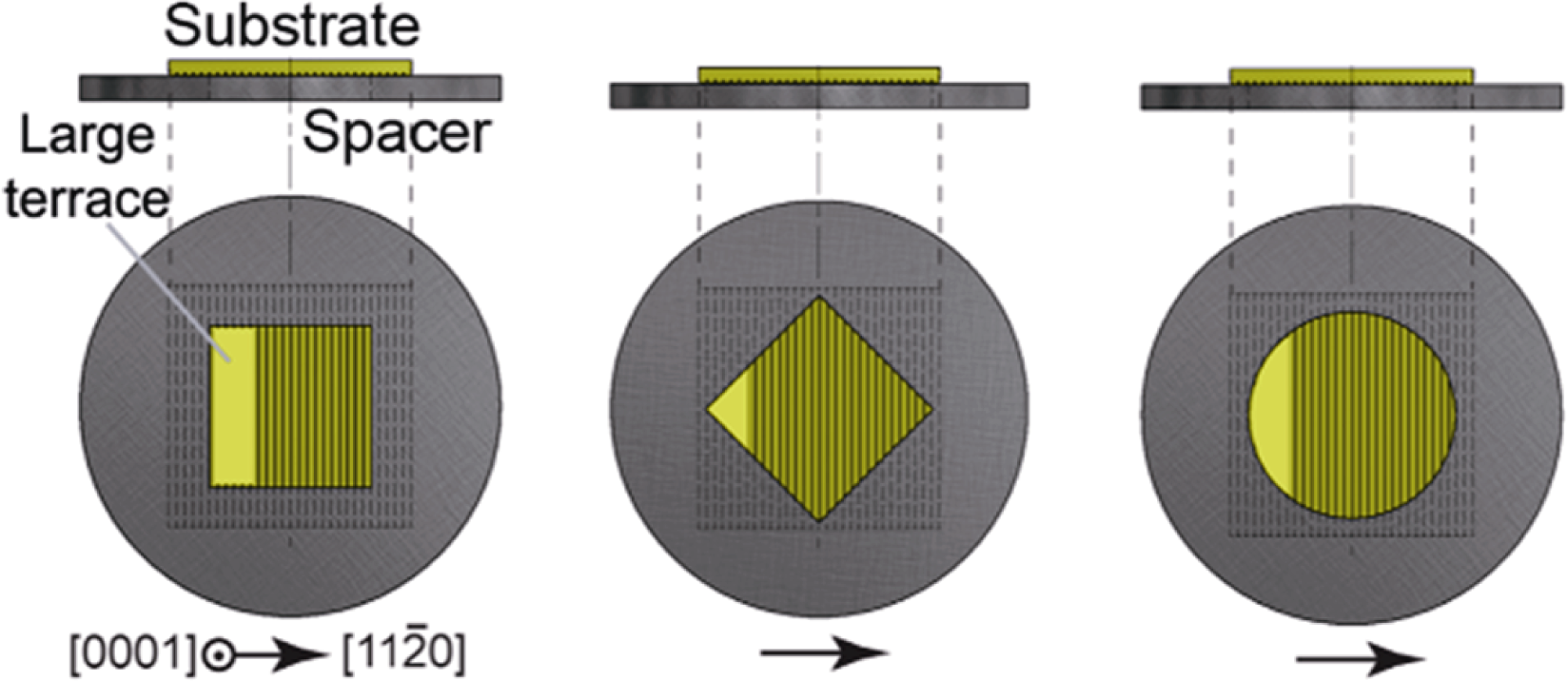

[66]	JOKUBAVICIUS V, YAZDI G R, LILJEDAHL R, et al. Lateral enlargement growth mechanism of 3C-SiC on off-oriented 4H-SiC substrates. Crystal Growth & Design, 2014, 14(12): 6514. DOI URL
[67]	JOKUBAVICIUS V, YAZDI G R, LILJEDAHL R, et al. Single domain 3C-SiC growth on off-oriented 4H-SiC substrates. Crystal Growth & Design, 2015, 15(6): 2940. DOI URL
[68]	VASILIAUSKAS R. Sublimation growth and performance of cubic silicon carbide. Linköping: Linköping University PhD Thesis, 2012.
[69]	SCHUH P, VIA F L, MAUCERI M, et al. Growth of large-area, stress-free, and bulk-like 3C-SiC (100) using 3C-SiC-on-Si in vapor phase growth. Materials, 2019, 12(13): 2179. DOI URL
[70]	HOFMANN D H, MÜLLER M H. Prospects of the use of liquid phase techniques for the growth of bulk silicon carbide crystals. Materials Science and Engineering: B, 1999, 61(62): 29.
[71]	WANG G B, LI H, SHENG D, et al. Research progress on growth of SiC single crystal via high temperature solution method. Journal of Synthetic Crystals, 2022, 51(1): 3.
[72]	GU P, LEI P, YE S, et al. Research progress on the growth of silicon carbide single crystal via top-seeded solution growth method and its key issues. Journal of Synthetic Crystals, 2024, 53(5): 741.
[73]	WANG G B, SHENG D, LI H, et al. Influence of interfacial energy on the growth of SiC single crystals from high temperature solutions. CrystEngComm, 2023, 25(4): 560. DOI URL
[74]	YOSHIKAWA T, KAWANISHI S, TANAKA T. Solution growth of silicon carbide using Fe-Si solvent. Japanese Journal of Applied Physics, 2010, 49(5R): 051302.
[75]	YAMAMOTO Y, HARADA S, SEKI K, et al. Low-dislocation- density 4H-SiC crystal growth utilizing dislocation conversion during solution method. Applied Physics Express, 2014, 7(6): 065501. DOI URL
[76]	DAIKOKU H, KADO M, SEKI A, et al. Solution growth on concave surface of 4H-SiC crystal. Crystal Growth & Design, 2016, 16(3): 1256. DOI URL
[77]	KAWANISHI S, SHIBATA H, YOSHIKAWA T. Contribution of dislocations in SiC seed crystals on the melt-back process in SiC solution growth. Materials, 2022, 15(5): 1796. DOI URL
[78]	MERCIER F, KIM-HAK O, LORENZZI J, et al. Is the liquid phase a viable approach for bulk growth of 3C-SiC? Materials Science Forum, 2010, 645-648: 67.

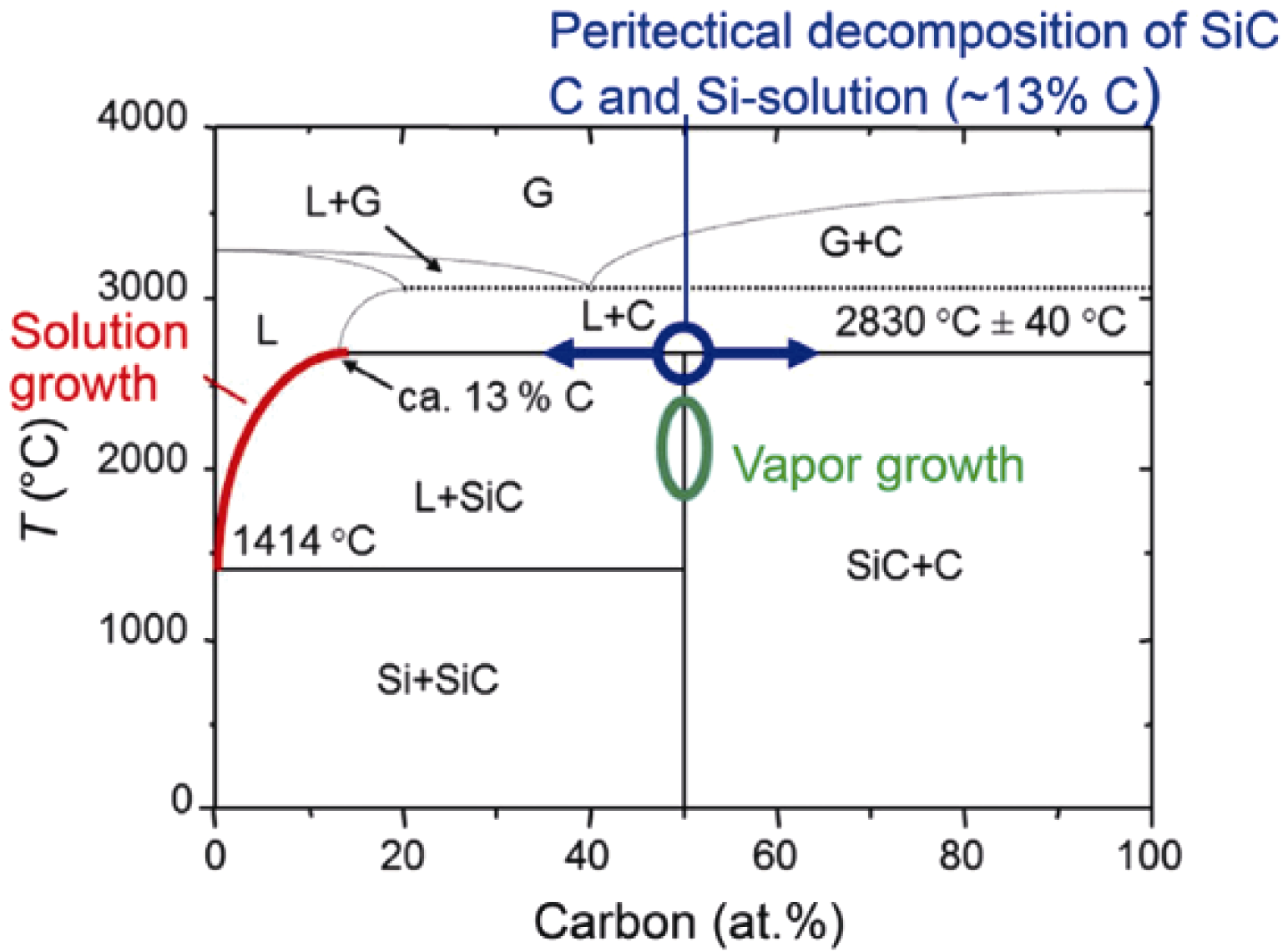

[79]	CHAUSSENDE D. Vapor phase vs. liquid phase: what is the best choice for the growth of bulk 3C-SiC crystals? AIP Conference Proceedings, 2010, 1292(1): 1.
[80]	FERRO G. Overview of 3C-SiC crystalline growth. Materials Science Forum, 2010, 645-648: 49.
[81]	WANG G B, SHENG D, YANG Y, et al. High-quality and wafer- scale cubic silicon carbide single crystals. Energy & Environmental Materials, 2024, 7(4): e12678. DOI URL
[82]	SHENG D, WANG G, YANG Y, et al. Modeling and suppressing interfacial instability in growth of SiC from high-temperature solutions. Crystal Growth & Design, 2025, 25(4): 1211. DOI URL
[83]	SCACE R I, SLACK G A. Solubility of carbon in silicon and germanium. The Journal of Chemical Physics, 1959, 30(6): 1551. DOI URL
[84]	LIANG G Q, QIAN H, SU Y L, et al. Review of solution growth techniques for 4H-SiC single crystal. China Foundry, 2023, 20(2): 159. DOI
[85]	MITANI T, KOMATSU N, TAKAHASHI T, et al. Growth rate and surface morphology of 4H-SiC crystals grown from Si-Cr-C and Si-Cr-Al-C solutions under various temperature gradient conditions. Journal of Crystal Growth, 2014, 401: 681. DOI URL
[86]	NARUMI T, KAWANISHI S, YOSHIKAWA T, et al. Thermodynamic evaluation of the C-Cr-Si, C-Ti-Si, and C-Fe-Si systems for rapid solution growth of SiC. Journal of Crystal Growth, 2014, 408: 25. DOI URL
[87]	MITANI T, KOMATSU N, TAKAHASHI T, et al. Effect of aluminum addition on the surface step morphology of 4H-SiC grown from Si-Cr-C solution. Journal of Crystal Growth, 2015, 423: 45. DOI URL

Property	Si	3C-SiC	4H-SiC	6H-SiC	Ref.

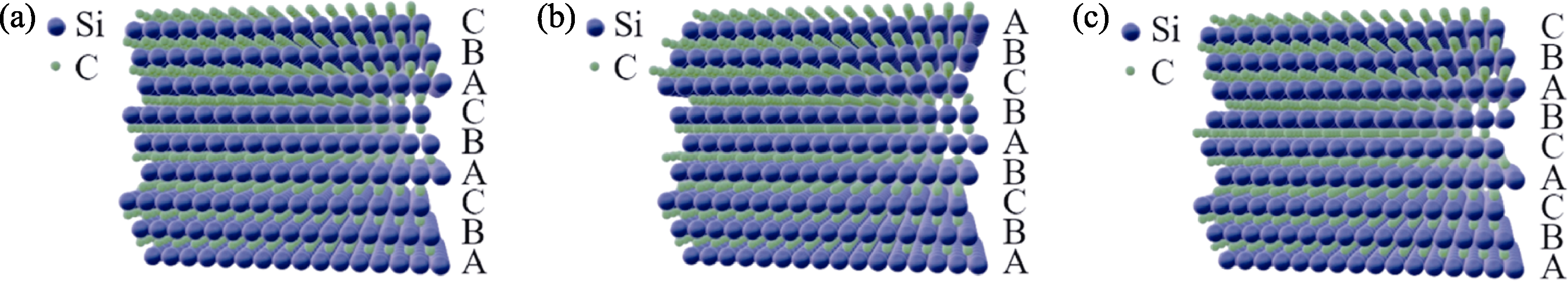

Stacking sequence	—	ABC	ABCB	ABCACB	[2]
Crystal structure	Diamond structure	Zinc blende structure	Wurtzite structure	Wurtzite structure	[7]
Bandgap/eV	1.12	2.36	3.26	3.02	[2]
Lattice constant, a/nm	0.54310	0.43596	0.30798	0.30805	[2]
Lattice constant, c/nm	0.54310	0.43596	1.00820	1.51151	[2]
Density/(g·cm^-3)	2.329	3.166	3.211	3.211	[2]
Melting point, T_m/K	1685	3103	3103	3103	[8]
Electrical resistivity (n-type)/(Ω·cm)	0.4-1.6	≤0.0006	0.015-0.025	0.015-0.025	[9-10]
Electron mobility/(cm²·V^-1·s^-1)	1450	1000	800 (//C axis) 1000 (⊥C axis)	450 (//C axis) 200 (⊥C axis)	[2]
Hole mobility/(cm²·V^-1·s^-1)	500	100	120	100	[2]
Electron saturated drift velocity/ (cm·s^-1)	1×10⁷	2×10⁷	2.2×10⁷	1.9×10⁷	[2]
Hole saturated drift velocity/(cm·s^-1)	—	1.3×10⁷	1.3×10⁷	1.3×10⁷	[2]
Relative dielectric constant	11.9	9.72 (//C axis) 9.72 (⊥C axis)	10.32 (//C axis) 9.76 (⊥C axis)	10.03 (//C axis) 9.66 (⊥C axis)	[2]
Thermal conductivity/(W·cm^-1·K^-1)	1.56	3.3-4.9	3.3-4.9	3.3-4.9	[2]
Coefficient of thermal expansion, α/ (×10^-6, K^-1)	2.59	3.8	4.7 (//C axis) 4.3 (⊥C axis)	4.7 (//C axis) 4.3 (⊥C axis)	[8]
Young modulus/GPa	130-188	310-550	390-690	390-690	[2]
Poisson’s ratio	0.064-0.28	0.24	0.21	0.21	[2]

Property	Si	3C-SiC	4H-SiC	6H-SiC	Ref.
Stacking sequence	—	ABC	ABCB	ABCACB	[2]
Crystal structure	Diamond structure	Zinc blende structure	Wurtzite structure	Wurtzite structure	[7]
Bandgap/eV	1.12	2.36	3.26	3.02	[2]
Lattice constant, a/nm	0.54310	0.43596	0.30798	0.30805	[2]
Lattice constant, c/nm	0.54310	0.43596	1.00820	1.51151	[2]
Density/(g·cm^-3)	2.329	3.166	3.211	3.211	[2]
Melting point, T_m/K	1685	3103	3103	3103	[8]
Electrical resistivity (n-type)/(Ω·cm)	0.4-1.6	≤0.0006	0.015-0.025	0.015-0.025	[9-10]
Electron mobility/(cm²·V^-1·s^-1)	1450	1000	800 (//C axis) 1000 (⊥C axis)	450 (//C axis) 200 (⊥C axis)	[2]
Hole mobility/(cm²·V^-1·s^-1)	500	100	120	100	[2]
Electron saturated drift velocity/ (cm·s^-1)	1×10⁷	2×10⁷	2.2×10⁷	1.9×10⁷	[2]
Hole saturated drift velocity/(cm·s^-1)	—	1.3×10⁷	1.3×10⁷	1.3×10⁷	[2]
Relative dielectric constant	11.9	9.72 (//C axis) 9.72 (⊥C axis)	10.32 (//C axis) 9.76 (⊥C axis)	10.03 (//C axis) 9.66 (⊥C axis)	[2]
Thermal conductivity/(W·cm^-1·K^-1)	1.56	3.3-4.9	3.3-4.9	3.3-4.9	[2]
Coefficient of thermal expansion, α/ (×10^-6, K^-1)	2.59	3.8	4.7 (//C axis) 4.3 (⊥C axis)	4.7 (//C axis) 4.3 (⊥C axis)	[8]
Young modulus/GPa	130-188	310-550	390-690	390-690	[2]
Poisson’s ratio	0.064-0.28	0.24	0.21	0.21	[2]

Method	Year	Institution	Size	Thickness	Growth rate/ (μm·h^-1)	Innovation point	Quality	Ref.

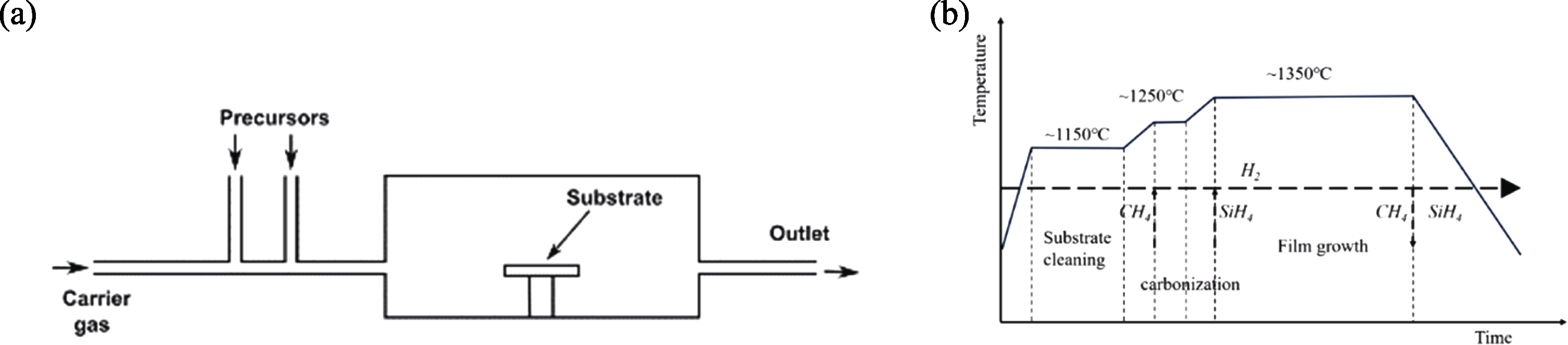

CVD	1983	Kyoto University	~5 cm²	34 μm	2.5	Two-step growing process	No other crystal type	[41]

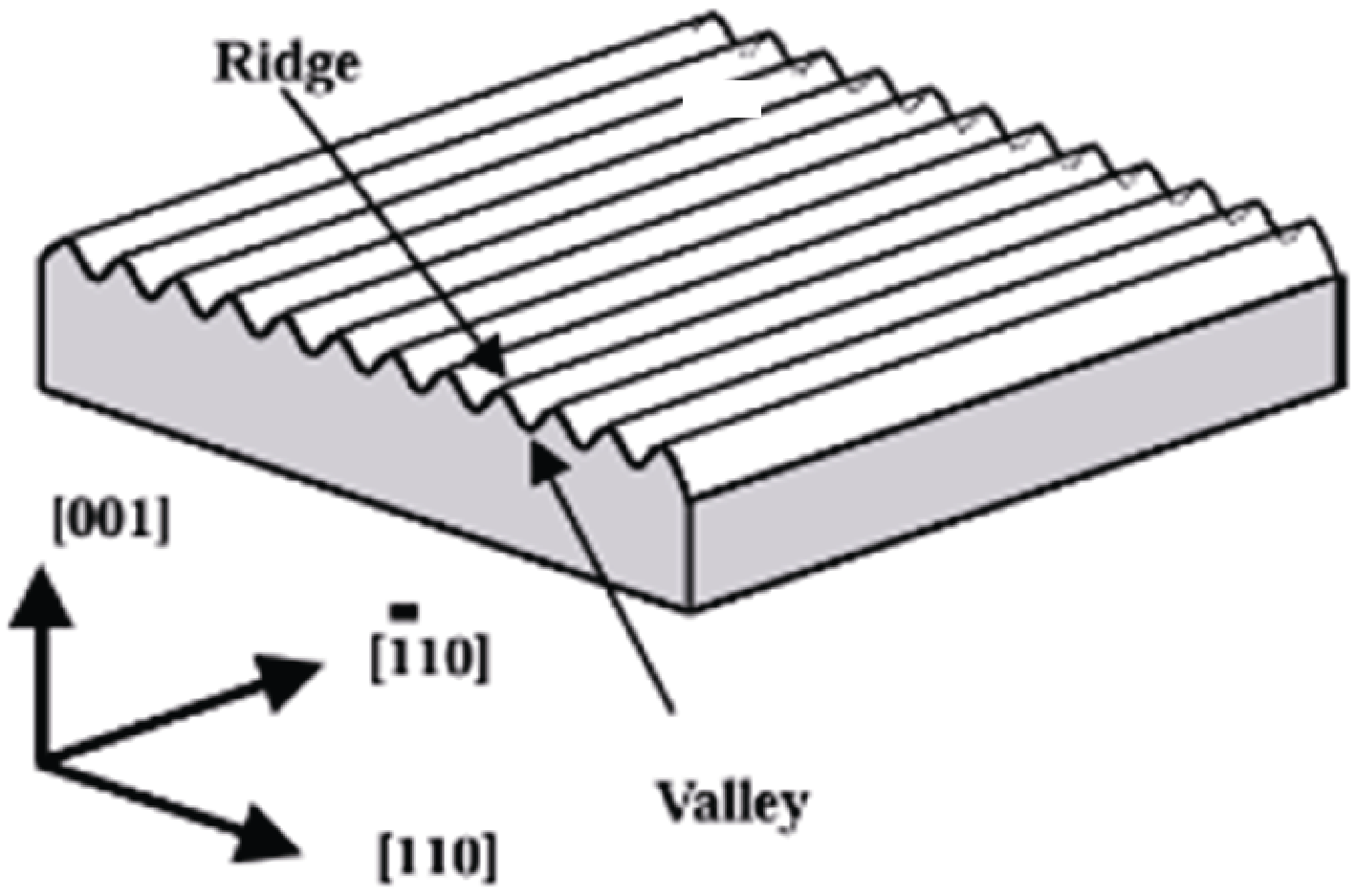

	2002-2004	HOYA Company	10 cm²	200 μm	40	Wavy Si substrate	Eliminate planar defects APBs	[43-46]
	2009-2010	CNR-IMM	φ6 inch	7 μm	6.5	Si(111) surfaces are used	Surface and interface are flat with SF as low as 104 cm^-1	[47-48]
	2017-2023	Wuhan University	1.5 cm²	10 μm	30	LCVD	The twin defect density is low and the crystal quality is excellent	[37, 49-51]
CF-PVT	2005-2006	Ecole Polytechnique de Grebnol	φ3 cm	400 μm	68	3C-SiC crystal without BPD	A lot of twins, layer fault	[60-61]
SE	2013-2015	Linköping University	0.49 cm²	1 mm	600	Grow on 4H-SiC	FWHM ranges from 26 to 56 arcsec	[65-67]
SE	2019	FAU University of Erlangen-Nuremberg	φ2 inch	320-520 μm	190-320	Grow directly on the 3C-SiC seed	FWHM ranges from 138 to 140 arcsec	[19, 69]
TSSG	2010	French National Institute of Scientific Research	—	500 μm	23	Grow directly on the 3C-SiC seed	SFs and dislocation densities up to 108 cm^-2	[78-79]

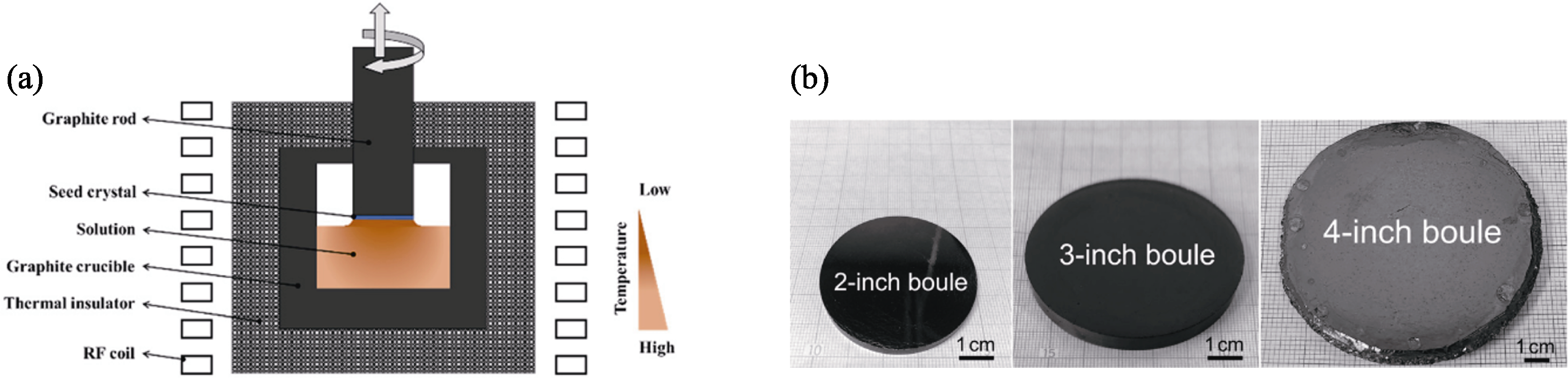

TSSG	2024	Institute of Physics, Chinese Academy of Sciences	φ2-4 inch	4-10 mm	50-113	Using 4H-SiC as the seed, N₂ is blown in	FWHM is 30 arcsec and surface defect density is 92.2 cm^-1	[81]

Method	Year	Institution	Size	Thickness	Growth rate/ (μm·h^-1)	Innovation point	Quality	Ref.
CVD	1983	Kyoto University	~5 cm²	34 μm	2.5	Two-step growing process	No other crystal type	[41]
	2002-2004	HOYA Company	10 cm²	200 μm	40	Wavy Si substrate	Eliminate planar defects APBs	[43-46]
	2009-2010	CNR-IMM	φ6 inch	7 μm	6.5	Si(111) surfaces are used	Surface and interface are flat with SF as low as 104 cm^-1	[47-48]
	2017-2023	Wuhan University	1.5 cm²	10 μm	30	LCVD	The twin defect density is low and the crystal quality is excellent	[37, 49-51]
CF-PVT	2005-2006	Ecole Polytechnique de Grebnol	φ3 cm	400 μm	68	3C-SiC crystal without BPD	A lot of twins, layer fault	[60-61]
SE	2013-2015	Linköping University	0.49 cm²	1 mm	600	Grow on 4H-SiC	FWHM ranges from 26 to 56 arcsec	[65-67]
SE	2019	FAU University of Erlangen-Nuremberg	φ2 inch	320-520 μm	190-320	Grow directly on the 3C-SiC seed	FWHM ranges from 138 to 140 arcsec	[19, 69]
TSSG	2010	French National Institute of Scientific Research	—	500 μm	23	Grow directly on the 3C-SiC seed	SFs and dislocation densities up to 108 cm^-2	[78-79]
TSSG	2024	Institute of Physics, Chinese Academy of Sciences	φ2-4 inch	4-10 mm	50-113	Using 4H-SiC as the seed, N₂ is blown in	FWHM is 30 arcsec and surface defect density is 92.2 cm^-1	[81]
