Stable Zirconium Carbide Fibers Fabricated by Centrifugal Spinning Technique

doi:10.15541/jim20200031

Journal of Inorganic Materials ›› 2020, Vol. 35 ›› Issue (12): 1385-1390.DOI: 10.15541/jim20200031

Special Issue: 结构陶瓷论文精选(2020)

• RESEARCH LETTERS • Previous Articles Next Articles

Stable Zirconium Carbide Fibers Fabricated by Centrifugal Spinning Technique

CHEN Bowen^1,^2,³(),WANG Jingxiao^1,²,JIANG Youlin^1,^2,³,ZHOU Haijun^1,²,LIAO Chunjing^1,²,ZHANG Xiangyu^1,²,KAN Yanmei^1,²,NI Dewei^1,²(), DONG Shaoming^1,3

1. State Key Laboratory of High Performance Ceramics and Super?ne Microstructure, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
2. Structural Ceramics and Composites Engineering Research Center, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
3. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2020-01-13 Published:2020-12-20 Online:2020-06-09
About author:CHEN Bowen(1994–), male, PhD candidate. E-mail: chenbowen@student.sic.ac.cn
Supported by:
The National Key Research and Development Program of China(2016YFB0700202);National Natural Science Foundation of China(51702341);Chinese Academy of Sciences Innovative Funding(CXJJ-17-M169);The Key Deployment Project of Chinese Academy of Sciences(Y71YZ7171G);“CAS Pioneer Hundred Talents Program”

Abstract

Abstract:

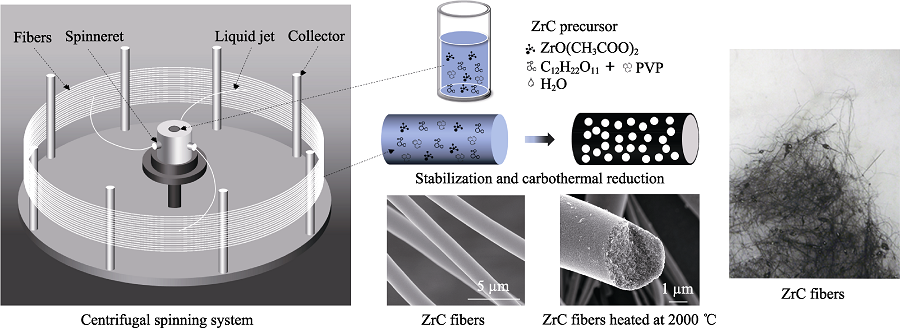

In this work, an efficient approach was presented to produce stable zirconium carbide (ZrC) fibers by centrifugal spinning technique. Zirconium acetate and sucrose were used as the zirconium source and carbon source respectively. And polyvinyl pyrrolidone (PVP) was used as the spinning aid. After pyrolysis and carbothermal reduction at 1600 ℃, the as-spun green fibers can be converted to homogeneous ZrC fibers composed of uniform nano-sized ZrC crystals. Moreover, it is revealed that the as-fabricated ZrC fibers can sustain superior microstructure stability at an ultra-high temperature up to 2000 ℃, benefiting from a limited amount of residual carbon. The reaction mechanisms and the resulted ZrC fibers were also investigated.

Key words: zirconium carbide fiber, centrifugal spinning, ultra-high temperature stability

CLC Number:

TQ174

CHEN Bowen, WANG Jingxiao, JIANG Youlin, ZHOU Haijun, LIAO Chunjing, ZHANG Xiangyu, KAN Yanmei, NI Dewei, DONG Shaoming. Stable Zirconium Carbide Fibers Fabricated by Centrifugal Spinning Technique[J]. Journal of Inorganic Materials, 2020, 35(12): 1385-1390.

Figures/Tables 6

References 16

[1]	FAHRENHOLTZ W G, HILMAS G E, TALMY I G, et al. Refractory diborides of zirconium and hafnium. J. Am. Ceram. Soc., 2007,90(5):1347-1364.
[2]	ZHANG G J, NI D W, ZOU J, et al. Inherent anisotropy in transition metal diborides and microstructure/property tailoring in ultra- high temperature ceramics—a review. J. Eur. Ceram. Soc., 2018,38(2):371-389.
[3]	CHARBONNIER F M, MACKIE W A, HARTMAN R L, et al. Robust high current field emitter tips and arrays for vacuum microelectronics devices. J. Vac. Sci. Technol, B: Microelectron. Nanometer. Struct., 2001,19(3):1064-1072.
[4]	COCKERAM B V, MEASURES D P, MUELLER A J. The development and testing of emissivity enhancement coatings for themophotovoltaic (TPV) radiator applications. Thin Solid Films, 1999,355(1):17-25.
[5]	SHEATS J R, MACKIE W A, ANZ S, et al. Polymer electroluminescent devices with zirconium carbide cathodes. Pro. SPIE - Int. Soc. Opt. Eng., 1997,3148:219-227.
[6]	LI F, KANG Z, HUANG X, et al. Fabrication of zirconium carbide nanofibers by electrospinning. Ceram. Int., 2014,40(7):10137-10141. DOI URL
[7]	KUROKAWA Y, OTA H, SATO T. Preparation of carbide fibres by thermal decomposition of cellulose-metal (Ti, Zr) alkoxide gel fibres. J. Mate. Sci. Lett., 1994,13(7):516-518.
[8]	CUI X M, NAM Y S, LEE J Y, et al. Fabrication of zirconium carbide (ZrC) ultra-thin fibers by electrospinning. Mater. Lett., 2008,62(12/13):1961-1964. DOI URL
[9]	NAM Y S, CUI X M, JEONG L, et al. Fabrication and characterization of zirconium carbide (ZrC) nanofibers with thermal storage property. Thin Solid Films, 2009,517(24):6531-6538.
[10]	FIRBAS P, SEEBER A, CHENG Y B. Creation of titanium and zirconium carbide fibers with the forcespinning technique. Int. J. App. Ceram. Technol., 2016,13(4):619-628.
[11]	SHE J, ZHAN Y, PANG M, et al. In situ synthesized (ZrB₂+ZrC) hybrid short fibers reinforced Zr matrix composites for nuclear applications. Int. J. Refract. Met. Hard Mater., 2011,29(3):401-404.
[12]	LIU H Y, HOU X Q, WANG X Q, et al. Fabrication of high-strength continuous zirconia fibers and their formation mechanism study. J. Am. Ceram. Soc., 2004,87(12):2237-2241.
[13]	TAO X, QIU W, LI H, et al. Synthesis of nanosized zirconium carbide from preceramic polymers by the facile one-pot reaction. Polym. Adv. Technol., 2010,21(4):300-304.
[14]	DONG Z, ZHANG X, HUANG Q, et al. Synthesis and pyrolysis behavior of a soluble polymer precursor for ultra-fine zirconium carbide powders. Ceram. Int., 2015,41(6):7359-7365.
[15]	LI F, LIANG M, MA X F, et al. Preparation and characterization of stoichiometric zirconium carbide foams by direct foaming of zirconia sols. J. Porous Mater., 2015,22(2):493-500.
[16]	WANG J X, NI D W, DONG S M, et al. Synthesis of nanocrystallized zirconium carbide based on an aqueous solution-derived precursor. RSC Adv., 2017,37(7):22722-22727.
