Cordierite/Aluminum Borate Whiskers/Co0.8FexCe0.2-xCr2O4 Catalysts: Preparation and Filtration Catalytic Performance for Carbon Soot

doi:10.15541/jim20250250

Abstract

Abstract:

With increasingly strict regulations on exhaust emissions, the higher requirements have been built for filtration of diesel particulate filter (DPF) because traditional DPF cannot meet the demand for precise filtration of nanoparticles in exhaust. In this study, a series of Co_0.8Fe_xCe_0.2-_xCr₂O₄ spinel-type catalysts were loaded on aluminum borate whiskers by hexadecyl dimethyl ammonium bromide (CTAB)-assisted co-precipitation method. The unique hierarchical microstructure design of “whisker enhanced filter-bimetallic doping catalytic oxidation” achieves a combination of efficient filtration performance and low-temperature catalytic performance, enabling catalytic oxidation of carbon soot particles at lower temperatures. Fe and Ce co-doping produces significant synergistic effects, increasing concentrations of oxygen species (oxygen vacancies), Co³⁺ and Cr⁶⁺ on the catalyst surface and enhancing reaction activity. Temperature of carbon soot particles at 50% conversion (T₅₀=446 ℃) is significantly lower than that of the blank cordierite sample (T₅₀=567 ℃). Five cyclic stability tests show that the catalysts have good stability and CO₂ selectivity (86%-94%). In conclusion, this unique hierarchical microstructure exhibits a unity of efficient particle filtration and low temperature catalytic combustion performance, with potential application in the field of DPF.

Key words: soot particle, cordierite, aluminum borate whisker, catalytic oxidation, filtration

CLC Number:

TQ174

ZHANG Mengjie, LI Zhibo, HUANG Ruinan, LÜ Xiangfei, WANG Wei. Cordierite/Aluminum Borate Whiskers/Co_0.8Fe_xCe_0.2-_xCr₂O₄ Catalysts: Preparation and Filtration Catalytic Performance for Carbon Soot[J]. Journal of Inorganic Materials, 2026, 41(4): 509-518.

Figures/Tables 23

References 34

[1]	KO A, KIM J, CHOI K, et al. Experimental study of particle emission characteristics of a heavy-duty diesel engine and effects of after-treatment systems: selective catalytic reduction, diesel particulate filter, and diesel particulate and NO_x reduction. Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, 2012, 226(12): 1689.
[2]	ZHANG S H, FU M L, ZHANG H F, et al. Emission control status and future perspectives of diesel trucks in China. Journal of Environmental Sciences, 2025, 148: 702. DOI PMID
[3]	CHUNG I C, AN Y K, PARK J, et al. Analysis of engine efficiency of diesel vehicle in transient operating conditions. International Journal of Automotive Technology, 2021, 22(4): 941. DOI
[4]	LI X D, XUE C F, GENG J W, et al. Study on regenerative exothermic process in ash containing DPF structure based on lattice Boltzmann method. Case Studies in Thermal Engineering, 2024, 55: 104105. DOI URL
[5]	THIERINGER J R D, HAFEN N, MEYER J, et al. Investigation of the rearrangement of reactive-inert particulate structures in a single channel of a wall-flow filter. Separations, 2022, 9(8): 195. DOI URL
[6]	YAMAMOTO K, NAKAMURA M, YANE H, et al. Simulation on catalytic reaction in diesel particulate filter. Catalysis Today, 2010, 153(3/4): 118. DOI URL
[7]	NIE W M, MEI X Y, XIE W P, et al. Electricity-driven rapid regeneration of ceramic paper-based soot filters with conductive potassium-supported antimony-doped tin oxide catalyst. Chemical Engineering Journal, 2024, 494: 152967. DOI URL
[8]	ZHANG C L, GAO S Y, ZHOU S R, et al. New method for the preparation of hierarchical nanotube K_0.3_xMn_xCe_1-_xO_δ catalysts and their excellent catalytic performance for soot combustion. Applied Catalysis B: Environment and Energy, 2024, 355: 124169. DOI URL
[9]	JAMPAIAH D, VELISOJU V K, DEVAIAH D, et al. Flower-like Mn₃O₄/CeO₂ microspheres as an efficient catalyst for diesel soot and CO oxidation: synergistic effects for enhanced catalytic performance. Applied Surface Science, 2019, 473: 209. DOI URL
[10]	XU K, ZHANG Y, SHAN W P, et al. Promotional effects of Sm/Ce/La doping on soot oxidation over MnCo₂O₄ spinel catalysts. The Journal of Physical Chemistry C, 2021, 125(48): 26484. DOI URL
[11]	ZHAO H, ZHOU X X, PAN L Y, et al. Facile synthesis of spinel Cu_1.5Mn_1.5O₄ microspheres with high activity for the catalytic combustion of diesel soot. RSC Advances, 2017, 7(33): 20451. DOI URL
[12]	杨华, 杨幸川, 徐丽, 等. 不同A位取代Co基尖晶石纳米线阵列的合成及其催化碳烟消除的研究. 现代化工, 2023, 43(3): 98. DOI
[13]	杨华. 泡沫镍基底上钴基尖晶石型整体式碳烟催化剂的研究. 郑州: 郑州大学硕士学位论文, 2022.
[14]	宗鑫, 李新令. NO₂-O₂氛围下碳黑颗粒氧化特性研究. 小型内燃机与车辆技术, 2018, 47(5): 1.
[15]	ATRIBAK I, BUENO-LÓPEZ A, GARCÍA-GARCÍA A. Uncatalysed and catalysed soot combustion under NO_x + O₂: real diesel versus model soots. Combustion and Flame, 2010, 157(11): 2086. DOI URL
[16]	舒荣禄. 氧化铈催化剂的掺杂改性及其对碳烟颗粒催化氧化的研究. 西安: 长安大学硕士学位论文, 2023.
[17]	ANANDHA KUMAR S, SHAHANAS T, HARICHANDRAN G. Morphologically controlled preparation of CoCr₂O₄ nanomaterials for high-performance asymmetric supercapacitor application. Journal of Energy Storage, 2024, 77: 110011. DOI URL
[18]	BAI Y T, WANG S, ZONG X P, et al. Insights into the effect of Cu and Fe dispersion state over Ce_0.1Al on the catalytic performance of NO reduction by CO. Journal of Environmental Chemical Engineering, 2023, 11(5): 110460. DOI URL
[19]	XIAN G, ZHANG N, ZHANG G M, et al. FeNiCeO_x ternary catalyst prepared by ultrasonic impregnation method for diclofenac removal in Fenton-like system. Water Science and Technology, 2019, 79(9): 1675. DOI URL
[20]	OUYANG R M, XU J W, ZHOU J Q, et al. Defect BaSnO₃ perovskites for oxidative dehydrogenation of ethane. Fuel, 2025, 384: 134022. DOI URL
[21]	ZHANG S, LIU S J, ZHU X C, et al. Low temperature catalytic oxidation of propane over cobalt-cerium spinel oxides catalysts. Applied Surface Science, 2019, 479: 1132. DOI URL
[22]	HE J S, YAO P, QIU J, et al. Enhancement effect of oxygen mobility over Ce_0.5Zr_0.5O₂ catalysts doped by multivalent metal oxides for soot combustion. Fuel, 2021, 286: 119359. DOI URL
[23]	HOSSEINI S A, ALVAREZ-GALVAN M C, FIERRO J L G, et al. MCr₂O₄ (M=Co, Cu, and Zn) nanospinels for 2-propanol combustion: correlation of structural properties with catalytic performance and stability. Ceramics International, 2013, 39(8): 9253. DOI URL
[24]	ZHANG M J, WANG Y, YU M, et al. Preparation of aluminum borate whiskers/Co_xCr_3-_xO₄ catalysts on channel surface of cordierite honeycomb ceramic for soot catalytic combustion. International Journal of Applied Ceramic Technology, 2025, 22(3): e14994.
[25]	XU L F, LI Y N, ZHANG P, et al. Preparation and characterization of bimetallic Ni-Ir/C catalysts for HI decomposition in the thermochemical water-splitting iodine-sulfur process for hydrogen production. International Journal of Hydrogen Energy, 2019, 44(45): 24360. DOI URL
[26]	BHOSALE S R, BHOSALE R R, PATIL V L, et al. Superior antibacterial performance of surfactant-assisted ZnO nanoflakes produced via co-precipitation method. Chemical Physics Letters, 2024, 846: 141318. DOI URL
[27]	GAO Y B, TENG S C, WANG Z P, et al. Enhanced catalytic performance of cobalt and iron Co-doped ceria catalysts for soot combustion. Journal of Materials Science, 2020, 55(1): 283. DOI
[28]	YUE J L, XIONG F, SHADIKE Z, et al. A layer-structured high entropy oxide with highly reversible Fe³⁺/Fe⁴⁺ redox as advanced cathode material for sodium ion batteries. Journal of Power Sources, 2025, 627: 235735. DOI URL
[29]	MALYUKIN Y, KLOCHKOV V, MAKSIMCHUK P, et al. Oscillations of cerium oxidation state driven by oxygen diffusion in colloidal nanoceria (CeO_2-_x). Nanoscale Research Letters, 2017, 12(1): 566. DOI URL
[30]	LUO X, HONG Y, ZHANG H L, et al. Highly efficient steam reforming of ethanol (SRE) over CeO_x grown on the nano Ni_xMg_yO matrix: H₂ production under a high GHSV condition. International Journal of Energy Research, 2019, 43(8): 3823. DOI URL
[31]	TAN T, CHEN Y S, WANG Y Y, et al. Insight into the effects of the CO₂/H₂O activation and Ce redox cycle over Ni/CeO₂/ hydrotalcite catalyst surface on biogas Bi-reforming for methanol friendly syngas. Energy, 2024, 313: 133954. DOI URL
[32]	LIU J, JIA Y Z, HAN C, et al. Effect of oxygen vacancy on the performance of Ce-promoted CuZn catalysts for ethanol synthesis from syngas. International Journal of Hydrogen Energy, 2024, 92: 1059. DOI URL
[33]	ZHANG J R, YANG T L, RAO Q, et al. Enhancement of Fe/Ce oxygen carrier performance in chemical looping dry reforming of methane. Fuel, 2024, 366: 131344. DOI URL
[34]	XIAO J Y, ZHANG C, WANG Y L, et al. Homogeneously Co/Ce Co-doped amorphous MnO_x microspheres with abundant oxygen vacancy for catalytic combustion of propane. Fuel, 2025, 382: 133631. DOI URL

Sample	Calcination temperature/℃	Holding time/h
A900-3	900	3
A1000-3	1000	3
A1050-3	1050	3
A1100-3	1100	3
A1200-3	1200	3
A1050-1	1050	1
A1050-2	1050	2
A1050-4	1050	4

Sample	Calcination temperature/℃	Holding time/h
A900-3	900	3
A1000-3	1000	3
A1050-3	1050	3
A1100-3	1100	3
A1200-3	1200	3
A1050-1	1050	1
A1050-2	1050	2
A1050-4	1050	4

Sample	L_mean/μm	D_mean/μm	L_mean/D_mean
A900-3	8.69	0.66	13.17
A1000-3	37.86	1.93	19.62
A1050-3	48.42	0.71	68.20
A1100-3	42.79	1.64	26.09
A1050-1	15.70	0.62	25.32
A1050-2	36.33	1.36	26.71
A1050-4	53.49	2.07	25.84

Sample	L_mean/μm	D_mean/μm	L_mean/D_mean
A900-3	8.69	0.66	13.17
A1000-3	37.86	1.93	19.62
A1050-3	48.42	0.71	68.20
A1100-3	42.79	1.64	26.09
A1050-1	15.70	0.62	25.32
A1050-2	36.33	1.36	26.71
A1050-4	53.49	2.07	25.84

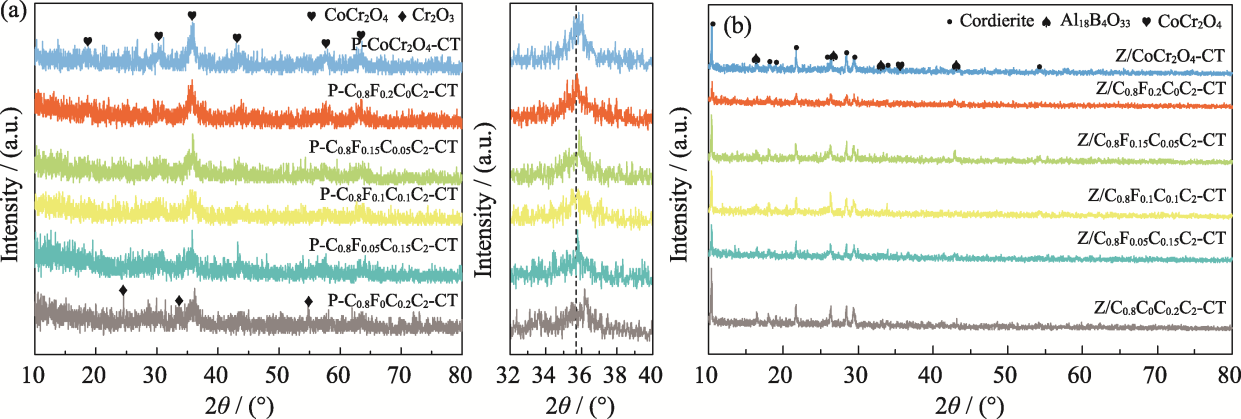

Sample	2θ/(°)	FWHM/(°)	D/nm	d/nm	a
P-CoCr₂O₄-CT	35.7881	0.8329	9.9079	0.2506	0.8312
P-C_0.8F_0.2C₀C₂-CT	35.7934	1.0052	8.2100	0.2506	0.8310
P-C_0.8F_0.15C_0.05C₂-CT	35.8655	1.2531	6.5869	0.2500	0.8294
P-C_0.8F_0.1C_0.1C₂-CT	35.8792	1.4346	5.7536	0.2500	0.8291
P-C_0.8F_0.05C_0.15C₂-CT	35.8928	1.4480	5.7009	0.2499	0.8288
P-C_0.8F₀C_0.2C₂-CT	35.9450	1.2704	6.4985	0.2496	0.8277

Cordierite/Aluminum Borate Whiskers/Co_0.8Fe_xCe_0.2-_xCr₂O₄ Catalysts: Preparation and Filtration Catalytic Performance for Carbon Soot

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 23

References 34

Related Articles 15

Recommended Articles

Metrics

Comments

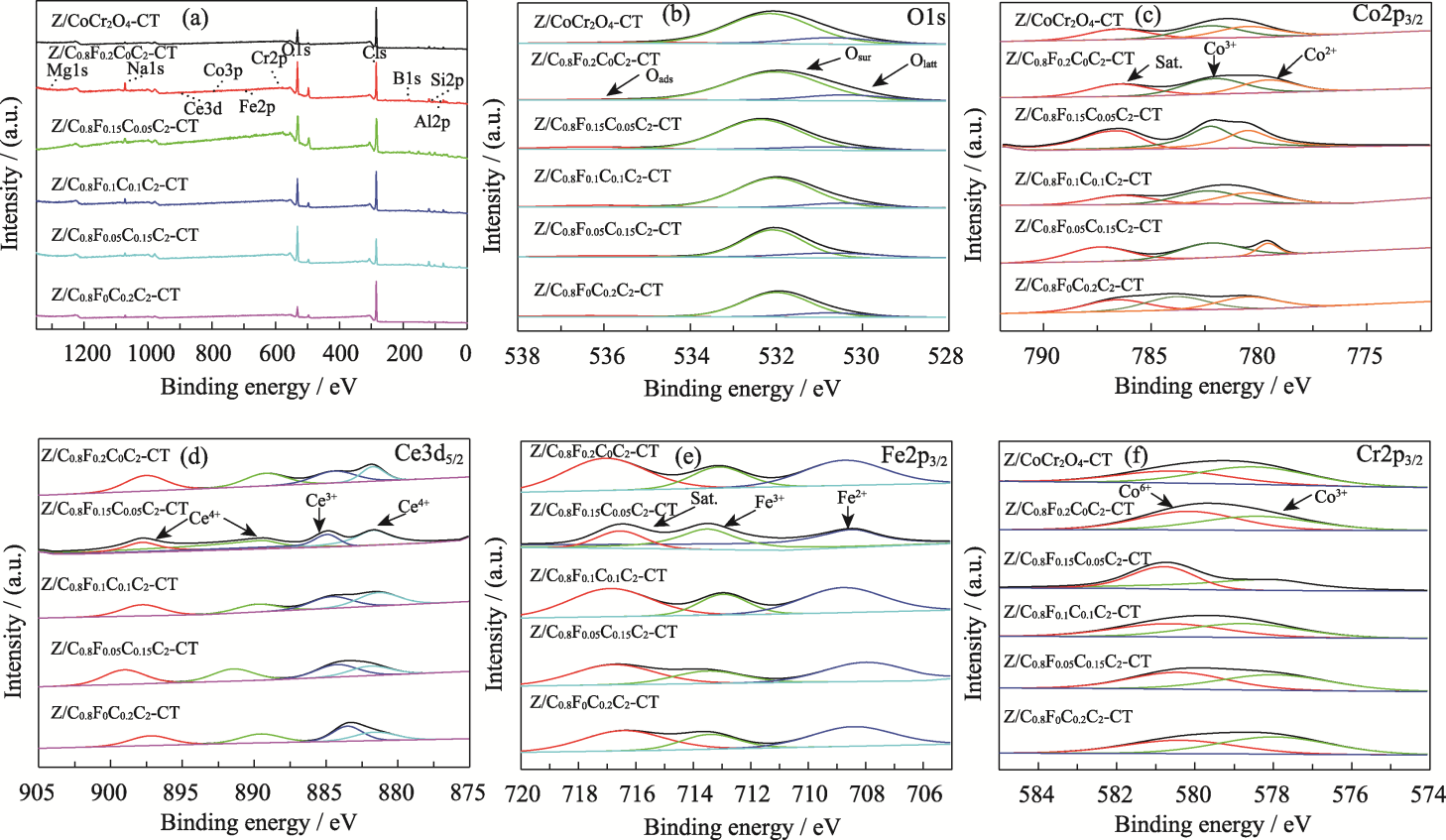

Sample	Relative atomic ratio
Sample	O_sur/O	Co³⁺/Co	Fe³⁺/Fe	Ce⁴⁺/Ce	Cr⁶⁺/Cr
Z/CoCr₂O₄-CT	0.78	0.53	/	/	0.41
Z/C_0.8F_0.2C₀C₂-CT	0.81	0.55	0.36	0.75	0.50
Z/C_0.8F_0.15C_0.05C₂-CT	0.82	0.56	0.36	0.77	0.50
Z/C_0.8F_0.1C_0.1C₂-CT	0.80	0.54	0.33	0.73	0.49
Z/C_0.8F_0.05C_0.15C₂-CT	0.81	0.55	0.35	0.74	0.49
Z/C_0.8F₀C_0.2C₂-CT	0.79	0.53	0.34	0.72	0.44

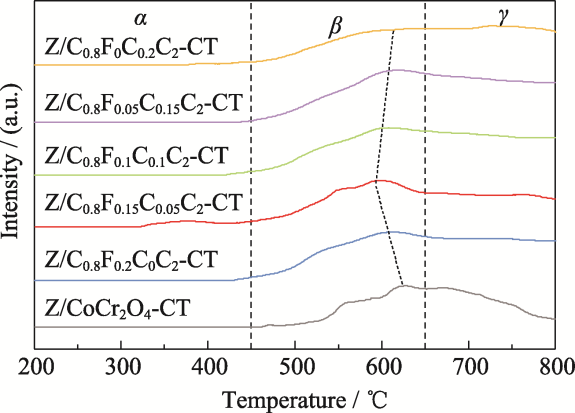

Sample	Amount of carbon dioxide formed/(a.u.)
Z/CoCr₂O₄-CT	85.312
Z/C_0.8F_0.2C₀C₂-CT	141.973
Z/C_0.8F_0.15C_0.05C₂-CT	145.109
Z/C_0.8F_0.1C_0.1C₂-CT	137.191
Z/C_0.8F_0.05C_0.15C₂-CT	138.278
Z/C_0.8F₀C_0.2C₂-CT	107.788

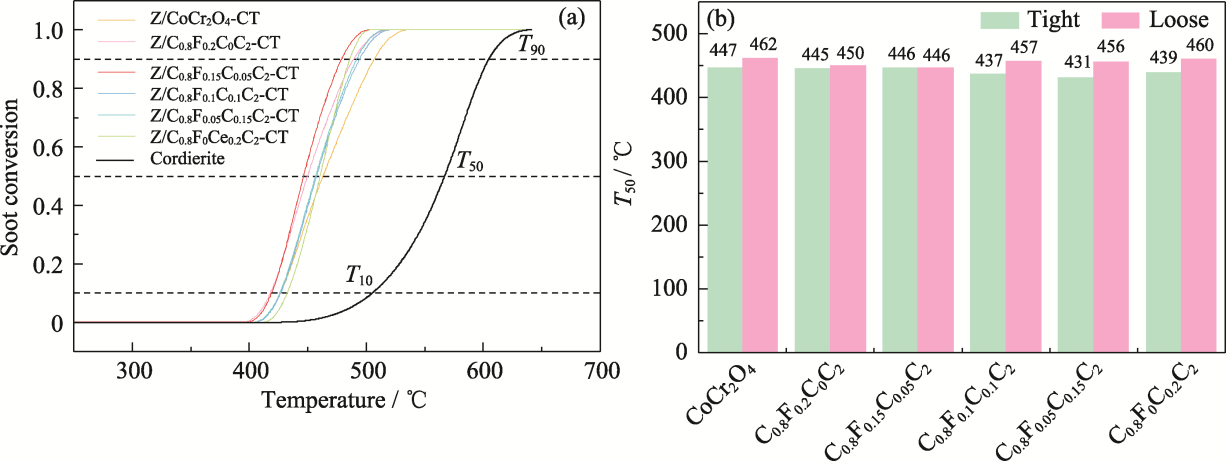

Sample	T₁₀/℃	T₅₀/℃	T₉₀/℃
Cordierite	505	567	605
Z/CoCr₂O₄-CT	426	462	506
Z/C_0.8F_0.2C₀C₂-CT	418	450	489
Z/C_0.8F_0.15C_0.05C₂-CT	418	446	478
Z/C_0.8F_0.1C_0.1C₂-CT	426	457	494
Z/C_0.8F_0.05C_0.15C₂-CT	426	456	491
Z/C_0.8F₀C_0.2C₂-CT	432	460	486

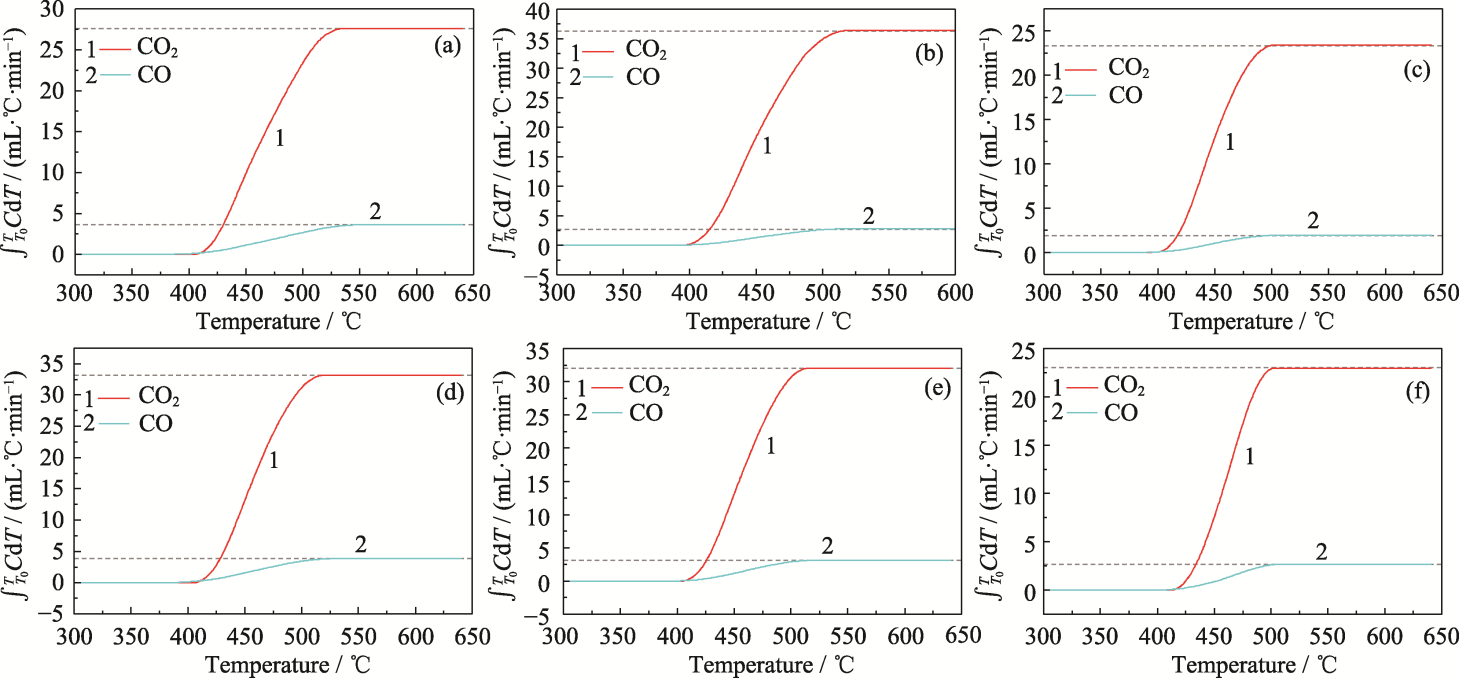

Sample	${\displaystyle {\int }_{{T}_{0}}^{T}{C}_{{\text{CO}}_{\text{2}}}\text{d}T}$/mL	${\displaystyle {\int }_{{T}_{0}}^{T}{C}_{\text{CO}}\text{d}T}$/mL	${S}_{{\text{CO}}_{\text{2}}}$
Z/CoCr₂O₄-CT	27.6	3.6	88.5%
Z/C_0.8F_0.2C₀C₂-CT	36.4	2.8	92.9%
Z/C_0.8F_0.15C_0.05C₂-CT	23.4	1.9	92.5%
Z/C_0.8F_0.1C_0.1C₂-CT	33.2	3.9	89.5%
Z/C_0.8F_0.05C_0.15C₂-CT	32.0	3.1	91.2%
Z/C_0.8F₀C_0.2C₂-CT	23.0	2.6	89.8%

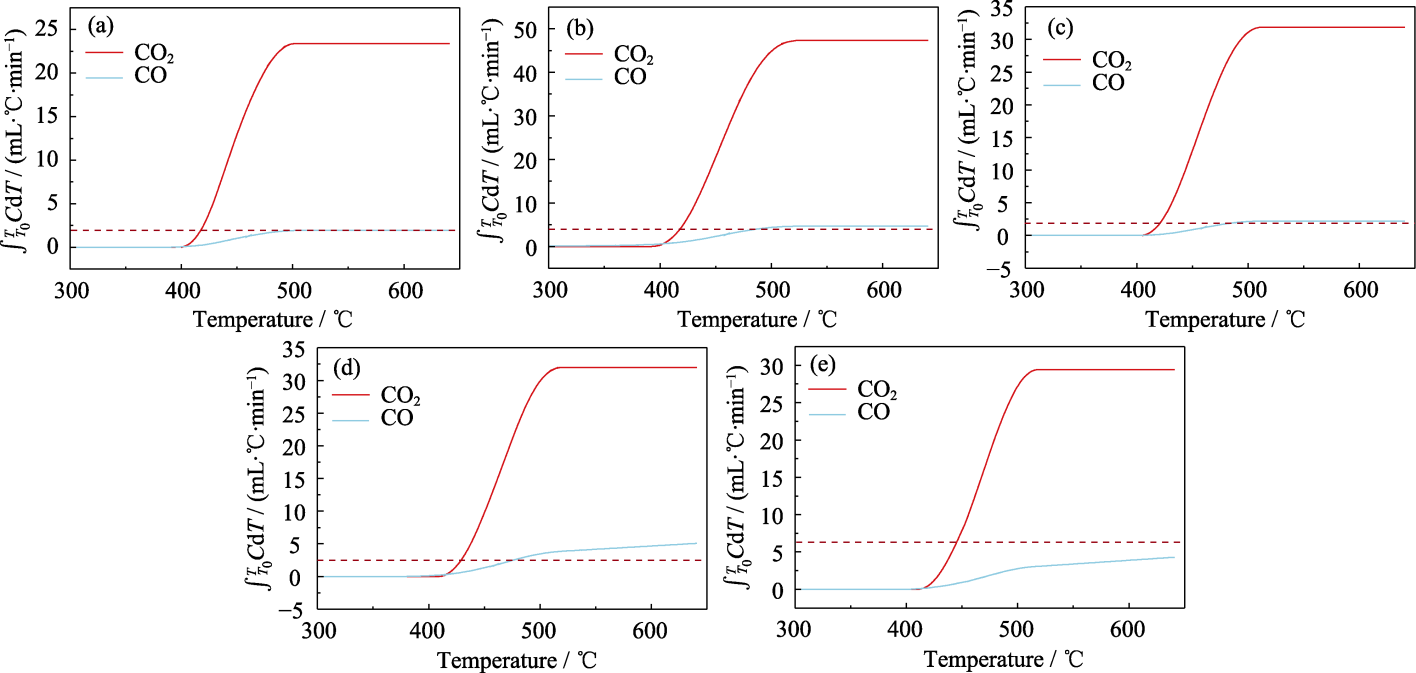

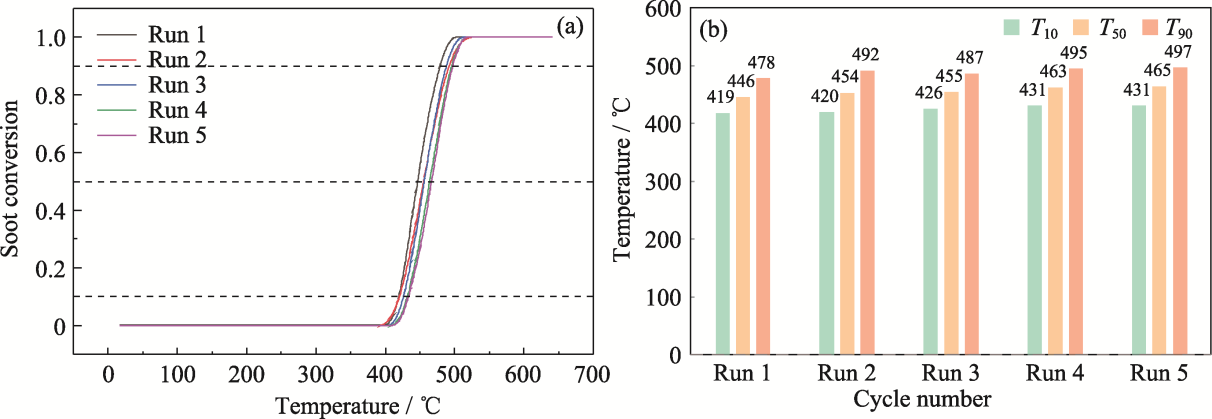

Cycle	${\displaystyle {\int }_{{T}_{0}}^{T}{C}_{{\text{CO}}_{\text{2}}}\text{d}T}$/mL	${\displaystyle {\int }_{{T}_{0}}^{T}{C}_{\text{CO}}\text{d}T}$/mL	${S}_{{\text{CO}}_{\text{2}}}$
1st	23.4	1.9	92.5%
2nd	47.3	4.7	91.0%
3rd	31.9	2.2	93.5%
4th	32.0	5.0	86.5%
5th	29.4	4.3	87.2%

Sample	M₀/g	(M₀-∆M)/g	η/%
Cordierite	0.0157	0.0079	50.32
Cordierite/aluminum borate		0.0139	88.54
Z/C_0.8F_0.15C_0.05C₂-CT		0.0141	89.81

Catalyzer	Maximum combustion rate temperature/℃	Ref.
Pt/Al₂O₃	464	[S1]
Cu_xZn_1-_xAl₂O₄	630	[S2]
CoAl₂O₄	510	[S3]
CoCr₂O₄	420	[S4]
CuCo₂O₄	574	[S5]
Z/C_0.8F_0.15C_0.05C₂-CT	446	This work
