Different Doping Sites of Ag on Cu2SnSe3 and Their Thermoelectric Property

doi:10.15541/jim20180295

Abstract

Abstract:

Thermoelectric materials enable the direct inter-conversion between electrical energy and thermal energy. However, the conversion efficiency is limited by complex interdependent thermoelectric parameters, while the high performance thermoelectrics should simultaneously possess excellent electrical transport properties and poor thermal conductivities. The diamond-like compound Cu₂SnSe₃ is a promising middle-temperature thermoelectric material. In this work, the phase (Cu₂Sn_0.93Ag_0.07Se₃) with excellent electrical transport properties and the phase (Cu_1.91Ag_0.09SnSe₃) with poor thermal conductivities were obtained just through Ag doping on the Sn and Cu sites, respectively. Meanwhile, their Seebeck coefficients were also quite different. To combine their advantages, the composites of Cu₂Sn_0.93Ag_0.07Se₃ and Cu_1.91Ag_0.09SnSe₃ were fabricated through mechanical mixing and sintering. Benefited from the same crystal structure and the similar lattice parameters for these two phases, the small-mismatch phase interface is supposed to scatter phonons with little influence to the electrons, especially at high temperature. Therefore, the thermoelectric performance is improved due to the synergistically optimized electrical and thermal transport properties, which are well supported by the effective media theory for the composite.

Key words: thermoelectric, effective medium theory, diamond-like, Cu₂SnSe₃

CLC Number:

TQ174

ZHOU Yi-Ming, ZHOU Yu-Ling, PANG Qian-Tao, SHAO Jian-Wei, ZHAO Li-Dong. Different Doping Sites of Ag on Cu₂SnSe₃ and Their Thermoelectric Property[J]. Journal of Inorganic Materials, 2019, 34(3): 301-309.

Figures/Tables 7

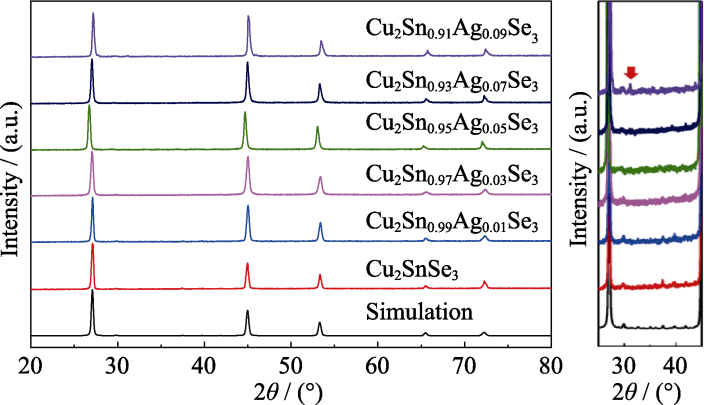

Fig. 1 XRD patterns and enlarged XRD patterns between 25° to 45°of Cu2Sn1-xAgxSe3 (x=0-0.09)

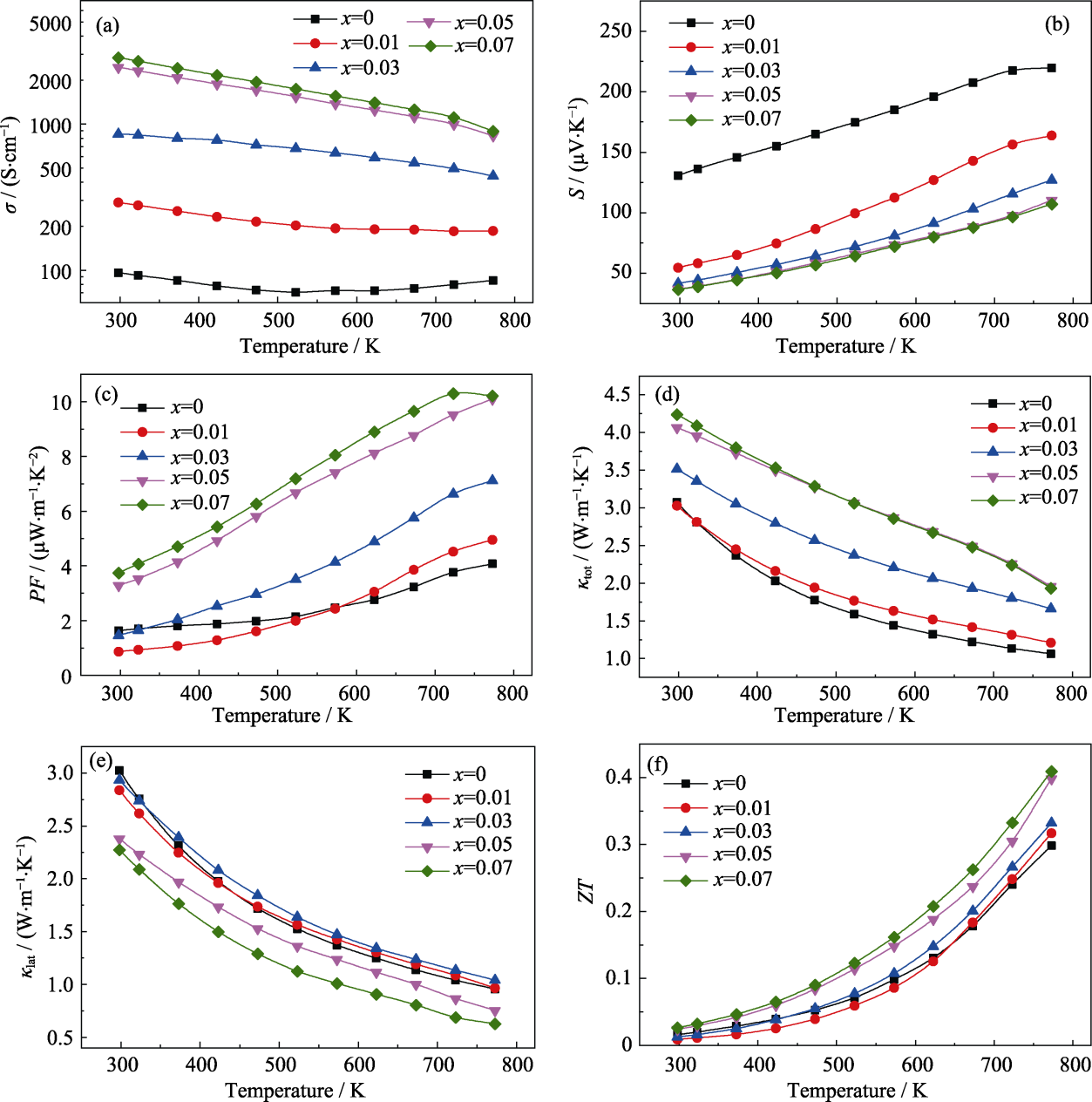

Fig. 2 Temperature dependence of thermoelectric properties of Cu2Sn1-xAgxSe3 (x = 0-0.07)(a) Electrical conductivity; (b) Seebeck coefficient; (c) Power factor; (d) Total thermal conductivity; (e) Lattice thermal conductivity; (f) Thermoelectric figure of merit (ZT)

Fig. 3 XRD patterns of Cu2-yAgySnSe3 (y=0-0.09)

Table 1 Lattice parameters and average volume of unit cell of Cu2-yAgySnSe3

y	a/nm	b/nm	c/nm	β/(°)	V/nm³
0	0.69919	1.20763	0.69667	109.26	0.55533
0.01	0.69714	1.20586	0.69671	109.20	0.55310
0.03	0.69812	1.20641	0.69551	109.21	0.55314
0.05	0.69973	1.20578	0.69819	109.47	0.55539
0.07	0.70011	1.20749	0.70033	109.47	0.55817
0.09	0.70019	1.21247	0.69674	109.46	0.55772

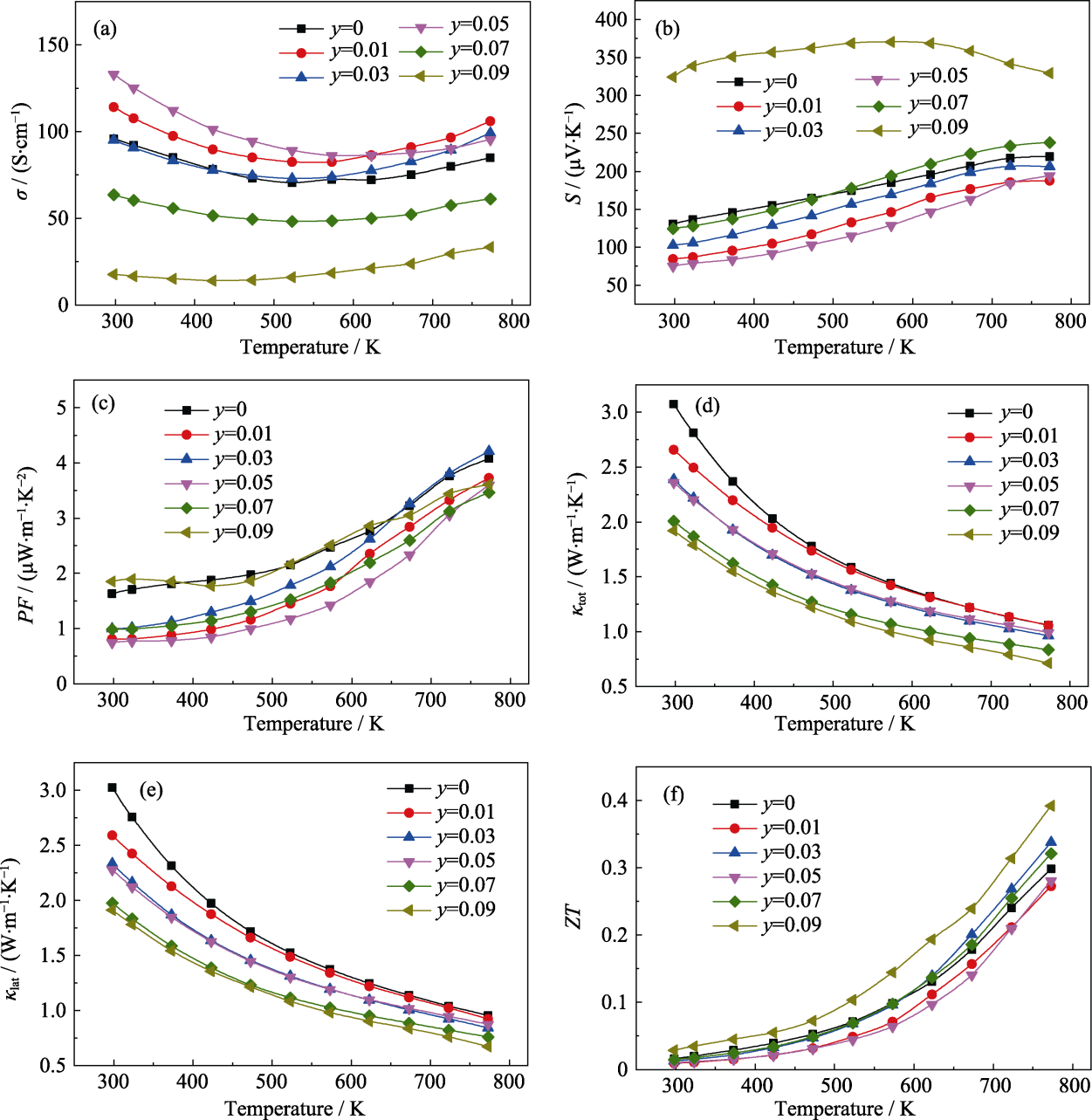

Fig. 4 Temperature dependence of thermoelectric properties of Cu2-yAgySnSe3 (y=0-0.09)(a) Electrical conductivity; (b) Seebeck coefficient; (c) Power factor; (d) Total thermal conductivity;(e) Lattice thermal conductivity; (f) Thermoelectric figure of merit (ZT)

Fig. 5 Temperature dependence of thermoelectric properties of composites of Cu2Sn0.93Ag0.07Se3 and Cu1.91Ag0.09SnSe3(a) Electrical conductivity; (b) Seebeck coefficient; (c) Power factor; (d) Total thermal conductivity;(e) Lattice thermal conductivity; (f) Thermoelectric figure of merit (ZT)

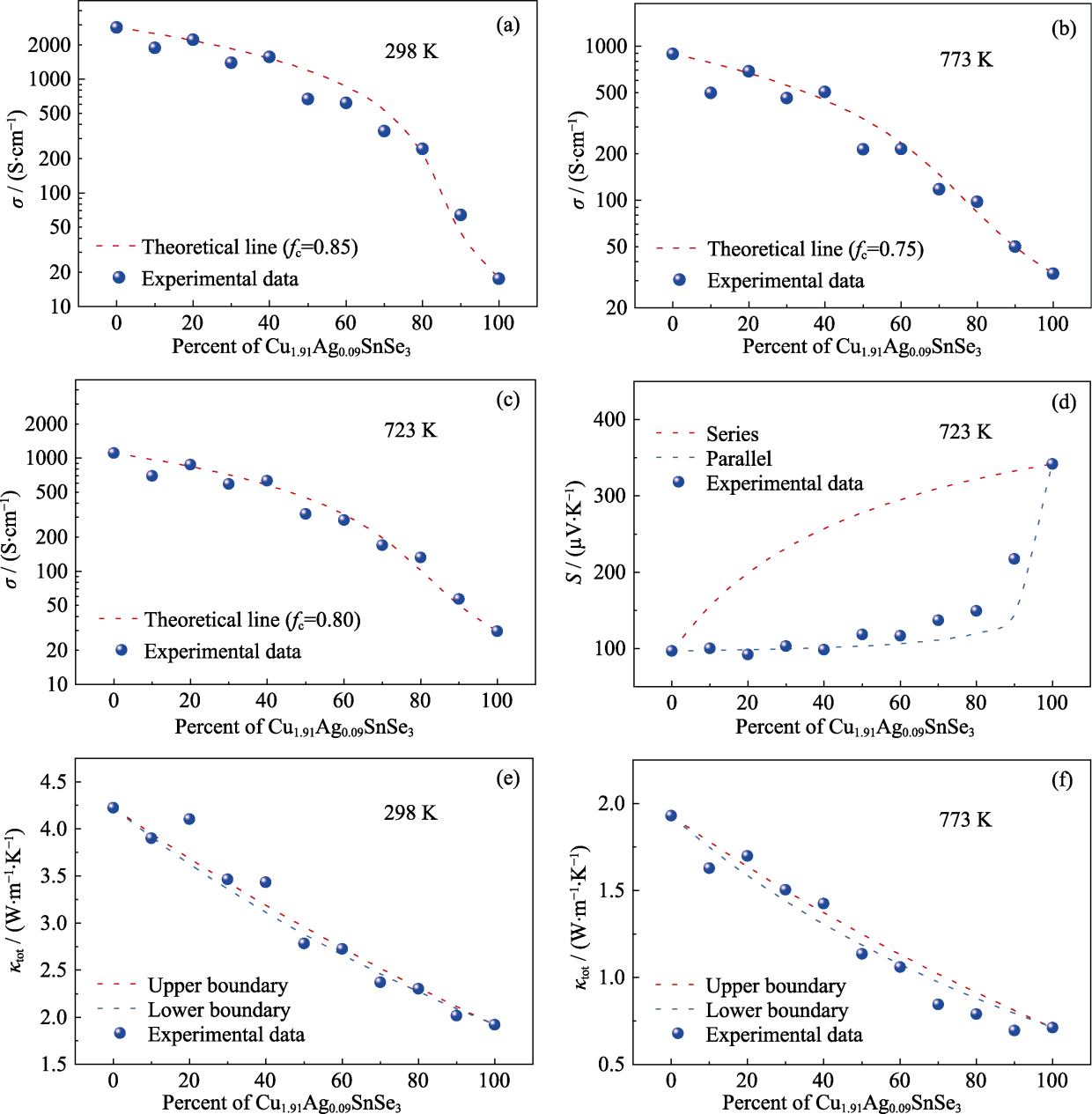

Fig. 6 Calculations by effective medium theory for composites of Cu2Sn0.93Ag0.07Se3 and Cu1.91Ag0.09SnSe3

References 25

[1]	TAN G, ZHAO LD, KANATZIDIS M G.Rationally designing high-performance bulk thermoelectric materials. Chemical Reviews, 2016,116(19):12123-12149.
[2]	COHN J L, NOLAS G S, FESSATIDIS V, et al.Glass-like heat conduction in high-mobility crystalline semiconductors. Physical Review Letters,1999,82(4):779-782.
[3]	PEI Y, SHI X, LALONDE A, et al.Convergence of electronic bands for high performance bulk thermoelectrics. Nature,2011,473(7345):66-69.
[4]	ZHAO W, LIU Z, SUN Z, et al.Superparamagnetic enhancement of thermoelectric performance. Nature,2017, 549(7671): 247-251.
[5]	TAN G J, SHI F Y, HAO S Q, et al.Valence band modification and high thermoelectric performance in SnTe heavily alloyed with MnTe. Journal of the American Chemical Society, 2015, 137(35): 11507-11516.
[6]	BISWAS K, HE J, BLUM I D, et al.High-performance bulk thermoelectrics with all-scale hierarchical architectures. Nature,2012,489(7416): 414-418.
[7]	XIAO Y, WU H J, LI W, et al.Remarkable roles of Cu to synergistically optimize phonon and carrier transport in n-type PbTe-Cu2Te. Journal of the American Chemical Society, 2017, 139(51): 18732-18738.
[8]	WU C F, WEI T R, SUN F H, et al. Nanoporous PbSe-SiO2 thermoelectric composites. Advanced Science,2017,4(11):1700199-1-7.
[9]	SU X, WEI P, LI H, et al. Multi-scale microstructural thermoelectric materials: transport behavior, non-equilibrium preparation,applications. Advanced Materials,2017,29(20):1602013-1-13.
[10]	ZHAO LD, LO SH, HE J, et al.High performance thermoelectrics from earth-abundant materials: enhanced figure of merit in PbS by second phase nanostructures. Journal of the American Chemical Society,2011,133(50):20476-20487.
[11]	ZHAO LD, LO SH, ZHANG Y, et al.Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature,2014,508(7496):373-377.
[12]	ZHAO L D, TAN G J, HAO S Q, et al.Ultrahigh power factor and thermoelectric performance in hole-doped single-crystal SnSe. Science, 2016,351(6269):141-144.
[13]	CHANG C, WU M H, HE D S, et al.3D charge and 2D phonon transports leading to high out-of-plane ZT in n-type SnSe crystals. Science,2018, 360(6390): 778-782.
[14]	SHI X, XI L, FAN J, et al.Cu-Se bond network and thermoelectric compounds with complex diamondlike structure. Chemistry of Materials,2010,22(22): 6029-6031.
[15]	FAN J, CARRILLO-CABRERA W, AKSELRUD L, et al.New monoclinic phase at the composition Cu2SnSe3 and its thermoelectric properties. Inorganic Chemistry,2013,52(19):11067-11074.
[16]	PRASAD K S, RAO A, TYAGI K, et al.Enhanced thermoelectric performance of Pb doped Cu2SnSe3 synthesized employing spark plasma sintering. Physica B-Condensed Matter, 2017,512(1):39-44.
[17]	LI Y, LIU G, LI J, et al.High thermoelectric performance of In-doped Cu2SnSe3 prepared by fast combustion synthesis. New Journal of Chemistry, 2016,40(6):5394-5400.
[18]	LU X, MORELLI D T.Thermoelectric properties of Mn-doped Cu2SnSe3. Journal of Electronic Materials,2012,41(6):1554-1558.
[19]	LI Y, LIU G, CAO T, et al.Enhanced thermoelectric properties of Cu2SnSe3 by (Ag,In)-Co-doping. Advanced Functional Materials, 2016,26(33): 6025-6032.
[20]	DELGADO G, MORA A, MARCANO G, et al.Crystal structure refinement of the semiconducting compound Cu2SnSe3 from X-ray powder diffraction data. Materials Research Bulletin,2003,38(15):1949-1955.
[21]	FAN J, SCHNELLE W, ANTONYSHYN I, et al.Structural evolvement and thermoelectric properties of Cu3-xSnxSe3 compounds with diamond-like crystal structures. Dalton Transactions,2014,43(44): 16788-16794.
[22]	PENG K, LU X, ZHAN H, et al.Broad temperature plateau for high ZTS in heavily doped p-type SnSe single crystals. Energy & Environmental Science,2016,9(2): 454-460.
[23]	NAN CW.Physics of inhomogeneous inorganic materials. Progress in Materials Science,1993, 37(1):1-116.
[24]	ZHANG B, SUN J, KATZ H E, et al.Promising thermoelectric properties of commercial PEDOT:PSS materials and their Bi2Te3 powder composites. ACS Applied Materials & Interfaces,2010,2(11):3170-3178.
[25]	ZHOU Y M, WU H J, PEI Y L, et al.Strategy to optimize the overall thermoelectric properties of SnTe via compositing with its property-counter CuInTe2.Acta Materialia, 2017,125: 542-549.
