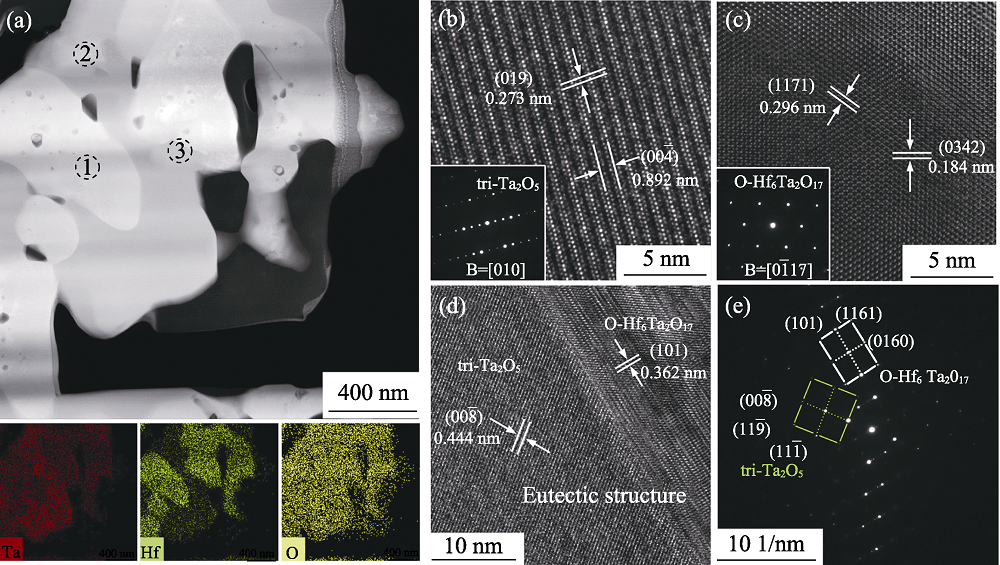

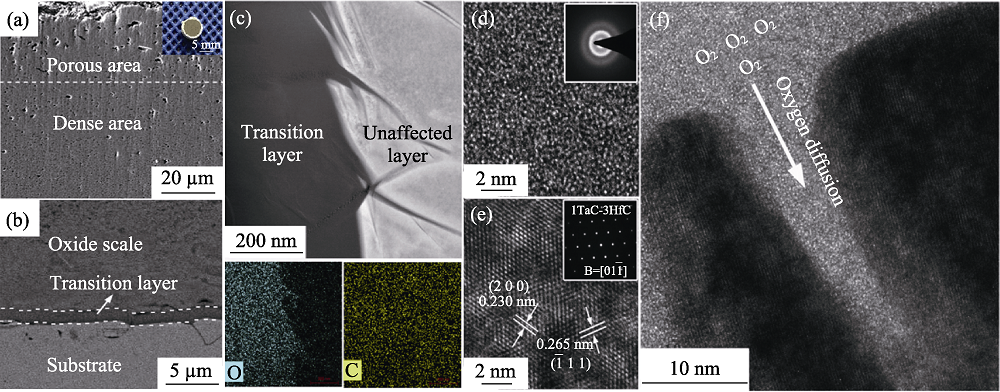

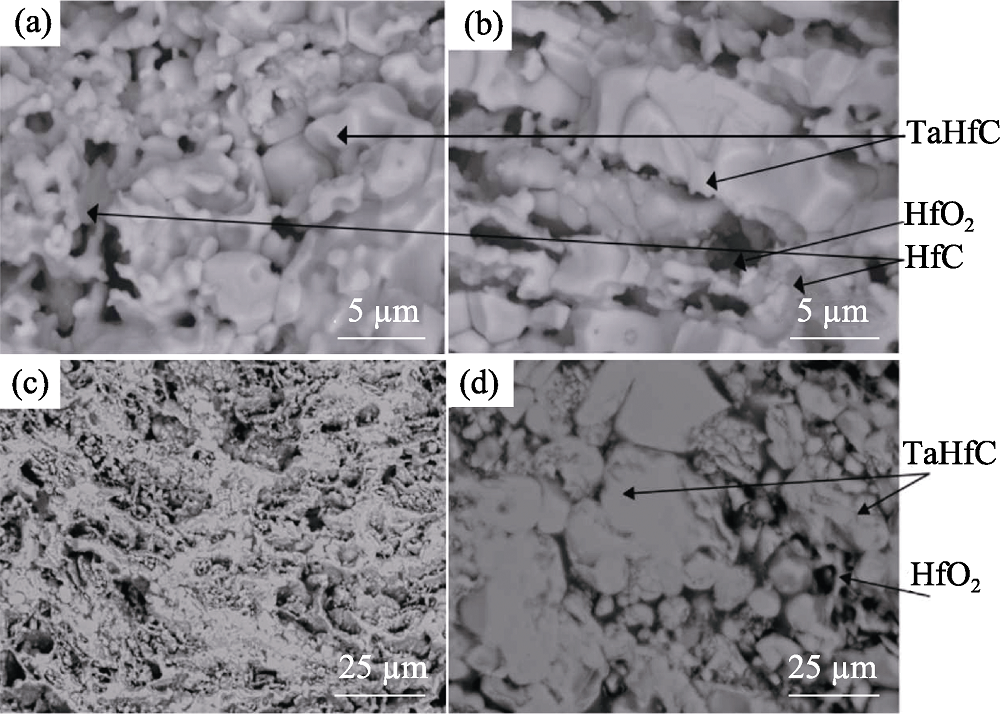

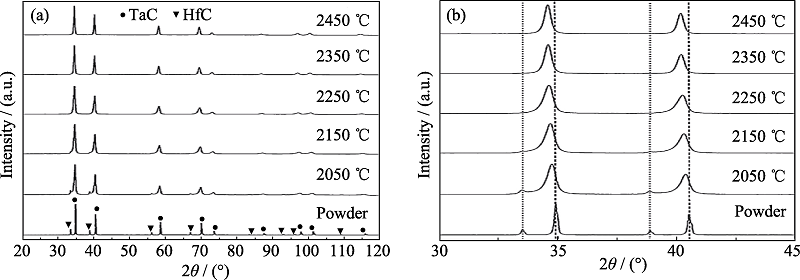

超高熔点TaxHf1-xC固溶陶瓷的制备工艺与性能研究进展

doi:10.15541/jim20200440

摘要/Abstract

摘要：

Ta_xHf_1-_xC固溶陶瓷是碳化钽(TaC)和碳化铪(HfC)在一定条件下以任意比例形成的系列固溶体, 其熔点普遍在4000 K以上, 最高可达4300 K, 且硬度高、模量高、热导率低、抗高温氧化和抗烧蚀性能优异, 具备在极端热环境(>3000 K)下服役的潜力, 成为耐超高温材料领域的研究热点和前沿。本文综述了近年来Ta_xHf_1-_xC固溶陶瓷在粉体合成技术、致密化工艺和机理、室温力学性能、热物理性能、抗氧化性能、抗烧蚀性能等方面所取得的研究进展, 分析了Ta_xHf_1-_xC固溶陶瓷粉体不同合成技术的优劣及致密化的难点, 讨论了Ta_xHf_1-_xC固溶陶瓷组成、结构和性能之间的相互关系。此外, 本文还指出了Ta_xHf_1-_xC固溶陶瓷目前存在的挑战, 并对未来潜在的发展方向作了展望。

关键词: TaC, HfC, 耐超高温, 固溶陶瓷, 极端热环境, 综述

Abstract:

Ta_xHf_1-xC(0<x<1) solid solution ceramics, a series of solid solutions of tantalum carbide (TaC) and hafnium carbide (HfC) over the whole range of composition, have been considered as promising candidates for many important applications which can tolerate temperature above 3000 K due to their high melting points (> 4000 K), high hardness (~ 30 GPa), low coefficient of thermal expansion, excellent oxidation resistance, and excellent ablation resistance. Over the past decades, some extreme conditions required for aerospace industry have greatly promoted the development of Ta_xHf_1-_xC materials, and dozens of literatures were published in this area. In this paper, the research progress of Ta_xHf_1-_xC solid solution ceramics was introduced in terms of powder synthesis techniques, densification methods and mechanism, mechanical properties at room temperature, thermophysical properties, oxidation and ablation resistance. Advantages and disadvantages of three common techniques (solid solution between metal carbides, carbonization reaction of metals, and carbothermal reduction of metal oxides) for synthesizing Ta_xHf_1-_xC powder as well as the difficulties in densification of Ta_xHf_1-_xC solid solution ceramics were analyzed. Influence of sintering process on microstructure and mechanical properties at room temperature of Ta_xHf_1-_xC solid solution ceramics was discussed briefly. The hardness, elastic modulus, K_IC, melting point, thermal conductivity, coefficient of thermal expansion, oxidation and ablation behavior of Ta_xHf_1-_xC solid solution ceramics with different Ta/Hf ratios were summarized. It revealed that Ta_xHf_1-_xC solid solution ceramics will obtain a good performance on both mechanical properties and oxidation resistance when Ta/Hf was approximate 1. Furthermore, the remaining challenges and future outlook of Ta_xHf_1-_xC solid solution ceramics were also addressed.

Key words: TaC, HfC, ultra-high temperature, solid solution ceramics, extreme thermal environment, review

中图分类号:

TQ174

肖鹏, 祝玉林, 王松, 余艺平, 李浩. 超高熔点Ta_xHf_1-_xC固溶陶瓷的制备工艺与性能研究进展[J]. 无机材料学报, 2021, 36(7): 685-694.

XIAO Peng, ZHU Yulin, WANG Song, YU Yiping, LI Hao. Research Progress on the Preparation and Characterization of Ultra Refractory Ta_xHf_1-_xC Solid Solution Ceramics[J]. Journal of Inorganic Materials, 2021, 36(7): 685-694.

图/表 9

参考文献 62

[1]	BARRAZA O C. Process development and characterisation of (Ta, Hf)C ultra-high temperature ceramics. London: Imperial College London, PhD Thesis, 2015.
[2]	SAVVATIMSKIY A I, ONUFRIEV S V, MUBOYADZHYAN S A. Thermophysical properties of the most refractory carbide Ta_0.8Hf_0.2C under high temperatures (2000-5000 K). Journal of the European Ceramic Society, 2019,39:907-914. DOI URL
[3]	SMITH C J, YU X X, GUO Q Y, et al. Phase, hardness, and deformation slip behavior in mixed Hf_xTa_1-_xC. Acta Materialia, 2018,145:142-153. DOI URL
[4]	IVASHCHENKO V I, TURCHI P E A, MEDUKH N R, et al. A first-principles study of the stability and mechanical properties of ternary transition metal carbide alloys. Journal of Applied Physics, 2019,125:235101. DOI URL
[5]	KIM J, KWON H, KIM B, et al. Finite temperature thermal expansion and elastic properties of (Hf₁-_xTa_x)C ultrahigh temperature ceramics. Ceramics International, 2019,45(8):10805-10809. DOI URL
[6]	ZHANG J, WANG S, LI W, et al. Understanding the oxidation behavior of Ta-Hf-C ternary ceramics at high temperature. Corrosion Science, 2020,164:108348. DOI URL
[7]	ZHANG C, BOESL B, AGARWAL A. Oxidation resistance of tantalum carbide-hafnium carbide solid solutions under the extreme conditions of a plasma jet. Ceramics International, 2017,43(17):14798-14806. DOI URL
[8]	PATTERSON M C L, HE S, FEHRENBACHER L L, et al. Advanced HfC-TaC oxidation resistant composite rocket thruster. Materials and Manufacturing Processes, 1996,11(3):367-379. DOI URL
[9]	PATTERSON M C L, FULCHER M, HILMAS G, et al. Advanced tactical and boost nozzle materials. 41st AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, Tucson, 2005: 4497-4509.
[10]	DEADMORE D L. Vaporization of tantalum carbide-hafnium carbide solid solutions at 2500 to 3000 K, NASA TECHNICAL NOTE, TN D-2512, Washington, D. C, 1964: 1-17.
[11]	DEADMORE D L. Normal spectral emittance (0.65) of TaC-HfC solid solutions and tungsten above 1600 ℃. Journal of the American Ceramic Society, 1964,47(12):649-650. DOI URL
[12]	DEADMORE D L. Vaporization of tantalum carbide-hafnium carbide solid solutions. Journal of the American Ceramic Society, 1965,48(7):357-359. DOI URL
[13]	RUDY E. Ternary phase equilibria in transition metal-boron-carbon- silicon systems. Part II. Ternary systems. Vol. I. Ta-Hf-C system. Air Force Materials Laboratory Technical Report, AD-470827/7/XAB, United States, 1965.
[14]	RUDY E. Ternary phase equilibra in transition metal-boron-carbon- silicon systems. Part V. Compendium of phase diagram data. Air Force Materials Laboratory Technical Report, AFML-TR-65-2, United States, 1969.
[15]	ANDRIEVSKII R A, STRELNIKOVA N S, POLTORATSKII N I, et al. Melting point in systems ZrC-HfC, TaC-ZrC, TaC-HfC. Soviet Powder Metallurgy and Metal Ceramics, 1967,6(1):65-67. DOI URL
[16]	BARANTSEVA I G, PADERNO V N, PADERNO Y B. Some physical properties of alloys of the systems ZrC-NbC and TaC-HfC. Soviet Powder Metallurgy and Metal Ceramics, 1967,6:139-141. DOI URL
[17]	BARANTSEVA I G, PADERNO V N. Thermal expansion of solid solutions in the systems ZrC-NbC and HfC-TaC. Refractory Carbides. New York: Springer, 1974: 283-285.
[18]	KIM J, KIM M, ROH K, et al. Bond characteristics, mechanical properties, and high-temperature thermal conductivity of (Hf₁-_xTa_x)C composites. Journal of the American Ceramic Society, 2019,102(10):6298-6308. DOI URL
[19]	PAN Y F, ZHOU P, PENG Y B, et al. A thermodynamic description of the C-Hf-Ta system over the whole composition and temperature ranges. CALPHAD: Computer Coupling of Phase Diagrams and Thermochemistry, 2016,53:1-9. DOI URL
[20]	JIANG J M, WANG S, LI W. Preparation and characterization of ultrahigh-temperature ternary ceramics Ta₄HfC₅. Journal of the American Ceramic Society, 2016,99(10):3198-3201. DOI URL
[21]	蒋进明. Ta-Hf(Zr)-C三元陶瓷的制备及性能研究. 长沙: 国防科技大学博士学位论文, 2017.
[22]	FOROUGHI P, ZHANG CHENG, AGARWAL A, et al. Controlling phase separation of Ta_xHf₁-_xC solid solution nanopowders during carbothermal reduction synthesis. Journal of the American Ceramic Society, 2017,100(11):5056-5065. DOI URL
[23]	SIMONENKO E P, IGNATOV N A, SIMONENKO N P, et al. Synthesis of highly dispersed super-refractory tantalum-zirconium carbide Ta₄ZrC₅ and tantalum-hafnium carbide Ta₄HfC₅ via Sol- Gel technology. Russian Journal of Inorganic Chemistry, 2011,56(11):1681-1687. DOI URL
[24]	ZHANG Z, FU S, AVERSANO F, et al. Arc melting: a novel method to prepare homogeneous solid solutions of transition metal carbides (Zr, Ta, Hf). Ceramics International, 2019,45:9316-9319. DOI URL
[25]	GABALLA O, COOK B A, RUSSELL A M. Reduced-temperature processing and consolidation of ultra-refractory Ta₄HfC₅. International Journal of Refractory Metals and Hard Materials, 2013,41:293-299. DOI URL
[26]	GHAFFARI S A, FAGHIHI-SANI M A, GOLESTANI-FARD F, et al. Spark plasma sintering of TaC-HfC UHTC via disilicides sintering aids. Journal of the European Ceramic Society, 2013,33:1479-1484. DOI URL
[27]	GHAFFARI S A, FAGHIHI-SANI M A, GOLESTANI-FARD F. Pressureless sintering of Ta_0.8Hf_0.2C UHTC in the presence of MoSi₂. Ceramics International, 2013,39:1985-1989. DOI URL
[28]	ARIANPOUR F, REZAIE H, GOLESTANI-FARD F, et al. Processing and consolidation of TaC/HfC based composites using MoSi₂ and carbon nanotubes. Journal of Nano Research, 2013,21:145-150. DOI URL
[29]	ARIANPOUR F, GOLESTANI-FARD F, REZAIE H, et al. Processing, phase evaluation and mechanical properties of MoSi₂ doped 4TaC-HfC based UHTCs consolidated by spark plasma sintering. International Journal of Refractory Metals and Hard Materials, 2016,56:1-7. DOI URL
[30]	ZHANG J, WANG S, LI W. Consolidation and characterization of highly dense single phase Ta-Hf-C solid solution ceramics. Journal of the American Ceramic Society, 2019,102(1):58-62. DOI URL
[31]	BARRAZA O C, MANARA D, BOBORIDIS K. Investigating the highest melting temperature materials: a laser melting study of the TaC-HfC system. Scientific Reports, 2016,6:37962.
[32]	BARRAZA O C, GRASSO S, NASIRI N A, et al. Sintering behaviour, solid solution formation and characterisation of TaC, HfC and TaC-HfC fabricated by spark plasma sintering. Journal of the European Ceramic Society, 2016,36:1539-1548. DOI URL
[33]	GUZMÁN P, APERADOR W, YATE L. Enhancement of the pitting corrosion resistance of AISI 316LVM steel with Ta-Hf-C/Au bilayers for biomedical applications. Journal of Nanomaterials, 2017,2017:1-10.
[34]	GUZMÁN P, YATE L, SANDOVAL M, et al. Characterization of the micro-abrasive wear in coatings of TaC-HfC/Au for biomedical implants. Materials, 2017,10(8):842. DOI URL
[35]	WANG Y L, XIONG X, LI G D, et al. Preparation and ablation properties of Hf(Ta)C co-deposition coating for carbon/carbon composites. Corrosion Science, 2013,66:177-182. DOI URL
[36]	MONTEYNARD A D, LUO H, CHEHIMI M, et al. The structure, morphology, and mechanical properties of Ta-Hf-C coatings deposited by pulsed direct current reactive magnetron sputtering. Coatings, 2020,10(3):212. DOI URL
[37]	VALENCIA D P, YATE L, APERADOR W, et al. High electrocatalytic response of ultra-refractory ternary alloys of Ta-Hf-C carbide toward hydrogen evolution reaction in acidic media. The Journal of Physical Chemistry C, 2018,122(44):25433-25440.
[38]	YATE L, COY L E, APERADOR W. Robust tribo-mechanical and hot corrosion resistance of ultra-refractory Ta-Hf-C ternary alloy films. Scientific Reports, 2017,7:3080. DOI URL
[39]	GABALLA O. Processing development of 4TaC-HfC and related carbides and borides for extreme environments. Ames: Iowa State University, PhD Thesis, 2012.
[40]	ZHANG C, GUPTA A, SEAL S, et al. Solid solution synthesis of tantalum carbide-hafnium carbide by spark plasma sintering. Journal of the American Ceramic Society, 2017,100(5):1853-1862. DOI URL
[41]	GHAFFARI S A, FAGHIHI-SANI M A, GOLESTANI-FARD F, et al. Diffusion and solid solution formation between the binary carbides of TaC, HfC and ZrC. International Journal of Refractory Metals and Hard Materials, 2013,41:180-184. DOI URL
[42]	CASTLE E, CSANADI T, GRASSO S, et al. Processing and properties of high-entropy ultra-high temperature carbides. Scientific Reports, 2018,8:8609. DOI URL
[43]	KURBATKINA V V, PATSERA E I, LEVASHOV E A, et al. Self- propagating high-temperature synthesis of single-phase binary tantalum-hafnium carbide (Ta, Hf)C and its consolidation by hot pressing and spark plasma sintering. Ceramics International, 2018,44(4):4320-4329. DOI URL
[44]	KURBATKINA V V, PATSERA E I, LEVASHOV E A, et al. SHS processing and consolidation of Ta-Ti-C, Ta-Zr-C, and Ta-Hf-C carbides for ultra-high-temperatures application. Advanced Engineering Materials, 2018,20(8):1701075.
[45]	PATSERA E I, KURBATKINA V V, LEVASHOV E A, et al. Research into the possibility of producing single-phase tantalum- hafnium carbide by SHS. Russian Journal of Non-Ferrous Metals, 2018,59(5):576-582. DOI URL
[46]	NAZAROVA S Z, KURMAEV E Z, MEDVEDEVA N I. Physical properties and electronic structure of TaC-HfC solid solutions. Russian Journal of Inorganic Chemistry, 2007,52(2):233-237. DOI URL
[47]	FENG L, KIM J, LEE S, et al. Synthesis of a fine (Ta_0.8, Hf_0.2)C powder from carbide or oxide powder mixtures. Journal of the American Ceramic Society, 2016,99(4):1129-1132. DOI URL
[48]	HA D, KIM J, HAN J, et al. Synthesis and properties of (Hf₁-_xTa_x)C solid solution carbides. Ceramics International, 2018,44(16):19247-19253. DOI URL
[49]	LU Y, SUN Y N, ZHANG T Z, et al. Polymer-derived Ta₄HfC₅ nanoscale ultrahigh-temperature ceramics: synthesis, microstructure and properties. Journal of the European Ceramic Society, 2019,39:205-211. DOI URL
[50]	SUN Y N, YANG C M, LU Y, et al. Transformation of metallic polymer precursor into nanosized HfTaC₂ ceramics. Ceramics International, 2020,46:6022-6028. DOI URL
[51]	REZAEI F, KAKROUDI M G, SHAHEDIFAR V, et al. Consolidation and mechanical properties of hot pressed TaC-HfC-VC composites. Ceramics International, 2017,43(17):15537-15543. DOI URL
[52]	ZHANG B H, YIN J, CHEN J, et al. Pressureless densification, microstructure tailoring and properties of Ta_0.8Hf_0.2C-based composites. Journal of the European Ceramic Society, 2018,38:1227-1236. DOI URL
[53]	ZHANG B H, YIN J, ZHENG J Q, et al. High temperature ablation behavior of pressureless sintered Ta_0.8Hf_0.2C-based ultra-high temperature ceramics. Journal of the European Ceramic Society, 2020,40:1784-1789. DOI URL
[54]	ZHANG B H, YIN J, HUANG Y H, et al. Harmonized toughening and strengthening in pressurelessly reactive-sintered Ta_0.8Hf_0.2C-SiC composite. Journal of the European Ceramic Society, 2018,38:5610-5614. DOI URL
[55]	HONG Q J, WALLE A V D. Prediction of the material with highest known melting point from ab initio molecular dynamics calculations. Physical Review B, 2015,92(2):020104.
[56]	ZHANG C, LOGANATHAN A, BOESL B. Thermal analysis of tantalum carbide-hafnium carbide solid solutions from room temperature to 1400 ℃. Coatings, 2017,7(8):111.
[57]	COURTRIGHT E L, PRATER J T, HOLCOMB G R, et al. Oxidation of hafnium carbide and hafnium carbide with additions of tantalum and praseodymium. Oxidation of Metals, 1991,36(5/6):423-437.
[58]	MCCORMACK S J, TSENG K P, WEBER R J K, et al. In-situ determination of the HfO₂-Ta₂O₅-temperature phase diagram up to 3000 ℃. Journal of the American Ceramic Society, 2019,102(8):4848-4861.
[59]	MCCORMACK S J, WEBER R J, KRIVEN W M. In-situ investigation of Hf₆Ta₂O₁₇ anisotropic thermal expansion and topotactic, peritectic transformation. Acta Materialia, 2018,161:127-137.
[60]	FENG G H, LI H J, YAO X Y, et al. Ablation resistance of TaC- modified HfC coating prepared by supersonic plasma spraying for SiC-coated carbon/carbon composites. Ceramics International, 2019,45(14):17936-17945.
[61]	FENG G H, LI H J, YANG L, et al. Investigation on the ablation performance and mechanism of HfC coating modified with TaC. Corrosion Science, 2020,170:108649.
[62]	REN J C, ZHANG Y L, FU Y Q, et al. Effects of the second phase on the microstructure and ablation resistance of HfC coating on C/C composites. Surface & Coatings Technology, 2018,344:250-258.

	Solid solution between metal carbides	Carbonization reaction of metals	Carbothermal reduction of metal oxides
Advantages	Easy to operate; products have high purity and could achieve densification simultaneously	High temperature is not necessary; the whole process lasts only several seconds, not time consuming	Easy to operate; raw materials are cheap; have potential to synthesize single-phase products with fine grain size at relatively low temperature
Disadvantages	Needs high temperature and long time; products are not single-phase solid solution with elements uneven distribution	The reaction process are unable to control; products are usually not pure	The phase and microstructure of products are closely related to the distribution and binding state of oxides and carbon

	Solid solution between metal carbides	Carbonization reaction of metals	Carbothermal reduction of metal oxides
Advantages	Easy to operate; products have high purity and could achieve densification simultaneously	High temperature is not necessary; the whole process lasts only several seconds, not time consuming	Easy to operate; raw materials are cheap; have potential to synthesize single-phase products with fine grain size at relatively low temperature
Disadvantages	Needs high temperature and long time; products are not single-phase solid solution with elements uneven distribution	The reaction process are unable to control; products are usually not pure	The phase and microstructure of products are closely related to the distribution and binding state of oxides and carbon

	Raw powder	Sintering method	Relative density/%	Hardness/GPa	Elastic modulus/GPa	K_IC/(MPa·m^1/2)	Ref.
Ta_0.9Hf_0.1C-12vol% MoSi₂	TaC, HfC, MoSi₂	SPS	100.0	(15.0±0.2)	—	(3.2±0.3)	[26]
Ta_0.9Hf_0.1C-12vol% TaSi₂	TaC, HfC, TaSi₂	SPS	100.0	(15.9±0.3)	—	(3.3±0.2)	[26]
Ta_0.87Hf_0.13C	TaC, HfC	HIP	>98.0	24.1	575.4	—	[3]
Ta_0.8Hf_0.2C	Ta_0.8Hf_0.2C	HP	99.6	(30.3±1.6)	(462.5±3.1)	(2.2±0.4)	[30]
Ta_0.8Hf_0.2C	Ta_xHf_1-_xC	HP	94.4	27.2	491.7	3.0	[21]
Ta_0.8Hf_0.2C	TaC, HfC	SPS	97.8	(16.7±0.9)	(443.2±23.7)	(4.6±1.1)	[40]
Ta_0.8Hf_0.2C	TaC, HfC	SPS	(97.7±0.1)	(19.3±1.3)	(459.0±5.8)	(2.9±0.9)	[32]
Ta_0.8Hf_0.2C-10vol% MoSi₂	TaC, HfC, MoSi₂	SPS	99.8	(18.5±0.5)	(482.0±2.0)	(4.2±0.2)	[29]
Ta_0.8Hf_0.2C-12vol% MoSi₂	TaC, HfC, MoSi₂	SPS	100.0	(15.2±0.5)	—	(3.9±0.2)	[26]
Ta_0.8Hf_0.2C-12vol% TaSi₂	TaC, HfC, TaSi₂	SPS	100.0	(17.7±0.4)	—	(3.2±0.1)	[26]
Ta_0.75Hf_0.25C	TaC, HfC	HIP	>98.0	28.6	567.7	—	[3]
Ta_0.7Hf_0.3C-12vol% MoSi₂	TaC, HfC, MoSi₂	SPS	97.8	(15.9±0.6)	—	(3.9±0.1)	[26]
Ta_0.7Hf_0.3C-12vol% TaSi₂	TaC, HfC, TaSi₂	SPS	98.9	(18.2±0.7)	—	(2.8±0.1)	[26]
Ta_0.67Hf_0.33C	Ta_0.67Hf_0.33C	HP	95.3	29.7	483.0	2.5	[21]
Ta_0.5Hf_0.5C	Ta_0.5Hf_0.5C	HP	99.2	(36.7±1.2)	(559.3±6.5)	(2.9±0.4)	[30]
Ta_0.5Hf_0.5C	Ta_0.5Hf_0.5C	HP	97.9	37.9	591.0	2.5	[21]
Ta_0.5Hf_0.5C	TaC, HfC	SPS	98.2	(17.1±1.1)	(523.8±7.0)	(6.0±0.7)	[40]
Ta_0.5Hf_0.5C	TaC, HfC	SPS	(95.7±0.3)	(22.1±1.8)	(549.0±11.2)	(2.9±0.7)	[32]
Ta_0.5Hf_0.5C	TaC, HfC	HIP	>97.0	23.5	469.9	—	[3]
Ta_0.3Hf_0.7C	HfO₂, Ta₂O₅, graphite	SPS	98.7	(20.0±0.9)	—	(5.2±0.2)	[48]
Ta_0.25Hf_0.75C	Ta_0.25Hf_0.75C	HP	96.5	(29.9±2.2)	(436.4±13.8)	(2.2±0.2)	[30]
Ta_0.25Hf_0.75C	TaC, HfC	HIP	>98.0	29.1	593.5	—	[3]
Ta_0.2Hf_0.8C	Ta_0.2Hf_0.8C	HP	95.9	(35.1±1.1)	(554.7±8.8)	(2.3±0.5)	[21]
Ta_0.2Hf_0.8C	TaC, HfC	SPS	(87.0±0.2)	(16.7±3.0)	(438.0±17.8)	(3.4±0.6)	[32]
Ta_0.2Hf_0.8C	TaC, HfC	SPS	98.8	(19.1±0.3)	(577.3±6.0)	(5.5±0.6)	[40]
Ta_0.2Hf_0.8C	HfO₂, Ta₂O₅, graphite	SPS	100.0	(19.7±0.7)	—	5.1	[48]
Ta_0.17Hf_0.83C	TaC, HfC	HIP	>98.0	26.6	534.2	—	[3]
Ta_0.1Hf_0.9C	HfO₂, Ta₂O₅, graphite	SPS	99.3	(19.7±0.8)	—	—	[48]

	Raw powder	Sintering method	Relative density/%	Hardness/GPa	Elastic modulus/GPa	K_IC/(MPa·m^1/2)	Ref.
Ta_0.9Hf_0.1C-12vol% MoSi₂	TaC, HfC, MoSi₂	SPS	100.0	(15.0±0.2)	—	(3.2±0.3)	[26]
Ta_0.9Hf_0.1C-12vol% TaSi₂	TaC, HfC, TaSi₂	SPS	100.0	(15.9±0.3)	—	(3.3±0.2)	[26]
Ta_0.87Hf_0.13C	TaC, HfC	HIP	>98.0	24.1	575.4	—	[3]
Ta_0.8Hf_0.2C	Ta_0.8Hf_0.2C	HP	99.6	(30.3±1.6)	(462.5±3.1)	(2.2±0.4)	[30]
Ta_0.8Hf_0.2C	Ta_xHf_1-_xC	HP	94.4	27.2	491.7	3.0	[21]
Ta_0.8Hf_0.2C	TaC, HfC	SPS	97.8	(16.7±0.9)	(443.2±23.7)	(4.6±1.1)	[40]
Ta_0.8Hf_0.2C	TaC, HfC	SPS	(97.7±0.1)	(19.3±1.3)	(459.0±5.8)	(2.9±0.9)	[32]
Ta_0.8Hf_0.2C-10vol% MoSi₂	TaC, HfC, MoSi₂	SPS	99.8	(18.5±0.5)	(482.0±2.0)	(4.2±0.2)	[29]
Ta_0.8Hf_0.2C-12vol% MoSi₂	TaC, HfC, MoSi₂	SPS	100.0	(15.2±0.5)	—	(3.9±0.2)	[26]
Ta_0.8Hf_0.2C-12vol% TaSi₂	TaC, HfC, TaSi₂	SPS	100.0	(17.7±0.4)	—	(3.2±0.1)	[26]
Ta_0.75Hf_0.25C	TaC, HfC	HIP	>98.0	28.6	567.7	—	[3]
Ta_0.7Hf_0.3C-12vol% MoSi₂	TaC, HfC, MoSi₂	SPS	97.8	(15.9±0.6)	—	(3.9±0.1)	[26]
Ta_0.7Hf_0.3C-12vol% TaSi₂	TaC, HfC, TaSi₂	SPS	98.9	(18.2±0.7)	—	(2.8±0.1)	[26]
Ta_0.67Hf_0.33C	Ta_0.67Hf_0.33C	HP	95.3	29.7	483.0	2.5	[21]
Ta_0.5Hf_0.5C	Ta_0.5Hf_0.5C	HP	99.2	(36.7±1.2)	(559.3±6.5)	(2.9±0.4)	[30]
Ta_0.5Hf_0.5C	Ta_0.5Hf_0.5C	HP	97.9	37.9	591.0	2.5	[21]
Ta_0.5Hf_0.5C	TaC, HfC	SPS	98.2	(17.1±1.1)	(523.8±7.0)	(6.0±0.7)	[40]
Ta_0.5Hf_0.5C	TaC, HfC	SPS	(95.7±0.3)	(22.1±1.8)	(549.0±11.2)	(2.9±0.7)	[32]
Ta_0.5Hf_0.5C	TaC, HfC	HIP	>97.0	23.5	469.9	—	[3]
Ta_0.3Hf_0.7C	HfO₂, Ta₂O₅, graphite	SPS	98.7	(20.0±0.9)	—	(5.2±0.2)	[48]
Ta_0.25Hf_0.75C	Ta_0.25Hf_0.75C	HP	96.5	(29.9±2.2)	(436.4±13.8)	(2.2±0.2)	[30]
Ta_0.25Hf_0.75C	TaC, HfC	HIP	>98.0	29.1	593.5	—	[3]
Ta_0.2Hf_0.8C	Ta_0.2Hf_0.8C	HP	95.9	(35.1±1.1)	(554.7±8.8)	(2.3±0.5)	[21]
Ta_0.2Hf_0.8C	TaC, HfC	SPS	(87.0±0.2)	(16.7±3.0)	(438.0±17.8)	(3.4±0.6)	[32]
Ta_0.2Hf_0.8C	TaC, HfC	SPS	98.8	(19.1±0.3)	(577.3±6.0)	(5.5±0.6)	[40]
Ta_0.2Hf_0.8C	HfO₂, Ta₂O₅, graphite	SPS	100.0	(19.7±0.7)	—	5.1	[48]
Ta_0.17Hf_0.83C	TaC, HfC	HIP	>98.0	26.6	534.2	—	[3]
Ta_0.1Hf_0.9C	HfO₂, Ta₂O₅, graphite	SPS	99.3	(19.7±0.8)	—	—	[48]
