纳米材料形貌和性能调控的仿生自组装研究进展

doi:10.15541/jim20200443

无机材料学报 ›› 2021, Vol. 36 ›› Issue (7): 695-710.DOI: 10.15541/jim20200443 CSTR: 32189.14.10.15541/jim20200443

纳米材料形貌和性能调控的仿生自组装研究进展

李华鑫(), 陈俊勇, 肖洲, 乐弦, 余显波, 向军辉()

中国科学院大学材料科学与光电技术学院, 材料科学与光电技术中心, 北京 101400

收稿日期:2020-08-10 修回日期:2020-10-27 出版日期:2021-07-20 网络出版日期:2020-12-01
通讯作者: 向军辉, 教授. E-mail: xiangjh@ucas.edu.cn
作者简介:李华鑫(1994-), 女, 博士研究生. E-mail:lihuaxin17@mails.ucas.ac.cn
基金资助:
国家“世界一流大学和一流学科”建设计划项目(111800XX62);上海澍澎新材料科技有限公司、优澎(嘉兴)新材料科技有限公司资助新型气凝胶材料制备技术项目(Y64101D1G2)

Research Progress of Biomimetic Self-assembly of Nanomaterials in Morphology and Performance Control

LI Huaxin(), CHEN Junyong, XIAO Zhou, YUE Xian, YU Xianbo, XIANG Junhui()

Center of Materials Science and Opto-Electronics Engineering, College of Materials Sciences and Opto-Electronics Engineering, University of Chinese Academy of Sciences, Beijing 101400, China

Received:2020-08-10 Revised:2020-10-27 Published:2021-07-20 Online:2020-12-01
Contact: XIANG Junhui, professor. E-mail:xiangjh@ucas.edu.cn
About author:LI Huaxin(1994-), female, PhD candidate. E-mail:lihuaxin17@mails.ucas.ac.cn
Supported by:
National “World-class Universities and First-class Disciplines” Construction Plan Project(111800XX62);Shanghai Shupeng New Material Technology Co., Ltd. Youpeng (Jiaxing) New Material Technology Co., Ltd. Funded New Aerogel Material Preparation Technology Project(Y64101D1G2)

摘要/Abstract

摘要：

纳米材料在纳米尺度展现出的特殊性质, 相较于宏观尺度材料表现出众多优异特性, 在力学、声学、光学、磁学、电学、热学等各种领域具有良好的应用前景。纳米材料的仿生自组装技术模拟活体生命活动, 使纳米材料基于非共价键的相互作用, 自发形成稳定结构, 现已成为制备纳米材料的主要方法之一。仿生自组装技术是“自上而下”方法中的重要技术手段, 这种合成方式有望代替传统的“自上而下”加工技术, 实现单个原子或分子在纳米尺度上构造特定结构和功能的器件。另外, 仿生自组装技术虽然以化学过程为主, 但又有物理过程, 并且结合了“仿生学”的优点, 具有定向构造纳米材料的特点, 是众多交叉学科的热门研究手段。本文重点介绍了纳米材料在形貌和性能调控中不同的仿生自组装合成策略, 包括屏蔽效应的位相选择自组装、双相界面协同效应的仿生自组装、场诱导定位效应的功能器件一体化制备、光诱导自组装以及羟基氢键驱动的分相自组装, 总结了仿生自组装纳米材料的特性, 归纳了自组装技术在传感器、表面拉曼散射、生物医疗等领域的应用, 并对纳米材料仿生自组装技术的发展前景进行了展望。

关键词: 纳米材料, 仿生自组装, 屏蔽效应, 双相界面, 场诱导, 综述

Abstract:

Nano materials exhibit many excellent properties compared with macro scale materials due to their special properties at nanoscale. They exhibit good application prospects in various fields such as mechanics, acoustics, optics, magnetism, electricity, thermology and so on. In this fascinating field, biomimetic self-assembly technology of nano materials has become one of the main methods to prepare nano materials, which simulates the life activities in vivo and makes the nano materials spontaneously form stable structures based on the noncovalent bond interaction. The biomimetic self-assembly technology is an important technology in the “bottom-up” method, which is expected to replace the traditional “top-down” processing technology, and realize the construction of specific structure and function devices on the nanoscale by single atom or molecule. Moreover, although the bionic self-assembly technology is mainly chemical process, it also has physical process, and combines advantages of “bionics” and has characteristics of directional construction of nano materials, which is a hot research means of many interdisciplinary. This paper reviews different biomimetic self-assembly synthesis strategies for nano materials in morphology and performance control, including phase selective self-assembly of shielding effect, bionic self-assembly of biphase interface synergy effect, integrated fabrication of functional devices with field induced localization effect, photoinduced self-assembly and phase separation self-assembly driven by hydroxyl hydrogen bond. The characteristics of biomimetic self-assembled nano materials are summarized. This paper also introduced the application of self-assembly technology in sensors, surface Raman scattering, biomedical and other fields. In addition, the prospects for the development of biomimetic self-assembly technology of nanomaterials are prospected.

Key words: nanomaterials, biomimetic self-assembly, shielding effect, biphasic interface, field induction, review

中图分类号:

TQ174

李华鑫, 陈俊勇, 肖洲, 乐弦, 余显波, 向军辉. 纳米材料形貌和性能调控的仿生自组装研究进展[J]. 无机材料学报, 2021, 36(7): 695-710.

LI Huaxin, CHEN Junyong, XIAO Zhou, YUE Xian, YU Xianbo, XIANG Junhui. Research Progress of Biomimetic Self-assembly of Nanomaterials in Morphology and Performance Control[J]. Journal of Inorganic Materials, 2021, 36(7): 695-710.

图/表 10

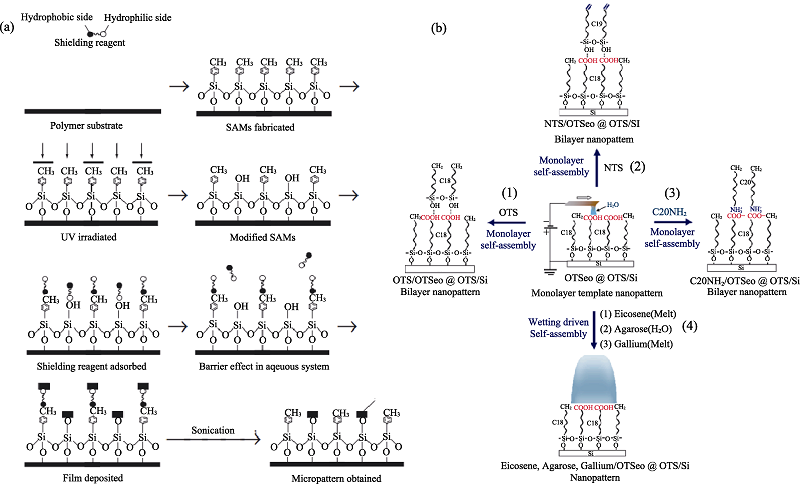

图1 (a)使用屏蔽试剂制作微图形的示意图[32], (b)基于屏蔽效应自组装表面纳米图案的路线图[37]

Fig. 1 (a) Schematic procedure of micropattern fabrication employing a shielding reagent[32] and (b) route of self-assembled surface nanopatterns based on shielding effect[37]

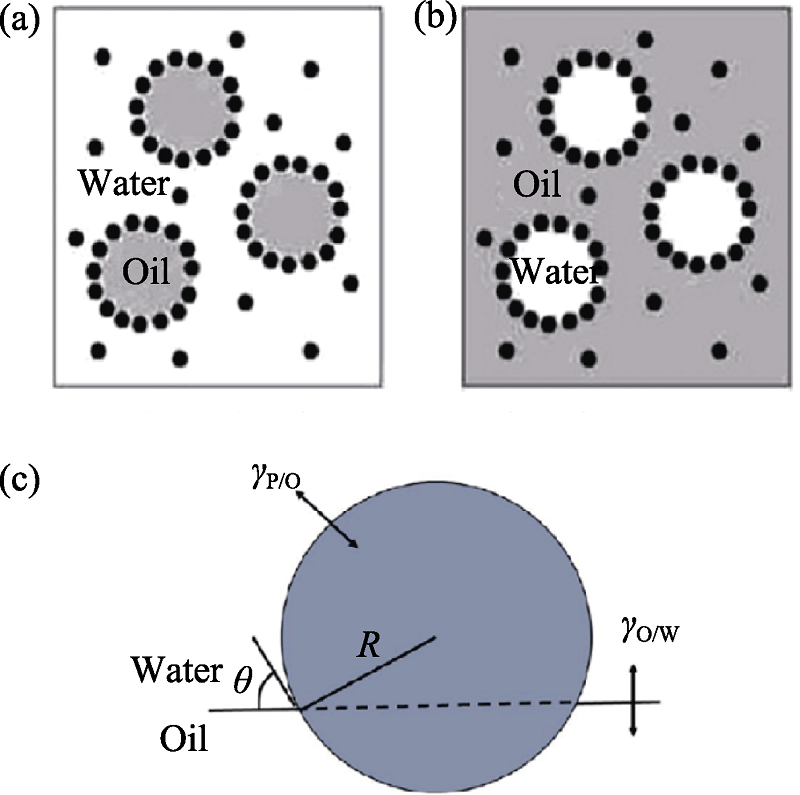

图2 Pickering乳液稳定机理示意图[40]

Fig. 2 Schematic diagram of Pickering emulsion stability mechanism[40] (a) O/W emulsion; (b) W/O emulsion; (c) Changes of surface tension when particles with radius rare adsorbed on the oil-water interface

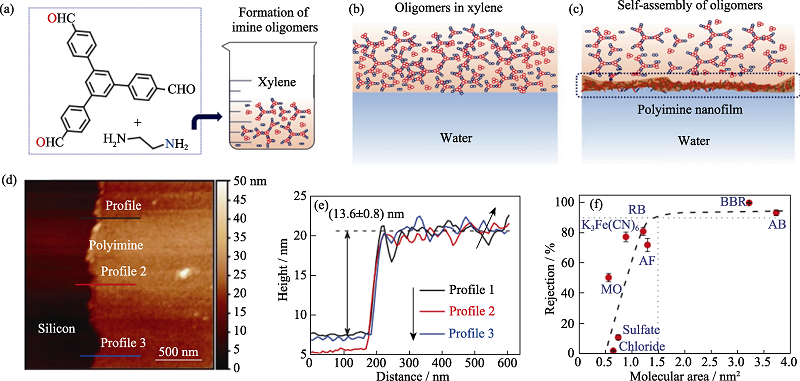

图3 超薄聚亚胺膜制备过程及膜性能表征[41]

Fig. 3 Preparation process and characterization of ultra-thin polyimide nanofilms[41] (BBR: Brilliant Blue R; AB: Aniline Blue; AF: Acid Fuchsin; RB: Rose Bengal; MO: Methyl Orange)

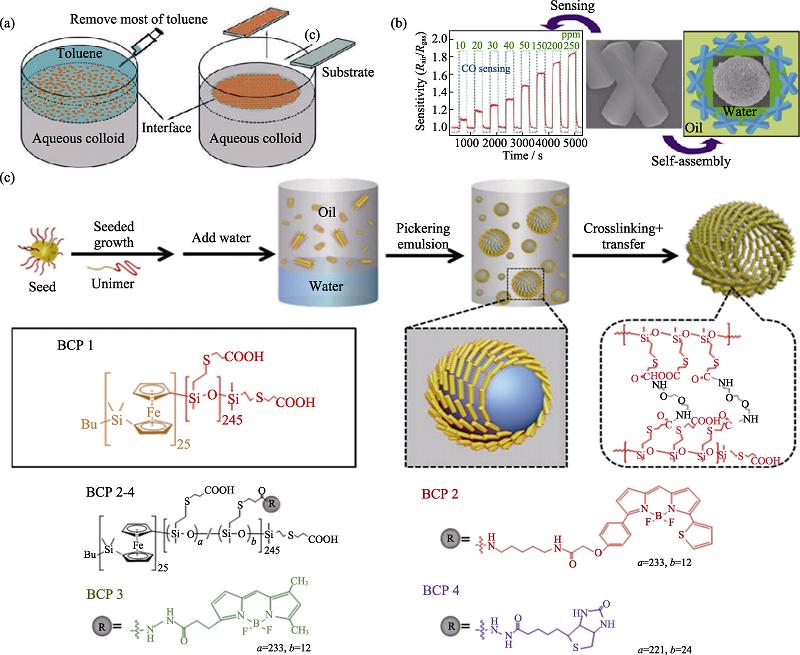

图4 (a)界面自组装MLFs的形成和转移示意图[42], (b)各向异性的X形针铁矿晶体在油/水界面处自组装形成微米级空心球示意图[44], (c)可结晶二嵌段共聚物在油/水双相界面自组装示意图[45]

Fig. 4 (a) Schematic diagram of formation and transfer of interfacial self-assembly mlfs[42]; (b) Schematic diagram of anisotropic X-shaped goethite crystal self-assembly at oil/water interface to form micron scale hollow spheres[44]; (c) Schematic diagram of self-assembly of crystalline diblock copolymer at oil/water interface[45] (BCP: Block Copolymer)

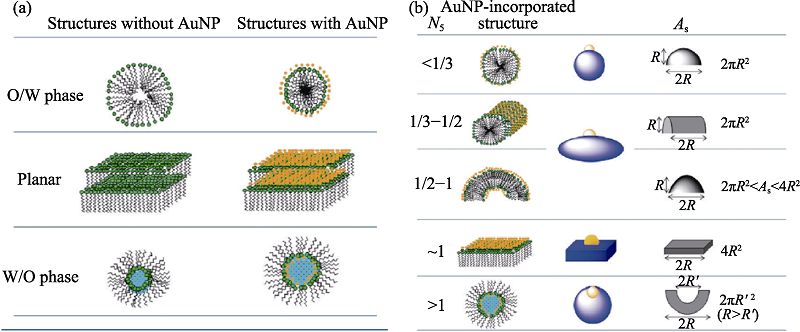

图5 金纳米颗粒(AuNP)在不同相界面中对自组装尺寸的影响[46]

Fig. 5 Effect of gold nanoparticles (AuNP) on self-assembly size in different phase interfaces[46]

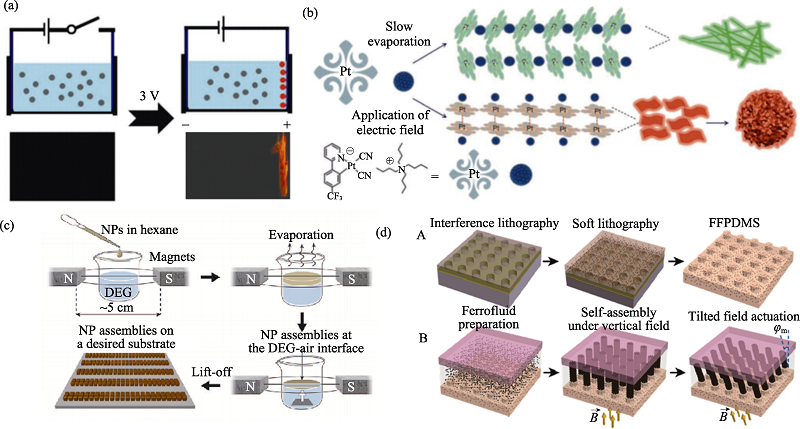

图6 (a,b)自发自组装和电场诱导自组装过程和不同形貌组装过程示意图[52], (c)磁场诱导一维纳米立方体带自组装示意图[56]; (d)磁性纳米柱阵列(FFPDMS柱阵列)诱导氧化铁纳米颗粒自组装示意图[57]

Fig. 6 (a,b) Schematic diagram of self-assembly and electric field induced self-assembly and assembly process with different morphologies[52]; (c) Schematic diagram of magnetic field-induced self-assembly of one-dimensional nanocube belts[56]; (d) Schematic diagram of magnetic nanopillar array (FFPDMS column array) inducing self-assembly of iron oxide nanoparticles[57]

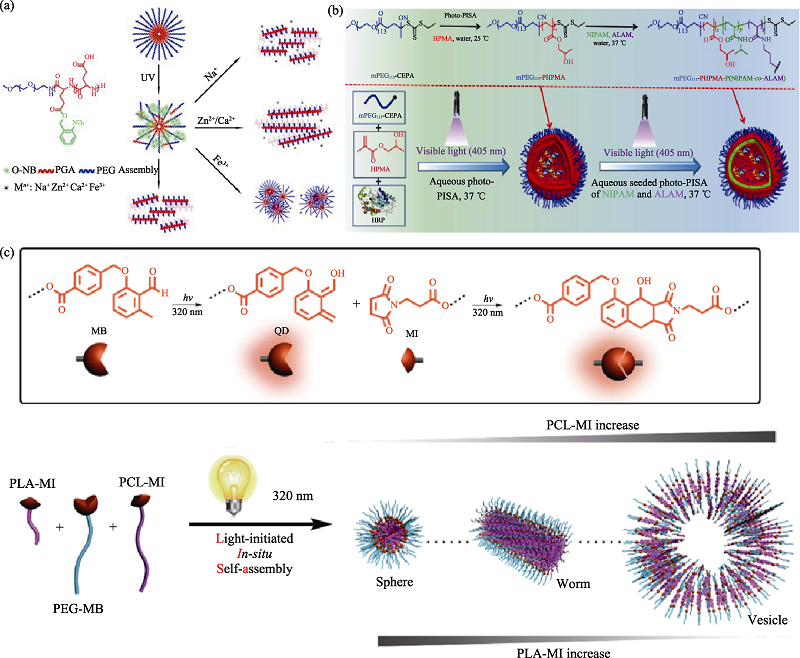

图7 (a)光和金属离子诱导自组装和重组装示意图[58], (b)通过种子Photo-PISA制备负载HRP的温敏聚合物囊泡[59], (c)光诱导原位自组装合成聚合物纳米结构[60]

Fig. 7 (a) Schematic diagram of self-assembly and reassembly induced by light and metal ions[58]; (b) Preparation of HRP-loaded temperature-sensitive polymer vesicles by seed Photo-PISA[59]; (c) Light-induced in-situ self-assembly synthesis of polymer nanostructures[60]

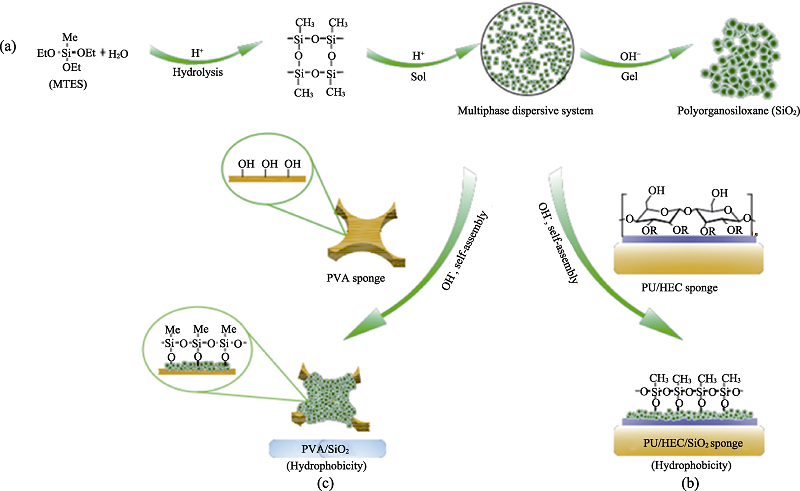

图8 (a)采用溶胶-凝胶法水相制备疏水聚硅氧烷过程示意图[61], (b)羟基氢键诱导自组装制备三元复合物疏水聚氨酯绵PU/HEC/SiO2过程示意图[61], (c)羟基氢键诱导自组装疏水聚乙烯醇绵PVA/SiO2过程示意图[62]

Fig. 8 (a) Preparation of hydrophobic polysiloxane in aqueous phase by Sol-Gel method[61]; (b) Schematic diagram of preparation of ternary composite hydrophobic polyurethane sponge PU/HEC/SiO2 by hydroxyl hydrogen bond induction self-assembly[61]; (c) Schematic diagram of PVA/SiO2 with hydrophobicity induced by hydroxyl hydrogen bond[62]

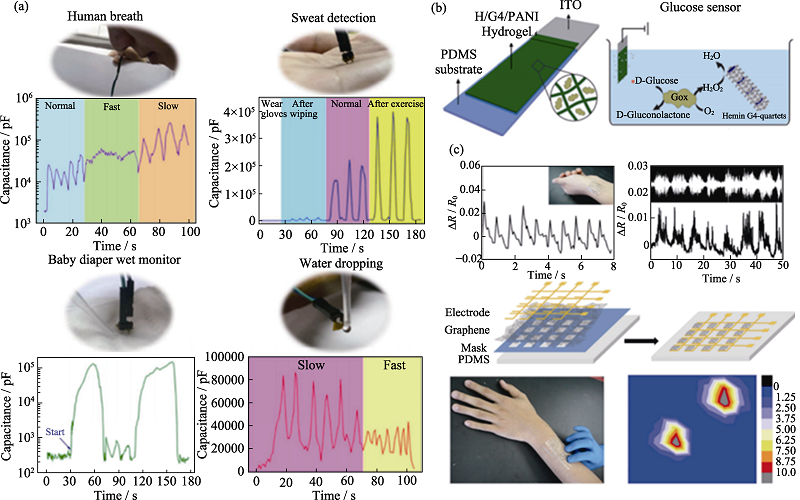

图9 (a)SnS2/Zn2SnO4混合膜传感器的传感性能: 人呼气、手掌出汗和婴儿尿布上的尿液及水滴计数[74], (b)基于GOx装载的H/G4-PANI水凝胶的葡萄糖传感器检测葡萄糖[85], (c)人体皮肤上的应变传感器阵列的实时响应[83]

Fig. 9 (a) SnS2/Zn2SnO4 hybrid membrane sensor performance under different applications: human exhalation, palm sweating, urine and water droplets on baby diapers[74]; (b) Glucose sensor based on GOx loaded H/G4-PANI hydrogel for detecting glucose[85]; (c) Real-time response of strain sensor arrays on human skin[83]

图10 (a)大鼠肝止血: 左为肝脏在左叶矢状切开后未进行任何处理而产生大量出血(对照组); 右为使用约1%(w/v) (16 mmol/L)的I3QGK水溶液治疗导致快速止血(I3QGK组)[120], (b)用单光子激光扫描共聚焦显微镜观察PC-3细胞中的自组装肽[122]

Fig. 10 (a) Rat liver hemostasis. Left: Liver produced massive bleeding after sagittal incision in the left lobe (Con. group). Right: Treatment with approximately 1%(w/v) (16 mmol/L) I3QGK aqueous solution leads to rapid hemostasis (I3QGK group)[120]; (b) Single-photon laser scanning confocal microscope for self-assembling peptides in PC-3 cells[122]
