SnO2退火温度对钙钛矿太阳能电池性能的影响

doi:10.15541/jim20190650

摘要/Abstract

摘要：

电子传输层是钙钛矿太阳能电池的关键部分, 起到阻挡空穴、传输电子和减少电子空穴复合的作用。本研究采用低温溶液法制备SnO₂薄膜作为钙钛矿电池的电子传输层, 研究SnO₂的退火温度对电子传输层微观形貌、物理性能以及钙钛矿太阳能电池性能的影响。结果表明: 当退火温度为60、90、120和240 ℃时, SnO₂薄膜表面存在较多的孔隙; 而退火温度为150、180和210 ℃时, 薄膜表面孔隙较少。在实验温度下, 制备的SnO₂薄膜为四方相, FTO玻璃上涂覆SnO₂薄膜后其透过率要优于空白FTO玻璃的透过率。当SnO₂退火温度为180 ℃时, 薄膜的电子迁移率最高, 钙钛矿电池具有最佳的传输电阻和复合电阻, 所得电池的性能最优, 其光电转换效率为17.28%, 开路电压为1.09 V, 短路电流为20.91 mA/cm², 填充因子为75.91%。

关键词: 钙钛矿太阳能电池, 电子传输层, SnO₂, 退火温度

Abstract:

Electron transport layer is a key part for perovskite solar cell (PSC), which can block holes and transmit electrons to reduce recombination. In this study, SnO₂ was synthesized with low-temperature solution-processed method and used as electronic transport layer for perovskite solar cells. The influence of annealing temperature on the properties of SnO₂ films and PSCs were systematically studied. The results showed that with the annealing temperatures at 60, 90, 120, 240 ℃, the surfaces of SnO₂ films own more pores; while annealed at 150, 180, 210 ℃, the corresponding surfaces show fewer pores. It was found that the transmittance of FTO glass covered with SnO₂ films is better than that of the bare FTO glass. With SnO₂ annealed at 180 ℃, the electron mobility of the thin film is the highest. The corresponding PSC possesses the best transmission resistance, composite resistance, and superior photovoltaic performance. The photoelectric conversion efficiency, the open-circuit voltage, the short-circuit current and the filling factor were 17.28%, 1.09 V, 20.91 mA/cm² and 75.91%, respectively.

Key words: perovskite solar cell, electronic transport layer, SnO₂, annealing temperature

中图分类号:

TQ174

王艳香, 高培养, 范学运, 李家科, 郭平春, 黄丽群, 孙健. SnO₂退火温度对钙钛矿太阳能电池性能的影响[J]. 无机材料学报, 2021, 36(2): 168-174.

WANG Yanxiang, GAO Peiyang, FAN Xueyun, LI Jiake, GUO Pingchun, HUANG Liqun, SUN Jian. Effect of SnO₂ Annealing Temperature on the Performance of Perovskite Solar Cells[J]. Journal of Inorganic Materials, 2021, 36(2): 168-174.

图/表 14

图1 FTO和不同退火温度制得的SnO2薄膜的FSEM照片

Fig. 1 FSEM images of FTO and SnO2 films annealed at different temperatures (a, j) Bare FTO; (b) 60 ℃; (c) 90 ℃; (d) 120 ℃; (e) 150 ℃; (f, i) 180 ℃; (g) 210 ℃; (h) 240 ℃

图 S1 不同退火温度制得的SnO2薄膜的AFM图像(20 μm×20 μm)

Fig. 8 AFM images of SnO2 films prepared at different annealing temperatures (20 μm×20 μm) (a) 60 ℃; (b) 90 ℃; (c) 120 ℃; (d) 150 ℃; (e) 180 ℃; (f) 210 ℃; (g) 240 ℃

图S2 不同退火温度下获得的SnO2薄膜的XRD图谱

Fig.9 XRD patterns of SnO2 films prepared at different annealing temperatures

图2 以FTO为基底180 ℃退火制得的SnO2薄膜的XPS图谱

Fig. 2 XPS spectra of SnO2 film annealed at 180 ℃ with FTO as substrate (a) Full survey; (b) Sn3d; (c) O1s; (d) Cl2p

图3 以FTO为基底不同退火温度下获得的SnO2薄膜的紫外-可见吸收光谱图(彩色曲线见电子版)

Fig. 3 UV-visible absorption spectra of SnO2 films annealed at different temperatures with FTO as substrate (Colourful curves are available on web)

表S1 不同退火温度下SnO2薄膜的带隙

Table 1 Bandgap of SnO2 films annealed at different temperatures

Temperature/℃	60	90	120	150	180	210	240
Band gap/eV	3.88	3.87	3.88	3.91	3.90	3.88	3.88

表1 以不同退火温度制得的SnO2薄膜为ETL的PSC的光电性能参数

Table 1 Photoelectric parameters of PSCs with SnO2 ETLs annealed at different temperatures

Temperature/℃	V_OC/V	J_SC/(mA∙cm^-2)	FF/%	PCE/%
60	0.87	18.85	40.75	6.72
90	0.90	19.15	55.70	9.60
120	0.97	19.56	71.67	13.60
150	1.06	19.65	74.36	15.48
180	1.09	20.91	75.91	17.28
210	1.06	19.27	73.32	14.91
240	0.99	19.23	70.75	13.43

图4 以180 ℃退火温度制得的SnO2薄膜为ETL的PSC的断面FSEM照片

Fig. 4 Cross-sectional FSEM image of PSC with SnO2 ETL annealed at 180 ℃

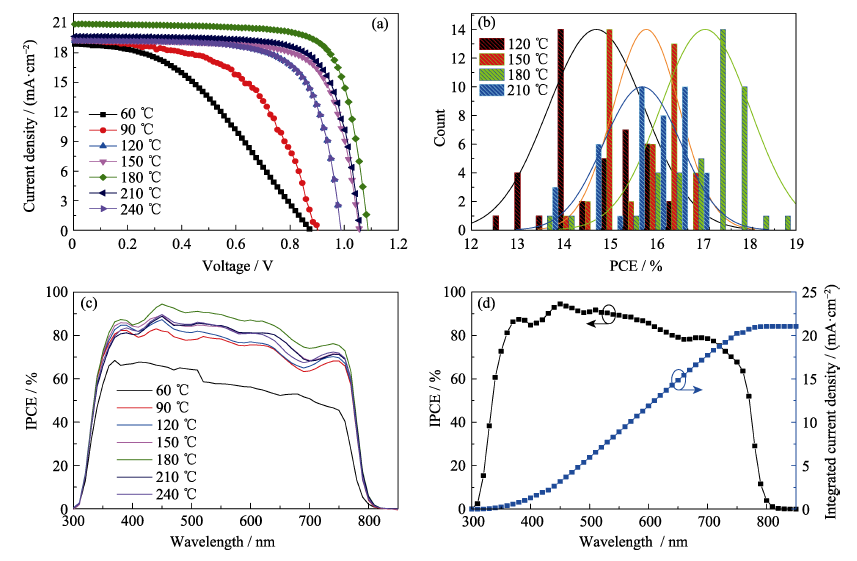

图5 以不同退火温度制得的SnO2薄膜为ETL的PSC的(a) J-V曲线, (b) PCE分布直方图, (c) IPCE曲线; (d) 以180 ℃退火温度制得的SnO2薄膜为ETL的PSC的IPCE及积分电流曲线(彩色曲线见电子版)

Fig. 5 (a) J-V curves, (b) PCE histograms, (c) IPCE spectra of PSCs prepared with SnO2 ETLs annealed at different temperatures; (d) IPCE and integral current curves of PSC with SnO2 ETL annealed at 180 ℃ (Colourful curves are available on web)

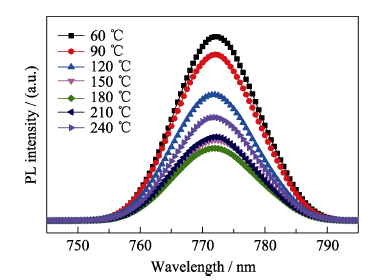

图6 以不同退火温度制得的SnO2为ETL的钙钛矿薄膜的光致发光图谱

Fig. 6 PL spectra of perovskite films prepared with SnO2 ETL annealed at different temperatures

图S3 退火温度为60和90 ℃制得的SnO2为ETL的钙钛矿薄膜的瞬态荧光光谱

Fig. 10 TRPL spectra of perovskite films prepared with SnO2 ETLs annealed at 60 and 90 ℃

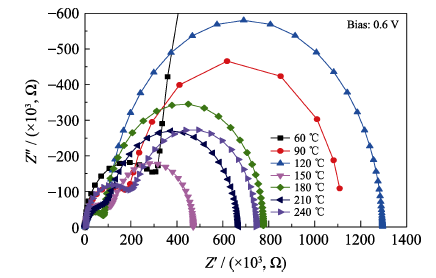

图7 以不同退火温度制得的SnO2薄膜为ETL的PSC的电化学阻抗谱图

Fig. 7 Nyquist plots of PSCs prepared with SnO2 ETLs annealed at different temperatures

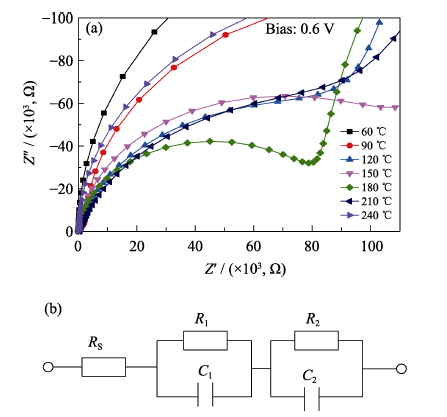

图S4 以不同退火温度制得的SnO2薄膜为ETL的PSC的(a)电化学阻抗谱局部放大图和(b)等效电路图

Fig. 11 (a) Zoom-in high-frequency region of Nyquist plot and (b) equivalent circuit for PSCs with SnO2 ETLs annealed at different temperatures

表2 以FTO为基底在不同退火温度下制得的SnO2薄膜的电学性能参数

Table 2 Electrical properties of SnO2 films annealed at different temperatures with FTO as substrate

Temperature/℃	Resistivity/ (×10^-4, Ω∙cm)	Carrier mobility/ (cm²∙V^-1·s^-1)
60	1.40	23.11
90	1.74	25.60
120	1.80	33.98
150	1.24	45.26
180	1.46	57.89
210	1.64	39.81
240	1.38	26.21

参考文献 37

[1]	KOJIMA A, TESHIMA K, SHIRAI Y, et al. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc., 2009,131:6050-6051.
[2]	https://www.nrel.gov/pv/assets/pdfs/best-research-cell-efficiencies.20190923.pdf (2019).
[3]	DONG Q, FANG Y J, SHAO Y C, et al. Electron-hole diffusion lengths >175 μm in solution-grown CH₃NH₃PbI₃ single crystals. Science, 2015,347(6225):967-970. URL PMID
[4]	LANG F, SHARGAIEVA O, BRUS V V, et al. Influence of radiation on the properties and the stability of hybrid perovskites. Adv. Mater., 2018,30(3):172905.
[5]	YANG Z, ZHONG M, LIANG Y, et al. SnO₂-C60 pyrrolidine tris-acid (CPTA) as the electrontransport layer for highly efficient and stable planar Sn-based perovskite solar cells. Adv. Funct. Mater., 2019,29(42):1903621.
[6]	JIANG Q, ZHANG L, WANG H, et al. Enhanced electron extraction using SnO₂ for high-efficiency planar-structure HC(NH₂)₂PbI₃-based perovskite solar cells. Nat. Energy, 2017,2:16177.
[7]	XIONG L B, QIN M C, YANG G, et al. Performance enhancement of high temperature SnO₂-based planar perovskite solar cells: electrical characterization and understanding of the mechanism. J. Mater. Chem., 2016,A4(21):8374-8383.
[8]	JIANG Q, CHU Z M, WANG P Y, et al. Planar-structure perovskite solar cells with efficiency beyond 21%. Adv. Mater., 2017,29(46):1703852.
[9]	KIM H, SANG H I, PARK N G. Organolead halide perovskite: new horizons in solar cell research. J. Phys. Chem. C, 2014,118(11):5615-5625.
[10]	YANG D, YANG R X, WANG K, et al. High efficiency planar-type perovskite solar cells with negligible hysteresis using EDTA-complexed SnO₂. Nat. Commun., 2018,9:3239. DOI URL PMID
[11]	ZHANG P, WU J, ZHANG T, et al. Perovskite solar cells with ZnO electron-transporting materials. Adv. Mater., 2018,30(3):1703737.
[12]	GRÄTZEL M. The light and shade of perovskite solar cells. Nat. Mater., 2014,13(9):838-842. DOI URL PMID
[13]	CHUEH C C, LI C Z, JEN A K Y. Recent progress and perspective in solution-processed interfacial materials for efficient and stable polymer and organometal perovskite solar cells. Energy Environ. Sci., 2015,8(4):1160-1189.
[14]	CHEN Y C, MENG Q, ZHANG L R, et al. SnO₂-based electron transporting layer materials for perovskite solar cells: a review of recent progress. Journal of Energy Chemistry, 2019,35:144-167.
[15]	HU T, BECKER T, POURDAVOUD N, et al. Indium-free perovskite solar cells enabled by impermeable tin-oxide electron extraction layers. Adv. Mater., 2017,29(27):1606656.
[16]	CHEN H, LIU D, WANG Y, et al. Enhanced performance of planar perovskite solar cells using low-temperature solution-processed Al-doped SnO₂ as electron transport layers. Nanoscale Res. Lett., 2017,12(238):1-6.
[17]	KE W J, FANG G J, LIU Q, et al. Low-temperature solution- processed tin oxide as an alternative electron transporting layer for efficient perovskite solar cells. J. Am. Chem. Soc., 2015,137(21):6730-6733.
[18]	WANG C L, XIAO C X, YU, Y,et al. Understanding and eliminating hysteresis for highly efficient planar perovskite solar cells. Adv. Energy Mater., 2017,7(17):1700414.
[19]	JIANG Q, ZHAO Y, ZHANG X, et al. Surface passivation of perovskite film for efficient solar cells. Nat. Photonics, 2019,13:460-466.
[20]	SAIDAMINOV M I, KIM J, JAIN A, et al. Suppression of atomic vacancies via incorporation of isovalent small ions to increase the stability of halide perovskite solar cells in ambient air. Nat. Energy, 2018,3(8):648-654.
[21]	柯维俊. 基于高效电子传输层的钙钛矿太阳能电池研究. 武汉: 武汉大学博士学位论文, 2016.
[22]	LIU Q, ZHANG X, LI C Y, et al. Effect of tantalum doping on SnO₂ electron transport layer via low temperature process for perovskite solar cells. Appl. Phys. Lett., 2019,115:143903.
[23]	RAHUL R J, ASIT P, ARJUN S, et al. Effect of tantalum doping in a TiO₂ compact layer on the performance of planar spiro-OMeTAD free perovskite solar cells. J. Mater. Chem. A, 2018,6:1037-1047.
[24]	TEBBY Z, UDDIN T, NICOLAS Y, et al. Low-temperature UV processing of nanoporous SnO₂ layers for dye-sensitized solar cells. ACS Appl. Mater. Interfaces, 2011,3(5):1485-1491. DOI URL PMID
[25]	TRAN V H, AMBADE R B, AMBADE S B, et al. Low-temperature solution-processed SnO₂ nanoparticles as cathode buffer layer for inverted organic solar cells. ACS Appl. Mater. Interfaces, 2017,9(2):1645-1653. DOI URL PMID
[26]	REN X, YANG D, YANG Z, et al. Solution-processed Nb:SnO₂ electron transport layer for efficient planar perovskite solar cells. ACS Appl. Mater. Interfaces, 2017,9(3):2421-2429. DOI URL PMID
[27]	JEON N J, NA H, JUNG E H, et al. A fluorene-terminated hole-transporting material for highly efficient and stable perovskite solar cells. Nat. Energy, 2018,3:682-689.
[28]	LEE Y, PAEK S, CHO K T, et al. Enhanced charge collection with passivation of the tin oxide layer in planar perovskite solar cells. J. Mater. Chem. A, 2017,5:12729-12734.
[29]	LEE Y, LEE S, SEO G, et al. Efficient planar perovskite solar cells using passivated tin oxide as an electron transport layer. Adv. Sci., 2018,5(6):1800130.
[30]	XING G, MATHEWS N, SUN S, et al. Long-range balanced electron- and hole-transport lengths in organic-inorganic CH₃NH₃PbI₃. Science, 2013,342(6156):344-347. DOI URL PMID
[31]	YANG D, YANG R, ZHANG J, et al. High efficiency flexible perovskite solar cells using superior low temperature TiO₂. Energy Environ. Sci., 2015,8:3208-3214.
[32]	YANG S, YUE W, ZHU J, et al. Graphene-based mesoporous SnO₂ with enhanced electrochemical performance for lithium-ion batteries. Adv. Funct. Mater., 2013,23(28):3570-3576.
[33]	MAHMUD M A, ELUMALAI N K, UPAMA M B, et al. Single vs mixed organic cation for low temperature processed perovskite solar cells. Electrochim. Acta., 2016,222(20):1510-1521.
[34]	WANG W, ZHANG Z, CAI Y, et al. Enhanced performance of CH₃NH₃PbI₃-_xCl_x perovskite solar cells by CH₃NH₃ modification of TiO₂-perovskite layer interface. Nanoscale Res. Lett., 2016,11:316.
[35]	YU Z, CHEN B, LIU P, et al. Stable organic-inorganic perovskite solar cells without hole-conductor layer achieved via cell structure design and contact engineering. Adv. Funct. Mater., 2016,26(27):4866-4873.
[36]	BAG M, RENNA L A, ADHIKARI R Y, et al. Kinetics of ion transport in perovskite active layers and its implications for active layer stability. J. Am. Chem. Soc., 2015,137(40):13130-13137. URL PMID
[37]	AZPIROZ J M, MOSCONI E, BISQUERT J, et al. Defect migration in methylammonium lead iodide and its role in perovskite solar cell operation. Energy Environ. Sci., 2015,7:2118-2127.
