基于介孔TiO2/石墨烯修饰的TiO2纳米线光阳极的染料敏化太阳能电池

doi:10.15541/jim20150035

摘要/Abstract

摘要：

本工作制作了基于介孔TiO₂/石墨烯修饰的TiO₂纳米线光阳极的染料敏化太阳能电池,并进行表征。光阳极结合了介孔TiO₂的高染料吸附率,TiO₂纳米线的高载流子传导率和石墨烯的高电子收获能力等优点,使器件光电转换效率有了很大的提高。制作出的染料敏化太阳能电池光电转换效率高达7.58%,比纯纳米线制作的电池约提高了1.5倍,在拥有相似一维结构的染料敏化太阳能电池中具有较大优势。

关键词: 掺染料敏化太阳能电池, TiO2纳米线, 介孔TiO2, 石墨烯

Abstract:

Novel hybrid dye-sensitized solar cells (DSSCs) were fabricated and characterized, employing a composite photoanode of TiO₂ nanowires infiltrated with graphene-decorated mesoporous TiO₂. Combining the merits of the high dye loading of mesoporous TiO₂, high light harvesting capability with the carrier transport of TiO₂ nanowires and the high electron collection efficiency from graphene, the overall performance of such photoanode was significantly improved. The obtained DSSCs showed a power conversion efficiency of up to 7.58%, about 1.5 times higher than the pristine TiO₂ nanowires, which was quite competitive compared with the similar 1D structured photoanode of DSSCs.

Key words: DSSCs, TiO2 nanowires, mesoporous TiO2, graphene

中图分类号:

TQ174

陈盎然，赵伟，崔厚磊，支键，黄富强. 基于介孔TiO₂/石墨烯修饰的TiO₂纳米线光阳极的染料敏化太阳能电池[J]. 无机材料学报, 2015, 30(8): 891-896.

CHEN Ang-Ran, ZHAO Wei, CUI Hou-Lei, ZHI Jian, HUANG Fu-Qiang. TiO₂ Nanowires Infiltrated with Graphene-decorated Mesoporous TiO₂ for Enhanced Dye-sensitized Solar Cell[J]. Journal of Inorganic Materials, 2015, 30(8): 891-896.

图/表 10

Fig. 1 Cross-sectional FESEM images of TNWs (a), cross- sectional (b) and top-sectional (c) FESEM of TNWs/GMT after one cycle infiltration, and cross-sectional FESEM of TNWs/ GMT after 5 cycles infiltration (d)

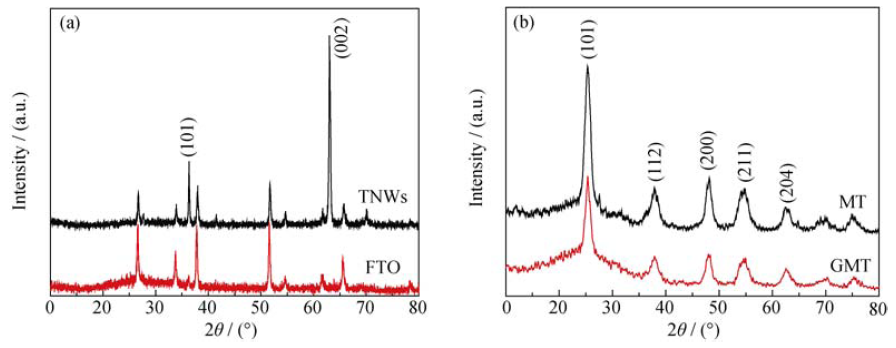

Fig. 2 XRD patterns of TNWs and FTO(a) , as well as MT and GMT composites (b)

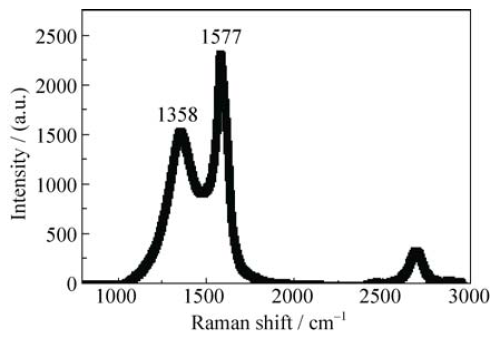

Fig. 3 Raman spectrum of GMT composites

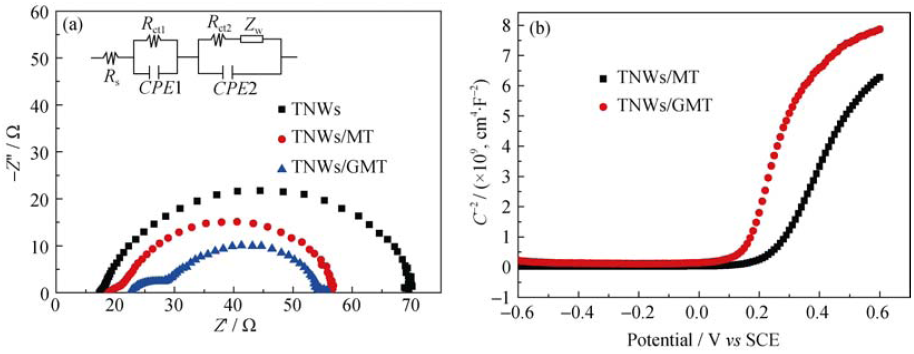

Fig. 4 Electrochemical impedance spectroscopy and electrical property (a) Nyquist plots of the impedance data of the DSSCs with anodes made of TNWs, TNWs/MT and TNWs/GMT. (b) Mott-Schottky patterns of TNWs/MT and TNWs/GMT

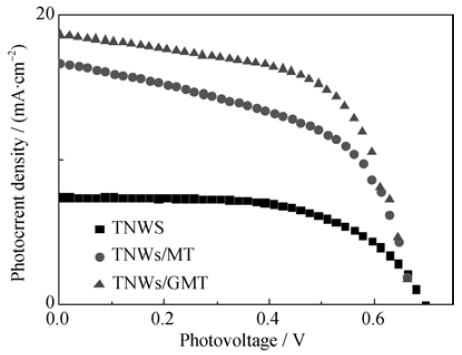

Fig. 5 J-V characteristics of DSSC solar cells with different photoanodes

Table 1 Solar cell parameters of cells*

Sample	V_oc	J_sc /(mA·cm^-2)	Fill factor/%	Efficiency/%	Thickness/μm
TNWs	0.69	7.4	59	3.04	2.46
TNWs/MT	0.67	16.7	53	6.00	2.57
TNWs/GMT	0.67	18.3	61	7.58	2.59

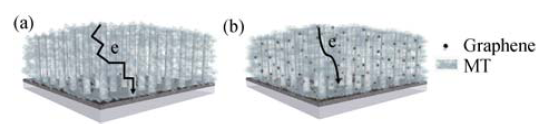

Scheme 1 Electron transport in TNWs/MT (a) and TNWs/ GMT nanocomposites films cast on FTO (b)

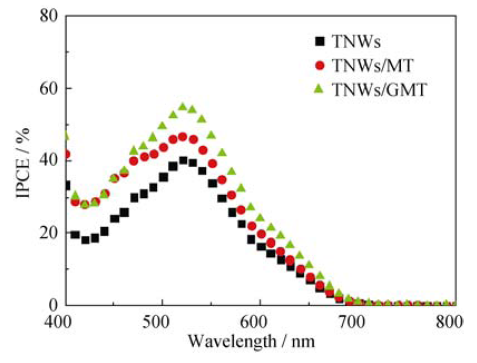

Fig. 6 IPCE curves of TNWs, TNWs/MT and TNWs/GMT

Fig. S1 TEM image of GMT

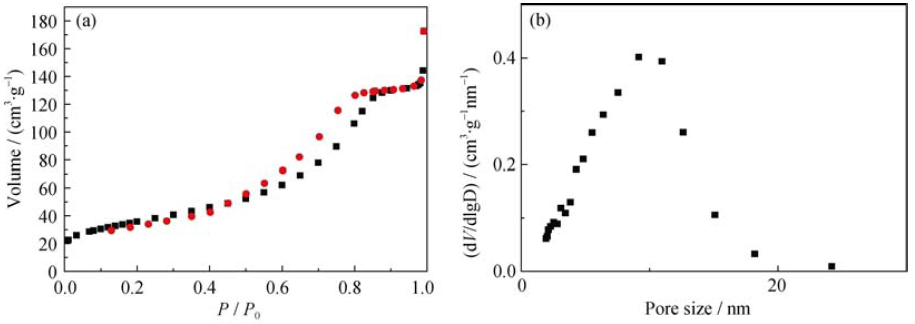

Fig. S2 N2 desorption and adsorption of TNWs/GMT

参考文献 39

[1]	OREGAN B, GRÄTZEL M. A low-cost, high-efficiency solar-cell based on dye-sensitized colloidal TiO2 films.Nature, 1991, 353(6346): 737-740.
[2]	HAGFELDT A, GRÄTZEL M. Light-induced redox reactions in nanocrystalline systems.Chem. Rev., 1995, 95(1): 49-68.
[3]	NAZEERUDDIN M K, KAY A, RODICIO I, et al.Conversion of light to electricity by Cis-X2bis(2,2'-Bipyridyl-4,4'-Dicarboxylate) ruthenium(Ii) charge-transfer sensitizers (X = Cl-, Br-, I-, Cn-, and Scn-) on nanocrystalline TiO2 electrodes.J. Am. Chem. Soc., 1993, 115(14): 6382-6390.
[4]	GRÄTZEL M. Recent advances in sensitized mesoscopic solar cells.Accounts Chem. Res., 2009, 42(11): 1788-1798.
[5]	GRÄTZEL M. Dye-sensitized solar cells.Journal of Photochemistry and Photobiology C: Photochemistry Reviews, 2003, 4(2): 145-153.
[6]	PETER L M.Characterization and modeling of dye-sensitized solar cells.J. Phys. Chem. C, 2007, 111(18): 6601-6612.
[7]	SODERGREN S, HAGFELDT A, OLSSON J, et al.Theoretical-models for the action spectrum and the current-voltage characteristics of microporous semiconductor-films in photoelectrochemical cells.J. Phys. Chem.-Us., 1994, 98(21): 5552-5556.
[8]	ZHANG J Y, TIAN H M, TIAN Z P et al. Study on sol-hydrothermal synthesis of TiO2 nanoparticles and their photoelectric properties sensitized by dye.J. Inorg. Mater., 2009, 24(6): 1110-1114.
[9]	VARGHESE O K, GONG D W, PAULOSE M, et al.Crystallization and high-temperature structural stability of titanium oxide nanotube arrays.J. Mater. Res., 2003, 18(1): 156-165.
[10]	WANG H, BAI Y, WU Q, et al.Rutile TiO2 nano-branched arrays on FTO for dye-sensitized solar cells.Physical Chemistry Chemical Physics : PCCP, 2011, 13(15): 7008-7013.
[11]	ZHU K, NEALE N R, MIEDANER A, et al., Enhanced charge-collection efficiencies and light scattering in dye-sensitized solar cells using oriented TiO2 nanotubes arrays.Nano Letters, 2007, 7(1): 69-74.
[12]	LUO H M, LIU Z Y, BAI C Y, et al.TiO2 nanotube Based dye-sensitized photoanode.J. Inorg. Mater., 2013, 28(5): 521-526.
[13]	CHEN W, QIU Y, YANG S.A new ZnO nanotetrapods/SnO2 nanoparticles composite photoanode for high efficiency flexible dye-sensitized solar cells.Physical Chemistry Chemical Physics : PCCP, 2010, 12(32): 9494-9501.
[14]	HUO K F, WANG H R, ZHANG X M, et al.Heterostructured TiO2 nanoparticles/nanotube arrays: in situ formation from amorphous TiO2 nanotube arrays in water and enhanced photocatalytic activity.Chempluschem, 2012, 77(4): 323-329.
[15]	LIN J, LIU X, GUO M, et al.A facile route to fabricate an anodic TiO2 nanotube-nanoparticle hybrid structure for high efficiency dye-sensitized solar cells.Nanoscale, 2012, 4(16): 5148-5153.
[16]	QI L, YU H, LEI Z, et al.Dye-sensitized solar cells based on ZnO nanowire array/TiO2 nanoparticle composite photoelectrodes with controllable nanowire aspect ratio.Applied Physics A, 2013, 111(1): 279-284.
[17]	FAN J, LIU S, YU J.Enhanced photovoltaic performance of dye-sensitized solar cells based on TiO2 nanosheets/graphene composite films.Journal of Materials Chemistry, 2012, 22(33): 17027-17036.
[18]	YEN M Y, HSIAO M C, LIAO S H, et al.Preparation of graphene/multi-walled carbon nanotube hybrid and its use as photoanodes of dye-sensitized solar cells.Carbon, 2011, 49(11): 3597-3606.
[19]	ALLEN M J, TUNG V C, KANER R B.Honeycomb carbon: a review of graphene.Chem. Rev., 2010, 110(1): 132-145.
[20]	XIANG Q, YU J, JARONIEC M.Enhanced photocatalytic H(2)-production activity of graphene-modified titania nanosheets.Nanoscale, 2011, 3(9): 3670-3678.
[21]	HUMMERS W S, OFFEMAN R E.Preparation of graphitic oxide.J. Am. Chem. Soc., 1958, 80(6): 1339.
[22]	FENG X J, SHANKAR K, VARGHESE O K, et al.Vertically aligned single crystal TiO2 nanowire arrays grown directly on transparent conducting oxide coated glass: synthesis details and applications.Nano Letters, 2008, 8(11): 3781-3786.
[23]	CHENG G, AKHTAR M S, YANG O B, et al., Novel preparation of anatase TiO2@reduced graphene oxide hybrids for high-performance dye-sensitized solar cells,ACS Applied Materials & Interfaces, 2013, 5(14): 6635-6642.
[24]	GRÄTZEL C, ZAKEERUDDIN S M. Recent trends in mesoscopic solar cells based on molecular and nanopigment light harvesters,Mater Today, 2013, 16(1/2): 11-18.
[25]	PARK N G, VAN DE LAGEMAAT J, FRANK A J. Comparison of dye-sensitized rutile- and anatase-based TiO2 solar cells.J. Phys. Chem. B, 2000, 104(38): 8989-8994.
[26]	KALYANASUNDARAM K, GRÄTZEL M. Applications of functionalized transition metal complexes in photonic and optoelectronic devices.Coordin. Chem. Rev., 1998, 177: 347-414.
[27]	WOLD A.Photocatalytic properties of TiO2.Chem. Mater., 1993, 5(3): 280-283.
[28]	YU J, MA T, LIU S.Enhanced photocatalytic activity of mesoporous TiO2 aggregates by embedding carbon nanotubes as electron-transfer channel.Physical Chemistry Chemical Physics : PCCP, 2011, 13(8): 3491-3501.
[29]	FERRARI A C, MEYER J C, SCARDACI V, et al. Raman spectrum of graphene and graphene layers. Physical Review Letters, 2006, 97(18): 187401-1-3.
[30]	ZHU C, GUO S, WANG P, et al.One-pot, water-phase approach to high-quality graphene/TiO2 composite nanosheets.Chemical Communications, 2010, 46(38): 7148-7150.
[31]	ALEXAKI N, STERGIOPOULOS T, KONTOS A G, et al., Mesoporous titania nanocrystals prepared using hexadecylamine surfactant template: crystallization progress monitoring, morphological characterization and application in dye-sensitized solar cells,Microporous and Mesoporous Materials, 2009, 124(1/2/3): 52-58.
[32]	ZHANG R, ELZATAHRY A A, AL-DEYAB S S, et al. Mesoporous titania: from synthesis to application.Nano Today, 2012, 7(4): 344-366.
[33]	BI H, HUANG F, LIANG J, et al.Large-scale preparation of highly conductive three dimensional graphene and its applications in CdTe solar cells.Journal of Materials Chemistry, 2011, 21(43): 17366-17370.
[34]	BI H, SUN S, HUANG F, et al.Direct growth of few-layer graphene films on SiO2 substrates and their photovoltaic applications.Journal of Materials Chemistry, 2012, 22(2): 411-416.
[35]	ZHI J, DENG S, ZHANG Y, et al.Embedding Co3O4 nanoparticles in SBA-15 supported carbon nanomembrane for advanced supercapacitor materials.Journal of Materials Chemistry A, 2013, 1(9): 3171-3176.
[36]	ZHI J, WANG Y F, DENG S, et al.Study on the relation between pore size and supercapacitance in mesoporous carbon electrodes with silica-supported carbon nanomembranes.Rsc. Adv., 2014, 4(76): 40296-40300.
[37]	TANG H, PRASAD K, SANJINES R, et al.Electrical and optical-properties of TiO2 anatase thin-films.J. Appl. Phys., 1994, 75(4): 2042-2047.
[38]	DUAN Y D, FU N Q, LIU Q P, et al.Sn-doped TiO2 photoanode for dye-sensitized solar cells.J. Phys. Chem. C, 2012, 116(16): 8888-8893.
[39]	SUN S, GAO L, LIU Y. Enhanced dye-sensitized solar cell using graphene-TiO2 photoanode prepared by heterogeneous coagulation. Applied Physics Letters, 2010, 96(8): 083113-1-3.
