宽带隙钙钛矿基二端叠层太阳电池复合层的研究进展

doi:10.15541/jim20230116

无机材料学报 ›› 2023, Vol. 38 ›› Issue (9): 1031-1043.DOI: 10.15541/jim20230116

所属专题：【能源环境】钙钛矿(202310)；【能源环境】太阳能电池(202310)

宽带隙钙钛矿基二端叠层太阳电池复合层的研究进展

董怡曼(), 谭占鳌()

北京化工大学北京软物质科学与工程高精尖创新中心, 北京 100029

收稿日期:2023-03-07 修回日期:2023-05-25 出版日期:2023-09-20 网络出版日期:2023-06-16
通讯作者: 谭占鳌, 教授. E-mail: tanzhanao@mail.buct.edu.cn
作者简介:董怡曼(1996-), 女, 博士研究生. E-mail: dongyiman1012@126.com
基金资助:
国家自然科学基金(21835006);国家自然科学基金(51873007)

Research Progress of Recombination Layers in Two-terminal Tandem Solar Cells Based on Wide Bandgap Perovskite

DONG Yiman(), TAN Zhan’ao()

Beijing Advanced Innovation Center for Soft Matter Science and Engineering, Beijing University of Chemical Technology, Beijing 100029, China

Received:2023-03-07 Revised:2023-05-25 Published:2023-09-20 Online:2023-06-16
Contact: TAN Zhan’ao, professor. E-mail: tanzhanao@mail.buct.edu.cn
About author:DONG Yiman (1996-), female, PhD candidate. E-mail: dongyiman1012@126.com
Supported by:
National Natural Science Foundation of China(21835006);National Natural Science Foundation of China(51873007)

摘要/Abstract

摘要：

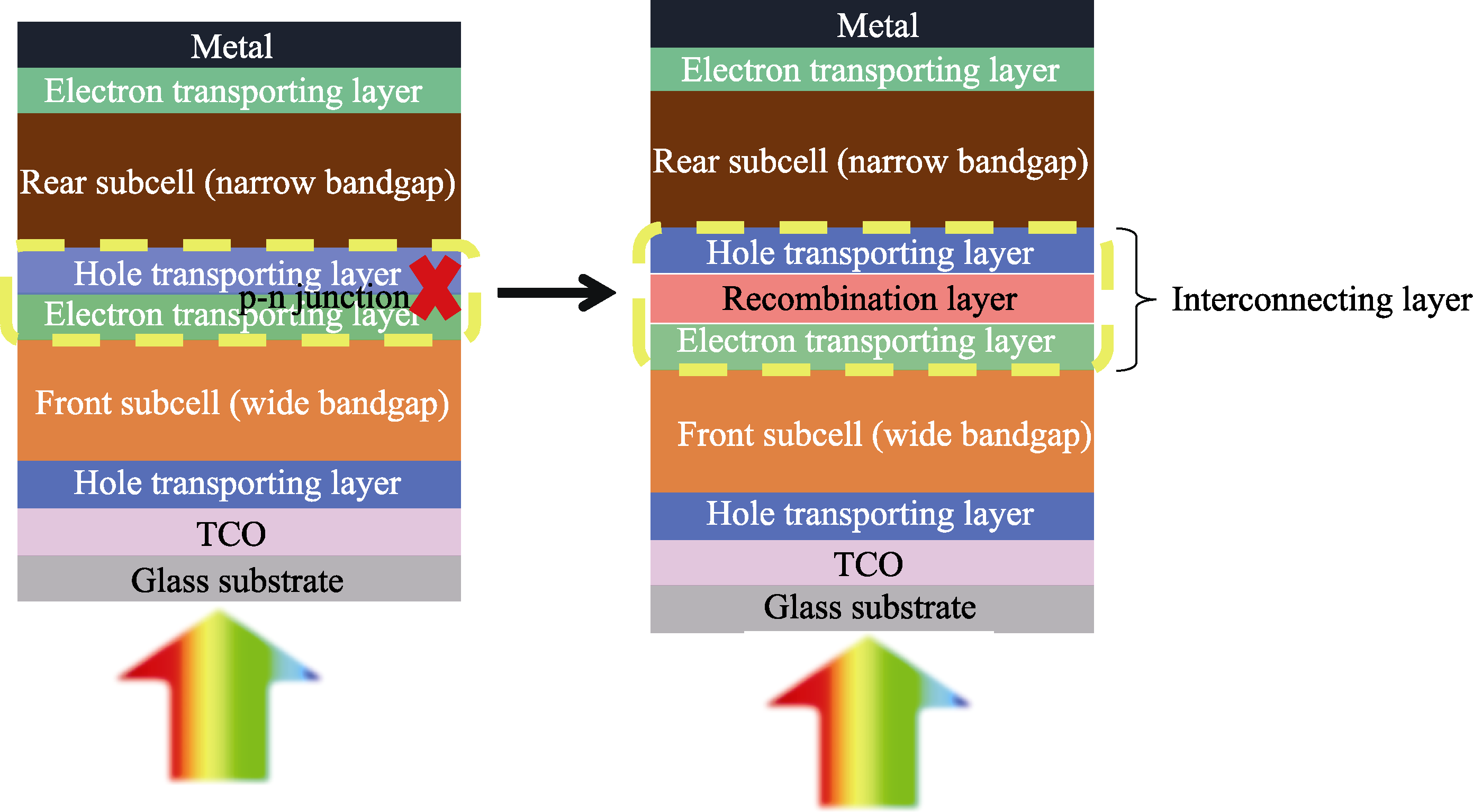

单结太阳电池的能量转换效率从根本上受限于Shockley-Queisser(S-Q)理论极限, 二端叠层结构可同时解决单结器件中面临的光谱失配和热弛豫能量损耗问题, 是突破S-Q极限最有前途的实用技术。二端叠层太阳电池中的复合层作为中间层的重要组分, 为来自两侧的电子和空穴提供复合位点, 避免了电荷堆积造成的开路电压损失并促进了电流流通, 是实现高性能叠层器件的关键因素之一。理想的复合层应具有较高电导率以提高电荷复合速率、高光学透过率以保证后结子电池的有效光吸收、良好的化学稳定性以降低溶剂对子电池的溶解伤害以及较低的制备成本以推动叠层电池的商业化生产进程。目前已有多种材料被应用于二端叠层太阳电池中, 如薄金属、透明导电氧化物、导电聚合物、氧化石墨烯等, 在钙钛矿-钙钛矿、钙钛矿-有机、钙钛矿-晶硅叠层器件中发挥了重要作用。本文归纳了不同类型叠层太阳电池复合层的研究进展, 系统介绍了复合层的种类、设计原则、制备工艺等, 对比其优缺点并提出了复合层目前存在的问题和面临的挑战, 为制备高效叠层电池提供了有益参考。

关键词: 二端叠层太阳电池, 复合层, 透明导电氧化物, 薄金属, 氧化石墨烯, 综述

Abstract:

Power conversion efficiency of single-junction solar cells is fundamentally limited by the Shockley- Queisser (S-Q) limit. The most promising practical technology to break through the S-Q limit is to use two-terminal tandem structure which can simultaneously solve the problems, spectral mismatch and thermal relaxation energy loss, in single-junction devices. As one of the important components of the interconnecting layer, the recombination layer in the two-terminal tandem solar cells can provide recombination sites for electrons and holes extracted from the electron transporting layer and the hole transporting layer, avoiding the open-circuit voltage loss caused by charge accumulation and promoting the current flow of tandem solar cells. The recombination layer is considered as one of the key factors of achieving high-performance tandem devices. The ideal recombination layer should possess high conductivity to improve the charge recombination rate, high optical transmittance to ensure effective light absorption of the rear subcells, good chemical stability to reduce the damage caused by the solvent, and low preparation cost to promote the commercial production process. At present, a variety of materials have been used in two-terminal tandem solar cells, such as thin metals, transparent conductive oxides, conductive polymers, graphene oxide, etc., which play an important role in perovskite-perovskite, perovskite-organic, and perovskite-silicon two terminal tandem devices. In this review, the research progress of recombination layers in different types of tandem solar cells is summarized, together with types, design principles, preparation processes, and their advantages and disadvantages. Meanwhile, problems and challenges of the current recombination layers are proposed, which provides a useful reference for the design of high-performance tandem cells.

Key words: two-terminal tandem solar cells, recombination layer, transparent conductive oxide, thin metal, graphene oxide, review

中图分类号:

TM914

董怡曼, 谭占鳌. 宽带隙钙钛矿基二端叠层太阳电池复合层的研究进展[J]. 无机材料学报, 2023, 38(9): 1031-1043.

DONG Yiman, TAN Zhan’ao. Research Progress of Recombination Layers in Two-terminal Tandem Solar Cells Based on Wide Bandgap Perovskite[J]. Journal of Inorganic Materials, 2023, 38(9): 1031-1043.

图/表 8

参考文献 64

[1]	SHOCKLEY W, QUEISSER H J. Detailed balance limit of efficiency of p-n junction solar cells. Journal of Applied Physics, 1961, 32(3): 510. DOI URL
[2]	WANG Y, LIN R, WANG X, et al. Oxidation-resistant all- perovskite tandem solar cells in substrate configuration. Nature Communications, 2023, 14: 1819. DOI
[3]	JAYSANKAR M, RAUL B A L, BASTOS J, et al. Minimizing voltage loss in wide-bandgap perovskites for tandem solar cells. ACS Energy Letters, 2018, 4(1): 259. DOI URL
[4]	HU H, MOGHADAMZADEH S, AZMI R, et al. Sn-Pb mixed perovskites with fullerene-derivative interlayers for efficient four-terminal all-perovskite tandem solar cells. Advanced Functional Materials, 2021, 32(12): 2107650. DOI URL
[5]	JAYSANKAR M, QIU W, VAN EERDEN M, et al. Four-terminal perovskite/silicon multijunction solar modules. Advanced Energy Materials, 2017, 7(15): 1602807. DOI URL
[6]	KIM S, TRINH T T, PARK J, et al. Over 30% efficiency bifacial 4-terminal perovskite-heterojunction silicon tandem solar cells with spectral albedo. Scientific Reports, 2021, 11: 15524. DOI PMID
[7]	CUI Y, YAO H, ZHANG J, et al. Single-junction organic photovoltaic cells with approaching 18% efficiency. Advanced Materials, 2020, 32(19): 1908205. DOI URL
[8]	ABDEL-SHAKOUR M, CHOWDHURY T H, MATSUISHI K, et al. High‐efficiency tin halide perovskite solar cells: the chemistry of tin (II) compounds and their interaction with Lewis base additives during perovskite film formation. Solar RRL, 2020, 5(1): 2000606. DOI URL
[9]	LIU H, WANG L, LI R, et al. Modulated crystallization and reduced V_OC deficit of mixed lead-tin perovskite solar cells with antioxidant caffeic acid. ACS Energy Letters, 2021, 6(8): 2907. DOI URL
[10]	GUO T, WANG H, HAN W, et al. Designed p-type graphene quantum dots to heal interface charge transfer in Sn-Pb perovskite solar cells. Nano Energy, 2022, 98: 107298. DOI URL
[11]	WERNER J, WENG C H, WALTER A, et al. Efficient monolithic perovskite/silicon tandem solar cell with cell area >1 cm². The Journal of Physical Chemistry Letters, 2016, 7(1): 161. DOI URL
[12]	LANG K, GUO Q, HE Z, et al. High performance tandem solar cells with inorganic perovskite and organic conjugated molecules to realize complementary absorption. The Journal of Physical Chemistry Letters, 2020, 11(22): 9596. DOI URL
[13]	WANG P, LI W, SANDBERG O J, et al. Tuning of the interconnecting layer for monolithic perovskite/organic tandem solar cells with record efficiency exceeding 21. Nano Letters, 2021, 21(18): 7845. DOI PMID
[14]	LIN R, XU J, WEI M, et al. All-perovskite tandem solar cells with improved grain surface passivation. Nature, 2022, 603(7899): 73. DOI
[15]	WANG C, SHAO W, LIANG J, et al. Suppressing phase segregation in wide bandgap perovskites for monolithic perovskite/organic tandem solar cells with reduced voltage loss. Small, 2022, 18(49): 2204081. DOI URL
[16]	RAJAGOPAL A, YANG Z, JO S B, et al. Highly efficient perovskite-perovskite tandem solar cells reaching 80% of the theoretical limit in photovoltage. Advanced Materials, 2017, 29(34): 1702140. DOI URL
[17]	JOŠT M, KÖHNEN E, MORALES-VILCHES A B, et al. Textured interfaces in monolithic perovskite/silicon tandem solar cells: advanced light management for improved efficiency and energy yield. Energy & Environmental Science, 2018, 11(12): 3511.
[18]	CHEN C C, BAE S H, CHANG W H, et al. Perovskite/polymer monolithic hybrid tandem solar cells utilizing a low-temperature, full solution process. Materials Horizons, 2015, 2(2): 203. DOI URL
[19]	HAU S K, YIP H L, ZOU J, et al. Indium tin oxide-free semi-transparent inverted polymer solar cells using conducting polymer as both bottom and top electrodes. Organic Electronics, 2009, 10(7): 1401. DOI URL
[20]	AMERI T, DENNLER G, WALDAUF C, et al. Fabrication, optical modeling, and color characterization of semitransparent bulk- heterojunction organic solar cells in an inverted structure. Advanced Functional Materials, 2010, 20(10): 1592. DOI URL
[21]	CHO C K, HWANG W J, EUN K, et al. Mechanical flexibility of transparent PEDOT:PSS electrodes prepared by gravure printing for flexible organic solar cells. Solar Energy Materials and Solar Cells, 2011, 95(12): 3269. DOI URL
[22]	KIM Y, LEE J, KANG H, et al. Controlled electro-spray deposition of highly conductive PEDOT:PSS films. Solar Energy Materials and Solar Cells, 2012, 98: 39. DOI URL
[23]	YU Z, CHEN X, HARVEY S P, et al. Gradient doping in Sn-Pb perovskites by barium ions for efficient single-junction and tandem solar cells. Advanced Materials, 2022, 34(16): 2110351. DOI URL
[24]	YU Z, WANG J, CHEN B, et al. Solution-processed ternary tin (II) alloy as hole-transport layer of Sn-Pb perovskite solar cells for enhanced efficiency and stability. Advanced Materials, 2022, 34(49): 2205769. DOI URL
[25]	ZHAO D, CHEN C, WANG C, et al. Efficient two-terminal all- perovskite tandem solar cells enabled by high-quality low-bandgap absorber layers. Nature Energy, 2018, 3(12): 1093. DOI
[26]	XIAO K, LIN R, HAN Q, et al. All-perovskite tandem solar cells with 24.2% certified efficiency and area over 1 cm² using surface- anchoring zwitterionic antioxidant. Nature Energy, 2020, 5(11): 870. DOI
[27]	CHEN K S, SALINAS J F, YIP H L, et al. Semi-transparent polymer solar cells with 6% PCE, 25% average visible transmittance and a color rendering index close to 100 for power generating window applications. Energy & Environmental Science, 2012, 5(11): 9551.
[28]	WANG Z, ZHANG C, CHEN D, et al. ITO-free semitransparent organic solar cells based on silver thin film electrodes. International Journal of Photoenergy, 2014, 2014: 209206.
[29]	LI X, MENG H, SHEN F, et al. Semitransparent fullerene-free polymer solar cell with 44% AVT and 7% efficiency based on a new chlorinated small molecule acceptor. Dyes and Pigments, 2019,166: 196. DOI URL
[30]	CHEN X, JIA Z, CHEN Z, et al. Efficient and reproducible monolithic perovskite/organic tandem solar cells with low-loss interconnecting layers. Joule, 2020, 4(7): 1594. DOI URL
[31]	GU X, LAI X, ZHANG Y, et al. Organic solar cell with efficiency over 20% and V_OC exceeding 2.1 V enabled by tandem with all-inorganic perovskite and thermal annealing-free process. Advanced Science, 2022, 9(28): 2200445. DOI URL
[32]	LIN R, XIAO K, QIN Z, et al. Monolithic all-perovskite tandem solar cells with 24.8% efficiency exploiting comproportionation to suppress Sn(II) oxidation in precursor ink. Nature Energy, 2019, 4(10): 864. DOI
[33]	LI H, WANG Y, GAO H, et al. Revealing the output power potential of bifacial monolithic all-perovskite tandem solar cells. eLight, 2022, 2(1): 21. DOI
[34]	LI L, WANG Y, WANG X, et al. Flexible all-perovskite tandem solar cells approaching 25% efficiency with molecule-bridged hole-selective contact. Nature Energy, 2022, 7(8): 708. DOI
[35]	JIANG Q, TONG J, SCHEIDT R A, et al. Compositional texture engineering for highly stable wide-bandgap perovskite solar cells. Science, 2022, 378(6626): 1295. DOI PMID
[36]	EPERON G E, LEIJTENS T, BUSH K A, et al. Perovskite- perovskite tandem photovoltaics with optimized band gaps. Science, 2016, 354(6314): 861. DOI URL
[37]	GAO H, LU Q, XIAO K, et al. Thermally stable all-perovskite tandem solar cells fully using metal oxide charge transport layers and tunnel junction. Solar RRL, 2021, 5(12): 2100814. DOI URL
[38]	CHEN B, YU Z J, MANZOOR S, et al. Blade-coated perovskites on textured silicon for 26%-efficient monolithic perovskite/silicon tandem solar cells. Joule, 2020, 4(4): 850. DOI URL
[39]	MAO L, YANG T, ZHANG H, et al. Fully textured, production-line compatible monolithic perovskite/silicon tandem solar cells approaching 29% efficiency. Advanced Materials, 2022, 34(40): 2206193. DOI URL
[40]	CHEN W, ZHU Y, XIU J, et al. Monolithic perovskite/organic tandem solar cells with 23.6% efficiency enabled by reduced voltage losses and optimized interconnecting layer. Nature Energy, 2022, 7(3): 229. DOI
[41]	DE BASTIANI M, JALMOOD R, LIU J, et al. Monolithic perovskite/silicon tandems with >28% efficiency: role of silicon- surface texture on perovskite properties. Advanced Functional Materials, 2022, 33(4): 2205557. DOI URL
[42]	SVEINBJÖRNSSON K, LI B, MARIOTTI S, et al. Monolithic perovskite/silicon tandem solar cell with 28.7% efficiency using industrial silicon bottom cells. ACS Energy Letters, 2022, 7(8): 2654. DOI URL
[43]	ZHENG J, WEI H, YING Z, et al. Balancing charge‐carrier transport and recombination for perovskite/TOPCon tandem solar cells with double-textured structures. Advanced Energy Materials, 2022, 13(5): 2203006. DOI URL
[44]	YU Z, YANG Z, NI Z, et al. Simplified interconnection structure based on C-60/SnO_2-_x for all-perovskite tandem solar cells. Nature Energy, 2020, 5(9): 657. DOI
[45]	BRINKMANN K O, BECKER T, ZIMMERMANN F, et al. Perovskite-organic tandem solar cells with indium oxide interconnect. Nature, 2022, 604(7905): 280. DOI
[46]	PO R, CARBONERA C, BERNARDI A, et al. Polymer- and carbon-based electrodes for polymer solar cells: toward low-cost, continuous fabrication over large area. Solar Energy Materials and Solar Cells, 2012, 100: 97. DOI URL
[47]	JIANG F, LIU T, LUO B, et al. A two-terminal perovskite/perovskite tandem solar cell. Journal of Materials Chemistry A, 2016, 4(4): 1208. DOI URL
[48]	SHENG R, HÖRANTNER M T, WANG Z, et al. Monolithic wide band gap perovskite/perovskite tandem solar cells with organic recombination layers. The Journal of Physical Chemistry C, 2017, 121(49): 27256. DOI URL
[49]	WU X, LIU Y, QI F, et al. Improved stability and efficiency of perovskite/organic tandem solar cells with an all-inorganic perovskite layer. Journal of Materials Chemistry A, 2021, 9(35): 19778. DOI URL
[50]	QIN S, LU C, JIA Z, et al. Constructing monolithic perovskite/ organic tandem solar cell with efficiency of 22.0% via reduced open-circuit voltage loss and broadened absorption spectra. Advanced Materials, 2022, 34(11): 2108829. DOI URL
[51]	DING Y, GUO Q, GENG Y, et al. A low-cost hole transport layer enables CsPbI₂Br single-junction and tandem perovskite solar cells with record efficiencies of 17.8% and 21.4%. Nano Today, 2022, 46: 101586. DOI URL
[52]	XIE Y M, YAO Q, ZENG Z, et al. Homogeneous grain boundary passivation in wide-bandgap perovskite films enables fabrication of monolithic perovskite/organic tandem solar cells with over 21% efficiency. Advanced Functional Materials, 2022, 32(19): 2112126. DOI URL
[53]	DATTA K, WANG J, ZHANG D, et al. Monolithic all-perovskite tandem solar cells with minimized optical and energetic losses. Advanced Materials, 2022, 34(11): 2110053. DOI URL
[54]	XIE Y M, NIU T, YAO Q, et al. Understanding the role of interconnecting layer on determining monolithic perovskite/ organic tandem device carrier recombination properties. Journal of Energy Chemistry, 2022, 71: 12. DOI URL
[55]	TONG J, JIANG Q, FERGUSON A J, et al. Carrier control in Sn-Pb perovskites via 2D cation engineering for all-perovskite tandem solar cells with improved efficiency and stability. Nature Energy, 2022, 7(7): 642. DOI
[56]	CHEN H, MAXWELL A, LI C, et al. Regulating surface potential maximizes voltage in all-perovskite tandems. Nature, 2023, 613(7945): 676. DOI
[57]	MAHMUD M A, ZHENG J, TANG S, et al. Water-free, conductive hole transport layer for reproducible perovskite-perovskite tandems with record fill factor. ACS Energy Letters, 2022, 8(1): 21. DOI URL
[58]	YAO Q, XIE Y M, ZHOU Y, et al. Dual sub-cells modification enables high‐efficiency n-i-p type monolithic perovskite/ organic tandem solar cells. Advanced Functional Materials, 2023, 33(8): 202212599.
[59]	CHEN B, YU Z, LIU K, et al. Grain engineering for perovskite/ silicon monolithic tandem solar cells with efficiency of 25.4%. Joule, 2019, 3(1): 177. DOI URL
[60]	WU P, WEN J, WANG Y, et al. Efficient and thermally stable all-perovskite tandem solar cells using all-FA narrow-bandgap perovskite and metal-oxide-based tunnel junction. Advanced Energy Materials, 2022, 12(48): 2202948. DOI URL
[61]	ROGER J, SCHORN L K, HEYDARIAN M, et al. Laminated monolithic perovskite/silicon tandem photovoltaics. Advanced Energy Materials, 2022, 12(27): 2200961. DOI URL
[62]	YU B, TANG F, YANG Y, et al. Impermeable atomic layer deposition for sputtering buffer layer in efficient semi-transparent and tandem solar cells via activating unreactive substrate. Advanced Materials, 2023, 35(5): 2202447. DOI URL
[63]	TOCKHORN P, SUTTER J, CRUZ A, et al. Nano-optical designs for high-efficiency monolithic perovskite-silicon tandem solar cells. Nature Nanotechnology, 2022, 17(11): 1214. DOI
[64]	LUO X, LUO H, LI H, et al. Efficient perovskite/silicon tandem solar cells on industrially compatible textured silicon. Advanced Materials, 2023, 35(9): 2207883. DOI URL

Front subcell		ICL	Rear subcell		V_OC/V	J_SC/(mA·cm^-2)	FF/%		PCE/%		Ref.

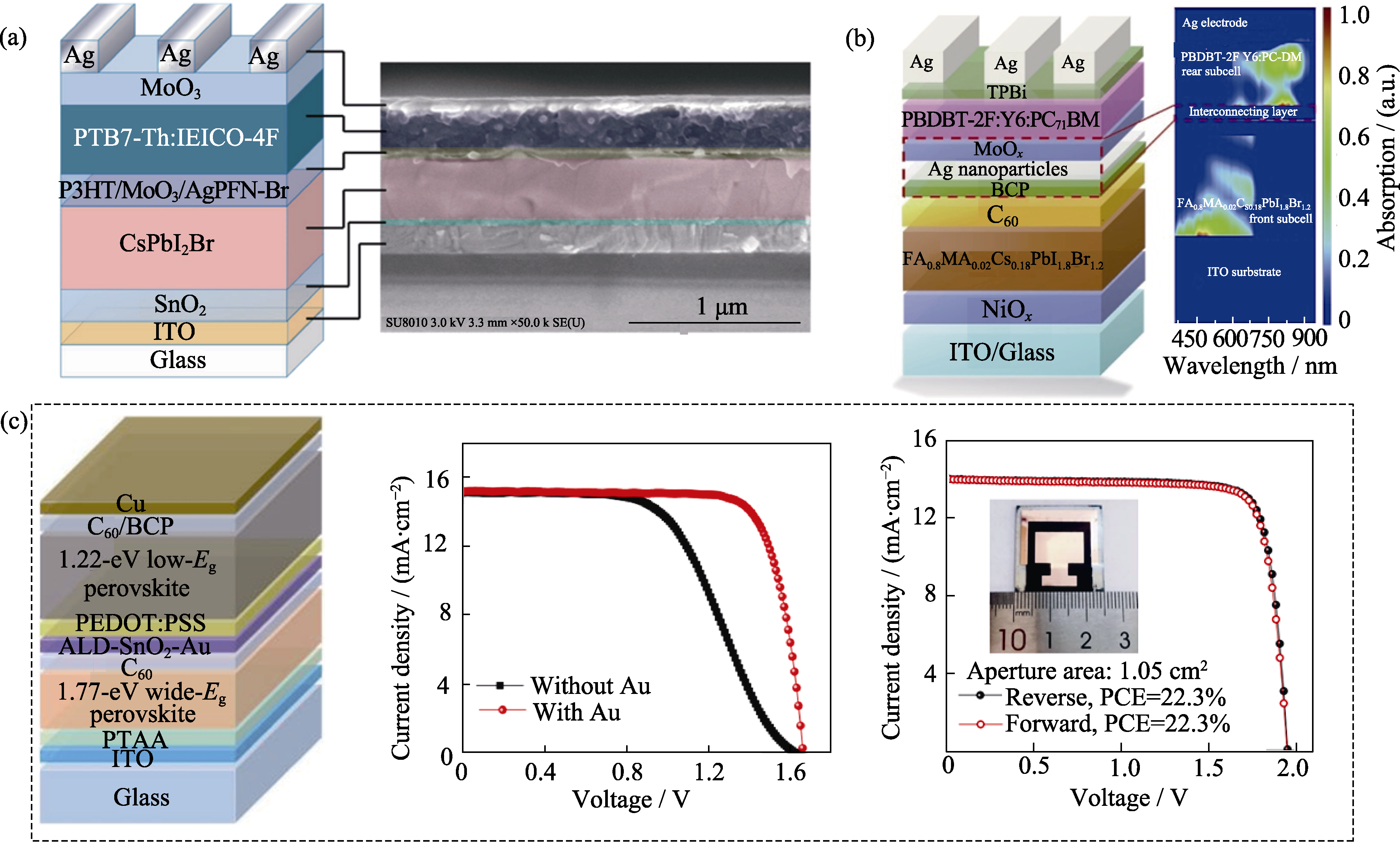

CsPbI₂Br		MoO₃/Ag/PFN-Br	PTB7-Th:IEICO-4F		1.82	13.20	71.68		17.24		[12]
FA_0.8MA_0.02Cs_0.18Pb_1.8Br_1.2		C₆₀/BCP/Ag/MoO_x	PBDBT-2F:Y6:PC₇₁BM		1.90	13.05	83.1		20.6		[30]
CsPbI_2.1Br_0.9		MoO₃/Ag/ZnO	PM6:Y6		1.89	12.77	74.81		18.06		[49]
CsPbI₂Br		MoO₃/Ag/PFN-Br	PM6:Y6-BO		1.96	13.30	80.8		21.1		[13]
FA_0.6MA_0.4Pb(I_0.6Br_0.4)₃		C₆₀/BCP/Ag/MoO_x	PTB7-Th: BTPV-4Cl-eC9		1.88	15.70	74.6		15.84		[50]
CsPbI₂Br		MoO₃/Ag/PFN-Br	PM6:Y6		2.10	13.09	75.1		20.6		[31]
CsPbI₂Br		MoO₃/Ag/PFN-Br	D18:Y6		2.22	12.68	76.0		21.4		[51]
FA_0.8Cs_0.2Pb(I_0.7Br_0.3)₃		C₆₀/BCP/Ag/MoO_x/ITO/ PEDOT:PSS	(FASnI₃)_0.6(MAPbI₃)_0.4:Cl		1.92	14.00	78.1		21.0		[25]
FA_0.8Cs_0.2Pb(I_0.6Br_0.4)₃		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		1.97	15.6	81.0		24.8		[32]
FA_0.8Cs_0.2Pb(I_0.6Br_0.4)₃		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		2.01	16.0	79.8		25.6		[26]
MA_0.96FA_0.1PbI₂Br(SCN)_0.12		PCBM/BCP/Au/MoO₃	PM6:CH1007		1.96	13.8	78.4		21.2		[52]
1.77 eV perovskite		C₆₀/ALD SnO_x/Au/PEDOT:PSS	1.23 eV Perovskite		1.95	15.8	75		23.1		[53]
Wide E_g perovskite		PCBM/BCP/Au/MoO₃	PM6:Y6		1.94	13.12	78.7		20.03		[54]
FA_0.8Cs_0.2PbI_1.95Br_1.05		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		2.00	15.8	78.3		24.7		[34]
FA_0.7Cs_0.3PbI_2.1Br_0.9		LiF/C₆₀/SnO₂/Au/PEDOT: PSS	(FASnI₃)_0.6(MAPbI₃)_0.4		2.12	15.03	80.1		25.5		[55]
FA_0.8Cs_0.2Pb(I_0.62Br_0.38)₃		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		2.03	16.5	79.9		26.7		[14]
FA_0.8Cs_0.2PbI_1.8Br_1.2		C₆₀/ALD SnO₂/Au/PEDOT:PSS	PM6:Y6		2.07	13.92	77.29		22.29		[15]
1.75 eV perovskite		LiF/C₆₀/ALD SnO_x/Au/PEDOT:PSS	FA_0.6MA_0.4Sn_0.6Pb_0.4I₃		2.20	15.1	81.6		27.2		[35]
Cs_0.2FA_0.8Pb(I_0.6Br_0.4)₃		C₆₀/ALD SnO_x/Au/PEDOT:PSS	Cs_0.05FA_0.7MA_0.25Pb_0.5Sn_0.5I₃		2.19	15.05	83.1		27.4		[56]
FA_0.8Cs_0.2PbI_2.1Br_0.9		LiF/C₆₀/ALD SnO₂/Au	FA_0.6MA_0.3Cs_0.1Pb_0.5Sn_0.5I₃		1.94	12.9	85.8		21.5		[57]
CsPbI_2.2Br_0.8		MoO₃/Au/ZnO	PM6:CH1007		2.10	13.90	76.86		22.43		[58]
FA_0.83Cs_0.17Pb(I_0.5Br_0.5)₃		SnO₂/ZTO/ITO/PEDOT:PSS	FA_0.75Cs_0.25Sn_0.5Pb_0.5I₃		1.66	14.5	70		16.9		[36]
MA_0.9Cs_0.1Pb(I_0.6Br_0.4)₃		C₆₀/Bis-C₆₀/ITO/PEDOT: PSS	MAPb_0.5Sn_0.5I₃		1.98	12.7	73		18.5		[16]
Wide E_g perovskite		nc-SiO_x:H/ITO/PTAA	Silicon		1.76	18.5	78.5		25.5		[17]
Cs_0.15(FA_0.83MA_0.17)_0.85Pb(I_0.8Br_0.2)₃		a-Si:H(n⁺)/ITO/PTAA	Silicon		1.80	17.8	79.4		25.4		[59]
Cs_0.1MA_0.9Pb(I_0.9Br_0.1)₃		a-Si:H(n⁺)/ITO/PTAA	Silicon		1.82	19.2	75.3		26.2		[38]
FA_0.8Cs_0.2 Pb(I_0.6Br_0.4)₃		C₆₀/ITO NCs/E-NiO_x	FA_0.8Cs_0.2Pb_0.5Sn_0.5I₃		1.90	15.4	80.4		23.5		[37]
Cs_0.2FA_0.8PbI_1.8Br_1.2		C₆₀/ALD SnO₂/ITO NCs	FAPb_0.5Sn_0.5I₃		2.03	16.2	80.3		26.3		[60]
Cs_0.1(MA_0.17FA_0.83)_0.9Pb (I_0.83Br_0.17)₃		a-Si:H(n)/ITO/NiO_x	Silicon		1.75	15.5	73.6		20.0		[61]
Wide E_g perovskite		nc-SiO_x(n)/ITO/NiO_x/2- PACz	Silicon		1.79	20.11	79.95		28.84		[39]
Wide E_g perovskite		a-Si:H(n)/ITO/NiO_x	Silicon		1.82	16.31	78.32		23.31		[62]
Cs_0.05(FA_0.77MA_0.23)_0.95Pb(I_0.77Br_0.23)₃		nc-SiO_x:H(n)/ITO	Silicon		1.90	19.54	80.90		29.83		[63]
Wide E_g perovskite		a-Si:H(i/n)/ITO/NiO	Silicon		1.85	19.8	78.9		28.9		[64]
MAPbI₃		p-aSi/IZO/PCBM	Silicon		1.69	15.8	79.9		21.4		[11]
1.79 eV perovskite		C₆₀/BCP/IZO/MoO_x	PM6:Y6:PC₇₁BM		2.06	14.83	77.2		23.6		[40]
FA_0.78Cs_0.22Pb(I_0.85Br_0.15)₃	Passivated ETL/IZO/SAM		Silicon	1.91		19.29		78.3		28.81	[42]
Cs_0.05MA_0.14FA_0.81Pb(I_0.8Br_0.2)₃	N doped nc-Si/IZO/2-PACz		Silicon	1.85		19.7		77.9		28.4	[41]
Wide E_g Perovskite	Poly-Si(n⁺)IZO		TOPCon	1.80		19.4		81.64		28.49	[43]
Cs_0.4FA_0.6PbI_1.95Br_1.05	(n⁺)C₆₀/SnO_1.76		Cs_0.05MA_0.45FA_0.5Pb_0.5Sn_0.5I₃	2.03		15.2		79.7		24.6	[44]
FA_0.8Cs_0.2Pb(I_0.5Br_0.5)₃	SiO_x/InO_x/MoO_x		PM6:Y6:PC₆₁BM	2.15		14.0		80		24.0	[45]
MAPbI₃	Spiro-OMeTAD/PEDOT: PSS/PEI		MAPbI₃	1.89		6.61		56		7.0	[47]
PBSeDTEG8:PC₆₁BM	TiO₂/PEDOT:PSS-PH500/ PEDOT:PSS 4083		MAPbI₃	1.52		10.05		67		10.23	[18]
MAPbBr₃	Spiro-OMeTAD/PEDOT: PSS/C₆₀		MAPbI₃	1.96		6.40		41		5.1	[48]
Cs_0.4FA_0.6PbI₂Br	C₆₀/SnO₂/Graphene oxide/PEDOT:PSS		Cs_0.2FA_0.8Pb_0.5Sn_0.5I₃	2.02		15.8		79.3		25.3	[23]
Cs_0.4FA_0.6PbI_2.16Br_0.84	C₆₀/SnO_2-_x/Graphene oxide/SnOCl		Cs_0.2FA_0.8Pb_0.5Sn_0.5I₃	2.05		16.2		79.3		26.3	[24]

Front subcell		ICL	Rear subcell		V_OC/V	J_SC/(mA·cm^-2)	FF/%		PCE/%		Ref.
CsPbI₂Br		MoO₃/Ag/PFN-Br	PTB7-Th:IEICO-4F		1.82	13.20	71.68		17.24		[12]
FA_0.8MA_0.02Cs_0.18Pb_1.8Br_1.2		C₆₀/BCP/Ag/MoO_x	PBDBT-2F:Y6:PC₇₁BM		1.90	13.05	83.1		20.6		[30]
CsPbI_2.1Br_0.9		MoO₃/Ag/ZnO	PM6:Y6		1.89	12.77	74.81		18.06		[49]
CsPbI₂Br		MoO₃/Ag/PFN-Br	PM6:Y6-BO		1.96	13.30	80.8		21.1		[13]
FA_0.6MA_0.4Pb(I_0.6Br_0.4)₃		C₆₀/BCP/Ag/MoO_x	PTB7-Th: BTPV-4Cl-eC9		1.88	15.70	74.6		15.84		[50]
CsPbI₂Br		MoO₃/Ag/PFN-Br	PM6:Y6		2.10	13.09	75.1		20.6		[31]
CsPbI₂Br		MoO₃/Ag/PFN-Br	D18:Y6		2.22	12.68	76.0		21.4		[51]
FA_0.8Cs_0.2Pb(I_0.7Br_0.3)₃		C₆₀/BCP/Ag/MoO_x/ITO/ PEDOT:PSS	(FASnI₃)_0.6(MAPbI₃)_0.4:Cl		1.92	14.00	78.1		21.0		[25]
FA_0.8Cs_0.2Pb(I_0.6Br_0.4)₃		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		1.97	15.6	81.0		24.8		[32]
FA_0.8Cs_0.2Pb(I_0.6Br_0.4)₃		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		2.01	16.0	79.8		25.6		[26]
MA_0.96FA_0.1PbI₂Br(SCN)_0.12		PCBM/BCP/Au/MoO₃	PM6:CH1007		1.96	13.8	78.4		21.2		[52]
1.77 eV perovskite		C₆₀/ALD SnO_x/Au/PEDOT:PSS	1.23 eV Perovskite		1.95	15.8	75		23.1		[53]
Wide E_g perovskite		PCBM/BCP/Au/MoO₃	PM6:Y6		1.94	13.12	78.7		20.03		[54]
FA_0.8Cs_0.2PbI_1.95Br_1.05		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		2.00	15.8	78.3		24.7		[34]
FA_0.7Cs_0.3PbI_2.1Br_0.9		LiF/C₆₀/SnO₂/Au/PEDOT: PSS	(FASnI₃)_0.6(MAPbI₃)_0.4		2.12	15.03	80.1		25.5		[55]
FA_0.8Cs_0.2Pb(I_0.62Br_0.38)₃		C₆₀/ALD SnO₂/Au/PEDOT:PSS	FA_0.7MA_0.3Pb_0.5Sn_0.5I₃		2.03	16.5	79.9		26.7		[14]
FA_0.8Cs_0.2PbI_1.8Br_1.2		C₆₀/ALD SnO₂/Au/PEDOT:PSS	PM6:Y6		2.07	13.92	77.29		22.29		[15]
1.75 eV perovskite		LiF/C₆₀/ALD SnO_x/Au/PEDOT:PSS	FA_0.6MA_0.4Sn_0.6Pb_0.4I₃		2.20	15.1	81.6		27.2		[35]
Cs_0.2FA_0.8Pb(I_0.6Br_0.4)₃		C₆₀/ALD SnO_x/Au/PEDOT:PSS	Cs_0.05FA_0.7MA_0.25Pb_0.5Sn_0.5I₃		2.19	15.05	83.1		27.4		[56]
FA_0.8Cs_0.2PbI_2.1Br_0.9		LiF/C₆₀/ALD SnO₂/Au	FA_0.6MA_0.3Cs_0.1Pb_0.5Sn_0.5I₃		1.94	12.9	85.8		21.5		[57]
CsPbI_2.2Br_0.8		MoO₃/Au/ZnO	PM6:CH1007		2.10	13.90	76.86		22.43		[58]
FA_0.83Cs_0.17Pb(I_0.5Br_0.5)₃		SnO₂/ZTO/ITO/PEDOT:PSS	FA_0.75Cs_0.25Sn_0.5Pb_0.5I₃		1.66	14.5	70		16.9		[36]
MA_0.9Cs_0.1Pb(I_0.6Br_0.4)₃		C₆₀/Bis-C₆₀/ITO/PEDOT: PSS	MAPb_0.5Sn_0.5I₃		1.98	12.7	73		18.5		[16]
Wide E_g perovskite		nc-SiO_x:H/ITO/PTAA	Silicon		1.76	18.5	78.5		25.5		[17]
Cs_0.15(FA_0.83MA_0.17)_0.85Pb(I_0.8Br_0.2)₃		a-Si:H(n⁺)/ITO/PTAA	Silicon		1.80	17.8	79.4		25.4		[59]
Cs_0.1MA_0.9Pb(I_0.9Br_0.1)₃		a-Si:H(n⁺)/ITO/PTAA	Silicon		1.82	19.2	75.3		26.2		[38]
FA_0.8Cs_0.2 Pb(I_0.6Br_0.4)₃		C₆₀/ITO NCs/E-NiO_x	FA_0.8Cs_0.2Pb_0.5Sn_0.5I₃		1.90	15.4	80.4		23.5		[37]
Cs_0.2FA_0.8PbI_1.8Br_1.2		C₆₀/ALD SnO₂/ITO NCs	FAPb_0.5Sn_0.5I₃		2.03	16.2	80.3		26.3		[60]
Cs_0.1(MA_0.17FA_0.83)_0.9Pb (I_0.83Br_0.17)₃		a-Si:H(n)/ITO/NiO_x	Silicon		1.75	15.5	73.6		20.0		[61]
Wide E_g perovskite		nc-SiO_x(n)/ITO/NiO_x/2- PACz	Silicon		1.79	20.11	79.95		28.84		[39]
Wide E_g perovskite		a-Si:H(n)/ITO/NiO_x	Silicon		1.82	16.31	78.32		23.31		[62]
Cs_0.05(FA_0.77MA_0.23)_0.95Pb(I_0.77Br_0.23)₃		nc-SiO_x:H(n)/ITO	Silicon		1.90	19.54	80.90		29.83		[63]
Wide E_g perovskite		a-Si:H(i/n)/ITO/NiO	Silicon		1.85	19.8	78.9		28.9		[64]
MAPbI₃		p-aSi/IZO/PCBM	Silicon		1.69	15.8	79.9		21.4		[11]

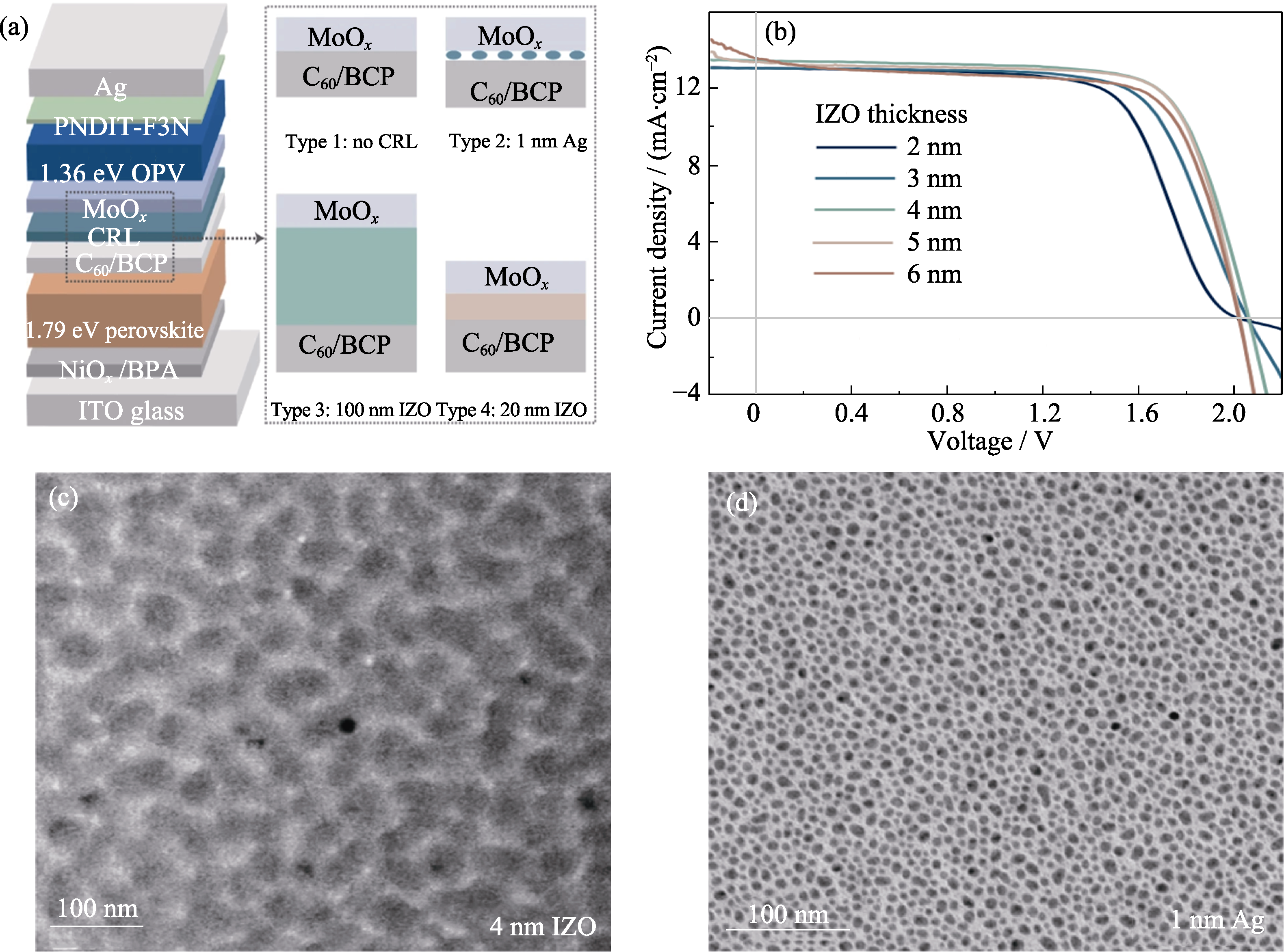

1.79 eV perovskite		C₆₀/BCP/IZO/MoO_x	PM6:Y6:PC₇₁BM		2.06	14.83	77.2		23.6		[40]
FA_0.78Cs_0.22Pb(I_0.85Br_0.15)₃	Passivated ETL/IZO/SAM		Silicon	1.91		19.29		78.3		28.81	[42]

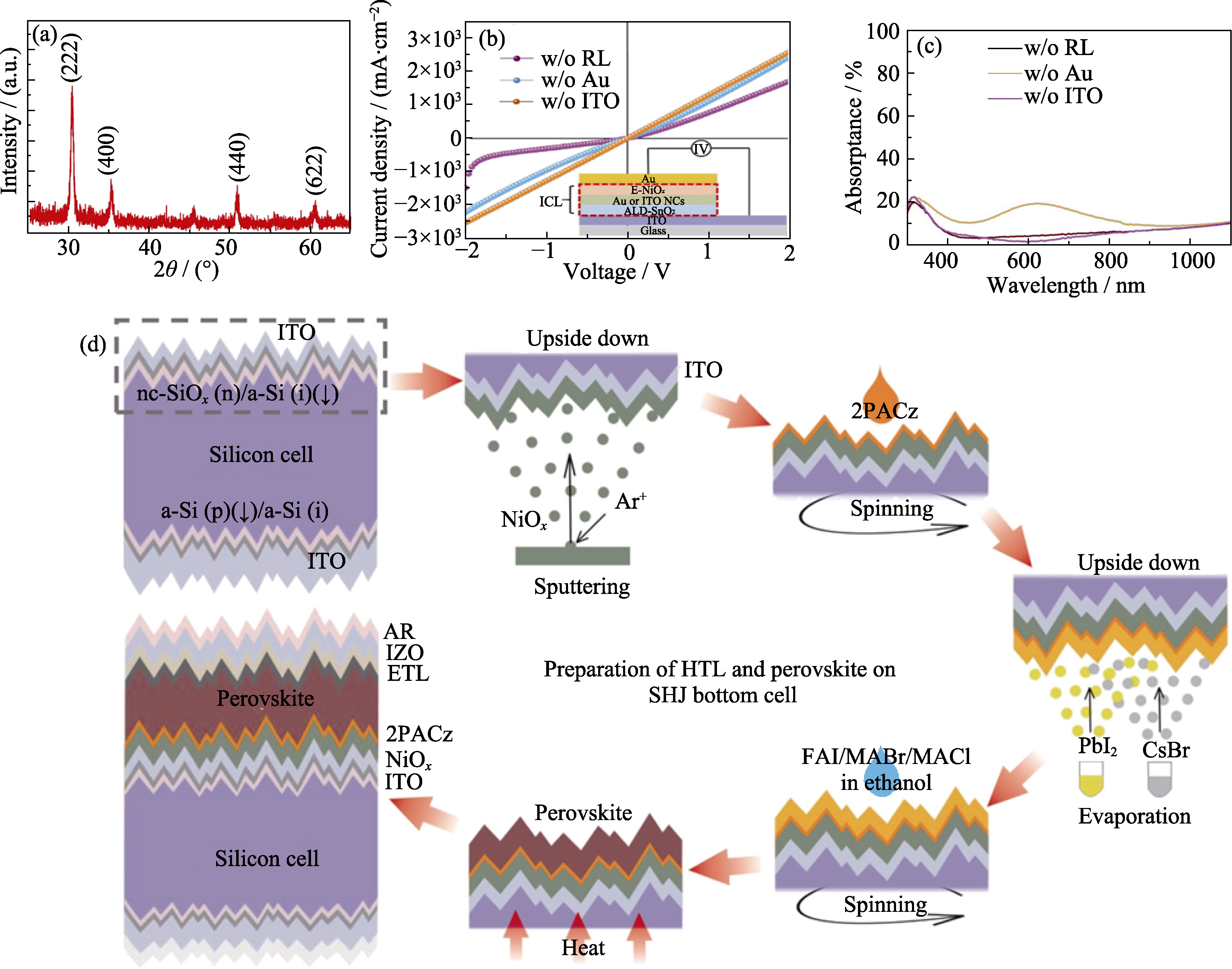

Cs_0.05MA_0.14FA_0.81Pb(I_0.8Br_0.2)₃	N doped nc-Si/IZO/2-PACz		Silicon	1.85		19.7		77.9		28.4	[41]
Wide E_g Perovskite	Poly-Si(n⁺)IZO		TOPCon	1.80		19.4		81.64		28.49	[43]

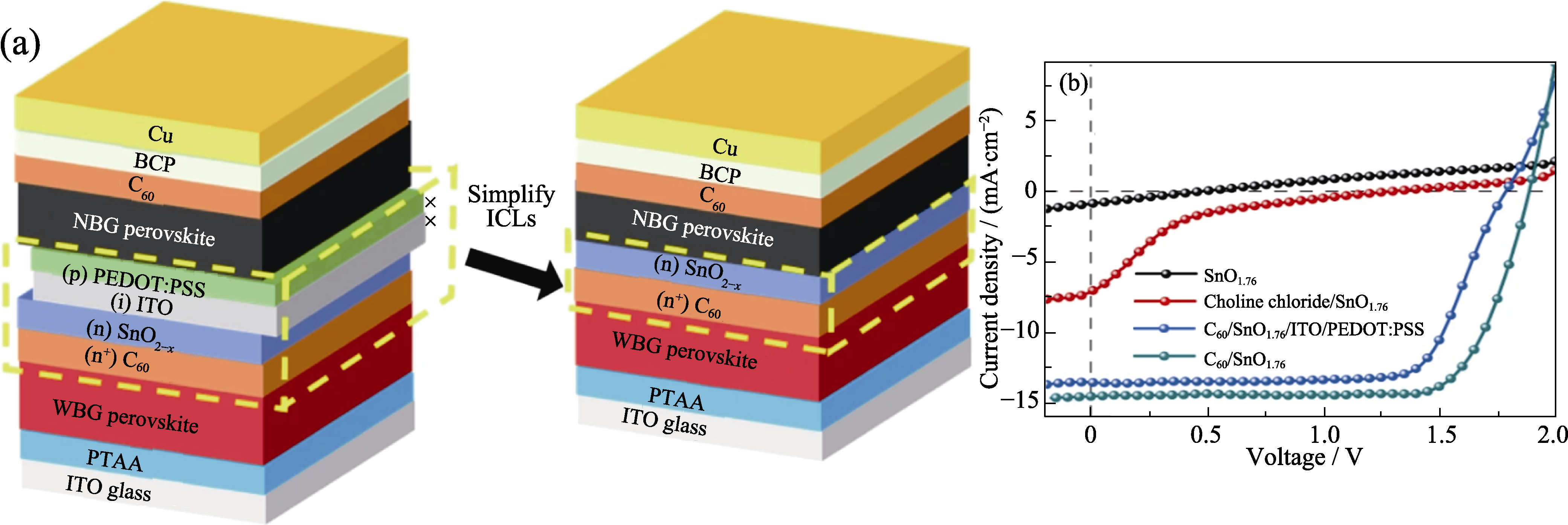

Cs_0.4FA_0.6PbI_1.95Br_1.05	(n⁺)C₆₀/SnO_1.76		Cs_0.05MA_0.45FA_0.5Pb_0.5Sn_0.5I₃	2.03		15.2		79.7		24.6	[44]

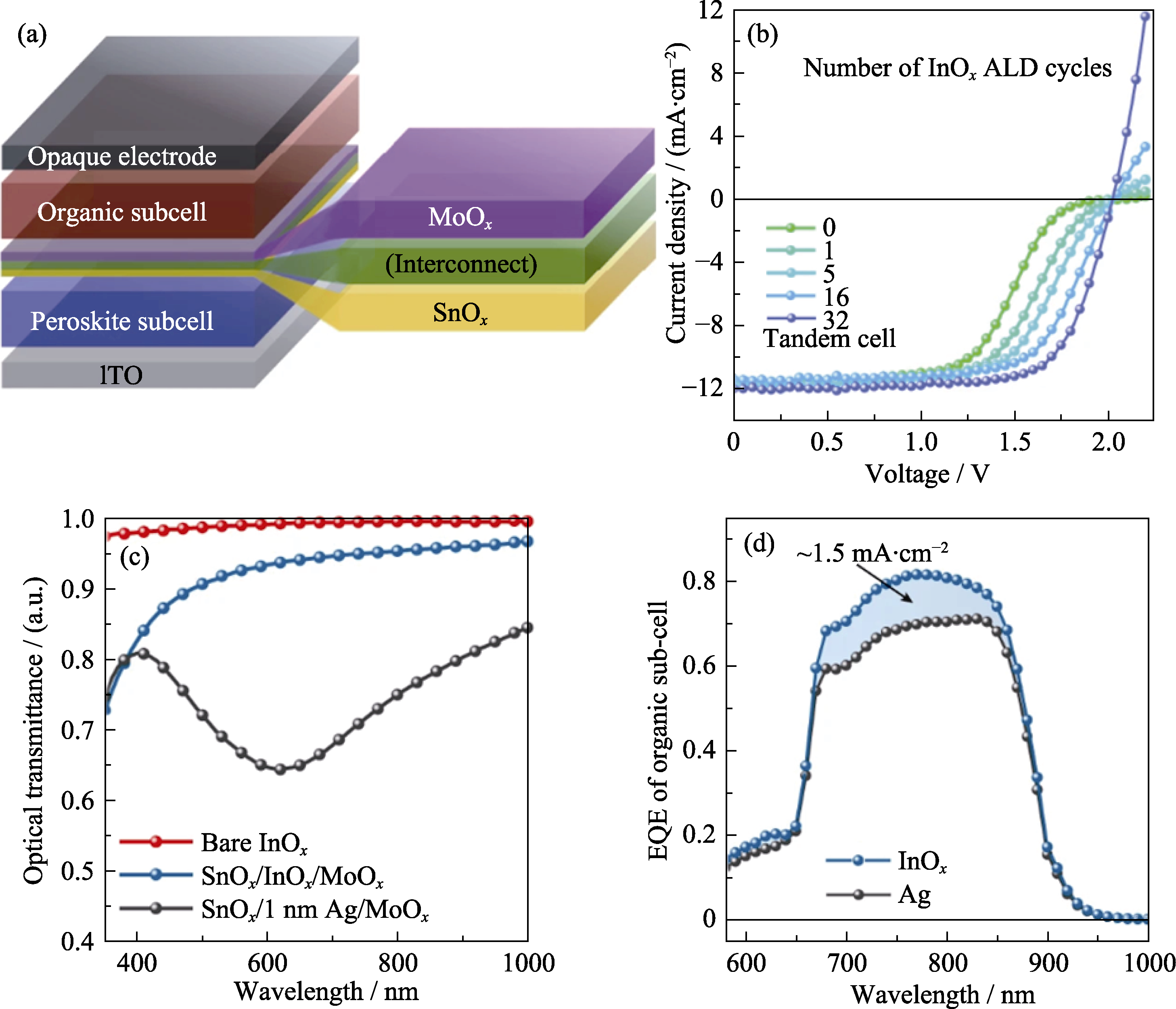

FA_0.8Cs_0.2Pb(I_0.5Br_0.5)₃	SiO_x/InO_x/MoO_x		PM6:Y6:PC₆₁BM	2.15		14.0		80		24.0	[45]

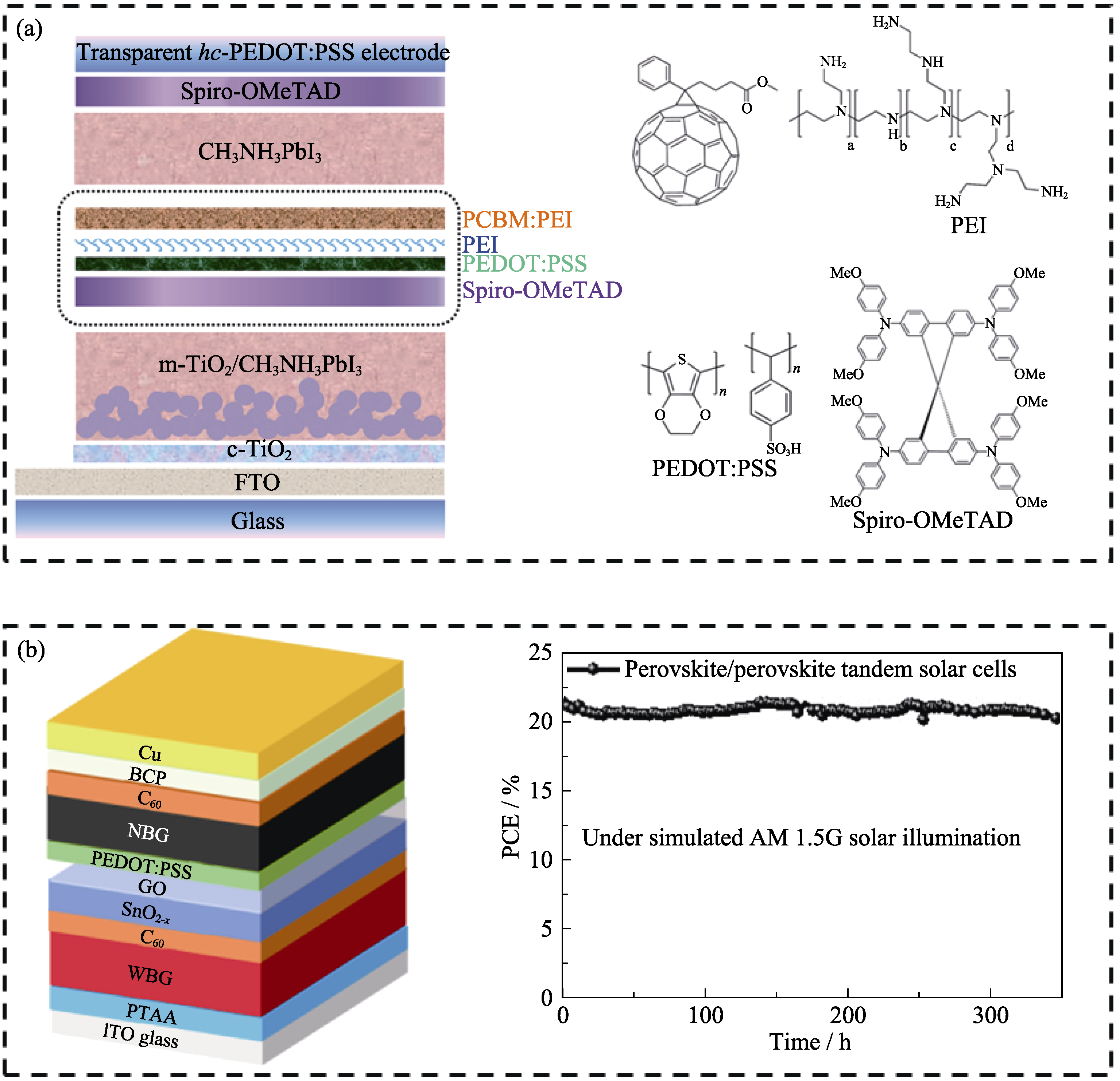

MAPbI₃	Spiro-OMeTAD/PEDOT: PSS/PEI		MAPbI₃	1.89		6.61		56		7.0	[47]
PBSeDTEG8:PC₆₁BM	TiO₂/PEDOT:PSS-PH500/ PEDOT:PSS 4083		MAPbI₃	1.52		10.05		67		10.23	[18]
MAPbBr₃	Spiro-OMeTAD/PEDOT: PSS/C₆₀		MAPbI₃	1.96		6.40		41		5.1	[48]
Cs_0.4FA_0.6PbI₂Br	C₆₀/SnO₂/Graphene oxide/PEDOT:PSS		Cs_0.2FA_0.8Pb_0.5Sn_0.5I₃	2.02		15.8		79.3		25.3	[23]
Cs_0.4FA_0.6PbI_2.16Br_0.84	C₆₀/SnO_2-_x/Graphene oxide/SnOCl		Cs_0.2FA_0.8Pb_0.5Sn_0.5I₃	2.05		16.2		79.3		26.3	[24]
