原子级铁锚定氮掺杂石墨烯的双功能氧电催化性能

doi:10.15541/jim20250519

摘要/Abstract

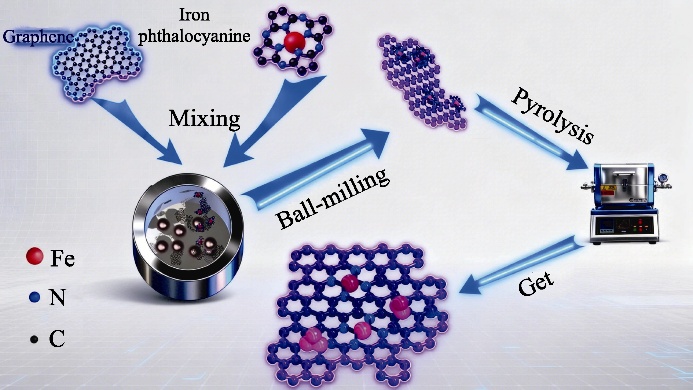

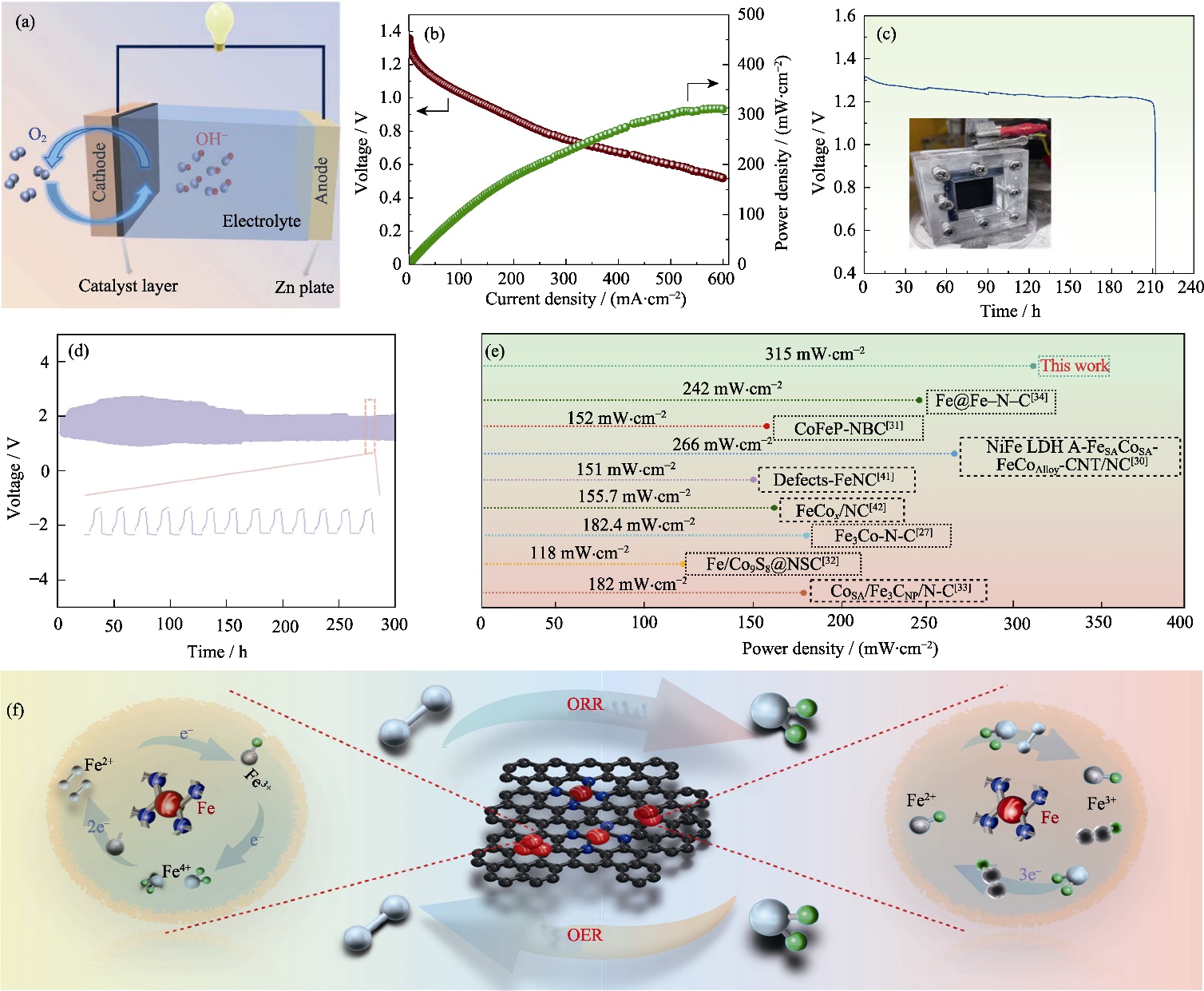

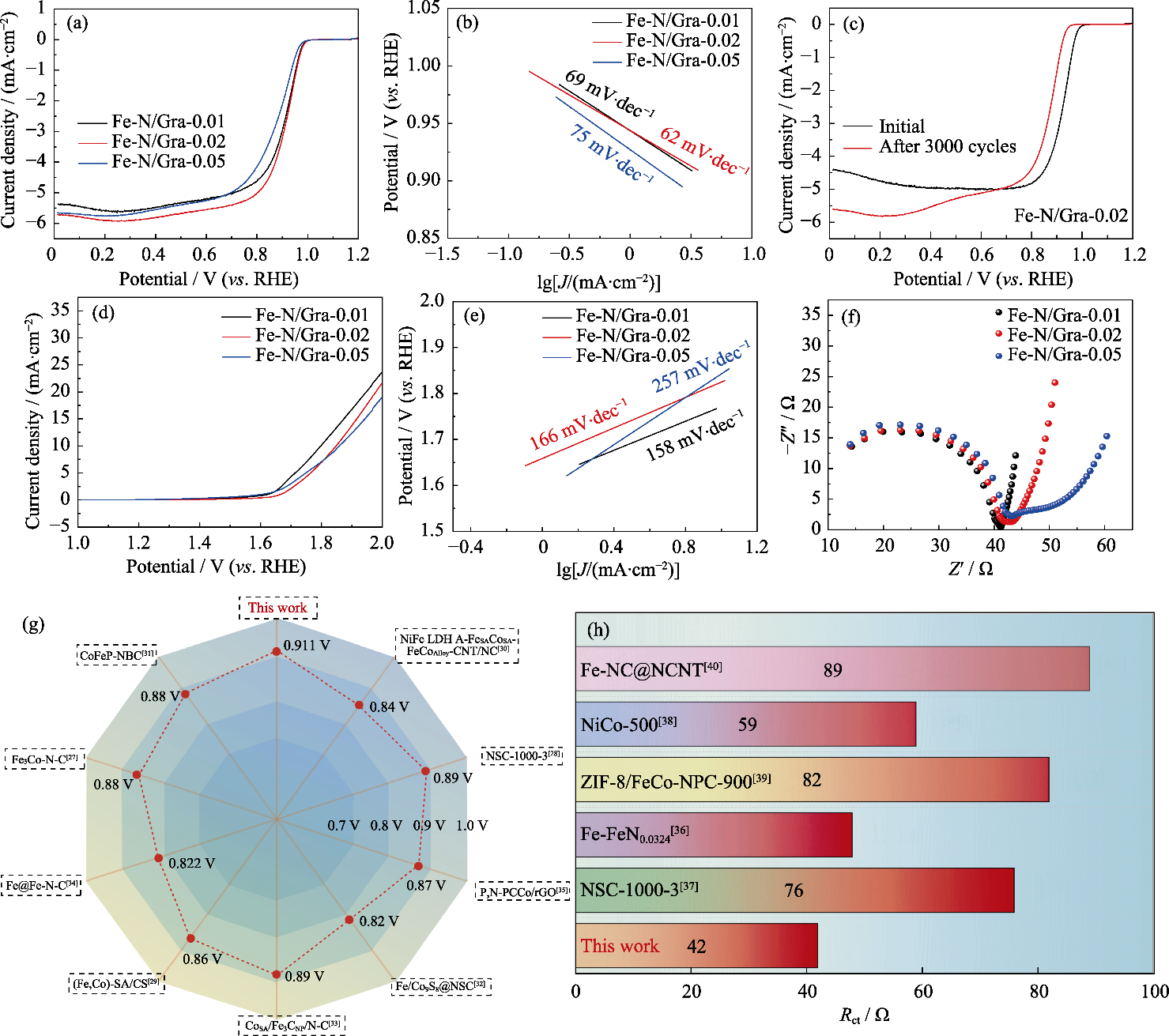

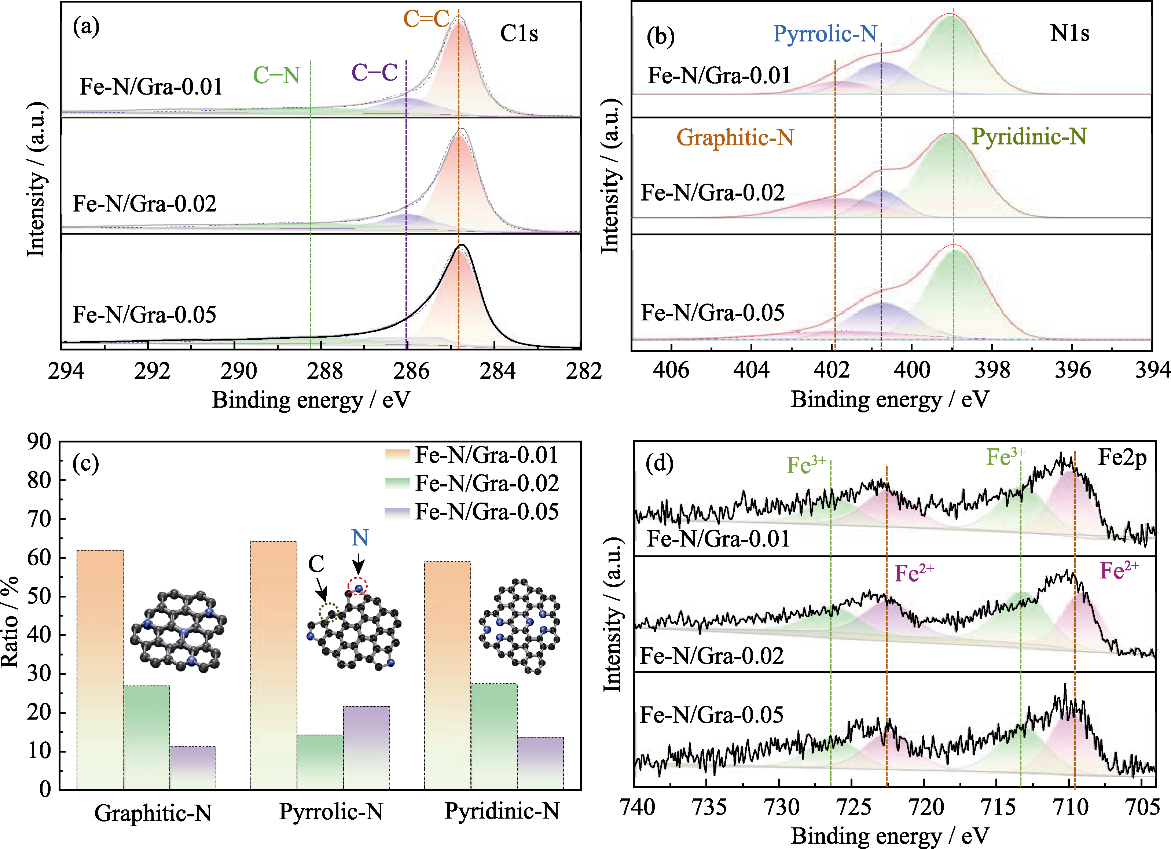

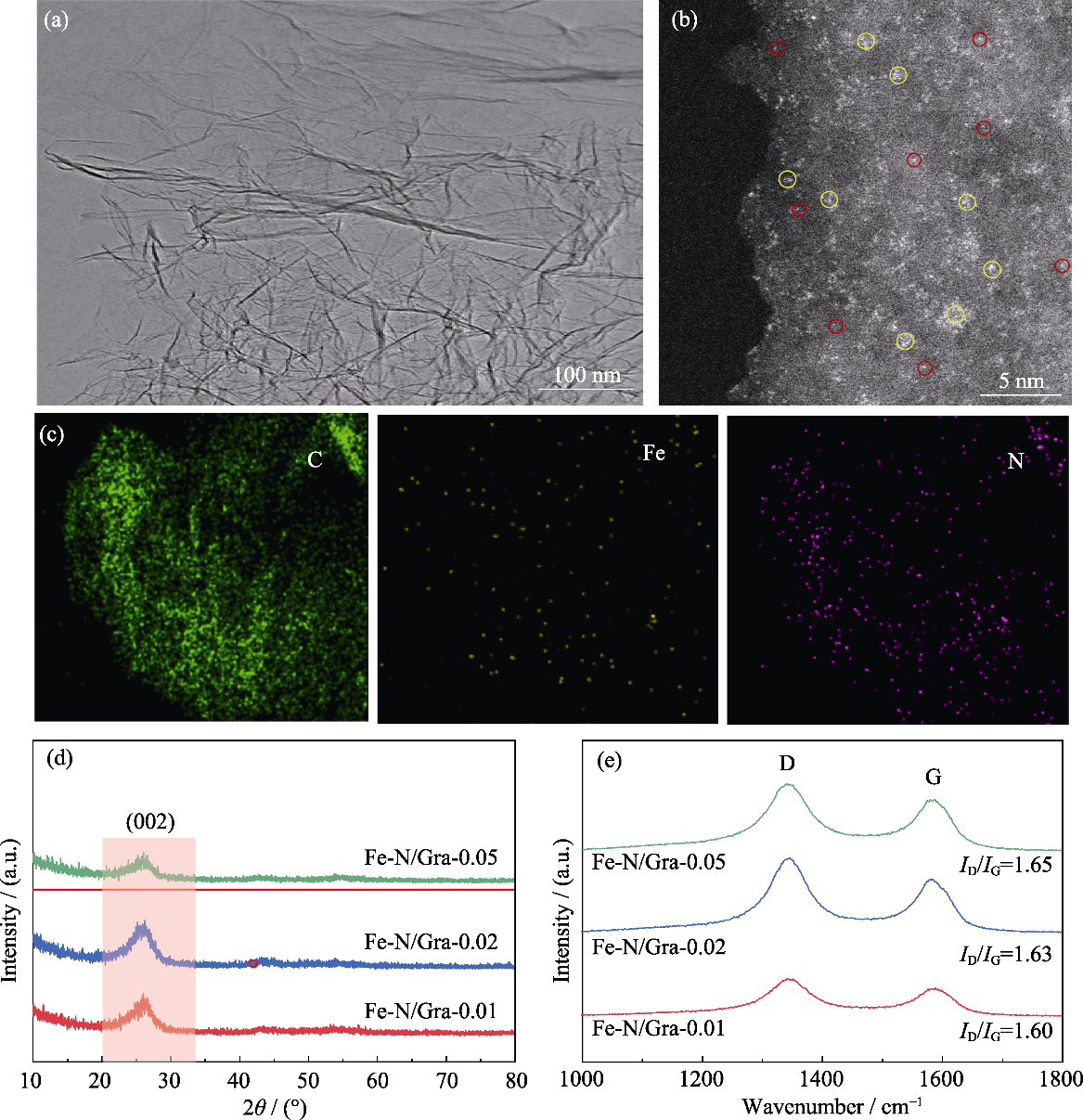

摘要： 随着对高效环保储能系统需求的日益增长,锌空电池因其高能量密度、低成本及环境友好等特性,成为极具前景的能源存储装置。然而,空气阴极上缓慢的氧还原(ORR)和析氧反应(OER)动力学制约了电池性能的进一步提升,故开发高性能、低成本的双功能氧电催化剂具有重要意义。本实验通过球磨辅助热解法,制备了Fe单原子/团簇锚定石墨烯杂化催化剂(Fe-N/Gra)。通过调控前驱体金属酞菁与石墨烯的比例,获得了系列Fe-N/Gra材料,并考察了其氧双功能电催化性能。研究结果表明,不同金属酞菁前驱体量对催化剂性能具有较大的影响。当酞菁铁载量为0.02 g时,所得Fe-N/Gra-0.02展现出最佳的ORR和OER催化活性：其ORR半波电位高达0.911 V,OER在10 mA•cm^-2下的过电位为610 mV。以该催化剂作为空气电极组装的可充式锌空电池,最大功率密度达315 mW•cm^-2,在10 mA•cm^-2电流密度下可稳定放电220 h。Fe-N/Gra-0.02良好的双功能氧催化活性主要归因于原子级分散FeN_x活性位和载体石墨烯的高导电性,另外高负载量催化剂中活性位的团聚不利于展现其高效催化活性。本研究为高性能非贵金属双功能催化剂的可控制备及锌空电池的应用提供了实验依据。

关键词: 铁锚定氮掺杂石墨烯, 单原子/团簇, 氧还原反应, 析氧反应, 锌空电池

Abstract: With the growing demand for efficient and environmentally friendly energy storage systems, zinc-air batteries have emerged as highly promising energy storage devices due to their high energy density, low cost, and environmental friendliness. The oxygen reduction reaction (ORR) and oxygen evolution reaction (OER), which suffer from sluggish kinetics, are critical factors limiting battery performance. Therefore, the development of high-performance and low-cost bifunctional oxygen electrocatalysts is of great significance. In this work, Fe single atoms / clusters anchored graphene hybrid catalysts (Fe-N/Gra) were prepared via a ball-milling assisted pyrolysis method. A series of Fe-N/Gra catalysts were obtained by adjusting the mass ratio of the metal phthalocyanine precursor to graphene, and their bifunctional oxygen electrocatalytic performances were systematically investigated. The results demonstrate that the loading amount of different metal phthalocyanine precursors exerts a significant influence on the catalytic performance of the catalysts. When the loading amount of iron phthalocyanine was 0.02 g, the resulting Fe-N/Gra-0.02 catalyst exhibited the optimal bifunctional catalytic activity for oxygen reduction reaction (ORR) and oxygen evolution reaction (OER): its ORR half-wave potential reached as high as 0.911 V, and the OER overpotential was 610 mV at a current density of 10 mA•cm^-2. The rechargeable zinc-air batteries assembled with this catalyst as the air electrode achieved a maximum power density of 315 mW•cm^-2 and could sustain stable discharge for 220 h at 10 mA•cm^-2. The excellent bifunctional oxygen catalytic activity of Fe-N/Gra-0.02 is mainly attributed to the atomically dispersed FeN_x active sites and the high electrical conductivity of graphene support. In addition, the agglomeration of active sites in the catalysts with excessive loading amounts is detrimental to the manifestation of their high-efficiency catalytic activity. This work provides an experimental basis for the controllable preparation of high-performance non-noble metal bifunctional oxygen catalysts and their practical applications in rechargeable zinc-air batteries.

Key words: iron-anchored nitrogen-doped graphene, single-atom/cluster, oxygen reduction reaction, oxygen evolution reaction, Zn-air battery

中图分类号:

TB383

汪加辉, 刘晶晶, 邱毅, 王永霞, 崔香枝. 原子级铁锚定氮掺杂石墨烯的双功能氧电催化性能[J]. 无机材料学报, DOI: 10.15541/jim20250519.

WANG Jiahui, LIU Jingjing, QIU Yi, WANG Yongxia, CUI Xiangzhi. Bifunctional Oxygen Electrocatalytic Performance of Atomically Dispersed Fe anchored on N doped Graphene[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250519.

参考文献

[1] ZHANG W W, WANG Y, LI Y C,et al. First-principles calculations insight into non-noble-metal bifunctional electrocatalysts for zinc-air batteries. Applied Energy, 2025, 391: 125925.
[2] WENG X L, LIU P P, ZHANG Y P,et al. A novel porous electronic conducting ceramics loaded with silver nano particles as cathode for zinc-air batteries. Journal of Inorganic Materials, 2018, 33(8): 854.
[3] MA L T, ZHI C Y.Fe, N Doped 2D porous carbon bifunctional catalyst for zinc-air battery.Journal of Inorganic Materials, 2019, 34(1): 103.
[4] LV Q, L M P, LI X D,et al. Introducing hydroxyl groups to tailor the d-band center of Ir atom through side anchoring for boosted ORR and HER. Journal of Energy Chemistry, 2024, 90(3): 144.
[5] 张铭, 马林昊, 彭铠, 等. ORR/OER高效二维双功能电催化剂Cu₂@C₂N的第一性原理研究. 北京工业大学学报, 2025, 51(10): 1153.
[6] HUANG H H, LI W, HU C C,et al. Role of bonding filling on HER/OER/ORR multifunctional catalytic activity in transition-metals-doped PdPX(X=S,Se,Te). Rare Metals, 2024, 43(10): 5126.
[7] 刘扬,张靖佳,王红霞,等. M(M=Fe,Co,Mn)-N-C催化剂用于燃料电池的氧化还原反应. 电池工业, 2021, 25(6): 308.
[8] FAN Z C, WAN H, YU H,et al. Rational design of Fe-M-N-C based dual-atom catalysts for oxygen reduction electrocatalysis. Chinese Journal of Catalysis, 2023, 54(11): 56.
[9] 张小玉, 薛冬萍, 杜宇, 等. MOF衍生碳基电催化剂限域催化O₂还原和CO₂还原反应. 高等学校化学学报, 2022, 43(03): 12.
[10] 张洁兰, 邱晨曦, 陈丹, 等. 氮掺杂Pt-Co合金催化剂的制备及其氧还原性能. 工业催化, 2023, 31(06): 34.
[11] CHANG W J, ZHOU X H, SUN Y S N,et al. Effect of support materials and loading levels on the CO oxidation performance of Sn-CuMnO_x catalysts. Journal of Environmental Chemical Engineering, 2025, 13(6): 119151.
[12] LIU L, ZHAO X Y, Ding GF,et al. Fe₃N sites anchored reduced graphene oxide activate peroxymonosulfate via singlet oxygen dominated process: performance and mechanisms. Chemical Engineering Journal, 2023, 470: 143820.
[13] WU Y, CHEN J L, LIU J,et al. Iron phthalocyanine coupled with Co-N_x sites in carbon nanostraws for Zn-Air batteries. Chemical Engineering Journal, 2025,503: 158343.
[14] CHEN K J, LIU K, AN P D,et al. Iron phthalocyanine with coordination induced electronic localization to boost oxygen reduction reaction. Nature Communications, 2020, 11: 4173.
[15] CHEN J R, WANG M J, CHEN L H,et al. Intrinsic defect-rich carbon-supported iron phthalocyanine as beyond-Pt oxygen reduction catalysts for Zinc-air batteries. Advanced Energy and Sustainability Research, 2024, 5: 2300498.
[16] ZHANG H, ZHANG Z K, ZHANG C,et al. Highly dispersed ultrasmall iron phthalocyanine molecule clusters confined by mesopore-rich N-doped hollow carbon nanospheres for efficient oxygen reduction reaction and Zn-air Battery. Chemical Engineering Journal, 2023, 469: 143996.
[17] TING Y C, CHENG C C, LIN S H,et al. Synergistic Fe and Co binary single atoms based air cathodes for high performance and ultra-stable Zn-air Batteries. Energy Storage Materials, 2024, 67: 103286.
[18] SHU X X, CHEN Q W, YANG M M,et al. Tuning Co-catalytic sites in hierarchical porous N-doped carbon for high-performance rechargeable and flexible Zn-air battery. Advanced Energy Materials, 2023, 13: 2202871.
[19] TAO S H, XIANG S M, YU Q Y,et al. Regulating electron region of central Fe atom in iron phthalocyanine by N, S-doped carbon nanofibers as efficient oxygen reduction catalysts for high-performance Zn-air battery. Carbon, 2024, 220: 118893.
[20] GAO M, LIU J, YE G.et al. Molecular iron phthalocyanine catalysts on morphology-engineered graphene towards the oxygen reduction reaction. Science China Materials, 2023, 66(10): 2774.
[21] 樊聪聪, 郭岩琪, 杜灿, 等. 多孔石墨烯基酞菁铁复合物的制备及其电催化氧还原性能研究. 辽宁化工, 2020, 49(5): 3.
[22] LI Y P, LI Z F, SUN C Z,et al. Closely packed planar polyphthalocyanine iron/hierarchical three-dimensional graphene as an oxygen electrocatalyst for the ORR and OER, and zinc-air batteries. Sustainable Energy & Fuels, 2021, 5(20): 5216.
[23] 王延杰. 双功能金属氧化物催化剂的制备与电化学性能测试.桂林:桂林理工大学硕士学位论文,2024.
[24] 闫雪绒. 新型燃料电池催化剂的制备及电化学性能测试研究.太原:山西大学硕士学位论文,2023.
[25] 朱广奇. 单原子ORR 催化剂 M-N-C 的设计及制备技术研究.天津:天津大学硕士学位论文,2019.
[26] JI X X, WANG H F, HU P J. First principles study of Fenton reaction catalyzed by FeOCl: reaction mechanism and location of active site. Rare Metals,2019, 38(8): 783.
[27] ZHANG Q J, LIANG K, SHAO Z,et al. RETRACTED: Fe-Co co-doped 1D@2D carbon-based composite as an efficient catalyst for Zn-air batteries. International Journal of Electrochemical Science, 2024, 19(10): 100766.
[28] LI W M, ZHONG M X, CHEN X J,et al. Hierarchical amorphous bimetallic sulfide nanosheets supported on Co-C nanofibers to synergistically boost water electrolysis. Science China Materials, 2023, 66(6): 2235.
[29] JOSE V, HU H, EDISON E,et al. Modulation of single atomic Co and Fe sites on hollow carbon nanospheres as oxygen electrodes for rechargeable Zn-air batteries. Small Methods, 2020, 5: 2000751.
[30] HONG W X, WANG W H, CHANG Y H,et al. A Ni-Fe layered double hydroxide anchored FeCo nanoalloys and Fe-Co dual single-atom electrocatalysts for rechargeable and flexible zinc-air and aluminum-air batteries. Nano Energy, 2024, 121: 109236.
[31] ZHANG P X, LIU S L, ZHOU J J,et al. Co-adjusting d-band center of Fe to accelerate proton coupling for efficient oxygen electrocatalysis. Small, 2024, 20: 2307662.
[32] LEI X F, LI W J, SUN K J,et al. Fe doped Co₉S₈ nanoparticles embedded in N, S co-doped porous carbon as an efficient bifunctional electrocatalyst for rechargeable Zn-air batteries. Electrochimica Acta, 2024, 476: 143767.
[33] LAI C X, ZHANG L, CHEN W X,et al. MOF-derived Co single atoms anchored on Fe₃C-decorated carbon nanosheets for stable zinc-air batteries. Journal of Materials Chemistry A, 2025, 13(46): 39944.
[34] AHMED Z, AKULA S, KOZLOVA J,et al. Hybrid high-performance oxygen reduction reaction Fe-N-C electrocatalyst for anion exchange membrane fuel cells. International Journal of Hydrogen Energy, 2024, 62: 849.
[35] ZHAO W H., GONG J, YAN Y,et al. Metal-organic-framework-derived Co nanoparticles embedded in P, N-dual-doped porous carbon/rGO catalyst for water splitting and oxygen reduction. ChemNanoMat, 2024, 8(9): 2400073.
[36] LI Y Y, WU X M, YE X,et al. Efficient electrocatalyst with multi Fe-based phase interfaces for oxygen reduction reaction in metal-air batteries. Journal of Power Sources, 2025, 662: 238723.
[37] ZHANG L Y, CUI C X, LI J.Carbon materials co-doped with nitrogen and sulfur for highly efficient catalytic activity in oxygen reduction and evolution.International Journal of Electrochemical Science, 2024, 19(5): 100516.
[38] LI M Q, XIANG Y, LI P,et al. Binary metal sulfide nanoparticles as a bifunctional electrocatalyst for durable Zn-air batteries. ACS Applied Nano Materials, 2025, 8(7): 3575.
[39] QU X X, LI S X, WU Y P,et al. Dual-metal ORR catalyst with amorphous porous structure for high-performance zinc-air batteries. Journal of Alloys and Compounds, 2025, 1032: 181201.
[40] SHEN Y, HE S Q, ZHUANG Y Y,et al. Polypyrrole template-assisted synthesis of tubular Fe-NC nanostructure-based electrocatalysts for efficient oxygen reduction reaction in rechargeable zinc-air battery. ACS Applied Nano Materials, 2023, 6(18): 16873.
[41] YANG K Z, XU C, GUO P P,et al. Creating defects in the active site of Fe-N-C catalyst promotes catalytic performance for oxygen reduction reaction. ChemNanoMat, 2023, 9(8): e202300138.
[42] WANG J Y, ZHANG T N, HE S,et al. FeCo₅/Nitrogen doped carbon as an efficient bifunctional oxygen electrocatalyst for Zn-air batteries. Journal of Electroanalytical Chemistry,2024, 965: 118369.
[43] ZHANG Y D, HE Y, LI J,et al. Understanding the mechanism of Fe-N-C catalyst oxygen reduction reaction performance enhancement: the impact of iron valence state and nitrogen content. ACS Applied Materials & Interfaces, 2025, 17(12): 18275.
[44] ZHANG Y M, XIAO Q, WANG J, ,et al. Electrocatalysis-dependent dynamic surface reconstruction of redox couples for bifunctional electrocatalysts. Applied Catalysis B: Environment and Energy,2025, 376: 125468.
