Fabrication and Characterization of High Stability (EDA)(FA)2[Pb3I10] Layered Perovskite Film

doi:10.15541/jim20160156

Abstract

Abstract:

A new two-dimensional layered hybrid perovskite solar-cell absorber was synthesized by one-step method, using (EDA)I₂, (FA)I, and PbI₂with a 1:2:3 stoichiometric ratio in a solvent mixture of N, N-dimethylformamide(DMF). Ethylenediamine(EDA) cation was introduced into the perovskite lattice to synthesize a layered structure with improved resistance to the degradation by humidity in air. The effects of humidity and time on crystal structure, composition, morphology, and absorption spectra of (EDA)(FA)₂[Pb₃I₁₀] and CH₃NH₃PbI₃were analyzed by in situ grazing incidence X-ray diffraction(GIXRD), X-ray diffraction (XRD), scanning electron microscope (SEM), atomic force microscope(AFM), and UV-Vis spectroscope. The results reveal that the prepared (EDA)(FA)₂[Pb₃I₁₀] film is more moisture resistant than the CH₃NH₃PbI₃ film which is widely used in the perovskite solar cell. SEM analysis reveals that the (EDA)(FA)₂[Pb₃I₁₀] film has a layered structure, which can reduce the degradation caused by moisture. What’s more, UV-Vis light absorption spectroscopy and atomic force microscopy(AFM) results show that the layered structure film is also a suitable absorber for perovskite solar cells. Photoluminescence spectrum(PL) reveals that bandgap of the (EDA)(FA)₂[Pb₃I₁₀] film is 1.67 eV, which is close to the optimum value for solar photoelectric conversion. As compared to CH₃NH₃PbI₃ film, the low-cost perovskite structure offers greater tunability on a molecular level for further material optimization and possibility for widely used in the future.

Key words: one-step method, perovskite, GIXRD, (EDA)(FA)₂[Pb₃I₁₀]

CLC Number:

TM914

GAO Yan-Min, JIANG Wen-Long, YANG Tie-Ying, ZUO Yin-Ze. Fabrication and Characterization of High Stability (EDA)(FA)₂[Pb₃I₁₀] Layered Perovskite Film[J]. Journal of Inorganic Materials, 2016, 31(10): 1129-1134.

Figures/Tables 7

Fig. 1 SEM images of (a) (EDA)(FA)2[Pb3I10] and (b) CH3NH3PbI3 films

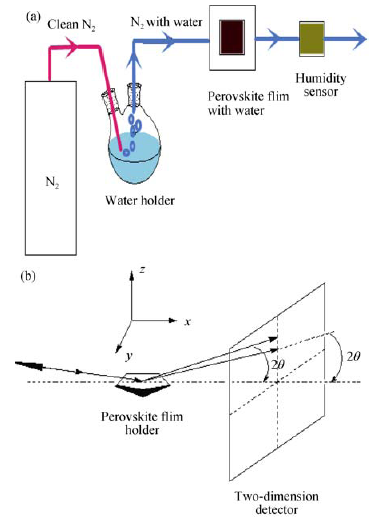

Fig. 2 (a) Schematic of the humidity control apparatus and (b) and the GIXRD experimental setup for perovskite films on glass

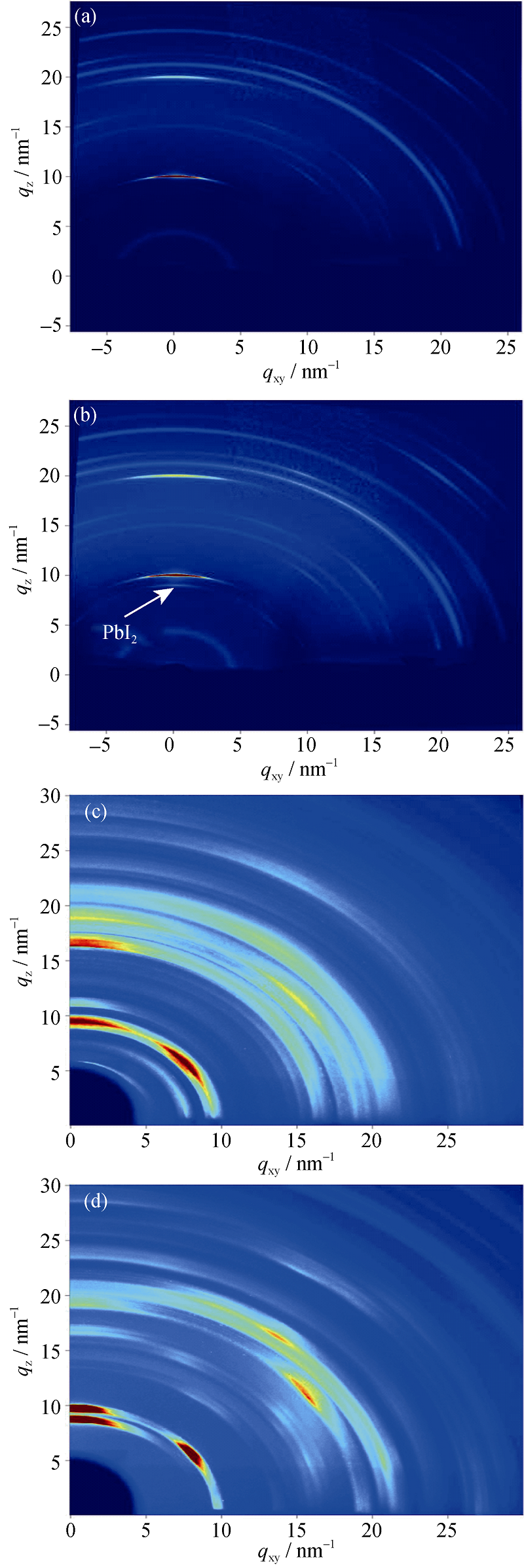

Fig. 3 2D GIXRD patterns of EDA(FA)2[Pb3I10] film on glass after (a) 0 min, (b) 120 min; and CH3NH3PbI3 film on glass after (c) 0 min, (d) 15 min exposure to (80±1)% RH

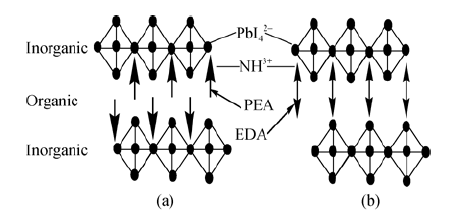

Fig. 4 Schematic representation of single-layer <100>-oriented perovskites (a) monoammonium (PEA=C6H5(CH2)2NH3+) or (b) diammonium (EDA=+ H3N(CH2)2NH3+) organic cations

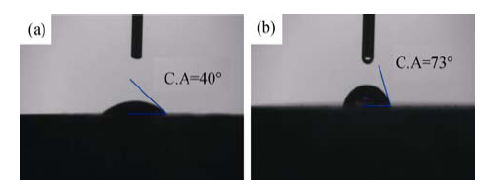

Fig. 5 Photograph of contact angles of a water drop on (a) CH3NH3PbI3 and (b) (EDA)(FA)2[Pb3I10] film surfaces

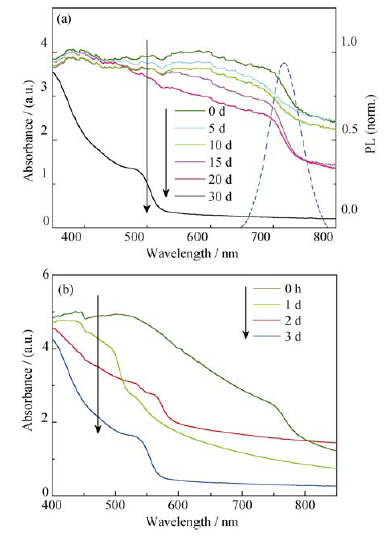

Fig. 6 UV-Vis absorption spectra for (a) (EDA)(FA)2[Pb3I10] and (b) CH3NH3PbI3 films in a 35% RH environment after different storage times

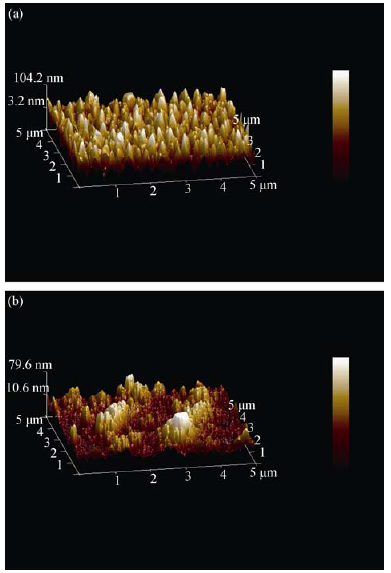

Fig. 7 AFM images of (a) (EDA)(FA)2[Pb3I10] and (b) CH3NH3PbI3 films

References 17

[1]	MICHAEL G.The light and shade of perovskite soar cells.Nature Materials, 2014, 13: 838-842.
[2]	HENRY J S.Perovskites: the emergence of a new era for low-cost, high-efficiency solar cells.The Journal of Physical Chemistry Letters, 2013, 4(21): 3623-3630.
[3]	AKIHIRO K, KENJIRO T, YASUO S, et al.Organometal halide perovskites as visible-light sensitizers for photovoltaic cells.Journal of the American Chemical Society, 2009, 131(17): 6050-6051.
[4]	Bi D Q, TRESS W G, DAR M I, et al.Efficient luminescent solar cells based on tailored mixed-cation perovskites.Science Advances, 2016, 2(1): 1150-1170.
[5]	JENO N J, LEE H G, KIM Y C, et al.o-Methoxy substituents in spiro-OMeTAD for efficient inorganic-organic hybrid perovskite solar cells. Journal of the American Chemical Society, 2014, 136(22): 7837-7840.
[6]	KO H S, LEE J W, PARK N G.15.76% efficiency perovskite solar cells prepared under high relative humidity: importance of PbI2 morphology in two-step deposition of CH3NH3PbI3.Journal of Materials Chemistry A, 2015, 3(16): 8808-8815.
[7]	RYU S, NOH J H, JEON N J, et al.Voltage output of efficient perovskite solar cells with high open-circuit voltage and fill factor.Energy & Environmental Science, 2014, 7: 2614-2618.
[8]	WANG Q, SHAO Y, DONG Q, et al.Large fill-factor bilayer iodine perovskite solar cells fabricated by a low-temperature solution- process.Energy & Environmental Science, 2014, 7: 2359-2365.
[9]	WOJCIECHOWSKI K, SALIBA M, LEIJTENS T, ABATE A, et al.Sub-150 C processed meso-superstructured perovskite solar cells with enhanced efficiency. Energy & Environmental Science, 2014, 7: 1142-1147.
[10]	XIAO Z G, BI C, SHAO Y C, et al.Efficient, high yield perovskite photovoltaic devices grown by interdiffusion of solution-processed precursor stacking layers.Energy & Environmental Science, 2014, 7: 2619-2623.
[11]	GREEN M A, EMERY K, HISHIKAWA Y, et al.Solar cell efficiency tables (version 47).Progress in Photovoltaics, 2016, 24: 3-11.
[12]	HODES G, CAHEN D.Photovoltaics: perovskite cells roll forward.Nature Photonics, 2014, 8(2): 87-88.
[13]	CALABRESE J, JONES N L, HARLOW R L, et al.Preparation and characterization of layered lead halide compounds.Journal of the American Chemical Society, 1991, 113(6): 2328-2330.
[14]	GANOSE A M, SAVORY C N, SCANLON D O.(CH3NH3)2Pb (SCN)2I2: A more stable structural motif for hybrid halide photovoltaics?The Journal of Physical Chemistry Letters, 2015, 6(22): 4594-4598.
[15]	SMITH I C, HOKE E T, SOLIS-IBARRA D, et al.A Layered hybrid perovskite solar-cell absorber with enhanced moisture stability.Angewandte Chemie, 2014, 126: 11414-11417.
[16]	PANG S P, HU H, ZHANG J L, et al.NH2CH=NH2PbI3: an alternative organolead iodide perovskite sensitizer for mesoscopic solar cells.Chemistry of Materials, 2014, 26(3): 1485-1491.
[17]	YANG J L, SIEMPELKAMP B D, LIU D Y, et al.Investigation of CH3NH3PbI3 degradation rates and mechanisms in controlled humidity environments using in situ techniques.ACS Nano, 2015, 9(2): 1955-1963.
