Effect of Acesulfame Potassium Modified SnO2 Electron Transport Layer on Performance of Perovskite Solar Cells

doi:10.15541/jim20250018

Abstract

Abstract:

Oxygen vacancy defects at the surface and grain boundaries of tin dioxide (SnO₂), an electron transport layer (ETL) material for perovskite solar cells (PSCs), can induce non-radiative recombination, thereby limiting further improvements in device efficiency. This study proposes a low-cost and efficient strategy for modifying the ETL using acesulfame potassium (ACE-K). The results demonstrated that the C=O and S=O groups in ACE-K molecules interact with the undercoordinated Sn⁴⁺ on the SnO₂ surface, significantly passivating the oxygen vacancy defects in SnO₂. Electrical conductivity of the film increased from 4.60×10^-6 S·cm^-1 to 6.23×10^-6 S·cm^-1. Moreover, ACE-K modification improved roughness (from 20.6 nm to 14.0 nm) and wettability of the SnO₂ film, providing a better substrate for perovskite film growth. Consequently, the perovskite films grown on this optimized ETL enlarged grain sizes from 970.90 nm to 1071.20 nm and enhanced light absorption capability. Space-charge-limited current (SCLC) measurements revealed that the defect density decreased from 4.84×10¹⁶ cm^-3 to 3.83×10¹⁶ cm^-3, while electrochemical impedance spectroscopy (EIS) confirmed a significant suppression of non-radiative recombination during charge carrier transport. Ultimately, power conversion efficiency (PCE) of the PSCs improved from 19.27% to 21.60%. In addition, unpackaged ACE-K modified PSCs maintained 91.67% of initial PCE after 2160 h stored in N₂, showing excellent long term stability.

Key words: tin dioxide, perovskite solar cell, modification, defect passivation, acesulfame potassium

CLC Number:

TM914

HU Qinghao, LIU Xingchong, PENG Yongshan, HOU Mengjun, HE Tanggui, TANG Anmin. Effect of Acesulfame Potassium Modified SnO₂ Electron Transport Layer on Performance of Perovskite Solar Cells[J]. Journal of Inorganic Materials, 2025, 40(11): 1261-1267.

Figures/Tables 15

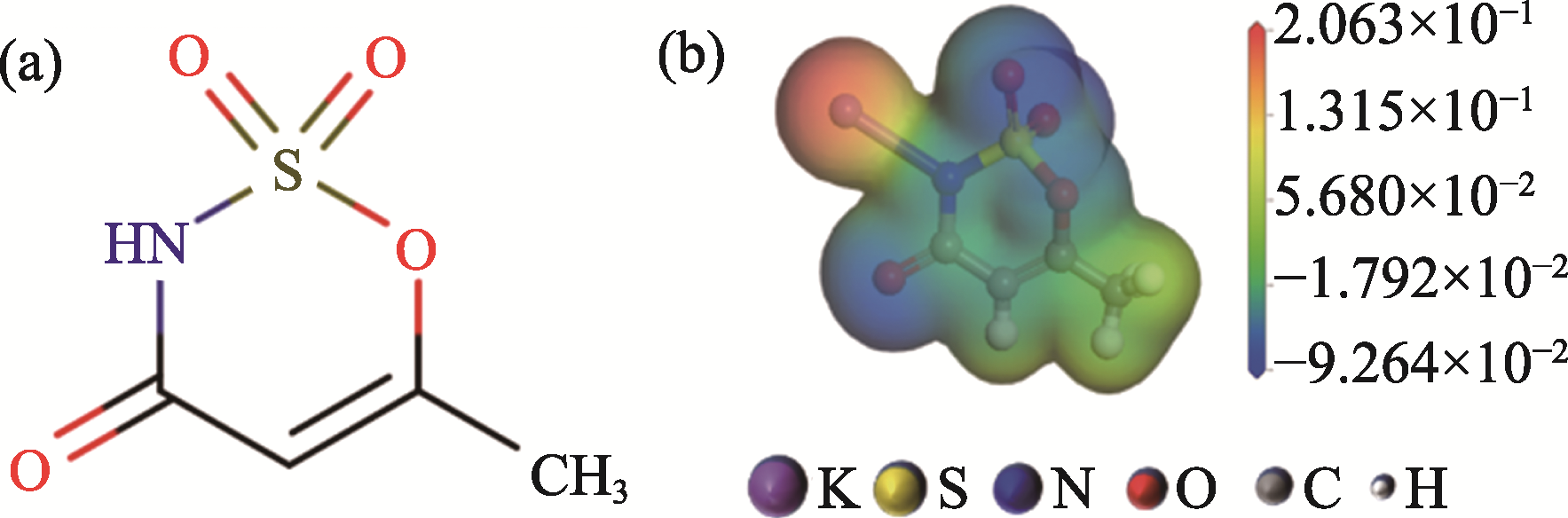

Fig. 1 (a) Molecular structure and (b) ESP diagram of ACE-K

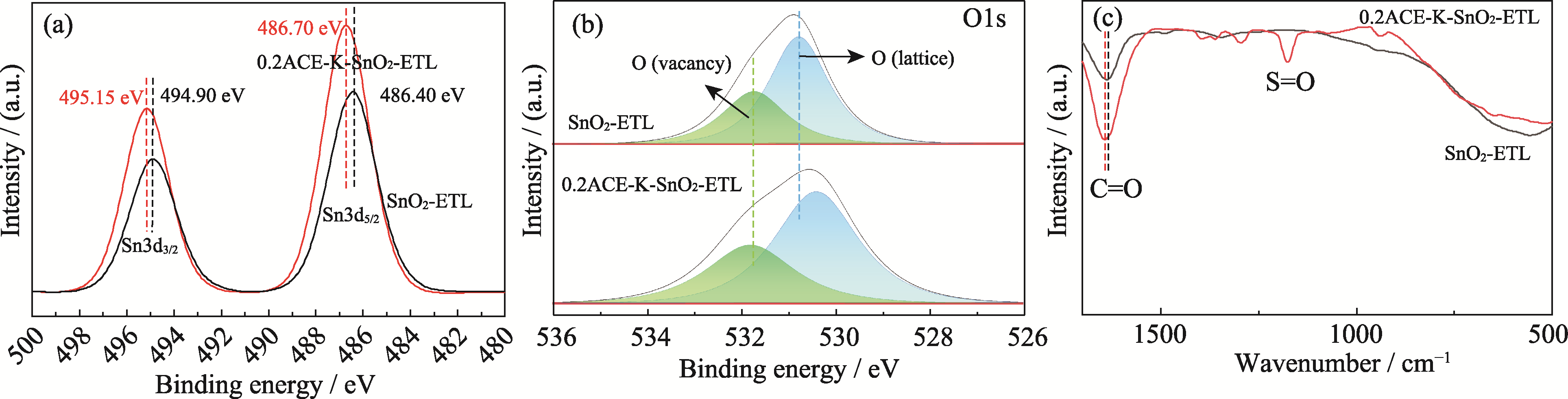

Fig. 2 (a) Sn3d XPS spectra, (b) O1s XPS spectra and (c) FT-IR spectra (500-2000 cm-1) of SnO2-ETL and 0.2ACE-K-SnO2-ETL

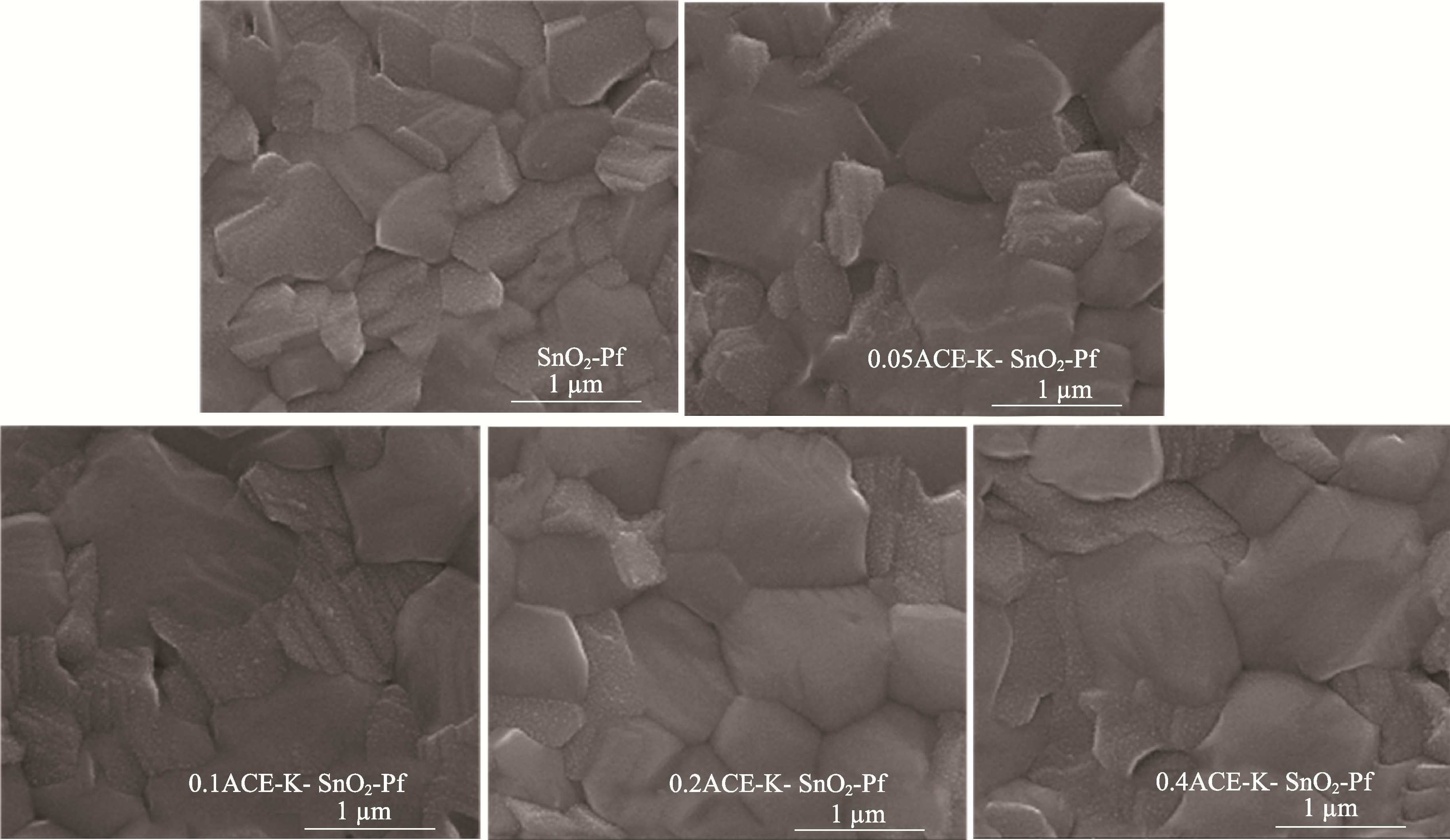

Fig. 3 SEM images of SnO2-Pf and xACE-K-SnO2-Pf

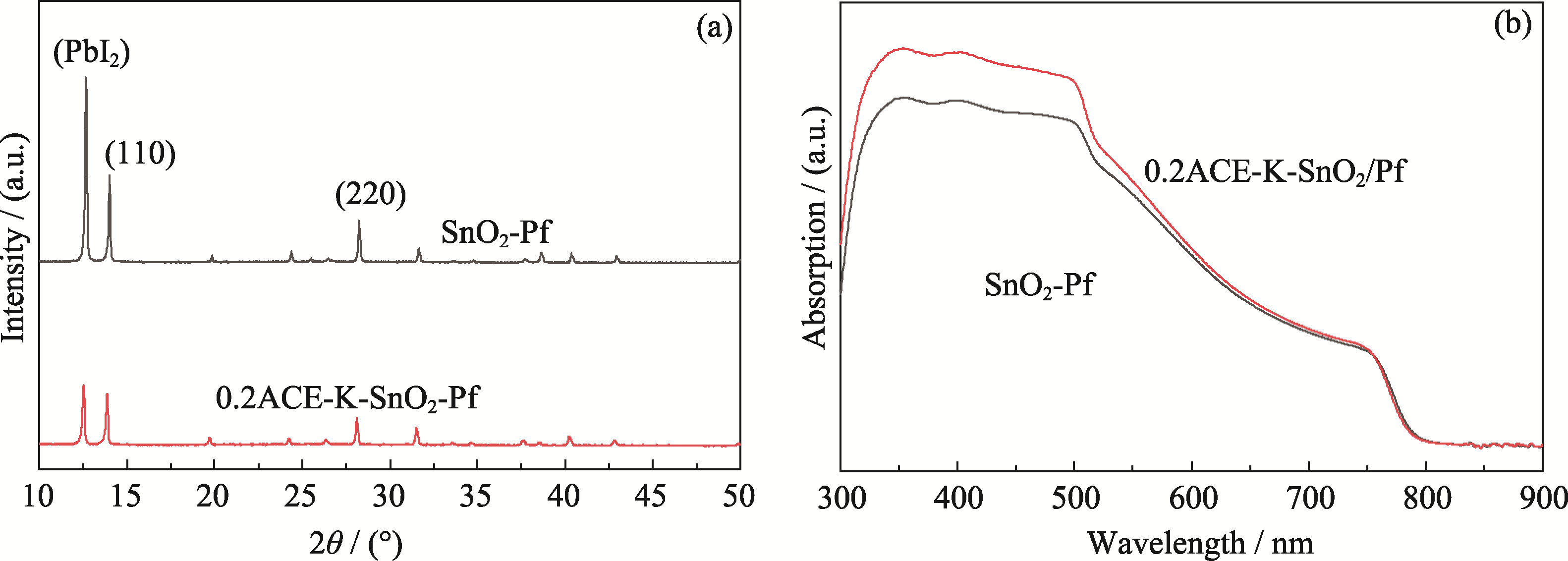

Fig. 4 (a) XRD patterns and (b) UV-Vis absorption spectra of SnO2-Pf and 0.2ACE-K-SnO2-Pf

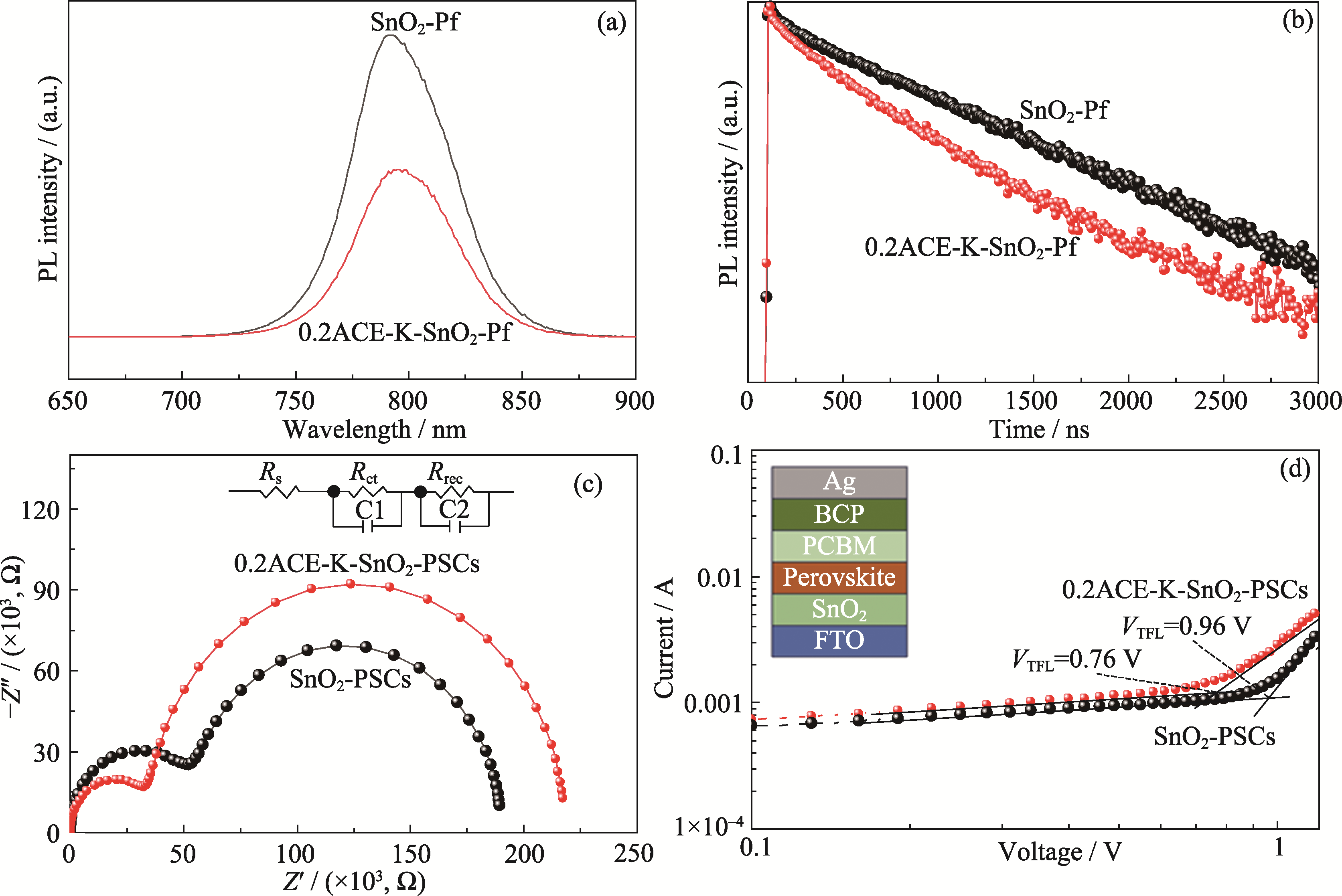

Fig. 5 (a) PL curves and (b) TRPL curves of SnO2-Pf and 0.2ACE-K-SnO2-Pf; (c) EIS spectra and (d) SCLC curves of SnO2-PSCs and 0.2ACE-K-SnO2-PSCs

Fig. 6 Conductivities of SnO2-ETL and 0.2ACE-K-SnO2-ETL

Table 1 Photovoltaic parameters of champion xACE-K-SnO2-PSCs

x	V_OC/V	J_SC/(mA·cm^-2)	PCE/%	FF/%
0	1.112	22.85	19.27	75.90
0.05	1.127	23.84	20.68	77.00
0.1	1.128	24.32	20.87	76.10
0.2	1.135	23.97	21.60	79.30
0.4	1.129	23.71	20.72	77.40

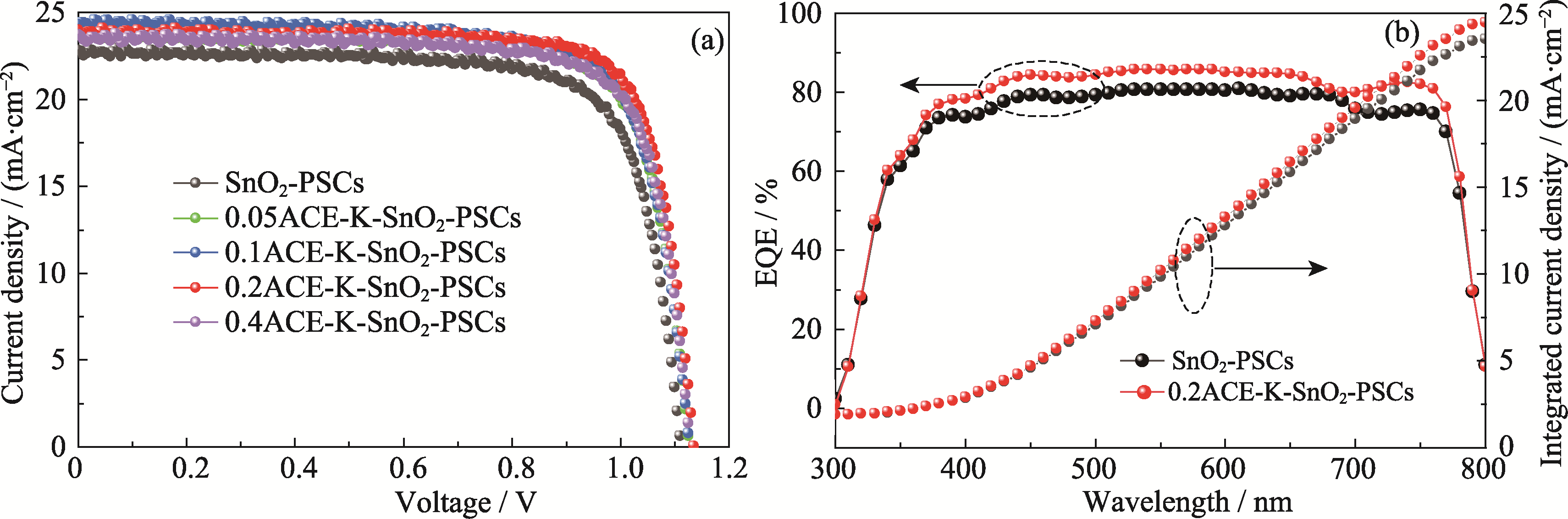

Fig. 7 (a) J-V curves and (b) EQE curves of SnO2-PSCs and 0.2ACE-K-SnO2-PSCs Colorful figures are available on website

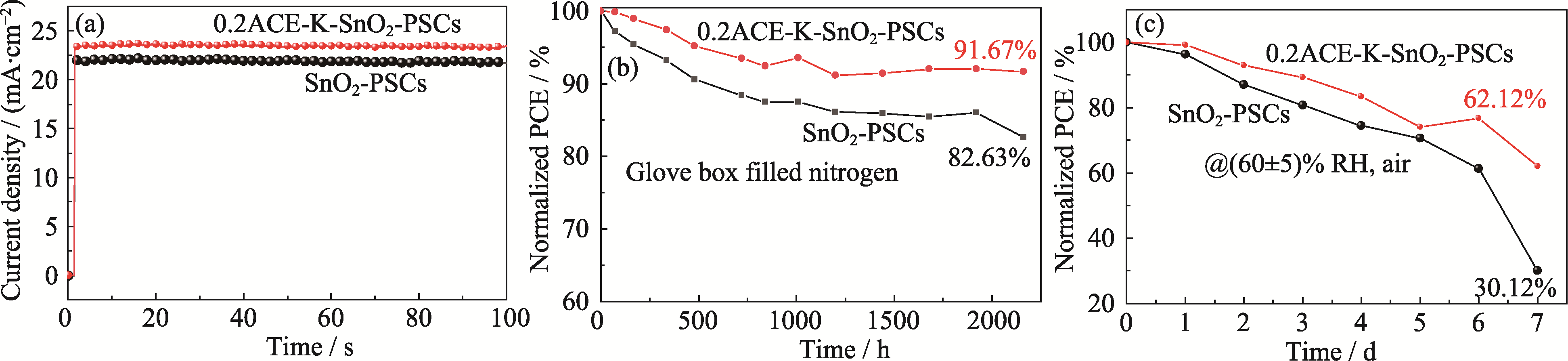

Fig. 8 (a) Current stability curves during 100 s, (b) long-term stability curves and (c) humidity stability curves of SnO2-PSCs and 0.2ACE-K-SnO2-PSCs

Table S1 Fitting data for EIS curves

Sample	R_s/Ω	R_ct/Ω	R_rec/Ω	C₁/(×10^-9, F)	C₂/(×10^-8, F)
SnO₂-PSCs	23.3	53972	136090	5.0	8.52
0.2ACE-K-SnO₂-PSCs	17.79	38465	154690	3.96	6.7

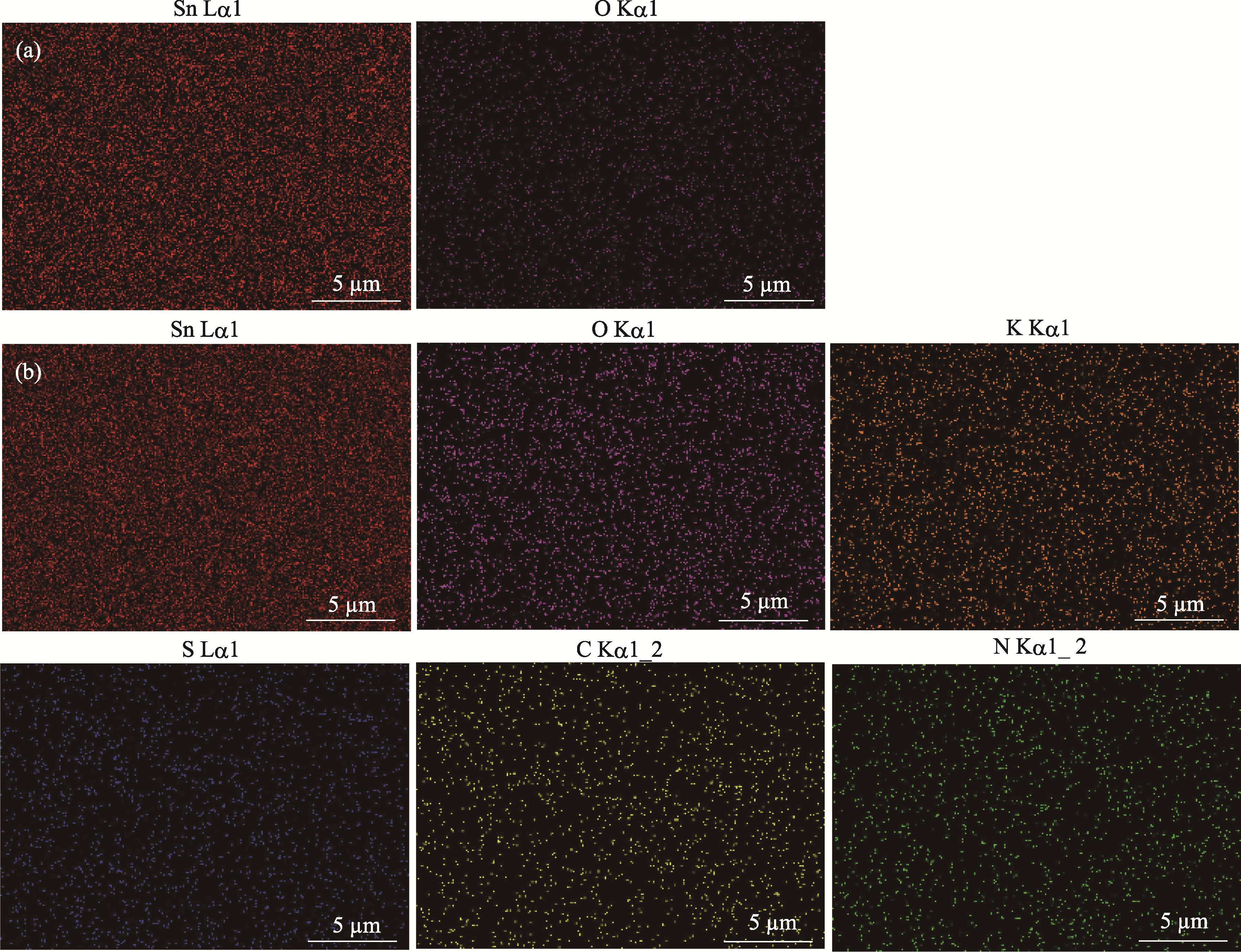

Fig. S1 EDS plots of (a) SnO2-ETL and (b) 0.2ACE-K-SnO2-ETL

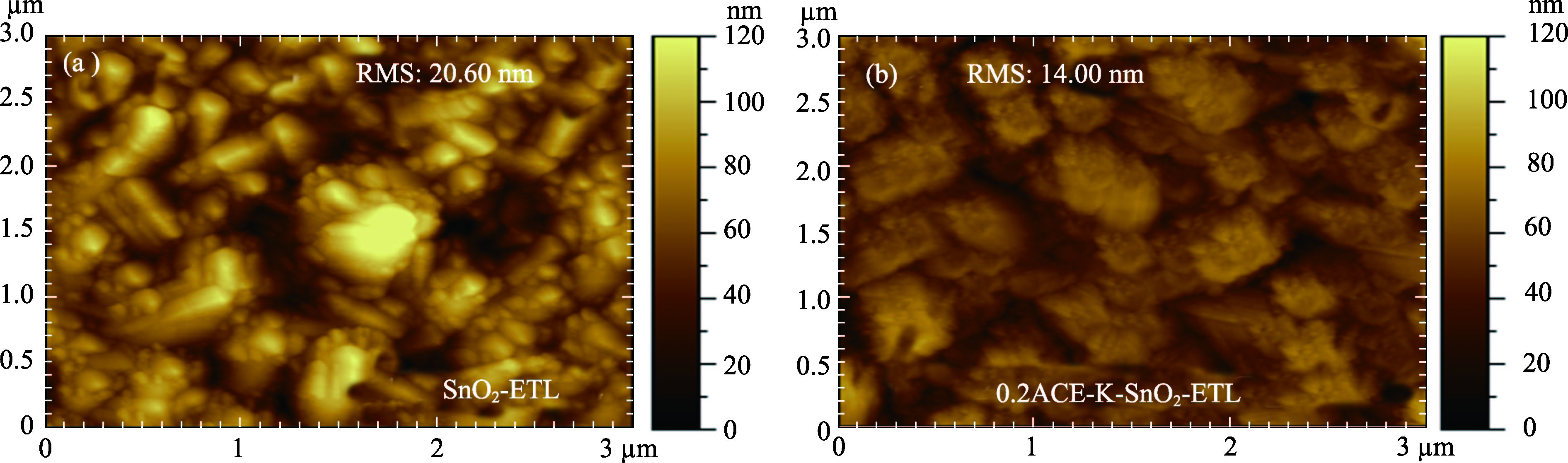

Fig. S2 AFM images of (a) SnO2-ETL and (b) 0.2ACE-K-SnO2-ETL

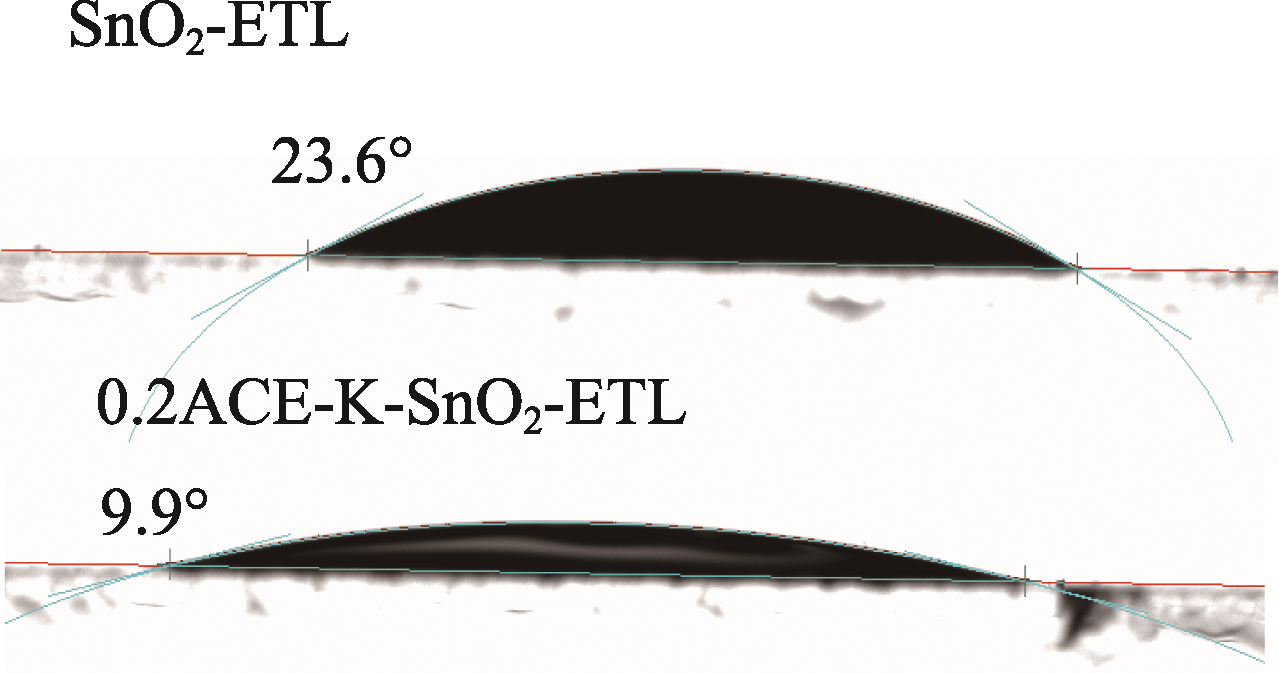

Fig. S3 Water contact angle test charts of SnO2-ETL and 0.2ACE-K-SnO2-ETL

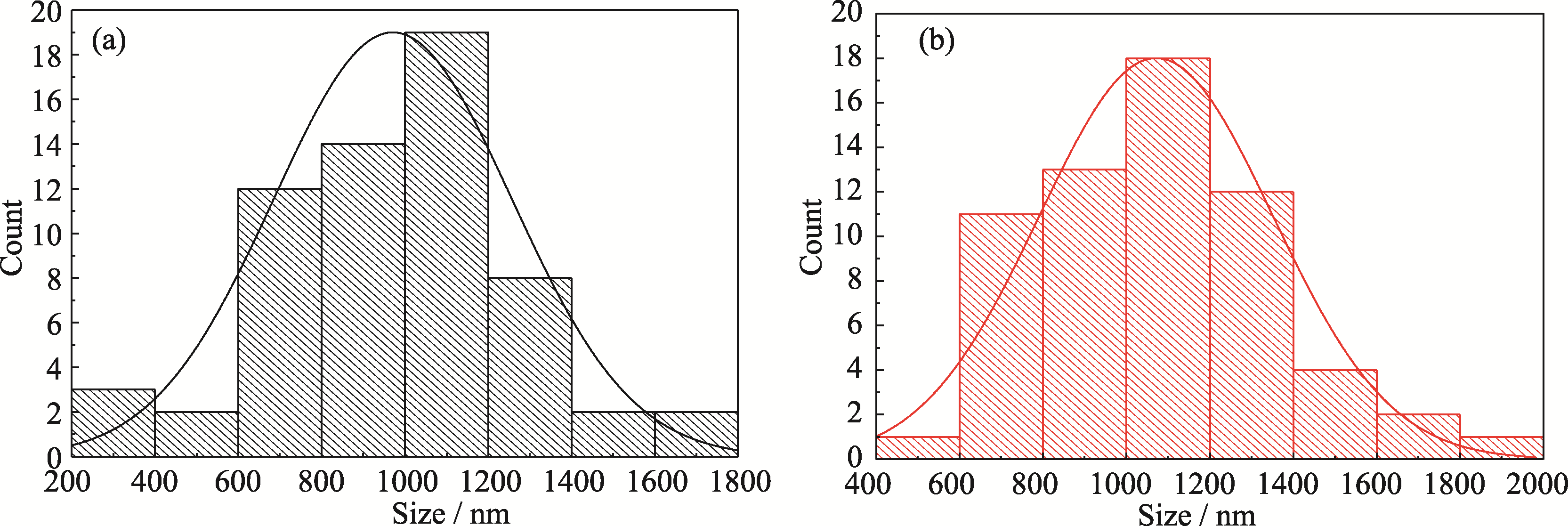

Fig. S4 Grain size statistics of (a) SnO2-Pf and (b) 0.2ACE-K-SnO2-Pf

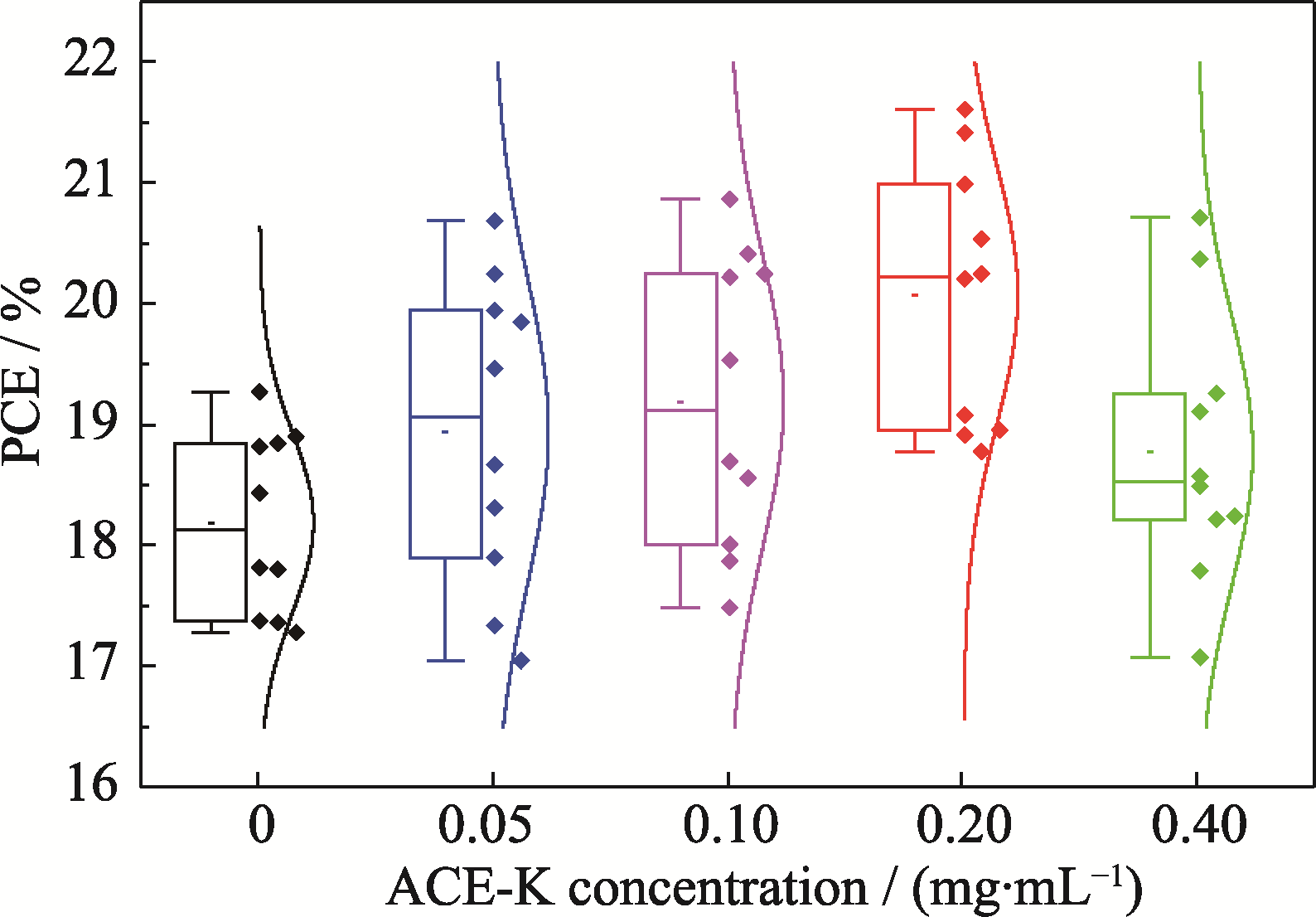

Fig. S5 PCE box plots of xACE-K-SnO2-PSCs

References 29

[1]	JEONG J, KIM M, SEO J, et al. Pseudo-halide anion engineering for α-FAPbI₃ perovskite solar cells. Nature, 2021, 592(7854): 381. DOI
[2]	LIU Z H, QIU L B, ONO L K, et al. A holistic approach to interface stabilization for efficient perovskite solar modules with over 2,000-hour operational stability. Nature Energy, 2020, 5(8): 596. DOI
[3]	BU T L, LI J, LI H Y, et al. Lead halide-templated crystallization of methylamine-free perovskite for efficient photovoltaic modules. Science, 2021, 372(6548): 1327. DOI PMID
[4]	KOJIMA A, TESHIMA K, SHIRAI Y, et al. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. Journal of the American Chemical Society, 2009, 131(17): 6050. DOI PMID
[5]	NREL. Best research-cell efficiency chart. [2025-05-05]. https://www.nrel.gov/pv/cell-efficiency.html.
[6]	ZHANG H L, JI X, YAO H Y, et al. Review on efficiency improvement effort of perovskite solar cell. Solar Energy, 2022, 233: 421. DOI URL
[7]	HAGHIGHI M, GHAZYANI N, MAHMOODPOUR S, et al. Low-temperature processing methods for tin oxide as electron transporting layer in scalable perovskite solar cells. Solar RRL, 2023, 7(10): 2201080. DOI URL
[8]	TROST S, BEHRENDT A, BECKER T, et al. Tin oxide (SnO_x) as universal "light-soaking" free electron extraction material for organic solar cells. Advanced Energy Materials, 2015, 5(17): 1500277. DOI URL
[9]	ZHANG J J, FU J F, CHEN Q Y, et al. 3,5-Difluorophenylboronic acid-modified SnO₂ as ETLs for perovskite solar cells: PCE>22.3%, T₈₂>3000 h. Chemical Engineering Journal, 2022, 433: 133744. DOI URL
[10]	ALTINKAYA C, AYDIN E, UGUR E, et al. Tin oxide electron- selective layers for efficient, stable, and scalable perovskite solar cells. Advanced Materials, 2021, 33(15): 2005504. DOI URL
[11]	GODINHO K G, WALSH A, WATSON G W. Energetic and electronic structure analysis of intrinsic defects in SnO₂. Journal of Physical Chemistry C, 2009, 113(1): 439. DOI URL
[12]	PARIDA B, JIN I S, JUNG J W. Dual passivation of SnO₂ by tetramethylammonium chloride for high-performance CsPbI₂Br- based inorganic perovskite solar cells. Chemistry of Materials, 2021, 33(15): 5850. DOI URL
[13]	DONG H Y, WANG J L, LI X Y, et al. Modifying SnO₂ with polyacrylamide to enhance the performance of perovskite solar cells. ACS Applied Materials & Interfaces, 2022, 14(29): 34143.
[14]	XIA H R, LI X, ZHOU J Y, et al. Interfacial chemical bridge constructed by zwitterionic sulfamic acid for efficient and stable perovskite solar cells. ACS Applied Energy Materials, 2020, 3(4): 3186. DOI URL
[15]	CHOI K, LEE J, KIM H I, et al. Thermally stable, planar hybrid perovskite solar cells with high efficiency. Energy & Environmental Science, 2018, 11(11): 3238.
[16]	YANG D, YANG R X, WANG K, et al. High efficiency planar- type perovskite solar cells with negligible hysteresis using EDTA- complexed SnO₂. Nature Communications, 2018, 9: 3239. DOI
[17]	FU P, HUANG L Q, YU W, et al. Efficiency improved for inverted polymer solar cells with electrostatically self-assembled BenMelm- Cl ionic liquid layer as cathode interface layer. Nano Energy, 2015, 13: 275. DOI URL
[18]	HUANG X K, HU Z Y, XU J, et al. Low-temperature processed SnO₂ compact layer by incorporating TiO₂ layer toward efficient planar heterojunction perovskite solar cells. Solar Energy Materials and Solar Cells, 2017, 164: 87. DOI URL
[19]	AN Z Q, CHEN S Y, LU T, et al. Interfacial modification via aniline molecules with multiple active sites for performance enhancement of n-i-p perovskite solar cells. Journal of Materials Chemistry C, 2023, 11(37): 12750. DOI URL
[20]	BI H, GUO Y, GUO M N, et al. Highly efficient and low hysteresis methylammonium-free perovskite solar cells based on multifunctional oteracil potassium interface modification. Chemical Engineering Journal, 2022, 439: 135671. DOI URL
[21]	BOB B, SONG T B, CHEN C C, et al. Nanoscale dispersions of gelled SnO₂: material properties and device applications. Chemistry of Materials, 2013, 25(23): 4725. DOI URL
[22]	HUANG H, CUI P, CHEN Y, et al. 24.8%-efficient planar perovskite solar cells via ligand-engineered TiO₂ deposition. Joule, 2022, 6(9): 2186. DOI URL
[23]	PENG X, LU H L, ZHUANG J, et al. Enhanced performance of perovskite solar cells using DNA-doped mesoporous-TiO₂ as electron transporting layer. Solar Energy, 2020, 206: 855. DOI URL
[24]	YOU S, ZENG H P, KU Z L, et al. Multifunctional polymer-regulated SnO₂ nanocrystals enhance interface contact for efficient and stable planar perovskite solar cells. Advanced Materials, 2020, 32(43): 2003990. DOI URL
[25]	QIU Z W, GONG H B, ZHENG G H J, et al. Enhanced physical properties of pulsed laser deposited NiO films via annealing and lithium doping for improving perovskite solar cell efficiency. Journal of Materials Chemistry C, 2017, 5(28): 7084. DOI URL
[26]	ZHAO S H, QIN M C, WANG H, et al. Cascade type-II 2D/3D perovskite heterojunctions for enhanced stability and photovoltaic efficiency. Solar RRL, 2020, 4(10): 2000282. DOI URL
[27]	MA Z, ZHOU W Y, HUANG D J, et al. Nicotinamide as additive for microcrystalline and defect passivated perovskite solar cells with 21.7% efficiency. ACS Applied Materials & Interfaces, 2020, 12(47): 52500.
[28]	LIU W, LIU N J, JI S L, et al. Perfection of perovskite grain boundary passivation by rhodium incorporation for efficient and stable solar cells. Nano-Micro Letters, 2020, 12(1): 119. DOI PMID
[29]	YANG Z R, XIE J S, ARIVAZHAGAN V, et al. Efficient and highly light stable planar perovskite solar cells with graphene quantum dots doped PCBM electron transport layer. Nano Energy, 2017, 40: 345. DOI URL
