Zintl相Mg3X2(X=Sb, Bi)基晶体生长及热电性能研究进展

doi:10.15541/jim20220356

无机材料学报 ›› 2023, Vol. 38 ›› Issue (3): 270-279.DOI: 10.15541/jim20220356 CSTR: 32189.14.10.15541/jim20220356

所属专题：【能源环境】热电材料(202409)；【信息功能】大尺寸功能晶体(202409)

Zintl相Mg₃X₂(X=Sb, Bi)基晶体生长及热电性能研究进展

林思琪¹^,²^,³(), 李艾燃⁴, 付晨光⁴, 李荣斌¹, 金敏¹^,³()

1.上海电机学院材料学院, 上海 201306
2.同济大学材料科学与工程学院, 上海201804
3.山东大学晶体材料国家重点实验室, 济南 250100
4.浙江大学材料科学与工程学院, 杭州 310027

收稿日期:2022-06-24 修回日期:2022-08-09 出版日期:2023-03-20 网络出版日期:2022-10-28
通讯作者: 金敏, 教授. E-mail: jmaish@aliyun.com
作者简介:林思琪(1992-), 女, 博士, 副教授. E-mail: linsiqi0811@163.com
基金资助:
国家自然科学基金(52001231);国家自然科学基金(52272006);上海市教委曙光计划

Crystal Growth and Thermoelectric Properties of Zintl Phase Mg₃X₂ (X=Sb, Bi) Based Materials: a Review

LIN Siqi¹^,²^,³(), LI Airan⁴, FU Chenguang⁴, LI Rongbing¹, JIN Min¹^,³()

1. College of Materials, Shanghai Dianji University, Shanghai 201306, China
2. School of Materials Science and Engineering, Tongji University, Shanghai 201804, China
3. State Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China
4. School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China

Received:2022-06-24 Revised:2022-08-09 Published:2023-03-20 Online:2022-10-28
Contact: JIN Min, professor. E-mail: jmaish@aliyun.com
About author:LIN Siqi (1992-), female, PhD, associate professor. E-mail: linsiqi0811@163.com
Supported by:
National Natural Science Foundation of China(52001231);National Natural Science Foundation of China(52272006);Shuguang Program of Shanghai Education Development Foundation and Shanghai Municipal Education Commission

摘要/Abstract

摘要：

Zintl相Mg₃X₂(X= Sb, Bi)基热电材料以其无毒性、价格低及性能高等优点而备受关注。与多晶相比, Mg₃X₂晶体在揭示材料本征热电性能、各向异性性质及电声输运调控策略等方面极具研究价值。本文系统归纳与总结近年Mg₃X₂基晶体的生长及热电性能发展现状。针对Mg₃X₂晶体生长过程中Mg元素易挥发和活泼金属性的难点, 多种技术如合适的温度冷却法、定向凝固法、助熔剂法、助熔剂坩埚下降法等被开发运用于生长Mg₃X₂晶体, 其中助熔剂坩埚下降法在获得大尺寸块状晶体方面更有竞争力。n型和p型Mg₃Sb₂晶体都呈现出各向异性的热电性能。调控晶体生长速度、Mg元素自补偿含量、杂质元素掺杂与固溶含量等手段, 都会影响Mg₃X₂晶体的电学性能和热学性能。目前p型和n型Mg₃Sb₂基晶体的最高ZT值可分别达到0.68和0.82。本文综述了Zintl相Mg₃X₂基晶体生长与热电性能的研究进展, 发现助熔剂坩埚下降法是制备大尺寸Mg₃X₂基晶体的关键, 通过元素掺杂及固溶方法调控载流子浓度和能带结构可以进一步提高Mg₃X₂基晶体性能。该生长方法和研究思路对将来Mg₃X₂基晶体制备与热电性能深入研究具有重要指导意义。

关键词: Zintl相, Mg₃X₂, 晶体生长, 热电性能, 综述

Abstract:

Zintl phase Mg₃X₂ (X=Sb, Bi) based thermoelectric materials have attracted much attention because of their non-toxic, low cost and high performance. Compared with polycrystalline materials, the Mg₃X₂ crystals are of great value in revealing material’s intrinsic and anisotropic thermoelectric properties, as well as providing effective strategies for enhancing electrical and thermal transport properties. Therefore, the recent progress of single crystal growth and thermoelectric properties for Mg₃X₂ crystals are systematically summarizes in this paper. Due to the volatility and causticity of Mg element, several different methods such as slow cooling method, directional solidification method, flux method, and flux Bridgman method are widely used for synthesizing Mg₃X₂ crystals, in which the flux Bridgman method is more competitive to prepare large size bulk crystals. Researchers found that both n-type and p-type Mg₃Sb₂ crystals show an anisotropy thermoelectric transport property. The crystal growth rate, the concentration of self-doped Mg element, the concentration of impurity doping or alloying elements have a great impact on both electrical and thermal transport properties for Mg₃Sb₂ crystals. So far, the p-type and n-type Mg₃Sb₂ crystals with ZT value of 0.68 and 0.82 are achieved, respectively. This paper reviews the recent progress of growth and thermoelectrics properties of Zintl phase Mg₃X₂-based crystals, revealing that the flux Bridgman method is the most effective method to produce large-sized Mg₃X₂-based crystals. Tuning chemical composition of Mg₃X₂-based crystal by doping and forming solid solution for optimal carrier concentration and band structure engineering is expected to further improve the thermoelectric performance of Mg₃X₂-based crystal. The above-mentioned growth method and research strategies provide a significant guidance for the in-depth understanding of the Mg₃X₂-based crystal in the future.

Key words: Zintl phase, Mg₃X₂, crystal growth, thermoelectric property, review

中图分类号:

TQ174

林思琪, 李艾燃, 付晨光, 李荣斌, 金敏. Zintl相Mg₃X₂(X=Sb, Bi)基晶体生长及热电性能研究进展[J]. 无机材料学报, 2023, 38(3): 270-279.

LIN Siqi, LI Airan, FU Chenguang, LI Rongbing, JIN Min. Crystal Growth and Thermoelectric Properties of Zintl Phase Mg₃X₂ (X=Sb, Bi) Based Materials: a Review[J]. Journal of Inorganic Materials, 2023, 38(3): 270-279.

图/表 8

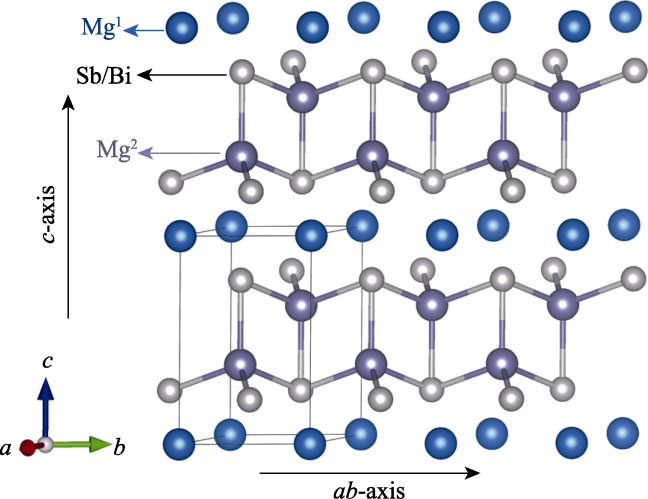

图1 Mg3X2(X=Sb, Bi)晶体结构图[33]

Fig. 1 Crystal structure of Mg3X2 (X=Sb, Bi)[33]

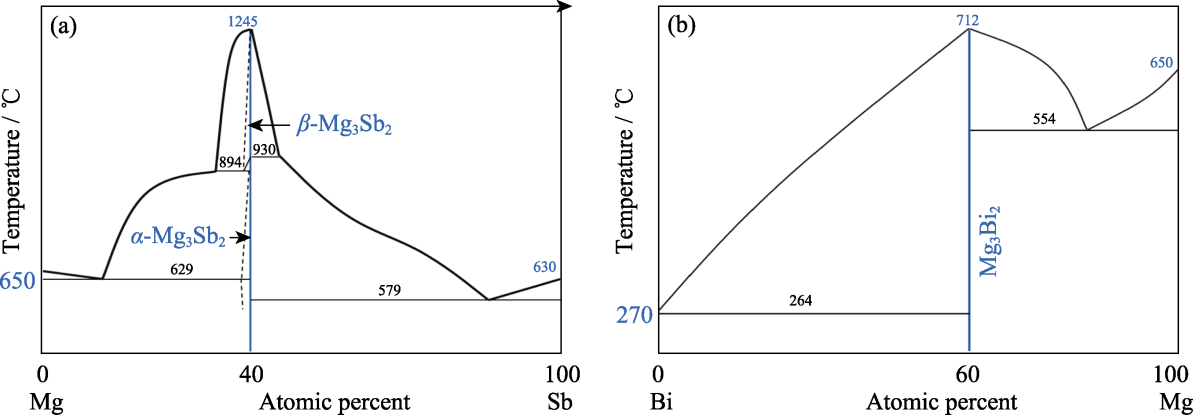

图2 Mg3X2化合物相图[46-47]

Fig. 2 Phase diagram of Mg3X2 compounds[46-47] (a) Mg-Sb and (b) Mg-Bi binary phase diagram

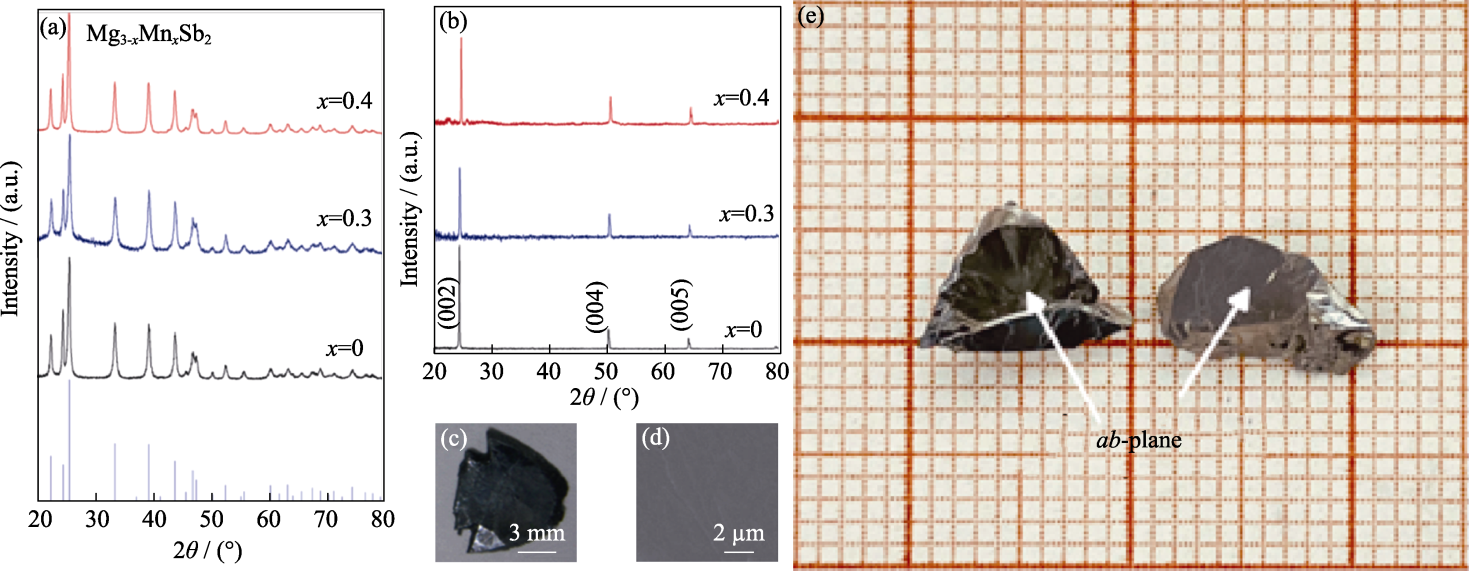

图3 温度冷却法生长的Mg3Sb2晶体

Fig. 3 MgSb2 crystals grown by slow cooling method (a) XRD patterns of Mg3-xMnxSb2 crystal powder grown by slow cooling method; (b) XRD patterns of (001) cleavage plane; (c) Morphology of as grown Mg3-xMnxSb2 crystal; (d) SEM image of cleavage plane[48]; (e) Ag-doped Mg3Sb2 crystal grown by modified slow cooling method[50]

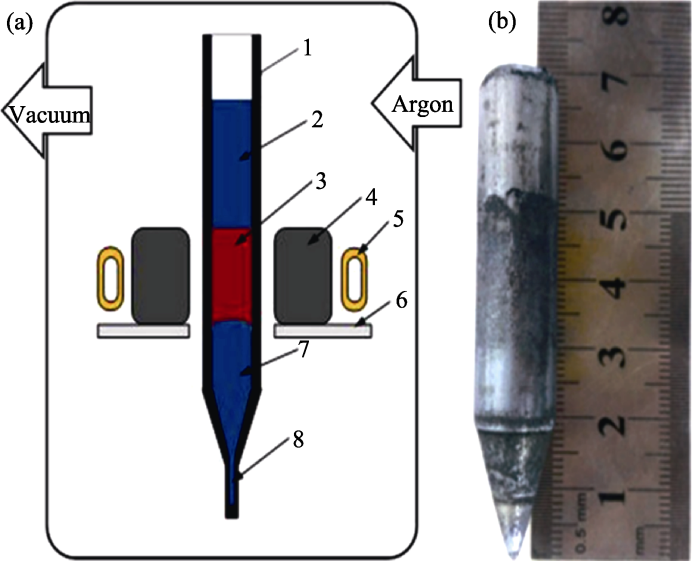

图4 定向凝固法生长Mg3Sb2晶体[51]

Fig. 4 MgSb2 crystals grown by directional solidification method[51] (a) Ag-doped Mg3Sb2 crystal growth diagram; (b) The as-grown crystal1. The graphite; 2. Raw materials; 3. Melting zone; 4. Graphite heater; 5. Induction coil; 6. Boron nitride baffle; 7. Solidified crystal; 8. Seed crystal

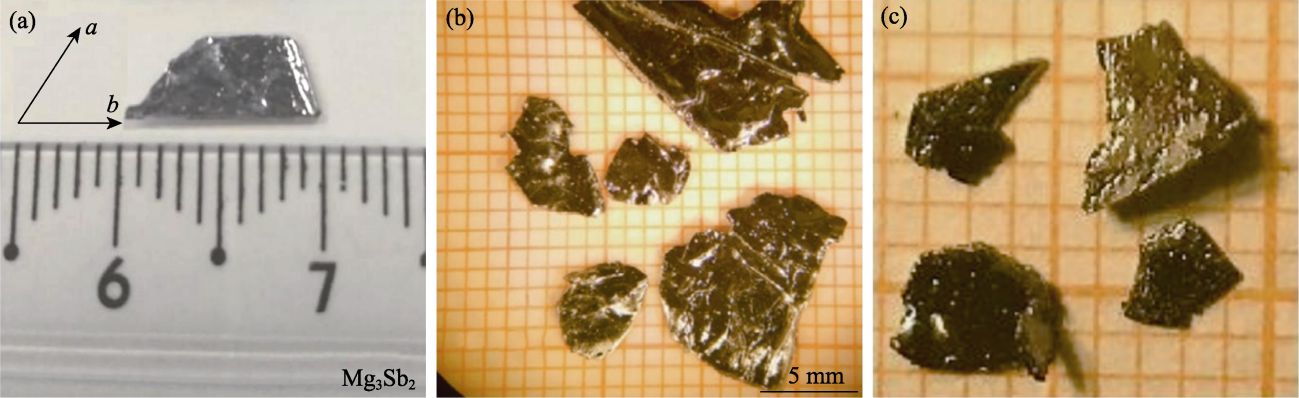

图5 助熔剂法生长Mg3Sb2-xBix晶体

Fig. 5 Mg3Sb2-xBix crystals grown by flux method (a) Sb flux grown Mg3Sb2[53]; (b) Te-doped Mg3Sb2 crystals[54]; (c) Mg flux grown Mg3Bi1.25Sb0.75 crystal[55]

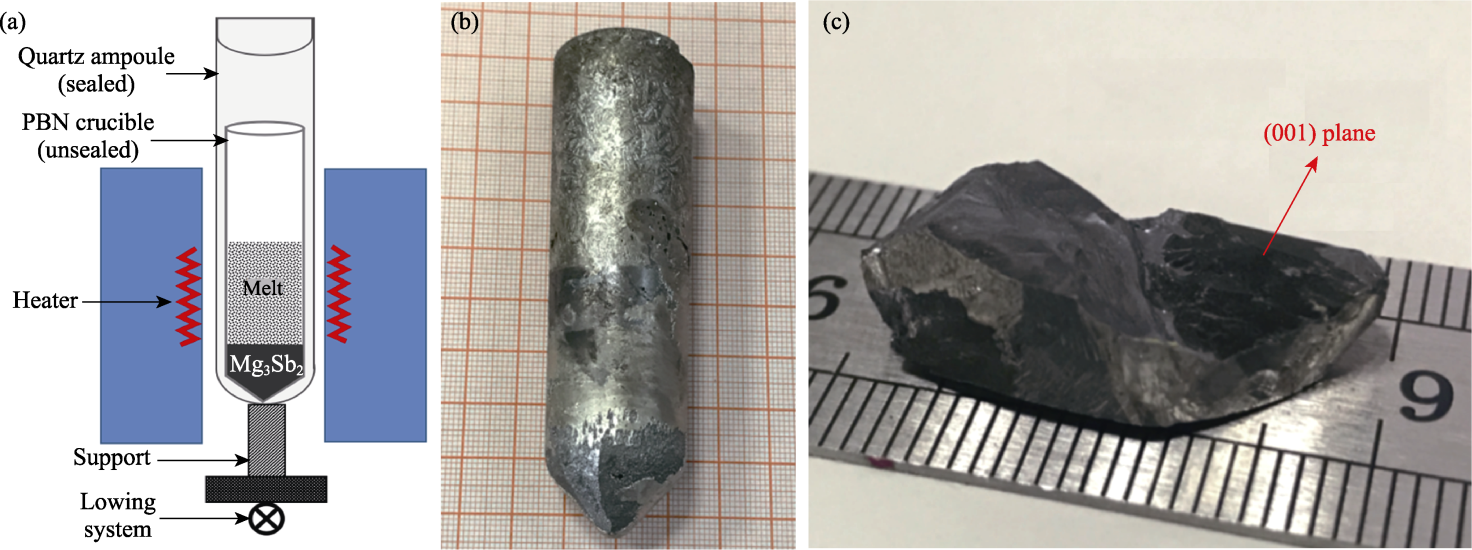

图6 助熔剂法生长Mg3Sb2晶体[56]

Fig. 6 MgSb2 crystal grown by flux method[56] (a) Schematic diagram of Y-doped Mg3Sb2 crystal growth by flux Bridgman method; (b) As grown crystal; (c) Mg3Sb2 single crystal with the size of 8 mm×10 mm×25 mm

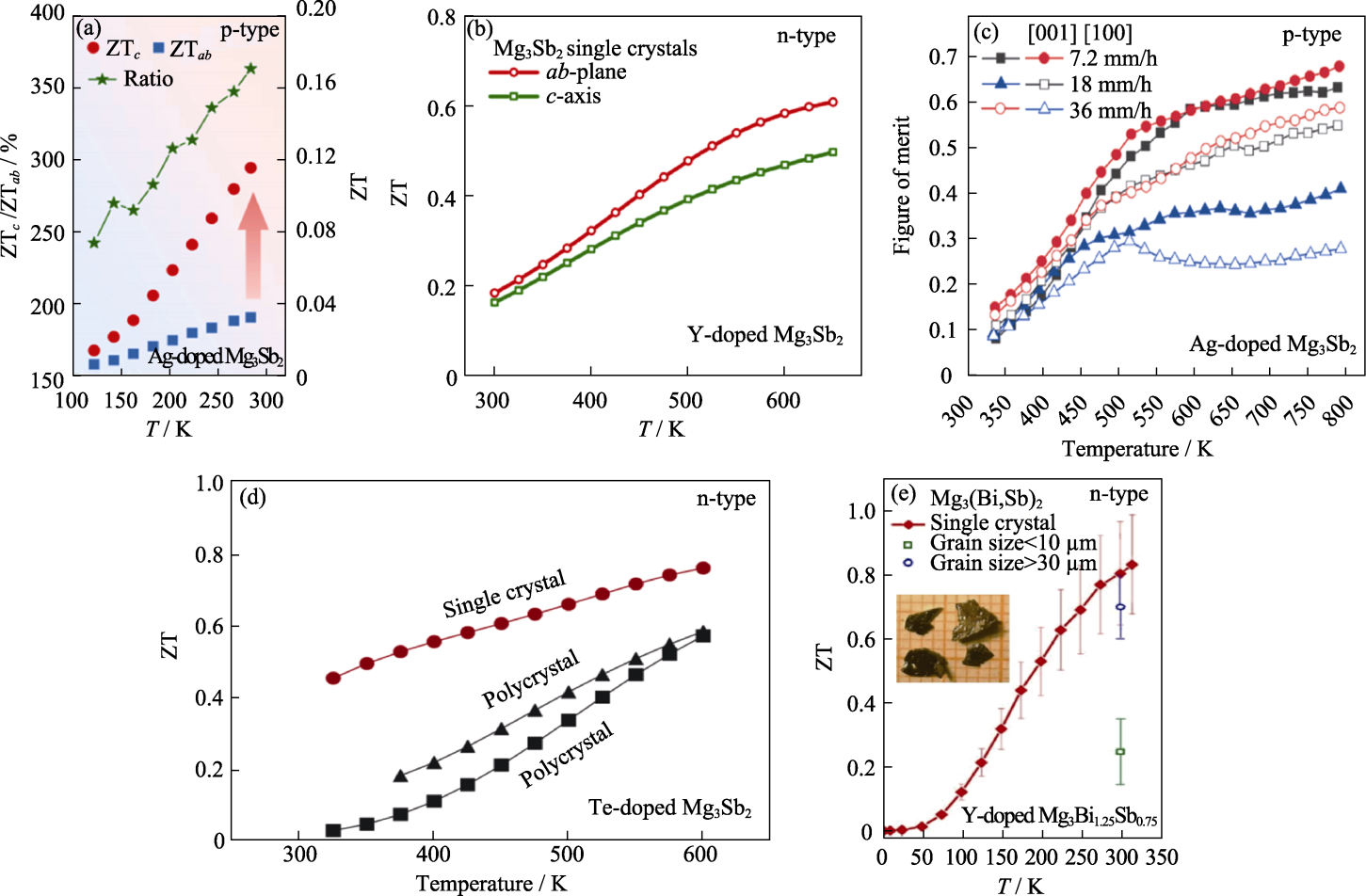

图7 Mg3Sb2-xBix晶体热电性能

Fig. 7 Thermoelectric properties of Mg3Sb2-xBix crystals (a) Thermoelectric properties of Mg3Sb2 crystals grown by modified temperature cooling method[50]; (b) Sb/Bi flux Bridgman method[56]; (c) Directional solidification method[51]; (d) Sb flux method[54]; (e) Mg flux method[55]

表1 不同方法生长Mg3X2晶体及热电性能研究结果统计

Table 1 Growth results of Mg3X2 crystal by different methods and their thermoelectric properties

Method	Composition	Type	Shape and size	ZT_max	Year	Ref.
Temperature cooling	Mn-doped Mg₃Sb₂	n	Flake, 6-7 mm	0.11 (//ab plane, 500 K)	2014	[48]
	Mg₃Sb_2-_xBi_x	p	Flake, 6-7 mm	0.006 (//ab plane, 300 K)	2015	[49]
	Ag-doped Mg₃Sb₂	p	Bulk, 3 mm×6 mm×10 mm	0.03 (//ab plane, 300 K) 0.12 (┴ab plane, 300 K)	2021	[50]
Flux method	Mg₃Sb₂ (Sb Flux)	p	Flake, 6-7 mm	-	2018	[53]
	Mg₃Bi₂ (Bi Flux)	p	Flake, 6-7 mm	-	2018	[53]
	Y-doped Mg₃Sb₂(Mg Flux)	n	Flake, 3-8 mm	-	2020	[55]
	Y-doped Mg₃Bi₂(Mg Flux)	n/p	Flake, 3-8 mm	-	2020	[55]
	Y-doped Mg₃Bi_1.25Sb_0.75(Mg Flux)	n	Flake, 3-10 mm	0.82 (//ab plane, 325 K)	2020	[55]
	Te-doped Mg₃Sb₂ (Sb Flux)	n	Flake, 5-10 mm	0.78 (//ab plane, 600 K)	2020	[54]
Directional solidification	Ag-doped Mg₃Sb₂	p	Ingot, ϕ 10 mm×50 mm	0.62 (//ab plane, 800 K) 0.68 (┴ab plane, 800 K)	2020	[51]
Flux Bridgman	Y-doped Mg₃Sb₂(Sb/Bi Flux)	n	Bulk, 8 mm×10 mm×25 mm	0.60 (//ab plane, 700 K) 0.48 (┴ab plane, 700 K)	2021	[56]

参考文献 58

[1]	BELL L E. Cooling, heating, generating power, and recovering waste heat with thermoelectric systems. Science, 2008, 321(5895): 1457. DOI PMID
[2]	SHI X, CHEN L, UHER C. Recent advances in high-performance bulk thermoelectric materials. International Materials Reviews, 2016, 61(6): 379. DOI URL
[3]	GAYNER C, KAR K K. Recent advances in thermoelectric materials. Progress in Materials Science, 2016, 83: 330. DOI URL
[4]	HE J, TRITT T M. Advances in thermoelectric materials research: looking back and moving forward. Science, 2017, 357(6358): eaak9997. DOI URL
[5]	IOFFE A F, STILBANS L S, IORDANISHVILI E K, et al. Semiconductor thermoelements and thermoelectric cooling. Physics Today, 1959, 12(5): 42.
[6]	MAO J, LIU Z, ZHOU J, et al. Advances in thermoelectrics. Advances in Physics, 2018, 67(2): 69.
[7]	WEI T R, QIN Y, DENG T, et al. Copper chalcogenide thermoelectric materials. Science China Materials, 2019, 62(1): 8. DOI
[8]	ZHAO K, QIU P, SHI X, et al. Recent advances in liquid-like thermoelectric materials. Advanced Functional Materials, 2020, 30(8): 1903867. DOI URL
[9]	SHI X L, ZOU J, CHEN Z G. Advanced thermoelectric design: from materials and structures to devices. Chemical Reviews, 2020, 120(15): 7399. DOI URL
[10]	ZHANG X, BU Z, SHI X, et al. Electronic quality factor for thermoelectrics. Science Advances, 2020, 6(46): eabc0726. DOI URL
[11]	ZHU T, LIU Y, FU C, et al. Compromise and synergy in high- efficiency thermoelectric materials. Advanced Materials, 2017, 29(14): 1605884. DOI URL
[12]	BISWAS K, HE J, BLUM I D, et al. High-performance bulk thermoelectrics with all-scale hierarchical architectures. Nature, 2012, 489(7416): 414. DOI
[13]	PEI Y, SHI X, LALONDE A, et al. Convergence of electronic bands for high performance bulk thermoelectrics. Nature, 2011, 473(7345): 66. DOI
[14]	ZHAO L D, LO S H, ZHANG Y, et al. Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature, 2014, 508(7496): 373. DOI
[15]	LIU H, SHI X, XU F, et al. Copper ion liquid-like thermoelectrics. Nature Materials, 2012, 11(5): 422. DOI PMID
[16]	HEREMANS J P, JOVOVIC V, TOBERER E S, et al. Enhancement of thermoelectric efficiency in PbTe by distortion of the electronic density of states. Science, 2008, 321(5888): 554. DOI PMID
[17]	HSU K F, LOO S, GUO F, et al. Cubic AgPb_mSbTe₂₊_m: bulk thermoelectric materials with high figure of merit. Science, 2004, 303(5659): 818. DOI URL
[18]	GUPTA R P, MCCARTY R, SHARP J. Practical contact resistance measurement method for bulk Bi₂Te₃-based thermoelectric devices. Journal of Electronic Materials, 2014, 43(6): 1608. DOI URL
[19]	PEI J, CAI B, ZHUANG H L, et al. Bi₂Te₃-based applied thermoelectric materials: research advances and new challenges. National Science Review, 2020, 7(12): 1856. DOI URL
[20]	MAO J, CHEN G, REN Z. Thermoelectric cooling materials. Nature Materials, 2021, 20(4): 454. DOI PMID
[21]	PINCHERLE L, RADCLIFFE J M. Semiconducting intermetallic compounds. Advances in Physics, 1956, 5(19): 271. DOI URL
[22]	SLACK G A. New materials and performance limits for thermoelectric cooling. CRC Handbook of Thermoelectrics, 2018: 407.
[23]	TAMAKI H, SATO H K, KANNO T. Isotropic conduction network and defect chemistry in Mg₃₊_δSb₂-based layered Zintl compounds with high thermoelectric performance. Advanced Materials, 2016, 28(46): 10182. DOI URL
[24]	MAO J, SHUAI J, SONG S, et al. Manipulation of ionized impurity scattering for achieving high thermoelectric performance in n-type Mg₃Sb₂-based materials. Proceedings of the National Academy of Sciences, 2017, 114(40): 10548. DOI URL
[25]	ZHANG J, SONG L, PEDERSEN S H, et al. Discovery of high- performance low-cost n-type Mg₃Sb₂-based thermoelectric materials with multi-valley conduction bands. Nature Communications, 2017, 8(1): 13901. DOI
[26]	KUO J J, KANG S D, IMASATO K, et al. Grain boundary dominated charge transport in Mg₃Sb₂-based compounds. Energy & Environmental Science, 2018, 11(2): 429.
[27]	IMASATO K, KANG S D, SNYDER G J. Exceptional thermoelectric performance in Mg₃Sb_0.6Bi_1.4for low-grade waste heat recovery. Energy & Environmental Science, 2019, 12(3): 965.
[28]	MAO J, ZHU H, DING Z, et al. High thermoelectric cooling performance of n-type Mg₃Bi₂- based materials. Science, 2019, 365(6452): 495. DOI URL
[29]	SHU R, ZHOU Y, WANG Q, et al. Mg₃₊_δSb_xBi_2-_x family: a promising substitute for the state-of-the-art n-type thermoelectric materials near room temperature. Advanced Functional Materials, 2019, 29(4): 1807235. DOI URL
[30]	WOOD M, KUO J J, IMASATO K, et al. Improvement of low- temperature ZT in a Mg₃Sb₂-Mg₃Bi₂ solid solution via Mg-vapor annealing. Advanced Materials, 2019, 31(35): 1902337. DOI URL
[31]	ZHANG F, CHEN C, YAO H, et al. High-performance N-type Mg₃Sb₂ towards thermoelectric application near room temperature. Advanced Functional Materials, 2020, 30(5): 1906143. DOI URL
[32]	YING P, HE R, MAO J, et al. Towards tellurium-free thermoelectric modules for power generation from low-grade heat. Nature Communications, 2021, 12(1): 1121. DOI PMID
[33]	MARTINEZ-RIPOLL M, HAASE A, BRAUER G. The crystal structure of α-Mg₃Sb₂. Acta Crystallographica Section B: Structural Crystallography and Crystal Chemistry, 1974, 30(8): 2006. DOI URL
[34]	LI A, FU C, ZHAO X, et al. High-performance Mg₃Sb_2-_xBi_x thermoelectrics: progress and perspective. Research, 2020, 2020: 1934848.
[35]	ZHENG C, HOFFMANN R, NESPER R, et al. Site preferences and bond length differences in CaAl₂Si₂-type Zintl compounds. Journal of the American Chemical Society, 1986, 108(8): 1876. DOI URL
[36]	OHNO S, IMASATO K, ANAND S, et al. Phase boundary mapping to obtain n-type Mg₃Sb₂-based thermoelectrics. Joule, 2018, 2(1): 141. DOI URL
[37]	BHARDWAJ A, RAJPUT A, SHUKLA A K, et al. Mg₃Sb₂-based Zintl compound: a non-toxic, inexpensive and abundant thermoelectric material for power generation. RSC Advances, 2013, 3(22): 8504. DOI URL
[38]	MAO J, WU Y, SONG S, et al. Defect engineering for realizing high thermoelectric performance in n-type Mg₃Sb₂-based materials. ACS Energy Letters, 2017, 2(10): 2245. DOI URL
[39]	SHUAI J, WANG Y, KIM H S, et al. Thermoelectric properties of Na-doped Zintl compound: Mg_3-_xNa_xSb₂. Acta Materialia, 2015, 93: 187. DOI URL
[40]	ZHANG J, SONG L, SIST M, et al. Chemical bonding origin of the unexpected isotropic physical properties in thermoelectric Mg₃Sb₂ and related materials. Nature Communications, 2018, 9(1): 4716. DOI
[41]	SUN X, LI X, YANG J, et al. Achieving band convergence by tuning the bonding ionicity in n-type Mg₃Sb₂. Journal of Computational Chemistry, 2019, 40(18): 1693. DOI URL
[42]	SHI X, ZHAO T, ZHANG X, et al. Extraordinary n-type Mg₃SbBi thermoelectrics enabled by yttrium doping. Advanced Materials, 2019, 31(36): 1903387. DOI URL
[43]	ZHANG F, CHEN C, YAO H, et al. High-performance N-type Mg₃Sb₂ towards thermoelectric application near room temperature. Advanced Functional Materials, 2020, 30(5): 1906143. DOI URL
[44]	SHI X, ZHANG X, GANOSE A, et al. Compromise between band structure and phonon scattering in efficient n-Mg₃Sb_2-_xBi_x thermoelectrics. Materials Today Physics, 2021, 18: 100362. DOI URL
[45]	ZHANG J, SONG L, IVERSEN B B. Rapid one-step synthesis and compaction of high-performance n-type Mg₃Sb₂ thermoelectrics. Angewandte Chemie International Edition, 2020, 59(11): 4278. DOI URL
[46]	NAYEB-HASHEMI A A, CLARK J B. The Mg-Sb (magnesium- antimony) system. Bulletin of Alloy Phase Diagrams, 1984, 5(6): 579. DOI URL
[47]	GRUBE G. Metallographische mitteilungen aus dem institut für anorganische chemie der universität göttingen. XXV. Über die legierungen des magnesiums mit kadmium, zink, wismut und antimon. Zeitschrift für Anorganische Chemie, 1906, 49(1): 72. DOI URL
[48]	KIM S, KIM C, HONG Y K, et al. Thermoelectric properties of Mn-doped Mg-Sb single crystals. Journal of Materials Chemistry A, 2014, 2(31): 12311. DOI URL
[49]	KIM S H, KIM C M, HONG Y K, et al. Thermoelectric properties of Mg₃Sb_2-_xBi_x single crystals grown by Bridgman method. Materials Research Express, 2015, 2(5): 055903. DOI URL
[50]	LI A, HU C, HE B, et al. Demonstration of valley anisotropy utilized to enhance the thermoelectric power factor. Nature Communications, 2021, 12(1): 5408. DOI PMID
[51]	LI X, XIE H, YANG B, et al. Influence of growth rate and orientation on thermoelectric properties in Mg₃Sb₂ crystal. Journal of Materials Science: Materials in Electronics, 2020, 31(12): 9773. DOI
[52]	JIN M, YANG W H, WANG X H, et al. Growth and characterization of ZnTe single crystal via a novel Te flux vertical Bridgman method. Rare Metals, 2021, 40(4): 858. DOI
[53]	XIN J, LI G, AUFFERMANN G, et al. Growth and transport properties of Mg₃X₂ (X=Sb, Bi) single crystals. Materials Today Physics, 2018, 7: 61. DOI URL
[54]	IMASATO K, FU C, PAN Y, et al. Metallic n-type Mg₃Sb₂ single crystals demonstrate the absence of ionized impurity scattering and enhanced thermoelectric performance. Advanced Materials, 2020, 32(16): 1908218. DOI URL
[55]	PAN Y, YAO M, HONG X, et al. Mg₃(Bi, Sb)₂ single crystals towards high thermoelectric performance. Energy & Environmental Science, 2020, 13(6): 1717.
[56]	JIN M, LIN S, LI W, et al. Nearly isotropic transport properties in anisotropically structured n-type single-crystalline Mg₃Sb₂. Materials Today Physics, 2021, 21: 100508. DOI URL
[57]	JIN M, SHAO H, HU H, et al. Growth and characterization of large size undoped p-type SnSe single crystal by Horizontal Bridgman method. Journal of Alloys and Compounds, 2017, 712: 857. DOI URL
[58]	KAIBE H, TANAKA Y, SAKATA M, et al. Anisotropic galvanomagnetic and thermoelectric properties of n-type Bi₂Te₃ single crystal with the composition of a useful thermoelectric cooling material. Journal of Physics and Chemistry of Solids, 1989, 50(9): 945. DOI URL
