熔盐法合成高导热磷化硼及其热管理性能研究

doi:10.15541/jim20210721

无机材料学报 ›› 2022, Vol. 37 ›› Issue (9): 933-940.DOI: 10.15541/jim20210721

熔盐法合成高导热磷化硼及其热管理性能研究

胡佳军(), 王凯, 侯鑫广, 杨婷, 夏鸿雁()

西安交通大学金属材料国家重点实验室, 西安 710049

收稿日期:2021-11-24 修回日期:2022-03-07 出版日期:2022-09-20 网络出版日期:2022-06-16
通讯作者: 夏鸿雁, 副教授. E-mail: hyxia0707@xjtu.edu.cn
作者简介:胡佳军(1993-), 男, 博士研究生. E-mail: hujiajun1123@stu.xjtu.edu.cn
基金资助:
国家电网公司科技项目(SGAH0000KJJS1900437)

Boron Phosphide with High Thermal Conductivity: Synthesis by Molten Salt Method and Thermal Management Performance

HU Jiajun(), WANG Kai, HOU Xinguang, YANG Ting, XIA Hongyan()

State Key Laboratory for Mechanical Behavior of Materials, Xi’an Jiaotong University, Xi’an 710049, China

Received:2021-11-24 Revised:2022-03-07 Published:2022-09-20 Online:2022-06-16
Contact: XIA Hongyan, associate professor. E-mail: hyxia0707@xjtu.edu.cn
About author:HU Jiajun (1993-), male, PhD candidate. E-mail: hujiajun1123@stu.xjtu.edu.cn
Supported by:
Science and Technology Project from Headquarters of State Grid Co., LTD(SGAH0000KJJS1900437)

摘要/Abstract

摘要：

随着电力电子器件封装密度提高, 开发导热性能优异的热界面材料受到了广泛关注。绝大多数传统导热填料的热导率较低, 因此合成新型高导热填料是提高热界面材料导热性能的重要途径。本研究通过简单的熔盐法合成了高导热的磷化硼(BP)颗粒, 与氮化硼(h-BN)混合并通过搅拌和浇注的方法填充到环氧树脂(EP)基体中制备得到树脂基复合材料(BP-BN/EP)。实验结果表明：采用三盐法(NaCl : KCl : LiCl)合成的BP产率最高达到74%, 相对于单盐法(41%)和双盐法(39%)分别提高了33%和35%。对于BP-BN/EP复合材料, 复合材料的微结构显示BP和BN颗粒均匀分布在环氧树脂基体。当混合填料体积分数为30%时, 该复合材料的热导率达到1.81 W•m^-1•K^-1, 是纯树脂热导率(0.21 W•m^-1•K^-1)的8.6倍, 这与BP颗粒作为桥梁连接相邻BN颗粒形成导热网络有关。除此以外, 相较于不含BP的复合材料(SBN-BN/EP), BP-BN/EP复合材料展现出更加优异的热导率、热稳定性和较好的热力学性能。因此, 熔盐法合成的BP在热管理领域具有较大的应用前景。

关键词: 熔盐法, 磷化硼, 环氧复合材料, 热导率

Abstract:

With the increase of packaging density of power electronic devices, the development of thermal interface materials with excellent thermal conductivity has received widely spread attention. Due to most traditional heat conductors showing relatively low thermal conductivity, synthesis of new high thermal conductive fillers is an important way to improve the thermal conductivity of thermal interface materials. In this study, boron phosphide (BP) particles were synthesized by a facile molten salt method, then mixed with boron nitride (h-BN) and filled into epoxy resin (EP) to prepare epoxy resin matrix composites (BP-BN/EP) by stirring and casting. With the three salts (NaCl : KCl : LiCl) method, the experimental data showed that the highest yield of BP reached 74%, 33% and 35% higher than that of the single salt method (41%) and the double salt method (39%), respectively. In the BP-BN/EP composites, BP and BN particles were uniformly dispersed in the EP matrix. When the hybrid filler loading at 30% (in volume), the thermal conductivity reached 1.81 W·m^-1·K^-1, 8.6 times of that of pure epoxy (0.21 W·m^-1·K^-1). The thermal conductivity improvement was related to the construction of thermal conductive network by BP particles linking adjacent BN sheets. In addition, to excellent thermal conductivity, the BP-BN/EP composites also showed good thermal stability and good thermodynamic properties. Therefore, the synthesized BP by molten salt method has great application prospects in the field of heat management.

Key words: molten salt method, boron phosphide, epoxy composite, thermal conductivity

中图分类号:

TQ174

胡佳军, 王凯, 侯鑫广, 杨婷, 夏鸿雁. 熔盐法合成高导热磷化硼及其热管理性能研究[J]. 无机材料学报, 2022, 37(9): 933-940.

HU Jiajun, WANG Kai, HOU Xinguang, YANG Ting, XIA Hongyan. Boron Phosphide with High Thermal Conductivity: Synthesis by Molten Salt Method and Thermal Management Performance[J]. Journal of Inorganic Materials, 2022, 37(9): 933-940.

图/表 8

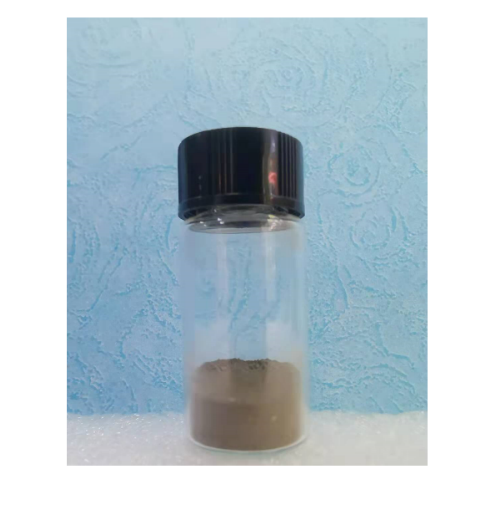

图1 BP粉末的光学照片

Fig. 1 Optical photo of BP powders

表1 不同条件下合成BP的产率

Table 1 Yields of BP under different synthetic conditions

Sample	Salt types	Holding time/h	Yield/%
1	NaCl	1	41
2	NaCl-KCl	1	39
3	NaCl-KCl-LiCl	1	67
4	NaCl-KCl-LiCl	5	74
5	NaCl-KCl-LiCl	10	64

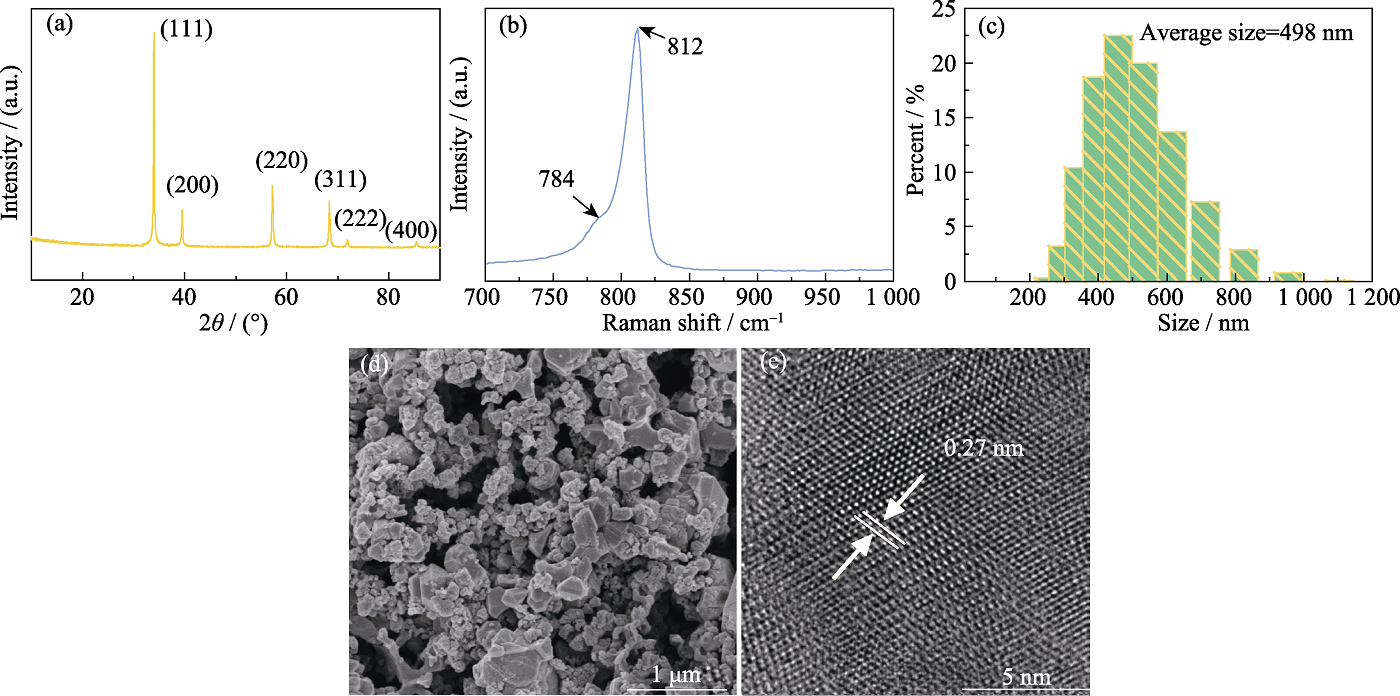

图2 BP粉末的形貌和结构表征

Fig. 2 Morphological and structural characterizations of BP (a) XRD pattern; (b) Raman spectrum; (c) Size distribution; (d) SEM image; (e) TEM image

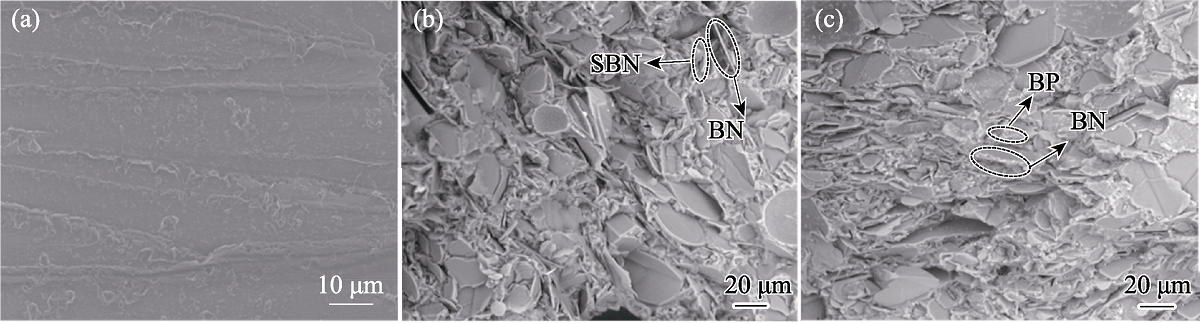

图3 复合材料的断面SEM照片

Fig. 3 Cross-sectional SEM images of composites (a) Pure epoxy; (b) SBN-BN/EP composite; (c) BP-BN/EP composite

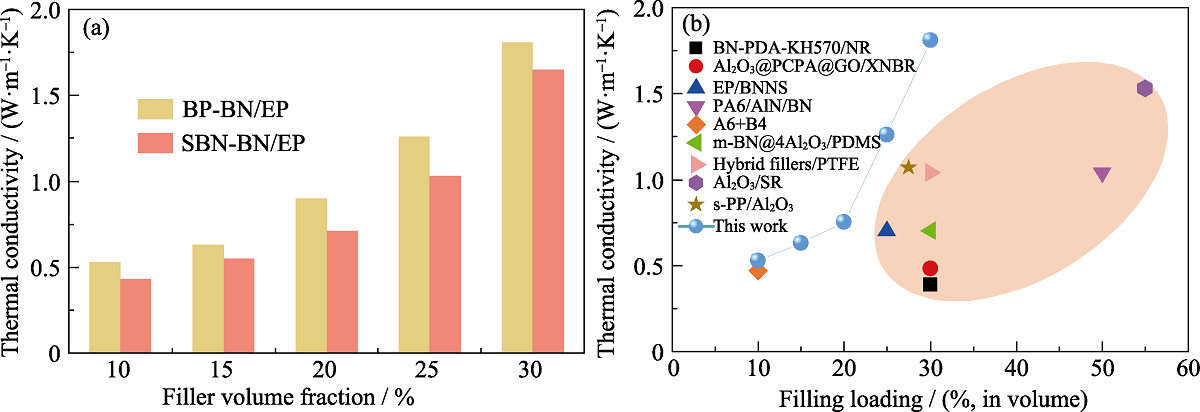

图4 复合材料的导热性能

Fig. 4 Thermal conductivity of the composites (a) Thermal conductivity of the composites; (b) Comparison of BP-BN/EP composites with relevant literatures[16,28⇓⇓⇓⇓⇓⇓ -35]

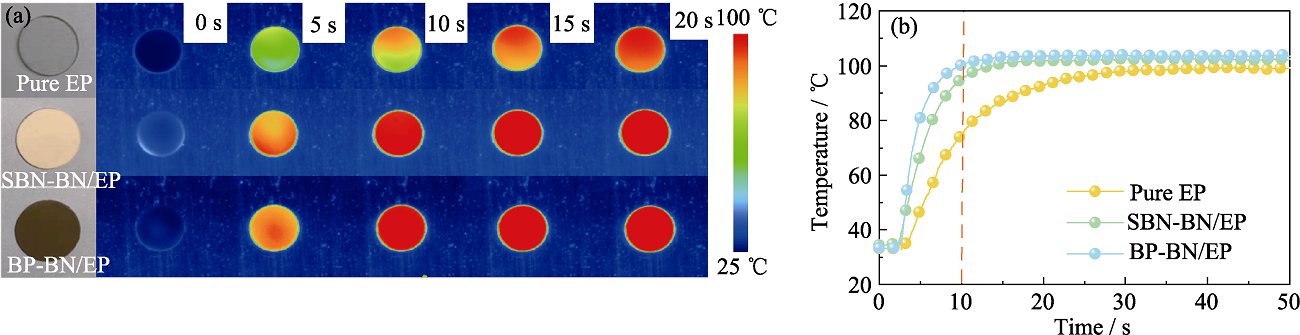

图5 纯EP、BP-BN/EP和SBN-BN/EP复合材料的热传输性能

Fig. 5 Thermal transport properties of pure EP, BP-BN/EP and SBN-BN/EP composites (a) IR thermal images at different time; (b) Temperature changes of sample surface at different time Colorful figures are available on website

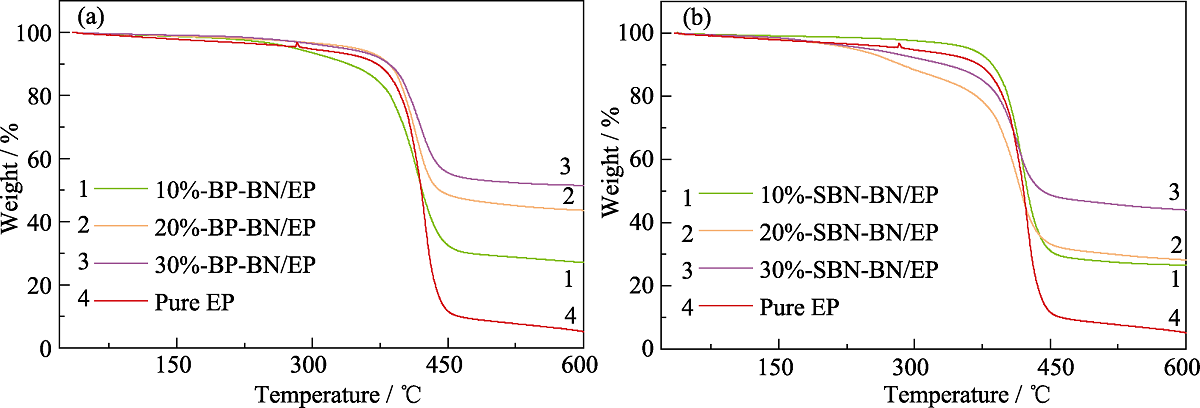

图6 复合材料的热稳定性能

Fig. 6 Thermal stability of composites (a) TG curves of BP-BN/EP composites; (b) TG curves of SBN-BN/EP composites

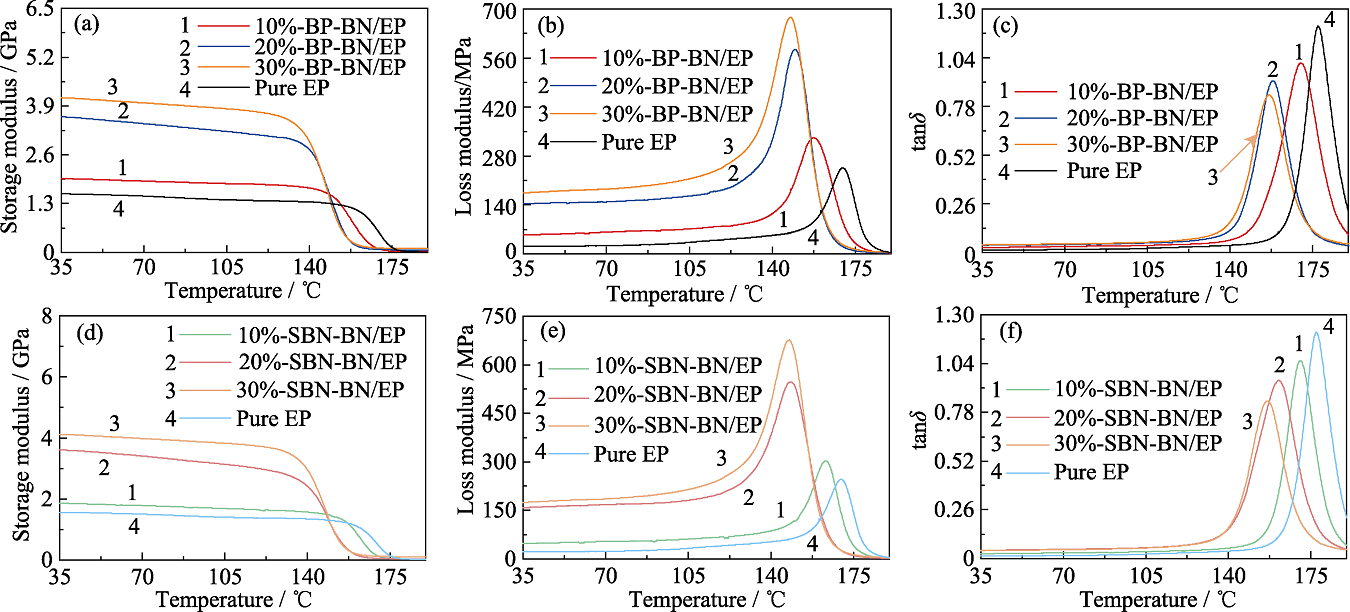

图7 BP-BN/EP和SBN-BN/EP复合材料的热力学性能

Fig. 7 Thermodynamic property of BP-BN/EP and SBN-BN/EP composites (a,d) Curves of storage modulus with temperature change; (b,e) Curves of loss modulus with temperature change; (c,f) Curves of loss factor (tanδ) with temperature change
