Li2O-B2O3-SiO2玻璃相对BaAl2Si2O8结构及微波介电性能的影响

doi:10.15541/jim20180582

无机材料学报 ›› 2019, Vol. 34 ›› Issue (10): 1091-1096.DOI: 10.15541/jim20180582 CSTR: 32189.14.10.15541/jim20180582

Li₂O-B₂O₃-SiO₂玻璃相对BaAl₂Si₂O₈结构及微波介电性能的影响

黄龙,丁士华(),张晓云,严欣堪,李超,朱惠

西华大学材料科学与工程学院, 成都 610039

收稿日期:2018-12-13 修回日期:2018-01-22 出版日期:2019-09-23 网络出版日期:2019-05-29
作者简介:黄龙(1992-), 男, 硕士研究生. E-mail: 540555281@qq.com
基金资助:
教育部春晖计划项目(Z2011077);四川省特种材料及制备技术重点实验室开放课题资助项目(szjj2017-059);四川省教育厅资助项目(14ZB0126);四川省粉末冶金工程技术中心资助项目(SC-FMYJ2017-04);四川省粉末冶金工程技术中心资助项目(SC-FMYJ2017-07);国家自然科学基金(11074203);西华大学研究生创新基金(ycjj2018012);西华大学研究生创新基金(ycjj2018013)

Structure and Microwave Dielectric Property of BaAl₂Si₂O₈with Li₂O-B₂O₃-SiO₂ Glass Addition

HUANG Long,DING Shi-Hua(),ZHANG Xiao-Yun,YAN Xin-Kan,LI Chao,ZHU Hui

School of Materials Science and Engineering, Xihua University, Chengdu 610039, China

Received:2018-12-13 Revised:2018-01-22 Published:2019-09-23 Online:2019-05-29
Supported by:
Chun Hui Project of the Ministry of Education(Z2011077);Open Research Subject of Key Laboratory of Special Materials and Preparation Technology of Sichuan Province(szjj2017-059);Foundation of Sichuan Educational Committee(14ZB0126);Opening Foundation of Sichuan Province Engineering Center for Powder Metallurgy(SC-FMYJ2017-04);Opening Foundation of Sichuan Province Engineering Center for Powder Metallurgy(SC-FMYJ2017-07);National Natural Science Foundation of China(11074203);Graduate Innovation Foundation of Xihua University(ycjj2018012);Graduate Innovation Foundation of Xihua University(ycjj2018013)

摘要/Abstract

摘要：

采用固相工艺制备BaAl₂Si₂O₈-xwt%Li₂O-B₂O₃-SiO₂(x=0, 0.1, 0.3, 0.5, 1.0, 2.0)陶瓷。探究不同含量的Li₂O-B₂O₃-SiO₂(LBS)玻璃相对BaAl₂Si₂O₈(BAS)陶瓷的烧结温度、结构及微波介电性能的影响。结果表明: LBS玻璃相可明显降低BAS陶瓷的烧结温度, 并促进BAS陶瓷晶粒长大和晶体结构由六方相转变为单斜相。当x=0.1时, 六方相即可全部转变为单斜相, 在0.1≤x≤2.0范围内, BAS陶瓷晶体结构均为单斜相。添加0.3wt%的LBS玻璃相可促进BAS样品密度、介电常数和品质因数增大, 谐振频率温度系数绝对值减小。在x=0.3, 烧结温度为1275 ℃时, 可获得具有较好品质因数的单斜钡长石, 其介电性能: ε_r=6.74, Q×f=34570 GHz, τ_f= -15.97×10 ^-6/℃。

关键词: 钡长石, 单斜相, 晶体结构, 介电性能

Abstract:

The BaAl₂Si₂O₈-xwt%Li₂O-B₂O₃-SiO₂ (x=0, 0.1, 0.3, 0.5, 1.0, 2.0) ceramics with small amount of Li₂O-B₂O₃-SiO₂ (LBS) glass addition were prepared by solid state sintering. The sintering temperature, structure and microwave dielectric properties of BaAl₂Si₂O₈ (BAS) ceramics with xwt%LBS glass addition were investigated. The results show that the LBS glass can greatly reduce the sintering temperature, promote the growth of grain and the transformation of hexacelsian-to-celsian of BAS ceramics. As x=0.1, all the hexacelsian were transformed into celsian, and the second phase was not observed as x≤2.0. The 0.3wt%LBS glass can promote the density, dielectric constant and Q × f value increase, and the absolute value of τ_f decrease. Especially, the BAS ceramics with the 0.3wt%LBS glass addition sintered at 1275 ℃ shows a good Q × f of 34570 GHz, and the dielectric properties are ε_r= 6.74 and τ_f = -15.97 × 10 ^-6/℃.

Key words: barium feldspar, celsian, crystal structure, dielectric property

中图分类号:

TQ174

黄龙, 丁士华, 张晓云, 严欣堪, 李超, 朱惠. Li₂O-B₂O₃-SiO₂玻璃相对BaAl₂Si₂O₈结构及微波介电性能的影响[J]. 无机材料学报, 2019, 34(10): 1091-1096.

HUANG Long, DING Shi-Hua, ZHANG Xiao-Yun, YAN Xin-Kan, LI Chao, ZHU Hui. Structure and Microwave Dielectric Property of BaAl₂Si₂O₈with Li₂O-B₂O₃-SiO₂ Glass Addition[J]. Journal of Inorganic Materials, 2019, 34(10): 1091-1096.

图/表 10

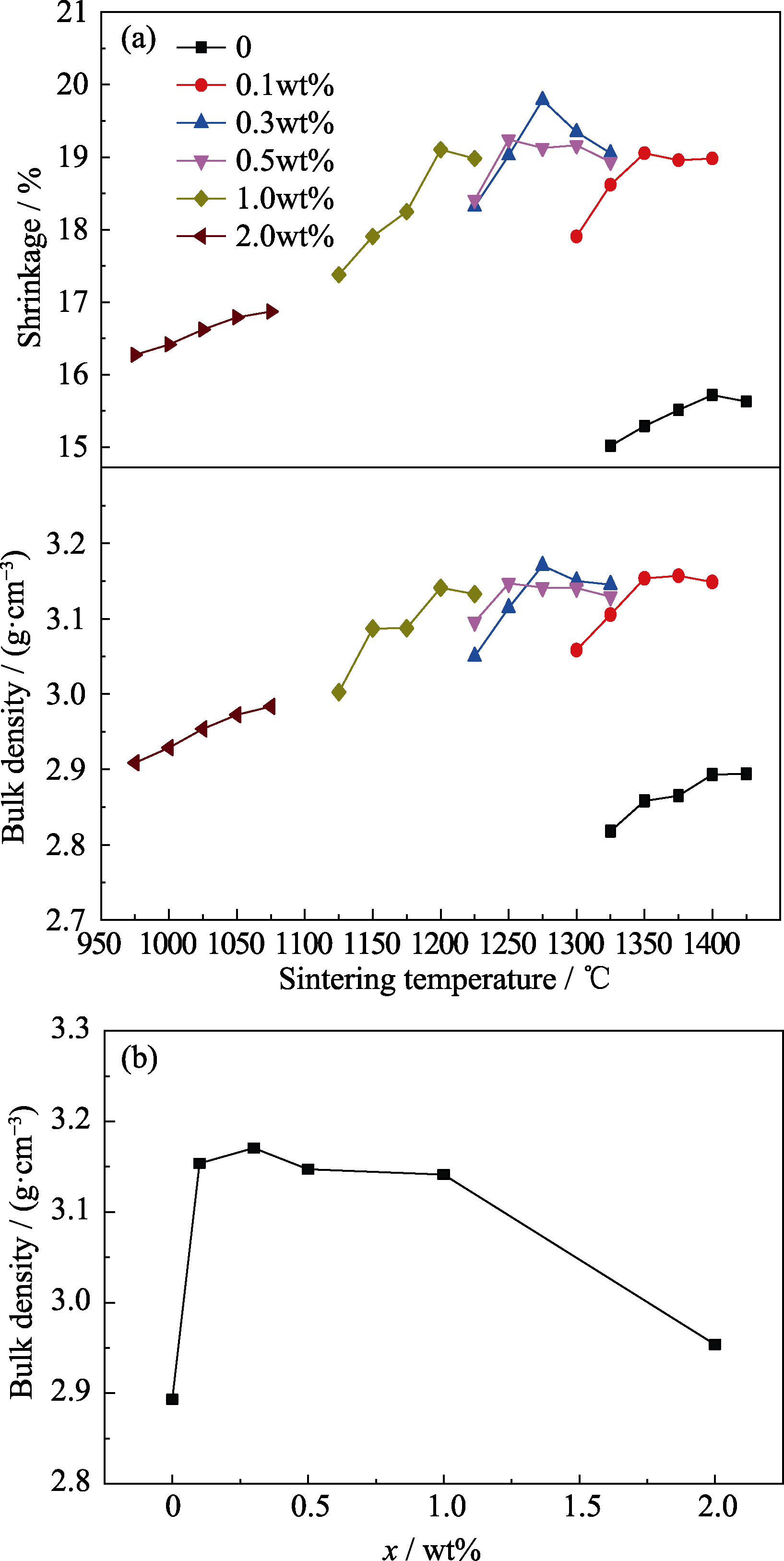

图1 BAS-xwt%LBS陶瓷样品线收缩率和密度随烧结温度的变化曲线(a), BAS陶瓷样品密度随LBS玻璃相添加量的变化曲线(b)

Fig. 1 Line shrinkage and density of BAS-xwt%LBS ceramic sample as a function of sintering temperature (a), and the relationship between density and content of LBS glass (b)

图2 LBS玻璃的DSC曲线

Fig. 2 DSC curve of LBS glass

表1 不同LBS玻璃相添加量与对应的烧结温度

Table 1 Content of LBS glass and corresponding sintering temperature

x/wt%	0	0.1	0.3	0.5	1.0	2.0
T/℃	1400	1350	1275	1250	1200	1025

图3 BAS-xwt%LBS陶瓷样品的XRD谱图

Fig. 3 XRD patterns of BAS-xwt%LBS ceramic samples

表2 BAS-xwt%LBS样品的晶格常数与晶胞体积

Table 2 Lattice constant and unit cell volume of BAS-xwt%LBS samples

x/wt%	a/nm	b/nm	c/nm	V/nm³
0.1	0.864121	1.304721	0.720215	0.73558
0.3	0.864383	1.304980	0.720196	0.73612
0.5	0.864474	1.304825	0.720159	0.73614
1.0	0.864824	1.304541	0.720327	0.73623
2.0	0.864586	1.305215	0.720430	0.73656

图4 六方BAS晶体结构(a)和单斜BAS晶体结构(b)

Fig. 4 Crystal structures of hexacelsian (a) and celsian (b)

图5 BAS-xwt%LBS陶瓷样品的晶粒尺寸分布及表面SEM照片

Fig. 5 Grain size distribution and surface SEM images of BAS-xwt%LBS ceramic samples

图6 BAS陶瓷样品的介电常数与LBS玻璃相添加量的关系曲线

Fig. 6 Relationship curves between the dielectric constant of BAS ceramic samples and the content of LBS glass

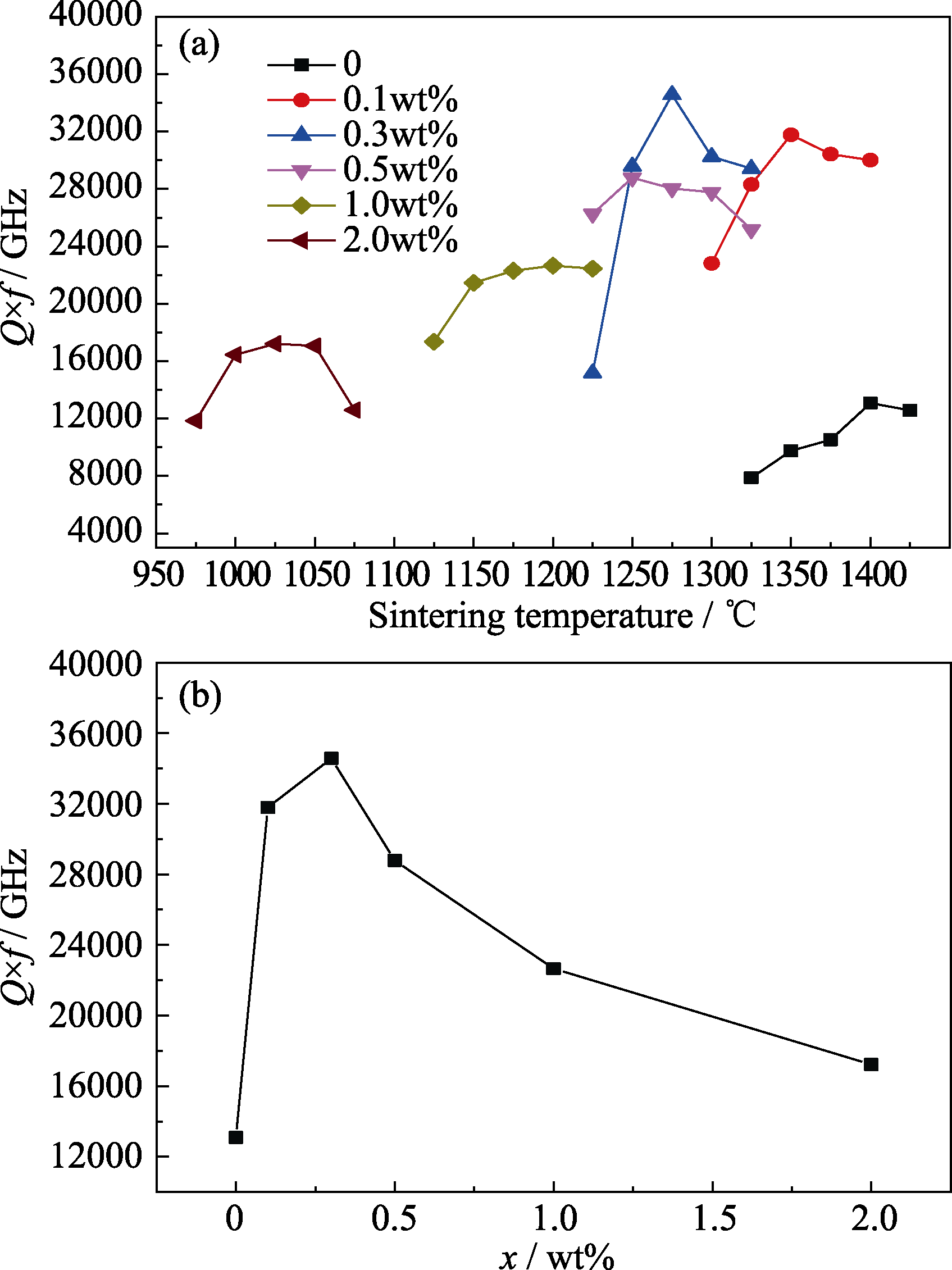

图7 BAS-xwt%LBS陶瓷样品的Q×f值随烧结温度的变化曲线(a)和BAS陶瓷样品Q×f值随LBS玻璃相添加量的变化曲线(b)

Fig. 7 Q×f value of BAS-xwt%LBS ceramic as a function of sintering temperature (a) and the relationship between Q×f value and content of LBS glass (b)

图8 BAS陶瓷样品的τf值随LBS玻璃相添加量的变化曲线

Fig. 8 Relationship curve between the τf of BAS ceramic samples and the content of LBS glass

参考文献 26

[1]	LEI W, ANG R, WANG X C , et al.Phase evolution and near-zero shrinkage in BaAl₂Si₂O₈ low-permittivity microwave dielectric ceramics.Materials Research Bulletin, 2014,50(2):235-239.
[2]	ZHANG Y, DING S H, LIU Y Q , et al.Crystal structure and microwave dielectric property of Ba₁-_xMg_xAl₂Si₂O₈.Journal of Inorganic Materials, 2017,32(1):91-95.
[3]	HAN L C, DING S H, SONG T X , et al.ZBAS on the structure and dielectric property of BaAl₂Si₂O₈.Journal of Inorganic Materials, 2018,33(8):883-888.
[4]	LANSMANN V, JANSEN M . Application of the glass-ceramic process for the fabrication of whisker reinforced celsian-composites. Journal of Materials Science, 2001,36(6):1531-1538. DOI
[5]	BAHAT D . Kinetic study on the hexacelsian-celsian phase transformation. Journal of Materials Science, 1970,5(9):805-810.
[6]	YOSHIKI B, MATSUMOTO K . High-temperature modification of barium feldspar. Journal of the American Ceramic Society, 1951,34(9):283-286.
[7]	YANG X J, ZHANG Y, DING S H , et al.Structure and dielectric properties of Ca doped BaAl₂Si₂O₈.Ceramics International, 2018,44:S43-S45.
[8]	FERONE C, ESPOSITO S , DELL'AGLI G, et al.Role of Li in the low temperature synthesis of monoclinic celsian from (Ba, Li)- exchanged zeolite-a precursor.Solid State Sciences, 2005,7(11):1406-1414.
[9]	SONG X Q, LU W Z, WANG X C , et al.Sintering behaviour and microwave dielectric properties of BaAl_2-2_x(ZnSi)_xSi₂O₈ ceramics.Journal of the European Ceramic Society, 2018,38(4):1529-1534.
[10]	SONG X Q, DU K, ZOU Z Y , et al.Temperature-stable BaAl₂Si₂O₈-Ba₅Si₈O₂₁-based low-permittivity microwave dielectric ceramics for LTCC applications.Ceramics International, 2017,43(16):14453-14456.
[11]	LEE K T, ASWATH P B . Role of mineralizers on the hexacelsian to celsian transformation in the barium aluminosilicate (BAS) system. Materials Science & Engineering A, 2003,352(1):1-7.
[12]	CHO I S, KIM D W, KIM J R , et al.Low-temperature sintering and microwave dielectric properties of BaO·(Nd₁-_xBi_x)₂O₃·4TiO₂ by the glass additions.Ceramics international, 2004,30(7):1181-1185.
[13]	SHIN H K, SHIN H, CHO S Y , et al.Phase evolution and dielectric properties of MgTiO₃-CaTiO₃ based ceramic sintered with lithium borosilicate glass for application to low temperature co-fired ceramics.Journal of the American Ceramic Society, 2005,88(9):2461-2465.
[14]	PARK J H, CHOI Y J, PARK J G , et al.Low-fire dielectric compositions with permittivity 20-60 for LTCC applications.Materials Chemistry and Physics, 2004,88(2/3):308-312.
[15]	LI E, NIU N, WANG J , et al.Effect of Li-B-Si glass on the low temperature sintering behaviors and microwave dielectric properties of the Li-modified ss-phase Li₂O-Nb₂O₅-TiO₂ ceramics.Journal of Materials Science: Materials in Electronics, 2015,26(5):3330-3335.
[16]	YOON K H, PARK M S, CHO J Y , et al.Effect of B₂O₃-Li₂O on microwave dielectric properties of (Ca_0.275Sm_0.4Li_0.25)TiO₃ ceramics.Journal of the European Ceramic Society, 2003,23(14):2423-2427.
[17]	ZHANG Q L, YANG H, ZOU J L , et al.Sintering and microwave dielectric properties of LTCC-zinc titanate multilayers.Materials Letters, 2005,59(8/9):880-884.
[18]	YANG H, LI E, YANG H , et al.Synthesis of Zn_0.5Ti_0.5NbO₄ microwave dielectric ceramics with Li₂O-B₂O₃-SiO₂ glass for LTCC application.International Journal of Applied Glass Science, 2018,9(3):392-402.
[19]	SHIH Y T, JEAN J H . Low-fire processing of microwave (Ca₁-_xSr_x)(Zr₁-_yMn_y)O₃ dielectric with Li₂O-B₂O₃-SiO₂ glass in H₂/N₂.Ceramics International, 2017,43:S306-S311.
[20]	BANSAL, NAROTTAM P . SiC fiber-reinforced celsian composites. 2005, ( Chapter 10):227-249.
[21]	HYATT M J, BANSAL N P . Crystal growth kinetics in BaOAl₂O₃·2SiO₂ and SrOAl₂O₃·2SiO₂ glasses. Journal of Materials Science, 1996,31(1):172-184.
[22]	BANSAL N P , DRUMMOND III C H . Kinetics of hexacelsian- to-celsian phase transformation in SrAl₂Si₂O₈. Journal of the American Ceramic Society, 1993,76(5):1321-1324.
[23]	SHANNON R D . Dielectric polarizabilities of ions in oxides and fluorides. Journal of Applied Physics, 1993,73(1):348-366.
[24]	PARK Y H, RYU J M, SHIN M Y , et al.Effect of Nb₂O₅/ZnO addition on microwave properties of (Zr_0.8Sn_0.2)TiO₄ ceramics.Journal of the American Ceramic Society, 2001,84(11):2542-2546.
[25]	GU Y J, HUANG J L, LI L H , et al.Microwave dielectric properties of low temperature fired CaO-Li₂O-Sm₂O₃-TiO₂ ceramics with LBS glass addition.Applied Mechanics and Materials. Trans. Tech. Publications, 2012,148:887-890.
[26]	ZHANG S, SU H, ZHANG H , et al.Microwave dielectric properties of CaWO₄-Li₂TiO₃ ceramics added with LBSCA glass for LTCC applications.Ceramics International, 2016,42(14):15242-15246.
