W/Cr共掺杂对CaBi2Nb2O9陶瓷晶体结构及电学性能的影响

doi:10.15541/jim20240065

无机材料学报

W/Cr共掺杂对CaBi₂Nb₂O₉陶瓷晶体结构及电学性能的影响

黄建锋^1,2, 梁瑞虹¹, 周志勇¹

1.中国科学院上海硅酸盐研究所,上海200050;
2.中国科学院大学材料科学与光电工程中心, 北京 100049

收稿日期:2024-02-05 修回日期:2024-02-28 出版日期:2024-03-30 网络出版日期:2024-03-30
作者简介:黄建锋(1999-), 男, 硕士研究生. E-mail: huangjianfeng21@mails.ucas.ac.cn.
基金资助:
国家自然科学基金重点项目(51932010)

Effect of W/Cr Co-doping on the Crystal Structure and Electric Properties of CaBi₂Nb₂O₉ Piezoceramics

HUANG Jianfeng^1,2, LIANG Ruihong¹, ZHOU Zhiyong¹

1. Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China;
2. Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

Received:2024-02-05 Revised:2024-02-28 Published:2024-03-30 Online:2024-03-30
About author:HUANG Jianfeng (1999-), male, Master candidate. E-mail: huangjianfeng21@mails.ucas.ac.cn
Supported by:
National Natural Science Foundation of China (51932010)

摘要/Abstract

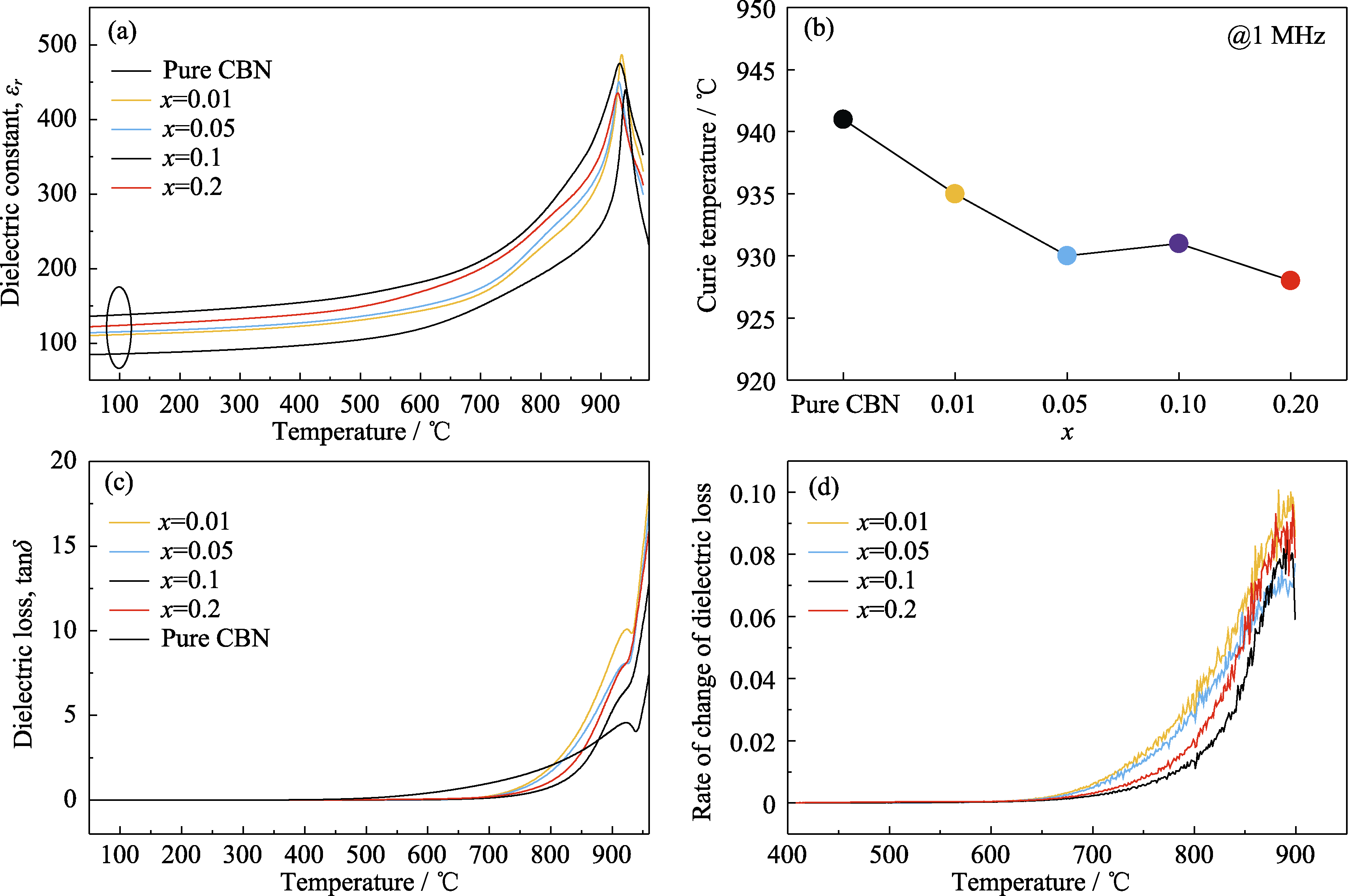

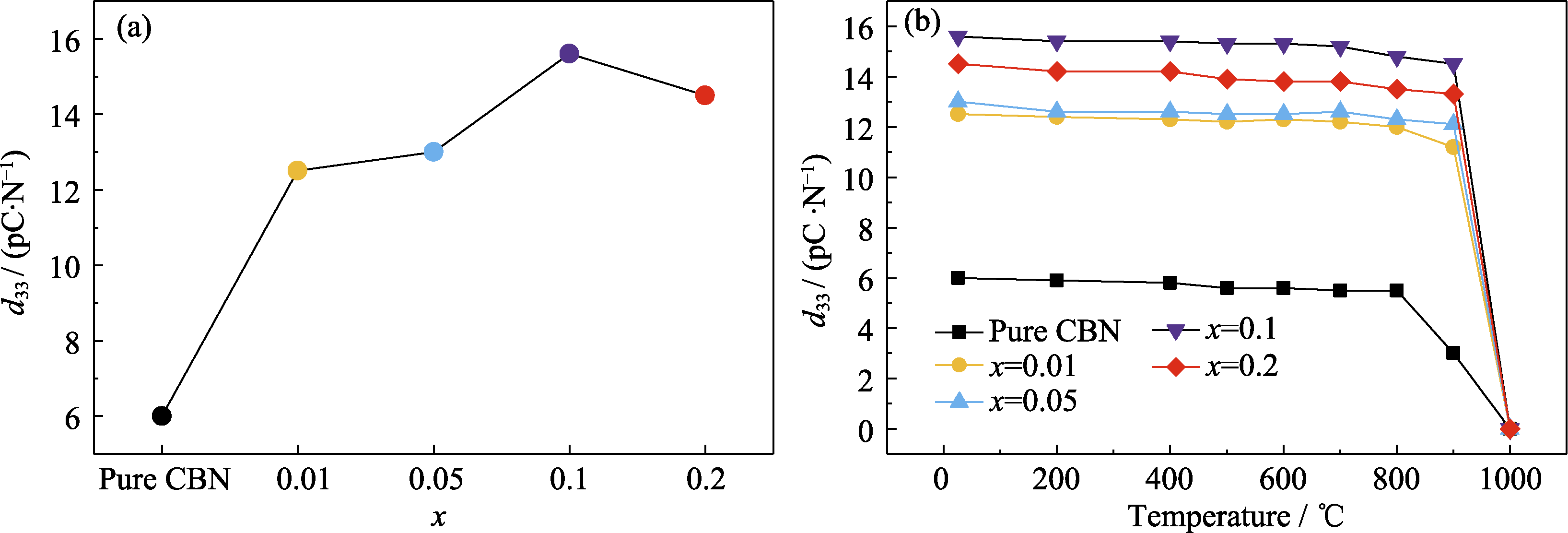

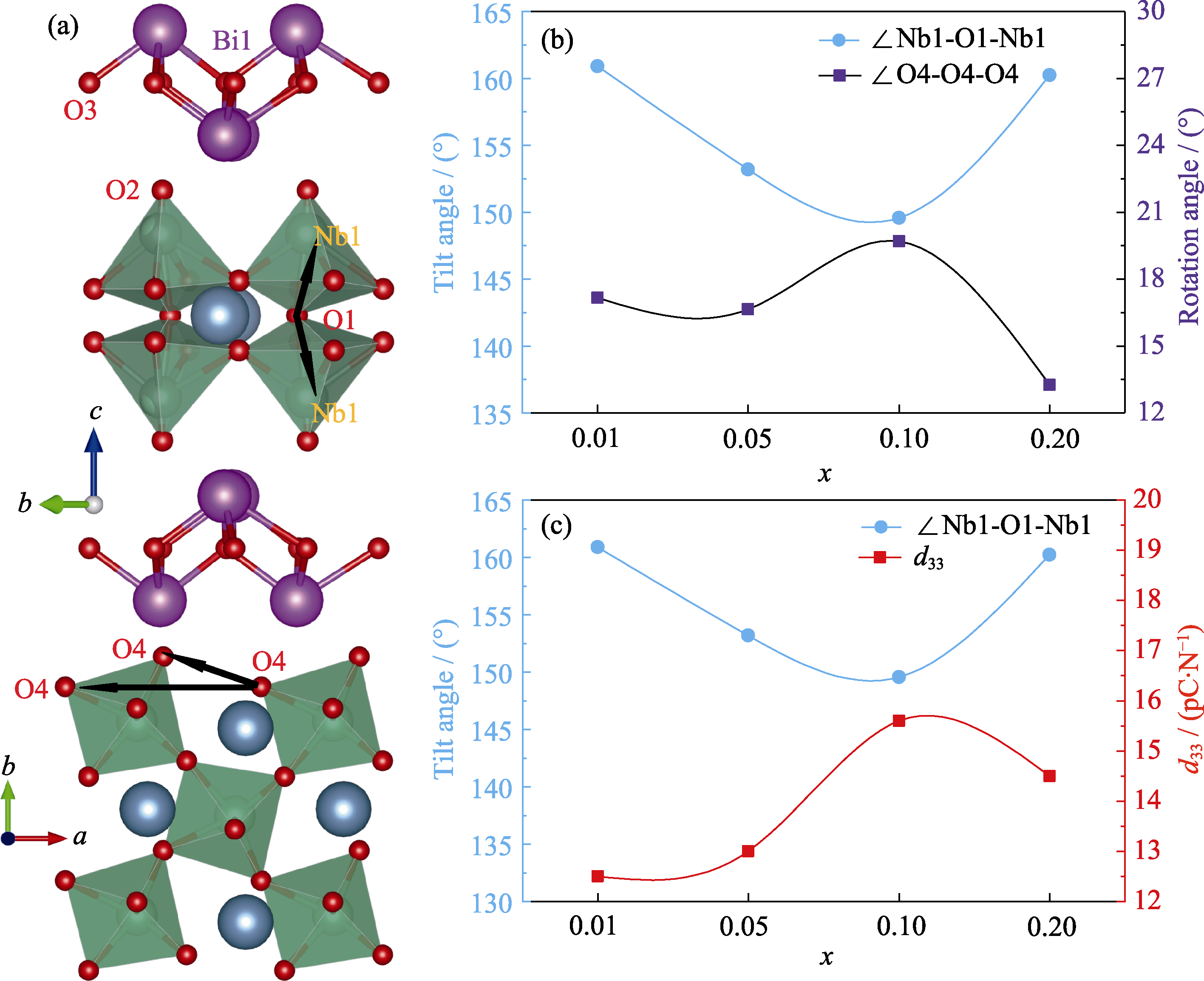

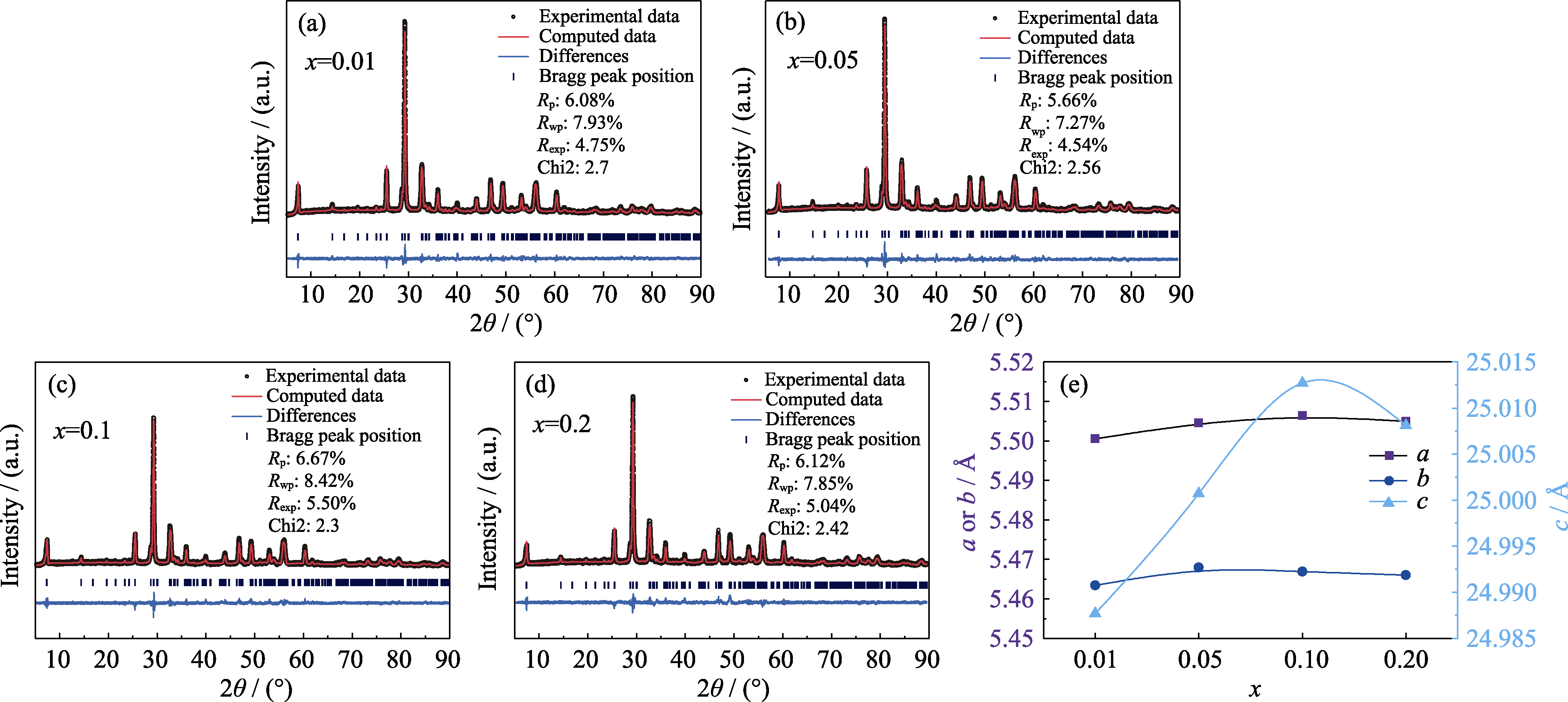

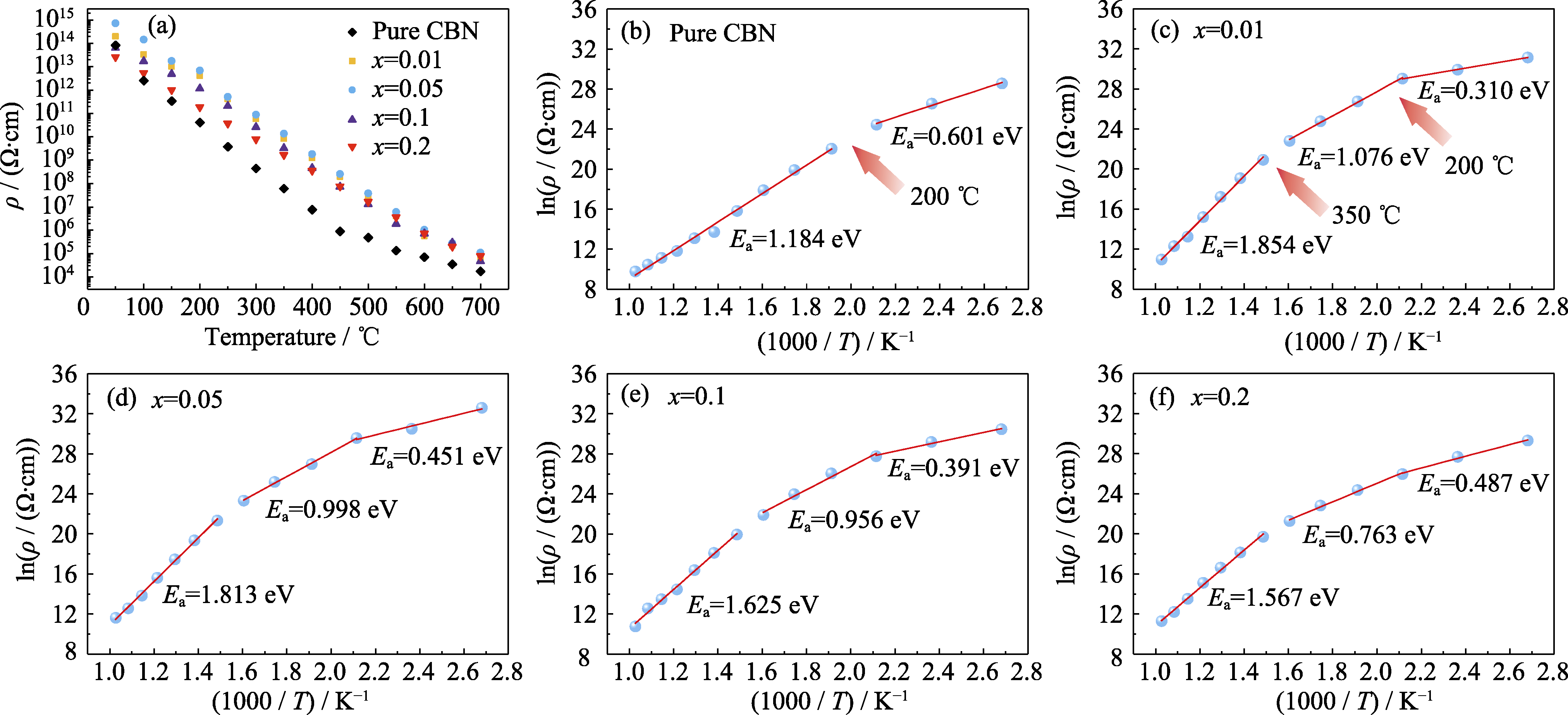

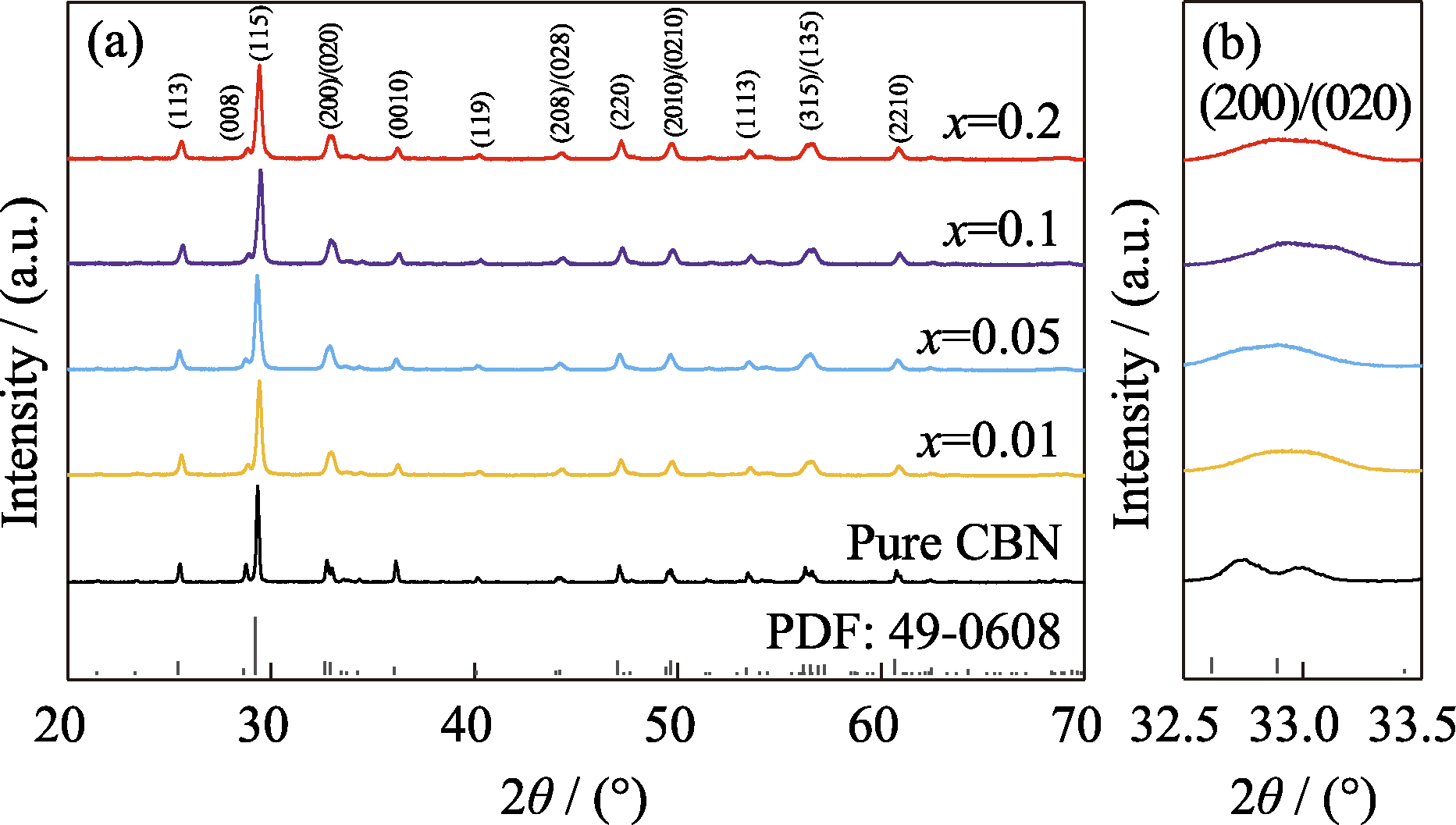

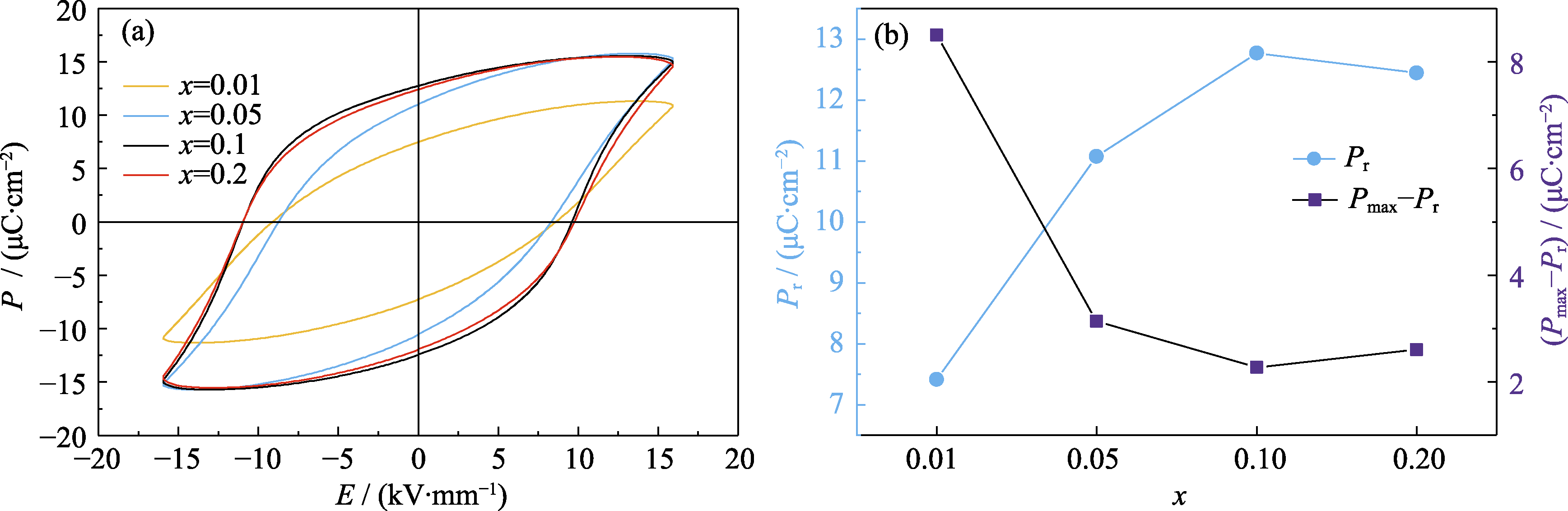

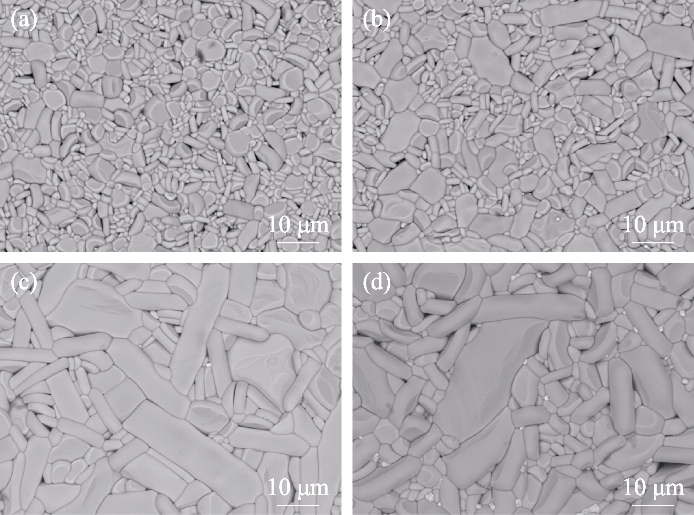

摘要： 铌酸铋钙(CaBi₂Nb₂O₉, CBN)是一种典型的铋层状结构压电材料,具有高居里温度(T_c为943 ℃)、高稳定性等特点,是600 ℃以上高温振动传感器的重要候选功能元件,但其较低的压电系数和高温电阻率,严重制约了CBN在高温压电振动传感器领域的实际应用。为了提高CBN压电陶瓷的高温稳定性,采用固相法制备了W/Cr共掺杂的CaBi₂Nb_1.975W_0.025O₉-xwt%Cr₂O₃(CBNW-xCr, 0<x≤0.2)单相铋层状结构高温压电陶瓷,研究了W/Cr元素共掺杂对晶体结构和电学性能的影响。结果表明：W/Cr元素共掺杂使陶瓷晶体结构由正交晶系向四方晶系转变、晶体结构畸变增强,并且显著提高了压电陶瓷的压电性能和绝缘性能。当x=0.1时,居里温度为931 ℃,压电系数(d₃₃)由6 pC/N提高到15.6 pC/N,600 ℃时电阻率达到了10⁶ Ω∙cm量级,介电损耗(tanδ)仅为0.029,该体系在高温压电领域有重要的潜在应用前景。

关键词: 高温压电陶瓷, 晶体结构, 压电性能, 赝四方畸变

Abstract: Calcium bismuth niobate (CaBi₂Nb₂O₉) is a typical bismuth layered structure piezoelectric material with high Curie temperature (T_C about 943 ℃) and high stability, which is an important candidate functional element for high temperature vibration sensors above 600 ℃. However, its low piezoelectric coefficient and high temperature resistivity seriously limit the signal acquisition of high-temperature piezoelectric vibration sensors, and in order to improve the comprehensive performance, in the work, W/Cr co-doped CaBi₂Nb_1.975W_0.025O₉-xwt%Cr₂O₃ (CBNW-xCr,0<x≤0.2) Aurivillius phase ceramics were prepared via conventional solid-state sintering route. The effects of W/Cr co-doping on the crystal structure and electrical properties of CBN piezoelectric ceramics were investigated. The results show that the co-doping of W/Cr elements transforms the crystal structure of ceramics from orthorhombic to tetragonal crystal system, enhances the distortion of the crystal structure, and significantly improves the piezoelectric and insulating properties of piezoelectric ceramics. When x=0.1, the Curie temperature is 931 ℃, the piezoelectric coefficient (d₃₃) is increased from 6 pC/N to 15.6 pC/N, the resistivity reaches the order of 10⁶ Ω∙cm at 600 ℃, and the dielectric loss (tanδ) is only 0.029, which makes the system an important potential application in the field of high-temperature piezoelectricity.

Key words: high-temperature piezoelectric ceramics, crystal structure, piezoelectric properties, pseudo-tetragonal distortion

中图分类号:

TQ174

黄建锋, 梁瑞虹, 周志勇. W/Cr共掺杂对CaBi₂Nb₂O₉陶瓷晶体结构及电学性能的影响[J]. 无机材料学报, DOI: 10.15541/jim20240065.

HUANG Jianfeng, LIANG Ruihong, ZHOU Zhiyong. Effect of W/Cr Co-doping on the Crystal Structure and Electric Properties of CaBi₂Nb₂O₉ Piezoceramics[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20240065.

参考文献

[1] ZHENG T, WU J G, D. XIAO D Q, et al. Recent development in lead-free perovskite piezoelectric bulk materials. Progress in Materials Science, 2018, 98(6): 552.
[2] 周志勇, 陈涛, 董显林. 超高居里温度钙钛矿层状结构压电陶瓷研究进展. 无机材料学报, 2018, 33(3): 251.
[3] JIANG X N, KIM K, ZHANG S J,et al. High-temperature piezoelectric sensing. Sensors, 2014, 14(1): 144.
[4] 张发强, 李永祥. 铋层状结构铁电体的研究进展. 无机材料学报, 2014, 29(5): 449.
[5] 王天资, 周志勇, 李伟, 等. 高温压电振动传感器及陶瓷材料研究应用进展. 传感器与微系统, 2020, 39(6): 1.
[6] XIE X C, ZHOU Z Y, LIANG R H, et al. Superior piezoelectricity in bismuth titanate-based lead-free high-temperature piezoceramics via domain engineering. Advanced Electronic Materials, 2022, 8(7): 2101266.
[7] SUBBARAO E C.A family of ferroelectric bismuth compounds.Journal of Physics & Chemistry of Solids, 1962, 23(6): 665.
[8] SHIMAKAWA Y, KUBO Y, NAKAGAWA Y,et al. Crystal structure and ferroelectric properties of ABi₂Ta₂O₉(A=Ca, Sr, and Ba). Physical Review B, 2000, 61(10): 6559.
[9] LONG C B, WANG B, REN W,et al. Significantly enhanced electrical properties in CaBi₂Nb₂O₉-based high-temperature piezoelectric ceramics. Applied Physics Letters, 2020, 117(3): 032902.
[10] YAN H X, ZHANG H T, UBIC R,et al. A lead-free high-curie-point ferroelectric ceramic, CaBi₂Nb₂O₉. Advanced Materials, 2005, 17(10): 1261.
[11] CHEN H, ZHAI J.Enhancing piezoelectric performance of CaBi₂Nb₂O₉ ceramics through microstructure control.Journal of Electronic Materials, 2012, 41(8): 2238.
[12] LI Y G, ZHOU Z Y, LIANG R H, et al. A simple Bi³+self-doping strategy constructing pseudo-tetragonal phase boundary to enhance electrical properties in CaBi₂Nb₂O₉ high-temperature piezoceramics. Journal of the European Ceramic Society, 2022, 42(6): 2772.
[13] HOU Q C, YANG B, MA C, et al. Tailoring structure and piezoelectric properties of CaBi₂Nb₂O₉ ceramics by W⁶+-doping. Ceramics International, 2022, 48(12): 16677.
[14] WU Y J, CHEN, J. YUAN J,et al. Structure refinements and the influences of A-site vacancies on properties of Na_0.5Bi_2.5Nb₂O₉-based high temperature piezoceramics. Journal of Applied Physics, 2016, 120(19): 194103.
[15] LIU G, WANG D, WU C,et al. A realization of excellent piezoelectricity and good thermal stability in CaBi₂Nb₂O₉: Pseud phase boundary, Journal of the American Ceramic Society, 2018, 102(4): 1537.
[16] Subbarao E C.Ferroelectricity in Bi₄Ti₃O₁₂ and its solid solutions.Physical Review, 1961, 122(3): 804.
[17] BLAKE S M, FALCONER M J, MCCREEDY M,et al. Cation in disorder ferroelectric Aurivillius phases of the type Bi₂ANb₂O₉(A=Ba, Sr, Ca), Journal of Materials Chemistry, 1997, 7(8): 1609.
[18] XING X, FENG C, PENG Z,et al. Electrical properties and sintering characteristics of zirconium doped CaBi₂Nb₂O₉ ceramics. Ceramics International, 2018, 44(14): 17326.
[19] ZAKHAROV N A, KLYUEV V A, Toporov Y P.Phase transitions and electric characteristics of ferroelectric Ca₂Nb₂O₇ and Sr₂Nb₂O₇.Zhurnal Fizicheskoj Khimii, 1999, 73(5): 823.
[20] ZHANG X D, YAN H X, MICHAEL J, et al. Effect of A site substitution on the properties of CaBi₂Nb₂O₉ ferroelectric ceramics. Journal of the American Ceramic Society, 2008, 91(9): 2928.
[21] ISUPOV V A.Two types of ABi₂B₂O₉ layered perovskite-like ferroelectrics.Inorganic Materials, 2007, 43(9): 976.
[22] FRIT B, MERCURIO J P.The crystal chemistry and dielectric properties of the Aurivillius family of complex bismuth oxides with perovskite-like layered structures.Journal of Alloys and Compounds, 1992, 188(19): 27.
[23] 曾祥雄, 杨进超, 左联, 等. Li/Ce/La共掺杂对CaBi₂Nb₂O₉陶瓷晶体结构及电学性能的影响. 无机材料学报, 2019, 34(4): 379.
[24] CHEN J N, WANG Q, LU H T,et al. Enhanced electrical properties and conduction mechanism of A-site rare-earth Nd-substituted CaBi₂Nb₂O₉. Journal of Physics D: Applied Physics, 2022, 55(31): 315301.
[25] XING X H, FENG C, XIANG Y.The effects of oxygen vacancies on the electrical properties of W, Ti doped CaBi₂Nb₂O₉ piezoceramics. Current Applied Physics, 2018, 18(10): 1149.
[26] XIE X C, ZHOU Z Y, CHEN T, et al. Enhanced electrical properties of NaBi modified CaBi₂Nb₂O₉-based Aurivillius piezoceramics via structural distortion. Ceramics International, 2019, 45(5): 5425.
[27] WANG X P, WU J G, XIAO D Q,et al. New potassium-sodium niobate ceramics with a giant d₃₃. ACS Applied Materials & Interfaces, 2014, 6(9): 6177.
[28] WITHERS R L, THOMPSON J G, RAE A D.The crystal chemistry underlying ferroelectricity in Bi₄Ti₃O₁₂, Bi₃TiNbO₉, and Bi₂WO₆.Journal of Solid State Chemistry, 1991, 94(2): 404.
[29] QIN C, SHEN Z Y, LUO W Q,et al. Effect of excess Bi on the structure and electrical properties of CaBi₂Nb₂O₉ ultrahigh temperature piezoceramics. Journal of Materials Science: Materials in Electronics, 2018, 29(18): 7801.
[30] SIMÕES A Z, RICCARDI C S, CAVALCANTE L S, et al. Impact of oxygen atmosphere on piezoelectric properties of CaBi₂Nb₂O₉ thin films. Acta Materialia, 2007, 55(14): 4707.
[31] LI F, ZHANG S J, XU Z,et al. The contributions of polar nanoregions to the dielectric and piezoelectric responses in domain-engineered relaxor-PbTiO₃ crystals. Advanced Functional Materials, 2017 27(18): 1700310.
[32] PICININ A, LENTE M H, EIRAS J A,et al. Theoretical and experimental investigations of polarization switching in ferroelectric materials. Physical Review B, 2004, 69(6): 064117.
