SONG Jing-Jing1, CHEN Bo1, LIN Kai-Li2
Received:
2017-08-07
Revised:
2017-09-06
Published:
2018-06-20
Online:
2018-05-24
About author:
SONG Jing-Jing. E-mail: 809078682@qq.com
Supported by:
摘要:
核壳纳米颗粒是一种具有独特结构和性能的复合纳米材料, 在催化、生物医学和光子晶体等领域具有重要应用前景。本工作以羟基磷灰石(HAp)纳米颗粒作为核体、十六烷基三甲基溴化铵(CTAB)作为介孔模板剂, 采用改进的Stöber包覆法制备具有介孔结构的核壳HAp@mSiO2新型纳米颗粒。通过控制正硅酸四乙酯(TEOS)的浓度及其水解和缩合动力学, 可以有效调控HAp表面包覆的mSiO2壳层厚度。经TEM、EDS、XRD、FT-IR及BET一系列测试可知, 制备得到的HAp@mSiO2纳米颗粒具有比表面积大、孔径尺寸窄且分布均匀等特点。同时, 以布洛芬作为模板药物, 将制备得到的材料应用于药物释放实验, 发现该核壳材料还具有良好的药物控制性能和pH响应特性, 且可以通过改变mSiO2壳层厚度对药物释放速率进行有效调控。
中图分类号:
宋晶晶, 陈波, 林开利. 核壳结构羟基磷灰石/介孔二氧化硅纳米颗粒的制备及其药物释放研究[J]. 无机材料学报, 2018, 33(6): 623-628.
SONG Jing-Jing, CHEN Bo, LIN Kai-Li. Core-shell Structured Hydroxyapatite/Mesoporous Silica Nanoparticle: Preparation and Application in Drug Delivery[J]. Journal of Inorganic Materials, 2018, 33(6): 623-628.

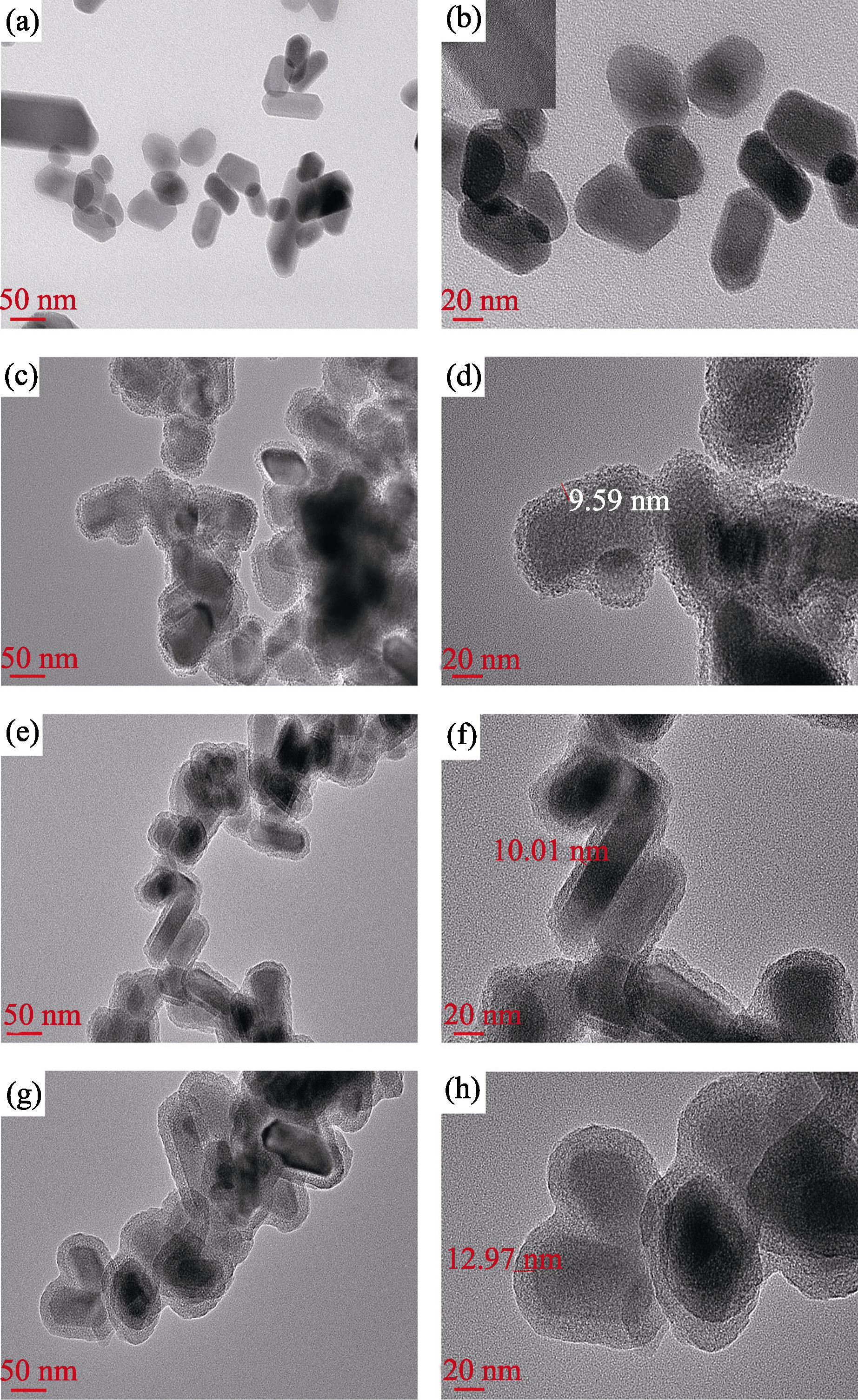

图1 内核HAp及包覆不同壳层的HAp@mSiO2的TEM照片
Fig. 1 TEM images of the kernel HAp and HAp@mSiO2 coated with different shells(a, b) HAp; (c, d) HAp@mSiO2-1; (e, f) HAp@mSiO2-2; (g, h) HAp@mSiO2-3

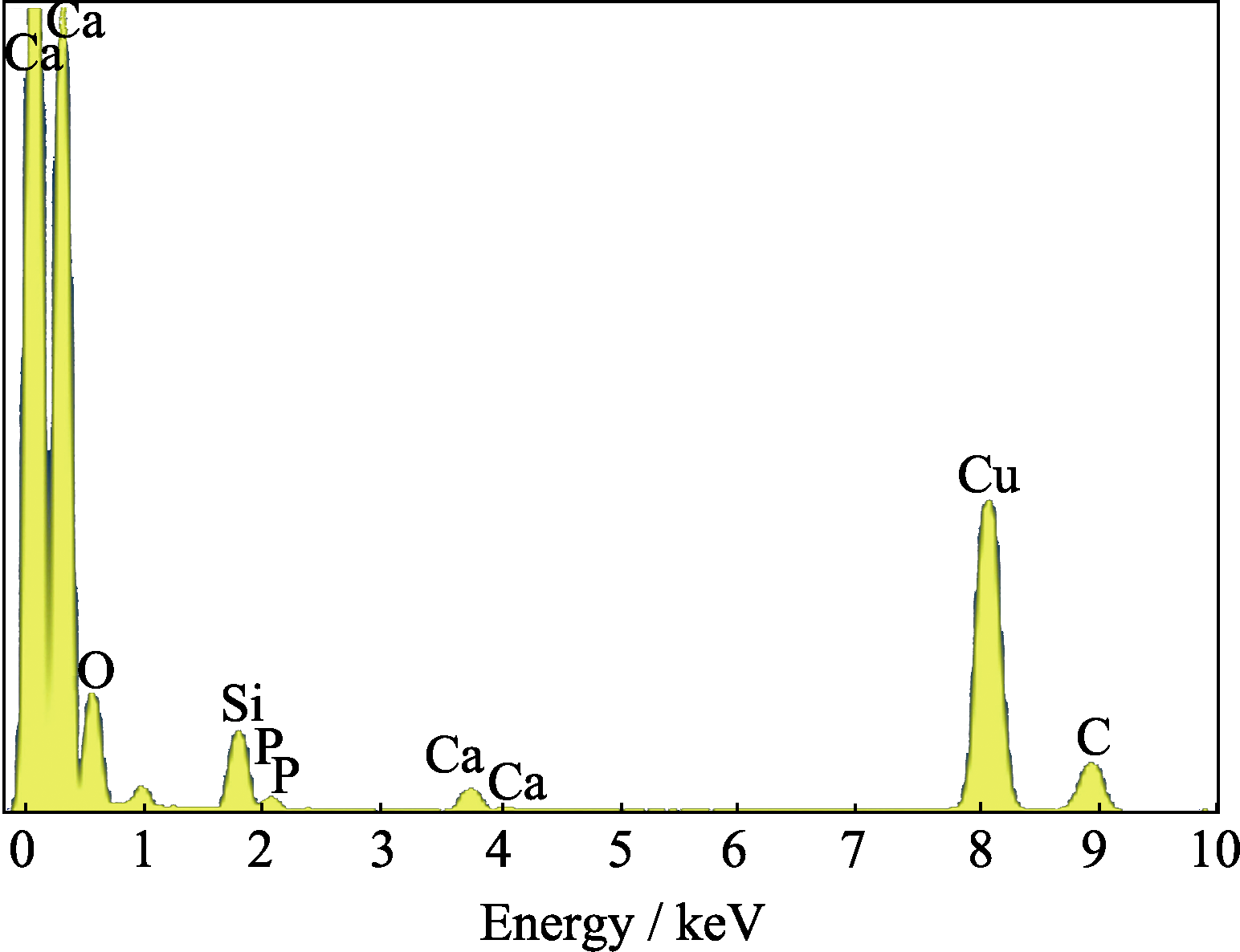

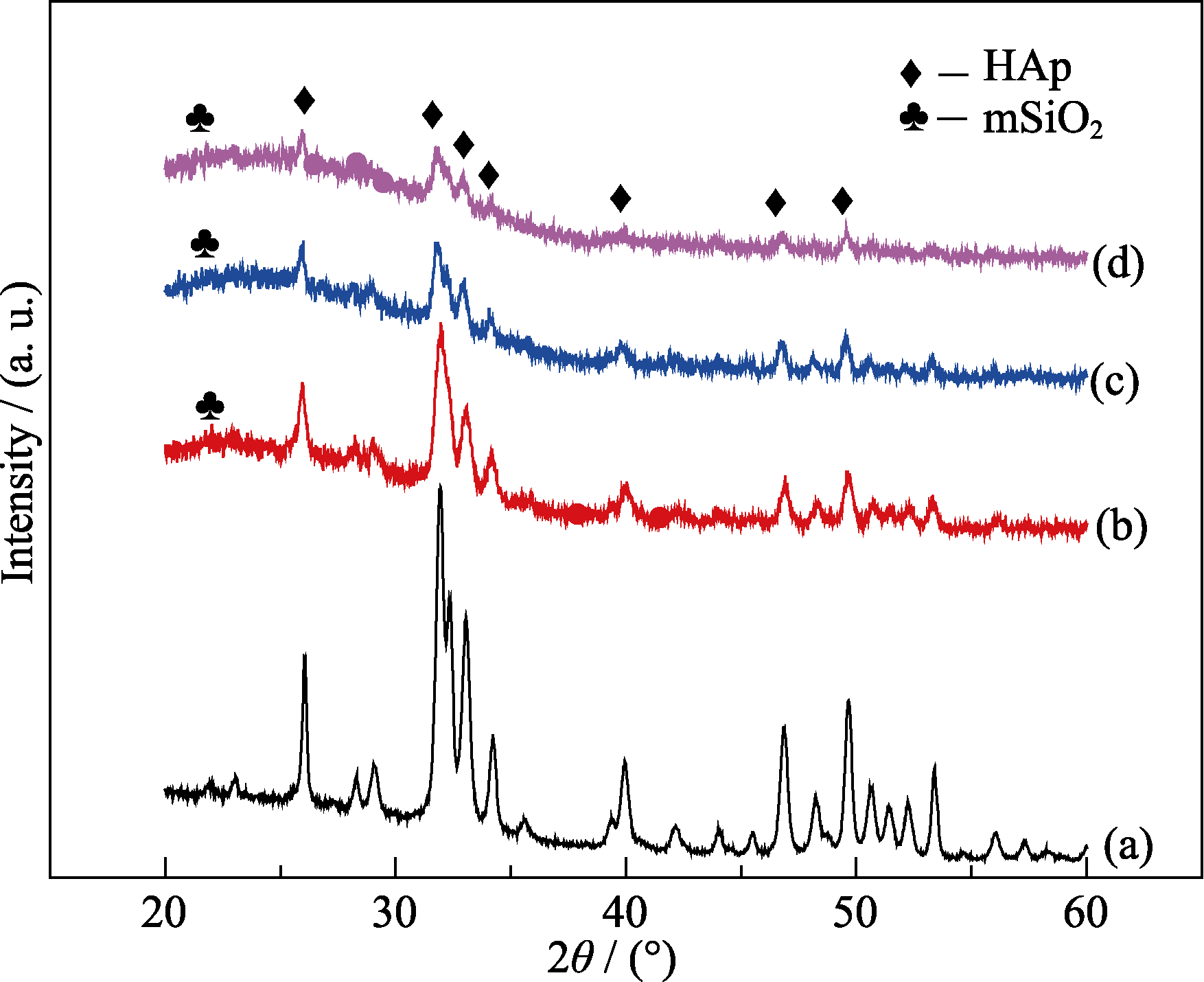

图3 核HAp及不同壳层厚度HAp@mSiO2的XRD图谱
Fig. 3 XRD patterns of core HAp and HAp@mSiO2 with different shell thicknesses(a) HAp; (b) HAp@mSiO2-1; (c) HAp@mSiO2-2; (d) HAp@mSiO2-3

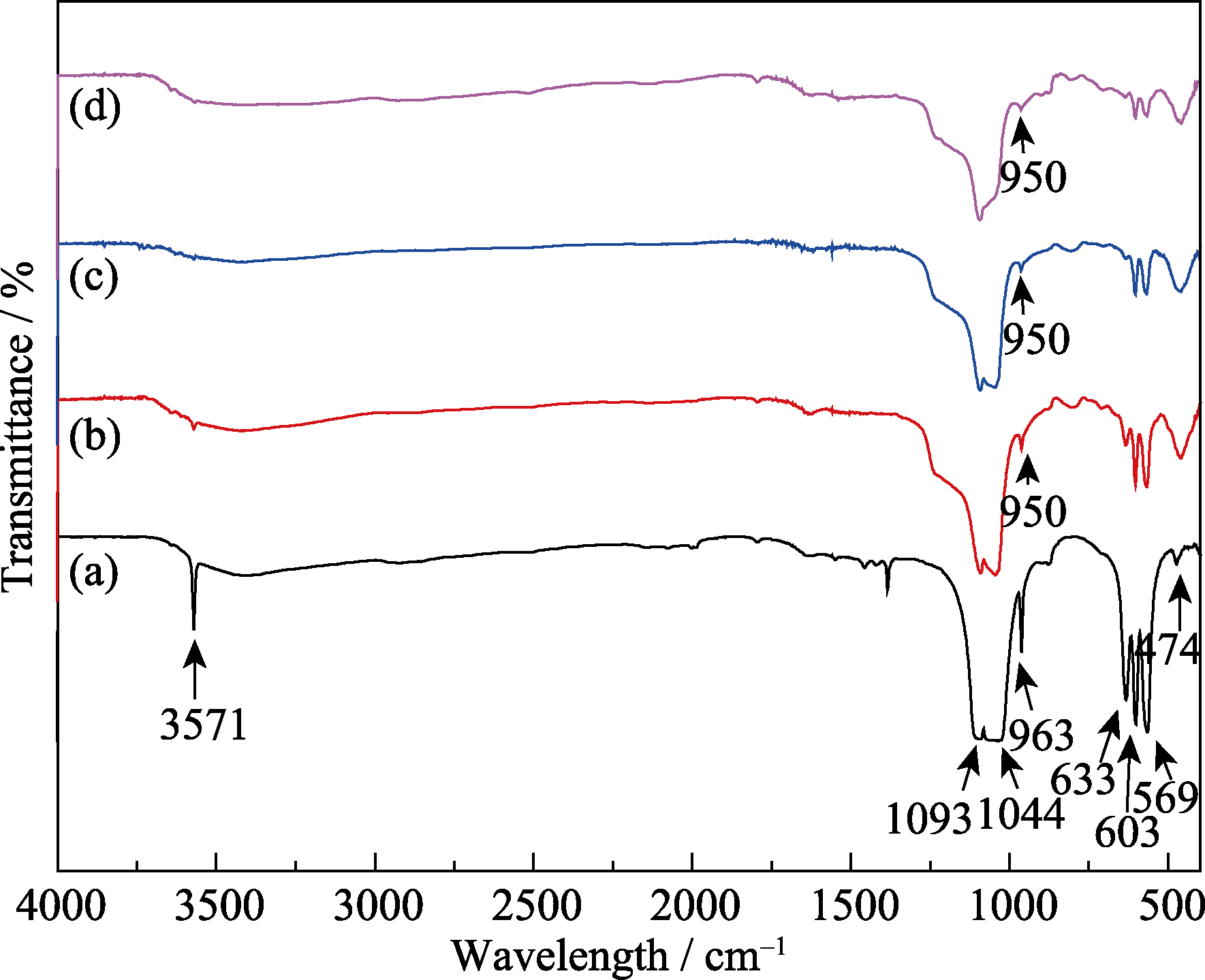

图4 核HAp及不同壳层厚度HAp@mSiO2的红外谱图
Fig. 4 FT-IR spectra of core HAp and HAp@mSiO2 with different shell thicknesses(a) HAp; (b) HAp@mSiO2-1; (c) HAp@mSiO2-2; (d) HAp@mSiO2-3
Samples | Vp/(cm3·g-1) | SBET/(m2·g-1) | Dp/nm | Shell thickness/nm |
---|---|---|---|---|
HAp | 1.024 | 69.7 | 1.689 | — |
HAp@mSiO2-1 | 0.608 | 653.4 | 1.929 | 9.59 |
HAp@mSiO2-2 | 0.591 | 666.6 | 2.188 | 10.01 |
HAp@mSiO2-3 | 0.467 | 714.1 | 2.450 | 12.97 |
表1 内核HAp及不同HAp@mSiO2样品的孔径、比表面积及壳层厚度比较
Table 1 Pore size, specific surface area, and shell thickness for kernel HAp and different HAp@mSiO2 samples
Samples | Vp/(cm3·g-1) | SBET/(m2·g-1) | Dp/nm | Shell thickness/nm |
---|---|---|---|---|
HAp | 1.024 | 69.7 | 1.689 | — |
HAp@mSiO2-1 | 0.608 | 653.4 | 1.929 | 9.59 |
HAp@mSiO2-2 | 0.591 | 666.6 | 2.188 | 10.01 |
HAp@mSiO2-3 | 0.467 | 714.1 | 2.450 | 12.97 |

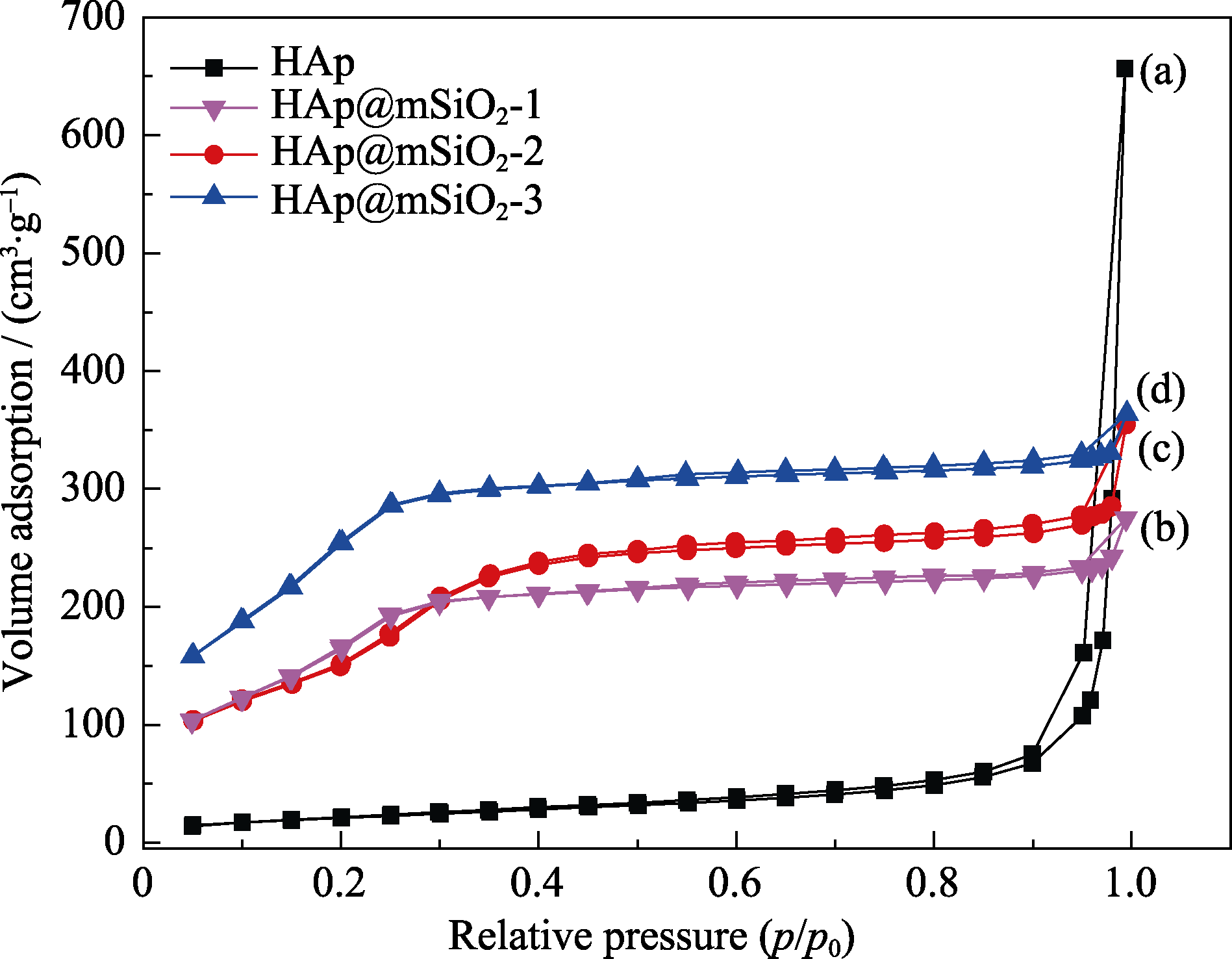

图5 内核HAp及不同壳层厚度HAp@mSiO2的N2-吸脱附图
Fig. 5 N2 adsorption/desorption isotherms for core HAp and HAp@mSiO2 with different shell thicknesses(a) HAp; (b) HAp@mSiO2-1; (c) HAp@mSiO2-2; (d) HAp@mSiO2-3

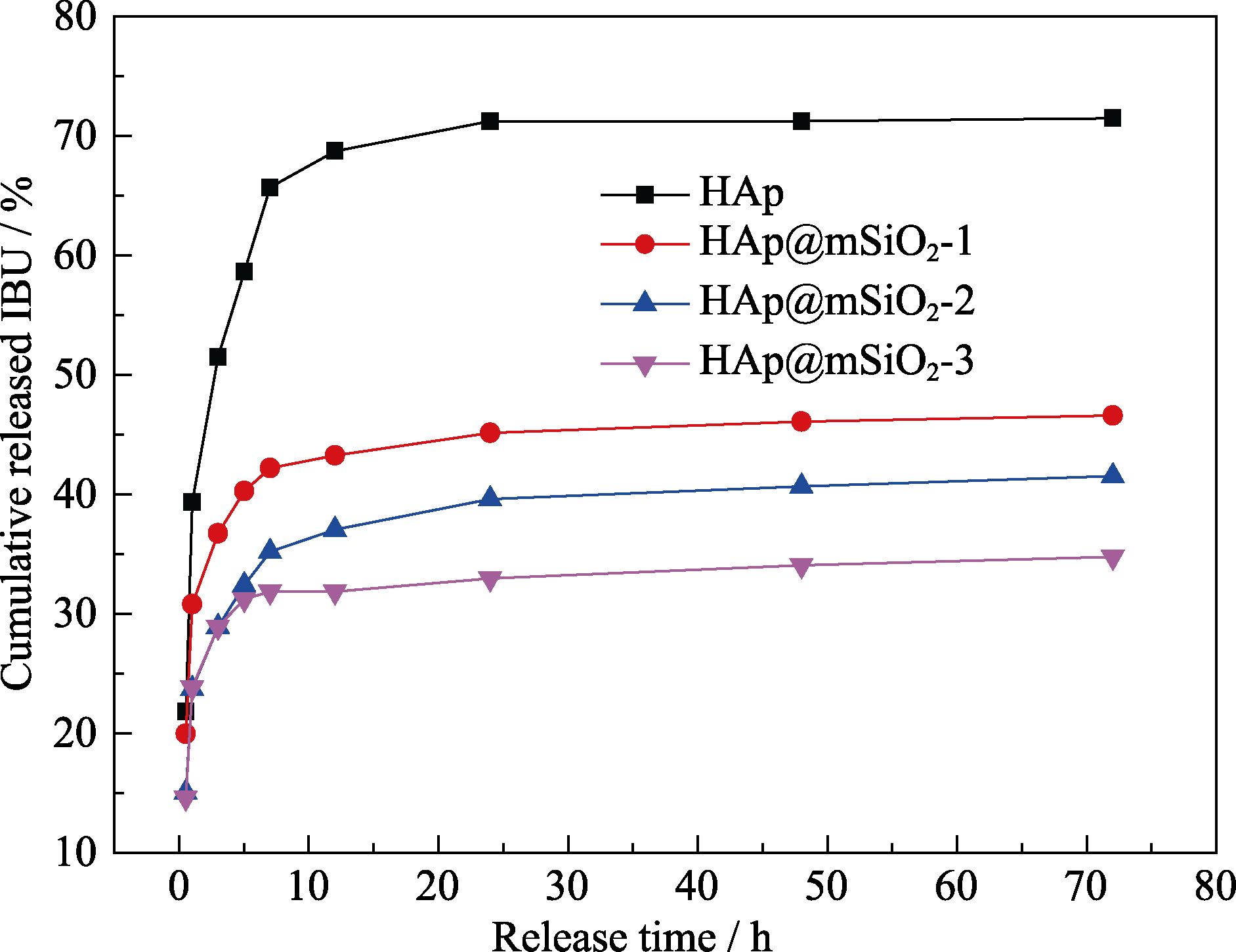

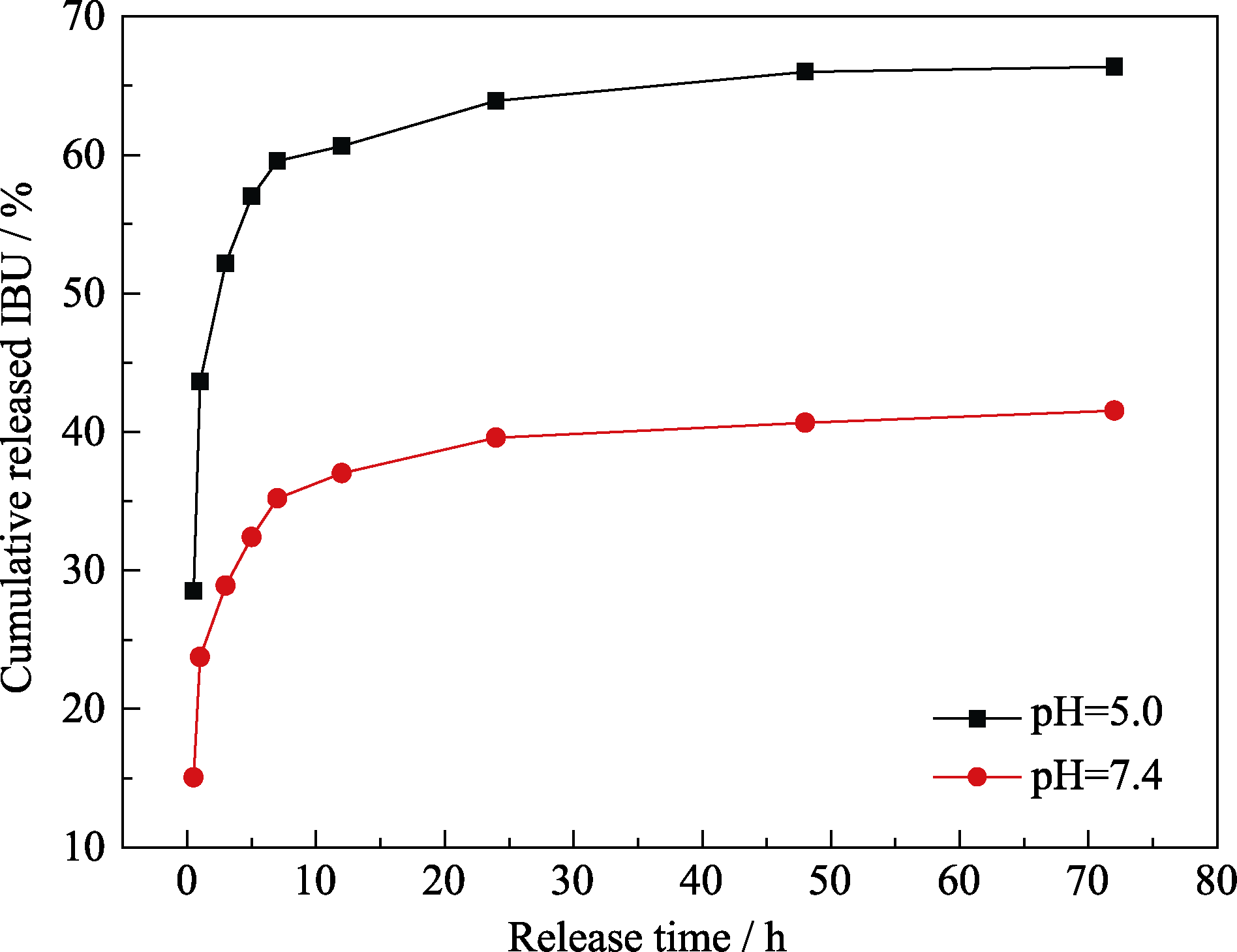

图6 核HAp及不同壳层厚度HAp@mSiO2吸附IBU后的累计释放量
Fig. 6 Cumulative IBU release from core HAp and HAp@mSiO2 with different shell thicknesses in the release media of PBS (pH=7.4)
