摘要:
常见的吸附剂如13X等的硅铝比较低, 具有较强的亲水性, 但水和有机挥发份(VOCs)之间的竞争吸附, 常常会影响吸附剂对VOCs实际脱除效果。本研究利用CTABr为模板剂, 正硅酸乙酯为硅源, 对13X进行表面修饰, 制备了以13X为核, 介孔硅为壳的核壳复合材料13X@SiO2, 并以甲苯作为探针分子在穿透实验装置对改性前后沸石分别进行干/湿条件下的吸附性能测试。结果表明: 在干燥条件下, 13X@SiO2-2.6样品(制备中添加了2.6 mL正硅酸乙酯)相比13X原样的吸附量提升了18%左右。在30%和50%相对湿度下, 13X@SiO2的最优吸附容量分别提高了约53%和90%; 循环再生实验表明13X@SiO2-2.6样品经2次再生后仍保持初始样品90%的甲苯吸附量。
中图分类号:
马晓森, 张丽晨, 刘砚超, 汪全华, 郑家军, 李瑞丰. 13X@SiO2合成及其甲苯吸附性能[J]. 无机材料学报, 2023, 38(5): 537-543.
MA Xiaosen, ZHANG Lichen, LIU Yanchao, WANG Quanhua, ZHENG Jiajun, LI Ruifeng. 13X@SiO2: Synthesis and Toluene Adsorption[J]. Journal of Inorganic Materials, 2023, 38(5): 537-543.

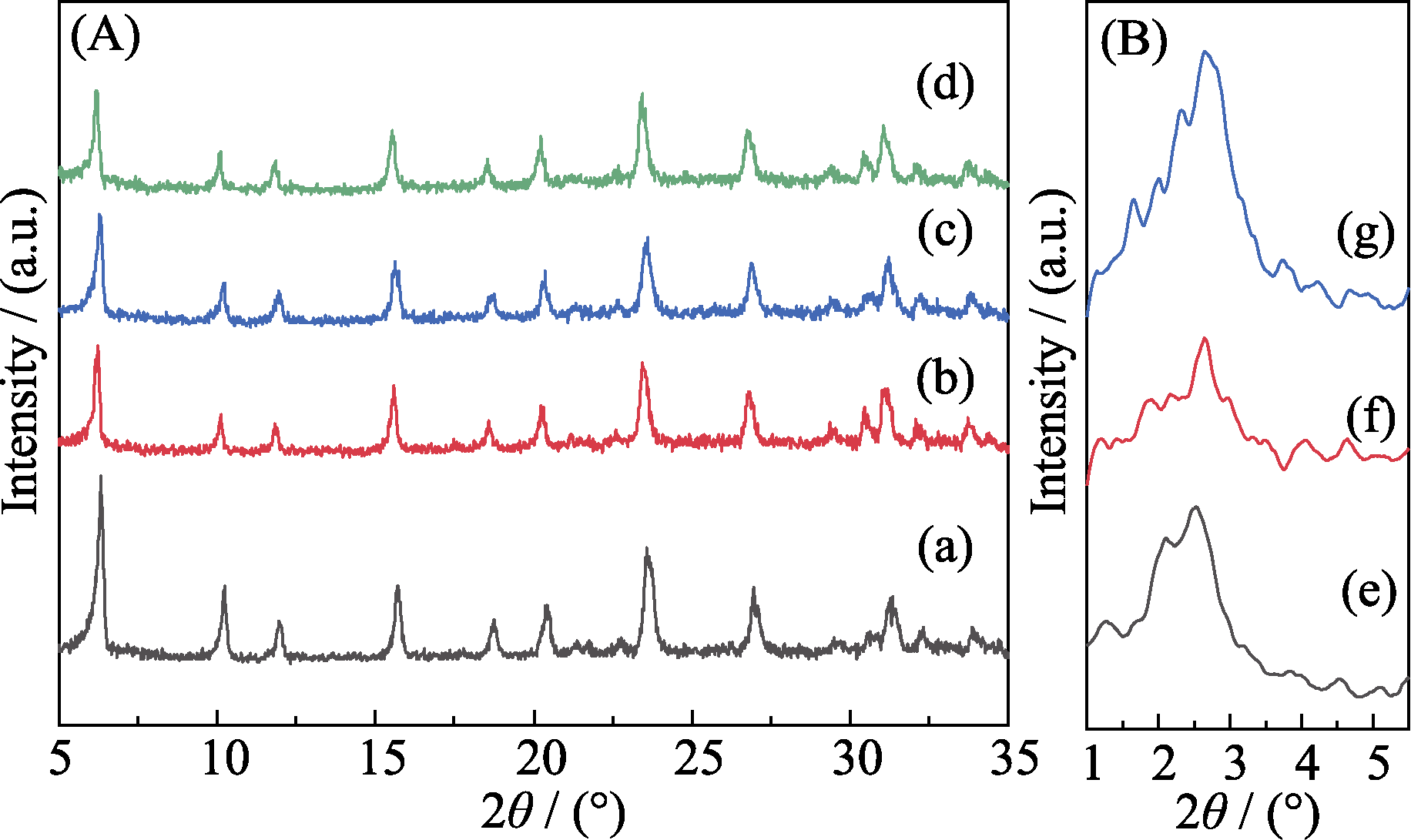

图1 样品(a)13X、(b, e)13X@SiO2-2.2、(c, f)13X@SiO2-2.6和(d, g)13X@SiO2-3.5的XRD图谱
Fig. 1 XRD patterns of the samples of (a) 13X, (b, e) 13X@SiO2-2.2,(c, f) 13X@SiO2-2.6, and (d, g) 13X@SiO2-3.5 (A) Large angle XRD patterns; (B) Small angle XRD patterns

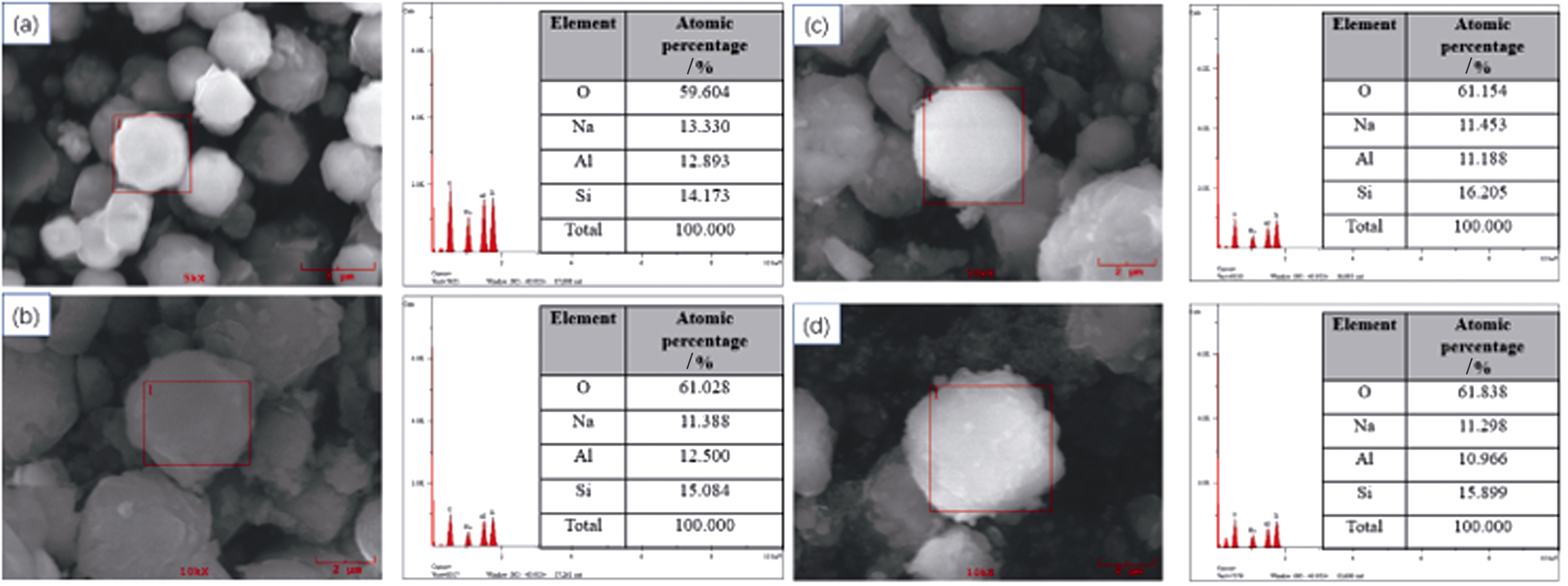

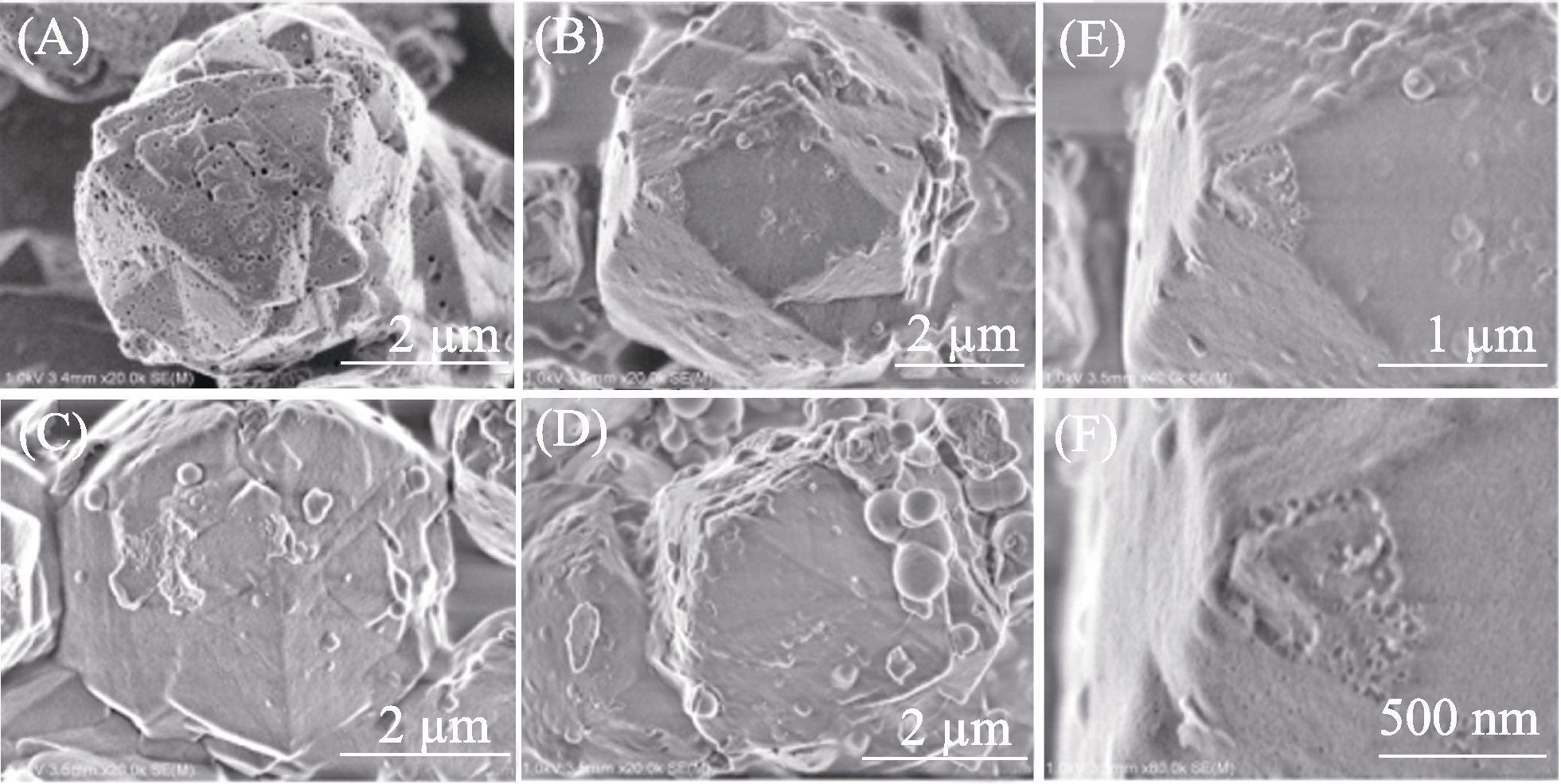

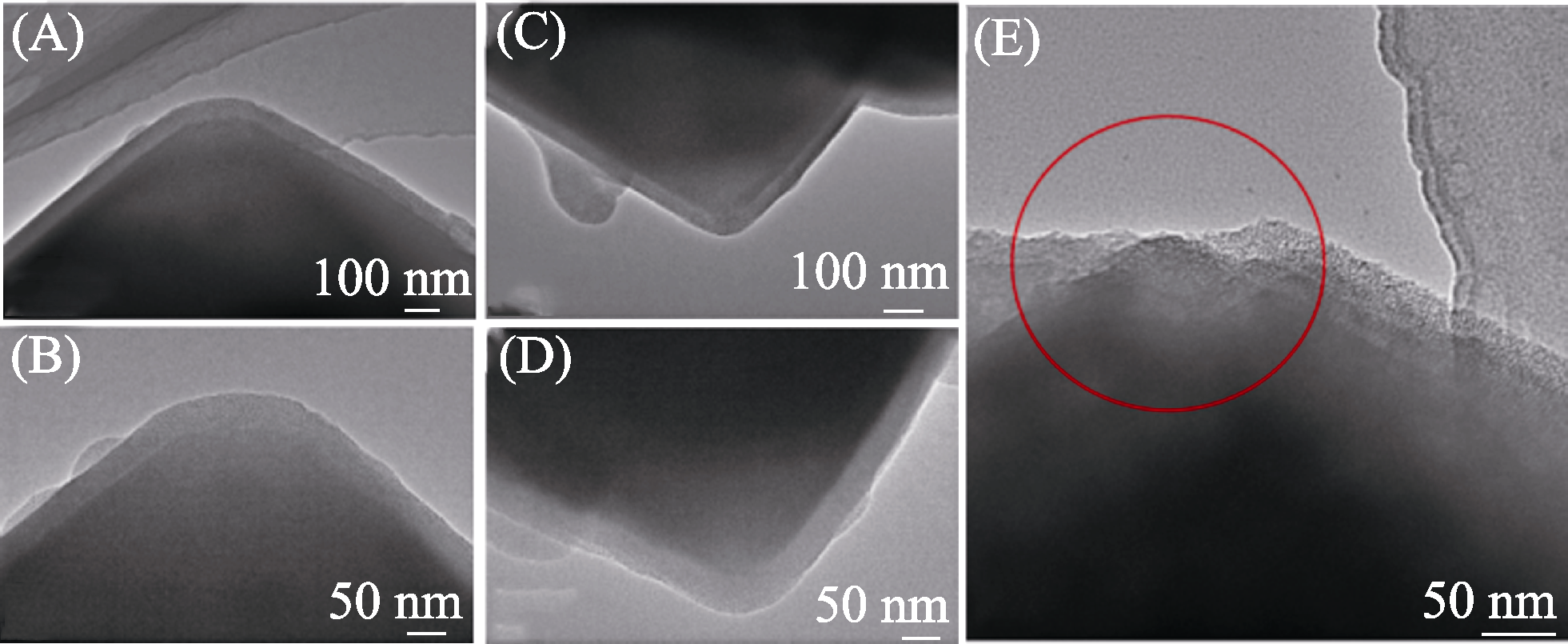

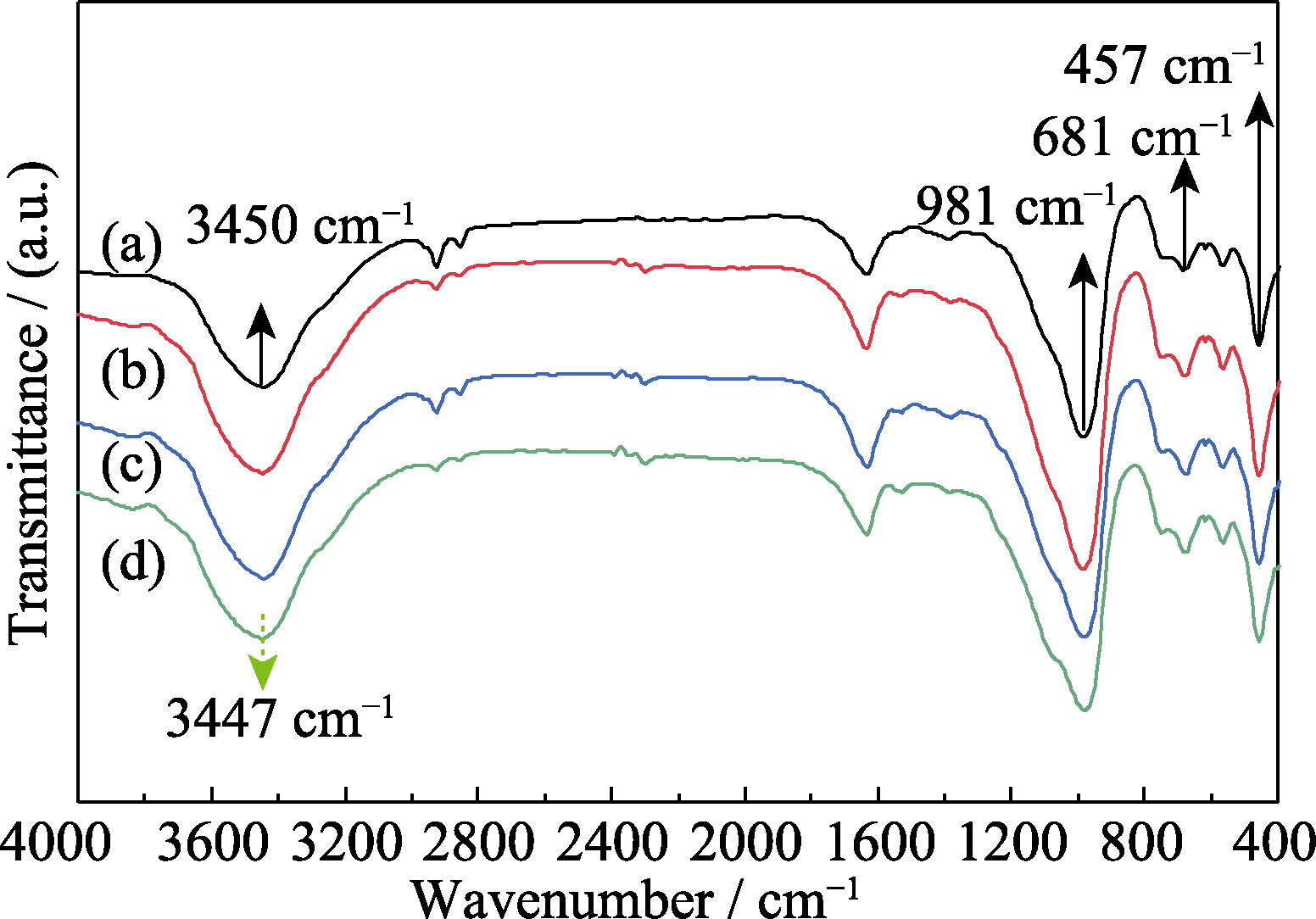

图S3 样品的(A)氮气吸附脱附等温曲线与(B)DFT模型孔径分布图
Fig. S3 (A) Nitrogen adsorption-desorption isothermal curves and (B) the corresponding pore size distributions decided by a DFT model of samples
Sample | SBET/(m2·g-1) | Sext/(m2·g-1) | Smic/(m2·g-1) | Vmic/(cm3·g-1) | Vmes/(cm3·g-1) |
---|---|---|---|---|---|
13X | 314 | 14 | 299 | 0.11 | 0.02 |
13X@SiO2-2.2 | 324 | 95 | 229 | 0.09 | 0.07 |
13X@SiO2-2.6 | 337 | 130 | 207 | 0.08 | 0.09 |
13X@SiO2-3.5 | 444 | 259 | 184 | 0.07 | 0.18 |
表1 样品的比表面积及孔结构参数
Table 1 Textural properties of the samples
Sample | SBET/(m2·g-1) | Sext/(m2·g-1) | Smic/(m2·g-1) | Vmic/(cm3·g-1) | Vmes/(cm3·g-1) |
---|---|---|---|---|---|
13X | 314 | 14 | 299 | 0.11 | 0.02 |
13X@SiO2-2.2 | 324 | 95 | 229 | 0.09 | 0.07 |
13X@SiO2-2.6 | 337 | 130 | 207 | 0.08 | 0.09 |
13X@SiO2-3.5 | 444 | 259 | 184 | 0.07 | 0.18 |

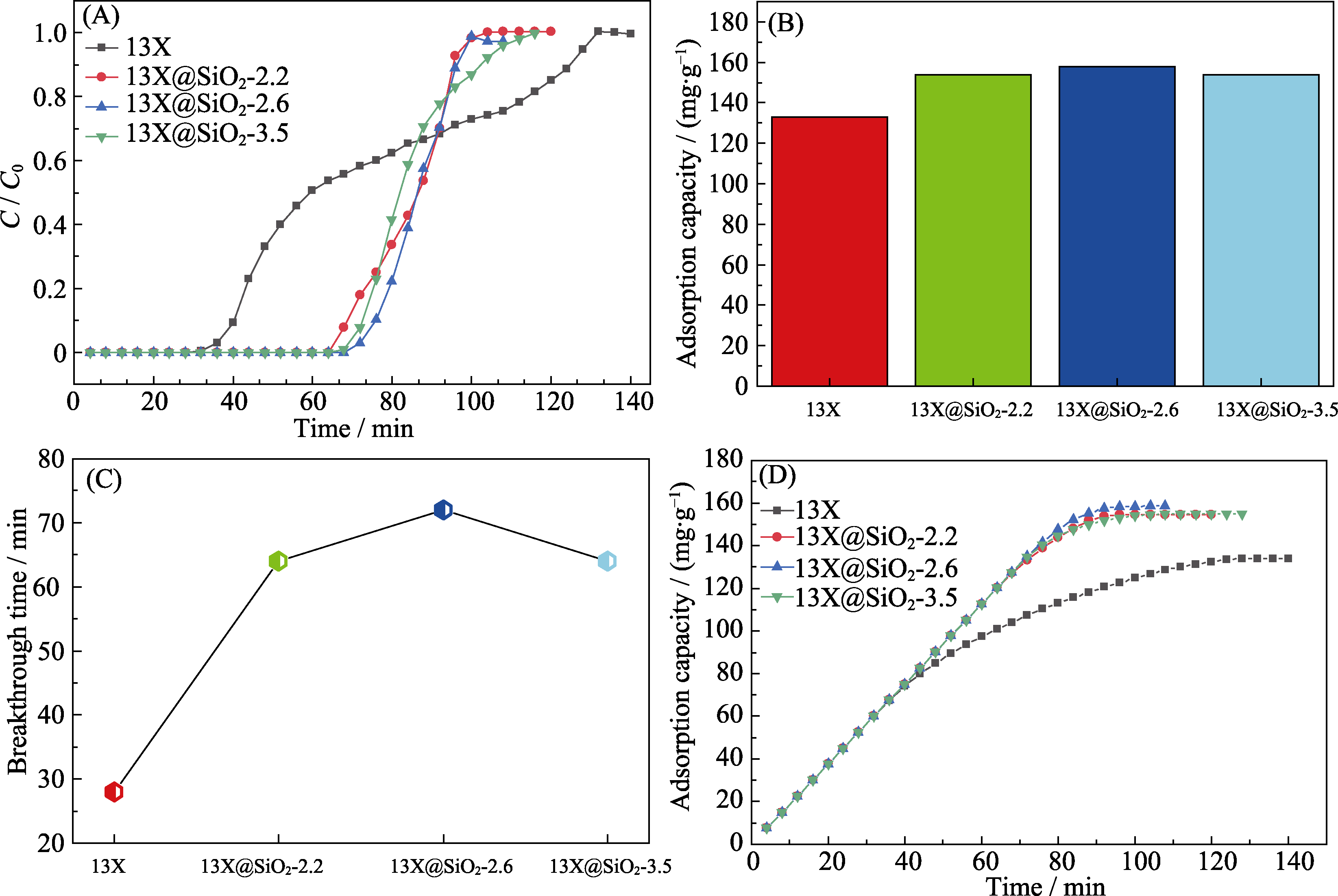

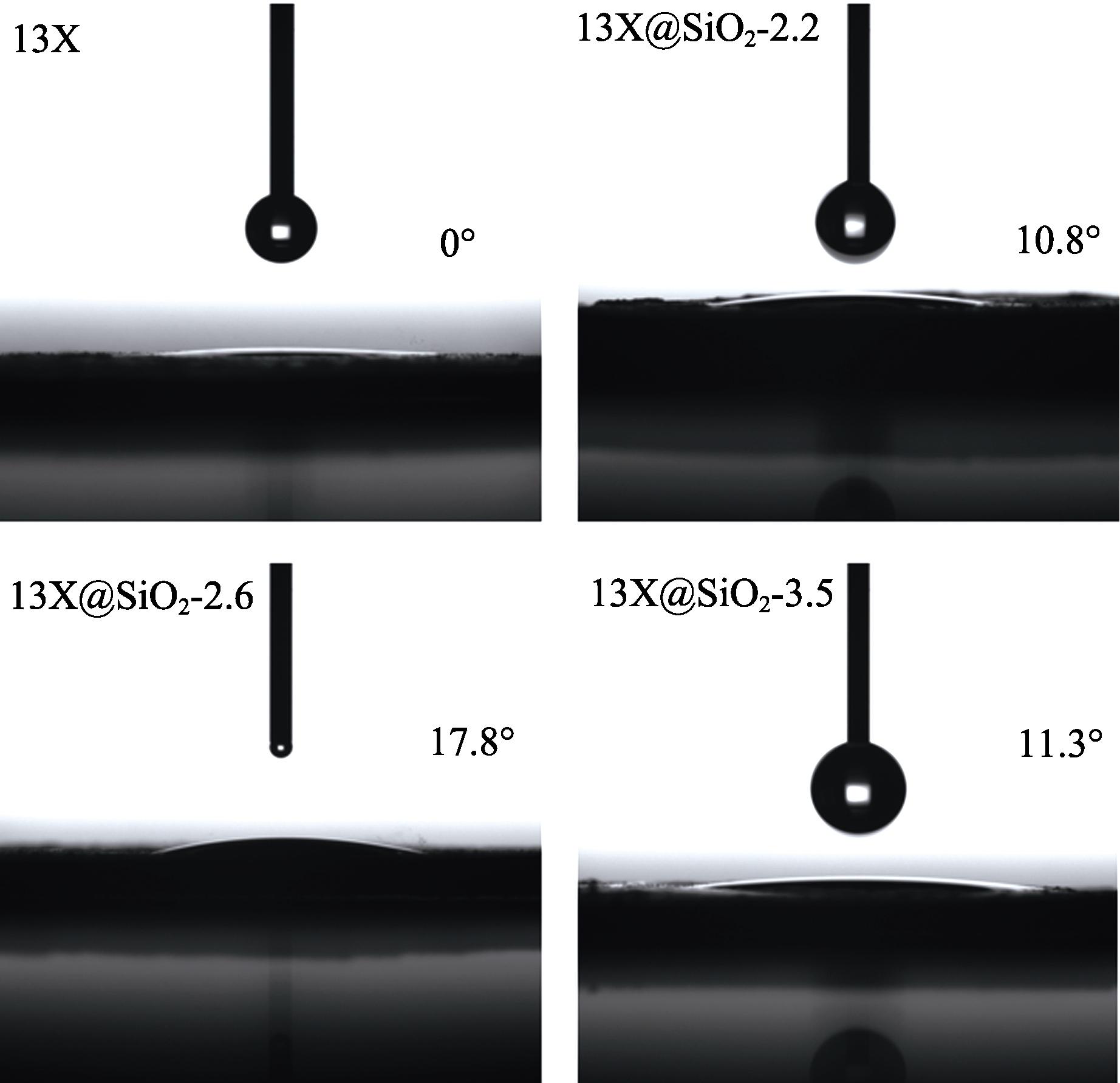

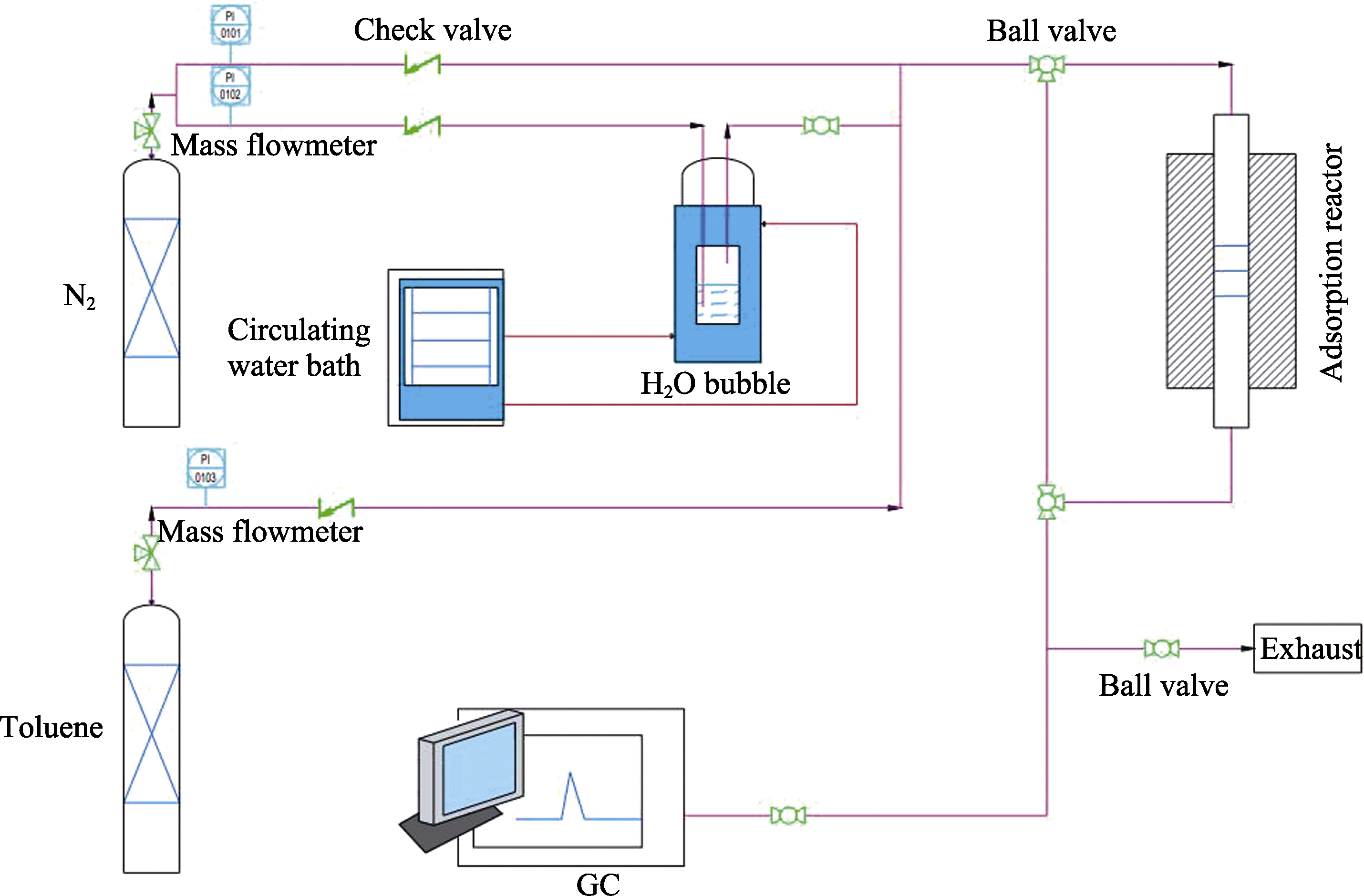

图4 干条件下不同吸附剂对甲苯的吸附实验
Fig. 4 Adsorption of toluene on the different adsorbents under dry condition (A) Adsorption breakthrough curves; (B) Saturated adsorption capacity; (C) Comparison of the breakthrough times; (D) Cumulative adsorption capacity of different adsorbents

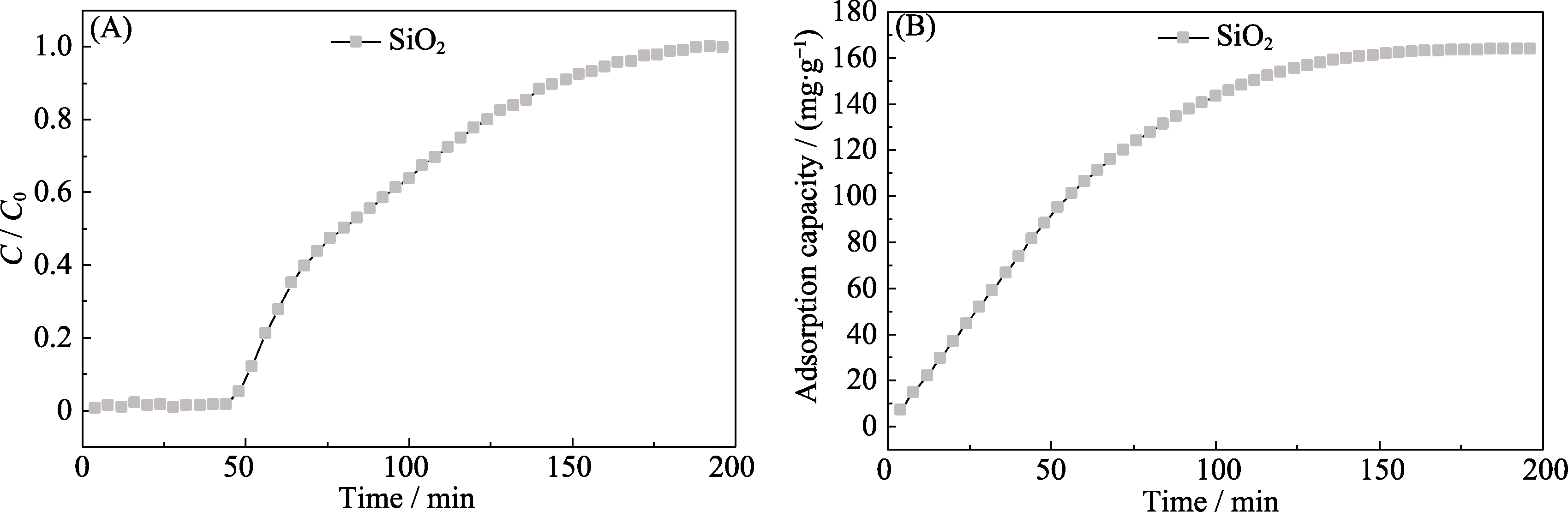

图S6 SiO2在干条件下对甲苯的(A)吸附穿透曲线和(B)累积吸附量
Fig. S6 (A) Toluene adsorption breakthrough curves and (B) cumulative toluene adsorption capacity of SiO2 under dry condition

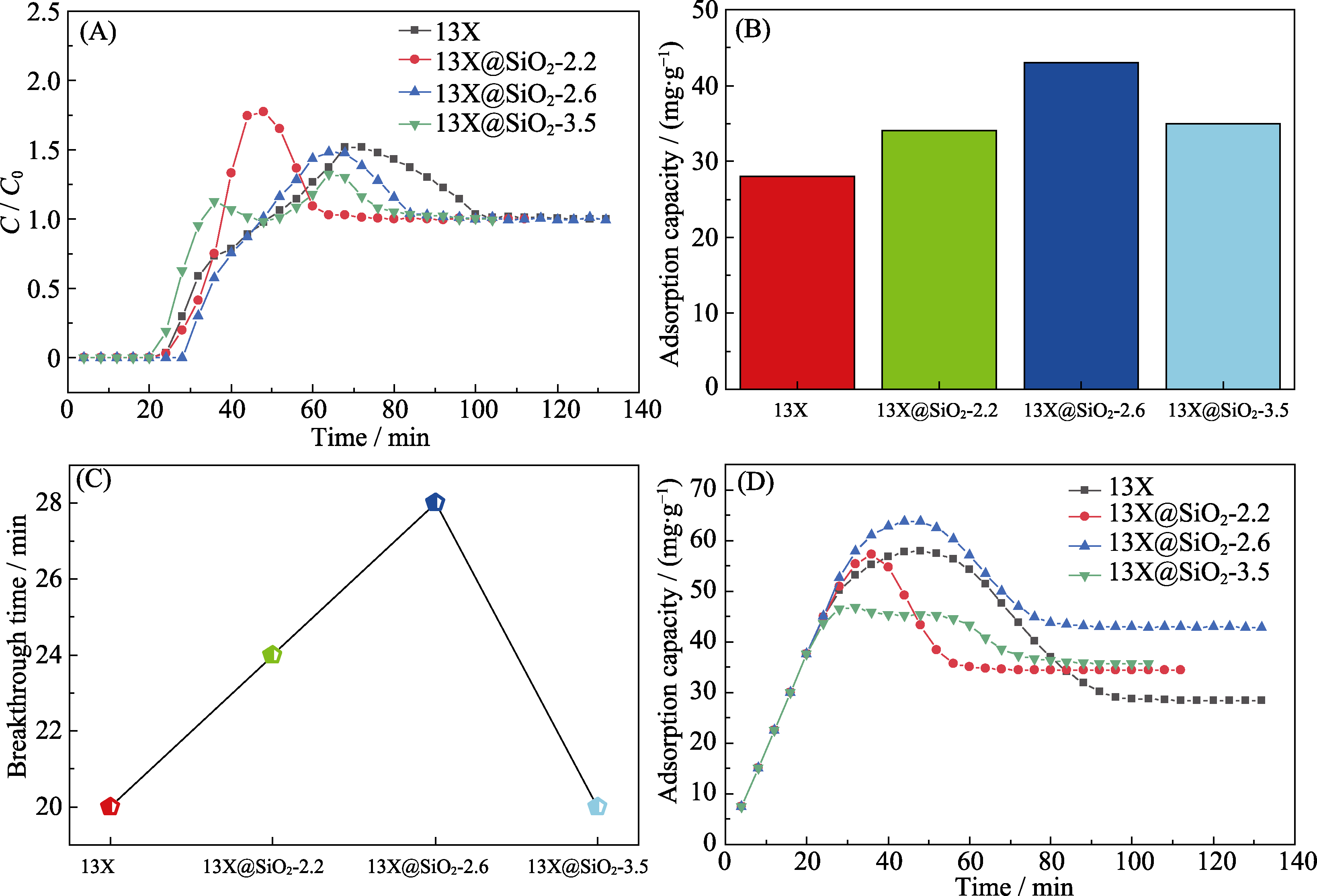

图5 不同吸附剂在相对湿度30%条件下对甲苯的吸附实验
Fig. 5 Adsorption of toluene on the different adsorbents under 30% relative humid conditions (A) Adsorption breakthrough curves; (B) Saturated adsorption capacity; (C) Comparison of the breakthrough time; (D) Cumulative adsorption capacities of different adsorbents of toluene
图6 不同吸附剂在相对湿度50%条件下对甲苯的吸附实验
Fig. 6 Adsorption of toluene on the different adsorbents under 50% relative humid conditions (A) Adsorption breakthrough curves; (B) Saturated adsorption capacity; (C) Comparison of the breakthrough time; (D) Cumulative adsorption capacity of different adsorbents of toluene

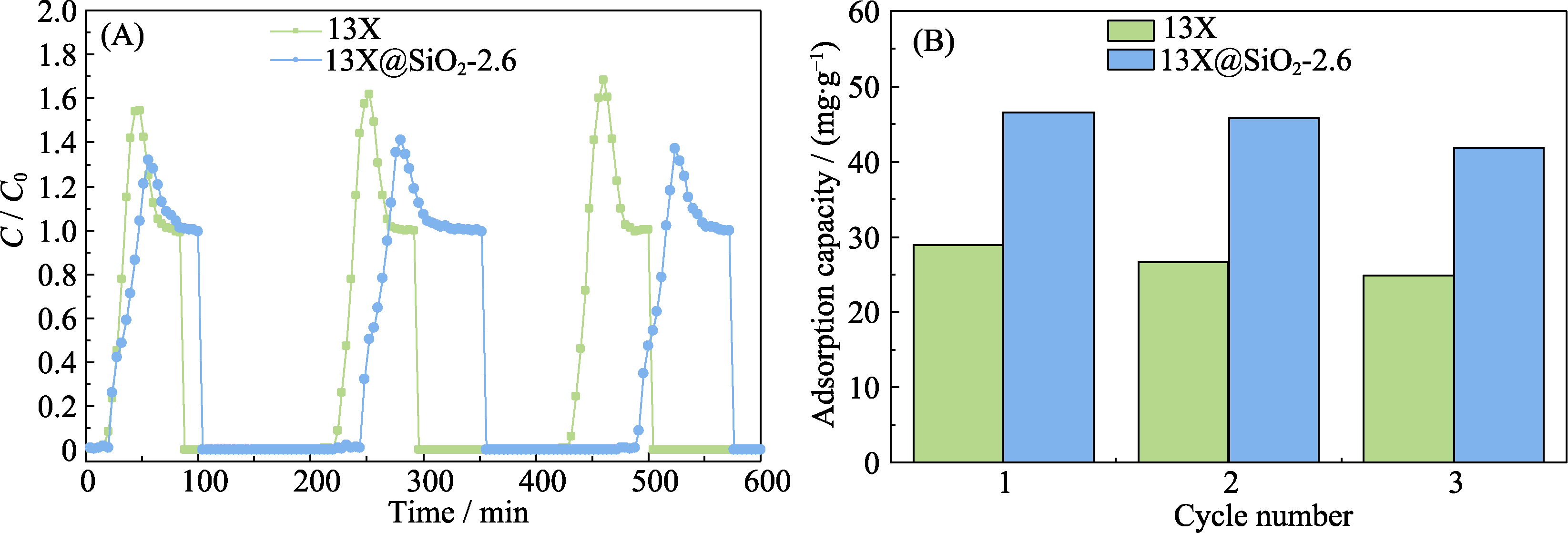

图S7 50% RH下, 13X和13X@SiO2-2.6的(A)三次吸附-脱附循环吸附穿透曲线与(B)饱和吸附量变化曲线
Fig. S7 (A) Adsorption of toluene on different adsorbents with triple adsorption-desorption cycle. Adsorption penetration curve and (B) saturated adsorption capacity under 50% relative humid conditions
