FeS2/RGO纳米复合材料的制备及热电池放电性能

doi:10.15541/jim20160493

摘要/Abstract

摘要：

以氯化亚铁、硫代硫酸钠和氧化石墨烯(GO)为原料, 采用水热法制备FeS₂/还原氧化石墨烯(RGO)纳米复合材料, 并采用X射线衍射仪(XRD)、扫描电子显微镜(SEM)、激光粒度分布仪和差热分析仪(DTA)等对FeS₂/RGO复合材料进行了表征。结果表明, 在水热反应过程中加入GO可以防止FeS₂颗粒的团聚, 使FeS₂形成疏松的球状颗粒。采用LiCl-KCl电解质, 在450℃以100mA/cm²电流密度放电时, 截止1.5 V时, FeS₂/RGO比容量为314.9 mAh/g, 较FeS₂高65.6 mAh/g; 采用LiF-LiCl-LiBr电解质, 在500℃以100 mA/cm²电流密度放电, 截止1.5 V时, FeS₂/RGO放电比容量为302.3 mAh/g, 较FeS₂高29.8 mAh/g。与FeS₂相比, 加入石墨烯提高了正极材料的导电性, 单体电池在放电过程中极化电阻相对较小, 使得FeS₂/RGO复合材料表现出较高的放电比容量。

关键词: 热电池, 正极材料, 水热法, FeS₂/RGO

Abstract:

FeS₂/reduced graphene oxide (RGO) composites were prepared through a facile hydrothermal method using FeCl₂, Na₂S₂O₃and graphene oxide(GO) as the starting materials. X-ray diffractometer (XRD), scanning electron microscope (SEM), laser particle size distribution analyzer, and differential thermal analyzer (DTA) were used to characterize the prepared nanocomposites. The results show that graphene oxide prevents the aggregation of FeS₂ particles during the hydrothermal synthesis, and make FeS₂ form loose spherical particles. FeS₂/RGO exhibits a high specific capacity of 314.9 mAh/g with a cut-off voltage of 1.5 V at constant current density of 100 mA/cm²and temperature of 450℃ in LiCl-KCl melt, which is 65.6 mAh/g higher than that of FeS₂. FeS₂/RGO exhibits a high specific capacity of 302.3 mAh/g with a cut-off voltage of 1.5 V at constant current density of 100 mA/cm²and temperature of 500℃ in LiF-LiCl-LiBr melt, which is 29.8 mAh/g higher than that of FeS₂. In contrast with FeS₂, the conductivity of the FeS₂/RGO cathode material is improved, the resistance of the single cell is relatively lower during discharge process, thus FeS₂/RGO cathode has a better battery discharge capacity.

Key words: thermal battery, cathode material, hydrothermal synthesis, FeS₂/RGO

中图分类号:

TM911

杨坤坤, 杨少华, 赵平, 赵彦龙. FeS₂/RGO纳米复合材料的制备及热电池放电性能[J]. 无机材料学报, 2017, 32(7): 691-698.

YANG Kun-Kun, YANG Shao-Hua, ZHAO Ping, ZHAO Yan-Long. Hydrothermal Synthesis of FeS₂/Reduced Graphene Oxide Nanocomposite with Enhanced Discharge Performance for Thermal Battery[J]. Journal of Inorganic Materials, 2017, 32(7): 691-698.

图/表 11

图1 GO, RGO, FeS2和FeS2/RGO的XRD图谱

Fig. 1 XRD patterns of GO, RGO, FeS2 and FeS2/RGO

图2 FeS2 和FeS2/RGO的SEM照片

Fig. 2 SEM images of FeS2 and FeS2/RGO(a, c) FeS2; (b, d) FeS2/RGO

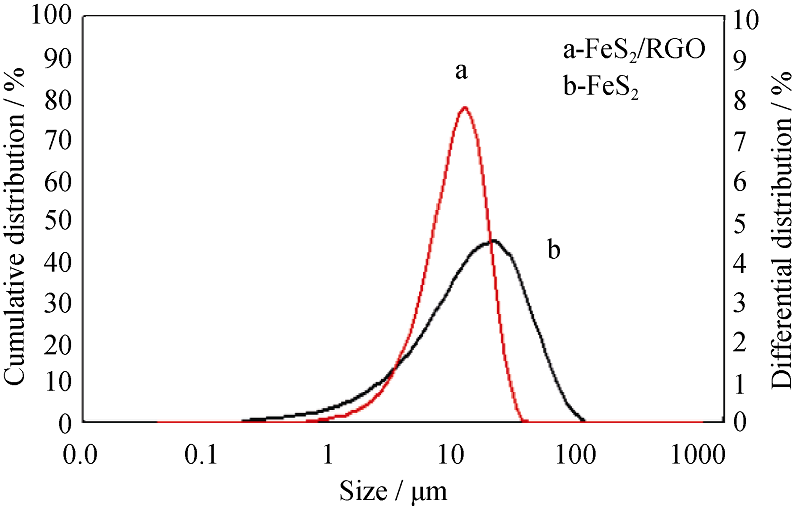

图3 FeS2和FeS2/RGO的粒径分布

Fig. 3 Particle size distributions of FeS2 and FeS2/RGO

表1 FeS2和FeS2/RGO的粒径分布

Table 1 Particle size distributions of FeS2 and FeS2/RGO

Sample	D₁₀/μm	D₂₅/μm	D₅₀/μm	D₇₅/μm	D₉₀/μm
FeS₂	3.07	7.07	14.92	27.22	42.77
FeS₂/RGO	4.33	6.96	10.65	15.12	19.73

图4 石墨, GO和RGO的DTA曲线

Fig. 4 DTA curves of graphite, GO and RGO

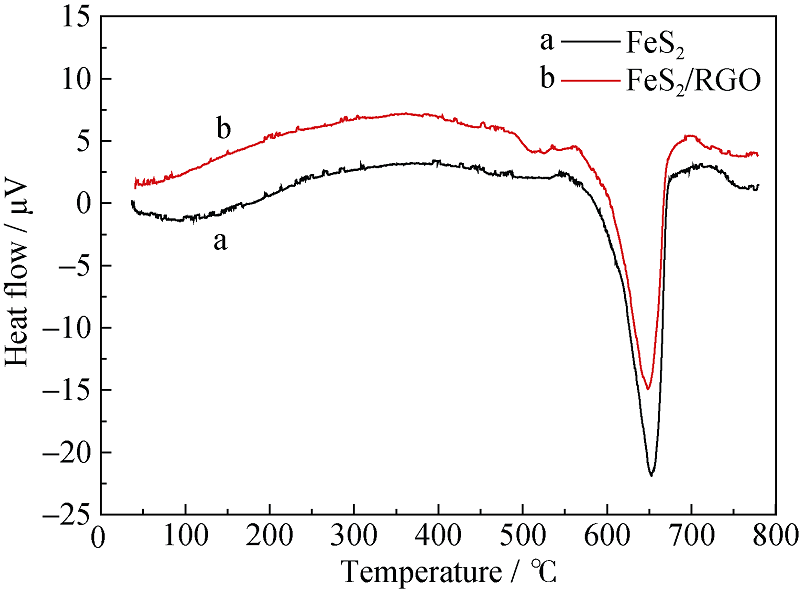

图5 FeS2和FeS2/RGO的DTA曲线

Fig. 5 DTA curves of FeS2 and FeS2/RGO

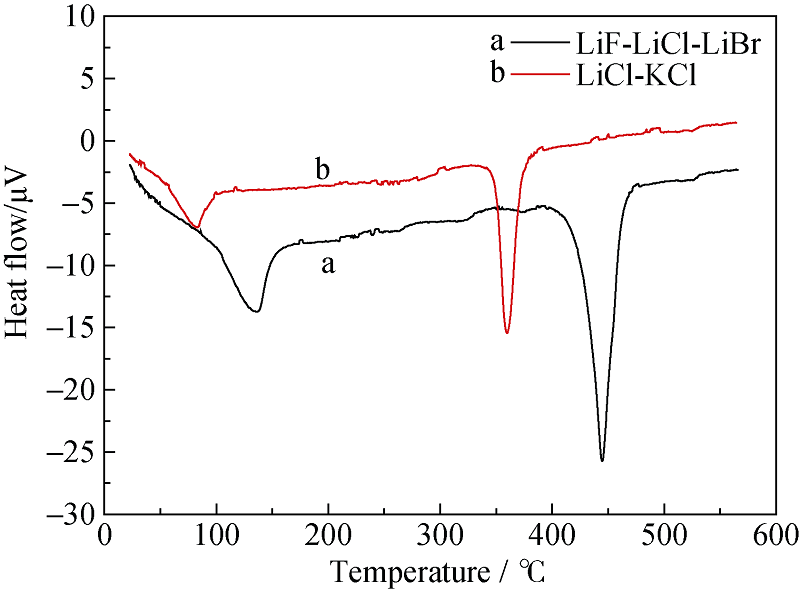

图6 LiCl-KCl电解质和LiF-LiCl-LiBr电解质的DTA曲线

Fig. 6 DTA curves of LiCl-KCl eutectic electrolyte and LiF- LiCl-LiBr eutectic electrolyte

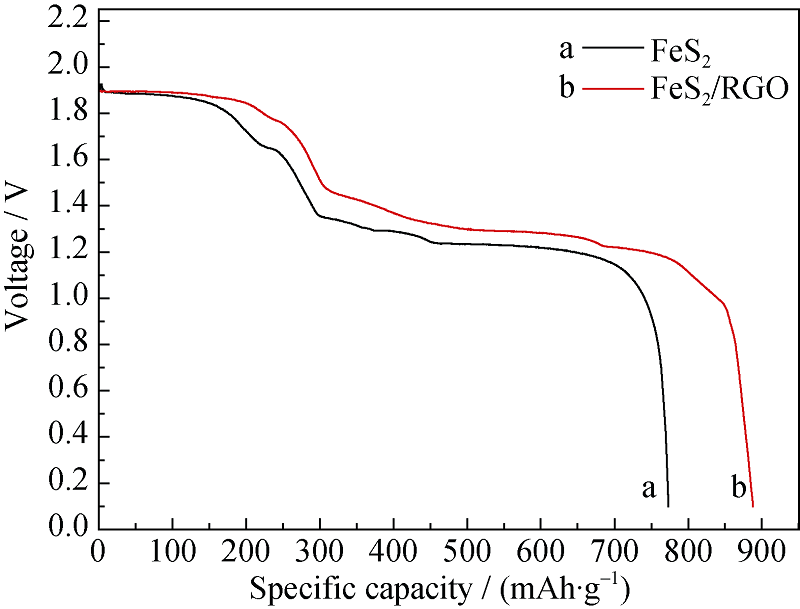

图7 采用LiCl-KCl电解质时, LiSi/FeS2和LiSi/(FeS2/RGO)单体电池的放电曲线

Fig. 7 Discharge curves of LiSi/FeS2 and LiSi/(FeS2/RGO) cells in LiCl-KCl eutectic electrolyte

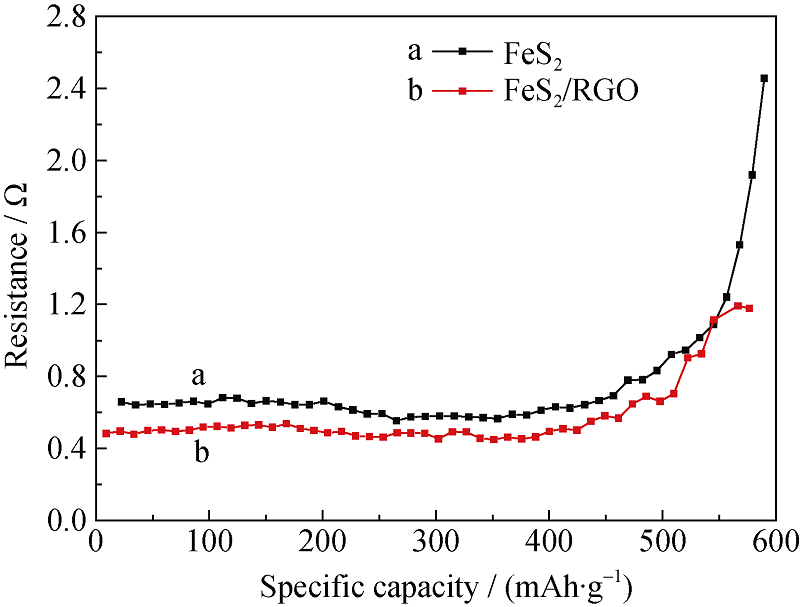

图8 采用LiCl-KCl电解质时, LiSi/FeS2和LiSi/(FeS2/RGO)单体电池的内阻

Fig. 8 Resistance values of LiSi/FeS2 and LiSi/(FeS2/RGO) cells in LiCl-KCl eutectic electrolyte

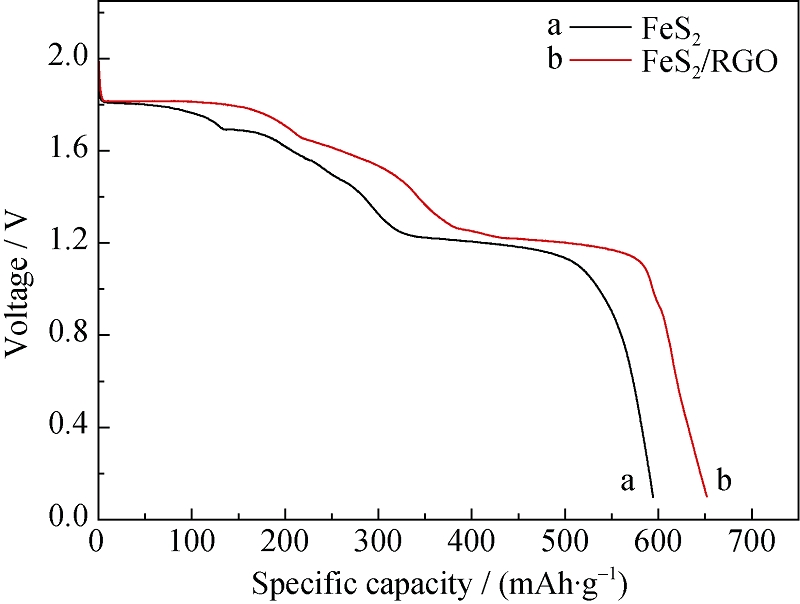

图9 采用LiF-LiCl-LiBr电解质时LiSi/FeS2和LiSi/(FeS2/ RGO)单体电池的放电曲线

Fig. 9 Discharge curves of LiSi/FeS2 and LiSi/(FeS2/RGO) cells in LiF-LiCl-LiBr eutectic electrolyte

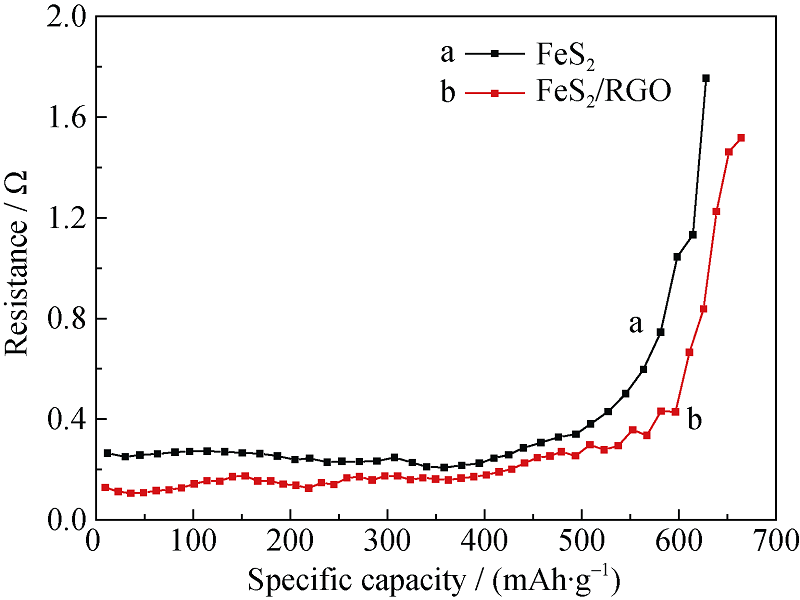

图10 采用LiF-LiCl-LiBr电解质时LiSi/FeS2和LiSi/(FeS2/ RGO)单体电池的内阻

Fig. 10 Resistance values of LiSi/FeS2 and LiSi/(FeS2/RGO) cells in LiF-LiCl-LiBr eutectic electrolyte

参考文献 32

[1]	陆瑞生, 刘效疆. 热电池, 北京:国防工业出版, 2005: 80-108.
[2]	GUIDOTTI R A, MASSET P J.Thermally activated (“thermal”) battery technology Part I: An overview.Journal of Power Sources, 2006, 161(2): 1443-1449.
[3]	GUIDOTTI R A, MASSET P J.Thermally activated (“thermal”) battery technology Part IV. Anode materials.Journal of Power Sources, 2008, 183(1): 388-398.
[4]	MASSET P J, GUIDOTTI R A.Thermal activated (“thermal”) battery technology Part IIIa: FeS2 cathode material.Journal of Power Sources, 2008, 177(2): 595-609.
[5]	DONG J, CHONG J.Influencing factors of the thermal stability for pyrite.Chinese Journal of Power Sources, 2008, 32(03): 147-150.
[6]	GUIDOTTI R A, REINHARDT F W, DAI J, et al.Performance of thermal cells and batteries made with plasma-sprayed cathodes and anodes.Journal of Power Sources, 2006, 160(2): 1456-1464.
[7]	CHEN W H, YANG S H, MENG J H, et al.Preparation of FeS2 thin-film cathode for thermal batteries by screen printing.Chinese Journal of Power Sources, 2013, 37(02): 226-227.
[8]	YANG X W, LIU X J, YANG Z T, et al.Effects of FeS2 preparation conditions on the properties of LiSi/FeS2 thermal battery.Journal of Synthetic Crystals, 2014,43(04): 839-844.
[9]	YANG Z T, LIU X J, FENG X L, et al. Thermal battery applications of pyrite prepared by hydrothermal method.Journal of Synthetic Crystals, 2013(09): 1896-1900.
[10]	AWANO A, HARAGUCHI K, YAMASAKI H.Li/Fe1-xCoxS2 System Thermal Battery Performance. Power Sources Symposium, IEEE 35th International, Cherry Hill, US, 1992. 219-222.
[11]	SWIFT G, LAMB C. Thermal Battery Cathode Materials and Batteries Including Same. US Patent, 2010030853 A1.2010-12-09.
[12]	FUJIWARA S, INABA M, TASAKA A.New molten salt systems for high temperature molten salt batteries: ternary and quaternary molten salt systems based on LiF-LiCl, LiF-LiBr, and LiCl-LiBr.Journal of Power Sources, 2011, 196(8): 4012-4018.
[13]	MASSET P, SCHOEFFERT S, POINSO J Y, et al.LiF-LiCl-LiI vs. LiF-LiBr-KBr as molten salt electrolyte in thermal batteries. Journal of The Electrochemical Society, 2005, 152(2): A405-A410.
[14]	CHONG J, CAO J J, ZHAO J F, et al.Effect of the cathode materials on the performances of thermal battery.Chinese Journal of Power Sources, 2004, 28(07): 419-422.
[15]	LIN B S, YANG S H, CAO X H.Voltage peak clipping research of FeS2 thin film cathode for thermal battery.Chinese Journal of Power Sources, 2015, 39(06): 1269-1270.
[16]	BA Z J, YANG S H, CAO X H, et al.Preparation and discharge performance of carbonized cobalt disulfide electrode materials.Materials for Mechanical Engineering, 2016, 40(2): 76-78.
[17]	CHOI Y, CHO S, LEE Y S.Effect of the addition of carbon black and carbon nanotube to FeS2 cathode on the electrochemical performance of thermal battery.Journal of Industrial and Engineering Chemistry, 2014, 20(5): 3584-3589.
[18]	YUAN C J, YANG S H, CAO X H.Effects of conductive additives on the performance Cu3V2O8 cathode for low-temperature/ high-voltage thermal battery.Journal of Functional Materials, 2015, 46(17): 17046-17048.
[19]	LV K, YANG S H, ZHAO P, et al.Research of performance influence factors of FeS2 thin-film cathodes for LiSi/FeS2 thermal batteries.Chinese Journal of Power Sources, 2014, 38(8): 1519-1522.
[20]	Zhao P, LV K, YANG S H, et al.Preparation and discharge performance of CoS2 cathode material for thermal battery.Journal of Functional Materials, 2013, 44(S1): 108-111.
[21]	LIN B S, CAO X H, YANG S H, et al.Hydrothermal synthesis and discharge performance of NiS2 used for thermal battery.Journal of Shenyang Ligong University, 2014, 33(2): 26-30.
[22]	PUMERA M.Graphene-based nanomaterials for energy storage.Energy Environ. Sci., 2011, 4(3): 668-674.
[23]	ZHANG M, CHEN B, TANG H, et al.Hydrothermal synthesis and tribological properties of FeS2(pyrite)/reduced graphene oxide heterojunction.RSC Advances, 2015, 5(2): 1417-1423.
[24]	XUE H, YU D, QING J, et al.Pyrite FeS2 microspheres wrapped by reduced graphene oxide as high-performance lithium-ion battery anodes.Journal of Materials Chemistry A, 2015, 3(15): 7945-7949.
[25]	TAN R, YANG J, HU J, et al.Core-shell nano-FeS2@N-doped graphene as an advanced cathode material for rechargeable Li-ion batteries. Chemical Communications, 2016, 52(5): 986-989.
[26]	QIU W, XIA J, ZHONG H, et al.L-cysteine-assisted synthesis of cubic pyrite/nitrogen-doped graphene composite as anode material for lithium-ion batteries.Electrochimica Acta, 2014, 137: 197-205.
[27]	LIU W, XU L, LI X, SHEN C, et al.High-dispersive FeS2 on graphene oxide for effective degradation of 4-chlorophenol.RSC Advances, 2015, 5(4): 2449-2456.
[28]	HUMMERS W S, OFFEMAN RE.Preparation of graphitic oxide.Journal of the American Chemical Society, 1958, 80(6): 1339.
[29]	WANG J D, PENG T J, SUN H J, et al.Effect of the hydrothermal reaction temperature on three-dimensional reduced graphene oxide′s appearance, structure and super capacitor performance.Acta Phys. -Chim. Sin., 2014, 30(11): 2077-2084.
[30]	STRAUSS E, ARDEL G, LIVSHITS V, et al.Lithium polymer electrolyte pyrite rechargeable battery: comparative characterization of natural pyrite from different sources as cathode material.Journal of Power Sources, 2000, 88(2): 206-218.
[31]	PRETO S K, TOMCZUK Z, VON WINBUSH S, et al.Reactions of FeS2, CoS2, and NiS2 electrodes in molten LiCl-KCl electrolytes.Journal of The Electrochemical Society, 1983, 130(2): 264-273.
[32]	YANG Z, LIU X, FENG X, et al.Hydrothermal synthesized micro/nano-sized pyrite used as cathode material to improve the electrochemical performance of thermal battery.Journal of Applied Electrochemistry, 2014, 44(10): 1075-1080.
