直流电弧等离子体制备纳米SiC及其催化特性

doi:10.15541/jim20160371

无机材料学报 ›› 2017, Vol. 32 ›› Issue (4): 351-356.DOI: 10.15541/jim20160371 CSTR: 32189.14.10.15541/jim20160371

直流电弧等离子体制备纳米SiC及其催化特性

余洁意¹, 黄昊^1,2, 高见¹, 周雷¹, 高嵩¹, 董星龙¹, 全燮³

(大连理工大学 1. 教育部三束材料改性重点实验室, 材料科学与工程学院; 2. 能源材料及器件实验室, 材料科学与工程学院; 3. 工业生态与环境工程实验室, 环境学院, 大连 116024)

收稿日期:2016-06-13 修回日期:2016-08-03 出版日期:2017-04-20 网络出版日期:2017-03-24
作者简介:余洁意(1984–), 女, 博士研究生. E-mail: yu.jie.yi@hotmail.com
基金资助:
国家自然科学基金(51171033, 51271044);国家中央高校基本科研业务费专项资金(DUT15LAB05, DUT16LAB03)

Synthesis and Catalytic Performances of SiC Nanoparticles by DC Arc-discharge Plasma

YU Jie-Yi¹, HUANG Hao^1,2, GAO Jian¹, ZHOU Lei¹, GAO Song¹, DONG Xing-Long¹, QUAN Xie³

(1. Key Laboratory of Materials Modification by Laser, Ion and Electron Beams (Ministry of Education), School of Materials Science and Engineering, Dalian University of Technology, Dalian 116023, China; 2. Energy Materials & Devices Laboratory, School of Materials Science and Engineering, Dalian University of Technology, Dalian 116023, China; 3. Laboratory of Industrial Ecology and Environmental Engineering (The Ministry of Education, China), School of Environmental Science and Technology, Dalian University of Technology, Dalian 116024, China)

Received:2016-06-13 Revised:2016-08-03 Published:2017-04-20 Online:2017-03-24
About author:YU Jie-Yi. E-mail: yu.jie.yi@hotmail.com
Supported by:
National Natural Science Foundation of China (51171033, 51271044);Fundamental Research Funds for the Central Universities (DUT15LAB05, DUT16LAB03)

摘要/Abstract

摘要：

利用工业块体硅为硅源, CH₄为碳源, 在含有H₂和Ar混合气氛中, 采用直流电弧等离子体法制备SiC纳米粒子。CH₄含量影响SiC纳米粒子的化学组成和形貌。结果显示: 产物中含有3C-SiC和6H-SiC两种物相, 而在CH₄压力为0.005 MPa条件下制备的SiC纳米粒子还含有Si/SiC核壳结构。利用制备的SiC纳米颗粒作为催化剂, 在恒光强下光电催化还原脱除2,4-二氯酚中的Cl原子。结果显示在-1.02 V偏压下光电催化180 min后, 对2,4-二氯酚的去除效率达92.5%, SiC纳米粒子的吸附效率为19.6%。因此, SiC纳米颗粒可取代贵金属, 作为低成本光电催化候选材料用于污水处理。

关键词: 碳化硅, 直流电弧等离子体, 光电催化, 2,4-二氯酚

Abstract:

SiC nanoparticles were synthesized by direct current (DC) arc-discharge plasma method, using bulk Si as silicon source and in a mixed atmosphere of CH₄, H₂ and Ar. The chemical composition and morphology of the SiC nano product were affected by the pressure of CH₄ obviusly. These products were characterized by Transmission electron microscopy (TEM), Raman spectra, Fourier transform infrared (FTIR) spectroscopy, X-ray diffraction (XRD), and X-ray photoelectron spectroscopy (XPS). The results indicate that the product contains the main phases of 3C- and 6H-SiC, while prepared at low CH₄ pressure of 0.005 MPa, which exists few Si/SiC core-shell structures in the product. The SiC nanoparticles, prepared at 0.01 MPa CH₄, were used as the catalyst to remove the Cl atoms in persistent 2,4-dichlorophenol through photoelectric catalytic reduction. The results show that the SiC nanoparticles have good photoelectric catalytic reductive dechlorination ability under ultraviolet illumination at a constant optical intensity of 500 mW/cm². The removal efficiency reaches about 92.5% and the adsorption efficiency is 19.6% at an appropriate bias potential of -1.02 V after 180 min of photoelectric catalysis. Hence, SiC nanoparticles are identified as a kind of low-cost photoelectrocatalysis candidates to replace noble metals in wastewater treatments.

Key words: silicon carbide, DC arc-discharge plasma, photoelectric catalysis, 2,4-dichlorophenol

中图分类号:

X703

余洁意, 黄昊, 高见, 周雷, 高嵩, 董星龙, 全燮. 直流电弧等离子体制备纳米SiC及其催化特性[J]. 无机材料学报, 2017, 32(4): 351-356.

YU Jie-Yi, HUANG Hao, GAO Jian, ZHOU Lei, GAO Song, DONG Xing-Long, QUAN Xie. Synthesis and Catalytic Performances of SiC Nanoparticles by DC Arc-discharge Plasma[J]. Journal of Inorganic Materials, 2017, 32(4): 351-356.

图/表 9

表1 SiC样品制备条件

Table 1 Preparation conditions of SiC samples

Sample	Pressure /MPa			Arc voltage /V	Arc current /A
Sample	H₂	Ar	CH₄	Arc voltage /V	Arc current /A
SiC-0.005	0.01	0.02	0.005	20~40	90
SiC-0.01	0.01	0.02	0.01	20~40	90

图1 (a,b)SiC-0.005和(c,d)SiC-0.01纳米颗粒TEM和高分辨TEM (HR-TEM)照片

Fig. 1 TEM and high resolution (HR-TEM) images of (a,b) SiC-0.005 and (c,d) SiC-0.01 nanoparticles

图2 SiC-0.005和SiC-0.01纳米颗粒Raman光谱图

Fig. 2 Raman spectra of SiC-0.005 and SiC-0.01 nanoparticles

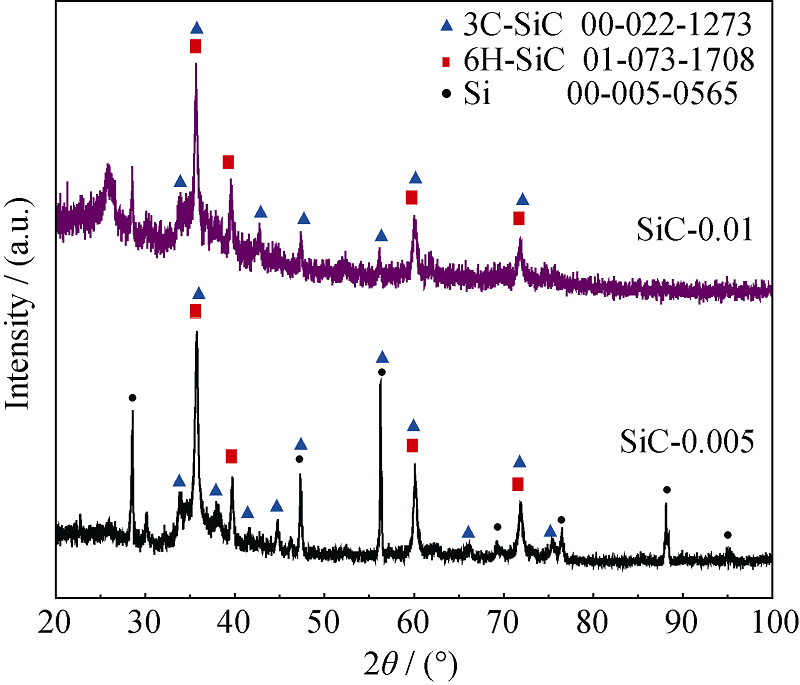

图3 SiC-0.005和SiC-0.01纳米颗粒的XRD图谱

Fig. 3 XRD patterns of SiC-0.005 and SiC-0.01 nanoparticles

图4 SiC-0.005和SiC-0.01纳米颗粒的FTIR图谱

Fig. 4 FTIR spectra of SiC-0.005 and SiC-0.01 nanoparticles

图5 SiC-0.005 (a, b)和SiC-0.01(a’, b’)纳米颗粒XPS图谱

Fig. 5 XPS spectra of SiC-0.005 (a, b) and SiC-0.01 nanoparticles (a, a’) C1s; (b, b’) Si2p

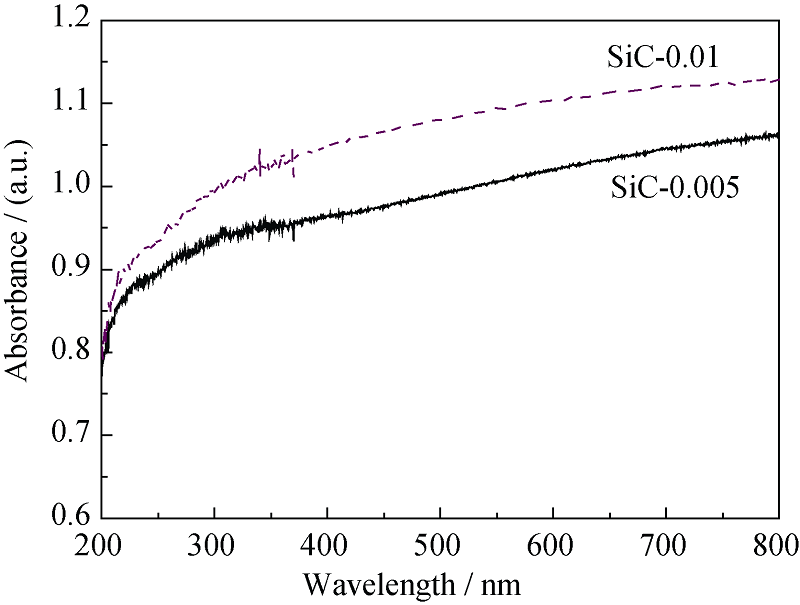

图6 样品SiC-0.005和SiC-0.01紫外-可见吸收光谱图

Fig. 6 UV-visible absorption spectra of SiC-0.005 and SiC-0.01

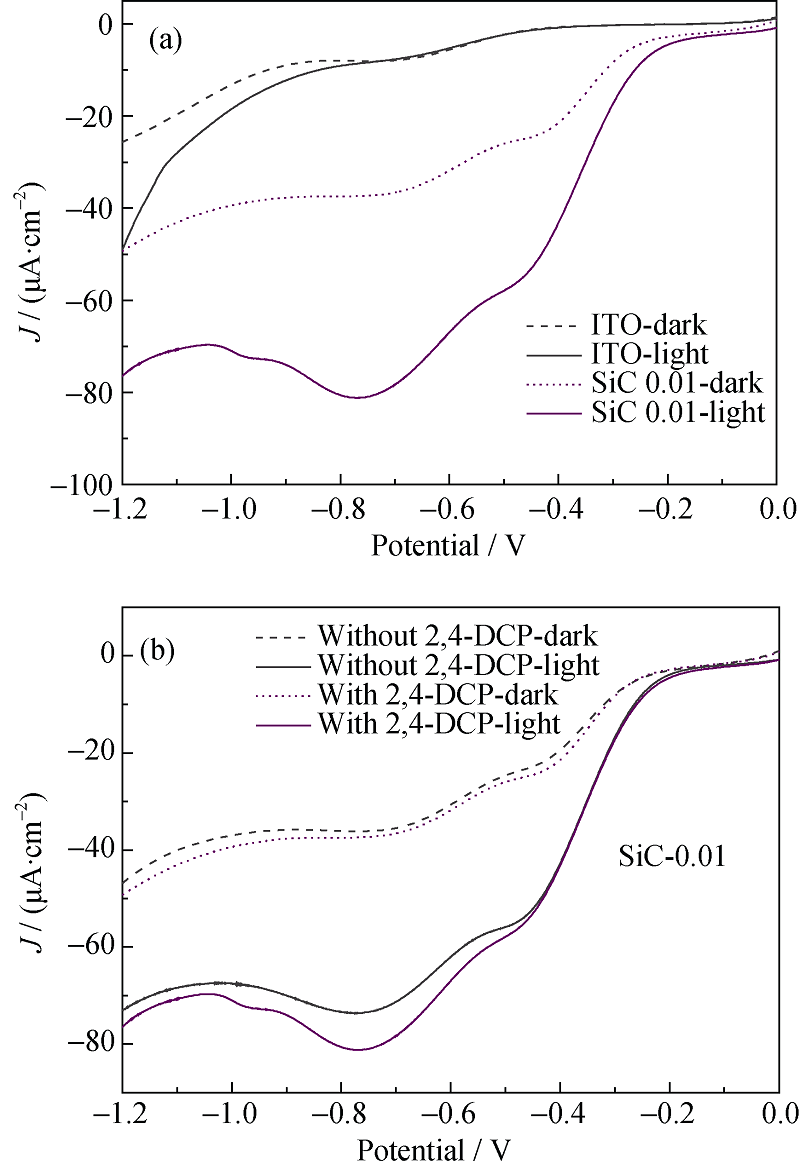

图7 (a) ITO导电玻璃和SiC-0.01电极分别在黑暗和光照下对2,4-DCP的线性伏安图, (b) SiC-0.01电极分别在有/无2,4-DCP时黑暗和光照下的线性伏安图, 扫描速率为10 mV/s

Fig. 7 Linear voltammograms of (a) ITO and SiC-0.01 electrodes under dark and light with 2,4-DCP;, (b) SiC-0.01 electrodes under dark and light with/without 2,4-DCP, the scanning speed is 10 mV/s

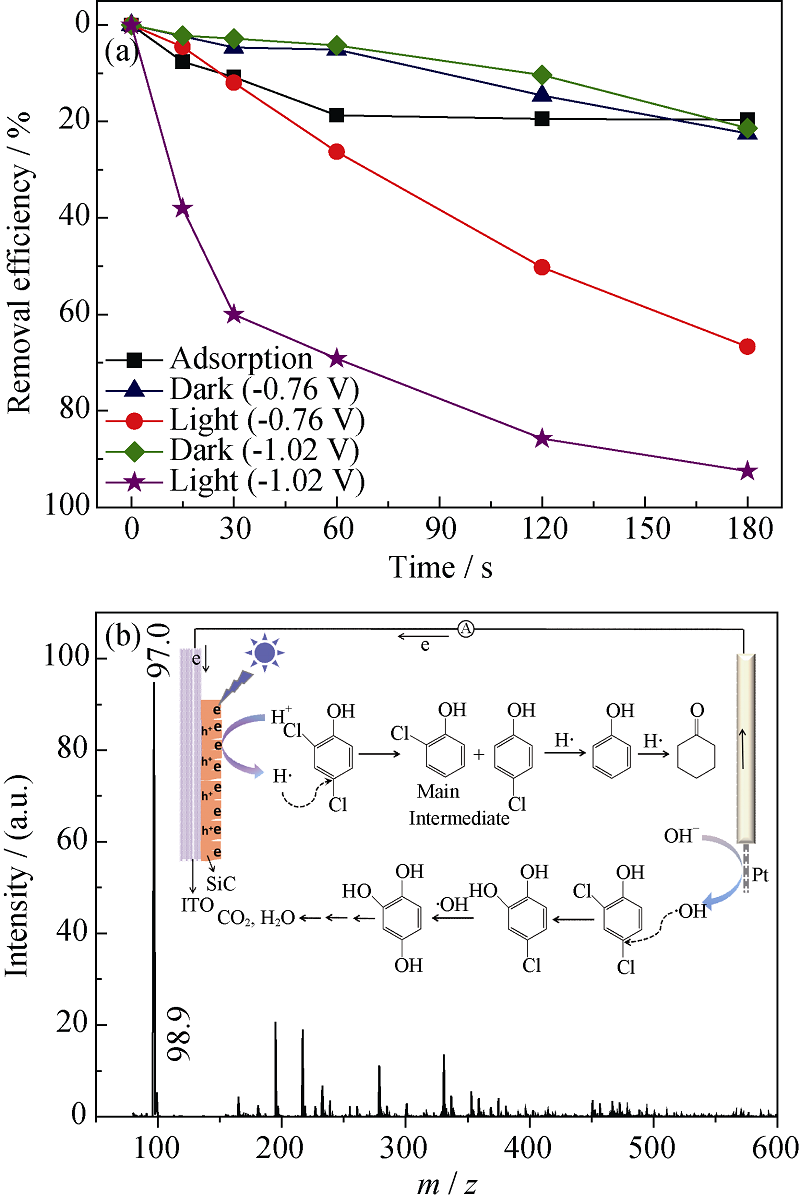

图8 (a) SiC-0.01电极对2,4-DCP吸附曲线、-0.76 V和-1.02 V偏压下的电催化和光电催化去除曲线, (b)降解180 min后还原产物的质谱图

Fig. 8 (a) Adsorption curve, removal curves of electric catalysis and photoelectric catalysis of 2,4-DCP by SiC-0.01 electrodes under bias potentials of -0.76 V and -1.02 V, (b) mass spectrum of reduzate after 180 min of degradation

参考文献 20

[1]	ASM INTERNATIONAL, Volume 3 Alloy Phase Diagrams, the Materials Information Company: Materials Park, 1992.
[2]	SEBASTIANA P J, MATHEWSA N R, MATHEWA X, et al.Photoelectrochemical characterization of SiC. Int. J. Hydrogen Energy, 2001, 26(2): 123-125.
[3]	VAN DORP D H, HIJNEN N, VECE M D, et al. SiC: a photocathode for water splitting and hydrogen storage. Angew. Chem. Int. Ed., 2009, 48(33): 6085-6088.
[4]	LIU H L, SHE G W, MU L X, et al.Porous SiC nanowire arrays as stable photocatalyst for water splitting under UV irradiation. Mater. Res. Bull., 2012, 47(3): 917-920.
[5]	HAO J Y, WANG Y Y, TONG X L, et al.Photocatalytic hydrogen production over modified SiC nanowires under visible light irradiation. Int. J. Hydrogen Energy, 2012, 37(20): 15038-15044.
[6]	YANG J J, ZENG X P, CHEN L J, et al.Photocatalytic water splitting to hydrogen production of reduced graphene oxide/SiC under visible light. Appl. Phys. Lett., 2013, 102(87): 083101-083104.
[7]	ZHOU W M, YAN L J, WANG Y, et al.SiC nanowires: a photocatalytic nanomaterials. Appl. Phys. Lett., 2006, 89(1): 013103-013105.
[8]	SCHNABEL C, WÖRNER M, GONZÁLEZ B, et al. Photoelectrochemical characterization of p- and n-doped single crystalline silicon carbide and photoinduced reductive dehalogenation of organic pollutants at p-doped silicon carbide. Electrochimica Acta, 2001, 47(5): 719-727.
[9]	SUN Z, WANG K, Wei X, et al.Electrocatalytic hydrodehalogenation of 2,4-dichlorophenol in aqueous solution on palladium-nickel bimetallic electrode synthesized with surfactant assistance, Int. J. Hydrogen Energy, 2012, 37(33): 17862-17869.
[10]	HU J Q, LU QY, TANG K B, et al.A new rapid reduction- carbonization route to nanocrystalline β-SiC. Chem. Mater., 1999, 11(9): 2369-2371.
[11]	WU X L, FAN J Y, QIU T, et al.Experimental evidence for the quantum confinement effect in 3C-SiC nanocrystallites. Phys. Rev. Lett., 2005, 94(2): 026102-026104.
[12]	FAN J Y, LI H X, WANG J, et al. Fabrication and photoluminescence of SiC quantum dots stemming from 3C, 6H,4H polytypes of bulk SiC. Appl. Phys. Lett., 2012, 101(13): 131906/1-5.
[13]	DASOG M, SMITH L F, PURKAI T K, et al.Low temperature synthesis of silicon carbide nanomaterials using a solid-state method. Chem. Commun., 2013, 49(62): 7004-7006.
[14]	GUO J Y, GITZHOFER F, BOULOS M I.Induction plasma synthesis of ultrafine SiC powders from silicon and CH4. J. Mater. Sci., 1995, 30(22): 5589-5599.
[15]	GITZHOFER F.Induction plasma synthesis of ultrafine SiC. Pure & Appl. Chem., 1996, 68(5): 1113-1120.
[16]	YU J, GAO J, XUE F, et al.Formation mechanism and optical characterization of polymorphic silicon nanostructures by DC arc-discharge. RSC Advances, 2015, 5(84): 68714-68721.
[17]	ZHOU J, ZHOU M, CHEN Z, et al.SiC nanotubes arrays fabricated by sputtering using electrospun PVP nanofiber as templates. Surf. Coat. Tech., 2009, 203(20/21): 3219-3223.
[18]	KIM T E, JUON S M, PARK J H, et al.Silicon carbide fiber-reinforced composite membrane for high-temperature and low-humidity polymer exchange membrane fuel cells. Int. J. Hydrogen Energy, 2014, 39(34): 16474-16485.
[19]	NAKANO H, NAKANO M, NAKANISHI K, et al.Preparation of alkyl-modified silicon nanosheets by hydrosilylation of layered polysilane (Si6H6). J. Am. Chem. Soc., 2012, 134(12): 5452-5455.
[20]	LIN H F, RAVIKRISHNA R, VALSARA K T.Reusable adsorbents for dilute solution separation. 6. Batch and continuous reactors for the adsorption and degradation of 1,2-dichlorobenzene from dilute wastewater streams using titania as a photocatalyst. Separation and Purification Technology, 2002, 28(2): 87-102.
