石墨烯包覆玻璃纤维复合材料的制备及其电学性能研究

doi:10.15541/jim20140686

无机材料学报 ›› 2015, Vol. 30 ›› Issue (7): 763-768.DOI: 10.15541/jim20140686 CSTR: 32189.14.10.15541/jim20140686

石墨烯包覆玻璃纤维复合材料的制备及其电学性能研究

刘国强¹, 石福志², 李耀刚¹, 张青红¹, 王宏志³

(1. 东华大学材料科学与工程学院, 先进玻璃制造技术教育部工程研究中心, 上海 201620; 2. 上海交通大学材料科学与工程学院, 金属基复合材料国家重点实验室, 上海 200240; 3. 东华大学材料科学与工程学院, 纤维材料改性国家重点实验室, 上海 201620)

收稿日期:2014-12-31 修回日期:2015-02-11 出版日期:2015-07-20 网络出版日期:2015-06-25
作者简介:刘国强(1988–), 男, 硕士研究生. E-mail: hfuugqliu@163.com
基金资助:
高等学校学科创新引智计划 (111-2-04);高等学校博士学科点专项科研基金(20110075130001);教育部创新团队发展计划(IRT1221);上海市科委项目(12nm0503900, 13JC1400200);中国博士后科学基金 (2014M561468)

Preparation and Electrical Properties of Graphene Coated Glass Fiber Composites

LIU Guo-Qiang¹, SHI Fu-Zhi², LI Yao-Gang¹, ZHANG Qing-Hong¹, WANG Hong-Zhi³

(1. College of Materials Science and Engineering, Engineering Research Center of Advanced Glasses Manufacturing Technology, Ministry of Education, Donghua University, Shanghai 201620, China; 2. State Key Lab of Metal Matrix Composites, School of Materials Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China; 3. State Key Laboratory for Modification of Chemical Fibers and Polymer Materials, College of Materials Science and Engineering, Donghua University, Shanghai 201620, China)

Received:2014-12-31 Revised:2015-02-11 Published:2015-07-20 Online:2015-06-25
About author:LIU Guo-Qiang. E-mail: hfuugqliu@163.com
Supported by:
Program of Introducing Talents of Discipline to Universities(111-2-04);Specialized Research Fund for the Doctoral Program of Higher Education(20110075130001);Innovative Research Team in University(IRT1221);Science and Technology Commission of Shanghai Municipality(12nm0503900,13JC1400200);China Postdoctoral Science Foundation Funded Project(2014M561468)

摘要/Abstract

摘要：

以牛血清白蛋白(BSA)改性玻璃纤维表面, 利用静电吸附原理制备氧化石墨包覆的玻璃纤维复合材料, 采用氢碘酸还原氧化石墨得到石墨烯包覆玻璃纤维导电材料。利用X射线衍射(XRD)和傅立叶变换红外光谱仪(FT-IR)等表征样品的物相结构和基团类型, 扫描电镜(SEM)表征石墨烯包覆玻璃纤维的形貌特征。当氧化石墨分散液pH低于6时, 随着pH减小, 包覆效果变得更明显。通过粒径/Zeta电位仪表征氧化石墨和BSA在不同pH下的Zeta电位, 结果表明BSA等电点约为5.3, 氧化石墨的等电点小于3。得到的石墨烯包覆玻璃纤维导电材料的电导率达到4.5 S/m, 制备的导电玻璃纤维具有一定的柔性, 在弯曲后仍能保持原有的导电性能; 导电玻璃纤维在高于100℃热处理后, 由于石墨烯在高温下可以继续还原, 其电导率得到一定的提高, 表明制备的导电玻璃纤维可以在较高温度下使用。

null

关键词: 玻璃纤维, 牛血清白蛋白, 石墨烯

Abstract:

The graphene coated glass fiber composites were obtained from the electrostatic adsorption of graphene oxide on bovine serum albumin (BSA) modified the glass fibers, and the subsequent reduction of graphene oxide coated glass fibers by hydroiodic acid at low temperature of 40℃. The phase structure and functional groups of graphene oxide were studied by XRD and FT-IR, respectively. SEM images showed that the graphene wrapped effect was improved with pH decreasing, when pH of graphene oxide dispersion was less than 6. Zeta potential of graphene oxide and BSA molecule were tested by Particle size/Zeta potential instrument, which showed that the isoelectric points of graphene oxide and BSA were smaller than 3 and 5.3, respectively. Conductivity of graphene wrapped glass fiber composites reached 4.5 S/m, and conductive glass fibers maintained original conductivity after different levels of bending. Moreover, due to the reduction of graphene, the conductivity increased slightly after the heat-treatment above 100℃. These results prove that the conductive glass fibers can be used at high temperature.

Key words: glass fiber, bovine serum albumin, graphene

中图分类号:

TQ171

刘国强, 石福志, 李耀刚, 张青红, 王宏志. 石墨烯包覆玻璃纤维复合材料的制备及其电学性能研究[J]. 无机材料学报, 2015, 30(7): 763-768.

LIU Guo-Qiang, SHI Fu-Zhi, LI Yao-Gang, ZHANG Qing-Hong, WANG Hong-Zhi. Preparation and Electrical Properties of Graphene Coated Glass Fiber Composites[J]. Journal of Inorganic Materials, 2015, 30(7): 763-768.

图/表 9

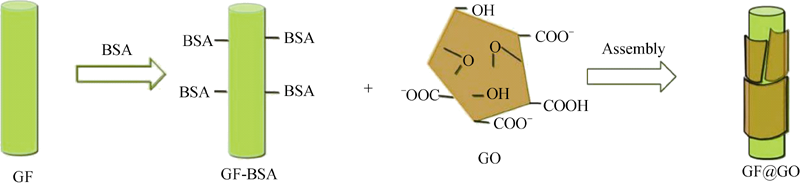

图1 氧化石墨包覆玻璃纤维制备过程示意图

Fig. 1 Schematic diagram of preparation process of the glass fibers coated by graphene oxide

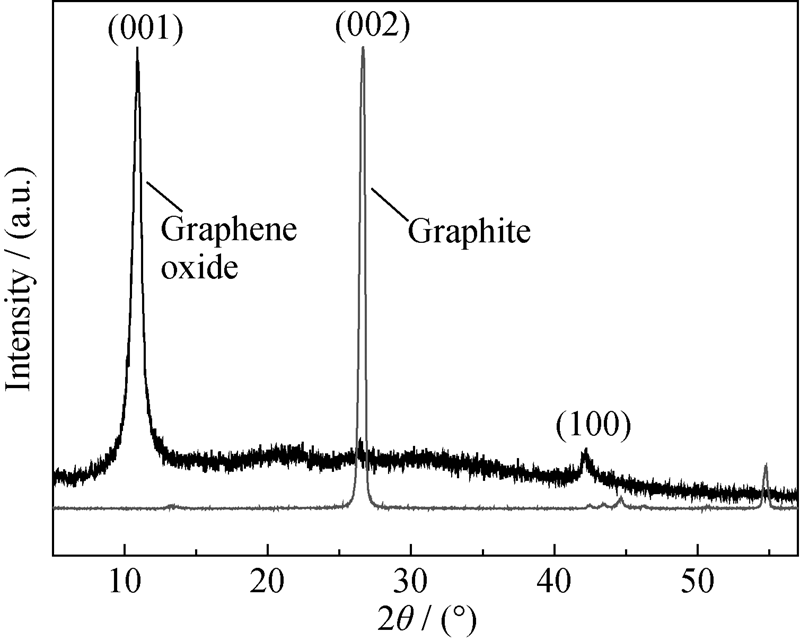

图2 氧化石墨及石墨粉体的XRD图谱

Fig. 2 XRD patterns of graphene oxide and graphite

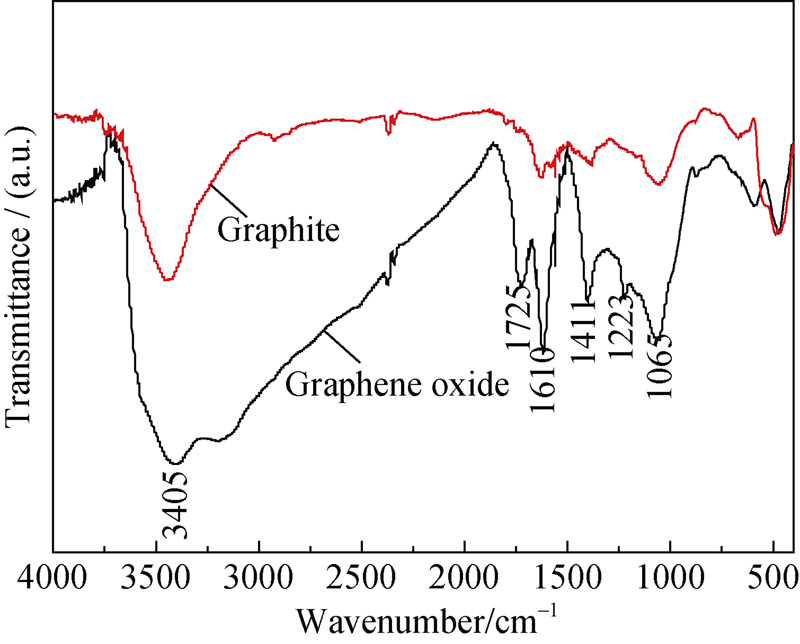

图3 氧化石墨及石墨粉体的红外图谱

Fig. 3 FT-IR spectra of graphene oxide and graphite

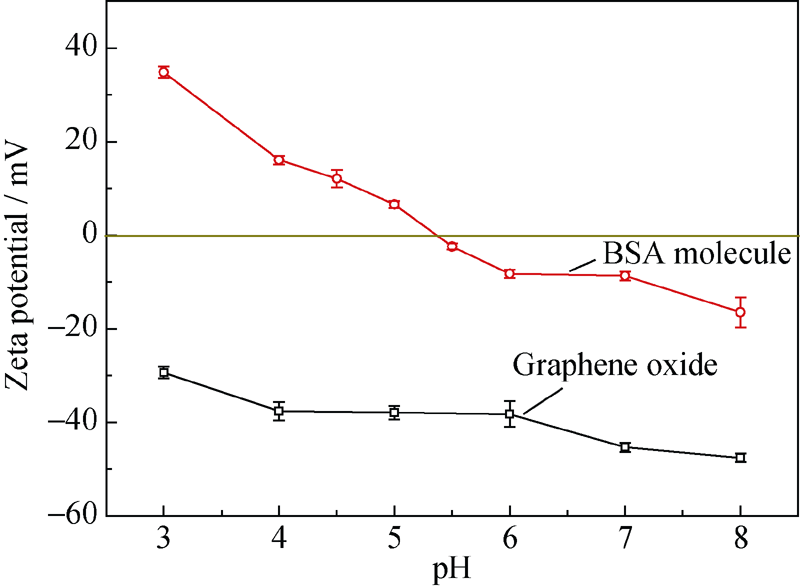

图4 氧化石墨、BSA的Zeta电位随pH的变化

Fig. 4 Zeta potential of graphene oxide and BSA molecule as function of pH

图5 氧化石墨分散液在不同pH下制备的玻璃纤维/石墨烯复合材料SEM照片

Fig. 5 SEM images of glass fiber/graphene composites synthesized at different pH (a) Neat glass fibers; (b) 3; (c) 4.5; (d) 6

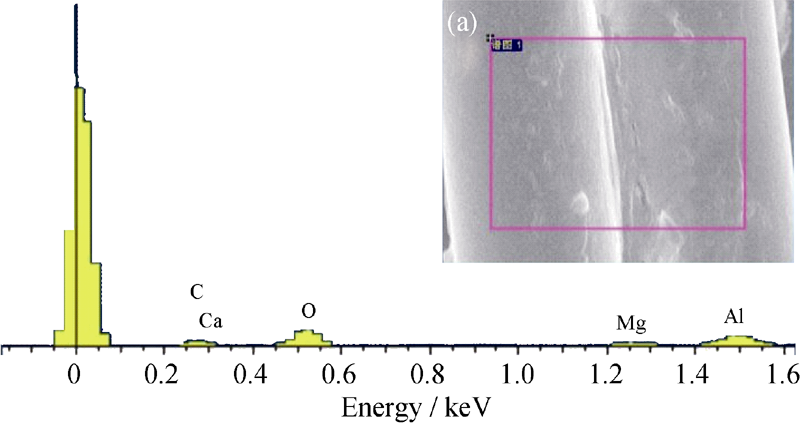

图6 玻璃纤维/石墨烯EDS分析

Fig. 6 EDS analysis of glass fiber/graphene composites with inset Showing the corresponding scanning area

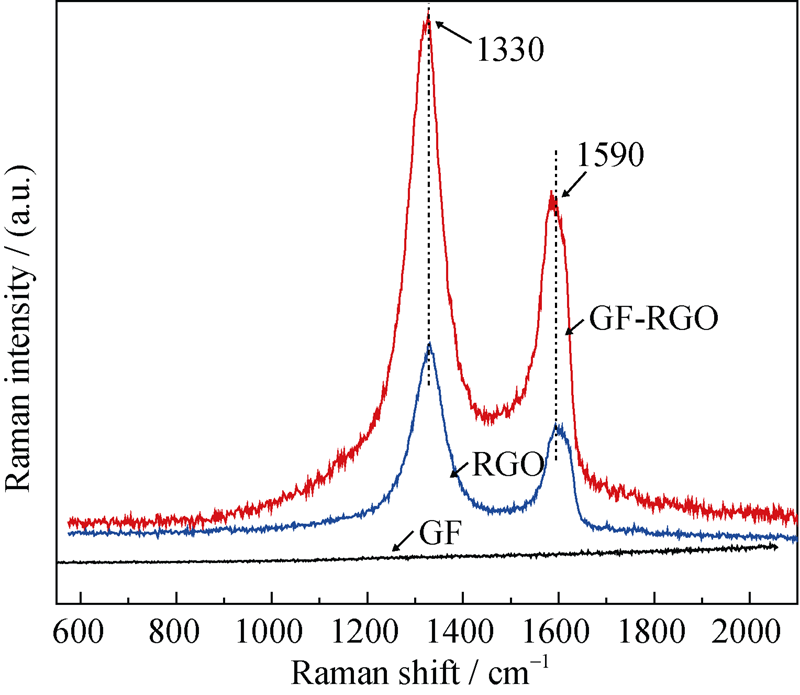

图7 玻璃纤维、石墨烯及玻璃纤维/石墨烯复合材料拉曼图谱

Fig. 7 Raman spectra of glass fibers, graphene and glass fiber/graphene composites

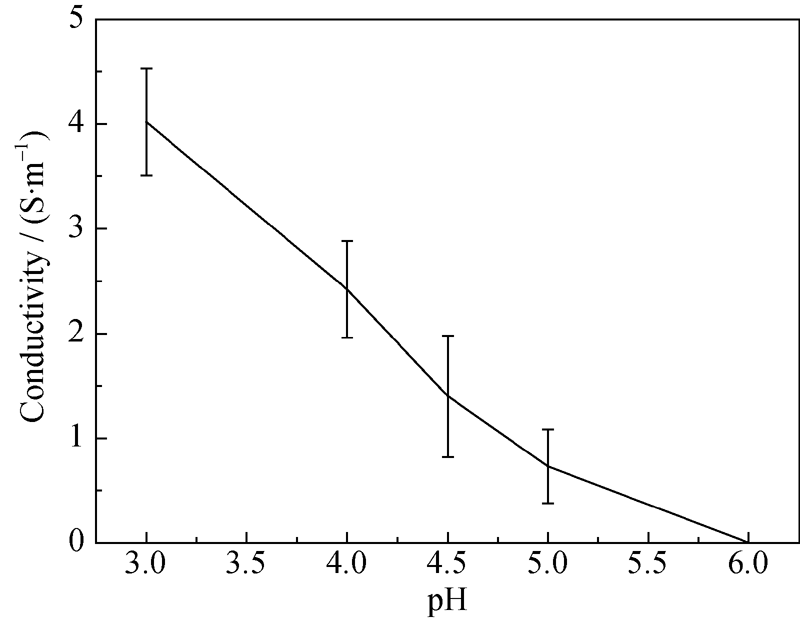

图8 氧化石墨分散液的pH对玻璃纤维电导率的影响

Fig. 8 Influence of pH of graphene oxide on conductivity of glass fiber/graphene composites

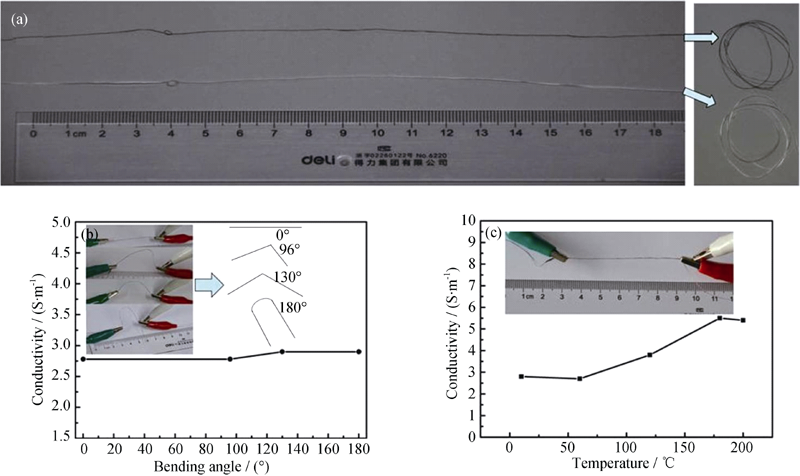

图9 (a)石墨烯包覆玻璃纤维前后数码照片; (b)弯曲程度和(c)热处理温度对纤维电导率的影响

Fig. 9 (a) Digital photos of glass fibers before and after being wrapped with graphene, effects of bending angles (b) and heat-treatment temperature (c) on the conductivity of glass fibers

参考文献 27

[1]	SUREEYATANAPAS P, YOUNG R J.SWNT composite coatings as a strain sensor on glass fibres in model epoxy composites.Composites Science and Technology, 2009, 69(10): 1547-1552.
[2]	ZANG DE-LI, LIU FENG, ZHANG MING, et al.Superhydrophobic coating on fiberglass cloth for selective removal of oil from water.Chemical Engineering Journal, 2015, 262: 210-216.
[3]	WINKLER T, EDER M, BRUNS N, et al.Fluorescent protein senses and reports mechanical damage in glass‐fiber‐reinforced polymer composites.Advanced Materials, 2013, 25(19): 2701-2706.
[4]	CHLDOV A, WIENER J, LUTHULI J M, et al.Dyeing of glass fibers by the Sol-Gel method.Autex Research Journal, 2011, 11(1): 18-23.
[5]	ZHANG JIE, LIU JIAN-WEN, GAO SHANG-LIN, et al.Single MWNT-glass fiber as strain sensor and switch.Advanced Materials, 2011, 23(30): 3392-3397.
[6]	YANG CHENG, XU YUAN-YUAN, ZHANG CHAO, et al.Facile synthesis 3D flexible core-shell graphene/glass fiber via chemical vapor deposition.Nanoscale Research Letters, 2014, 9(1): 1-6.
[7]	LIU ZHI-FU, ZHANG QING-HONG, WANG HONG-ZHI, et al.Structural colored fiber fabricated by a facile colloid self-assembly method in micro-space.Chemical Communications, 2011, 47(48): 12801-12803.
[8]	LIU ZHI-FU, ZHANG QING-HONG, WANG HONG-ZHI, et al.Magnetic field induced formation of visually structural colored fiber in micro-space.Journal of Colloid and Interface Science, 2013, 406: 18-23.
[9]	CHENG CHENG, CHENG XIAO-YU, MA DE-WEI, et al.An optical fiber glass containing PbSe quantum dots.Optics Communications, 2011, 284(19): 4491-4495.
[10]	LI LI-LI, YU DAN, WANG WEI, et al.Electroless silver plating on the PET fabrics modified with 3-mercaptopropyltriethoxysilane.Journal of Applied Polymer Science, 2012, 124(3): 1912-1918.
[11]	LIEN WAN-FU, HUANG PO-CHEN, TSENG SHI-CHANG, et al.Electroless silver plating on tetraethoxy silane-bridged fiber glass.Applied Surface Science, 2012, 258(7): 2246-2254.
[12]	XU CHUN-JUN, ZHOU RUI-HUA, CHEN HUI-YU, et al.Siver- coated glass fibers prepared by a simple electroless plating technique.Journal of Materials Science: Materials in Electronics, 2014, 25(10): 4638-4642.
[13]	HUANG YING, HUANG FEI, ZHAO WEN-TAO, et al.The study of electroless Ni-W-P alloy plating on glass fibers.Rare Metals, 2007, 26(4): 365-371.
[14]	NOVOSELOV K S, GEIM A K, MOROZOV S V, et al.Electric field effect in atomically thin carbon films.Science, 2004, 306(5696): 666-669.
[15]	CHEN ZONG-PING, REN WEN-CAI, GAO LI-BO, et al.Three-dimensional flexible and conductive interconnected graphene networks grown by chemical vapour deposition.Nature materials, 2011, 10(6): 424-428.
[16]	WANG YANG, SHI ZHI-QIANG, HUANG YI, et al.Supercapacitor devices based on graphene materials.The Journal of Physical Chemistry C, 2009, 113(30): 13103-13107.
[17]	HUMMERS Jr W S, OFFERMAN R E. Preparation of graphitic oxide.Journal of the American Chemical Society, 1958, 80(6): 1339.
[18]	LI YONG-JIE, GAO WEI, CI LI-JIE, et al.Catalytic performance of Pt nanoparticles on reduced graphene oxide for methanol electro-oxidation.Carbon, 2010, 48(4): 1124-1130.
[19]	LIANG JIA-JIE, GUO TIAN-YIN, CHEN YONG-SHENG, et al.Molecular‐level dispersion of graphene into poly (vinyl alcohol) and effective reinforcement of their nanocomposites.Advanced Functional Materials, 2009, 19(14): 2297-2302.
[20]	ZHANG JIA-LI, YANG HAI-JUN, SHEN GUANG-XIA, et al.Reduction of graphene oxide via L-ascorbic acid.Chemical Communications, 2010, 46(7): 1112-1114.
[21]	WANG HUA-LAN, HAO QING-LI, YANG XU-JIE, et al.Graphene oxide doped polyaniline for supercapacitors.Electrochemistry Communications, 2009, 11(6): 1158-1161.
[22]	KIM H Y, SEO D H, KIM S W, et al.Highly reversible Co3O4/graphene hybrid anode for lithium rechargeable batteries.Carbon, 2011, 49(1): 326-332.
[23]	LEI GANG, YANG WEN-BIN, WEI MING, et al.Study on electroless Ni-P plating of glass fiber.Journal of Functional Materials, 2008, 39(7): 1128-1130.
[24]	JEONG H K, LEE Y P, JIN MEI-HUA, et al.Thermal stability of graphite oxide.Chemical Physics Letters, 2009, 470(4): 255-258.
[25]	SUI DONG, HUANG YI, HUANG LU, et al.Flexible and transparent electrothermal film heaters based on graphene materials.Small, 2011, 7(22): 3186-3192.
[26]	NING NAN-YING, ZHANG WEI, YAN JIA-JIE, et al.Largely enhanced crystallization of semi-crystalline polymer on the surface of glass fiber by using graphene oxide as a modifier.Polymer, 2013, 54(1): 303-309.
[27]	HUANG LU, ZHANG YI, CHEN YONG-SHENG, et al.Investigation of gas storage properties of graphene material prepared by microwave-assisted reduction of graphene oxide.Acta Chimica Sinica, 2014, 72: 382-387.
