新型铁电固溶体铌镥酸铅-铌镁酸铅-钛酸铅的制备与表征

doi:10.15541/jim20130655

无机材料学报 ›› 2014, Vol. 29 ›› Issue (9): 912-916.DOI: 10.15541/jim20130655 CSTR: 32189.14.10.15541/jim20130655

新型铁电固溶体铌镥酸铅-铌镁酸铅-钛酸铅的制备与表征

刘颖^{1, 2}, 赖发春¹, 黄志高¹, 沈东全², 龙西法²

(1. 福建师范大学物理与能源学院, 福州 350117; 2. 中国科学院福建物质结构研究所, 光电材料化学与物理重点实验室, 福州 350002)

收稿日期:2013-12-11 修回日期:2014-02-14 出版日期:2014-09-17 网络出版日期:2014-08-21
作者简介:刘颖(1986–), 男, 助理研究员. E-mail: liuying@fjirsm.ac.cn
基金资助:
国家自然科学基金 (91122020)

Preparation and Characterization of A New Ferroelectric Ternary Solid Solution Pb(Lu_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃

LIU Ying^1,2, LAI Fa-Chun¹, Huang Zhi-Gao¹, SHEN Dong-Quan², LONG Xi-Fa²

(1. College of Physics and Energy, Fujian Normal University, Fuzhou 350117, China; 2. Key Laboratory of Optoelectric Materials Chemistry and Physics, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China)

Received:2013-12-11 Revised:2014-02-14 Published:2014-09-17 Online:2014-08-21
About author:LIU Ying. E-mail: liuying@fjirsm.ac.cn
Supported by:
National Natural Science Foundation of China (91122020)

摘要/Abstract

摘要：

采用二次合成法制备了纯相钙钛矿结构三元(0.7-x)Pb(Lu_1/2Nb_1/2)O₃-0.3Pb(Mg_1/3Nb_2/3)O₃-xPbTiO₃(PLN- PMN-PT) (0.38 ≤ x ≤ 0.46) 压电陶瓷, 研究了准同型相界(MPB)附近组分的介电、压电和铁电性能。XRD分析表明PLN-PMN-PT存在准同型相界, 且准同型相界区域大致为0.40 ≤ x ≤ 0.44。MPB附近组分为0.29PLN-0.3PMN- 0.41PT陶瓷具有较高的居里温度和相变温度, 分别为270℃和135℃, 同时该组分表现出较好的铁电压电性能, 压电系数达到460 pC/N, 矫顽场为14.8 kV/cm, 剩余极化强度P_r为34.6 μC/cm²。PLN-PMN-PT材料在压电领域具有潜在的应用前景。

关键词: 压电陶瓷, 固相法, PLMNT, 压电性能

Abstract:

Ceramics of (0.7-x)Pb(Lu_1/2Nb_1/2)O₃-0.3Pb(Mg_1/3Nb_2/3)O₃-xPbTiO₃(PLN-PMN-PT) (0.38 ≤ x ≤ 0.46) ternary system were synthesized by means of a two-step columbite precursor method which can effectively suppress the pyrochlore phase. A morphotropic phase boundary (MPB) region in the ternary systems was found in the range of 0.40 ≤ x ≤ 0.44 and the electric properties of the compositions near MPB region were investigated. Those compositions within MPB exhibit good comprehensive piezoelectric properties. The ceramic with composition of 0.29PLN- 0.3PMN-0.41PT shows a high Curie temperature of 270℃ and a high rhombohedral-tetragonal phase transition temperature of 135℃, whose piezoelectric coefficient d₃₃, coercive field E_c and remnant polarization P_r are found to be 460 pC/N, 14.8 kV/cm and 34.6 μC/cm², respectively. The large coercive field and high T_c enable it a promising candidate for application in the piezoelectricity field.

Key words: piezoelectric ceramics, solid state reaction, PLMNT, piezoelectric properties

中图分类号:

TQ174

刘颖, 赖发春, 黄志高, 沈东全, 龙西法. 新型铁电固溶体铌镥酸铅-铌镁酸铅-钛酸铅的制备与表征[J]. 无机材料学报, 2014, 29(9): 912-916.

LIU Ying, LAI Fa-Chun, Huang Zhi-Gao, SHEN Dong-Quan, LONG Xi-Fa. Preparation and Characterization of A New Ferroelectric Ternary Solid Solution Pb(Lu_1/2Nb_1/2)O₃-Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃[J]. Journal of Inorganic Materials, 2014, 29(9): 912-916.

图/表 8

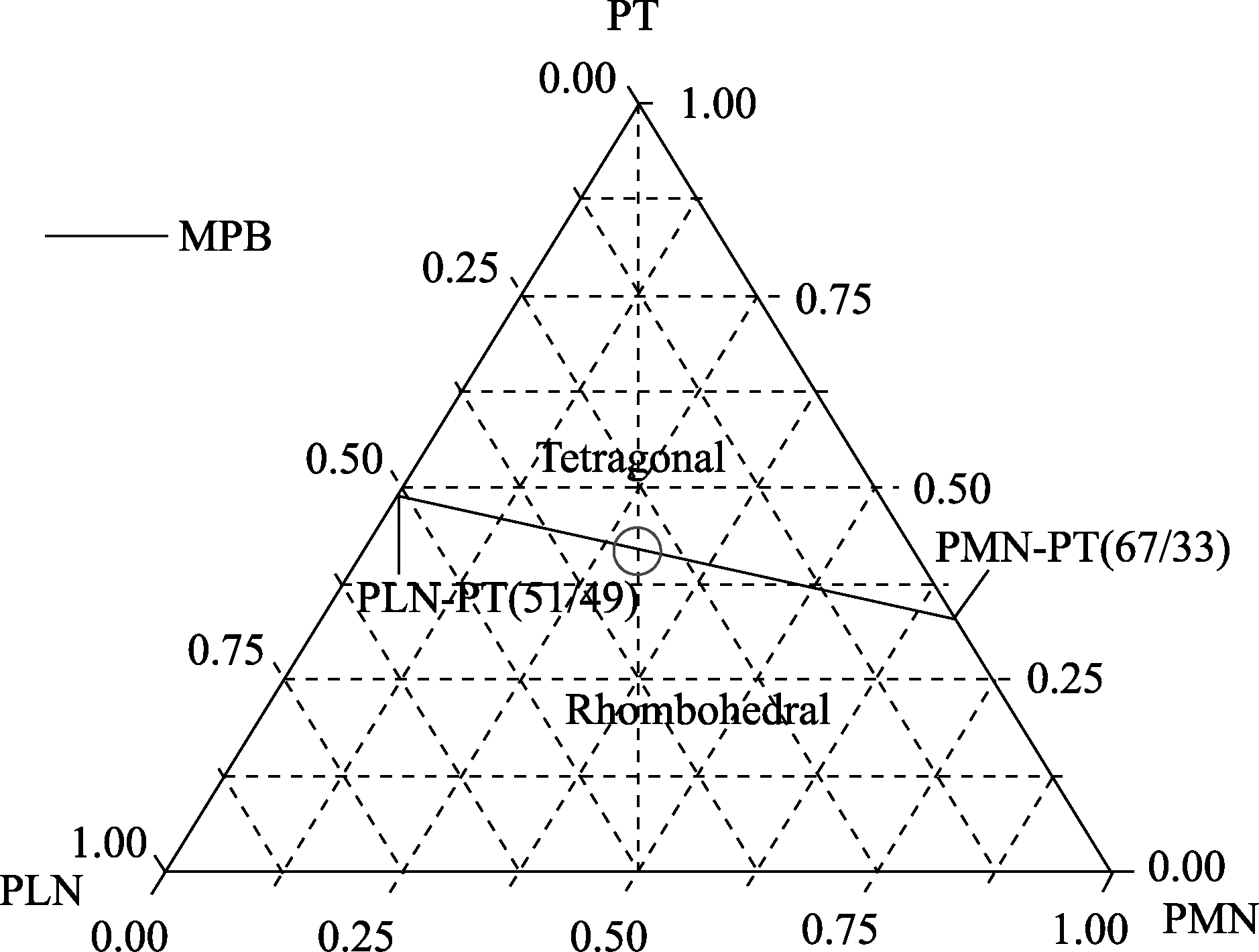

图1 室温三元PLN-PMN-PT陶瓷相图

Fig. 1 Ternary phase diagram of PLN-PMN-PT at room temperature

表1 (0.7-x)PLN-0.3PMN-xPT陶瓷的烧结工艺

Table 1 Sintering process of (0.7-x)PLN-0.3PMN-xPT ceramics

Composition	Sintering temperature/℃	Sintering time/h
0.32PLN-0.30PMN-0.38PT	1050	3
0.30PLN-0.30PMN-0.40PT	1060	3
0.29PLN-0.30PMN-0.41PT	1070	3
0.28PLN-0.30PMN-0.42PT	1070	3
0.26PLN-0.30PMN-0.44PT	1080	3
0.24PLN-0.30PMN-0.46PT	1100	3

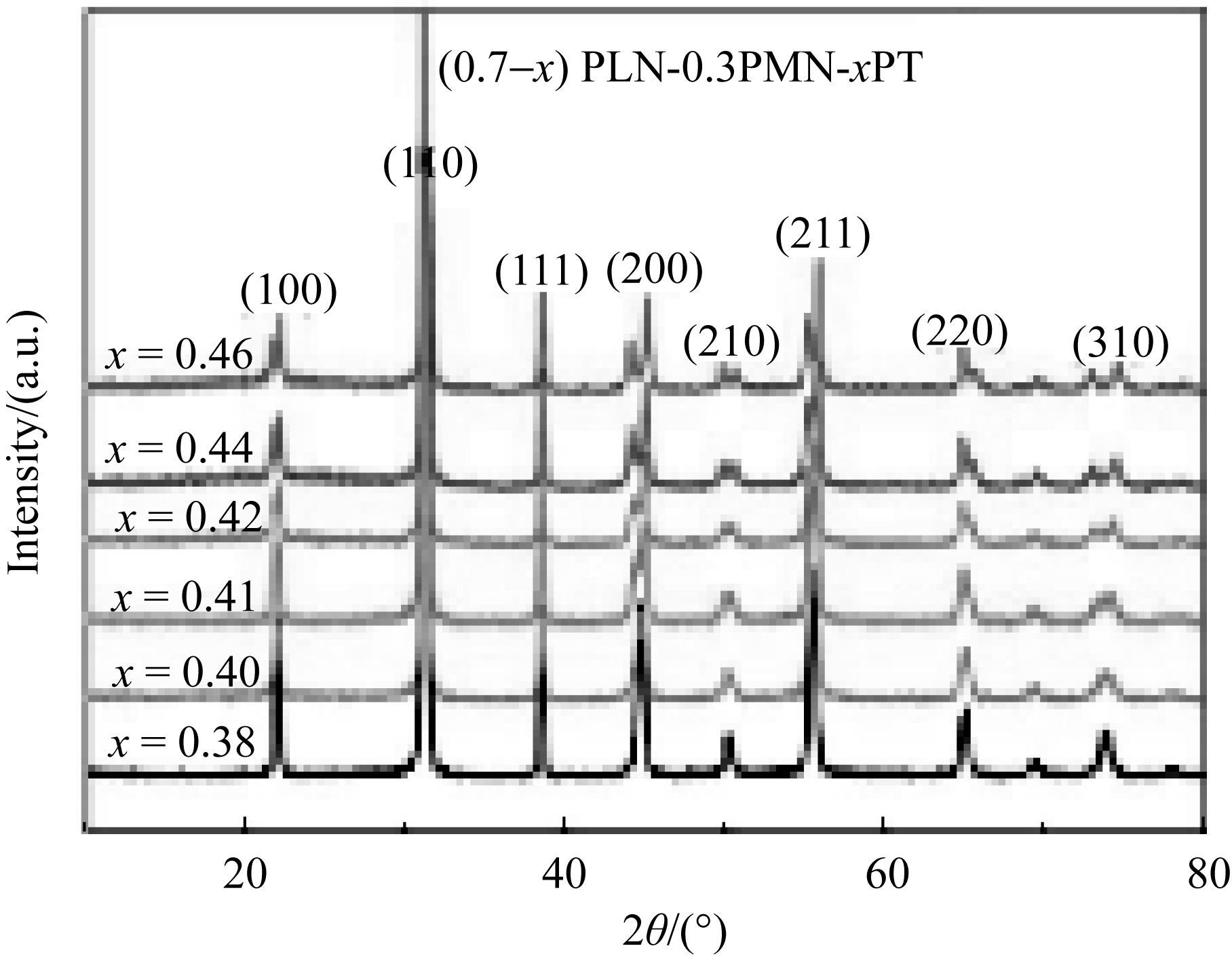

图2 (0.7-x)PLN-0.3PMN-xPT陶瓷XRD图谱

Fig. 2 XRD patterns of (0.7-x)PLN-0.3PMN-xPT ceramics

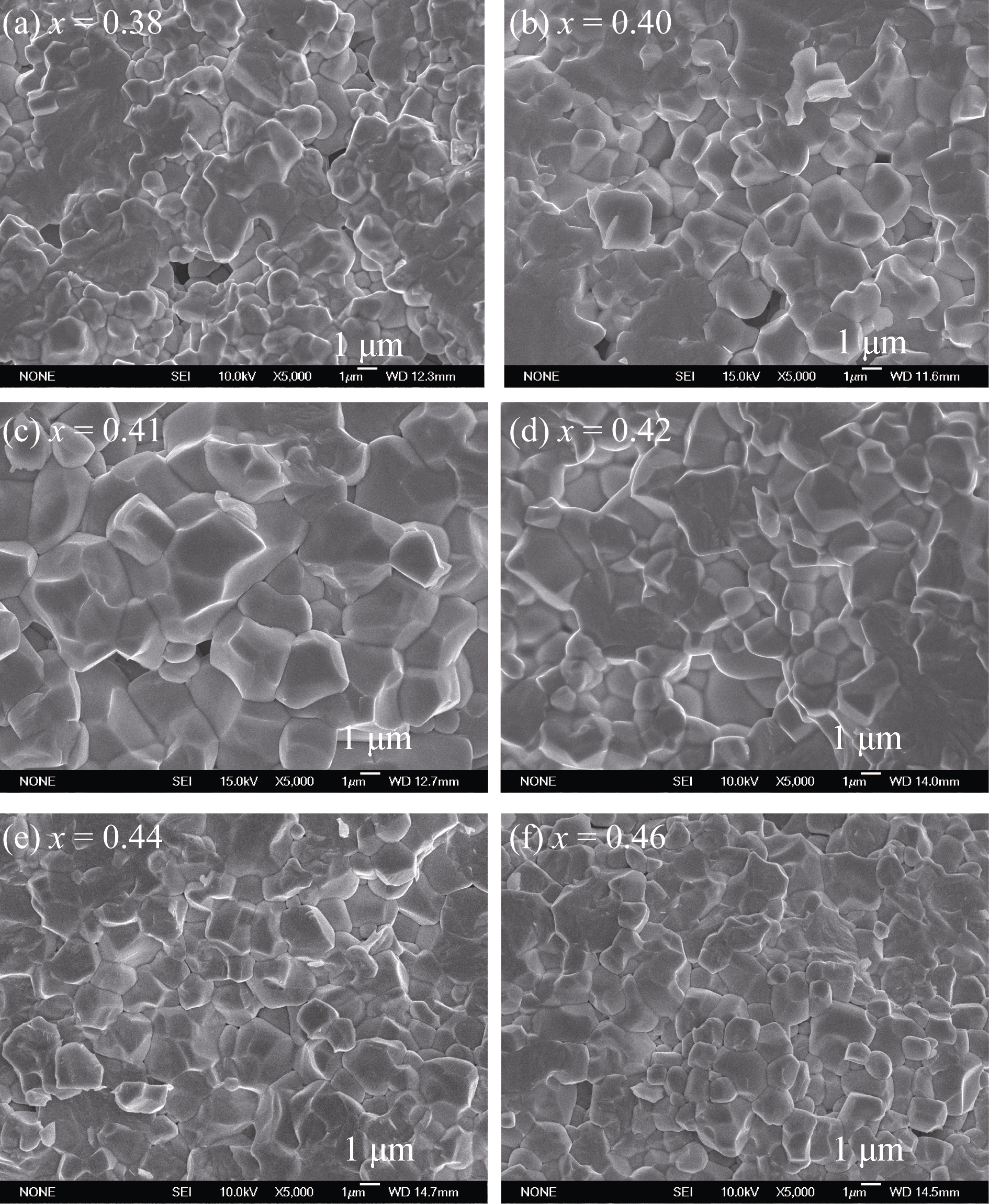

图3 (0.7-x)PLN-0.3PMN-xPT陶瓷样品的SEM照片

Fig. 3 SEM images of (0.7-x)PLN-0.3PMN-xPT ceramics

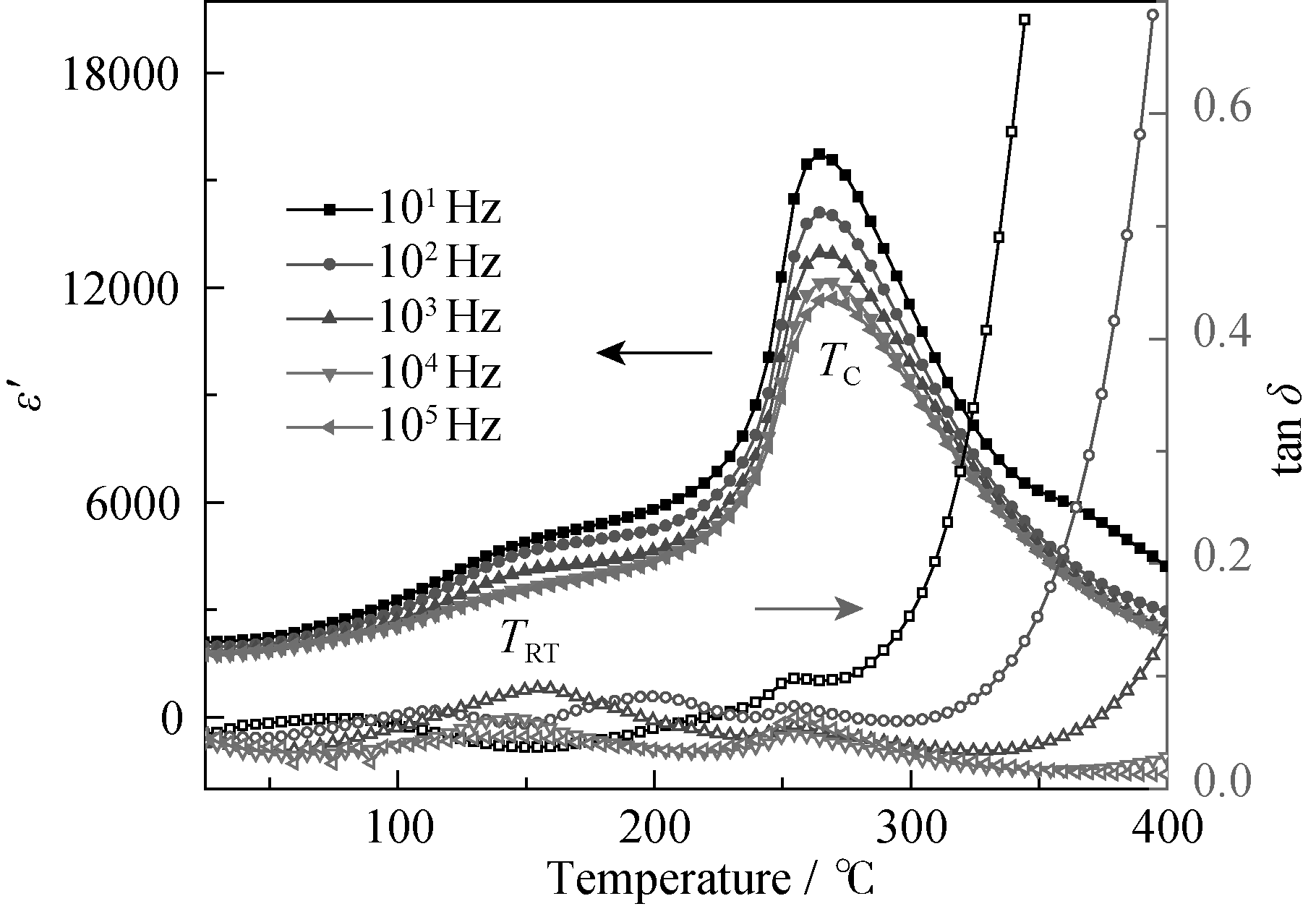

图4 0.3PLN-0.30PMN-0.40PT陶瓷的介电温谱

Fig. 4 Variations of dielectric constant of 0.3PLN-0.30PMN- 0.40PT ceramic measured at 10 Hz to 100 kHz

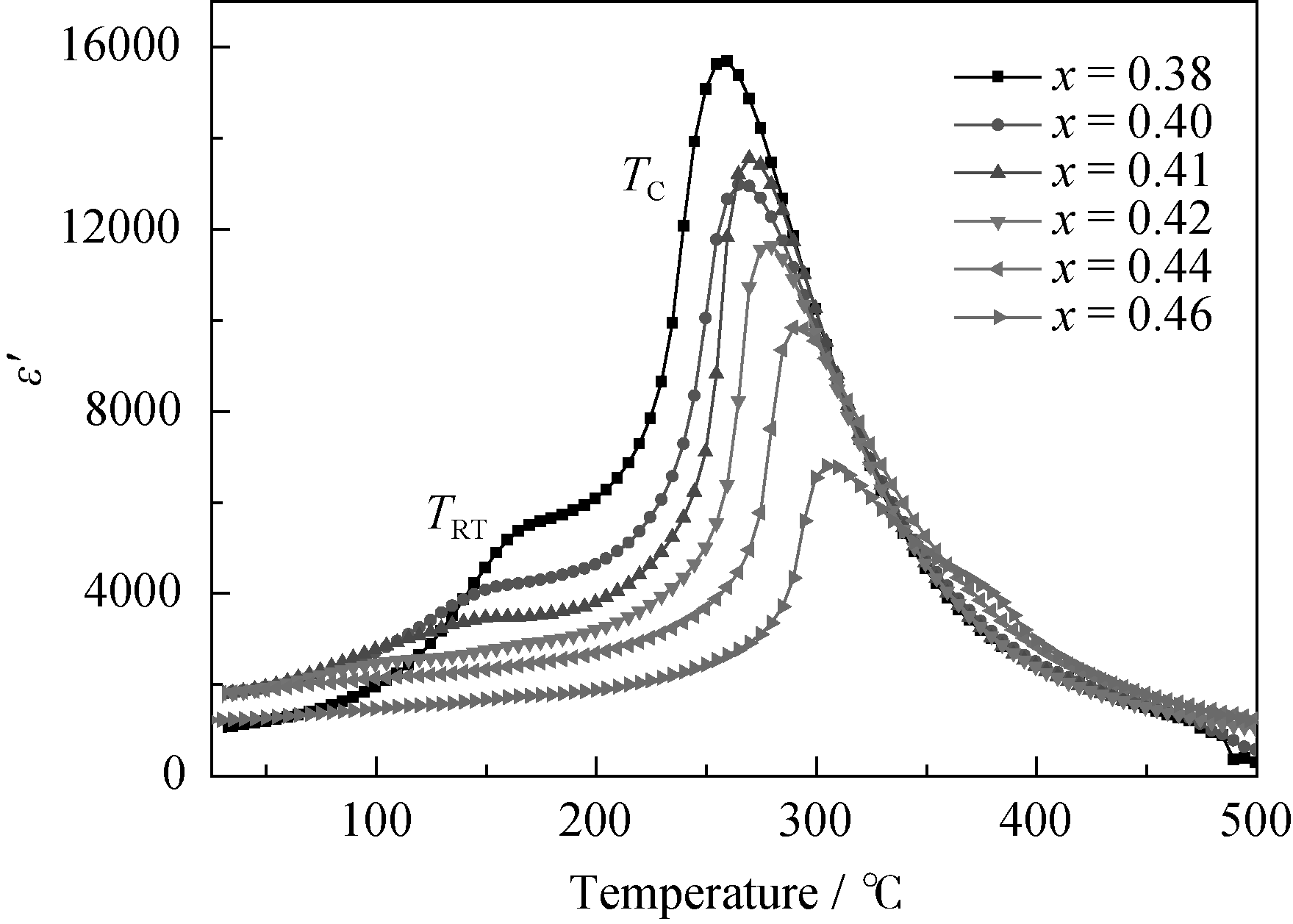

图5 (0.7-x)PLN-0.3PMN-xPT各组分的介电温谱

Fig. 5 Variations of dielectric constant of (0.7-x)PLN-0.3PMN- xPT ceramics with different compositions measured at 1 kHz

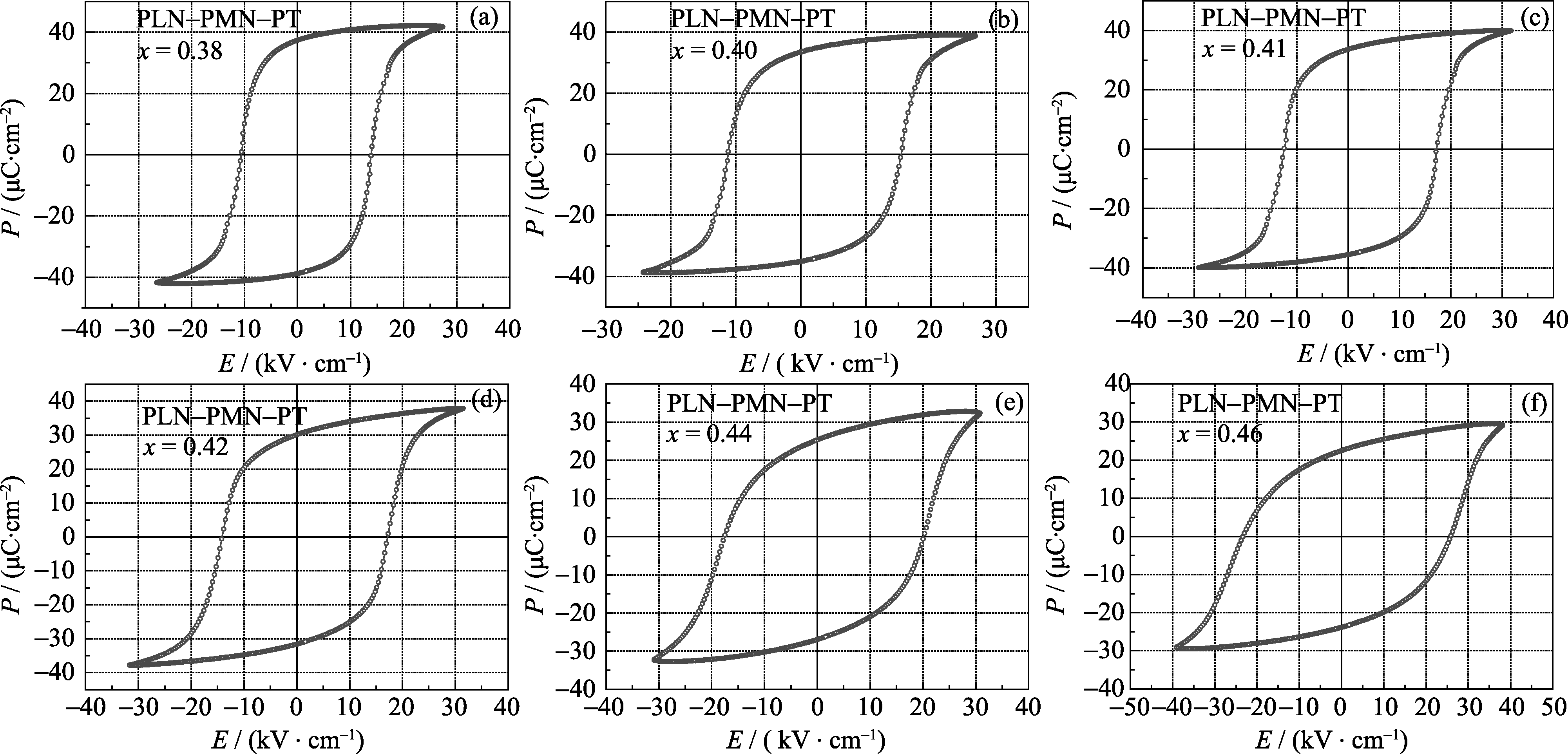

图6 室温下(0.7-x)PLN-0.3PMN-xPT陶瓷电滞回线

Fig. 6 Hysteresis loops for the (0.7-x)PLN-0.3PMN-xPT ceramics measured at room temperature

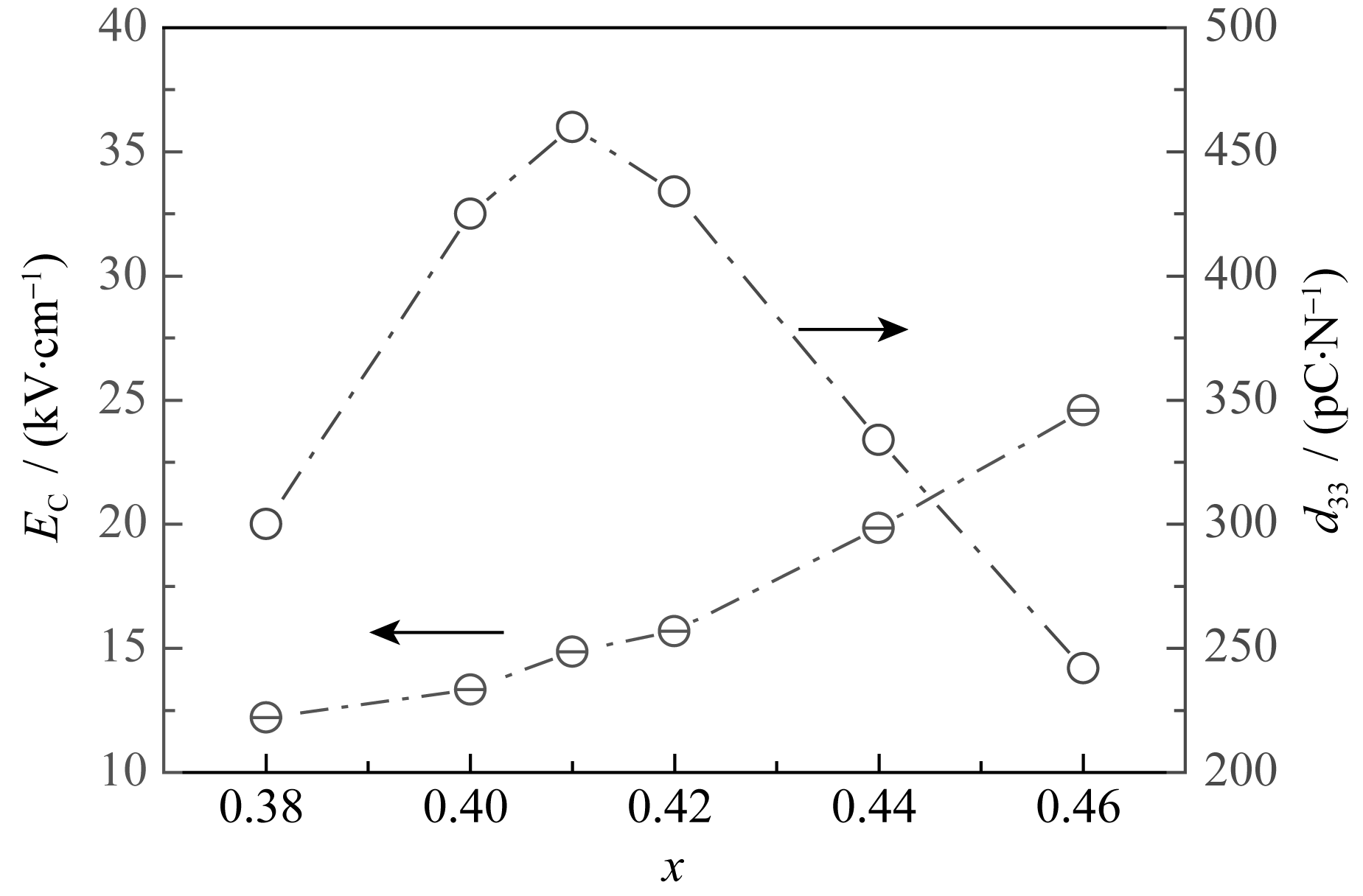

图7 (0.7-x)PLN-0.3PMN-xPT陶瓷的矫顽场EC和压电系数d33随组分x的变化曲线

Fig. 7 Coercive field Ec and piezoelectric coefficient d33 as a function of PT contents for (0.7-x)PLN-0.3PMN-xPT ceramics
