(Ba0.85Ca0.15)(Ti0.9Zr0.1-xSnx)O3无铅压电陶瓷的相结构与压电性能

doi:10.15541/jim20210416

无机材料学报 ›› 2022, Vol. 37 ›› Issue (5): 513-519.DOI: 10.15541/jim20210416

所属专题：【信息功能】电介质材料

(Ba_0.85Ca_0.15)(Ti_0.9Zr_0.1-_xSn_x)O₃无铅压电陶瓷的相结构与压电性能

王新健¹(), 朱逸璇¹, 张鹏¹, 杨文龙¹, 王挺², 郇宇¹()

1. 济南大学材料科学与工程学院, 济南 250022
2. 惠州学院广东省电子功能材料与器件重点实验室, 惠州 516001

收稿日期:2021-07-02 修回日期:2021-08-18 出版日期:2022-05-20 网络出版日期:2021-10-21
通讯作者: 郇宇, 副教授. E-mail: mse_huany@ujn.edu.cn
作者简介:王新健(1996-), 男, 硕士研究生. E-mail: wangxinjian_ujn@163.com
基金资助:
国家自然科学基金(52072150);广东省电子功能材料与器件重点实验室开放基金项目(EFMD202100Z)

Phase Structure and Piezoelectric Property of (Ba_0.85Ca_0.15)(Ti_0.9Zr_0.1-_xSn_x)O₃ Lead-free Piezoceramics

WANG Xinjian¹(), ZHU Yixuan¹, ZHANG Peng¹, YANG Wenlong¹, WANG Ting², HUAN Yu¹()

1. School of Material Science and Engineering, University of Jinan, Jinan 250022, China
2. Guangdong Provincial Key Laboratory of Electronic Functional Materials and Devices, Huizhou University, Huizhou 516001, China

Received:2021-07-02 Revised:2021-08-18 Published:2022-05-20 Online:2021-10-21
Contact: HUAN Yu, associate professor. E-mail: mse_huany@ujn.edu.cn
About author:WANG Xinjian (1996-), male, Master candidate. E-mail: wangxinjian_ujn@163.com
Supported by:
National Natural Science Foundation of China(52072150);Open Fund Foundation of Guangdong Provincial Key Laboratory of Electronic Functional Materials and Devices(EFMD202100Z)

摘要/Abstract

摘要：

钙锆共掺钛酸钡陶瓷(BCZT)具有优异的介电性能和压电性能, 是一类具有发展潜力的无铅压电陶瓷, 但其压电性能仍无法与铅基陶瓷媲美。为提高压电性能, 本研究对陶瓷材料进行Sn元素掺杂改性((Ba_0.85Ca_0.15)- (Ti_0.9Zr_0.1-_xSn_x)O₃, x=0.02~0.07))。晶体结构分析证实所有组分的陶瓷无杂相, 处于正交相与四方相两相共存状态, 并具有较大的c/a; 显微结构分析发现所有陶瓷都很致密, 且平均晶粒尺寸随着Sn含量的增加而增大。当x=0.04时, 陶瓷最致密, 且室温处于准同型相界附近, 因此拥有最佳的电学性能: d₃₃=590 pC•N ^-1, k_p=52.2%, tanδ=0.016, ε ^T₃₃=5372, d ^*₃₃=734 pm•V ^-1, IR=57.8 GΩ•cm。本研究表明: Sn掺杂的BCZT基无铅压电陶瓷具有优异的压电性能, 有望在换能器、机电传感器和驱动器等方面得到应用。

关键词: (BaCa)(TiZr)O₃基无铅压电陶瓷, Sn掺杂, 准同型相界, 晶粒尺寸效应

Abstract:

Zr and Ca co-doped brium titanate (BCTZ) based ceramics have attracted much attention due to their excellent dielectric and piezoelectric properties, which are potential candidates for lead-free piezoelectric materials. However, the piezoelectric property of BCTZ-based ceramics are still lower than that of commercial lead-based ceramics. Therefore, Sn elements are doped in (Ba_0.85Ca_0.15)(Ti_0.9Zr_0.1-_xSn_x)O₃ (x = 0.02-0.07) ceramics to improve their piezoelectric property in this work. First, all ceramics exhibit a pure perovskite structure without any secondary phase. Furthermore, orthorhombic and tetragonal phases coexist at room temperature for all counterparts. Second, all ceramics display a dense microstructure. And the grain size gradually increases with Sn content increasing. The crystal structure of x=0.04 ceramic locates in morphotropic phase boundary. Meanwhile, the x=0.04 ceramic exhibits the most dense microstructure. Hence, x=0.04 ceramic has the best piezoelectric property with d₃₃ = 590 pC•N ^-1, k_p = 52.2%, tanδ = 0.016, ε ^T₃₃= 5372, d ^*₃₃= 734 pm•V ^-1, and IR = 57.8 GΩ•cm. This work demonstrates that the Sn-doped BCZT based lead-free piezoelectric ceramics could be applied in transducers, electromechanical sensors and actuators.

Key words: (BaCa)(TiZr)O₃ based lead-free piezoceramics, Sn doping, morphotropic phase boundary, grain size effect

中图分类号:

TQ174

王新健, 朱逸璇, 张鹏, 杨文龙, 王挺, 郇宇. (Ba_0.85Ca_0.15)(Ti_0.9Zr_0.1-_xSn_x)O₃无铅压电陶瓷的相结构与压电性能[J]. 无机材料学报, 2022, 37(5): 513-519.

WANG Xinjian, ZHU Yixuan, ZHANG Peng, YANG Wenlong, WANG Ting, HUAN Yu. Phase Structure and Piezoelectric Property of (Ba_0.85Ca_0.15)(Ti_0.9Zr_0.1-_xSn_x)O₃ Lead-free Piezoceramics[J]. Journal of Inorganic Materials, 2022, 37(5): 513-519.

图/表 8

图1 BCZTSn陶瓷样品表面的SEM照片

Fig. 1 SEM images of the surface of BCZTSn ceramic samples (a) x=0.02; (b) x=0.03; (c) x=0.04; (d) x=0.05; (e) x=0.06; (f) x=0.07

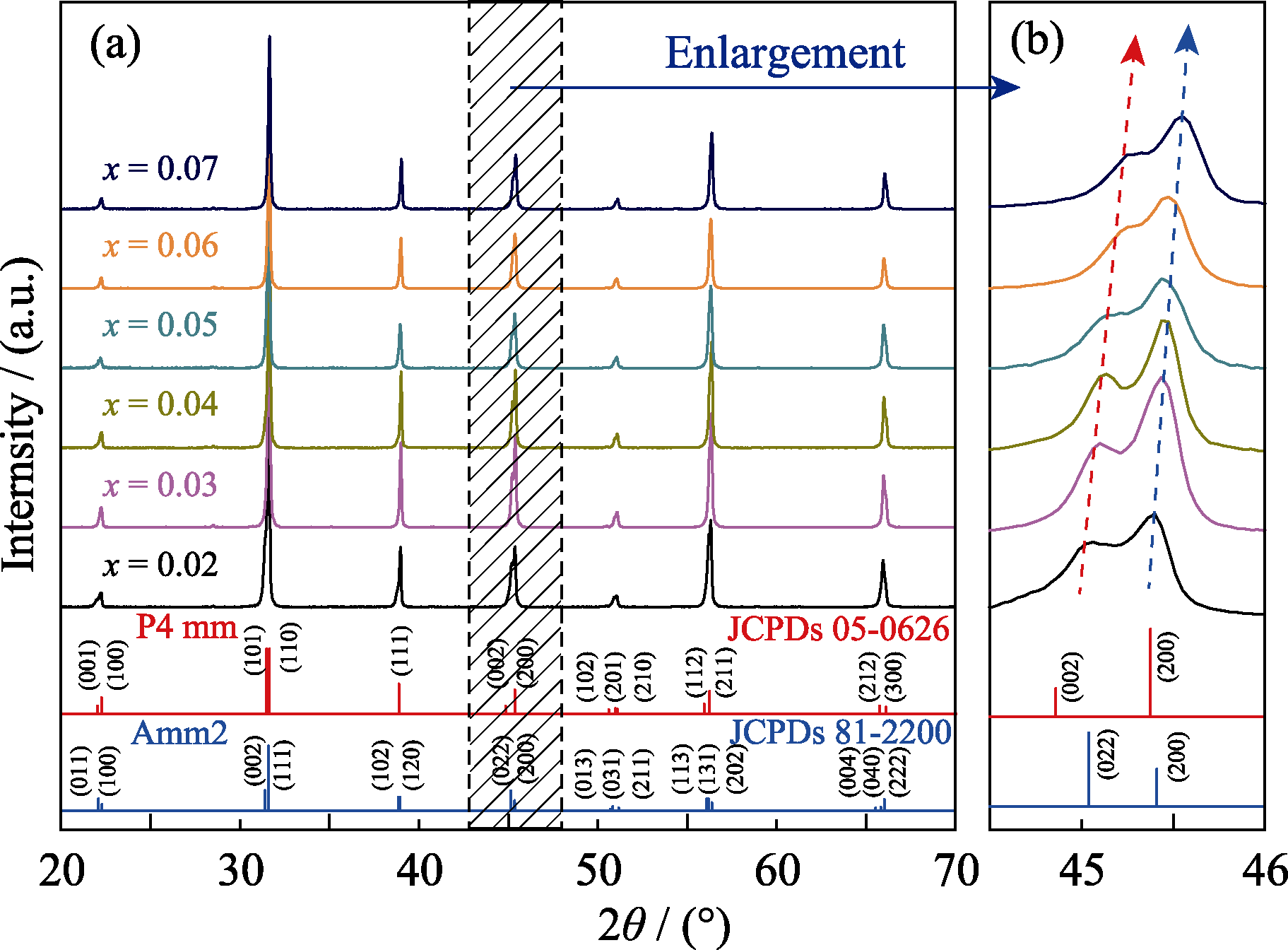

图2 BCZTSn陶瓷样品的(a)XRD图谱和(b)局位放大图

Fig. 2 (a) XRD patterns of BCZTSn ceramic samples and (b) partial magnified views

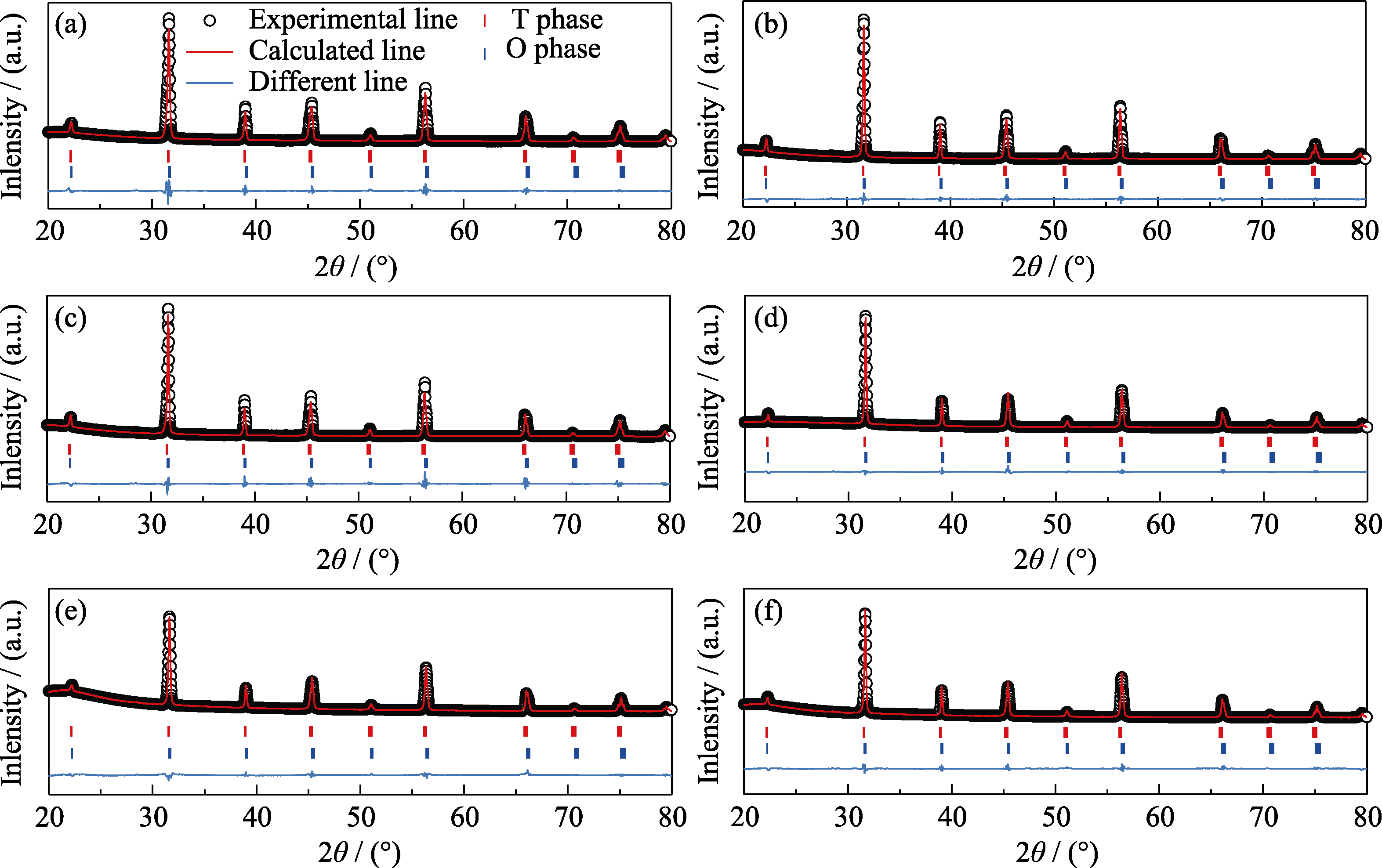

图3 BCZTSn陶瓷样品的XRD精修结果

Fig. 3 XRD rietveld refinements of BCZTSn ceramic samples (a) x=0.02; (b) x=0.03; (c) x=0.04; (d) x=0.05; (e) x=0.06; (f) x=0.07

表1 BCZT陶瓷样品的晶格参数

Table 1 Lattice parameters of BCZTSn ceramic samples

Sample	Lattice parameter							Phase ratio/%		R_wp/%
	Tetragonal phase				Orthorhombic phase
	a/nm	c/nm	V/nm³	c/a	a/nm	b/nm	c/nm	Tetragonal phase	Orthorhombic phase
x=0.02	0.39986	0.40071	0.06406	1.0021	0.39968	0.56622	0.56836	35	65	7.48
x=0.03	0.39982	0.40070	0.06405	1.0022	0.39949	0.56638	0.56771	37	63	5.91
x=0.04	0.39970	0.40069	0.06401	1.0024	0.39950	0.56597	0.56789	47	53	9.08
x=0.05	0.39909	0.40000	0.06370	1.0022	0.39989	0.56565	0.56669	47	53	6.49
x=0.06	0.39929	0.39960	0.06370	1.0007	0.39935	0.56606	0.56680	54	46	7.61
x=0.07	0.39901	0.39981	0.06365	1.0002	0.39923	0.56707	0.56528	58	42	7.94

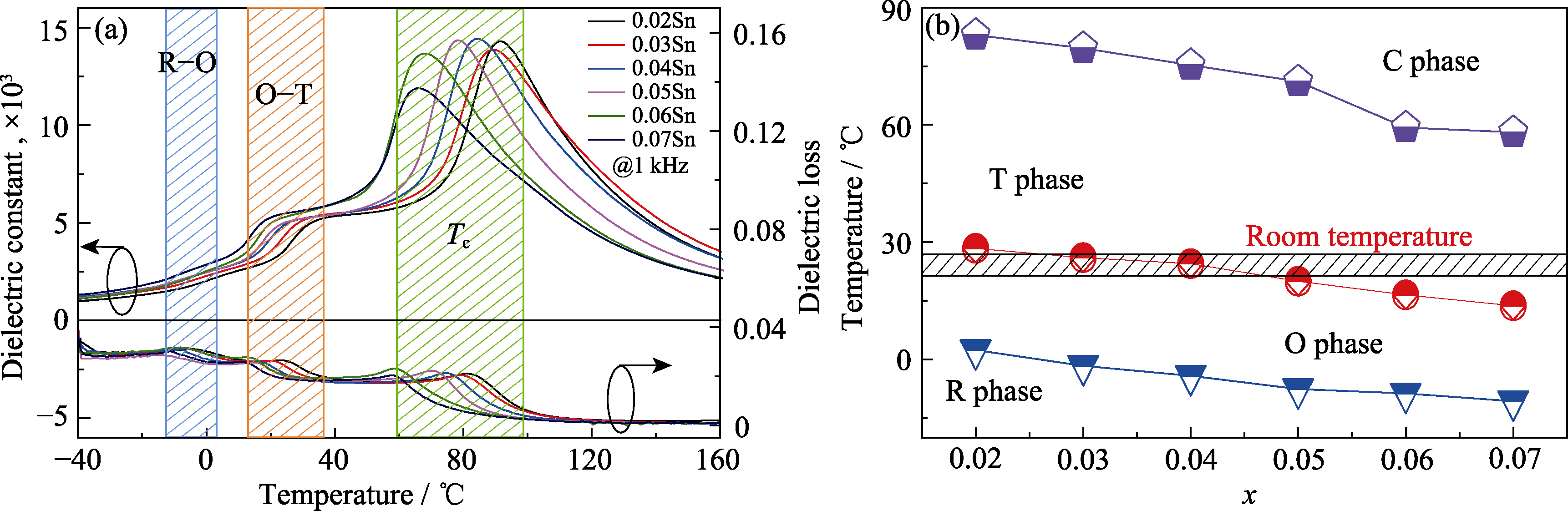

图4 BCZTSn陶瓷样品的介电温谱和相转变温度图

Fig. 4 Temperature dielectric spectra and phase transition temperature diagram of BCZTSn ceramic samples (a) Temperature dielectric spectra; (b) Phase transition temperature diagram Colorful figures are available on website

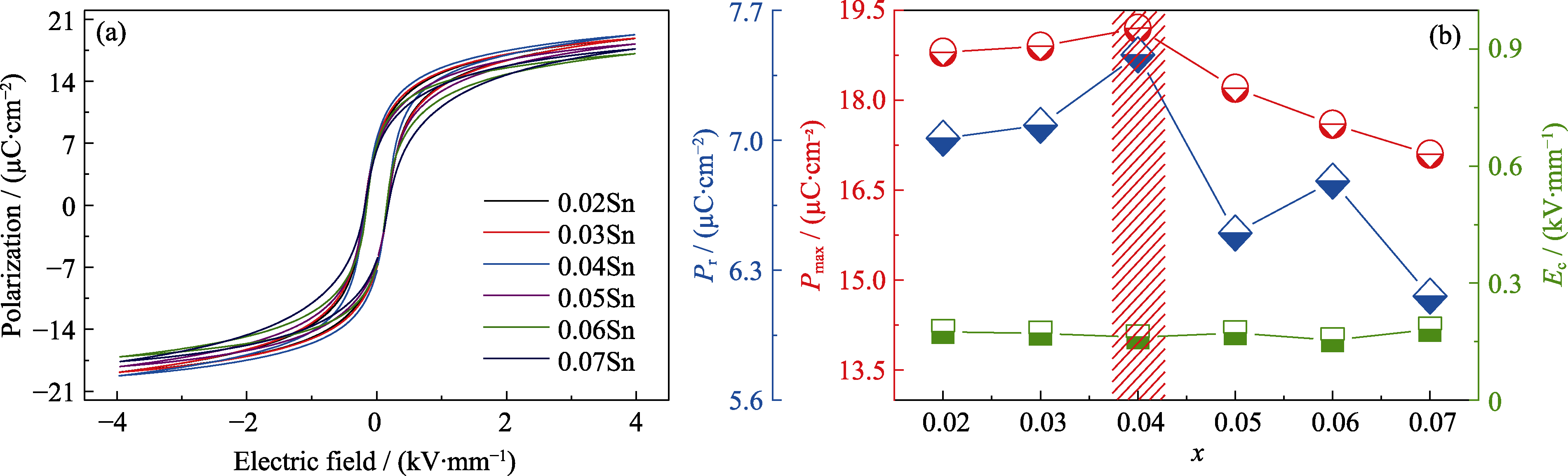

图5 BCZTSn陶瓷样品的电滞回线以及数据汇总

Fig. 5 P-E hysteresis loops of BCZTSn ceramic samples (a) P-E hysteresis loops at 1 Hz; (b) Data summary of Pmax, Pr and Ec Colorful figures are available on website

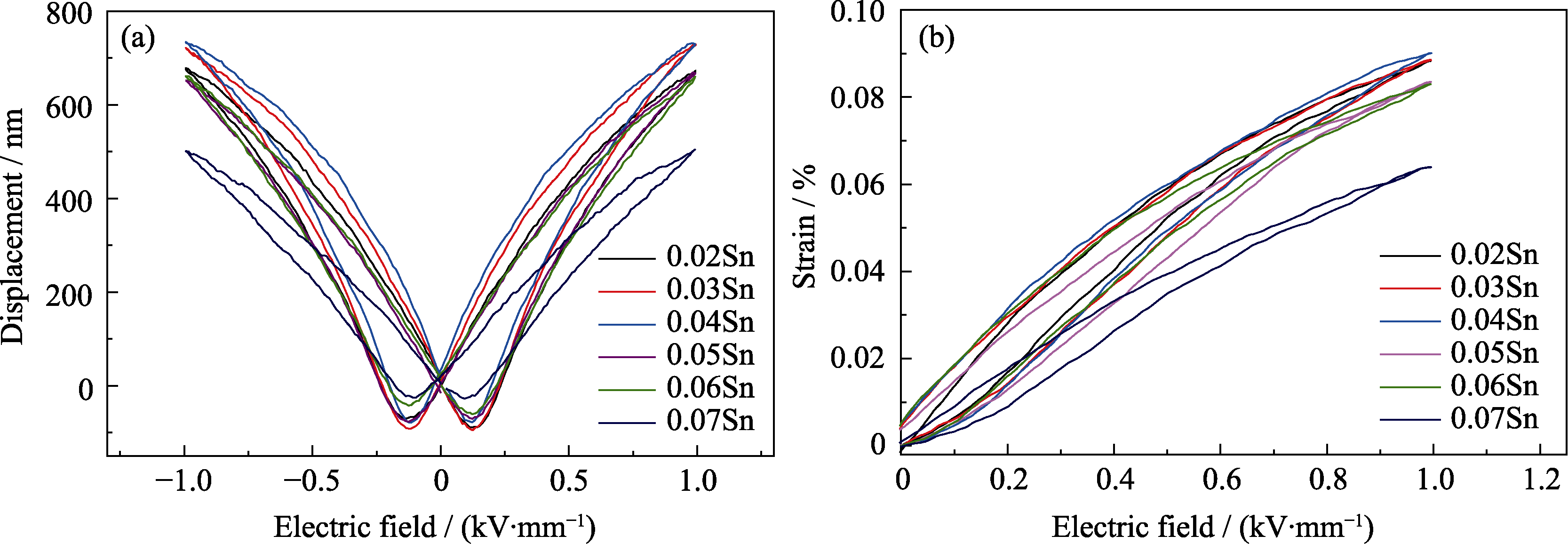

图6 BCZTSn陶瓷样品的应力-应变曲线

Fig. 6 S-E curves of BCZTSn ceramic samples (a) Bipolar S-E curves; (b) Unipolar S-E curves Colorful figures are available on website

表2 BCZTSn陶瓷样品的基本电学性能

Table 2 Basic electric property of BCZTSn ceramic samples

Component	d₃₃/(pC×N^-1)	k_p/%	tanδ	ε^T₃₃	d^*₃₃/(pm×V^-1)	IR/(GW×cm)
x=0.02	493	45.6	0.019	4773	678	55.5
x=0.03	545	47.5	0.017	5083	729	56.3
x=0.04	590	52.2	0.016	5372	734	57.8
x=0.05	464	42.1	0.018	5152	669	56.8
x=0.06	430	41.3	0.019	5446	660	53.9
x=0.07	364	32.5	0.02	6237	504	53.4

参考文献 36

[1]	HAO J, LI W, ZHAI J, et al. Progress in high-strain perovskite piezoelectric ceramics. Materials Science & Engineering R-Reports, 2019,135:1-57.
[2]	GAO X, WU J, YU Y, et al. Giant piezoelectric coefficients in relaxor piezoelectric ceramic PMN-PZT for vibration energy harvesting. Advanced Functional Materials, 2018,28(30):1706895.
[3]	TRESSLER J, ALKOY S, NEWNHAM R. Piezoelectric sensors and sensor materials. Journal of Electroceramics, 1998,2(4):257-272.
[4]	MUDINEPALLI V R, FENG L, LIN W C, et al. Effect of grain size on dielectric and ferroelectric properties of nanostructured Ba_0.8Sr_0.2TiO₃ ceramics. Journal of Advanced Ceramics, 2015,4(1):46-53.
[5]	HAYATI R, BAHREVAR M A, GANJKHANLOU Y, et al. Electromechanical properties of Ce-doped (Ba_0.85Ca_0.15)(Zr_0.1Ti_0.9)O₃ lead-free piezoceramics. Journal of Advanced Ceramics, 2019,8(2):186-195.
[6]	FAN Y, WANG Z X, HUAN Y, et al. Enhanced thermal and cycling reliabilities in (K,Na)(Nb,Sb)O₃-CaZrO₃- ceramics. Journal of Advanced Ceramics, 2020,9(3):349-359.
[7]	WANG K, LI J F. (K,Na)NbO₃-based lead-free piezoceramics: phase transition, sintering and property enhancement. Journal of Advanced Ceramics, 2012,1(1):24-37.
[8]	JIANG X P, FU X L, CHEN C, et al. High performance Aurivillius type Na_0.5Bi_4.5Ti₄O₁₅ piezoelectric ceramics with neodymium and cerium modification. Journal of Advanced Ceramics, 2015,4(1):54-60.
[9]	HERNANDEZ-CUEVAS G, LEYVA MENDOZA J R, GARCIA-CASILLAS P E, et al. Effect of the sintering technique on the ferroelectric and d₃₃ piezoelectric coefficients of Bi_0.5(Na_0.84K_0.16)_0.5TiO₃ ceramic. Journal of Advanced Ceramics, 2019,8(2):278-288.
[10]	ZHENG P, ZHANG J L, TAN Y Q, et al. Grain-size effects on dielectric and piezoelectric properties of poled BaTiO₃ ceramics. Acta Materialia, 2012,60(13/14):5022-5030.
[11]	HUAN Y, WANG X H, FANG J, et al. Grain size effect on piezoelectric and ferroelectric properties of BaTiO₃ ceramics. Journal of the European Ceramic Society, 2014,34(5):1445-1448.
[12]	JIANG M, LIN Q, LIN D M, et al. Effects of MnO₂ and sintering temperature on microstructure, ferroelectric, and piezoelectric properties of Ba_0.85Ca_0.15Ti_0.90Zr_0.10O₃ lead-free ceramics. Journal of Materials Science, 2013,48:1035-1041.
[13]	ZHOU M X, LIANG R H, ZHOU Z Y, et al. Enhanced Curie temperature and piezoelectric properties of (Ba_0.85Ca_0.15)(Zr_0.10Ti_0.90)O₃ lead-free ceramics after the addition of LiTaO₃. Materials Research Bulletin, 2018,106:213-219.
[14]	LIU Z, YUAN R H, XUE D Z, et al. Origin of large electrostrain in Sn⁴+ doped Ba(Zr_0.2Ti_0.8)O₃-_x(Ba_0.7Ca_0.3)TiO₃ ceramics. Acta Materialia, 2018,157:155-164.
[15]	ZHANG Y, SUN H J, CHEN W. A brief review of Ba(Ti_0.8Zr_0.2)O₃- (Ba_0.7Ca_0.3)TiO₃ based lead-free piezoelectric ceramics: past, present and future perspectives. Journal of Physics and Chemistry of Solids, 2018,114:207-219.
[16]	FAVARIM H R, MICHALOWICZ A, M'PEKO J C, et al. Phase- transition studies of Ba_0.90Ca_0.10(Ti₁-_xZr_x)O₃ ferroelectric ceramic compounds. Physica Status Solidi (a), 2010,207(11):2570-2577.
[17]	LI W, XU Z J, CHU R Q, et al. Piezoelectric and dielectric properties of (Ba₁-_xCa_x)(Ti_0.95Zr_0.05)O₃ lead-free ceramics. Journal of the American Ceramic Society, 2010,93(10):2942-2944.
[18]	LI W, XU Z J, CHU R Q, et al. High piezoelectric d₃₃ coefficient in (Ba₁-_xCa_x)(Ti_0.98Zr_0.02)O₃ lead-free ceramics with relative high Curie temperature. Materials Letters, 2010,64(21):2325-2327.
[19]	LI W, XU Z J, CHU R Q, et al. Polymorphic phase transition and piezoelectric properties of (Ba₁-_xCa_x)(Ti_0.9Zr_0.1)O₃ lead-free ceramics. Physica B: Condensed Matter, 2010,405(21):4513-4516.
[20]	LIU W, REN X B. Large piezoelectric effect in Pb-free ceramics. Physical Review Letters, 2009,103(25):257602.
[21]	WANWISA J, THEERACHAI B, TARAS K, et al. High piezoelectric response and polymorphic phase region in the lead-free piezoelectric BaTiO₃-CaTiO₃-BaSnO₃ ternary system. RSC Advances, 2017,7(48):30166-30176.
[22]	WANG H, YUAN H, HU Q, et al. Exploring the high-performance (1-x)BaTiO₃-xCaZrO₃ piezoceramics with multiphase coexistence (R-O-T) from internal lattice distortion and domain features. Journal of Alloys and Compounds, 2021,853:157167.
[23]	WANG X F, LIU J. Enhanced ferroelectric and piezoelectric properties in SnO₂ modified Ba_0.85Ca_0.15Zr_0.1Ti_0.9O₃ lead-free ceramics. Journal of the Ceramic Society of Japan, 2020,128(12):1013-1017.
[24]	WANG D W, FAN Z M, RAO G H, et al. Ultrahigh piezoelectricity in lead-free piezoceramics by synergistic design. Nano Energy, 2020,76:104944.
[25]	LI W, XU Z J, CHU R Q, et al. Dielectric and piezoelectric properties of Ba(Zr_xTi₁-_x)O₃ lead-free ceramics. Brazilian Journal of Physics, 2010,40(3):353-356.
[26]	CHEN Z H, LI Z W, DING J N, et al. Piezoelectric and ferroelectric properties of Ba_0.9Ca_0.1Ti_0.9Sn_0.1O₃ lead-free ceramics with La₂O₃ addition. Journal of Alloys and Compounds, 2017,704:193-196.
[27]	KUMAR R, ASOKAN K, PATNAIK S, et al. Evolution of microstructure and relaxor ferroelectric properties in (La_zBa₁-_z)(Ti_0.80Sn_0.20)O₃. Journal of Alloys and Compounds, 2016,687:197-203.
[28]	GENE H H. Ferroelectric ceramics: history and technology. Journal of the American Ceramic Society, 1999,82(4):797-818.
[29]	LEU C C, CHEN C Y, CHIEN C H, et al. Domain structure study of SrBi₂Ta₂O₉ ferroelectric thin films by scanning capacitance microscopy. Applied Physics Letters, 2003,82(20):3493-3495.
[30]	TSUR Y, DUNBAR T D, RANDALL C A, et al. Crystal and defect chemistry of rare earth cations in BaTiO₃. Journal of Electroceramics, 2001,7:25-34.
[31]	BIJALWAN V, TOFEL P, ERHART J, et al. The complex evaluation of functional properties of nearly dense BCZT ceramics and their dependence on the grain size. Ceramics International, 2019,45(1):317-326.
[32]	CAI W, ZHANG Q W, ZHOU C, et al. Effects of oxygen partial pressure on the electrical properties and phase transitions in (Ba,Ca)(Ti,Zr)O₃ ceramics. Journal of Materials Science, 2020,55(23):9972-9992.
[33]	ZHANG S W, ZHANG H L, ZHANG B P, et al. Dielectric and piezoelectric properties of (Ba_0.95Ca_0.05)(Ti_0.88Zr_0.12)O₃ ceramics sintered in a protective atmosphere. Journal of the European Ceramic Society, 2009,29(15):3235-3242.
[34]	LIN Q, JIANG M, LIN D M, et al. Effects of La-doping on microstructure, dielectric and piezoelectric properties of Ba_0.85Ca_0.15Ti_0.90Zr_0.10O₃ lead-free ceramics. Journal of Materials Science: Materials in Electronics, 2012,24(2):734-739.
[35]	ISLAM R A, PRIYA S, AMIN A. Mn-doping effect on dielectric and electromechanical losses in the system Pb(Zr_xTi₁-_x)O₃- Pb(Zn_1/3Nb_2/3)O₃. Journal of Materials Science, 2007,42(24):10052-10057.
[36]	RAMAM K, LOPEZ M. Microstructure, dielectric and electromechanical properties of PLSZFT nanoceramics for piezoelectric applications. Journal of Materials Science: Materials in Electronics, 2007,19(11):1140-1145.
