Journal of Inorganic Materials ›› 2013, Vol. 28 ›› Issue (4): 403-408.doi: 10.3724/SP.J.1077.2013.12289

• Orginal Article • Previous Articles     Next Articles

Synthesis and Capacitance Characteristics of the Graphene Grafted Polypyrrole Composites

Jian-Hua LIU, Shi-Lu ZHANG, Mei YU, Jun-Wei AN, Song-Mei LI

  1. School of Materials Science and Engineering, Beihang University, Beijing 100191, China
  • Received:2012-05-04 Revised:2012-06-21 Online:2013-04-10 Published:2013-03-20

Abstract:

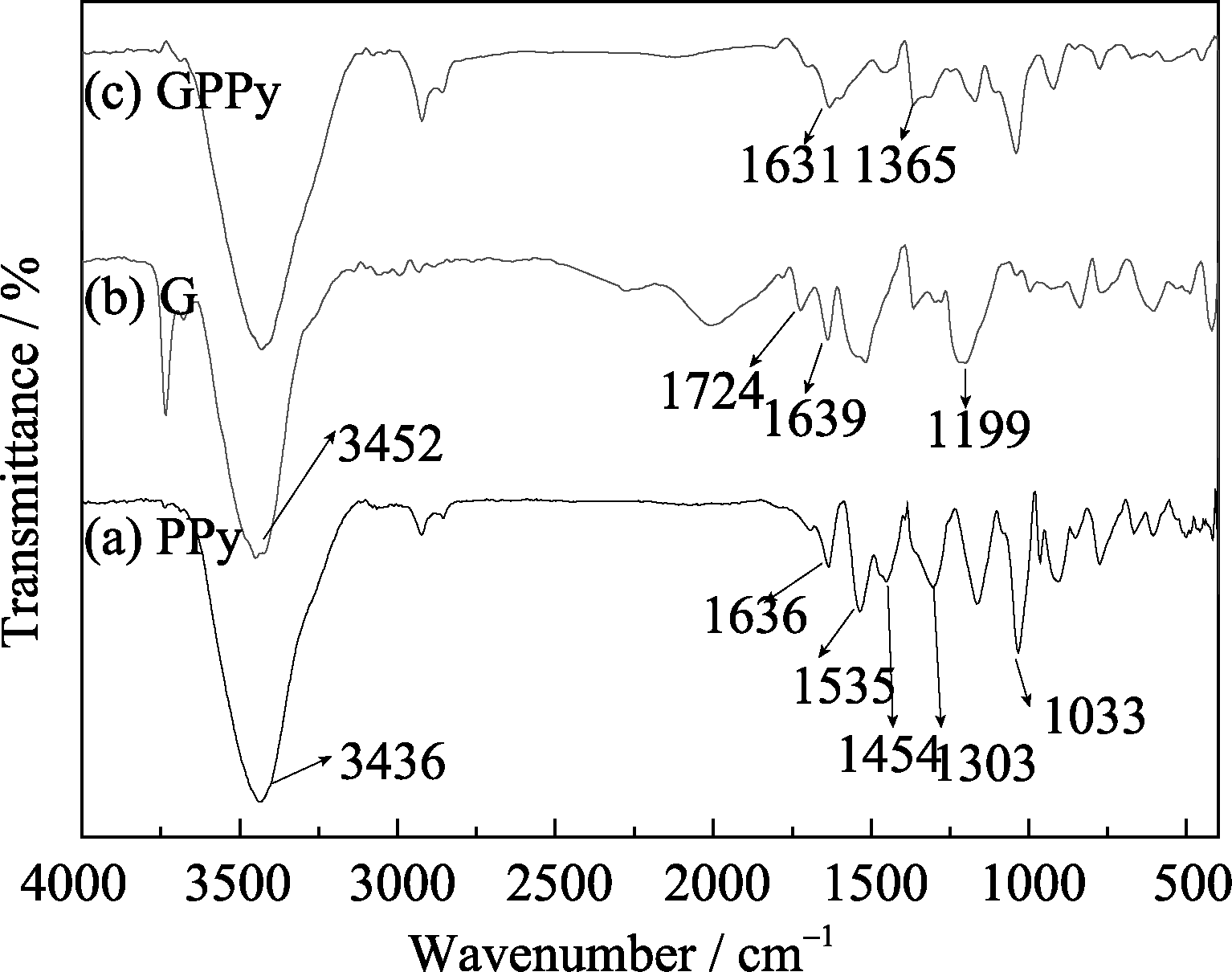

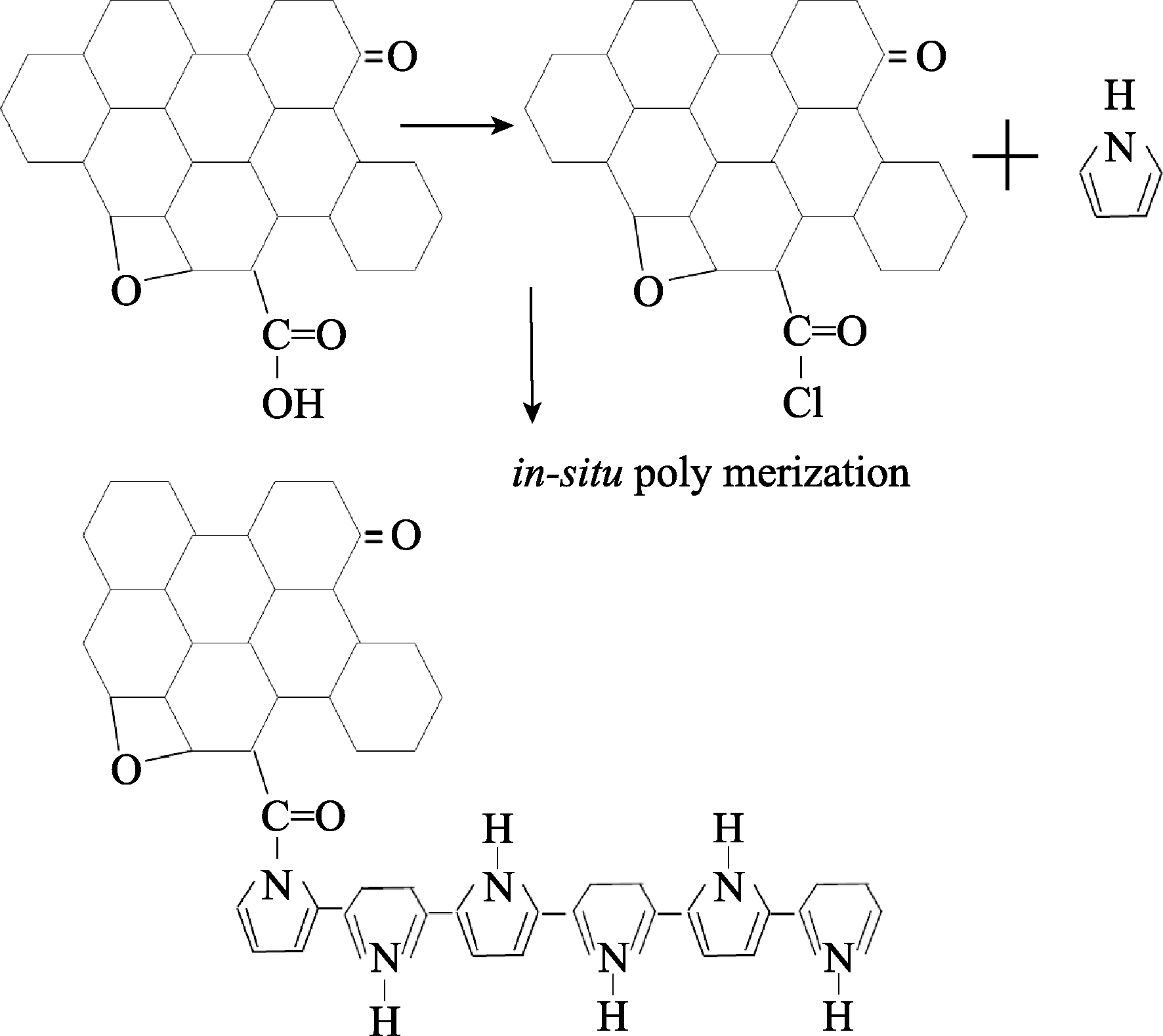

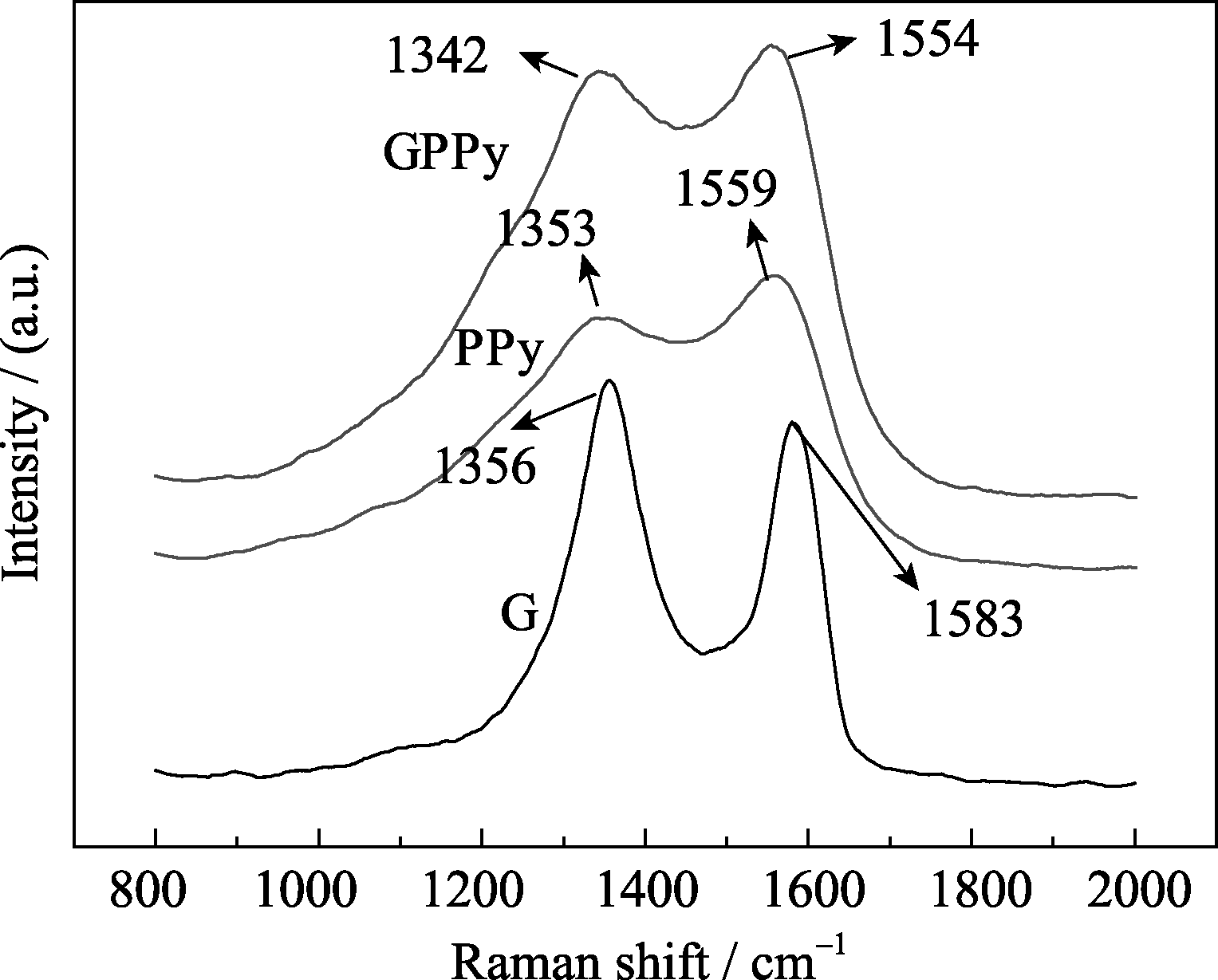

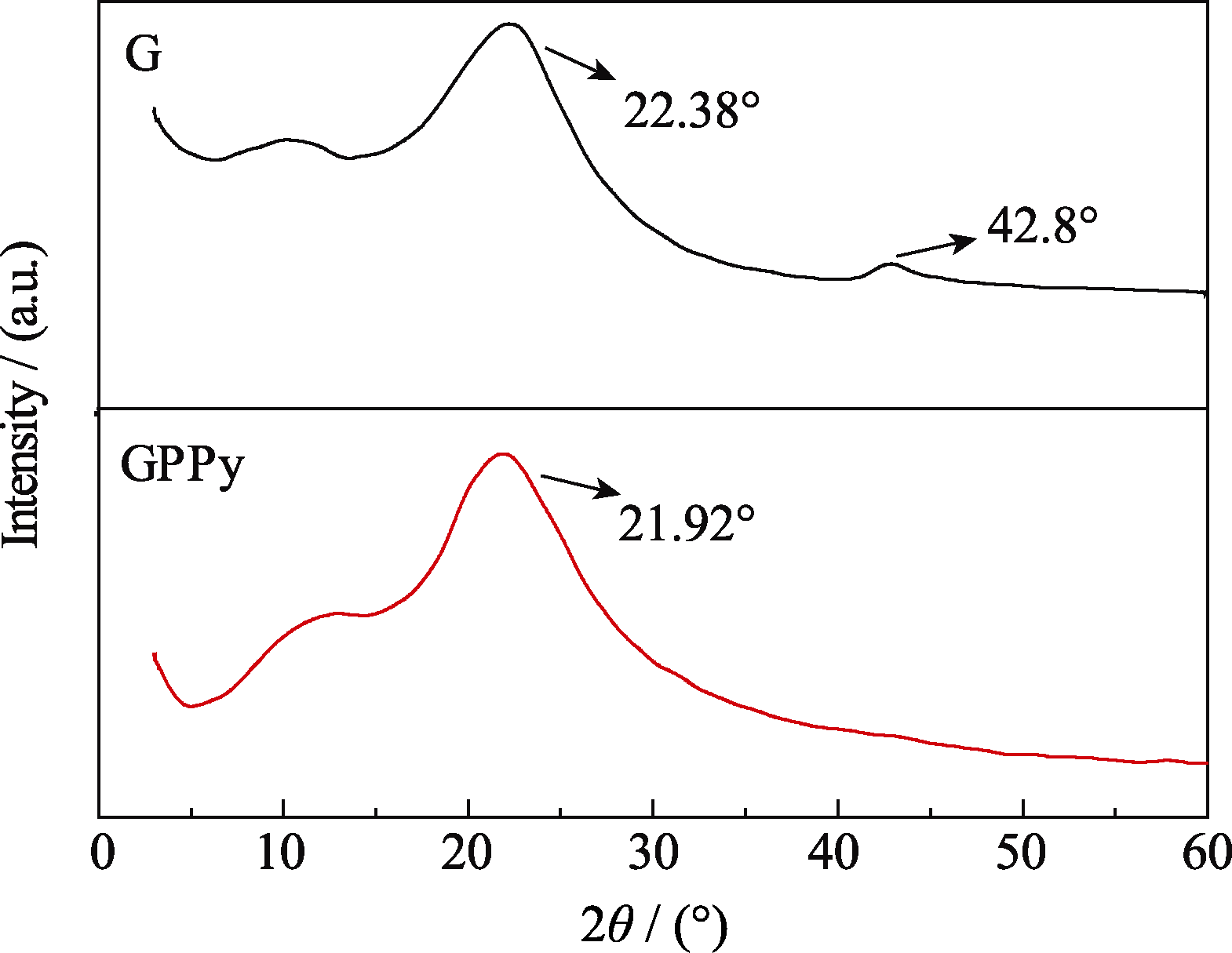

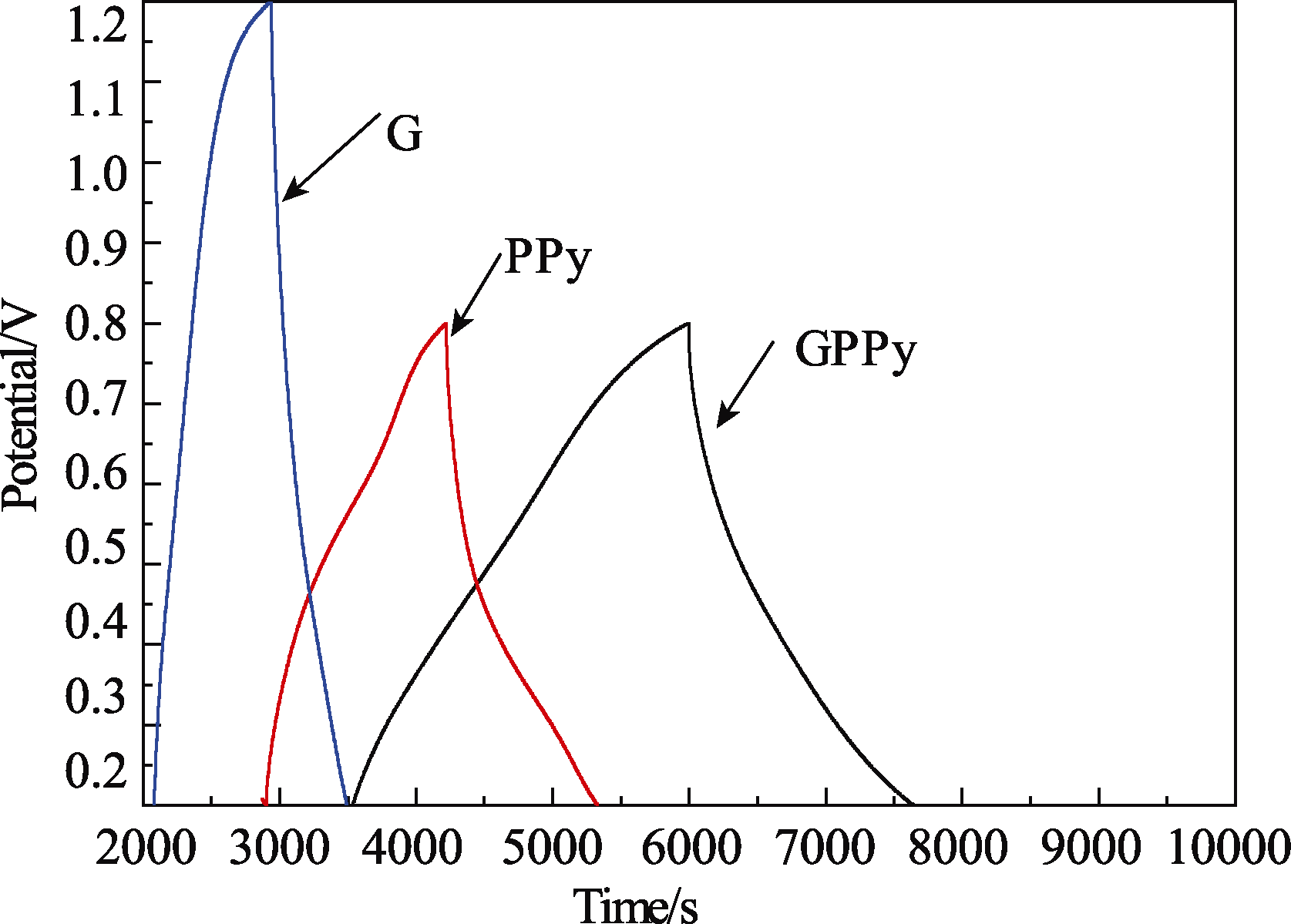

The graphene grafted polypyrrole composites were in situ synthesized with the chemical grafting method. The testing and characterization of the structure and morphology indicated that the pyrrole monomer in the composites was grafted with the graphene lamellar layer on-chip evenly distributed through the amide bond, and a large number of the pyrrole grow into a chain connecting to the graphene layers. The synergistic effect of graphene and polypyrrole made the conductivity of the composites significantly improve from 0.22 S/cm to 3.32 S/cm. The capacitance value of graphene grafted polypyrrole composites reached 284 F/g, which increased by 52% compared with the specific capacitance of pure polypyrrole 186 F/g. It indicated the composites’s excellent characteristics of the capacitor.

Key words: graphene, polypyrrole, in-situ synthesis, composites, specific capacitance

CLC Number:

  • TQ152
