Proton Ceramic Membrane Reactor: Preparation and Low-temperature Ammonia Decomposition Performance

doi:10.15541/jim20250057

Abstract

Abstract:

Ammonia (NH₃) has been considered as a hydrogen storage material due to high hydrogen storage density and ease of liquefaction, thus hydrogen (H₂) production by ammonia decomposition is an ideal method for hydrogen preparation. However, traditional ammonia decomposition technologies face challenges such as high operating temperatures, low efficiency at moderate temperatures, and difficulties in hydrogen purification. In this study, proton ceramic membrane reactor (PCMR) with symmetric structure of porous electrode Ni-BZCY/BZCY/Ni-BZCY (BZCY: BaZr_0.1Ce_0.7Y_0.2O_3-_δ) was prepared by co-pressing method. At 600 ℃, PCMR exhibited polarization resistances (R_p) of 0.11 and 0.23 Ω·cm² in H₂ and NH₃ atmospheres, respectively, with corresponding current densities of 1.87 and 1.56 A·cm^-2 at an applied voltage of 0.8 V. Even at 300 ℃ and 0.8 V, the current densities in H₂ and NH₃ remained at 0.16 and 0.06 A·cm^-2, respectively. The NH₃ conversion efficiency of PCMR reached 80% at 600 ℃, improving by 8% compared to bare catalyst material. Even at 350 ℃, an additional improvement of 0.3% can still be attained, and the NH₃ conversion efficiency of about 1% was demonstrated even at 300 ℃. This study provides a novel approach to low-temperature ammonia decomposition for hydrogen production.

Key words: hydrogen production, ammonia decomposition, low-temperature, proton ceramic membrane reactor, electrochemical property, proton transport

CLC Number:

TK91

TANG Yang, LIU Limin, ZHOU Xiaoliang, ZHANG Bo, JIANG Xingzhou, JIA Haoyi, LUO Yanlinqing. Proton Ceramic Membrane Reactor: Preparation and Low-temperature Ammonia Decomposition Performance[J]. Journal of Inorganic Materials, 2025, 40(11): 1277-1284.

Figures/Tables 12

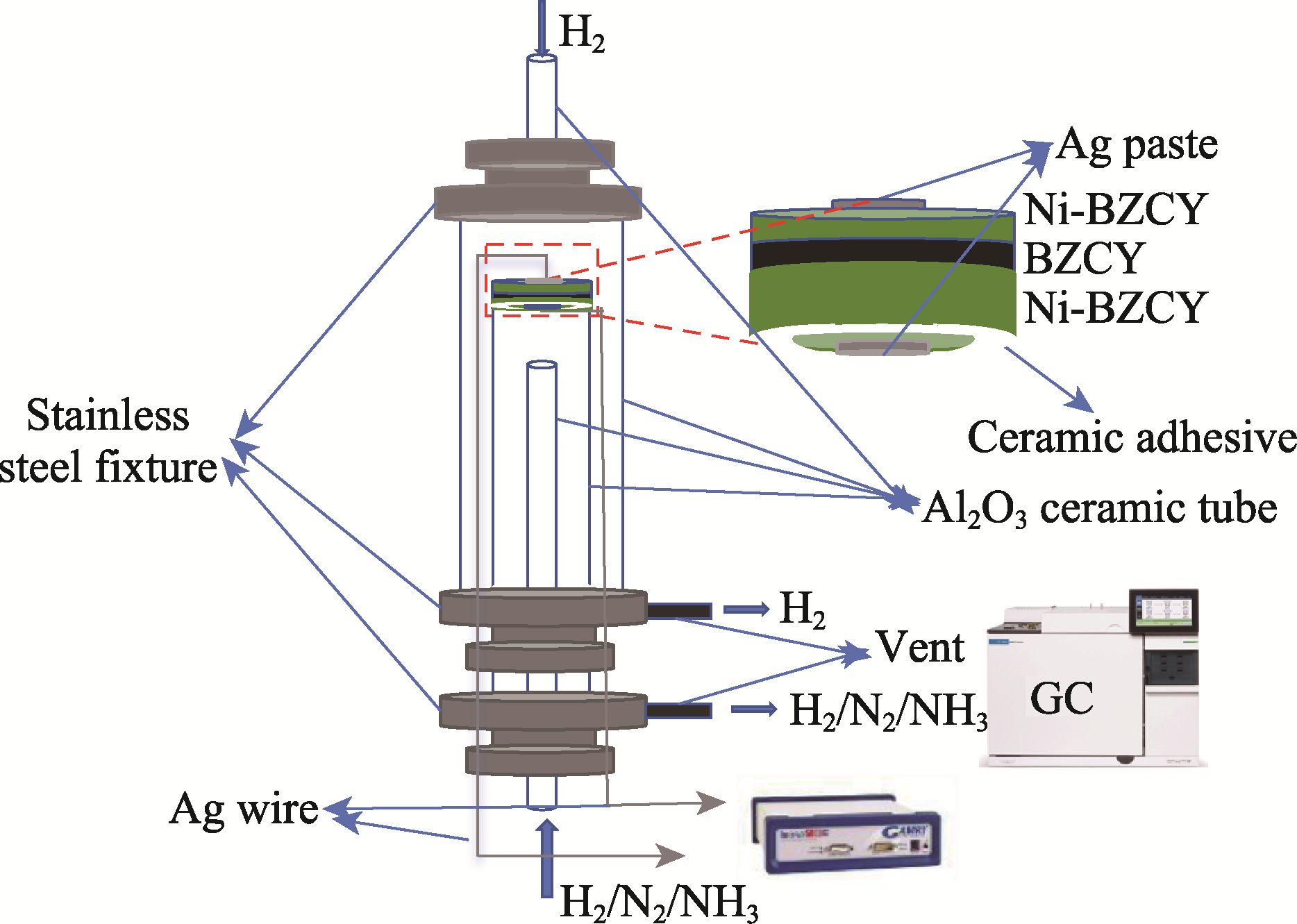

Fig. 1 Schematic diagram of the PCMR test setup

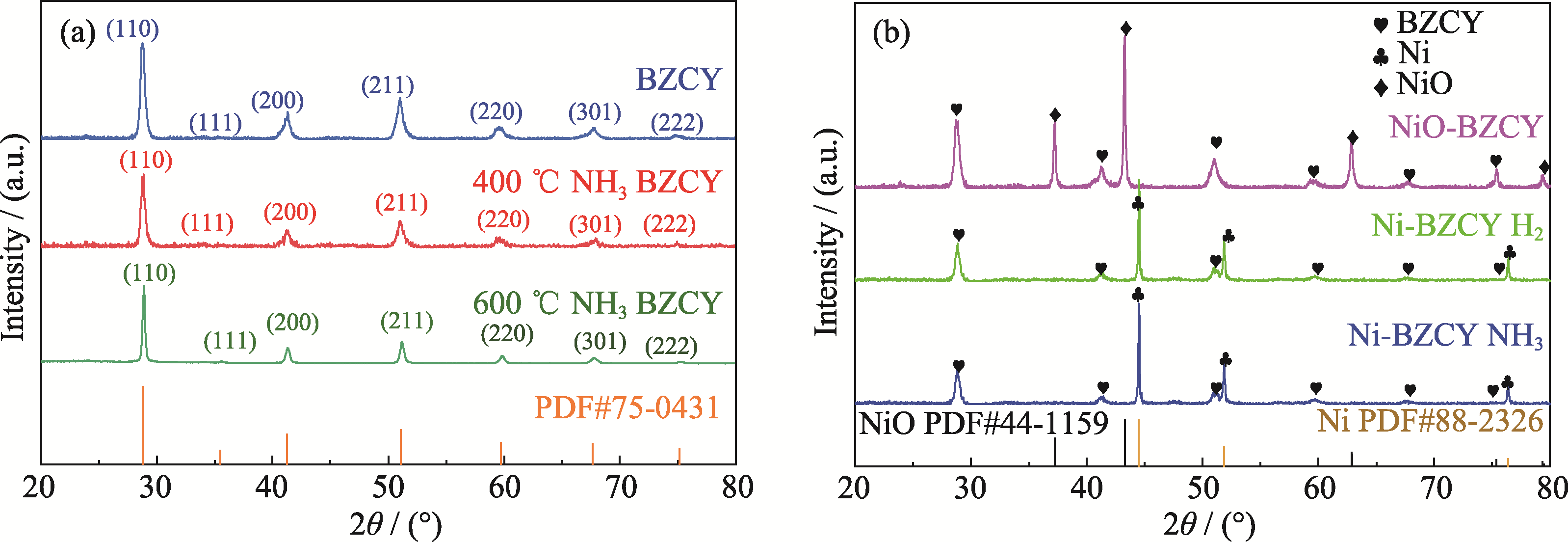

Fig. 2 XRD patterns of samples (a) BZCY calcined at 1000 ℃ for 5 h in air and calcined at 400 and 600 ℃ for 4 h in NH3; (b) NiO-BZCY and Ni-BZCY treated with H2 and NH3 for 4 h at 400 ℃

Fig. 3 SEM images of (a) cross-section, (b) electrolyte, and (c, d) electrodes on both sides of PCMR, and (e-j) EDS elemental mappings of NiO-BZCY electrode

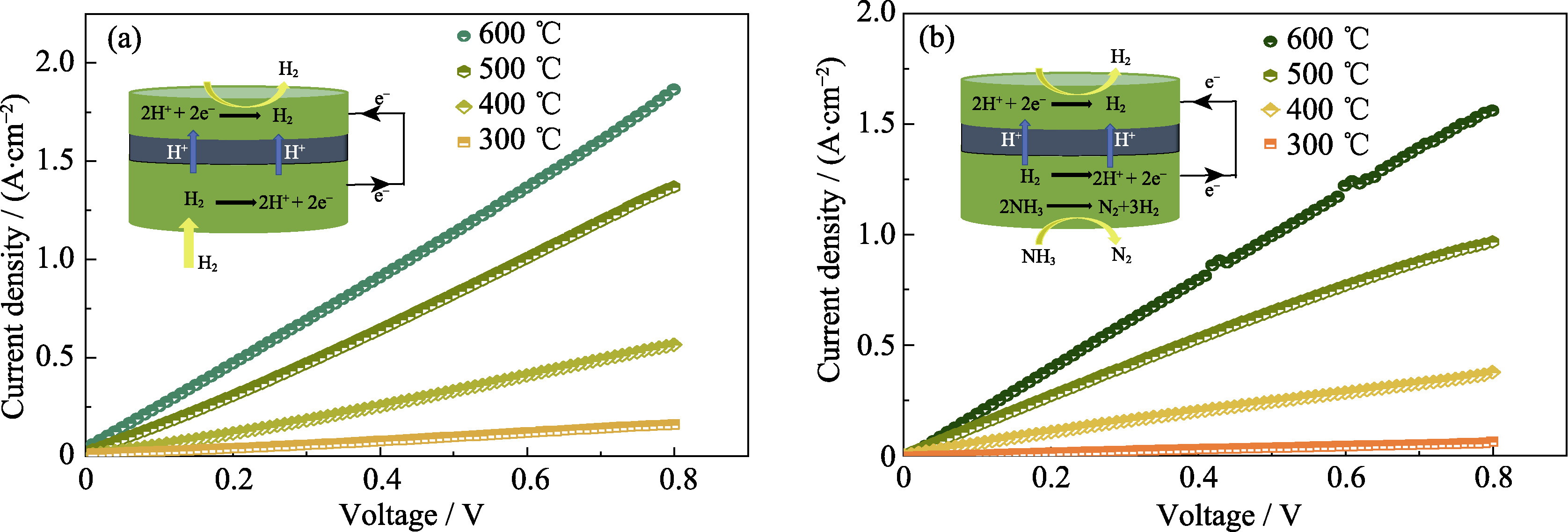

Fig. 4 LSV results under (a) H2 and (b) NH3 environments for PCMR

Table 1 Current density of partially symmetrical PCMR

Reactor structure	Temperature/℃, gas environment	Voltage/V	Current density/ (A·cm^-2)	Ref.
Ni-BZCY/BZCY/Ni-BZCY	650, 50% H₂-N₂(measured at only 650 ℃)	0.8	2.0	[18]
LSV-Ce-Pd/BZCYCu/LSV-Ce-Pd	600, H₂(3% H₂O)	1.0	0.92	[31]
Ni-BZCY/BZCY/Ni-BZCY	450, 60% H₂(maximum testing temperature of 450 ℃)	1.0	0.53	[32]
Ni-BZCYYb/BZCYYb/Ni-BZCYYb	600, 50% H₂-N₂	0.8	1.78	[30]
Ni-BZCY/BZCY/Ni-BZCY	600, H₂(3% H₂O)	0.8	1.87	This work
Ni-BZCY/BZCY/Ni-BZCY	600, NH₃	0.8	1.56	This work

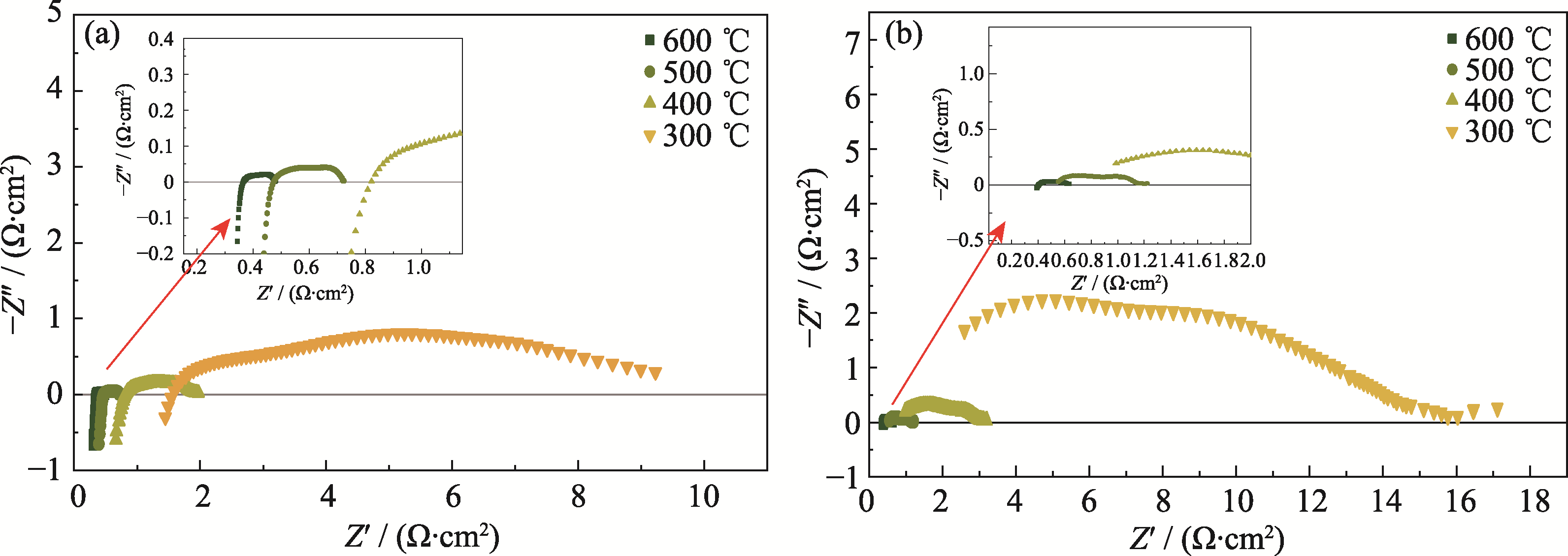

Fig. 5 EIS plots under (a) H2 and (b) NH3 environments for PCMR

Table 2 Resistances under H2 and NH3 environments for PCMR (Ω·cm2)

Temperature/℃	H₂			NH₃
Temperature/℃	R_total	R_Ω	R_p	R_total	R_Ω	R_p
600	0.48	0.37	0.11	0.67	0.44	0.23
500	0.72	0.47	0.25	1.28	0.61	0.67
400	1.98	0.81	1.17	3.31	1.09	2.22
300	9.23	1.54	7.69	17.31	2.80	14.51

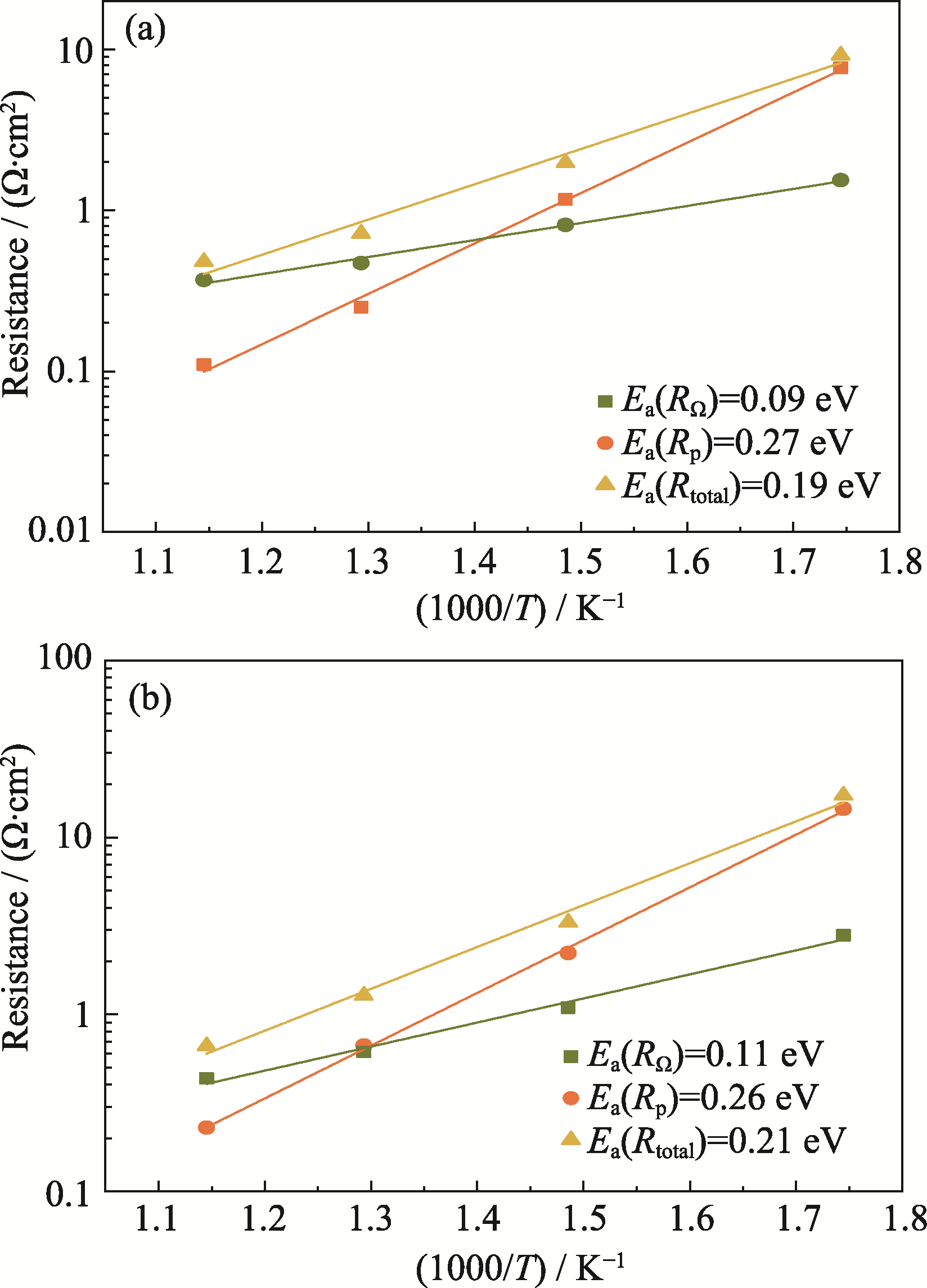

Fig. 6 Arrhenius curves of temperature vs. Rp, RΩ and Rtotal of PCMR under (a) H2 and (b) NH3 environments

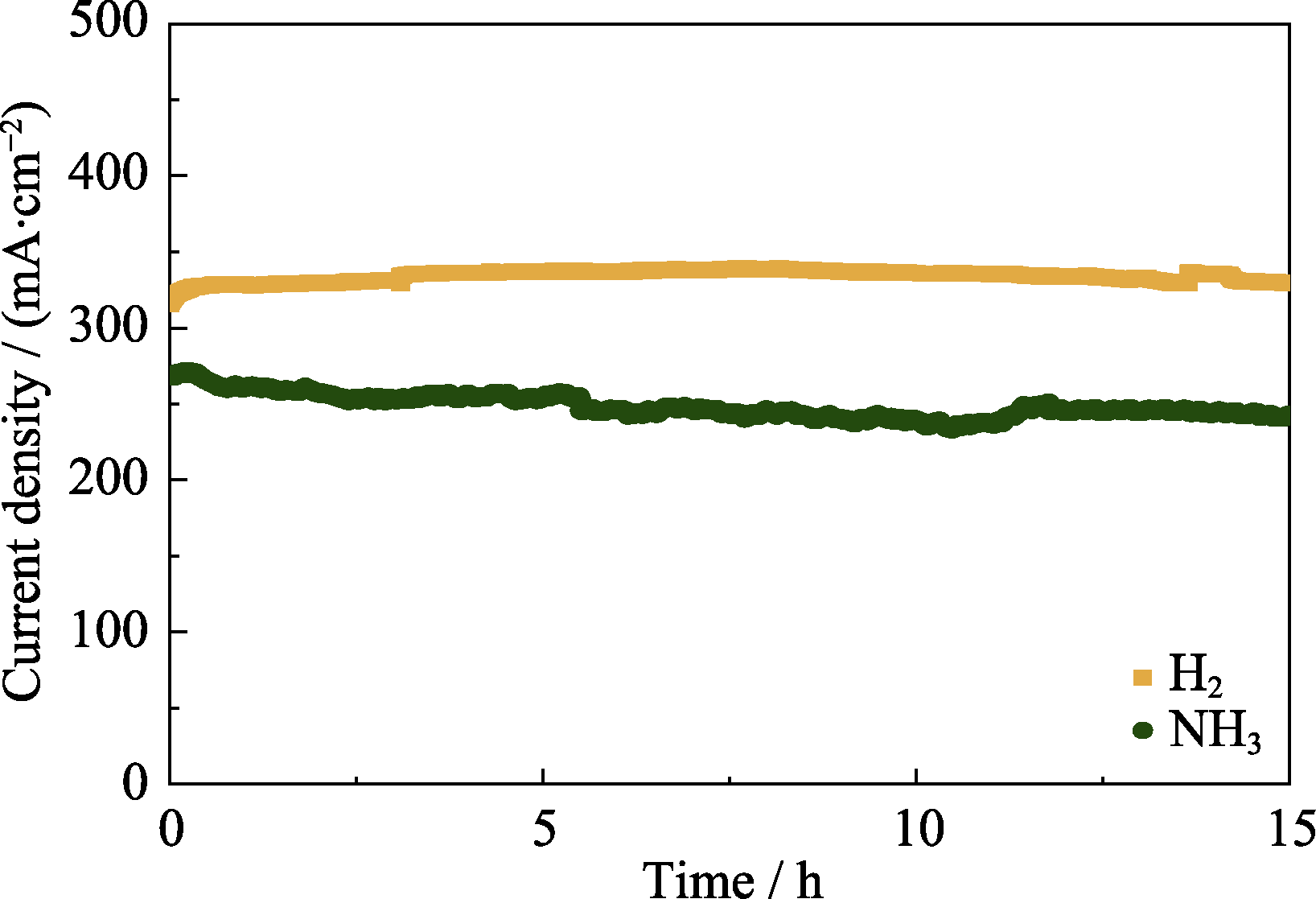

Fig. 7 Stability testing in different gas environments at 400 ℃ and 0.6 V for PCMR

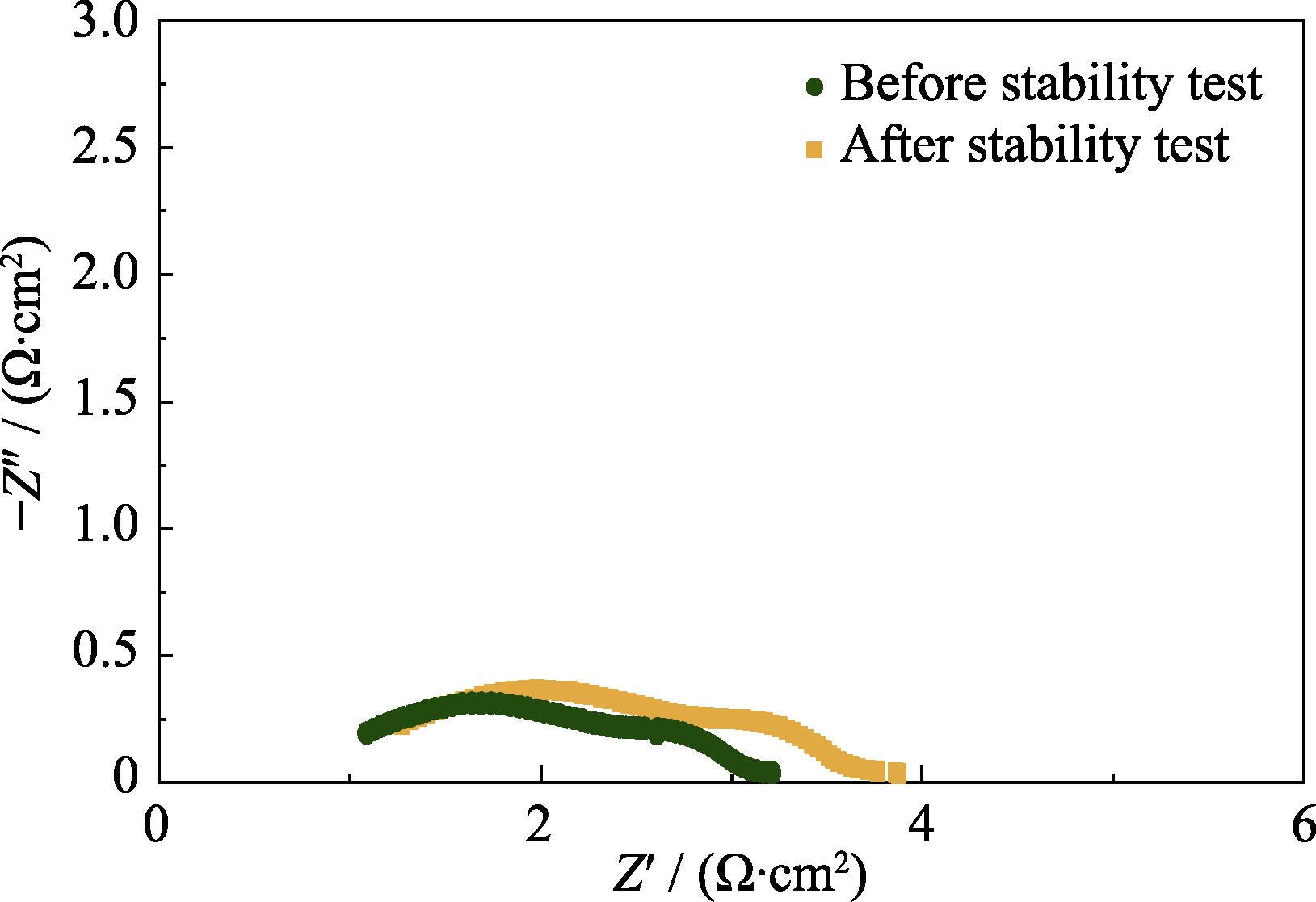

Fig. 8 Variation in impedance before and after stability testing under NH3 environment for PCMR

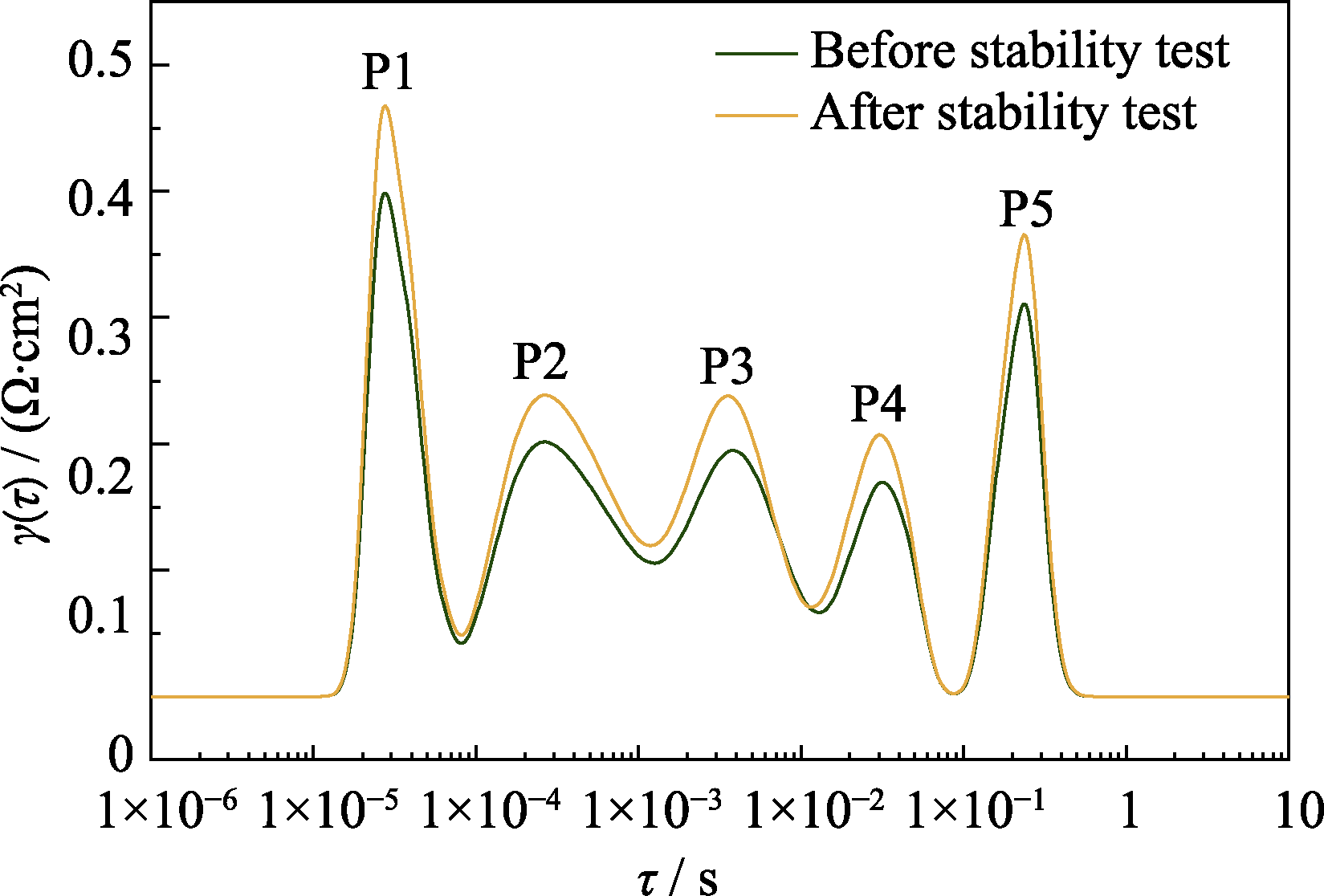

Fig. 9 DRT curves before and after stability testing under NH3 environment for PCMR

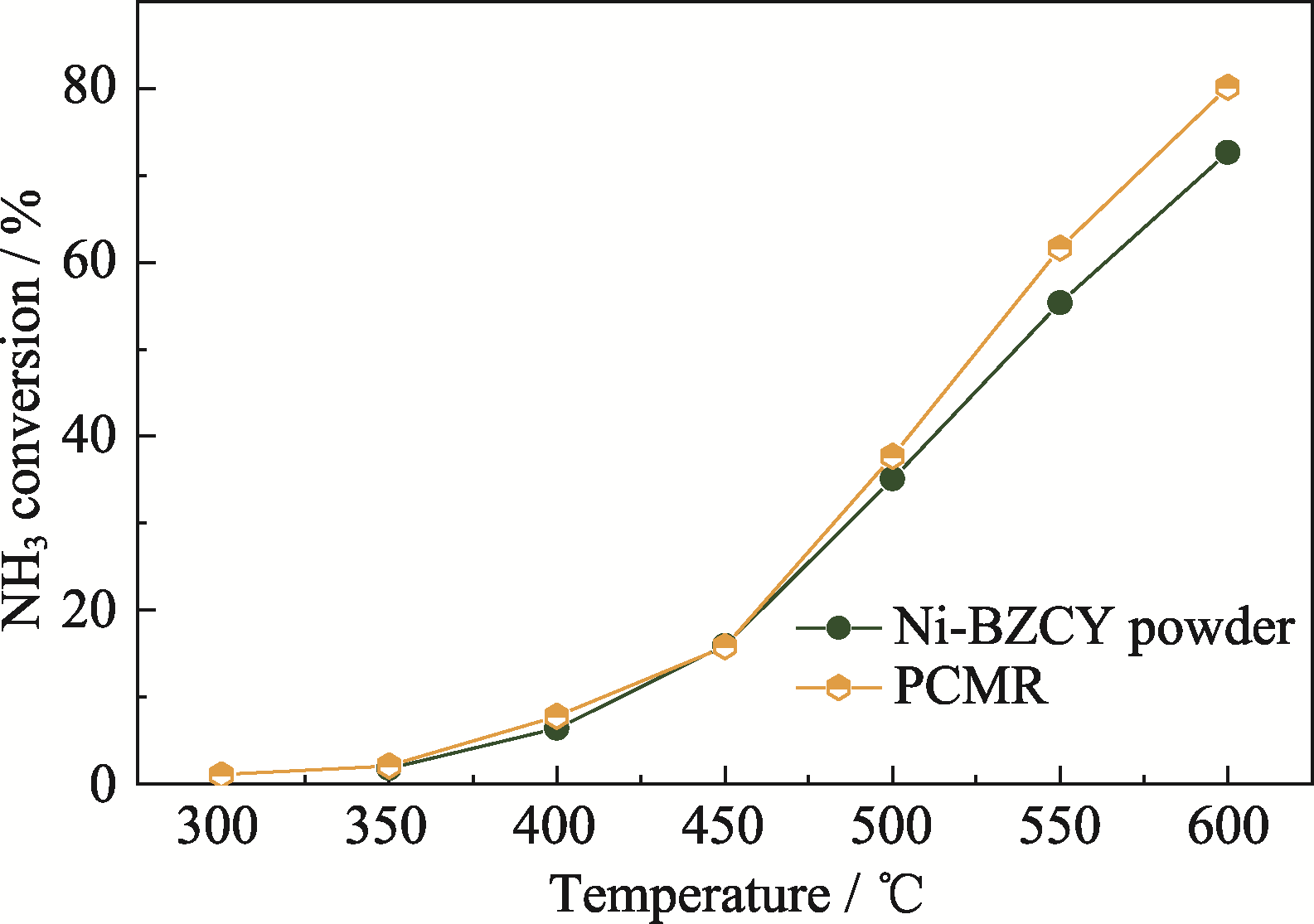

Fig. 10 NH3 conversion efficiency of Ni-BZCY powder and PCMR operated at 0.8 V
