Current Status and Prospect of Additive Manufacturing Piezoceramics

doi:10.15541/jim20210599

Journal of Inorganic Materials ›› 2022, Vol. 37 ›› Issue (3): 278-288.DOI: 10.15541/jim20210599

Special Issue: 2022年度中国知网高下载论文

• REVIEW • Previous Articles Next Articles

Current Status and Prospect of Additive Manufacturing Piezoceramics

LIU Kai¹^,²(), SUN Ce², SHI Yusheng³, HU Jiaming², ZHANG Qingqing², SUN Yunfei², ZHANG Song⁴, TU Rong⁴, YAN Chunze³, CHEN Zhangwei⁵, HUANG Shangyu², SUN Huajun¹()

1. State Key Laboratory of Silicate Materials for Architectures, Wuhan University of Technology, Wuhan 430070, China
2. College of Materials Science and Engineering, Wuhan University of Technology, Wuhan 430070, China
3. State Key Laboratory of Materials Processing and Die & Mould Technology, Huazhong University of Science and Technology, Wuhan, 430074, China
4. State Key Laboratory of Advanced Technology for Materials Synthesis and Processing, Wuhan University of Technology, Wuhan 430070, China
5. Additive Manufacturing Institute, Shenzhen University, Shenzhen 518060, China

Received:2021-09-28 Revised:2021-11-21 Published:2022-03-20 Online:2021-12-24
Contact: SUN Huajun, professor. E-mail: huajunsun@whut.edu.cn
About author:LIU Kai (1987-), male, associate professor. E-mail: victor_liu@whut.edu.cn
Supported by:
National Key Research and Development Plan(2021YFB3703100);National Natural Science Foundation of China(51672198);National Natural Science Foundation of China(U1806221);Instruction & Development Project for National Funding Innovation Demonstration Zone of Shandong Province(2017-41-1);Instruction & Development Project for National Funding Innovation Demonstration Zone of Shandong Province(2017-41-3);Instruction & Development Project for National Funding Innovation Demonstration Zone of Shandong Province(2018ZCQZB01);Instruction & Development Project for National Funding Innovation Demonstration Zone of Shandong Province(2019ZCQZB03);Special Funds for Guiding Local Scientific and Technological Development by the Central Government(2060503);Key Research & Design Program of Shandong Province(2019GGX102011)

Abstract

Abstract:

As an important functional material, piezoelectric ceramics not only have the characteristics of high strength, high hardness, corrosion resistance, etc., but also can realize the mutual conversion between mechanical energy and electrical energy. Piezoelectric ceramics are widely used in sensors, drivers, capacitors and other piezoelectric parts, playing an important role in high-end equipment such as marine exploration, biomedicine, and electronic communications. The development requirements of intelligent, integrated, and lightweight piezoelectric functional devices in advanced technology fields have pushed their shape more and more complex. However, traditional fabricating processes, such as slip casting, injection molding, mould pressing, and machining, depend on molds or grinding tools. It is difficult to design and fabricate complex shape piezoelectric ceramics, especially with hollows and overhangs. Additive manufacturing technology can rapidly fabricate any complex structure parts based on the layer-by-layer fabricating principle with advantages of high molding efficiency and without molds. It can meet the needs of individualized, integration and complex manufacturing. In recent years, it has received extensive attention from researchers in the field of piezoelectric ceramics in both domestic and abroad. This article summarizes the main types of current additive manufacturing piezoelectric ceramics and their development status from the perspective of three raw material forms: powder, slurry and bulk materials, then comprehensively compares the characteristics of various processes. Application of additive manufacturing of piezoelectric ceramics in different fields has also been introduced. Finally, the challenges faced by additive manufacturing piezoelectric ceramics and the possible future development trends are summarized and prospected.

Key words: piezoceramic, additive manufacturing, process types, structure, application, review

CLC Number:

TB321

LIU Kai, SUN Ce, SHI Yusheng, HU Jiaming, ZHANG Qingqing, SUN Yunfei, ZHANG Song, TU Rong, YAN Chunze, CHEN Zhangwei, HUANG Shangyu, SUN Huajun. Current Status and Prospect of Additive Manufacturing Piezoceramics[J]. Journal of Inorganic Materials, 2022, 37(3): 278-288.

Figures/Tables 7

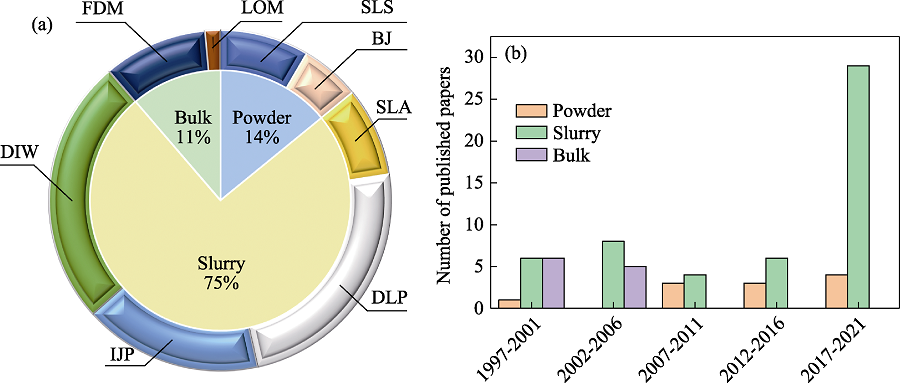

Fig. 1 Papers published on additive manufacturing of piezoceramics (data from Web of Science) (a) Proportion of published literature of each process; (b) Number of papers published at each stage SLS: Selective laser sintering; BJ: Binder jetting; SLA: Stereolithography apparatus; IJP: Ink-jet printing; DLP: Digital light processing; DIW: Direct ink writing; FDM: Fused deposition modeling; LOM: Laminated object manufacturing

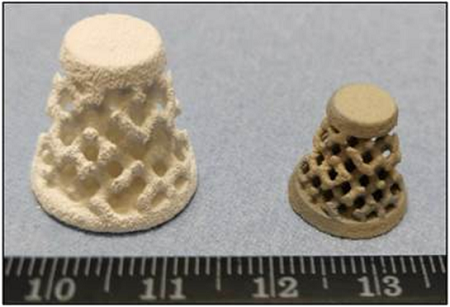

Fig. 2 Piezoceramic with lattice structure formed by Binder Jetting[18] Left: Green body; Right: Sintering part

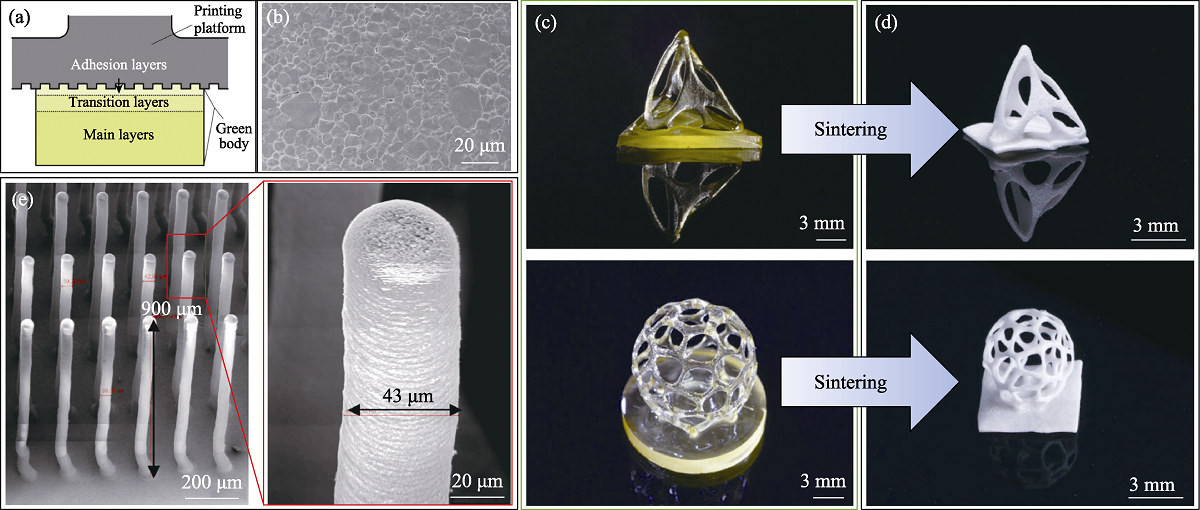

Fig. 3 Schematic diagram of layered exposure strategy (a) and micro-topography photo of sintered part[32] (b), photo of precursor body fabricated by Digital Light Processing (c), photos of BTO sample after sintering[35] (d), photos of PZT ceramic microarrays fabricated by Binder Jetting[37] (e)

Fig. 4 Micro-morphology photos of the PZT ceramics sintered at different temperatures (a) and photos of sintered PZT ceramics fabricated by Direct Ink Writing (b)[41], and cross-section photo of gradient piezoelectric ceramics fabricated by Fused Deposition Modeling (c)[51,52]

Table 1 Comparison of properties of piezoceramics formed by additive manufacturing

Materials	Process	Density/(g·cm^-3)	Relative density/%	d₃₃/(pC·N^-1)	Relative dielectric constant (ε_r)	Dielectric loss (tan δ)	Ref.
BTO	SLS	-	97	-	1800	-	[7]
PZT	SLS	4	50.6	-	-	-	[12]
PZT	LENS	-	90	-	430	0.05	[14]
BTO	BJ	-	93-94	183	-	-	[18]
BTO	SLA	5.69	95	163	2762	0.016	[23]
BTO	DIW	5.13	85.24	204.61	2551	-	[44]
PZT	DIW	(7.21±0.06)	94.9	678	(4132±575)	(3.4±1%)	[45]
BTO	DIW	5.42	90	200	2200	-	[46]
BTO	DIW	-	89.97	350	2576	-	[47]
PLZT	DIW	-	98	481	1986	-	[48]
BCZT	DIW	-	93	100	1046	0.021	[49]
BTO	DIW	-	96	159	1900	-	[50]
BTO	BJ	2.21	37	113(Horizontal) 152.7(Vertical)	581.6(Horizontal) 698(Vertical)	-	[56]
KNN	SLA	4.32	96	-	1800-1900	0.2-0.3	[57]
PMN-PT	DLP	7.98	97.8	620	-	-	[58]
PZT	DLP	7	-	345	1390	0.021	[59]
KNN	DLP	4.09	92	170	2150	0.058	[60]
PZT-5H	DLP	7.35	96	600	2875	0.029	[61]
BTO	DLP	5.44	90	200	1965	0.017	[62]
PZT	IJP	-	(86±3)	-	190	0.05	[63]
BTO	DIW	3.93	65.3	200	4730	0.033	[64]
BTO	DIW	-	98	195	-	-	[65]
BTO	DIW	-	97.8	-	533	-	[66]
BTO	DIW	5.66	94	420	4380	0.02	[67]
PZT	FDM	7.7	-	664	3340	0.023	[68]

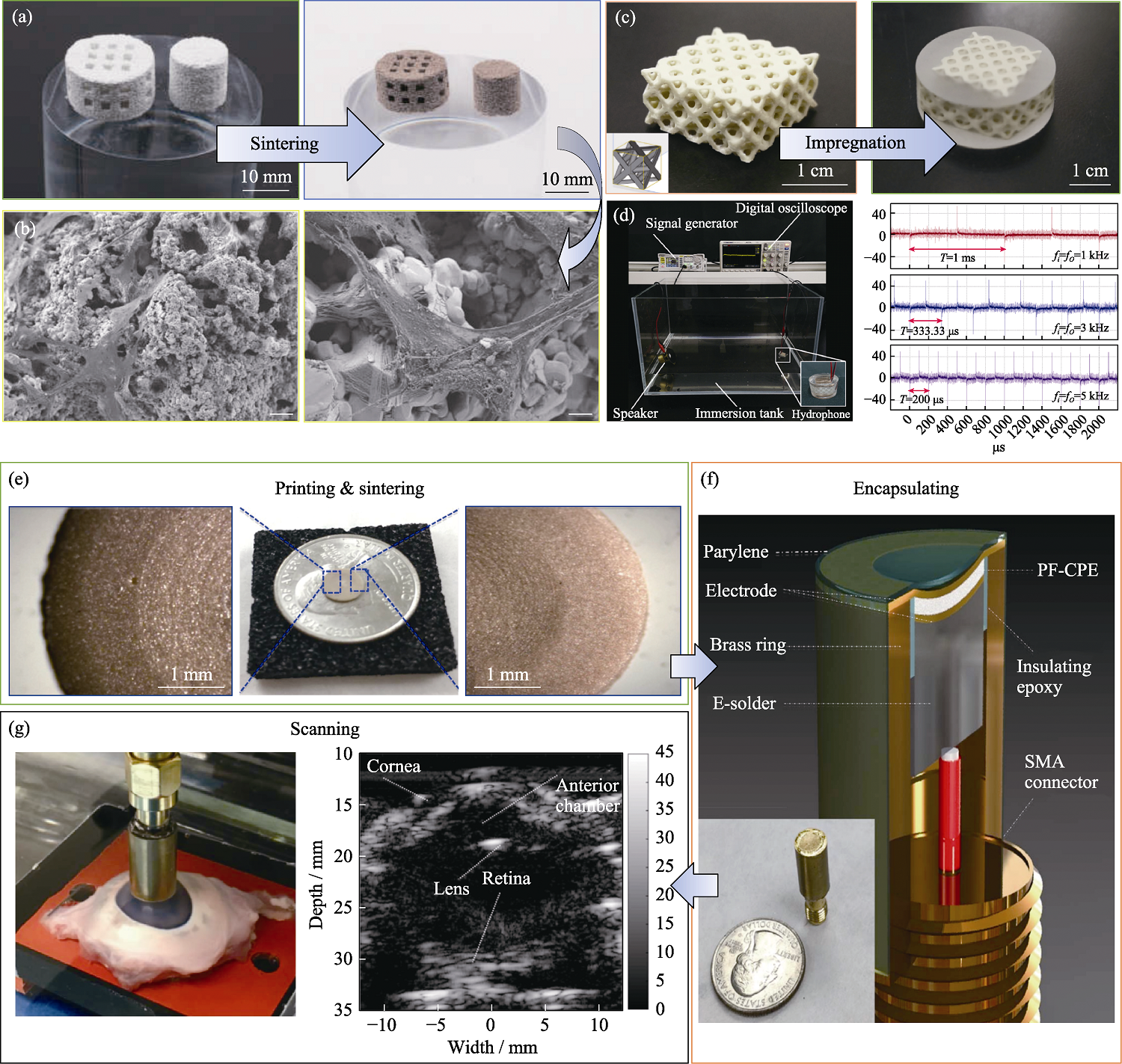

Fig. 5 Photos of BTO/HA piezoelectric ceramics fabricated by Binder Jetting (a) and SEM images of the sample after 24 h MC3T3-E1 cells incubation (b)[70], piezoelectric ceramics and piezoelectric composite materials fabricated by Digital Light Processing (c), the underwater acoustic testing device and the output voltage of the hydrophone under different acoustic excitation frequencies (d) [32], the photo of CPE sample (e) and the packaged ultrasound scanning equipment (f), and pig eye ultrasound imaging results (g)[74]

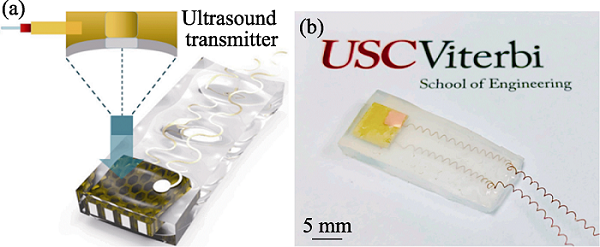

Fig. 6 Schematic (a) and picture (b) of piezoelectric sensor device[31]

References 77

[1]	HOOPER T E, ROSCOW J I, MATHIESON A, et al. High voltage coefficient piezoelectric materials and their applications. Journal of the European Ceramic Society, 2021, 41(13): 6115-6129. DOI URL
[2]	WASTON B H, BROVA Ml J, FANTON M, et al. Textured Mn- doped PIN-PMN-PT ceramics: harnessing intrinsic piezoelectricity for high-power transducer applications. Journal of the European Ceramic Society, 2021, 41(2): 1270-1279. DOI URL
[3]	JIA H R, YANG S, ZHU W T, et al. Improved piezoelectric properties of Pb(Mg_1/3Nb_2/3)O₃-PbTiO₃ textured ferroelectric ceramics via Sm-doping method. Journal of Alloys and Compounds, 2021, 881(10): 160666. DOI URL
[4]	LÜ N, ZHONG C, WANG L K. Bending vibration characteristics of the piezoelectric composite double laminated vibrator. Ceramics International, 2021, 47(22): 31259-31267. DOI URL
[5]	CHEN A N, LI M, WU J M, et al. Enhancement mechanism of mechanical performance of highly porous mullite ceramics with bimodal pore structures prepared by selective laser sintering. Journal of Alloys and Compounds, 2018, 776: 486-494. DOI URL
[6]	DONG Y, JIANG H Y, CHEN A N, et al. Near-zero-shrinkage Al₂O₃ ceramic foams with coral-like and hollow-sphere structures via selective laser sintering and reaction bonding. Journal of European Ceramic Society, 2021, 41(16): 239-246. DOI URL
[7]	ZHANG X, WANG F, WU Z P, et al. Direct selective laser sintering of hexagonal barium titanate ceramics. Journal of American Ceramic Society, 2021, 104: 1271-1280. DOI URL
[8]	LIU K, SHI Y S, LI C H, et al. Indirect selective laser sintering of epoxy resin-Al₂O₃ ceramic powders combined with cold isostatic pressing. Ceramics International, 2014, 40(5): 7099-7106. DOI URL
[9]	SHI Y S, LIU K, LI C H, et al. Additive manufacturing of zirconia parts via selective laser sintering combined with cold isostatic pressing. Journal of Mechanical Engineering, 2014, 50(21): 118-123.
[10]	LIU K, SUN H J, SHI Y S, et al. Research on selective laser sintering of kaolin-epoxy resin ceramic powders combined with cold isostatic pressing and sintering. Ceramics International, 2016, 42(9): 10711-10718. DOI URL
[11]	LIU K, WU T, BOURELL D L, et al. Laser additive manufacturing and homogeneous densification of complicated shape SiC ceramic parts. Ceramics International, 2018, 44(17): 21067-21075. DOI URL
[12]	KOVSKY I, MOROZOV Y, KUZNETSOV M. Layering fabrication, structure, and electromagnetic properties of perovskite phases by hybrid process: self-propagated high-temperature synthesis and selective laser sintering. Phase Transitions, 2013, 86(11): 1085-1093. DOI URL
[13]	KUZNETSOV M, SHISHKOVSKY I, MOROZOV Y, et al. Design of three-dimensional functional articles via layer-by-layer laser sintering of exothermic powder mixtures. Advanced Manufacturing Processes, 2008, 23(6): 571-578.
[14]	BERNARD S A, BALLA V K, BOSE S, et al. Direct laser processing of bulk lead zirconate titanate ceramics. Materials Science & Engineering B, 2010, 172(1): 85-88.
[15]	DINI F, GHAFFARI S A, JAFAR J, et al. A review of binder jet process parameters; powder, binder, printing and sintering condition. Metal Powder Report, 2019, 75(2): 95-100. DOI URL
[16]	LV X Y, YE F, CHENG L F, et al. Binder jetting of ceramics: powders, binders, printing parameters, equipment, and post-treatment. Ceramics International, 2019, 45(10): 12609-12624. DOI URL
[17]	GAYTAN S M, CADENA M A, KARIM H, et al. Fabrication of barium titanate by binder jetting additive manufacturing technology. Ceramics International, 2015, 41(5): 6610-6619. DOI URL
[18]	SUFIIAROV V, KANTYUKOV A, POPOVICH A, et al. Structure and properties of barium titanate lead-free piezoceramic manufactured by binder jetting process. Materials, 2021, 14(16): 4419. DOI URL
[19]	SCHULT M, BUCKOW E, SEITZ H. Experimental studies on 3D printing of barium titanate ceramics for medical applications. Current Directions in Biomedical Engineering, 2016, 2(1): 95-99. DOI URL
[20]	ZHANG X, WU X, SHI J. Additive manufacturing of zirconia ceramics: a state-of-the-art review. Journal of Materials Research and Technology, 2020, 9(4): 9029-9048. DOI URL
[21]	LAYANI M, WANG X F, MAGDASSI S. Novel materials for 3D printing by photopolymerization. Advanced Materials, 2018, 30(41): 1706344. DOI URL
[22]	ZAKERI S, VIPPOLA M, LEVANEN E. A comprehensive review of the photopolymerization of ceramic resins used in stereolithography. Additive Manufacturing, 2020, 35: 101177. DOI URL
[23]	WANG W, SUN J X, GUO B B, et al. Fabrication of piezoelectric nano-ceramics via stereolithography of low viscous and non-aqueous suspensions. Journal of the European Ceramic Society, 2020, 40(3): 682-688. DOI URL
[24]	CHA J M, LEE J W, BAE B, et al. Fabrication and characterization of PZT suspensions for stereolithography based on 3D printing. Journal of the Korean Ceramic Society, 2019, 56(4): 360-364. DOI URL
[25]	DUFAUD O, GALL H L, CORBEL S. Stereolithography of lead zirconate titanate ceramics for MEMS applications. Proceedings of SPIE-the International Society for Optical Engineering, 2003, 5116: 28-37.
[26]	DUFAUD O, MARCHAL P, CORBEL S. Rheological properties of PZT suspensions for stereolithography. Journal of the European Ceramic Society, 2002, 22(13): 2081-2092. DOI URL
[27]	DUFAUD O, CORBEL S. Oxygen diffusion in ceramic suspensions for stereolithography. Chemical Engineering Journal, 2003, 92: 55-62. DOI URL
[28]	SUN C, ZHANG X. The influences of the material properties on ceramic micro-stereolithography. Sensors & Actuators A Physical, 2002, 101(3): 364-370.
[29]	SMIRNOV A, CHUGUNOV S, KHOLODKOVA A, et al. Progress and challenges of 3D-printing technologies in the manufacturing of piezoceramics. Ceramics International, 2021, 47(8): 10478-10511. DOI URL
[30]	LIN L F, WU H D, XU Y R, et al. Fabrication of dense aluminum nitride ceramics via digital light processing-based stereolithography. Materials Chemistry and Physics, 2020, 249: 122969. DOI URL
[31]	ZENG Y S, JIANG L M, SUN Y Z, et al. 3D-printing piezoelectric composite with honeycomb structure for ultrasonic devices. Micromachines, 2020, 11(8): 713. DOI URL
[32]	LIU K, ZHOU C Y, HU J M, et al. Fabrication of barium titanate ceramics via digital light processing 3D printing by using high refractive index monomer. Journal of the European Ceramic Society, 2021, 41(12): 5909-5917. DOI URL
[33]	CHEN Z Y, JIANG Q G, SONG X, et al. Piezoelectric Array for Transducer Application Using Additive Manufacturing. 2017 IEEE International Ultrasonics Symposium (IUS), Washington, 2017.
[34]	SONG X, CHEN Z Y, LEI L W, et al. Piezoelectric component fabrication using projection-based stereolithography of barium titanate ceramic suspensions. Rapid Prototyping Journal, 2017, 23(1): 44-53. DOI URL
[35]	ROSENTAL T, MIZRAHI S, KAMYSHNY A, et al. Particle-free compositions for printing dense 3D ceramic structures by digital light processing. Virtual and Physical Prototyping, 2021, 16(3): 255-266. DOI URL
[36]	NOGUERA R, LEJEUNE M, CHARTIER T. 3D fine scale ceramic components formed by ink-jet prototyping process. Journal of the European Ceramic Society, 2005, 25(12): 2055-2059. DOI URL
[37]	LEJEUNE M, CHARTIER T, DOSSOU-YOVO C, et al. Ink-jet printing of ceramic micro-pillar arrays. Journal European Ceramic Society, 2009, 29: 905-911. DOI URL
[38]	LEE D H, DERBY B. Preparation of PZT suspensions for direct ink jet printing. Journal of the European Ceramic Society, 2004, 24(6): 1069-1072. DOI URL
[39]	DERBY B, LEE D H, WANG T, et al. Development of PZT suspensions for ceramic ink-jet printing. Materials Research Society Symposium Proceeding, 2003, 758: 113-118.
[40]	WANG T M, DERBY B. Ink-jet printing and sintering of PZT. Journal of the American Ceramic Society, 2005, 88(8): 2053-2058. DOI URL
[41]	LIU K, ZHANG Q Q, ZHOU C Y, et al. 4D printing of lead zirconate titanate piezoelectric composites transducer based on direct ink writing. Frontiers in Materials, 2021, 8: 659441. DOI URL
[42]	WALTON R L, BROVA M J, WASTON B H, et al. Direct writing of textured ceramics using anisotropic nozzles. Journal of the European Ceramic Society, 2020, 41(3): 1945-1953. DOI URL
[43]	WALTON R L, FANTON M A, MEYER R J, et al. Dispersion and rheology for direct writing lead-based piezoelectric ceramic pastes with anisotropic template particles. Journal of the American Ceramic Society, 2020, 103(11): 6157-6168. DOI URL
[44]	RENTERIA A, DIAZ J A, HE B T, et al. Particle size influence on material properties of BaTiO₃ ceramics fabricated using freeze- form extrusion 3D printing. Materials Research Express, 2019, 6(11): 115211. DOI URL
[45]	HALL S E, REGIS J E, RENTERIA A, et al. Paste extrusion 3D printing and characterization of lead zirconate titanate piezoelectric ceramics. Ceramics International, 2021, 47: 22042-22048. DOI URL
[46]	RENTERIA A, FONTES H, DIAZ J A, et al. Optimization of 3D printing parameters for BaTiO₃ piezoelectric ceramics through design of experiments. Materials Research Express, 2019, 6(8): 085706. DOI URL
[47]	RENTERIA A, GARCIA L F, BALCORTA V H, et al. Influence of bimodal particle distribution on material properties of BaTiO₃ fabricated by paste extrusion 3D printing. Ceramics International, 2021, 47(13): 18477-18486. DOI URL
[48]	LI Y Y, LI L T, LI B. Direct ink writing of 3-3 piezoelectric composite. Journal of Alloys and Compounds, 2015, 620: 125-128. DOI URL
[49]	NAN B, OLHERO S, PINHO R, et al. Direct ink writing of macro- porous lead-free piezoelectric Ba_0.85Ca_0.15Zr_0.1Ti_0.9O₃. Journal of the American Ceramic Society, 2019, 102(6): 3191-3203. DOI URL
[50]	GADEA C, SPELTA T, SIMONSEN S B, et al. Hybrid inks for 3D printing of tall BaTiO₃-based ceramics. Open Ceramics, 2021, 6: 100110. DOI URL
[51]	JAFARI M A, HAN W, MOHAMMADI F, et al. A novel system for fused deposition of advanced multiple ceramics. Rapid Prototyping Journal, 2000, 6(3): 161-175. DOI URL
[52]	HALL A, ALLAHVERDI M, AKDOGAN E K, et al. Piezoelectric/ electrostrictive multimaterial PMN-PT monomorph actuators. Journal of the European Ceramic Society, 2005, 25(12): 2991-2997. DOI URL
[53]	CHEN Z W, LI Z Y, LI J J, et al. 3D printing of ceramics: a review. Journal of the European Ceramic Society, 2019, 39(4): 661-687. DOI URL
[54]	MIAO K, ZHOU H, GAO Y P, et al. Laser powder-bed-fusion of Si₃N₄ reinforced AlSi₁₀Mg composites: processing, mechanical properties and strengthening mechanisms. Materials Science & Engineering A, 2021, 825: 141874.
[55]	LU Z L, CAO J W, SONG Z Q, et al. Research progress of ceramic matrix composite parts based on additive manufacturing technology. Virtual and Physical Prototyping, 2019, 14(4): 333-348. DOI URL
[56]	CHAVEZ L A, WILBURN B R, LBAVE P, et al. Fabrication and characterization of 3D printing induced orthotropic functional ceramics. Smart Materials and Structures, 2019, 28(12): 125007. DOI URL
[57]	ZHANG L, WANG T, SUN J X, et al. A study of lead-free (K_0.5N_0.5)NbO₃ piezoelectric ceramics processed by additive manufacturing. Journal of Micromechanics and Molecular Physics, 2020, 5(4): 2050011. DOI URL
[58]	WOODWARD D I, PURSSELL C P, BILLSON D R, et al. Additively-manufactured piezoelectric devices. Physica Status Solidi (A) Applications and Materials, 2015, 212(10): 2017-2113.
[59]	CHEN Y, BAO X L, WONG C M, et al. PZT ceramics fabricated based on stereolithography for an ultrasound transducer array application. Ceramics International, 2018, 44(18): 22725-22730. DOI URL
[60]	CHEN W C, WANG F F, YAN K, et al. Micro-stereolithography of KNN-based lead-free piezoceramics. Ceramics International, 2019, 45(4): 4880-4885. DOI URL
[61]	ZHANG Y H, CHEN W C, WU D W. Geometric deformation prediction and compensation for micro-stereolithography of piezoceramic. Electronic Components and Materials, 2019, 38(4): 77-82.
[62]	SOTOV A, KANTYUKOV A, POPOVICH A, et al. LCD-SLA 3D printing of BaTiO₃ piezoelectric ceramics. Ceramics International, 2021, 47(21): 30358-30366. DOI URL
[63]	KUSCER D, DRNOVSEK S, LEVASSORT F. Inkjet-printing- derived lead-zirconate-titanate-based thick films for printed electronics. Materials & Design, 2021, 198(8): 109324.
[64]	KIM H, RENTERIA-MARQUEZ A, ISLAM M D, et al. Fabrication of bulk piezoelectric and dielectric BaTiO₃ ceramics using paste extrusion 3D printing technique. Journal of the American Ceramic Society, 2019, 102(6): 3685-3694. DOI URL
[65]	LORENZ M, MARTIN A, WEBBER K G, et al. Electromechanical properties of robocasted barium titanate ceramics. Advanced Engineering Materials, 2020, 22(9): 2000325. DOI URL
[66]	RSOENTAL T, MAGDASSI S. A new approach to 3D printing dense ceramics by ceramic precursor binders. Advanced Engineering Materials, 2019, 21(10): 1900604. DOI URL
[67]	WEI X X, LIU Y H, ZHAO D J, et al. 3D printing of piezoelectric barium titanate with high density from milled powders. Journal of the European Ceramic Society, 2020, 40(15): 5423-5430. DOI URL
[68]	LOUS G M, CORNEJO I A, MCNULTY T F, et al. Fabrication of piezoelectric ceramic/polymer composite transducers using fused deposition of ceramics. Journal of the American Ceramic Society, 2000, 83(1): 124-128. DOI URL
[69]	CHABOK H, ZHOU C, CHEN Y, et al. Ultrasound Transducer Array Fabrication Based on Additive Manufacturing of Piezocomposites. Proceedings of the ASME/ISCIE 2012 International Symposium on Flexible Automation, St. Louis, 2012: 433.
[70]	POLLEY C, DISTLER T, DETSCH R, et al. 3D printing of piezoelectric barium titanate-hydroxyapatite scaffolds with interconnected porosity for bone tissue engineering. Materials, 2020, 13(7): 1773. DOI URL
[71]	XU H, XIE Y M, ZHOU S W, et al. Piezoelectric properties of triply periodic minimum surface structures. Composites Science and Technology, 2020, 200: 108417. DOI URL
[72]	SONG X, HE L, YANG W H, et al. Additive manufacturing of bi-continuous piezocomposites with triply periodic phase interfaces for combined flexibility and piezoelectricity. Journal of Manufacturing Science and Engineering, 2019, 141: 111004. DOI URL
[73]	CHENG J, CHEN Y, WU J W, et al. 3D printing of BaTiO₃ piezoelectric ceramics for a focused ultrasonic array. Sensors, 2019, 19(19): 4078. DOI URL
[74]	CHEN Z Y, SONG X, LEI L W, et al. 3D printing of piezoelectric element for energy focusing and ultrasonic sensing. Nano Energy, 2016, 27: 78-86. DOI URL
[75]	ANDEREGG D A, BRYANT H A, RUFFIN D C, et al. In-situ monitoring of polymer flow temperature and pressure in extrusion based additive manufacturing. Additive Manufacturing, 2019, 26: 76-83. DOI URL
[76]	CLIJSTERS S, CRAEGHS T, BULS S, et al. In situ quality control of the selective laser melting process using a high-speed, real-time melt pool monitoring system. The International Journal of Advanced Manufacturing Technology, 2014, 75: 1089-1101. DOI URL
[77]	FANG T, JAFARI M A, DANFORTH S C, et al. Signature analysis and defect detection in layered manufacturing of ceramic sensors and actuators. Machine Vision and Applications, 2003, 15: 63-75. DOI URL
