Thermoelectric Device: Contact Interface and Interface Materials

doi:10.15541/jim20180248

Abstract

Abstract:

Thermoelectric power generation via Seebeck effect features an unique advantage in converting large amount of distributed and low-grade waste heat into electricity. Thermoelectric materials have become a hot topic of research in the field of new energy materials, guided by the high figure of merit ZT. Although various mid-temperature thermoelectric materials were discovered, the industrial application of these materials, especially in power generation applications, progressed very slowly. The staggering interface technology associated with thermoelectric device restricted the advance of thermoelectric conversion technology. In this review, the bottleneck issues of utilizing Bi₂Te₃-based devices for power generation were used as an example to illustrate the critical interface technologies. The key issues at designing electrode contact interfaces were summarized, including low contact resistance, high bonding strength, and superior thermal chemical stability at high temperature. The recent progress on the metallization and interfacial barrier layer for typical materials of Bi₂Te₃, PbTe and CoSb₃ were also reviewed.

Key words: thermoelectric device, metallization, contact resistance, high-temperature stability, review

CLC Number:

TN37

HU Xiao-Kai, ZHANG Shuang-Meng, ZHAO Fu, LIU Yong, LIU Wei-Shu. Thermoelectric Device: Contact Interface and Interface Materials[J]. Journal of Inorganic Materials, 2019, 34(3): 269-278.

Figures/Tables 10

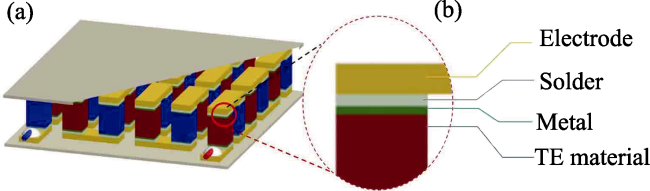

Fig.1 Schematic diagram of structure of thermoelectric device (a) and electrode interface (b)

Table 1 Compositions of some solders as well as the temperature (T) at liquidus and solidus[16]

T range /℃	Compositions/wt%	Liquidus T/℃	Solidus T/℃
100-200	52 In+48 Sn	118	118
	85 Sn+10 Bi+5 Zn	190	168
	63 Sn+37 Pb	183	183
	91.2 Sn+8.8 Zn	198.5	198.5
200-300	50 Sn+50 Pb	212	183
	96.5 Sn+3 Ag+0.5 Cu	220	217
	95 Sn+5 Sb	240	232
300-400	5 Sn+95 Pb	312	305
	95 Pb+5 Ag	364	305
	75 Sn+0.25 Sb+ 0.25 Bi+24.5 Pb	380	370
400-500	94 Sn+0.2 Pb+5.8 Sb	461	450
400-500	88 Pb+11.75 Sb+0.25 Bi	473	473
500-600	97 Pb+0.4 Sb + 2.35 Ag+0.25 Bi	580	580
500-600	8.5 Sn+90 Pb+1.5 Ag	588	588

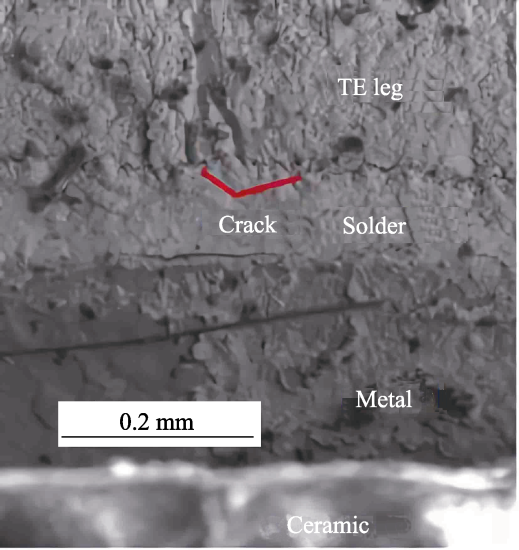

Fig.2 Interface micrograph of commercial Bi2Te3 refrigeration device after the thermal cycle test[17]

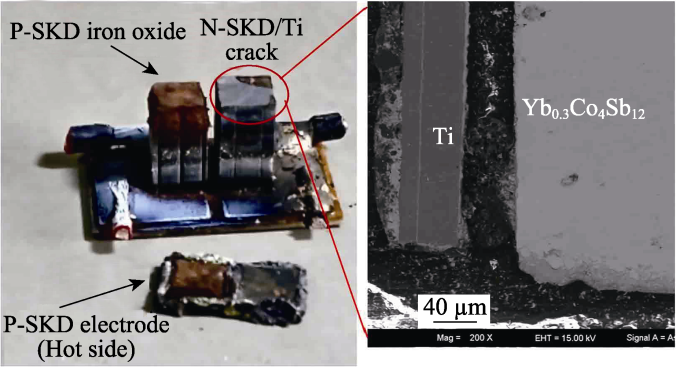

Fig.3 Interface cracking and oxidation images of Skutterudite thermoelectric legs

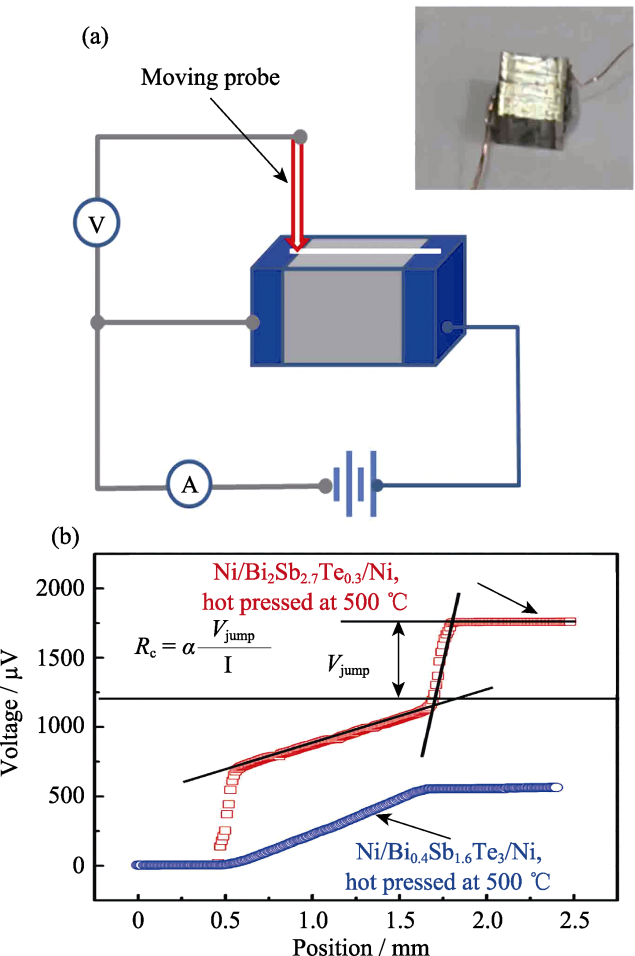

Fig. 4 Schematic diagram of a scanning voltage probe for contact resistance measurement, and a Bi2Te3-based leg (inset) (a); contact resistance measurement for both n-type Ni/Bi2Te2.7Se0.3/Ni and p-type Ni/Bi0.4Sb1.6Te3/Ni(b)[21]

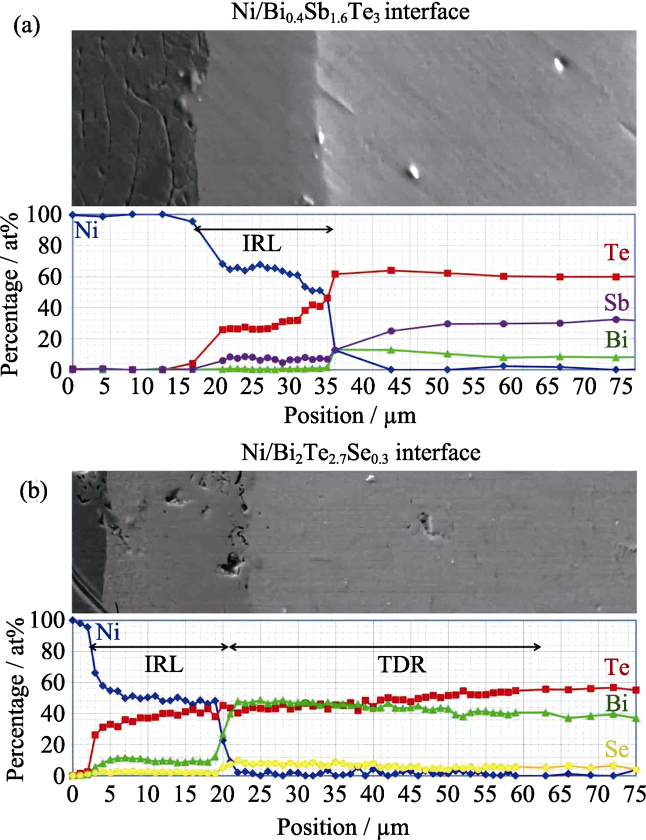

Fig.5 Comparison of composition profile between Ni/Bi0.4Sb1.6Te3 interface (a)and Ni/Bi2Te2.7Se0.3Interface (b) obtained from a selected area SEM-EDS[21]IRL: interface reaction layer, TDR: Te-deficient region

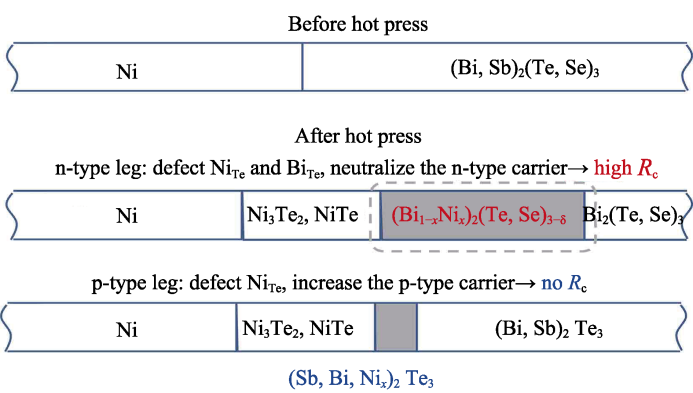

Fig.6 High-temperature reaction model of electrode interface of Bi2Te3-based thermoelectric leg[21]

Fig. 7 Concentrating solar thermoelectric generators: new type of NiFe-based alloy applied to metallization of n-type Bi2Te3[12]

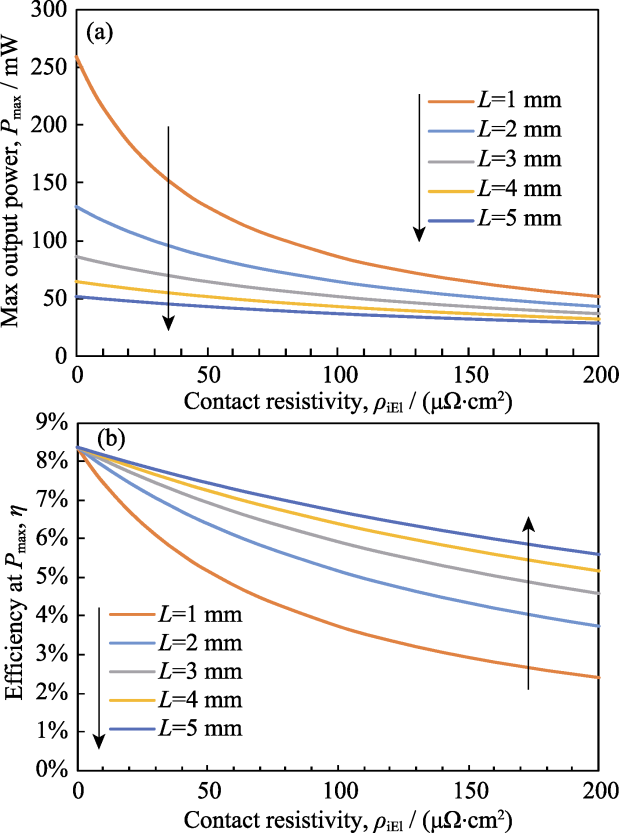

Fig.8 The maximum output power (a) and efficiency (b) vs. interface contact resistivity for the simulated Bi2Te3 leg (l is the leg height)

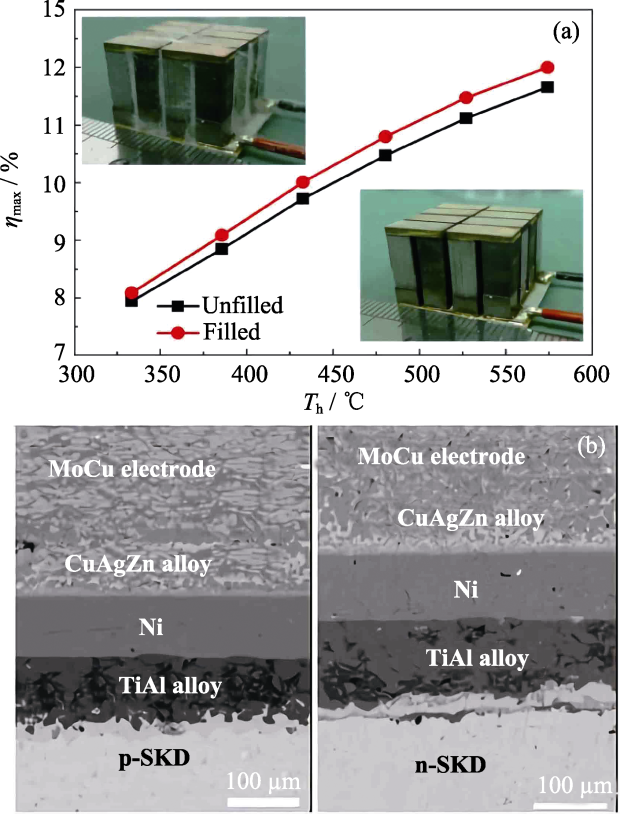

Fig.9 (a) Power generation efficiency of segmented BT/SKD modules and (b) scanning electron microscopy image of SKD/Ti0.88Al0.12/Ni interface and electrode on hot side[13]
