Superior Electrochemical Performance of Graphene via Carboxyl Functionalization and Surfactant Intercalation

doi:10.15541/jim20150378

Abstract

Abstract:

Superior capacitance of carboxyl functionalized and surfactant-intercalated graphene were prepared by a relatively simple with two-step solution-based processing technique. In comparison to pristine graphene, surface carboxyl functionalization and surfactant intercalation can tailor its specific capacitance from 50 F/g to 230 F/g. Meanwhile, the modified materials retain more than 95% of their capacitance after 800 charge-discharge cycles, demonstrating good cyclic stability. Surfactant itself cannot improve the performance of pristine graphene as graphene intercalated with surfactant has a specific capacitance of 45 F/g, however, carboxyl groups can dramatically enhance specific capacitance to 130 F/g. The excellent performance of functionalized graphene emphasizes the importance of controlling its surface chemistry.

Key words: graphene, functionalization, electrochemical performance

CLC Number:

TQ174

YU Jian-Hua, XU Li-Li, ZHU Qian-Qian, WANG Xiao-Xia, YUN Mao-Jin, DONG Li-Feng. Superior Electrochemical Performance of Graphene via Carboxyl Functionalization and Surfactant Intercalation[J]. Journal of Inorganic Materials, 2016, 31(2): 220-224.

Figures/Tables 4

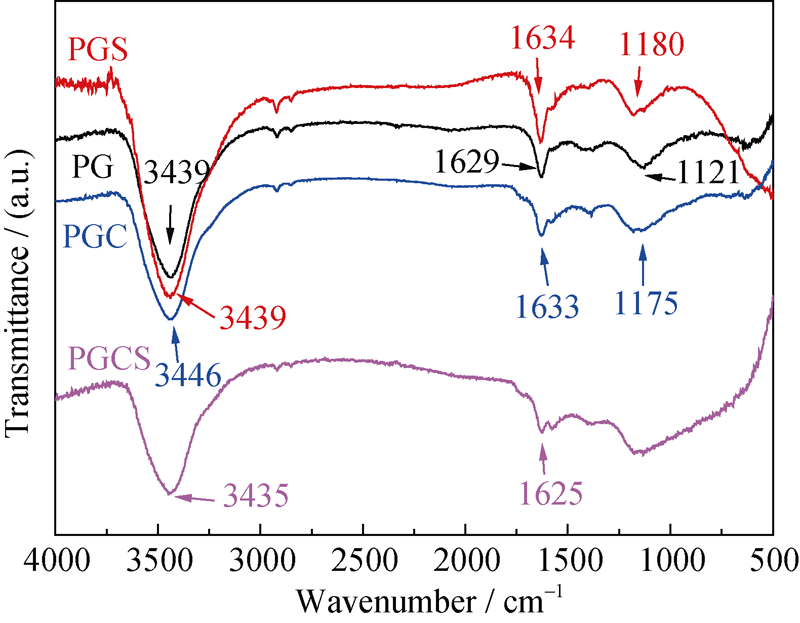

Fig. 1 FTIR spectra of various graphene-based samples (PG, PGS, PGC, and PGCS)

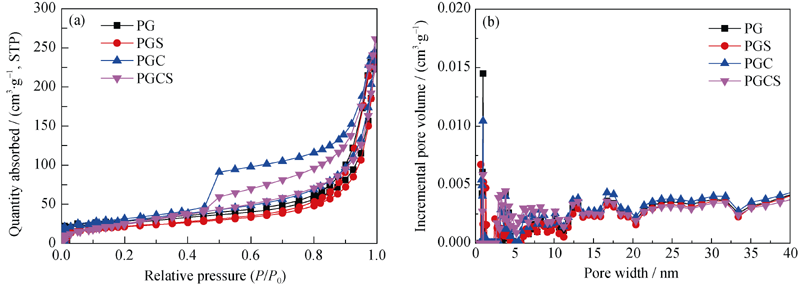

Fig. 2 The N2 adsorption-desorption isotherms (a) and the pore size distribution (b) of the samples

Table 1 BET surface areas, pore volumes, and average pore sizes of obtained samples.

Samples	BET surface area/(m²·g^-1)	Pore volume/(cm³·g^-1)	Average pore size/nm
PG PGS PGC PGCS	88.7 74.6 104.6 102.1	0.37 0.37 0.38 0.40	16.8 19.8 14.5 15.8

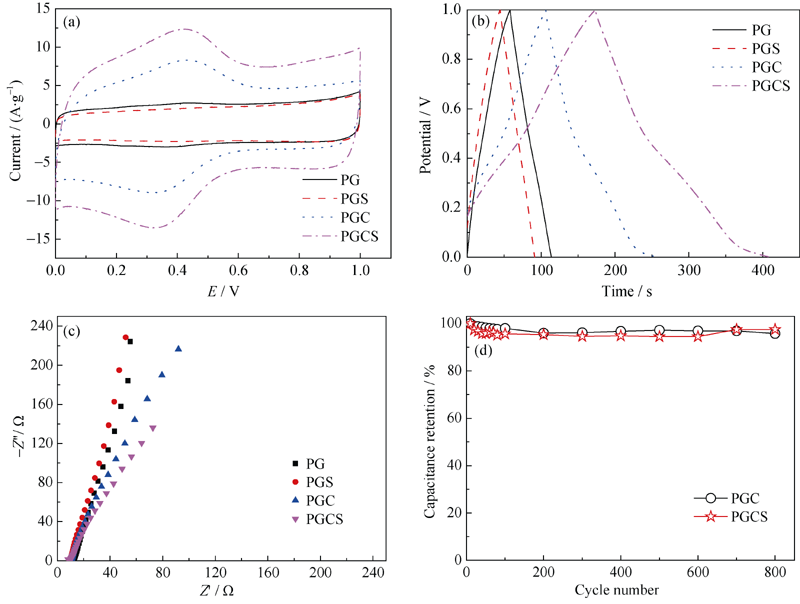

Fig. 3 (a) CV curves (at 50 mV/s, b) galvanostatic charge/discharge curves (at current density of 1 A/g), (c) nyquist plots of PG, PGS, PGC, and PGCS, and (d) cyclic stability of PCS and PGCS electrodes at current density of 1 A/g (1 mol/L H2SO4 being used as electrolyte)

References 17

[1]	CHENG Q, TANG J, MA J, et al.Graphene and carbon nanotube composite electrodes for supercapacitors with ultra-high energy density.Physical Chemistry Chemical Physics, 2011, 13(39): 17615-17624.
[2]	CHEN J, LI C, SHI G.Graphene materials for electrochemical capacitors.The Journal of Physical Chemistry Letters, 2013, 4: 1244-1253.
[3]	XING W, QIAO S, DING R, et al.Superior electric double layer capacitors using ordered mesoporous carbons.Carbon, 2006, 44(2): 216-224.
[4]	GEIM A K.Graphene: status and prospects.Science, 2009, 324: 1530-1534.
[5]	GEIM A K, NOVOSELOV K S.The rise of graphene.Nat. Mater., 2007, 6: 183-191.
[6]	ZHU Y, MURALI S, STOLLER M D, et al.Carbon-based supercapacitors produced by activation of graphene.Science, 2011, 332(6037): 1537-1541.
[7]	ZHU Y, MURALI S, CAI W, et al.Graphene and graphene oxide: synthesis, properties, and applications.Advanced Materials, 2010, 22: 3906-3924.
[8]	ZHU Q, YU J, ZHANG W, et al.Solvothermal synthesis of boron-doped graphene and nitrogen-doped graphene and their electrical properties.Journal of Renewable and Sustainable Energy, 2013, 5(2): 021408.
[9]	ZACHARIA R, ULBRICHT H,HERTEL T.Interlayer cohesive energy of graphite from thermal desorption of polyaromatic hydrocarbons.Physical Review B, 2004, 69(15): 155406.
[10]	CHEN J, HAMON M A, HU H, et al.Solution properties of single- walled carbon nanotubes.Science, 1998, 282: 95-98.
[11]	LOMEDA J R, DOYLE C D, KOSYNKIN D V, et al.Diazonium functionalization of surfactant-wrapped chemically converted graphene sheets.Journal of the American Chemical Society, 2008, 130(48): 16201-16206.
[12]	ZHANG K, MAO L, ZHANG L L, et al.Surfactant-intercalated, chemically reduced graphene oxide for high performance supercapacitor electrodes.Journal of Materials Chemistry, 2011, 21(20): 7302-7307.
[13]	PARK S, AN J, JUNG I, et al.Colloidal suspensions of highly reduced graphene oxide in a wide variety of organic solvents.Nano Letters, 2009, 9(4): 1593-1597.
[14]	NETHRAVATHI C, RAJAMATHI M.Chemically modified graphene sheets produced by the solvothermal reduction of colloidal dispersions of graphite oxide.Carbon, 2008, 46(14): 1994-1998.
[15]	BOURLINOS A, STERIOTIS T A, KARAKASSIDES M, et al.Synthesis, characterization and gas sorption properties of a molecularly-derived graphite oxide-like foam.Carbon, 2007, 45(4): 852-857.
[16]	PAN H, POH C K, FENG Y P, et al.Supercapacitor electrodes from tubes-in-tube carbon nanostructures.Chemistry of Materials, 2007, 19(25): 6120-6125.
[17]	FRACKOWIAK E, METENIER K, BERTAGNA V, et al.Supercapacitor electrodes from multiwalled carbon nanotubes.Applied Physics Letters, 2000, 77(15): 2421-2423.
