基于BiOX(X=Cl、Br、I)新型高性能光催化材料的最新研究进展

doi:10.15541/jim20150060

摘要/Abstract

摘要：

铋系半导体BiOX(X=Cl、Br、I)因其独特的层状结构和合适的禁带宽度而表现出优异的光催化活性与稳定性, 已成为光催化材料领域极具应用前景的材料体系。本文首先针对BiOX(X=Cl、Br、I)光催化材料研究中的关键科学问题进行了深入分析, 进一步综述了国内外解决上述关键问题所采取的有效措施, 包括: 微结构调控、半导体复合、贵金属沉积、离子掺杂和表面敏化等, 并针对纳米结构BiOX(X=Cl、Br、I)负载于合适载体上实现固载的研究进展进行了概述, 从而对基于BiOX(X=Cl、Br、I)新型高性能光催化材料的最新研究进展进行了全面深入的综述, 最后展望了BiOX光催化材料的研究方向与趋势。

关键词: BiOX(X=Cl、Br、I), 半导体, 光催化, 改性, 固载, 综述

Abstract:

Bismuth-based semiconductor of BiOX(X=Cl, Br, I) has proved to be a new promising photocatalytic material due to its unique layered crystal structure and suitable band gaps, which exhibits superior photocatalytic performance and high stability. In this review, some key scientific topics in terms of photocatalysis of BiOX(X=Cl, Br, I) were firstly addressed, then the effective modification methods were comprehensively summarized, including microstructure adjustment, heterojunction construction, noble-metal deposition, doping, surface sensitization, etc. In addition, the research progress in catalyst immobilization by loading nano-structured BiOX(X=Cl, Br, I) onto appropriate carriers were also reviewed. Generally, this review presents the most recent advances of high performance of the BiOX(X=Cl, Br, I) based photocatalysts in depth and also prospects the research trend of the BiOX(X=Cl, Br, I) catalyst.

Key words: BiOX(X=Cl, Br, I), semiconductor, photocatalytic, modification, immobilization, review

中图分类号:

TQ174

刘家琴, 吴玉程. 基于BiOX(X=Cl、Br、I)新型高性能光催化材料的最新研究进展[J]. 无机材料学报, 2015, 30(10): 1009-1017.

LIU Jia-Qin, WU Yu-Cheng. Recent Advances in the High Performance BiOX(X=Cl, Br, I) Based Photo-catalysts[J]. Journal of Inorganic Materials, 2015, 30(10): 1009-1017.

图/表 6

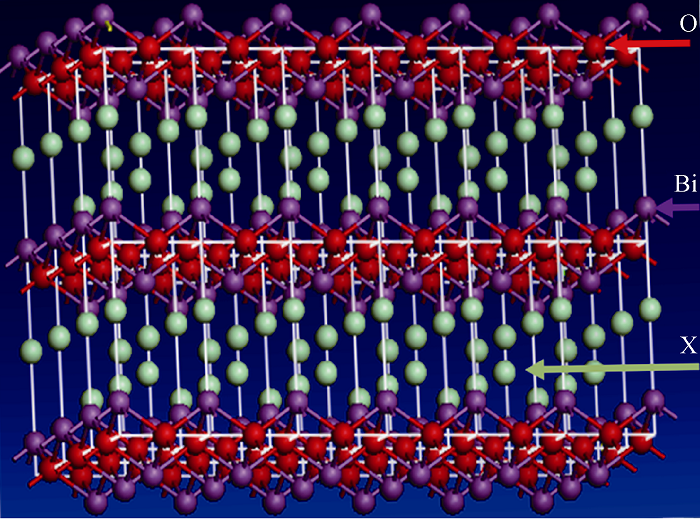

图1 BiOX(X=Cl、Br、I)晶体结构示意图

Fig. 1 Crystal structure diagram of BiOX(X=Cl, Br, I)

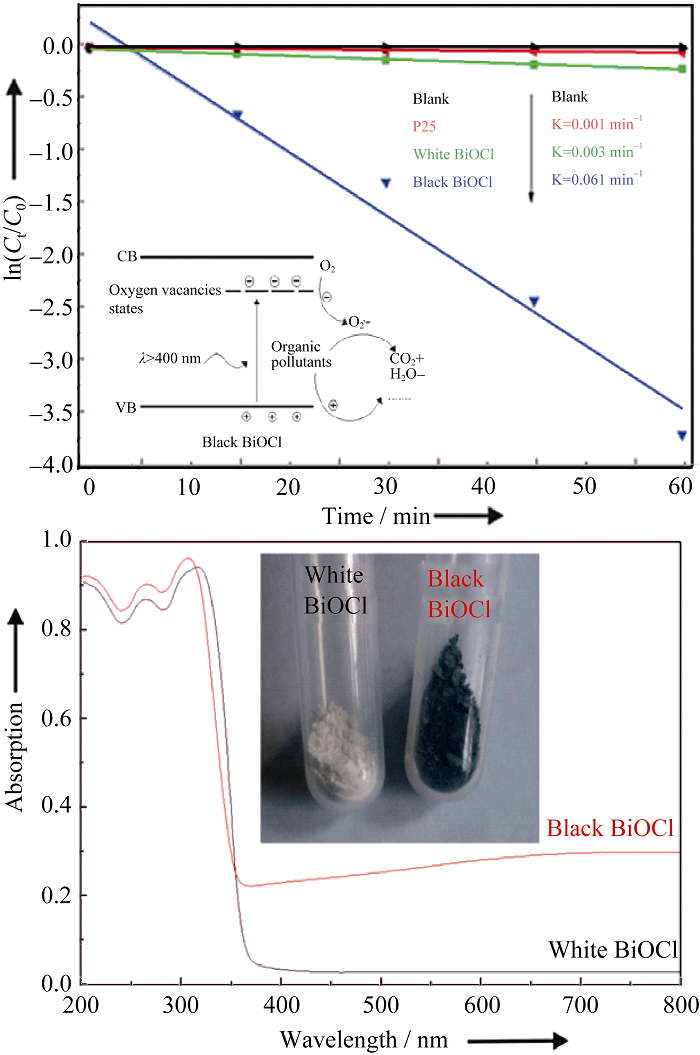

图2 黑、白BiOCl纳米粉体的UV-Vis DRS谱图、对RhB的可见光催化降解反应速率常数以及可见光催化活性提高机理[36]

Fig. 2 UV-Vis DRS spectrum and photocatalytic degradation curves of black and white BiOCl nanocatalysts[36]

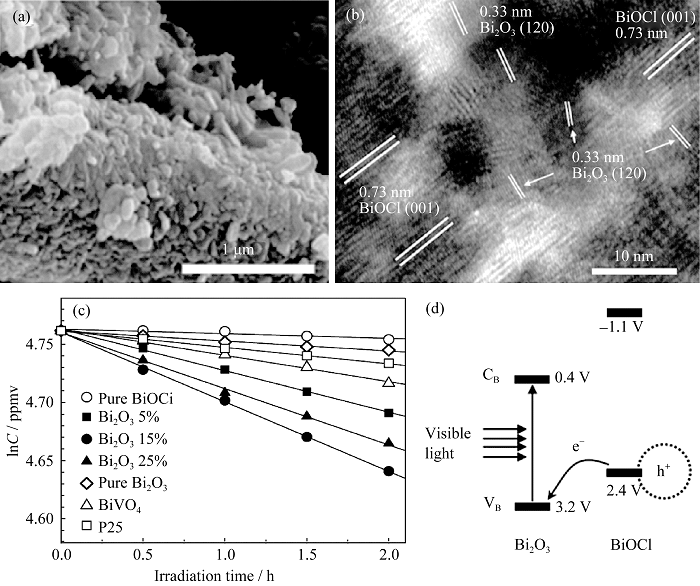

图3 BiOCl/Bi2O3纳米异质光催化剂的SEM、HRTEM表征、对有机物(异丙醇)可见光降解性能及光催化活性提高机理[38]

Fig. 3 Morphology, photocatalytic performance and activity enhancement mechanism of heterostructured BiOCl/Bi2O3 catalysts[38]

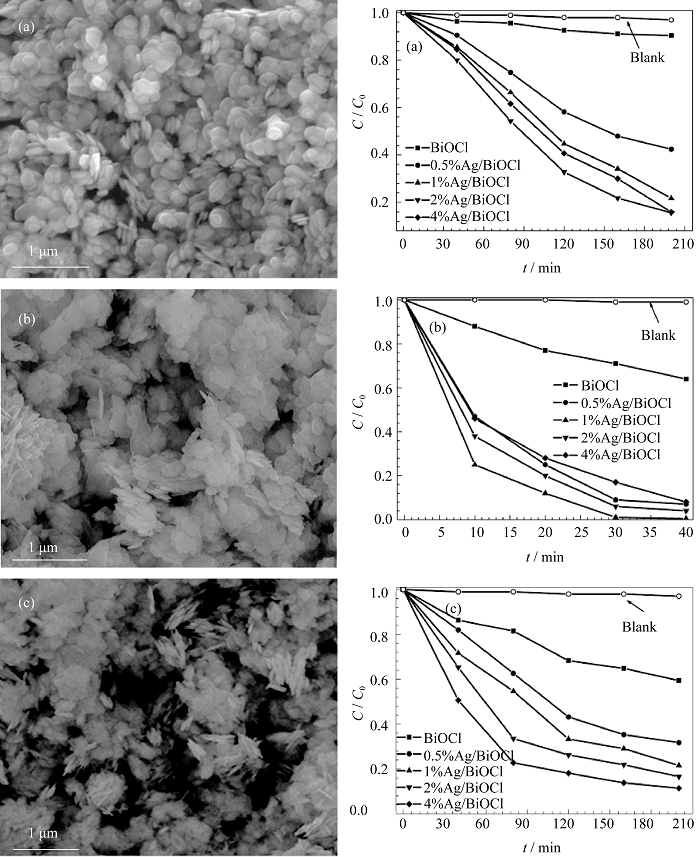

图4 Ag/BiOX(X=Cl、Br、I)纳米复合光催化剂的FESEM形貌以及Ag沉积量对BiOX光催化降解有机物活性的影响[45]

Fig. 4 Morphology and influence of Ag deposition amounts on the Ag/BiOX(X=Cl, Br, I) photocatalytic activity[45]

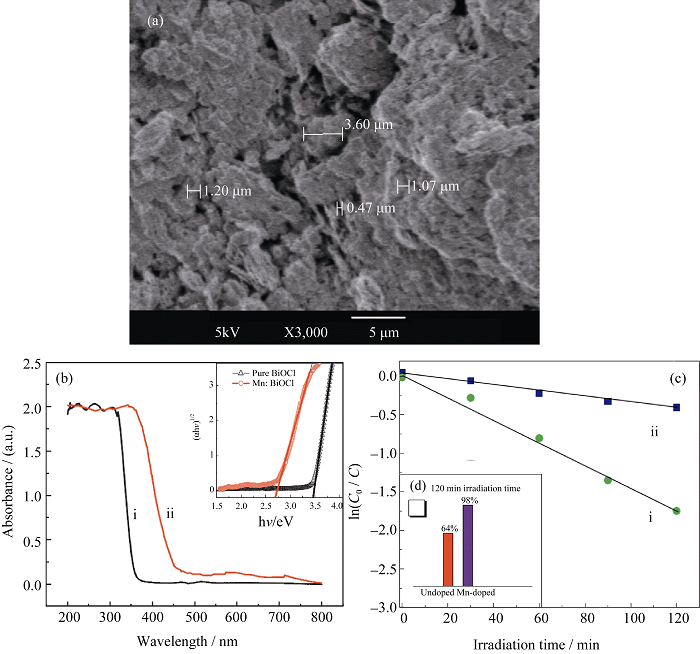

图5 Mn-BiOCl光催化剂的形貌、光学吸收特性及可见光催化降解有机物性能分析[47]

Fig. 5 Morphology (a), optical absorption characteristic (b) and photocatalytic performance (c, d) of undoped and Mn-doped BiOCl particles under visible light irradiation[47]

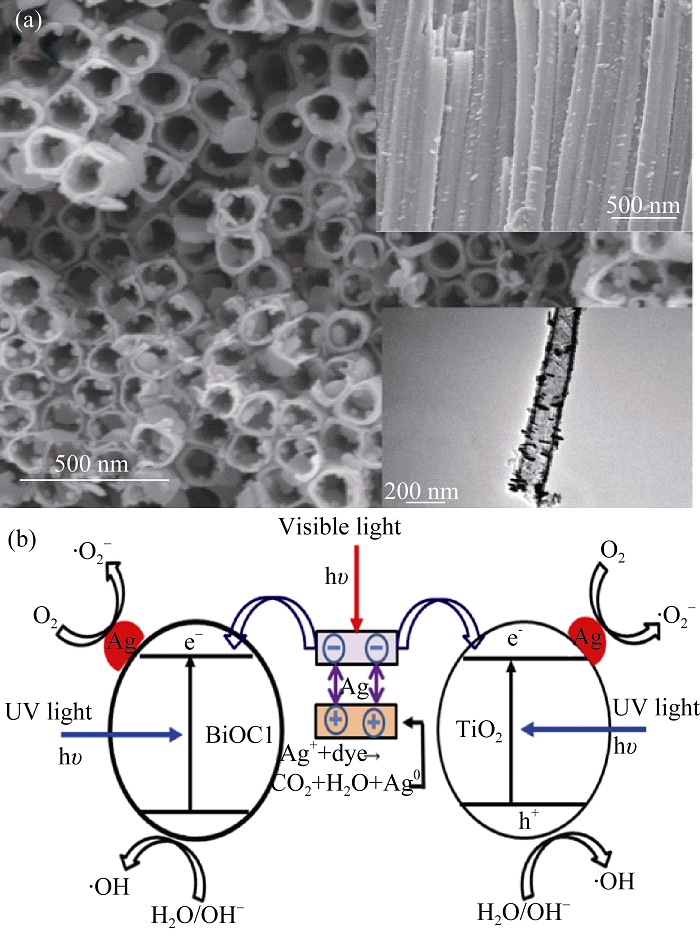

图6 Ag-BiOCl/TNTAs纳米异质阵列薄膜的形貌及光催化活性提高机理[58]

Fig. 6 Morphology (a) and photocatalytic activity enhancement mechanism (b) of Ag-BiOCl/TNTAs film catalyst under sunlight irradiation[58]
