溶剂热法合成不同形貌MnFe2O4纳米颗粒及其在污水处理中的应用

doi:10.3724/SP.J.1077.2014.13519

摘要/Abstract

摘要：

通过简单溶剂热法合成表面粗糙的立方体结构MnFe₂O₄颗粒, 样品粒径约为150 nm, 立方体表面球状突起的直径约为10 nm, 该特征增加了样品的比表面积。反应过程中, 通过改变表面活性剂CTAB的加入量, 有效影响晶体各个晶面方向的生长速度, 最终合成不同形貌的样品(立方体、多面体、正八面体结构)。合成样品在室温下都表现出典型的铁磁性质。通过对刚果红和重金属离子Cr^VI和Pb^II溶液的吸附实验证明, 表面粗糙的立方体结构MnFe₂O₄颗粒在污水处理过程中, 可以更高效地去除水中的污染物, 通过磁分离技术回收样品以便再利用, 提高废水净化率。

关键词: 磁性材料, 晶体生长, 微观结构, 污水处理

Abstract:

Manganese ferrite (MnFe₂O₄) with rough surface was synthesized by a simple solvothermal method. The average diameter of particles was about 150 nm, and the tubes of rough surface about 10 nm. Here, magnetic MnFe₂O₄ particles with different morphologies (cube, polyhedron and octahedron) were successfully prepared by controlling CTAB concentration. Both of the samples with different morphologies exhibit ferromagnetic behavior at room temperature. The saturation magnetization (M_s) and coercivity (H_c) of MnFe₂O₄ with non-smooth surface are 58.7 Am²/kg and 6.23 kA/m, respectively. The particles with rough surface also show good performance in removal of pollutants like Congo red (92.4 mg/g), Cr^VI(54.4 mg/g), and Pb^II(84.4 mg/g) from waste water by adsorption experiments. Because the particles are recollected by magnetic separation, the waste water purification rate can be improved, which expands the applications of magnetic materials.

Key words: magnetic materials, crystal growth, microstructure, water treatment

中图分类号:

O614

段连峰, 张雨, 王立民, 金松哲, 吴化. 溶剂热法合成不同形貌MnFe₂O₄纳米颗粒及其在污水处理中的应用[J]. 无机材料学报, 2014, 29(7): 763-768.

DUAN Lian-Feng, ZHANG Yu, WANG Li-Min, JIN Song-Zhe, WU Hua. Synthesis and Characterization of MnFe₂O₄ with Different Morphologies and Their Application in Water Treatment[J]. Journal of Inorganic Materials, 2014, 29(7): 763-768.

图/表 6

图1 样品S2 的低倍扫描电镜照片(a)、透射电镜照片(b)、高分辨率透射电镜照片及其电子衍射图(c)和XRD图谱(d)

Fig. 1 FESEM (a), TEM (b), HRTEM images and SEAD pattern (c) and XRD pattern (d) of sample S2

图2 样品S1、S3和S4的高倍扫描电镜照片

Fig. 2 Higher magnification FESEM images of samples S1, S3 and S4 (a) S1, 0 g; (b) S3,1 g; (c) S4, 2 g

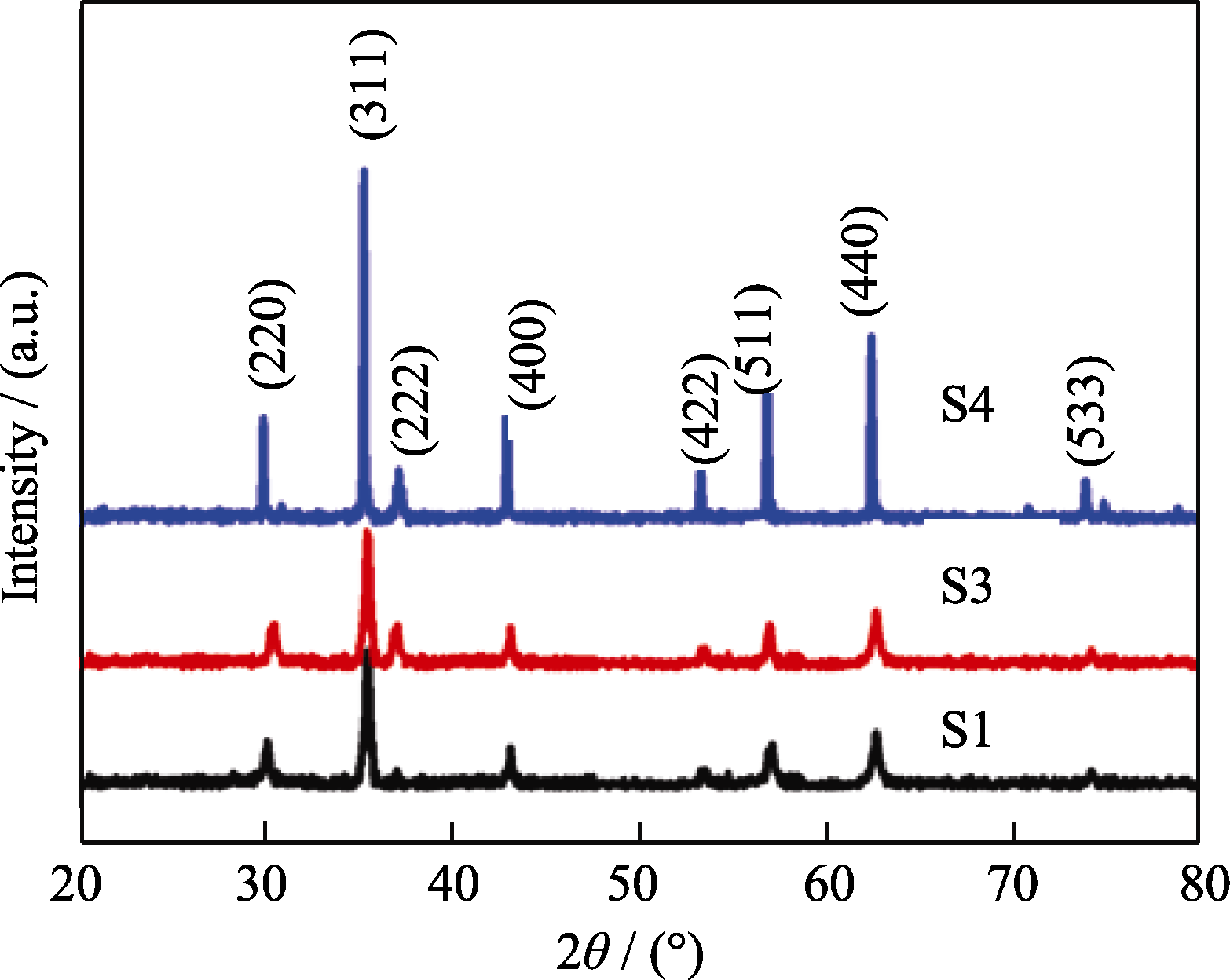

图3 样品S1、S3和S4的XRD图谱

Fig. 3 XRD patterns of samples S1, S3 and S4

图4 在室温下测得不同形貌样品的磁滞回线表1 不同样品磁学参数

Fig. 4 Hysteresis loops of the magnetite with special morphologies tested at room temperature

表1 不同样品磁学参数

Table 1 Magnetism parameters of different samples

Samples	S2	S3	S4
M_s /(Am²·kg^-1)	58.7	76.7	61.3
M_{r /}(Am²·kg^-1)	6.5	1.3	7.4
H_c /(kA·m^-1)	6.23	0.95	6.87

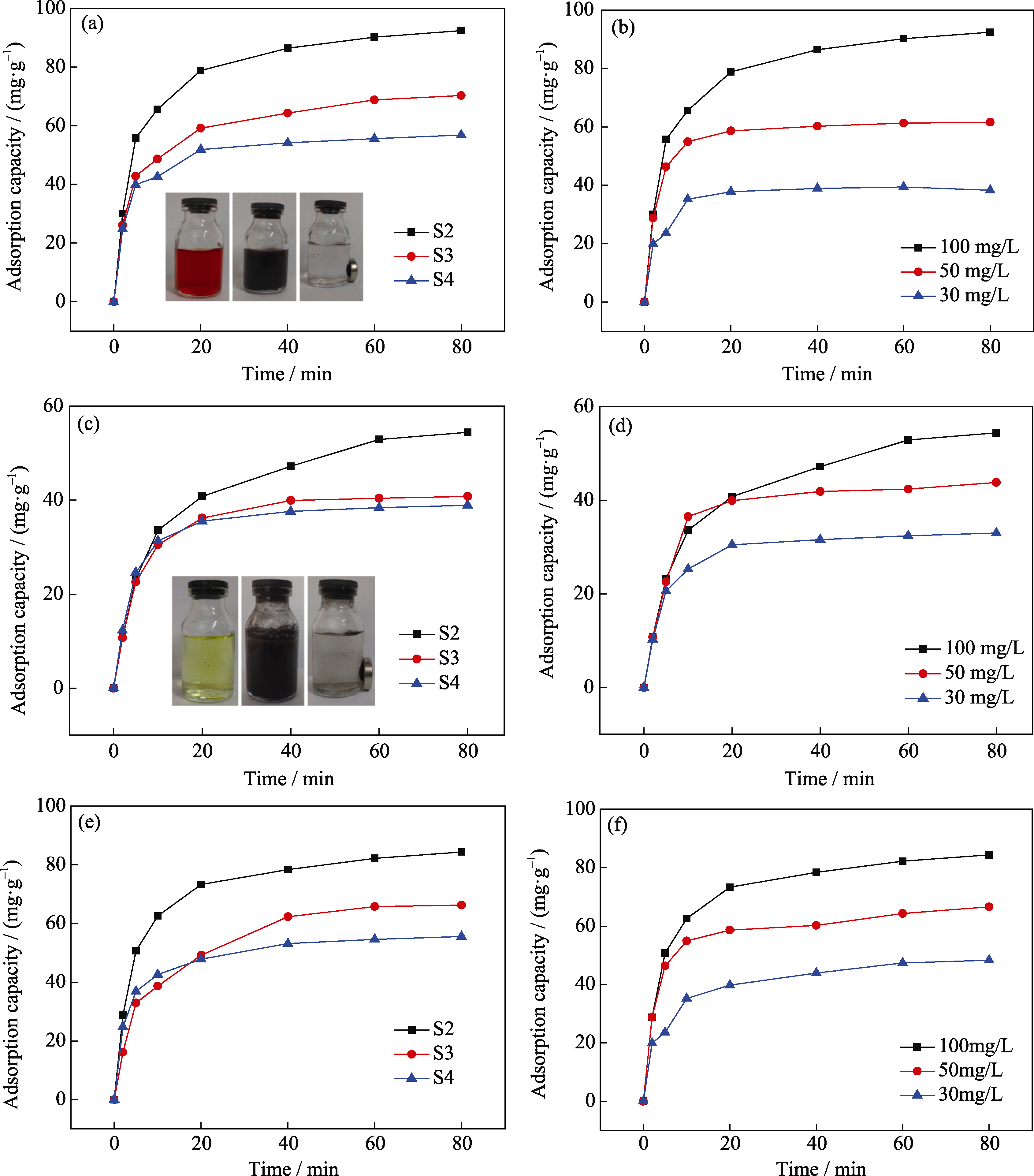

图5 样品S2、S3、S4对CR、Cr6+、Pb2+溶液的吸附曲线(a、c、e)和样品S2对不同浓度CR、Cr6+、Pb2+溶液的吸附曲线(b、 d、f)

Fig. 5 Adsorption capacity of samples S2, S3 and S4 adsorbed CR, Cr6+ and Pb2+ solution (a, c and e) and adsorption capacity of sample S2 adsorbed CR, Cr6+ and Pb2+solution (b, d and f) with different concentrations

参考文献 28

[1]	CUI Y, LIEBER C M. Functional nanoscale electronic devices assembled using silicon nanowire building blocks. Science, 2001, 291(851): 851-853.
[2]	WANG X, ZHUANG J, PENG Q, et al. A general strategy for nanocrystal synthesis. Nature, 2005, 437(121-124): 121-124.
[3]	DUAN L F, JIA S S, ZHAO L J. Study on morphologies of Co microcrystals produced by solvothermal method with different solvents. Materials Research Bulletin, 2010, 45(4): 373-376.
[4]	LIU Q,LV L,WANG Y. Electric and magnetic properties of NiFe2O4- BaTiO3 composites synthesized by hydrothermalmethod. Bulletin of the Chinese Ceramic Society, 2012, 33(1): 50-55.
[5]	FU F L, WANG Q. Removal of heavy metal ions from wastewaters: a review. J. Environ. Manage., 2011, 92(3): 407-418.
[6]	WANG Y H, LIN S H, JUAN R S. Removal of heavy metal ions from aqueous solutions using various low-cost adsorbents. J. Hazard. Mater., 2003, 102(2/3): 291-302.
[7]	KURNIAWAN T A, CHAN G Y S, LO W H, et al. Physico- chemical treatment techniques for wastewater laden with heavy metals. Chem. Eng. J. , 2006, 118(1/2): 83-98.
[8]	LI M, QIAN F Y, LI X Y. Characterization of organic pollutants in bio-treated effluents of dyeing and textile wastewater and removal behavior during magnesium sulfate coagulation process. Environmental Chemistry, 2012, 31(1): 88-93.
[9]	MERIC S, KAPTAN D, OLMEZ T. Color and COD removal from wast-e-water containing Reactive Black 5 using Fenton's oxidation process. Chemosphere, 2004, 54(3): 435-441.
[10]	PAN B J, PAN B C, ZHANG W M, et al. Development of polymeric and polymer-based hybrid adsorbents for pollutants removal from waters. Chem. Eng. J., 2009, 151(1/2/3): 19-29.
[11]	MISHRA S P, SINGH V K, TIWARI D. Radiotracer technique in adsorption study. 14. Efficient removal of mercury from aqueous solutions by hydrous zirco-nium oxide. Appl. Radiat. Isot. , 1996 47(1): 15-21.
[12]	VANBENSCHOTEN J E, REED B E, MATSUMOTO M R, et al. Metal removal by soil washing for an iron-oxide coated sandy soil. Water Environ. Res. , 1994(66): 168-174.
[13]	DING Z H, FENG J M. Surface characters of iron-(hydro) oxides andtheir adsorption of heavy metal ions. Acta Mineralogica Sinica, 2000(20): 349-352.
[14]	AGRAWAL A, SAHU K K. Kinetic and isotherm studies of cadmium adsorption on manganese nodule residue. J. Hazard. Mater., 2006(137): 915-924.
[15]	MANDAVIAN A R, MIRRAHIMI M A S. Efficient separation of heavy metal cations by anchoring polyacrylic acid on superparamagnetic magnetite nanoparticles through surface modification. Chem. Eng. J. , 2010, 159(1/2/3): 264-271.
[16]	ZHAO X, LV L, PAN B, et al. Polymer-supported nanoco-m-posites for environmental application-a review. Chem. Eng. J., 2011, 170(2/3): 381-394.
[17]	ZHAO M Y, DUAN L F, WU H, et al. Synthesis of hollow Fe3O4 submicrospheres and their adsorption-desorption capability for Congo red. Chin. J. Inorg. Chem., 2012, 28(10): 2186-2192.
[18]	WANG Y Q, CHENG R M, WEN Z, et al. Synthesis and characteriz-ation of single-crystalline MnFe2O4 ferrite nanocrystals and their possible application in water treatment. Eur. J.Inorg.Chem., 2011, 19(1): 2942-2947.
[19]	ZHUO NA, LI LI, GAO YU, et al. CTAB-assisted synthesis of nano-composite Ag/ZnO-TiO2 and its UV photocatalytic activity. Chin. J. Inorg. Chem., 2013, 29(5): 991-998.
[20]	ZHU Y F, ZHAO W R, CHEN H R, et al. A Simple one-pot self-assem-bly route to nanoporous and monodispersed Fe3O4 particles with oriented attachment structure and magnetic property. Phys. J. Chem. C, 2007, 111(14): 5281-5285.
[21]	DIMITROV D A, WYSIN G M. Effects of surface anisotropy on hysteresis in fine magnetic particles. Phys. Rev. B, 1994, 50(5): 3077-3084.
[22]	KODOMA R H, BERKOWITZ A E. Atomic-scale magnetic modeling of oxide nanoparticles. Phys. Rev. B, 1999, 59(9): 6321-6336.
[23]	WANG L X, LI J C, JIANG Q, et al. Water-soluble Fe3O4 nanopart-icles with high solubility for removal of heavy-metal ions from waste water. Dalton Trans., 2012, 41(15): 4544-4551.
[24]	GUO MING, HUANG FENG-QIN, LIU MI-MI, et al. Performance of binding interaction between Cr(Ⅵ) and serum proteome. Chin. J. Inorg.Chem., 2013, 29(5): 1037-1044.
[25]	WANG X S, CHEN J P. Biosorption of congo red from aqueous solution using wheat bran and rice bran: batch studies. Sep.Sci. Technol. , 2009, 44(6): 1452-1466.
[26]	PANDAG C, DAS S K, GUHA A K. Effect of method of crystallization on the IV-III and IV-II polymorphic transitions of ammonium nitrate. J. Hazard. Mater., 2009, 161(1): 373-379.
[27]	JIANG M Q, WANG Q P, JIN X Y, et al. Removal of Pb(II) from aqueous solution using modified and unmodified kaolinite clay. J. Hazard. Mater., 2009, 170(1): 332-339.
[28]	HU J, LO I M C, CHEN G H. Fast removal and recovery of Cr(VI) using surface-modified jacobsite (MnFe2O4) nanoparticles. Langmuir, 2005, 21(24): 11173-11179.
