坩埚底角形状对提拉法生长同成分铌酸锂晶体的影响

doi:10.15541/jim20240207

无机材料学报 ›› 2024, Vol. 39 ›› Issue (10): 1167-1174.DOI: 10.15541/jim20240207 CSTR: 32189.14.10.15541/jim20240207

坩埚底角形状对提拉法生长同成分铌酸锂晶体的影响

郝永鑫¹^,²(), 秦娟³, 孙军⁴(), 杨金凤⁴, 李清连¹^,², 黄贵军¹^,², 许京军¹

1.南开大学物理科学学院, 天津 300071
2.山西大学极端光学协同创新中心, 太原 030006
3.杭州光学精密机械研究所, 杭州 311421
4.中国科学院新疆理化技术研究所, 晶体材料研究中心, 特殊环境条件功能材料与器件全国重点实验室, 新疆功能晶体材料重点实验室, 乌鲁木齐 830011

收稿日期:2024-04-23 修回日期:2024-05-20 出版日期:2024-10-20 网络出版日期:2024-10-09
通讯作者: 孙军, 研究员. E-mail: sunjun@nankai.edu.cn
作者简介:郝永鑫(1997-), 女, 博士研究生. E-mail: bigcrystal@mail.nankai.edu.cn
基金资助:
国家自然科学基金(61575099)

Impact of Crucible Bottom Shape on the Growth of Congruent Lithium Niobate Crystals by Czochralski Method

HAO Yongxin¹^,²(), QIN Juan³, SUN Jun⁴(), YANG Jinfeng⁴, LI Qinglian¹^,², HUANG Guijun¹^,², XU Jingjun¹

1. School of Physics, Nankai University, Tianjin 300071, China
2. Collaborative Innovation Center of Extreme Optics, Shanxi University, Taiyuan 030006, China
3. Hangzhou Institute of Optics and Fine Mechanics, Hangzhou 311421, China
4. Research Center for Crystal Materials, State Key Laboratory of Functional Materials and Devices for Special Environmental Conditions, Xinjiang Key Laboratory of Functional Crystal Materials, Xinjiang Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Urumqi 830011, China

Received:2024-04-23 Revised:2024-05-20 Published:2024-10-20 Online:2024-10-09
Contact: SUN Jun, professor. E-mail: sunjun@nankai.edu.cn
About author:HAO Yongxin (1997-), female, PhD candidate. E-mail: bigcrystal@mail.nankai.edu.cn
Supported by:
National Natural Science Foundation of China(61575099)

摘要/Abstract

摘要：

铌酸锂晶体集压电、非线性、电光、光折变等效应于一身, 同时其物理化学性质稳定, 在集成光学领域极具应用潜力。然而, 大尺寸铌酸锂晶体生长的热场设计难度大, 其中坩埚形状作为热场设计的重要因素, 对晶体生长的影响显著。坩埚直径和高度受制于装料量和晶体直径等硬性约束, 因此通常通过改变坩埚局部的形状以改善热场。针对坩埚底角形状对大尺寸同成分铌酸锂晶体生长的影响, 本研究使用两种底角形状的坩埚进行了四英寸同成分铌酸锂晶体生长实验。通过数值模拟, 分析了坩埚底角形状对固液界面附近晶体内和熔体内轴向温度梯度的影响, 以及对固液界面下方熔体内温度分布的影响, 进而结合晶体生长结果分析了坩埚底角形状对晶体生长的影响。研究表明: 坩埚底角形状的变化会引起坩埚侧壁上温差的变化和熔体内温度梯度的变化, 并改变熔体自然对流的强弱; 与底部斜角坩埚相比, 使用底部弧角坩埚时, 固液界面附近晶体内和熔体内的轴向温度梯度较大, 固液界面下方熔体内的轴向温度梯度较大, 自然对流更强。这一研究结果有助于解决晶体生长脊展宽和胞状界面生长等问题。

关键词: 晶体生长, 铌酸锂晶体, 坩埚, 温度梯度, 自然对流, 固液界面

Abstract:

Lithium niobate crystal, combining its piezoelectric, nonlinear, electro-optical, and photorefractive properties, along with its stable physicochemical characteristics, has great potential for applications in integrated optics. However, designing thermal field for large-size lithium niobate crystal growth presents considerable challenges, considering the crucible shape being an important factor that significantly influences the crystal growth in which the diameter and height are compulsively restricted to the factors such as load capacity and crystal diameters. In this study, 4-inch congruent lithium niobate crystals were grown by using crucibles with two types of bottom shapes. The impacts of crucible bottom shape on the axial temperature gradient within the crystal and the melt near the crystal-melt interface, and the temperature distribution within the melt below the crystal-melt interface, were analyzed by numerical simulation. The impact of the crucible bottom shape on crystal growth was analyzed in contrast to crystal growth results. It is found that changes in the crucible bottom shape lead to variations in the temperature difference along the crucible sidewall and the temperature gradient within the melt, thereby altering the strength of natural convection in the melt. Compared to crucible with slipped bottom corner, the axial temperature gradient near the crystal-melt interface within the crystal and melt is large when using the crucible with curved bottom corner, and the axial temperature gradient within the melt below the crystal-melt interface is also large, and the natural convection is strong. Therefore, this study helps to solve the problems such as the unwanted crystal growth ridge spreading and the overgrowth of cellular interface.

Key words: crystal growth, lithium niobate crystal, crucible, temperature gradient, natural convection, crystal- melt interface

中图分类号:

O782

郝永鑫, 秦娟, 孙军, 杨金凤, 李清连, 黄贵军, 许京军. 坩埚底角形状对提拉法生长同成分铌酸锂晶体的影响[J]. 无机材料学报, 2024, 39(10): 1167-1174.

HAO Yongxin, QIN Juan, SUN Jun, YANG Jinfeng, LI Qinglian, HUANG Guijun, XU Jingjun. Impact of Crucible Bottom Shape on the Growth of Congruent Lithium Niobate Crystals by Czochralski Method[J]. Journal of Inorganic Materials, 2024, 39(10): 1167-1174.

图/表 11

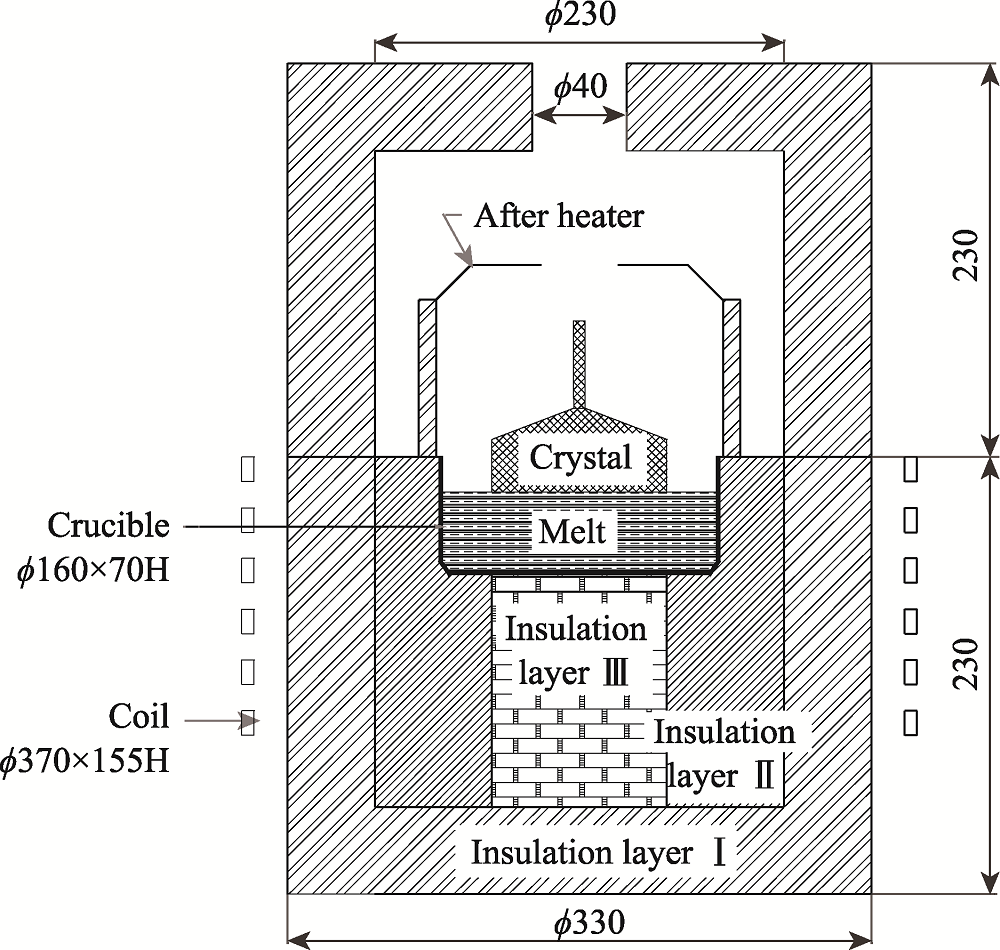

图1 提拉法生长四英寸CLN晶体的热场结构示意图

Fig. 1 Schematic diagram of the 4-inch CLN crystal growth thermal field by Czochralski method Unit: mm

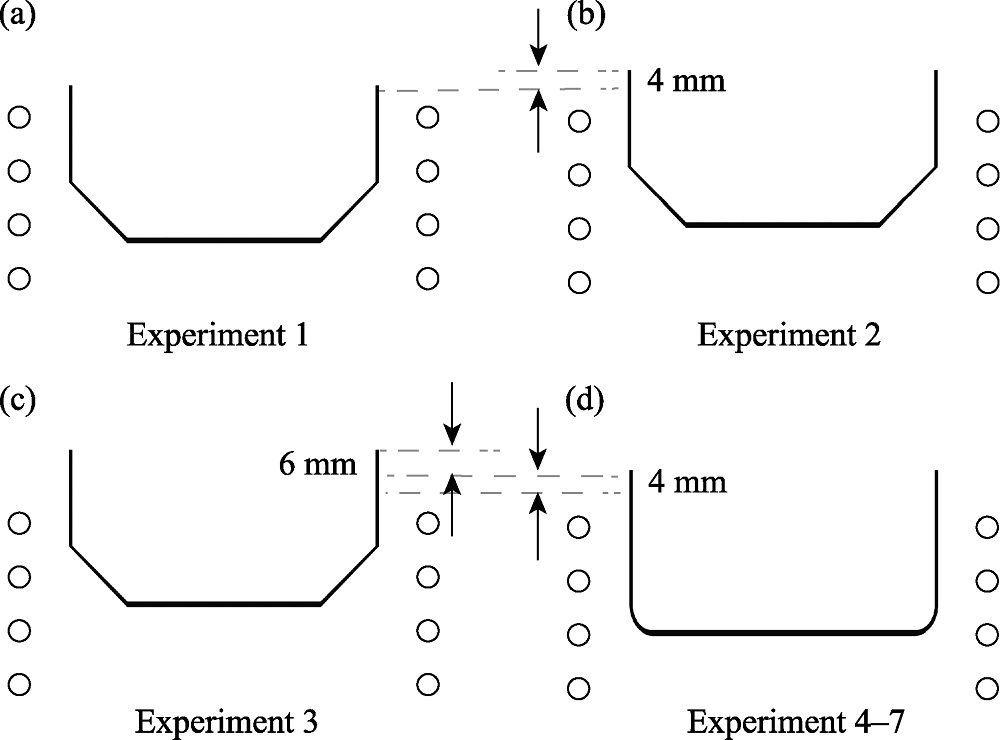

图2 7次晶体生长的坩埚底角形状及坩埚相对感应线圈位置的示意图

Fig. 2 Schematic diagram of the crucible bottom shape and position of the crucible relative to the induction coil for 7 times crystal growth (a) Experiment 1; (b) Experiment 2; (c) Experiment 3; (d) Experiment 4-7

表1 数值模拟使用的物理参数

Table 1 Operating parameters used for numerical simulation

Description	Value
Crucible inner radius /mm	160
Crucible wall thickness /mm	1.5
Height and width of the slipped bottom corner /mm	30
Radius of the curved bottom corner /mm	15
Crystal density /(kg·m^-3)	4640
Melt density /(kg·m^-3)	3530-3670
Crystal thermal conductivity /(W·m^-1·K^-1)	3.539
Melt thermal conductivity /(W·m^-1·K^-1)	4.5
Melt point /℃	1252
Thermal expansion coefficient /K^-1	1.7×10^-4
Crystal diameter /mm	105
Emissivity	0.3
Pulling rate /(mm·h^-1)	1.5
Rotate rate /(r·min^-1)	7

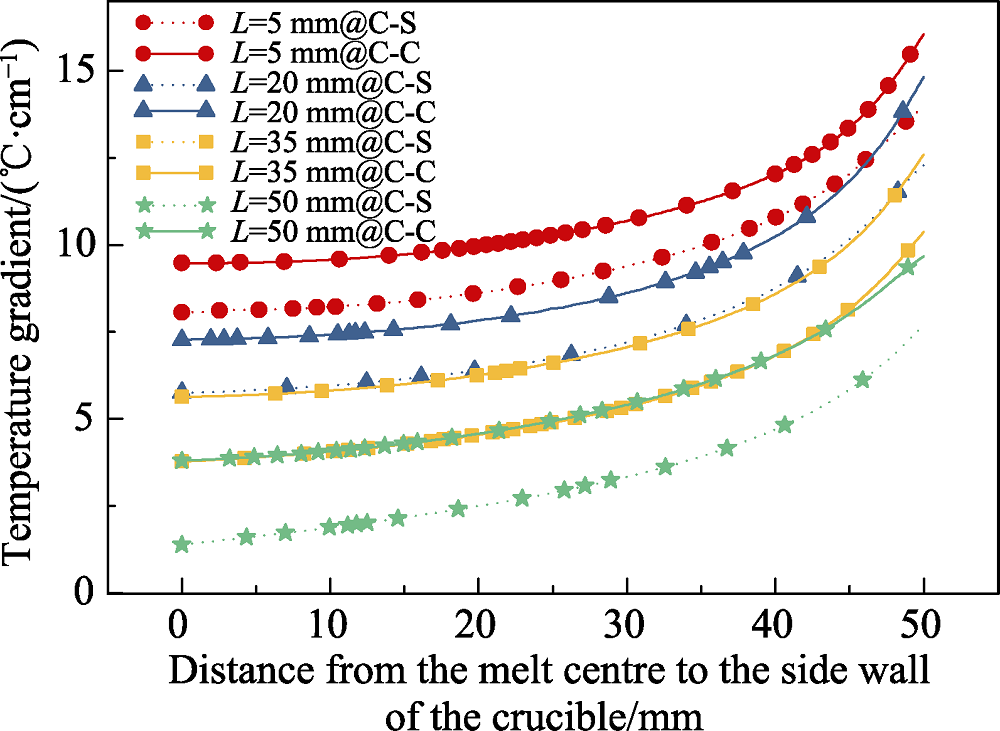

图3 等径生长不同阶段固液界面附近熔体内的轴向温度梯度

Fig. 3 Axial temperature gradients within the melt near the crystal-melt interface at different stages of body growth

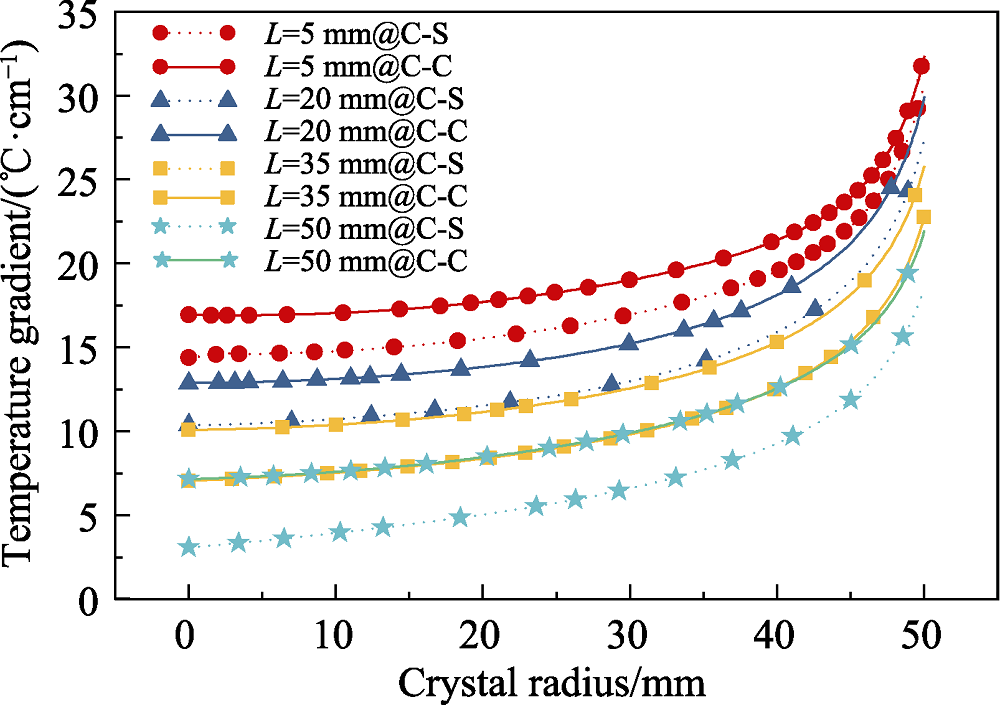

图4 等径生长不同阶段固液界面附近晶体内的轴向温度梯度

Fig. 4 Axial temperature gradients within the crystal near the crystal-melt interface at different stages of body growth

表2 固液界面附近熔体中心处的轴向温度梯度(Gmelt)

Table 2 Axial temperature gradient at the melt centre near the crystal-melt interface (Gmelt)

L/mm	G_melt by using C-S /(℃·cm^-1)	G_meltby using C-C/(℃·cm^-1)	Percentage of promotion/%
5	8.05	9.48	17.8
20	5.75	7.28	26.6
35	3.78	5.63	48.9
50	1.39	3.80	173.3

表3 固液界面附近晶体中心处的轴向温度梯度(Gcrystal)

Table 3 Axial temperature gradient at the crystal centre near the crystal-melt interface (Gcrystal)

L/mm	G_crystal by using C-S/(℃·cm^-1)	G_crystal by using C-C/(℃·cm^-1)	Percentage of promotion/%
5	14.35	16.92	17.9
20	10.36	12.87	24.2
35	7.06	10.07	42.6
50	3.06	7.15	133.7

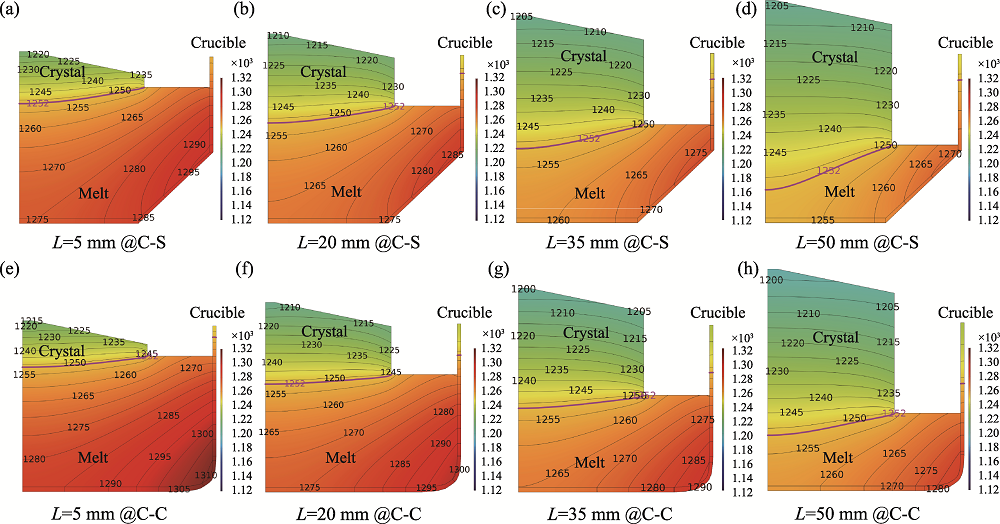

图5 等径生长不同阶段晶体、熔体及坩埚的温度分布示意图

Fig. 5 Schematic temperature distributions of crystal, melt and crucible at different stages of body growth (a) L=5 mm @C-S; (b) L=20 mm @C-S; (c) L=35 mm @C-S; (d) L=50 mm @C-S; (e) L=5 mm @C-C; (f) L=20 mm @C-C; (g) L=35 mm @C-C; (h) L=50 mm @C-C

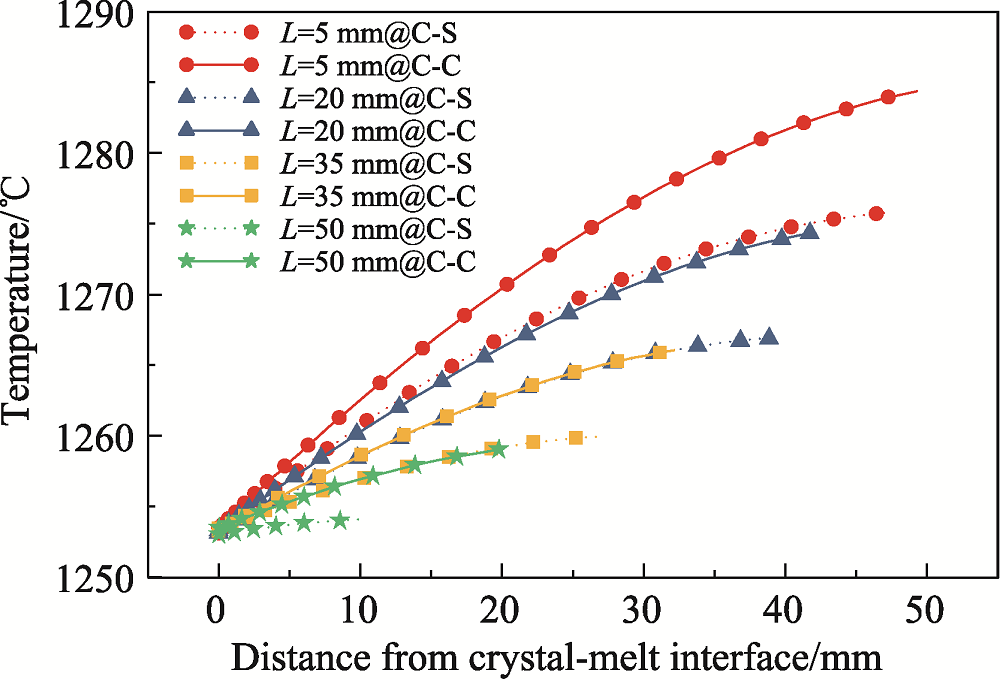

图6 等径生长不同阶段熔体中心轴线处的温度分布

Fig. 6 Temperature distributions along the axis of central melt at different stage of body growth

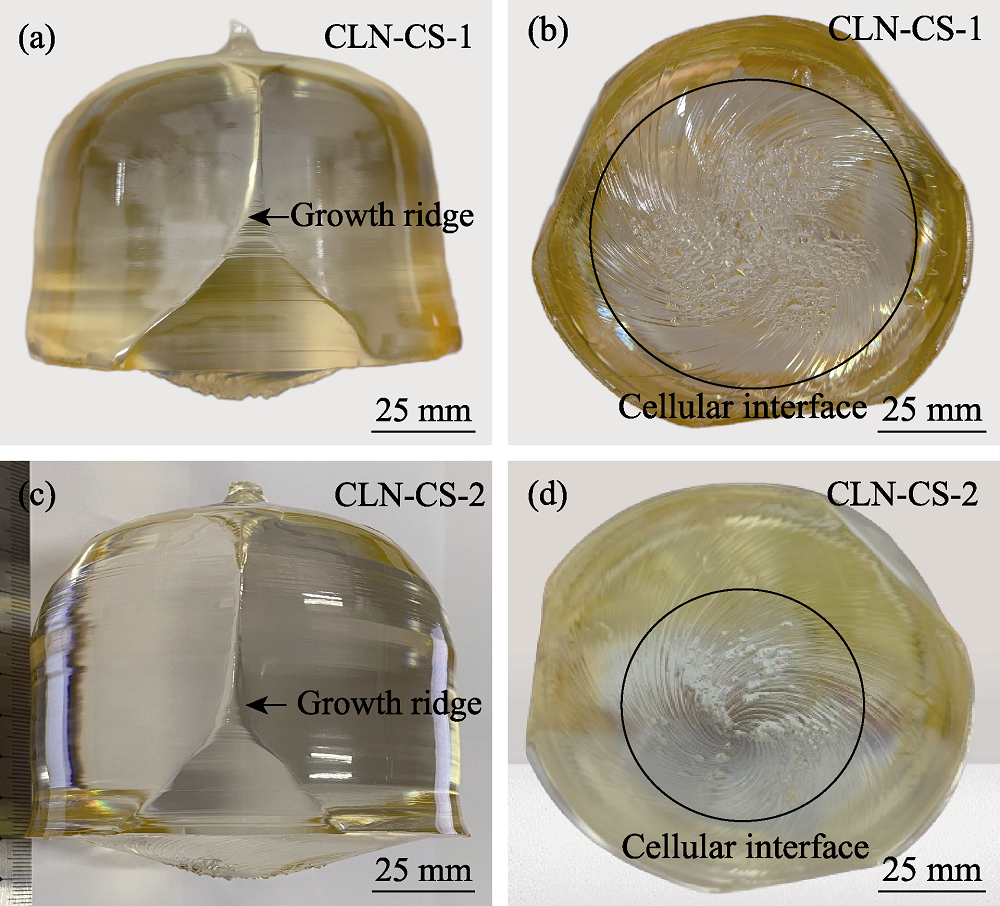

图7 提高坩埚相对感应线圈位置前后生长的晶体照片(使用底部斜角坩埚, 第1, 2次实验)

Fig. 7 Pictures of crystals grown before and after promoting the position of the crucible relative to the induction coil using crucible with slipped bottom corner (experiments 1, 2) (a) Side of crystal CLN-CS-1; (b) Bottom interface of crystal CLN-CS-1; (c) Side of crystal CLN-CS-2; (d) Bottom interface of crystal CLN-CS-2

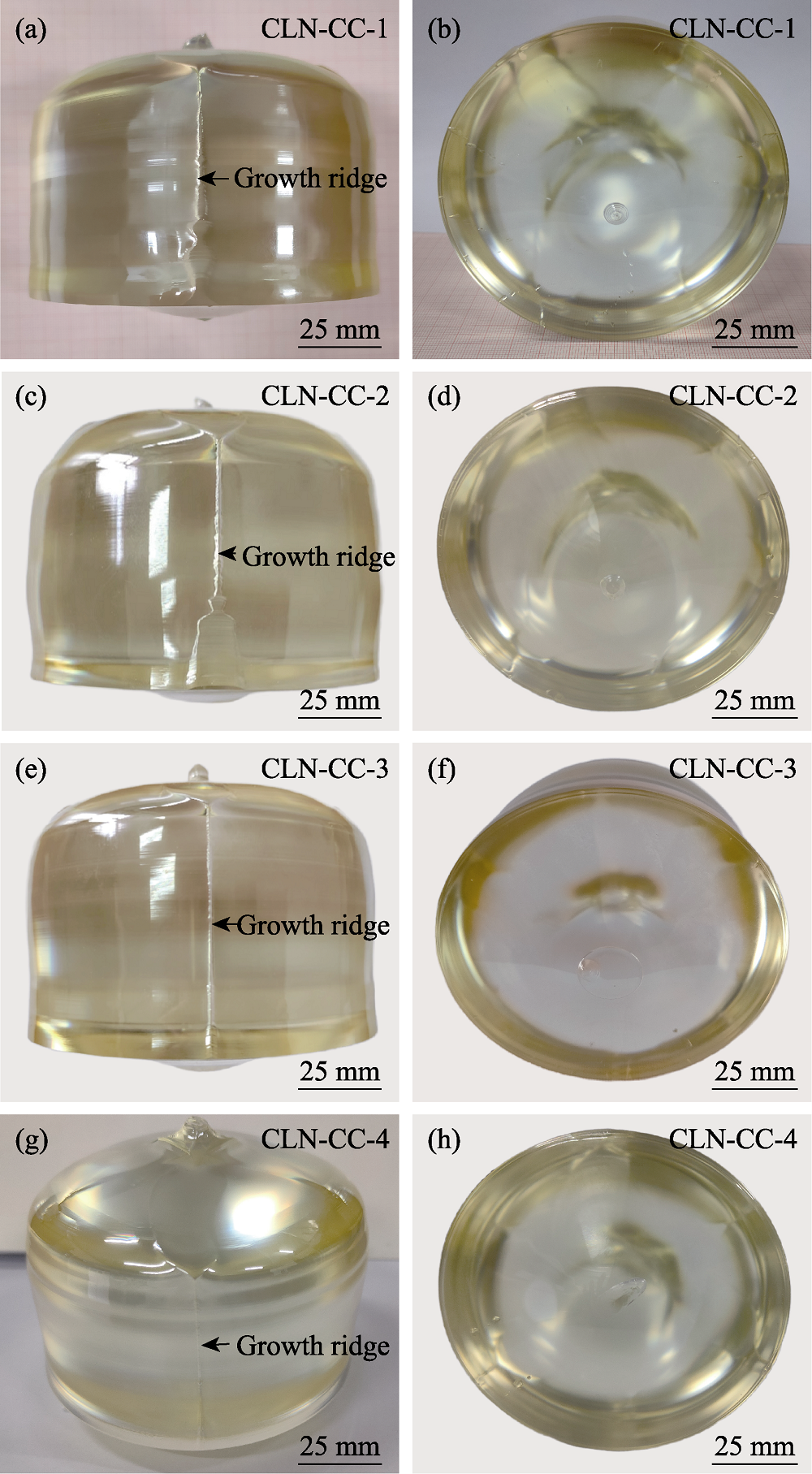

图8 使用底部弧角坩埚生长的晶体照片(第4-7次实验)

Fig. 8 Pictures of crystals grown by using crucible with curved bottom corner (experiments 4-7) (a) Side of crystal CLN-CC-1; (b) Bottom interface of crystal CLN-CC-1; (c) Side of crystal CLN-CC-2; (d) Bottom interface of crystal CLN-CC-2; (e) Side of crystal CLN-CC-3; (f) Bottom interface of crystal CLN-CC-3; (g) Side of crystal CLN-CC-4; (h) Bottom interface of crystal CLN-CC-4
