多晶TaSb2的热磁性能研究

doi:10.15541/jim20250264

摘要/Abstract

摘要： 基于埃廷豪森效应的热磁制冷是一种低温固态制冷技术,具有控温精确、体积小、无振动、无噪音等优点。近年来,拓扑半金属因兼具电子与空穴两种载流子及高迁移率,在低温下表现出优异的热磁性能,成为潜在候选材料。本研究采用固相反应与放电等离子烧结工艺制备了高致密度多晶TaSb₂,并系统测试其低温热磁输运性质。结果表明,多晶TaSb₂能斯特热电势在27 K附近达到最大值,且表现出与磁场的正相关关系。多晶TaSb₂在9 T和26 K时能斯特功率因子达到315.1 μW·cm^-1·K^-2,在9 T和22 K时能斯特热电优值达7.1×10^-4 K^-1,均优于大部分已报道的多晶热磁材料。机理分析发现,强双极效应、高载流子迁移率及显著的声子曳引效应共同提升了其热电势,从而赋予材料优异的热磁性能。此外,磁场可显著抑制低温下的电子热导率,导致磁场下总热导率主要来自于晶格贡献。本研究为低温固态制冷提供了新的材料选择和设计思路,得到的材料晶格热导率较高,在一定程度上限制了材料性能,未来通过声子工程降低晶格热导率有望进一步优化性能。

关键词: 拓扑半金属, 多晶TaSb₂, 热磁效应, 双极效应, 声子曳引

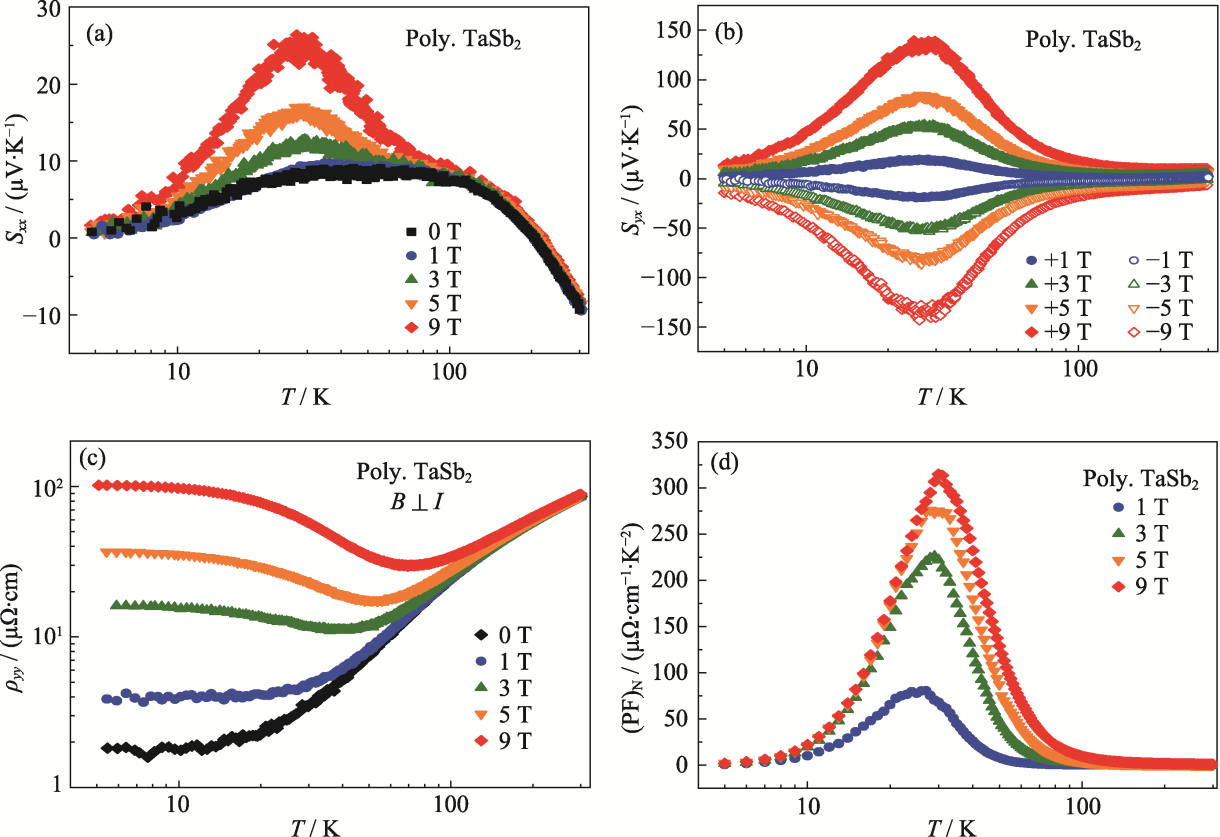

Abstract: Thermomagnetic refrigeration based on the Ettingshausen effect is a low-temperature solid-state cooling technology with advantages of precise temperature control, compact size, and noiseless operation. In recent years, topological semimetals, which possess both electrons and holes as charge carriers and exhibit high carrier mobility, have shown excellent thermomagnetic performance at low temperatures, making them promising candidates for cryogenic applications. In this study, highly dense polycrystalline TaSb₂ was synthesized via solid-state reaction followed by spark plasma sintering, and its low-temperature thermomagnetic transport properties were systematically investigated. The results show that the Nernst thermopower peaks at around 27 K and increases with applied magnetic field. Under 9 T and 26 K, the Nernst power factor reaches 315.1 μW·cm^-1·K^-2, while under 9 T and 22 K, the Nernst figure-of-merit is 7.1×10^-4 K^-1, both outperforming most reported polycrystalline thermomagnetic materials. Mechanistic analysis indicates that the high performance originates from the combined effects of strong bipolar effect, high carrier mobility, and significant phonon-drag enhancement of thermopower. Moreover, magnetic fields markedly suppress the electronic contribution to thermal conductivity at low temperatures, making the total thermal conductivity predominantly determined by the lattice component. This work offers a new material option and design strategy for low-temperature solid-state cooling applications. The relatively high lattice thermal conductivity partially limits the thermomagnetic performance, further reduction via phonon engineering could lead to substantial improvements.

Key words: topological semimetal, polycrystalline TaSb₂, thermomagnetic effect, bipolar effect, phonon drag

中图分类号:

TB34

李鹏, 仇鹏飞, 江彬彬, 肖杰, 史迅. 多晶TaSb₂的热磁性能研究[J]. 无机材料学报, DOI: 10.15541/jim20250264.

LI Peng, QIU Pengfei, JIANG Binbin, XIAO Jie, SHI Xun. Thermomagnetic Performance of Polycrystalline TaSb₂[J]. Journal of Inorganic Materials, DOI: 10.15541/jim20250264.

参考文献

[1] PEI Y, SHI X, LALONDE A, et al. Convergence of electronic bands for high performance bulk thermoelectrics. Nature, 2011, 473(7345): 66.
[2] ZHANG J, LIU R, CHENG N, et al. High-performance pseudocubic thermoelectric materials from non-cubic chalcopyrite compounds. Advanced Materials, 2014, 26(23): 3848.
[3] HEREMANS J P, JOVOVIC V, TOBERER E S, et al. Enhancement of thermoelectric efficiency in PbTe by distortion of the electronic density of states. Science, 2008, 321(5888): 554.
[4] SHI X, YANG J, SALVADOR J R, et al. Multiple-filled skutterudites: high thermoelectric figure of merit through separately optimizing electrical and thermal transports. Journal of the American Chemical Society, 2011, 133(20): 7837.
[5] XING T, SONG Q, QIU P, et al. High efficiency GeTe-based materials and modules for thermoelectric power generation. Energy & Environmental Science, 2021, 14(2): 995.
[6] ZHANG Q, BAI S, CHEN L.Technologies and applications of thermoelectric devices: current status, challenges and prospects.Journal of Inorganic Materials, 2018, 34(3): 279.
[7] QIU P, MAO T, HUANG Z, et al. High-efficiency and stable thermoelectric module based on liquid-like materials. Joule, 2019, 3(6): 1538.
[8] GOLDSMID H J. Thermoelectric Refrigeration.Wembley: Plenum Press, 1964: 84-87.
[9] ROWE D M.CRC Handbook of Thermoelectrics. Boca Raton: CRC Press LLC, 1995: 71-72.
[10] YIM W·M, AMITH A.Bi-Sb alloys for magneto-thermoelectric and thermomagnetic cooling.Solid-State Electronics, 1972, 15(10): 1141.
[11] CUFF K F, HORST R B, WEAVER J L, et al. The thermomagnetic figure of merit and ettingshausen cooling in Bi-Sb Alloys. Applied Physics Letters, 1963, 2(8): 145-146.
[12] HEREMANS J P, THRUSH C M, MORELLI D T.Geometrical magnetothermopower in n- and p-type InSb.Physical Review B, 2001, 65(3): 035209.
[13] ALI M N, XIONG J, FLYNN S, et al. Large, non-saturating magnetoresistance in WTe₂. Nature, 2014, 514(7521): 205.
[14] CHEN S S, LI X, LV Y Y, et al. Electrical, magneto-transport and significant thermoelectric properties of Te-rich ZrTe₅+_δ polycrystals. Journal of Alloys and Compounds, 2018, 764: 540-544.
[15] SHEKHAR C, NAYAK A K, SUN Y, et al. Extremely large magnetoresistance and ultrahigh mobility in the topological Weyl semimetal candidate NbP. Nature Physics, 2015, 11(8): 645.
[16] YANG X, BAI H, WANG Z, et al. Giant linear magneto-resistance in nonmagnetic PtBi₂. Applied Physics Letters, 2016, 108(25): 252401.
[17] XIANG J, HU S, LYU M, et al. Large transverse thermoelectric figure of merit in a topological Dirac semimetal. Science China Physics, Mechanics & Astronomy, 2019, 63(3): 237011.
[18] WANG P, CHO C, TANG F, et al. Giant Nernst effect and field-enhanced transversal z_NT in ZrTe₅. Physical Review B, 2021, 103(4): 045203.
[19] FU C, GUIN S N, SCAFFIDI T, et al. Largely suppressed magneto-thermal conductivity and enhanced magneto-thermoelectric properties in PtSn₄. Research, 2020, 2020: 4643507.
[20] CHEN Z, ZHANG X, REN J, et al. Leveraging bipolar effect to enhance transverse thermoelectricity in semimetal Mg₂Pb for cryogenic heat pumping. Nature Communications, 2021, 12: 3837.
[21] WANG H, ZHOU Z, YING J, et al. Large magneto-transverse and longitudinal thermoelectric effects in the magnetic Weyl semimetal TbPtBi. Advanced Materials, 2023, 35(2): 2206941.
[22] LI P, QIU P, XU Q, et al. Colossal Nernst power factor in topological semimetal NbSb₂. Nature Communications, 2022, 13(1): 7612.
[23] WATZMAN S J, MCCORMICK T M, SHEKHAR C,#magtechI#et al. Dirac dispersion generates unusually large Nernst effect in Weyl semimetals. Physical Review B, 2018, 97(16): 161404(R).
[24] WU S, WANG X, MI X, et al. Large transverse thermoelectric power factor in topological semimetal NbAs₂. Advanced Energy Materials, 2024, 14(29): 2400184.
[25] HU H, FENG X, PAN Y, et al. Multipocket synergy towards high thermoelectric performance in topological semimetal TaAs₂. Nature Communications, 2025, 16(1): 119.
[26] PAN Y, HE B, HELM T, et al. Ultrahigh transverse thermoelectric power factor in flexible Weyl semimetal WTe₂. Nature Communications, 2022, 13: 3909.
[27] LIU W, WANG Z, WANG J, et al. Weyl semimetal states generated extraordinary quasi-linear magnetoresistance and Nernst thermoelectric power factor in polycrystalline NbP. Advanced Functional Materials, 2022, 32(28): 2202143.
[28] FU C, GUIN S N, WATZMAN S J, et al. Large Nernst power factor over a broad temperature range in polycrystalline Weyl semimetal NbP. Energy & Environmental Science, 2018, 11(10): 2813.
[29] FENG T, WANG P, HAN Z, et al. Large transverse and longitudinal magneto-thermoelectric effect in polycrystalline nodal-line semimetal Mg₃Bi₂. Advanced Materials, 2022, 34(19): 2200931.
[30] FENG T, WANG P, HAN Z, et al. Giant transverse thermoelectric effect induced by topological transition in polycrystalline Dirac semimetal Mg₃Bi₂. Energy & Environmental Science, 2023, 16(4): 1560.
[31] LI P, QIU P, XIAO J, et al. A giant Nernst power factor and figure-of-merit in polycrystalline NbSb₂ for Ettingshausen refrigeration. Energy & Environmental Science, 2023, 16(9): 3753.
[32] LI Y, LI L, WANG J, et al. Resistivity plateau and negative magnetoresistance in the topological semimetal TaSb₂. Physical Review B, 2016, 94(12): 121115.
[33] MAO J, ZHU H, DING Z, et al. High thermoelectric cooling performance of n-type Mg₃Bi₂-based materials. Science, 2019, 365(6452): 495.
[34] LIU H, SHI X, XU F, et al. Copper ion liquid-like thermoelectrics. Nature Materials, 2012, 11(5): 422.
[35] GUO L, LIU Y K, GAO G Y, et al. Extreme magnetoresistance and SdH oscillation in compensated semimetals of NbSb₂ single crystals. Journal of Applied Physics, 2018, 123(15): 155103.
[36] BEHNIA K, AUBIN H.Nernst effect in metals and superconductors: a review of concepts and experiments.Reports on Progress in Physics, 2016, 79(4): 046502.
[37] HARVEY GOULD J T. Statistical and Thermal Physics: With Computer Applications. Princeton: Princeton University Press, 2010: 322.
[38] DELVES R T.Thermomagnetic effects in semiconductors and semimetals.Reports on Progress in Physics, 1965, 28(1): 249.
[39] KAGAN V D, RED'KO N A, RODIONOV N A, et al. Phonon drag thermopower in doped bismuth. Physics of the Solid State, 2004, 46(8): 1410.
[40] KIMURA M, HE X, KATASE T, et al. Large phonon drag thermopower boosted by massive electrons and phonon leaking in LaAlO₃/LaNiO₃/LaAlO₃ heterostructure. Nano Letters, 2021, 21(21): 9240.
[41] HAN F, ANDREJEVIC N, NGUYEN T, et al. Quantized thermoelectric Hall effect induces giant power factor in a topological semimetal. Nature Communications, 2020, 11(1): 6167.
[42] OCAñA R, ESQUINAZI P. Thermal conductivity tensor in YBa₂Cu₃O₇-_x: effects of a planar magnetic field. Physical Review B, 2002, 66(6): 064525.
[43] ZHANG S, WANG X, BAI Q,et al. Measuring lattice thermal conductivity of Bi₁-_xSb_x enabled by external magnetic field. Materials Today Physics, 2024, 45: 101460.
